Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

16 part groups · 6 illustrations

Illustrations

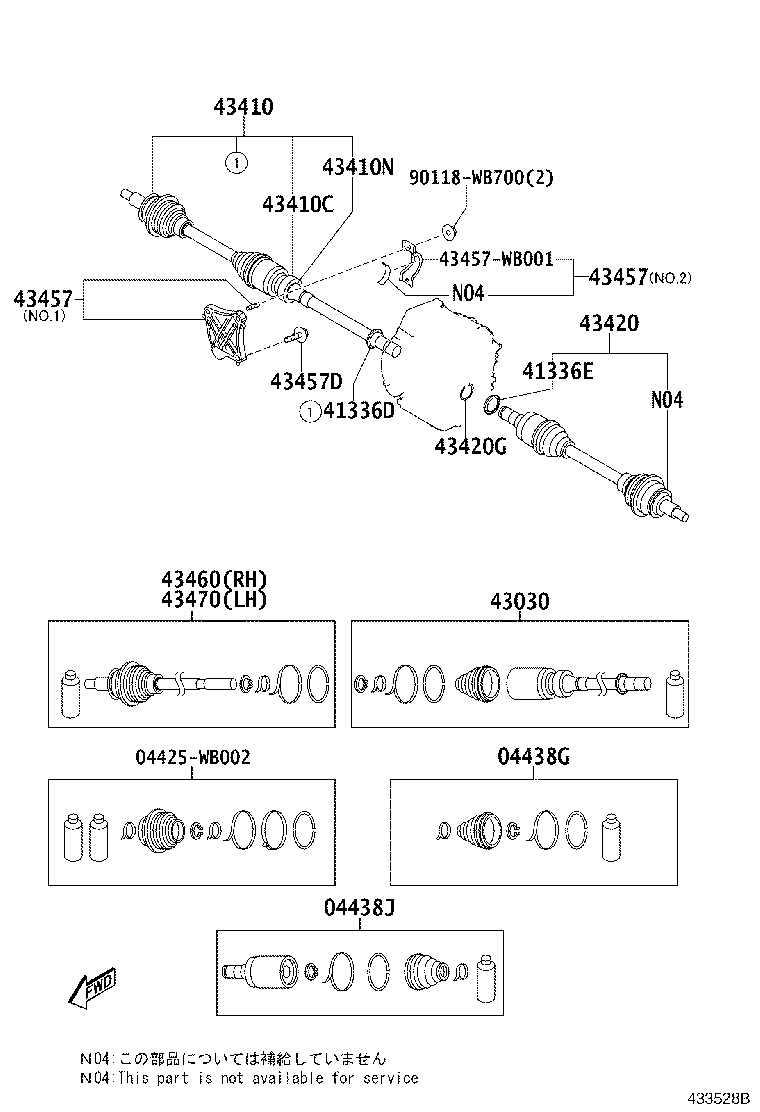

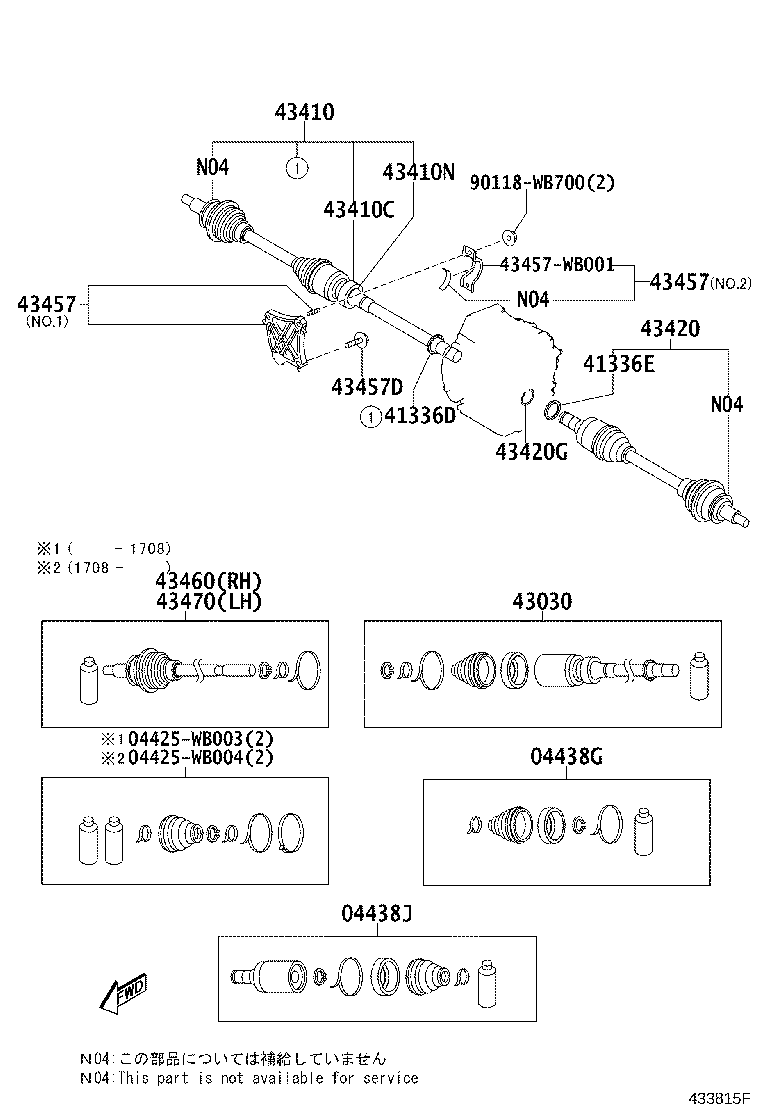

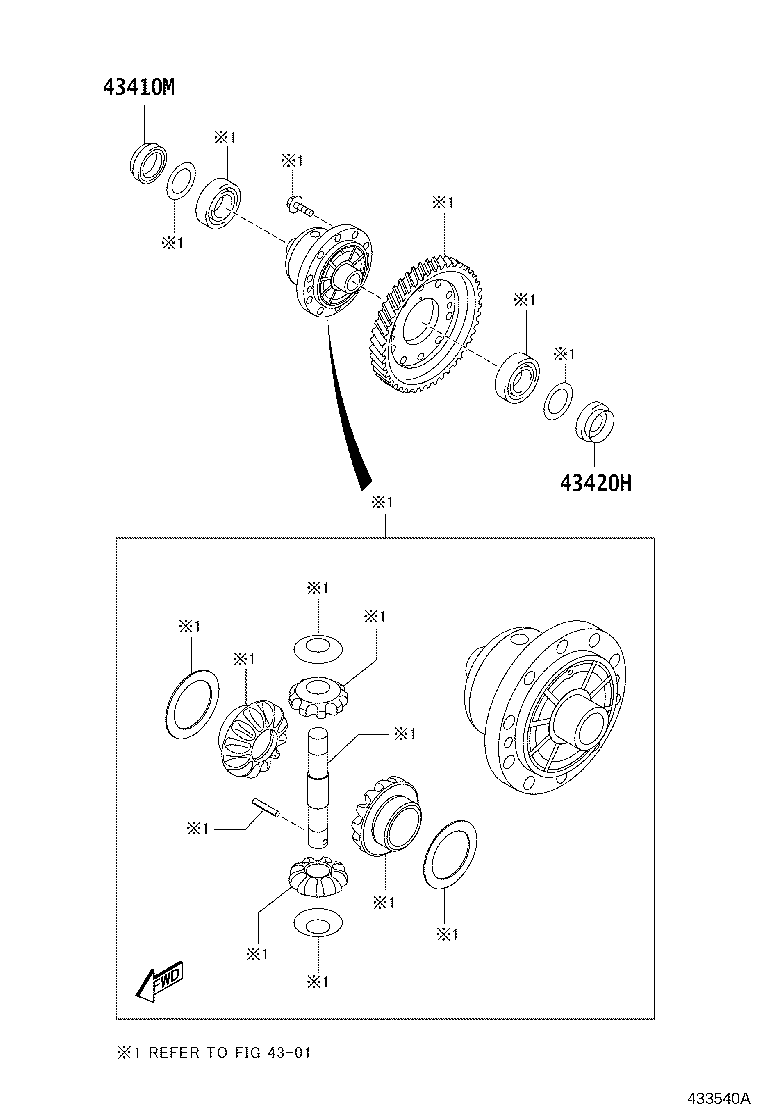

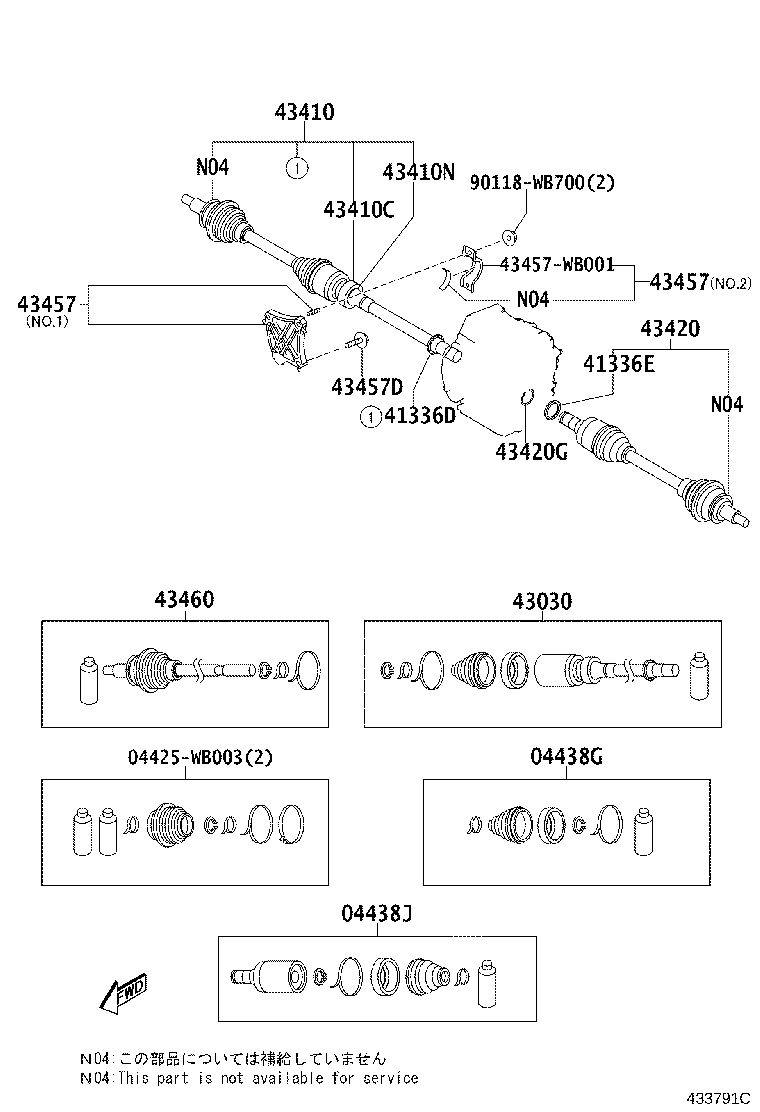

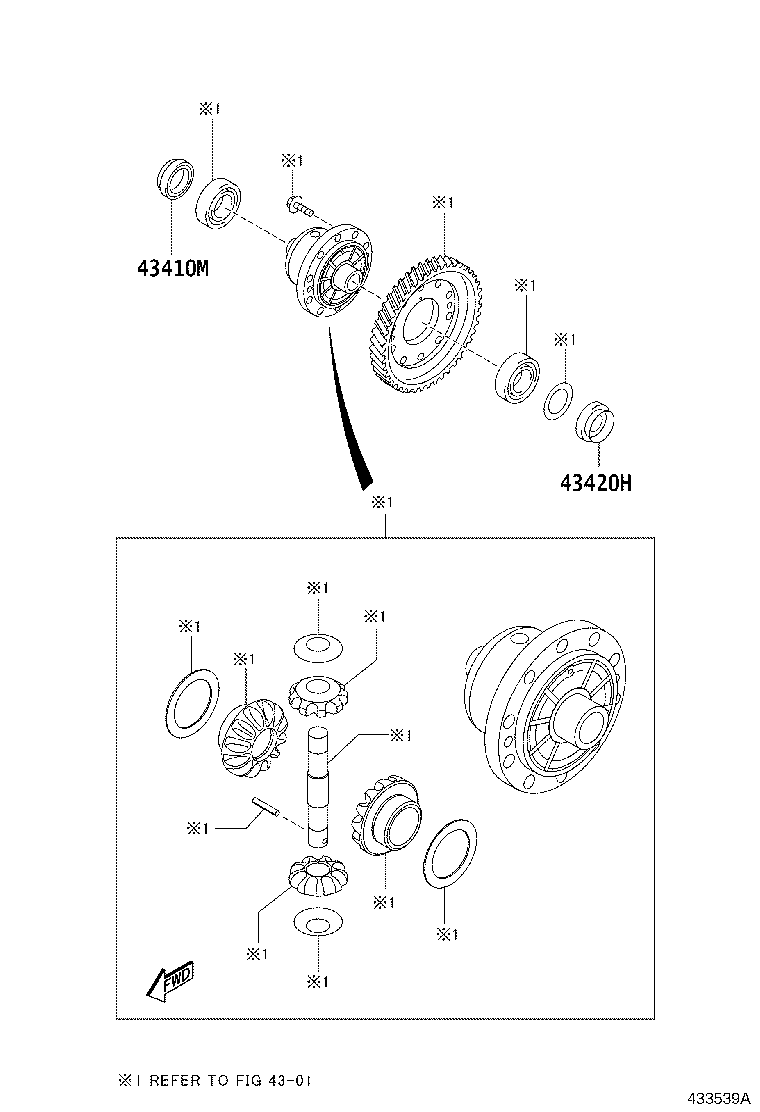

Figure 433527B 433527B 2015-06 → 2017-01 Figure 433791C 433791C 2017-01 → — Figure 433528B 433528B 2015-06 → 2017-03 Figure 433815F 433815F 2017-03 → — Figure 433540A 433540A 2015-06 → — Figure 433539A 433539A 2015-06 → —

Part groups

PNCDescription
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
41336D Cover, Front Drive Shaft Dust, RH
41336E Cover, Front Drive Shaft Dust, LH
43030 Joint Assy, Front Drive Inboard, RH
43410 Shaft Assy, Front Drive, RH
43410C Bearing (FOR FRONT DRIVE SHAFT)
43410M Oil Seal, Front Drive Shaft, RH
43410N Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43420 Shaft Assy, Front Drive, LH
43420G Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H Oil Seal, Front Drive Shaft, LH
43457 Bracket, Drive Shaft Bearing
43457D Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
