Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

6 part groups · 9 illustrations

Illustrations

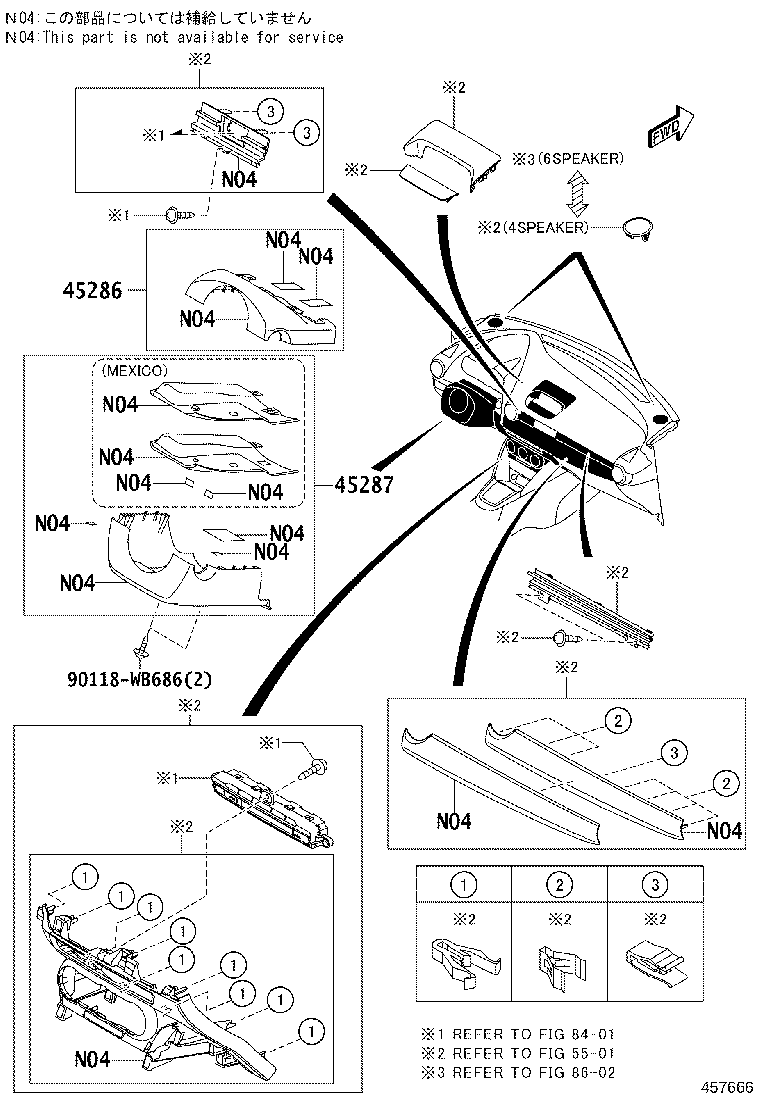

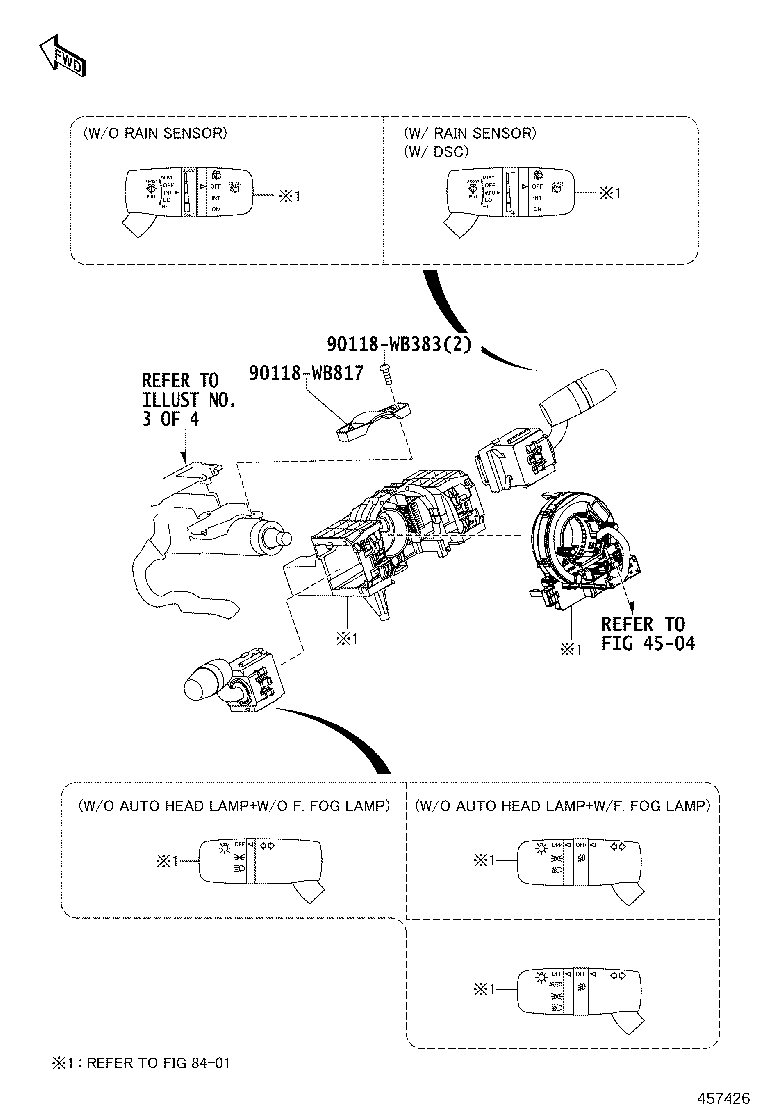

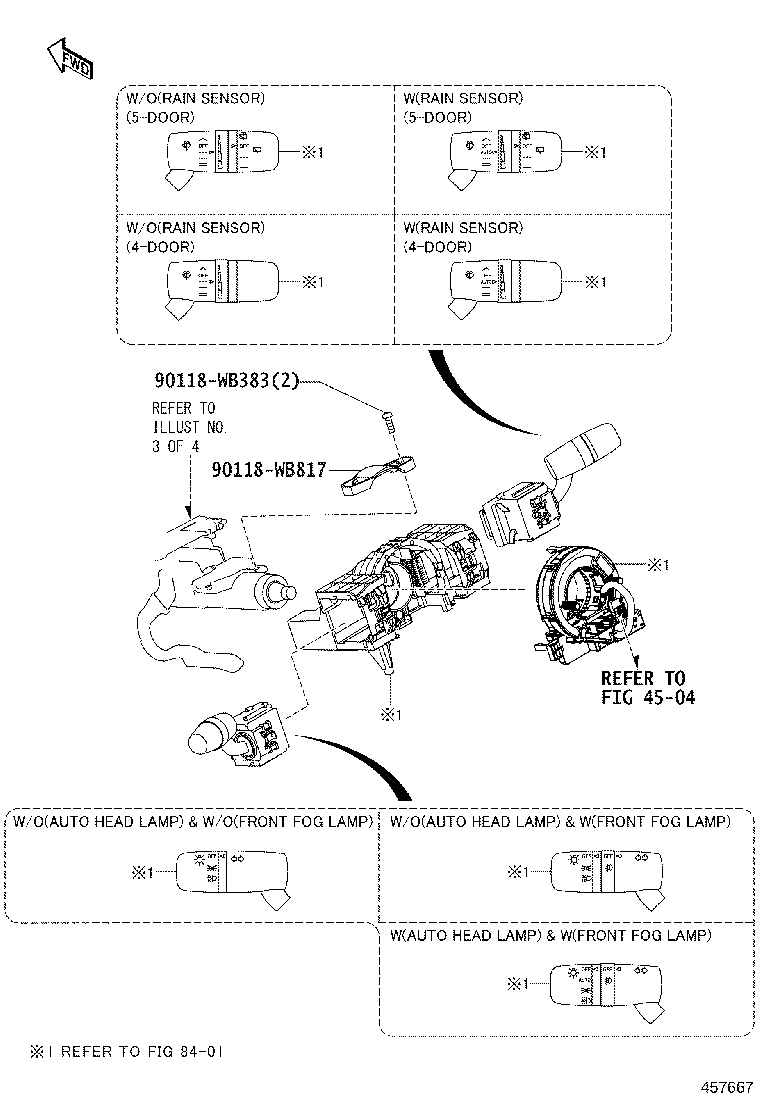

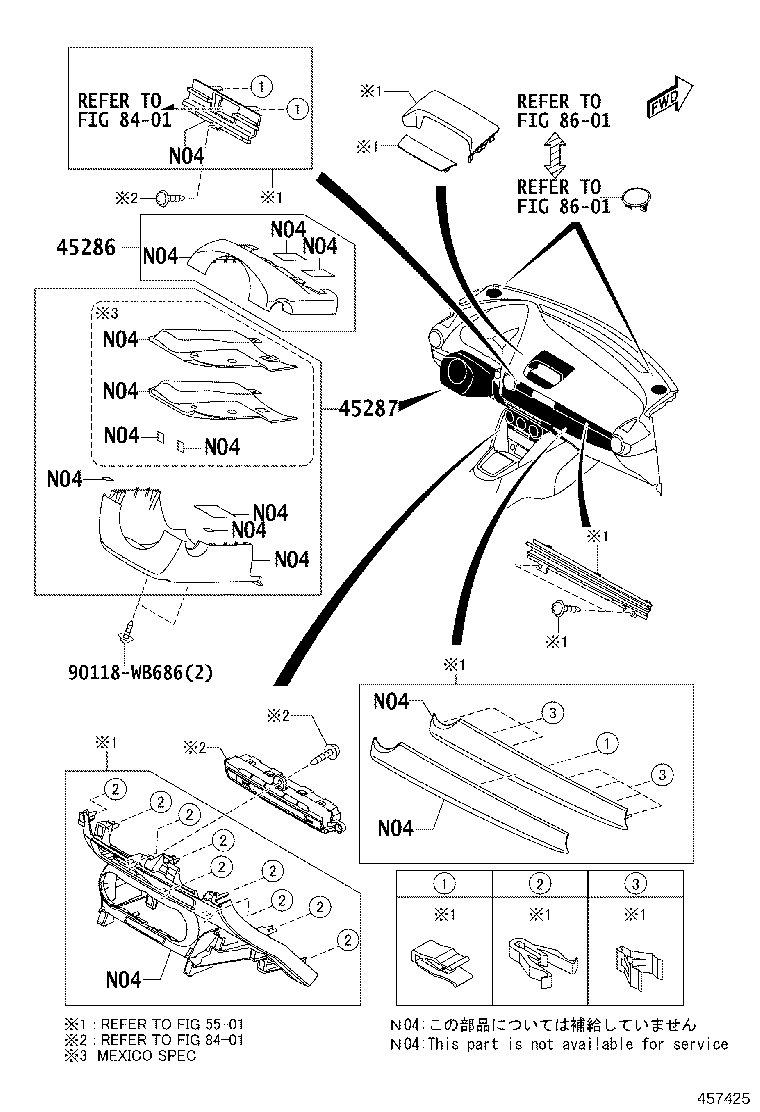

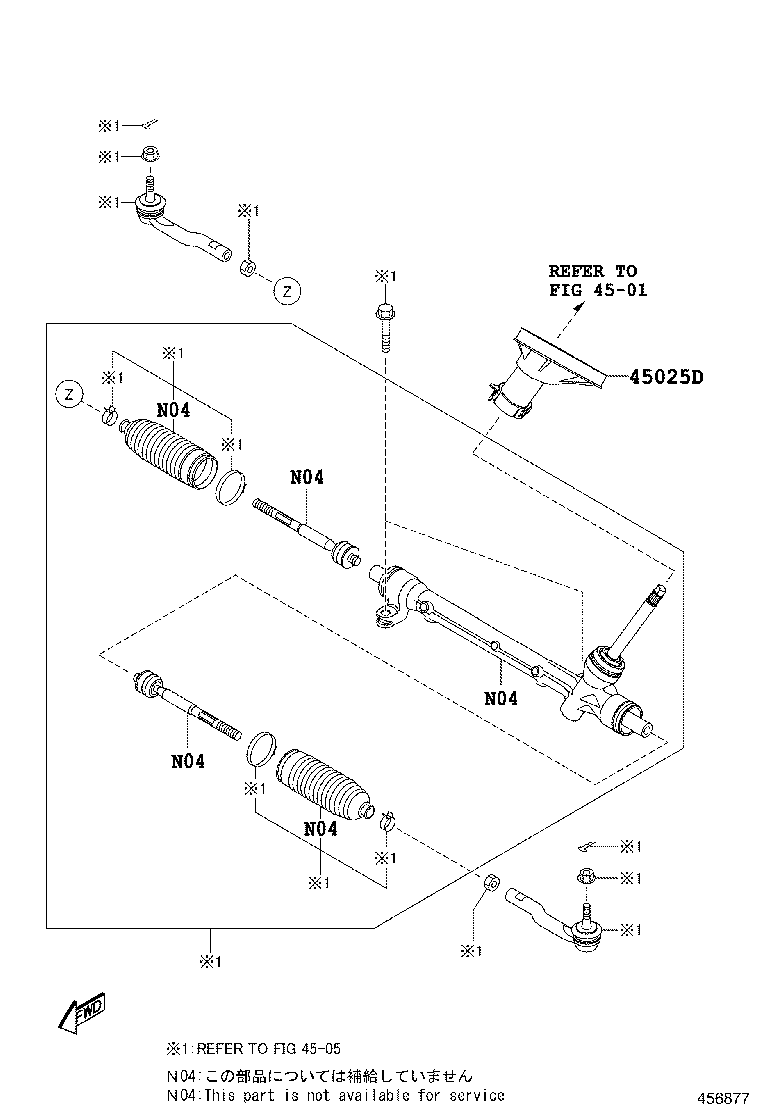

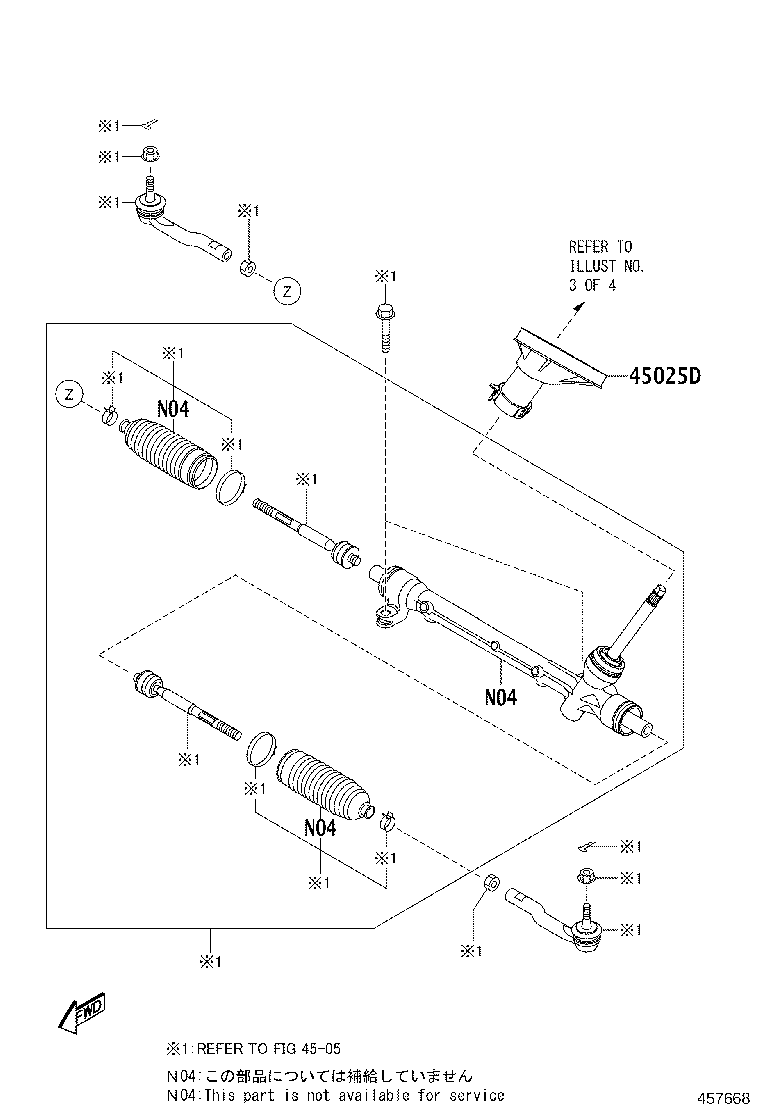

Figure 456875 456875 2015-06 → 2018-08 Figure 457425 457425 2018-08 → 2019-08 Figure 457666 457666 2019-08 → — Figure 457429 457429 2015-06 → 2018-08 Figure 457426 457426 2018-08 → 2019-08 Figure 457667 457667 2019-08 → — Figure 456878 456878 2015-06 → — Figure 456877 456877 2015-06 → 2019-08 Figure 457668 457668 2019-08 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45250 Column Assy, Steering
45259 Cover, Steering Column, Lower
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45287 Cover, Steering Column, Lwr
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
