Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

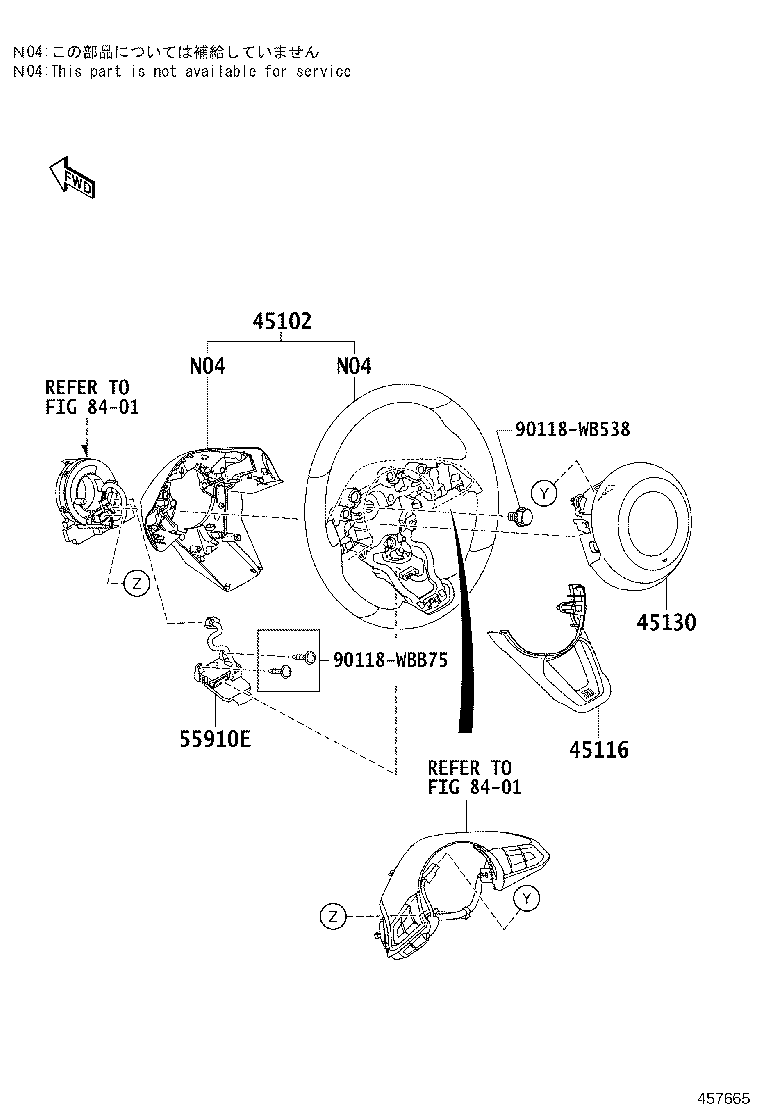

Steering Wheel
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 45102 | Wheel Sub-assy, Steering |
| 45116 | Ornament, Steering Wheel, NO.1 |
| 45130 | Button Assy, Horn |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 55910E | Control Assy, Steering Wheel Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
