Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

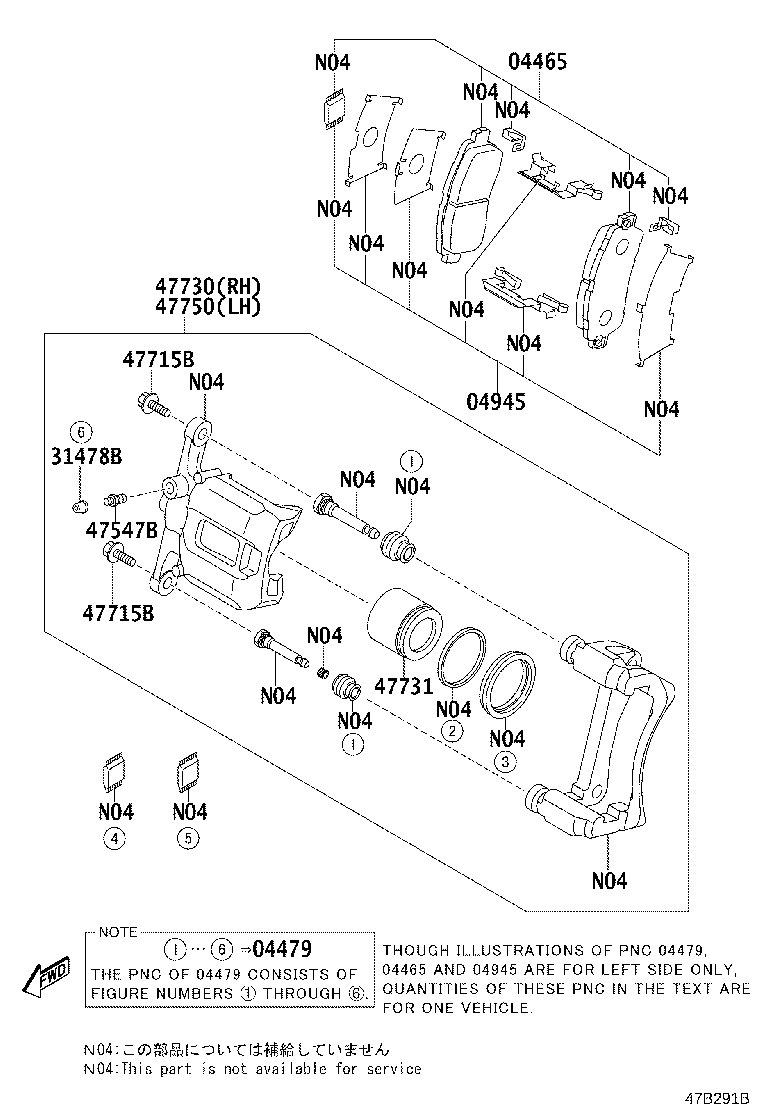

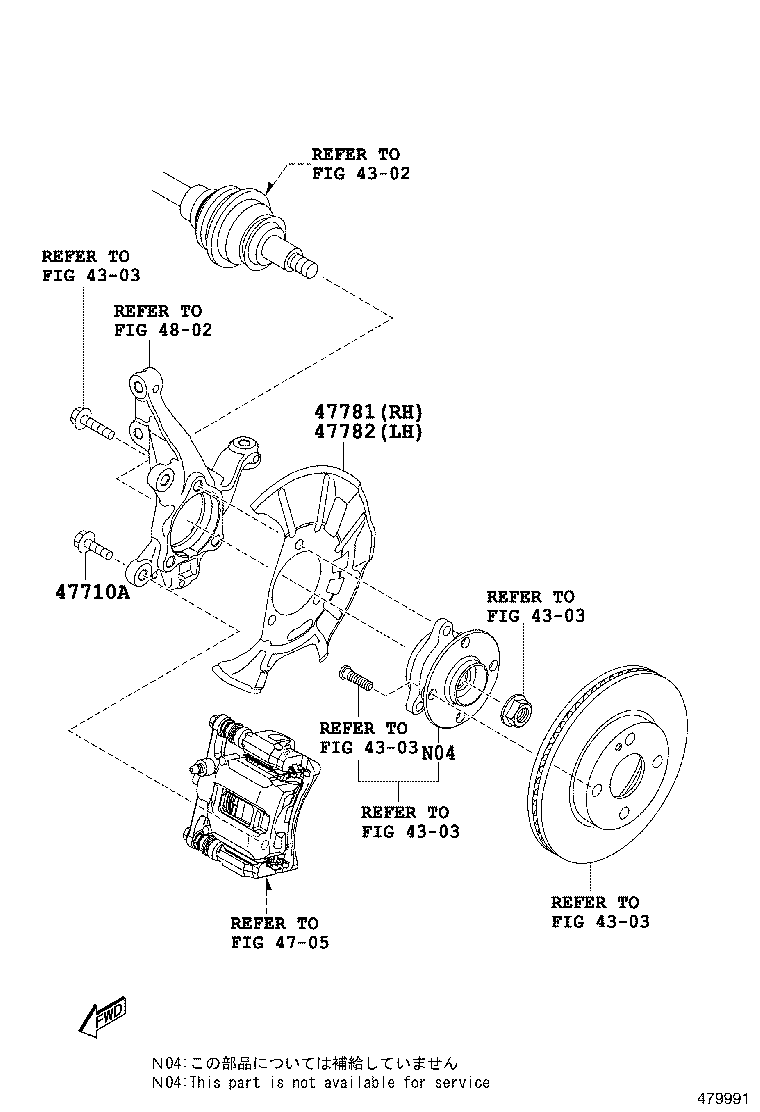

Front Disc Brake Caliper & Dust Cover
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04479 | Cylinder Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 31478B | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47547B | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47715B | Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47782 | Cover, Disc Brake Dust, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
