Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 5 illustrations

Illustrations

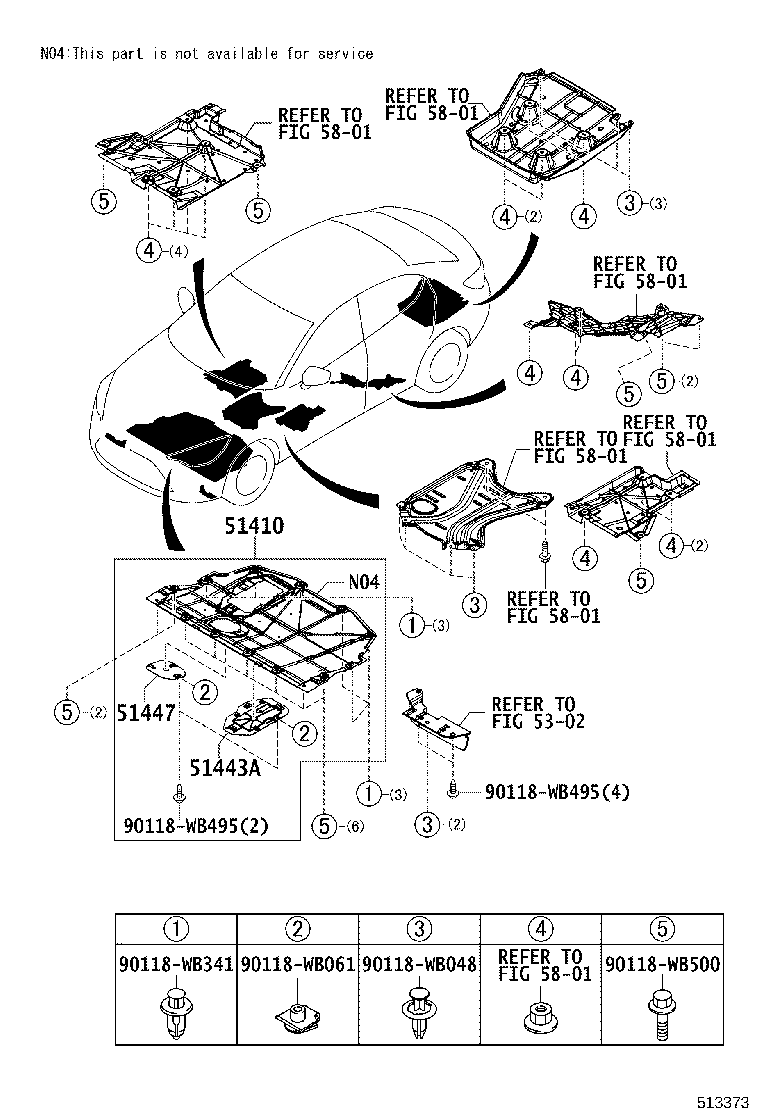

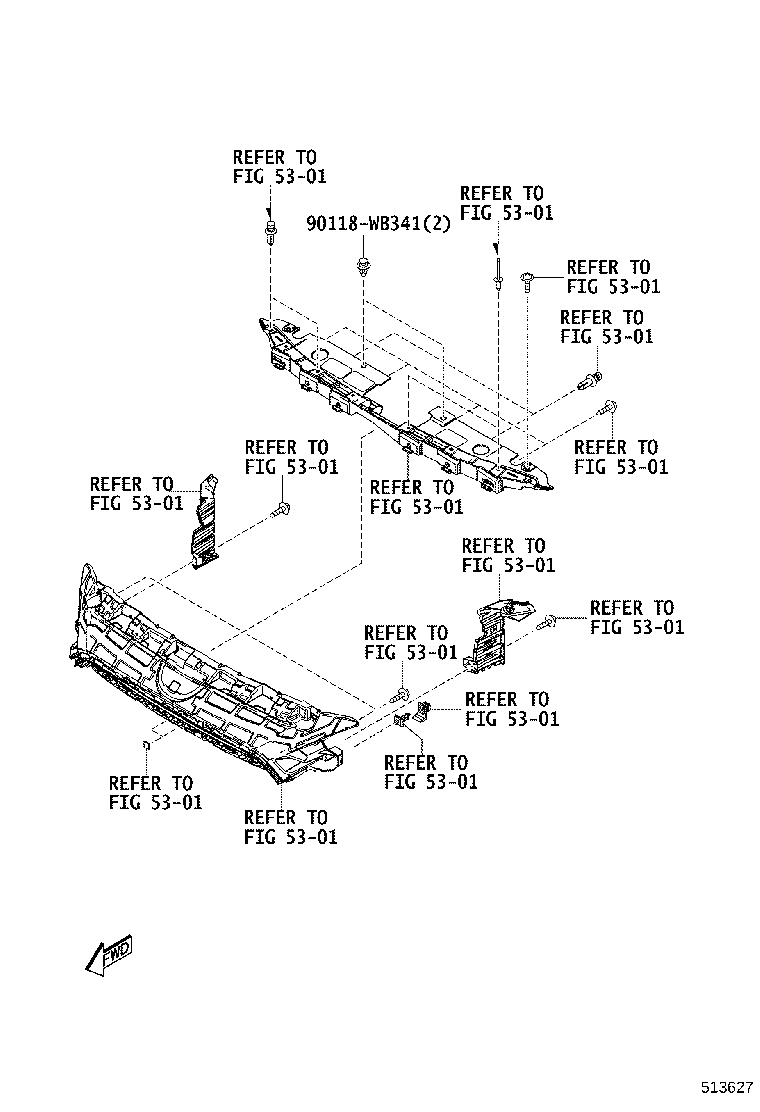

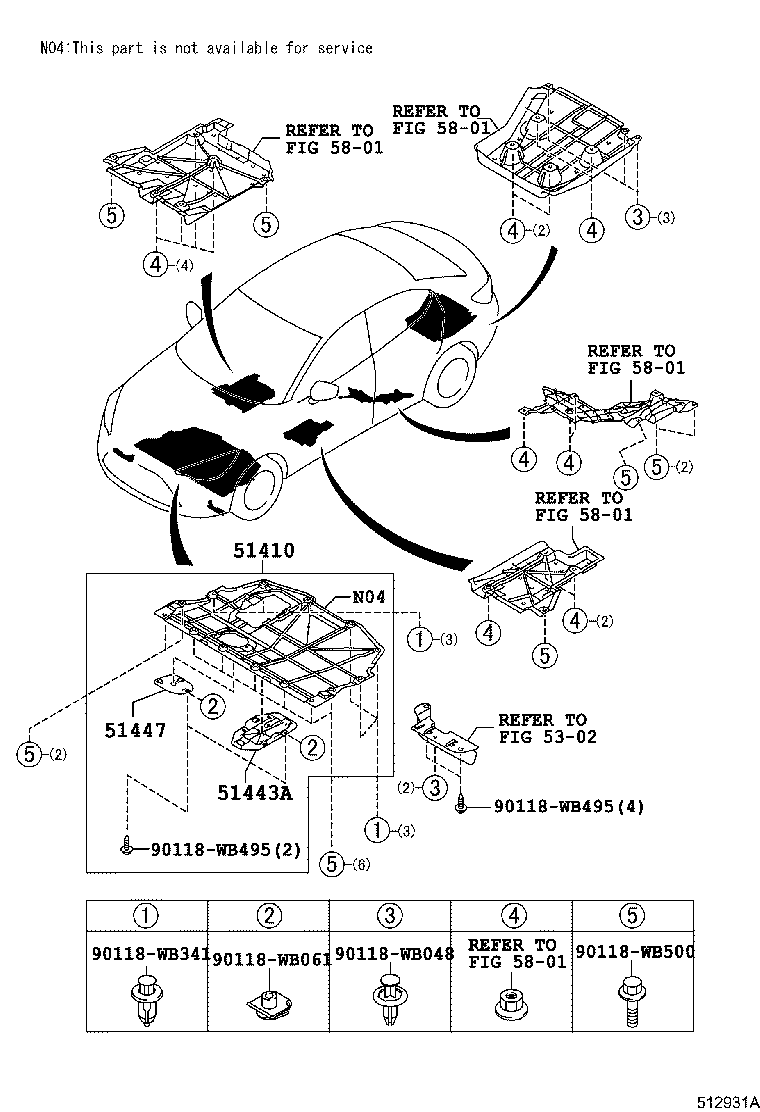

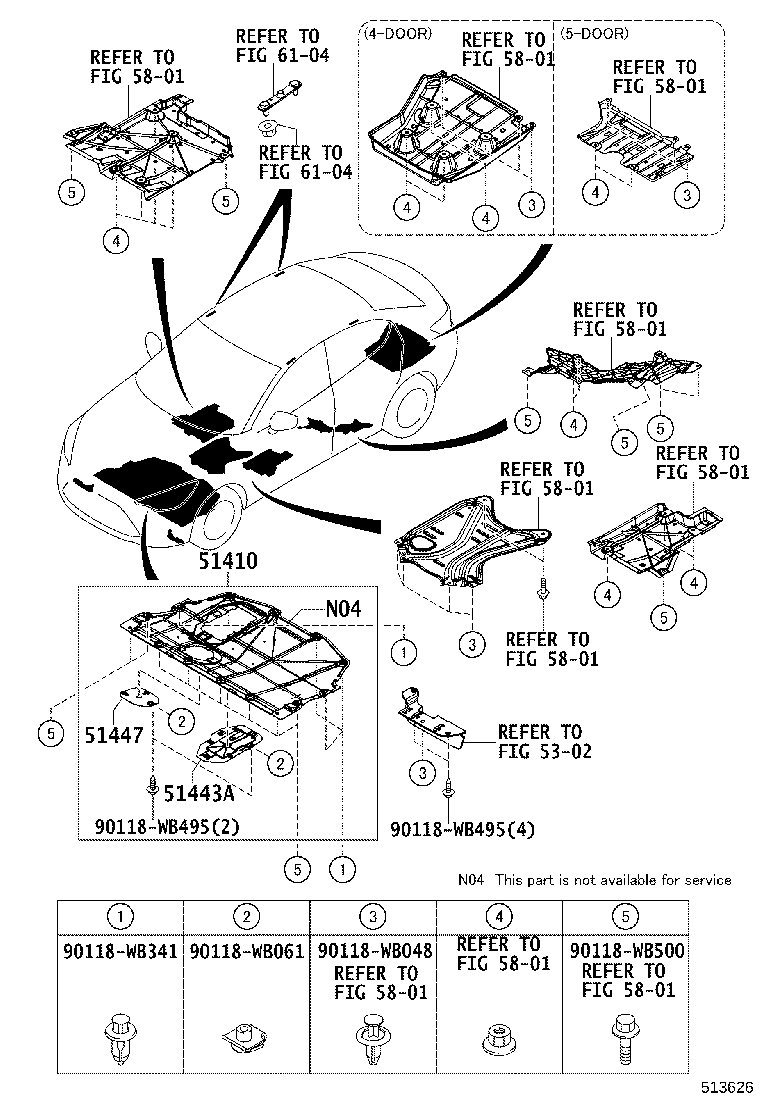

Figure 512920C 512920C 2015-06 → — Figure 512931A 512931A 2015-06 → 2018-08 Figure 513373 513373 2018-08 → 2019-08 Figure 513626 513626 2019-08 → — Figure 513627 513627 2019-08 → —

Part groups

PNCDescription
51115 Rail, Frame Side, Rear RH
51116 Rail, Frame Side, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51410 Cover Assy, Engine Under, NO.1
51443A Cover, Engine Under, Rear
51447 Guide, Engine Under Cover Air
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
