Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

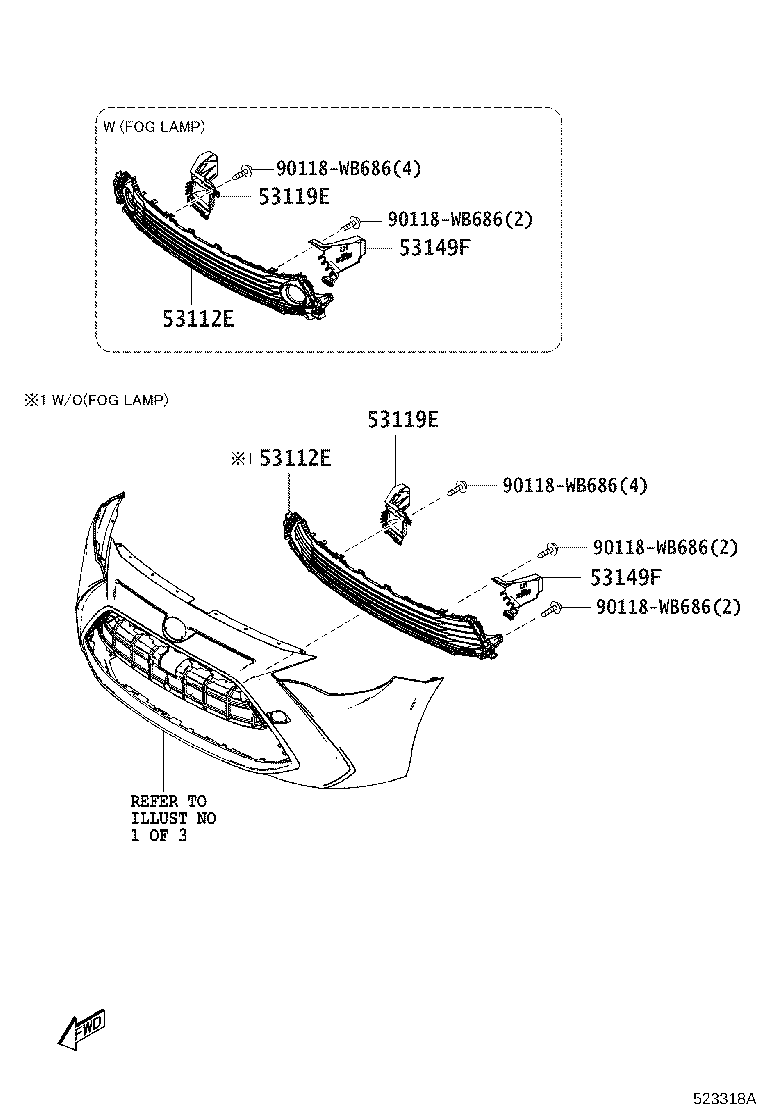

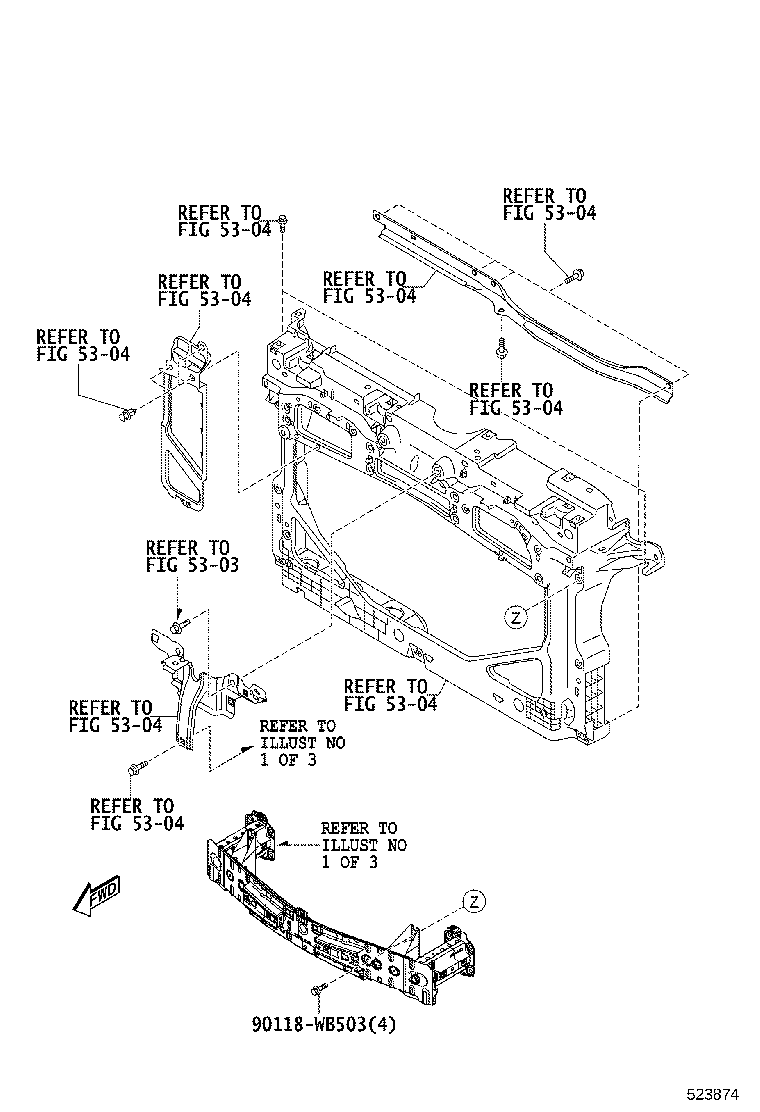

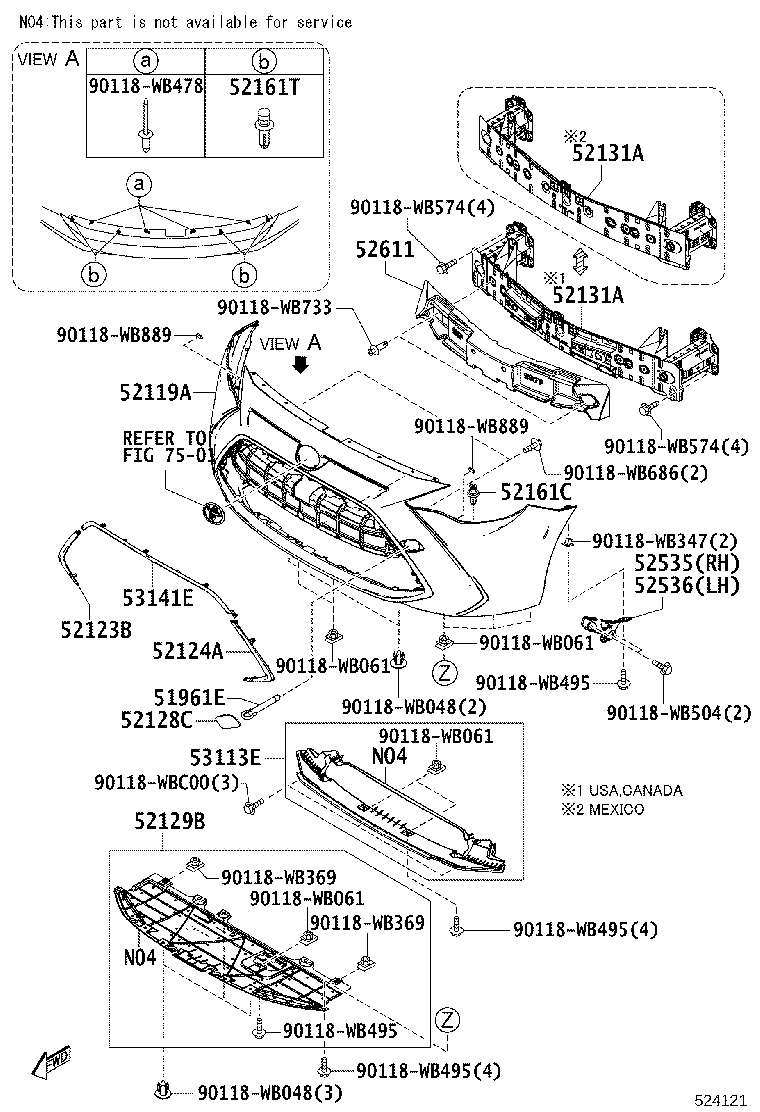

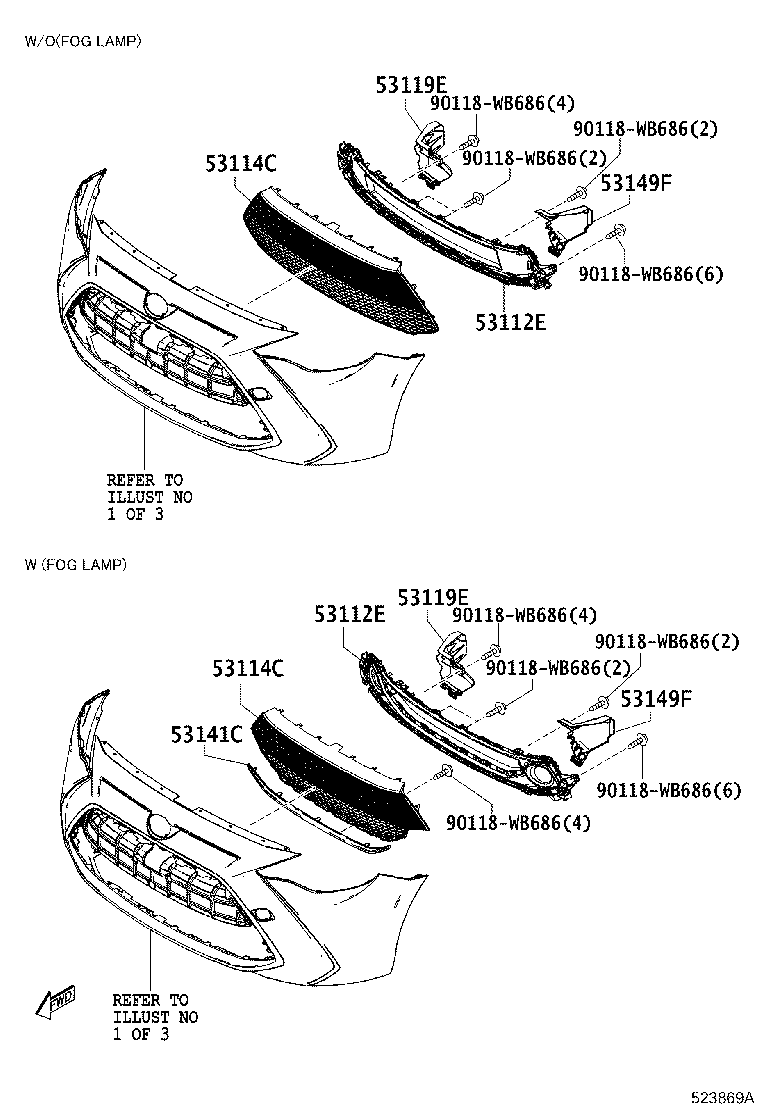

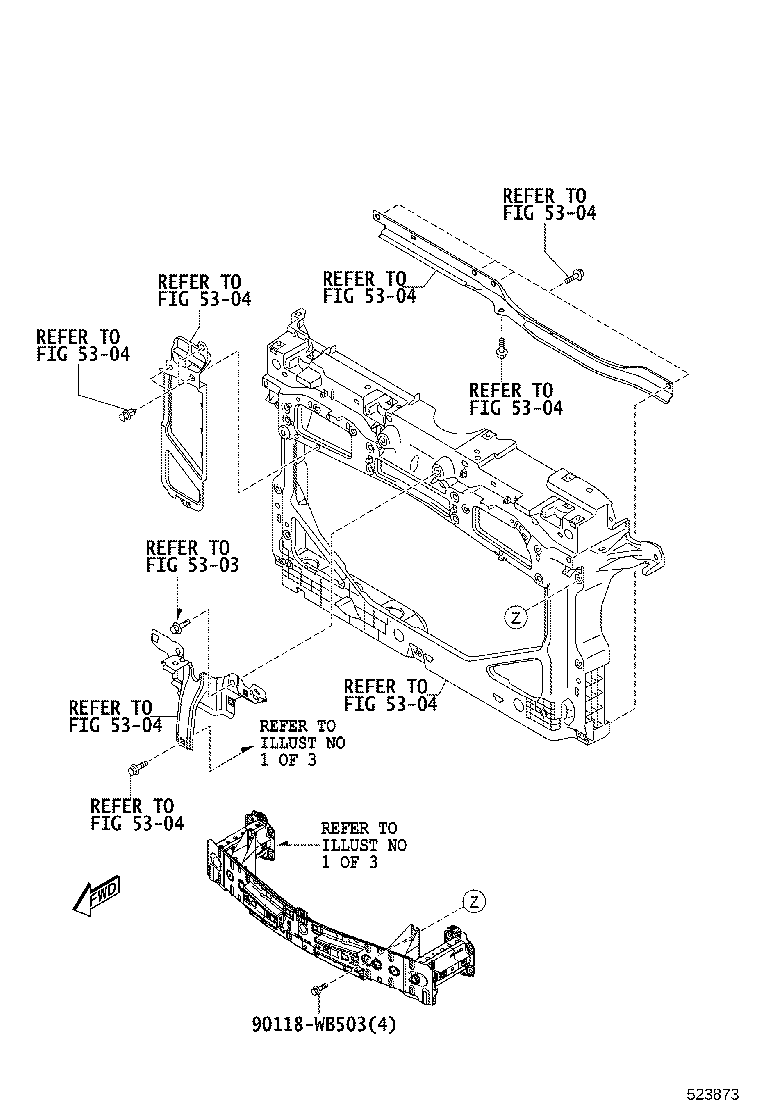

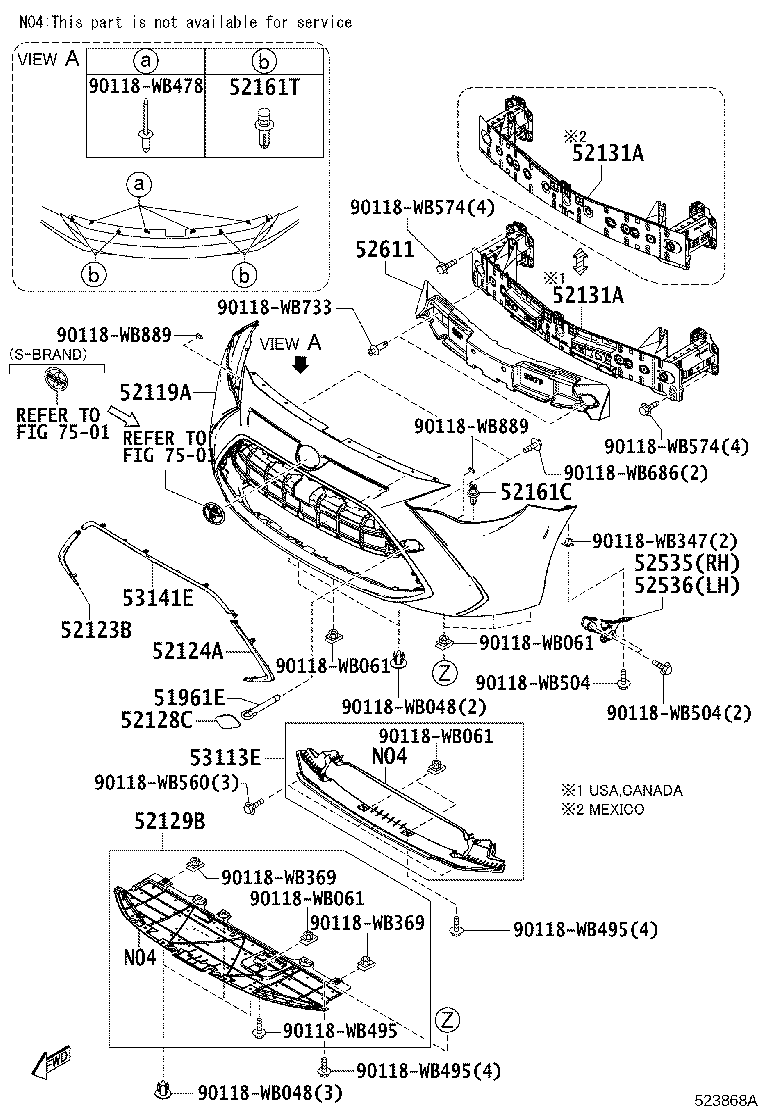

Front Bumper & Bumper Stay
19 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 51961E | Hook, Front |
| 52119A | Cover, Front Bumper |
| 52123B | Plate, Front Bumper Reinforcement, RH |
| 52124A | Plate, Front Bumper Reinforcement |
| 52128C | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52161C | Piece, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113E | Grille, Radiator, Lower NO.2 |
| 53114C | Grille, Radiator, Inner |
| 53119E | Protector, Radiator Grille |
| 53141C | Garnish, Radiator Grille |
| 53141E | Cover, Radiator, NO.1 |
| 53149F | Protector, Radiator Grille, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
