Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09
Front Fender Apron & Dash Panel
21 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153D | Guide, Radiator Grille Side Air, RH |
| 53154D | Guide, Radiator Grille Side Air, LH |

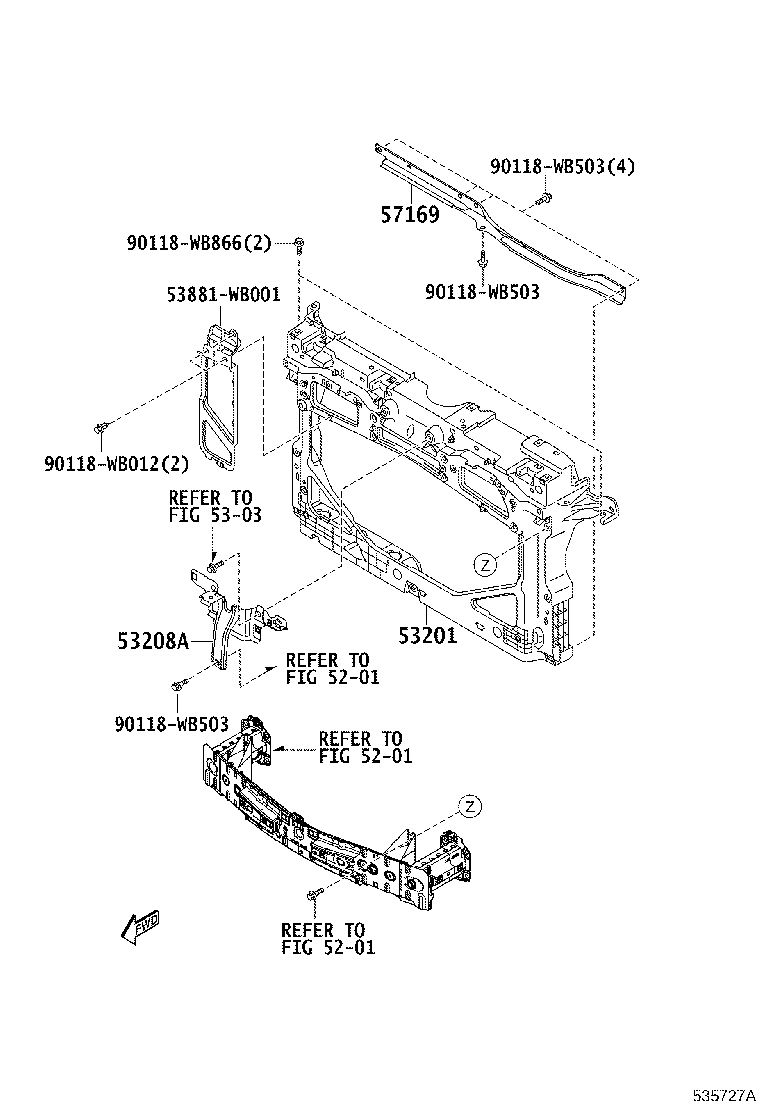

| 53201 | Support Sub-assy, Radiator |
| 53208A | Support Sub-assy, Hood Lock |

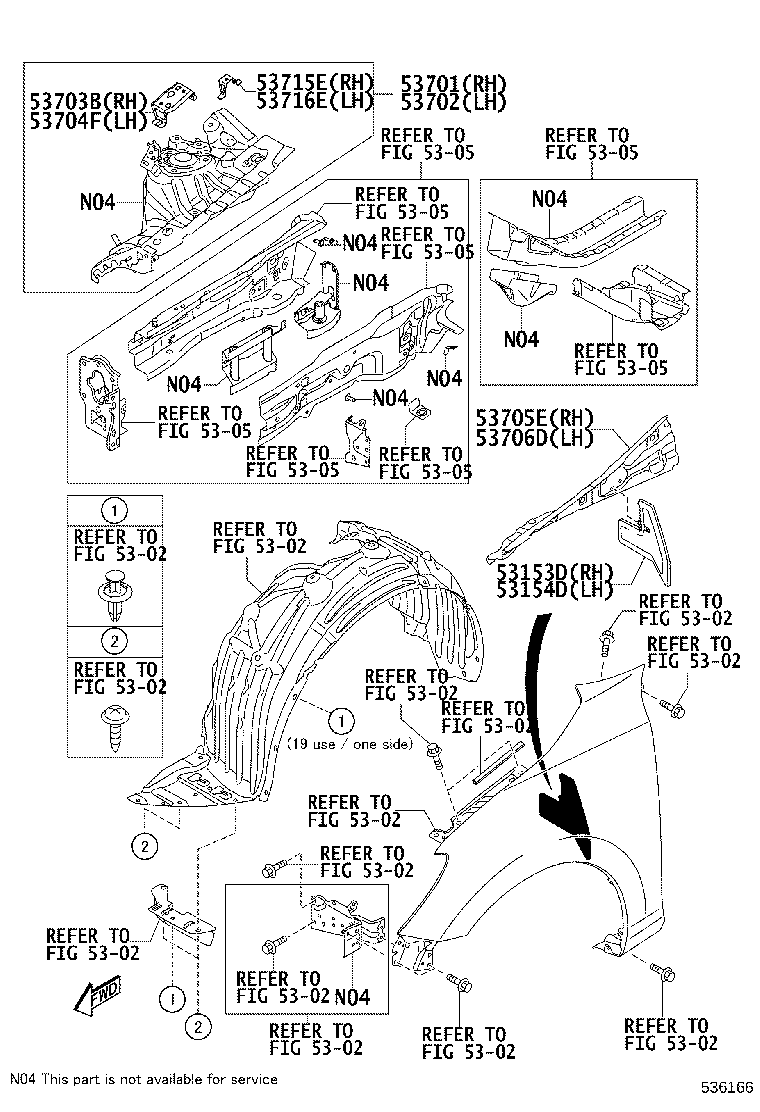

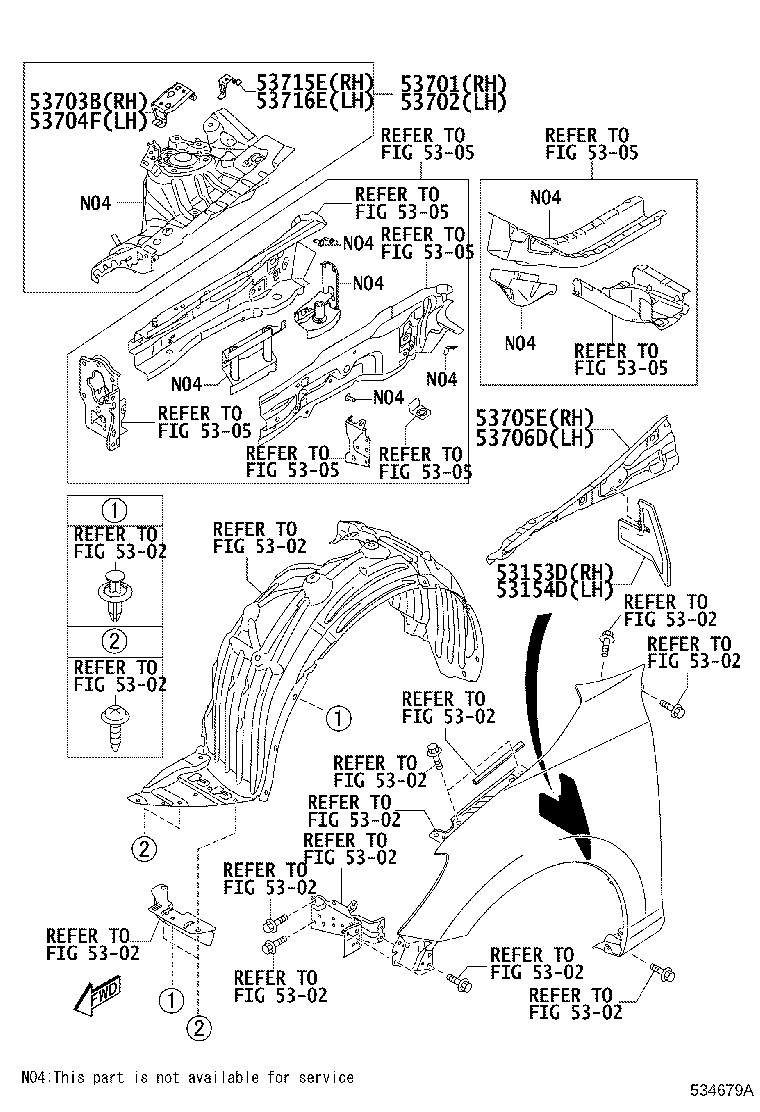

| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53703B | Retainer Sub-assy, Fender Apron, RH |
| 53704F | Retainer Sub-assy, Fender Apron, LH |
| 53705E | Member Sub-assy, Front Apron TO Cowl Side, RH |
| 53706D | Member Sub-assy, Front Apron TO Cowl Side, LH |
| 53715E | Extension, Front Fender Apron, Rear RH |
| 53716E | Extension, Front Fender Apron, Rear LH |

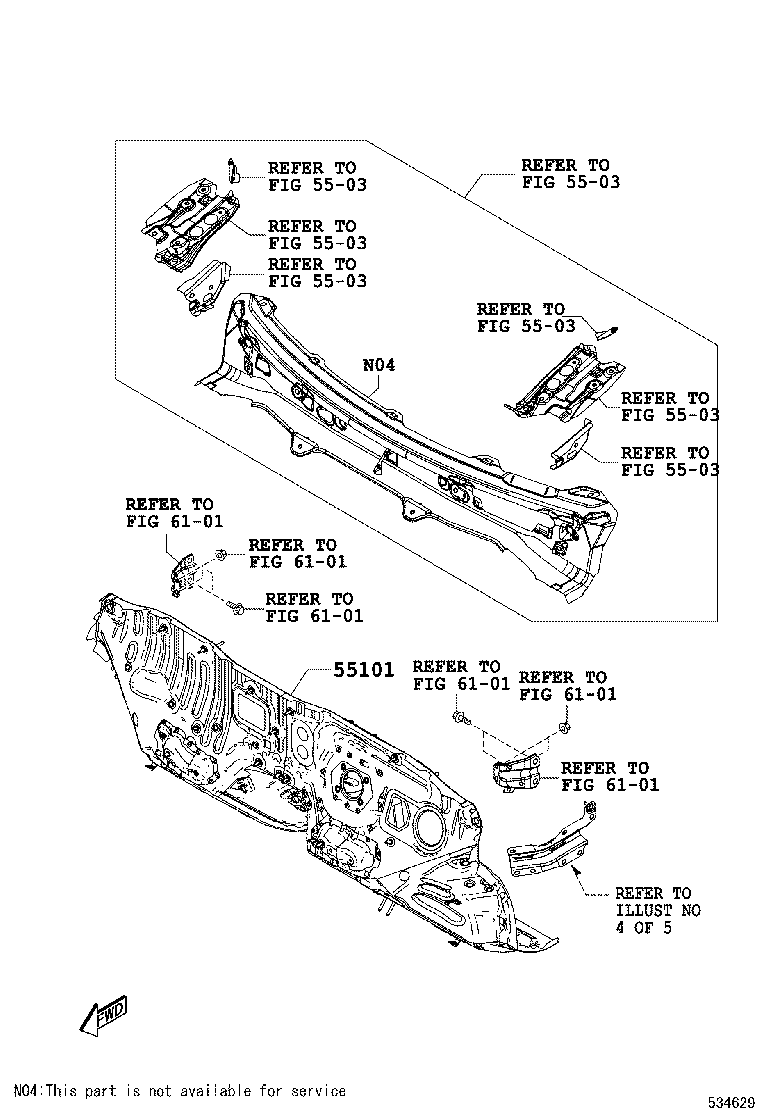

| 55101 | Panel Sub-assy, Dash |
| 55113 | Plate, Clutch Pedal Support Mounting |

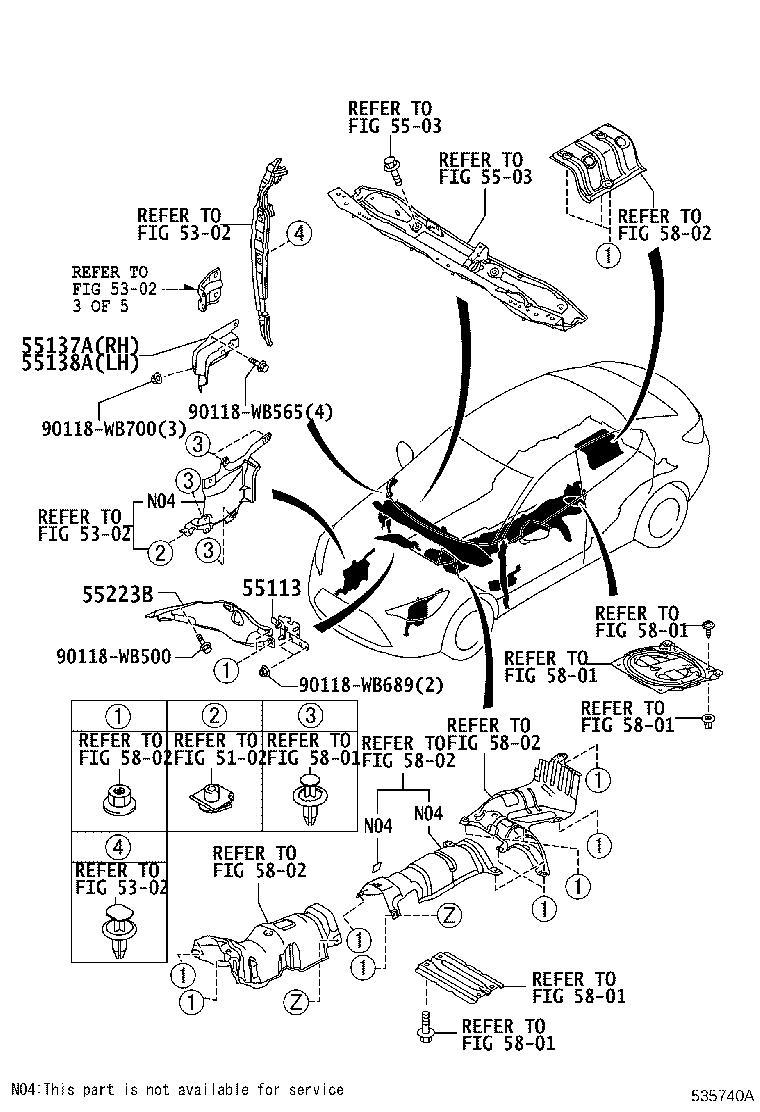

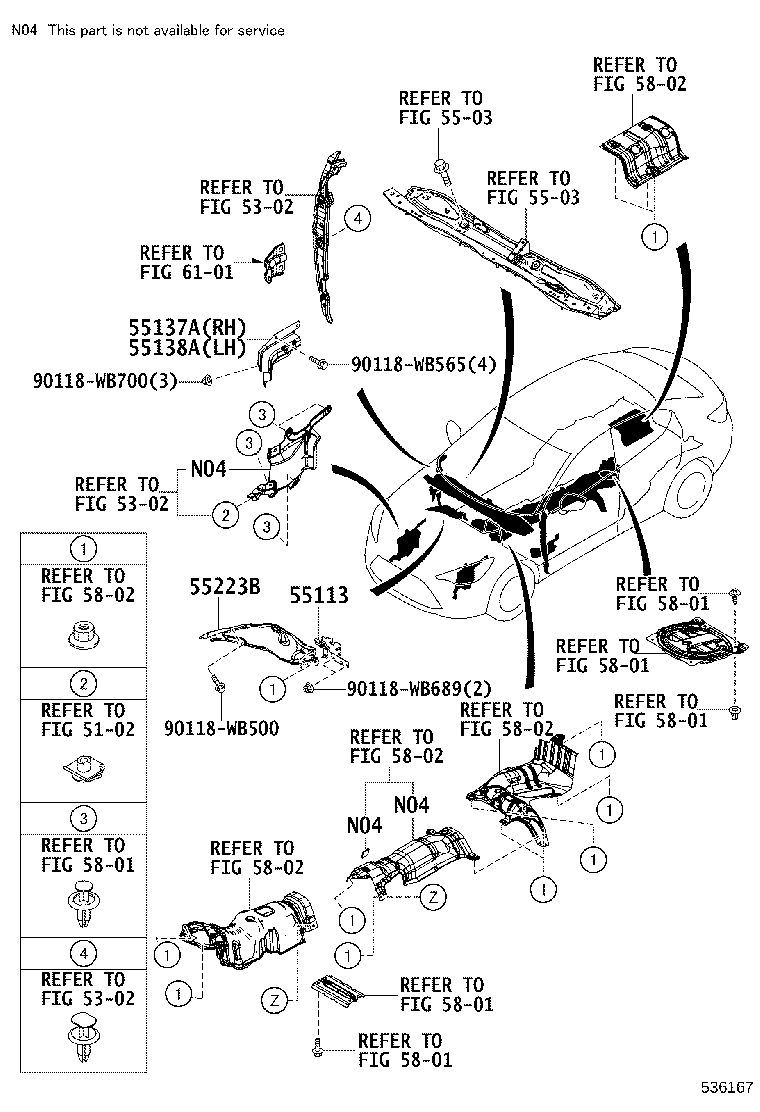

| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |

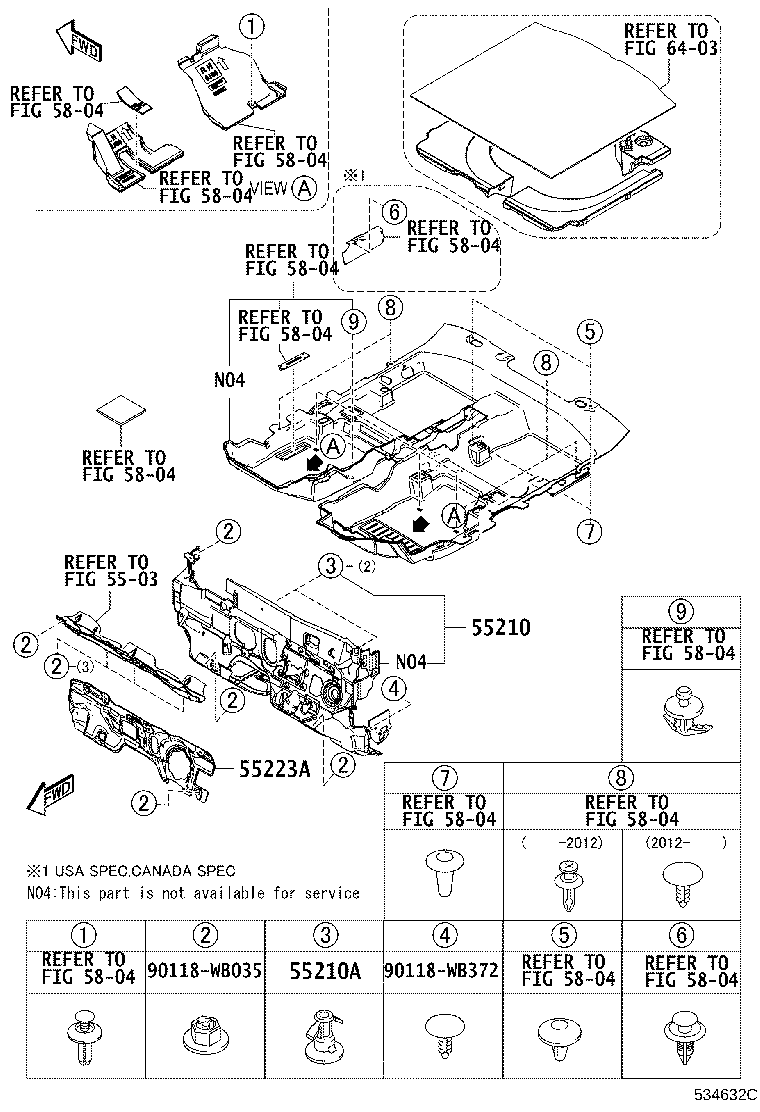

| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223B | Insulator, Dash Panel Heat, NO.1 |
| 57169 | Member, Front Floor, Front RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
