Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

22 part groups · 5 illustrations

Illustrations

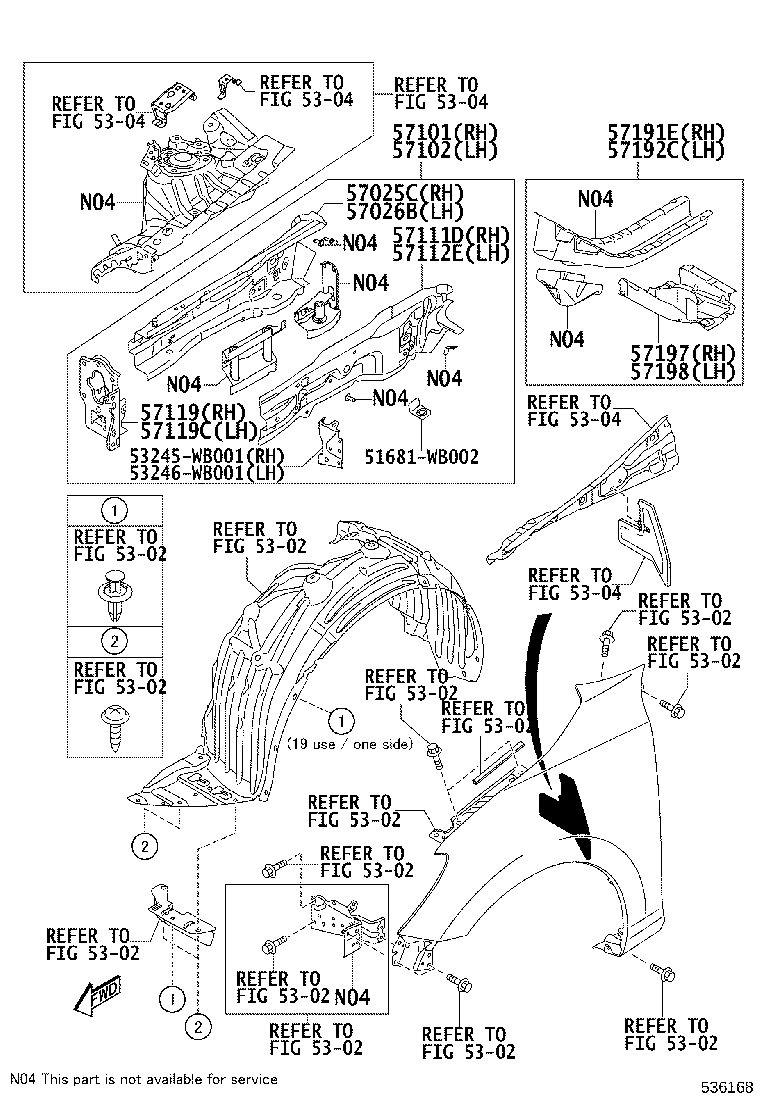

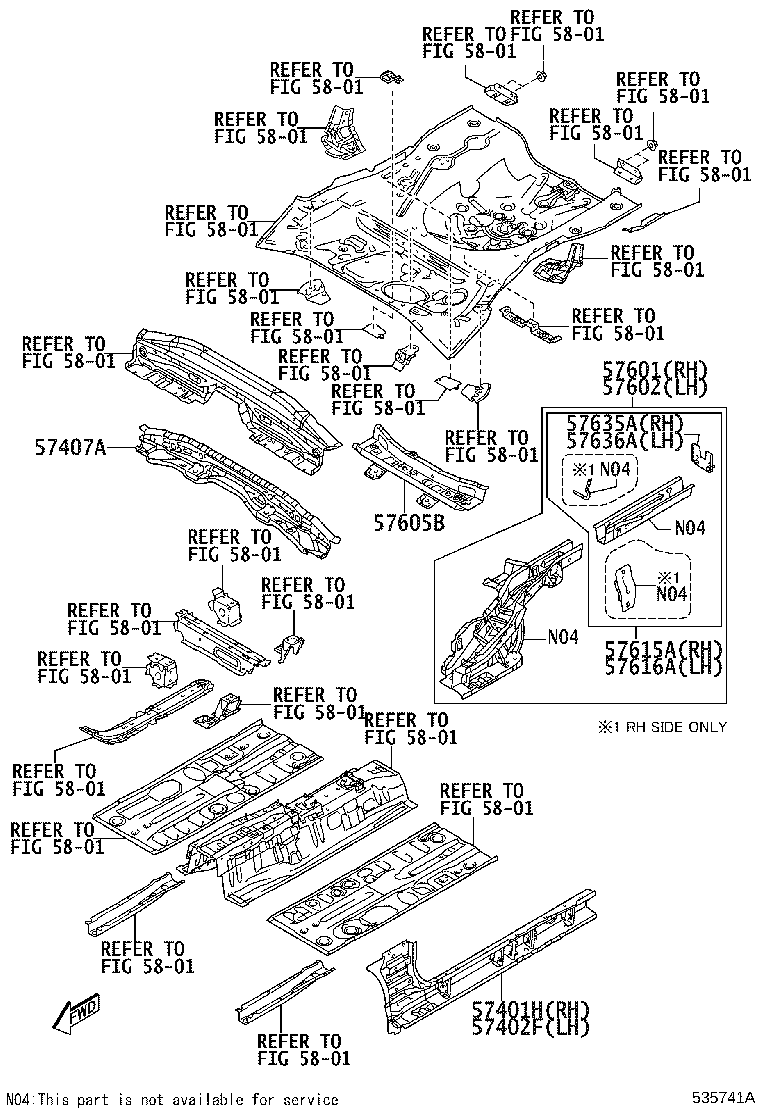

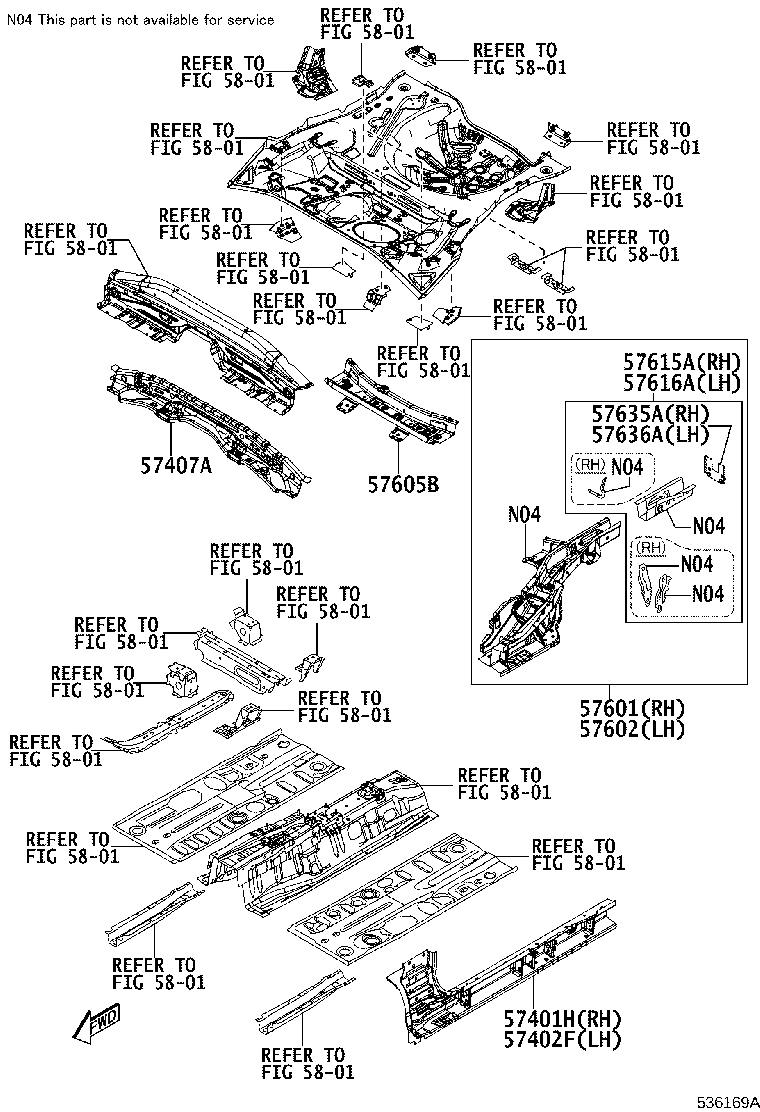

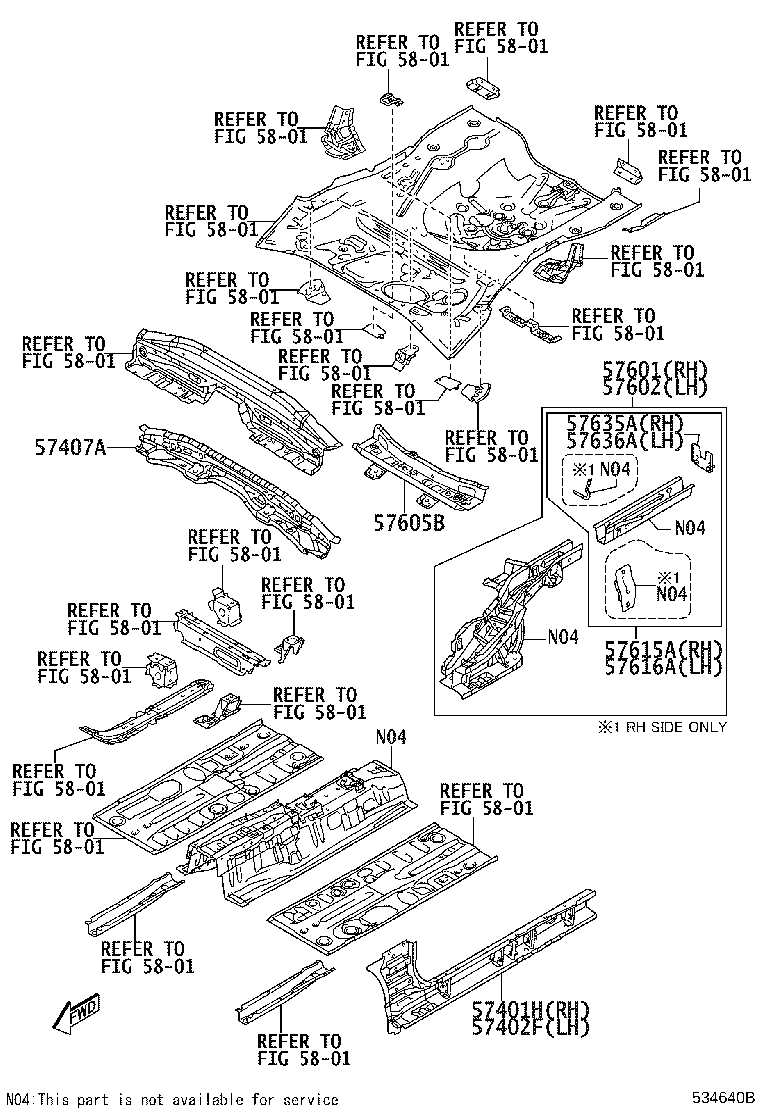

Figure 534678B 534678B 2015-06 → 2019-08 Figure 536168 536168 2019-08 → — Figure 534640B 534640B 2015-06 → 2018-08 Figure 535741A 535741A 2018-08 → — Figure 536169A 536169A 2019-08 → —

Part groups

PNCDescription
57025C Member Sub-assy, Front Side, Outer RH
57026B Member Sub-assy, Front Side, Outer LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57111D Member, Front Side, Inner RH
57112E Member, Front Side, Inner LH
57119 Plate, Front Side Member, Front
57119C Plate, Front Side Member, Front
57191E Member Sub-assy, Front Side, Inner Rear RH
57192C Member Sub-assy, Front Side, Inner Rear LH
57197 Box, Torque, Front RH
57198 Box, Torque, Front LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57407A Member Sub-assy, Center Floor Cross
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57615A Member, Rear Floor Side, Rear RH
57616A Member, Rear Floor Side, Rear LH
57635A Reinforcement, Rear Floor Side Member, Rear RH
57636A Reinforcement, Rear Floor Side Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
