Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

33 part groups · 25 illustrations

Illustrations

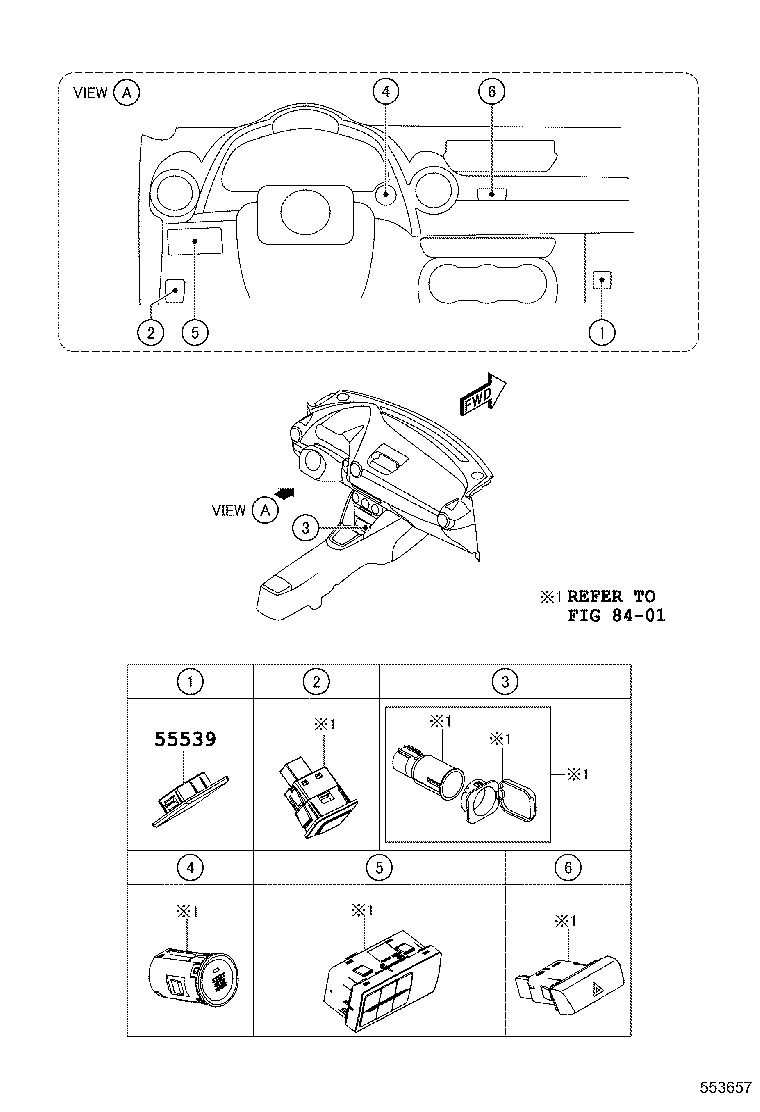

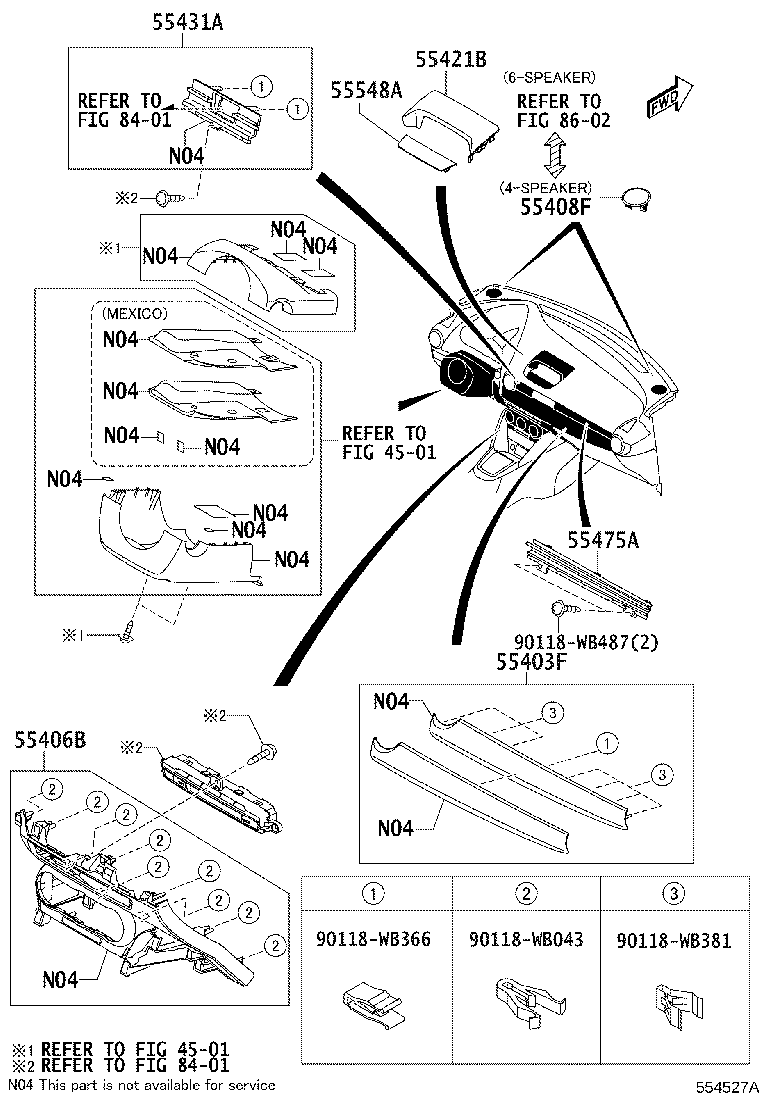

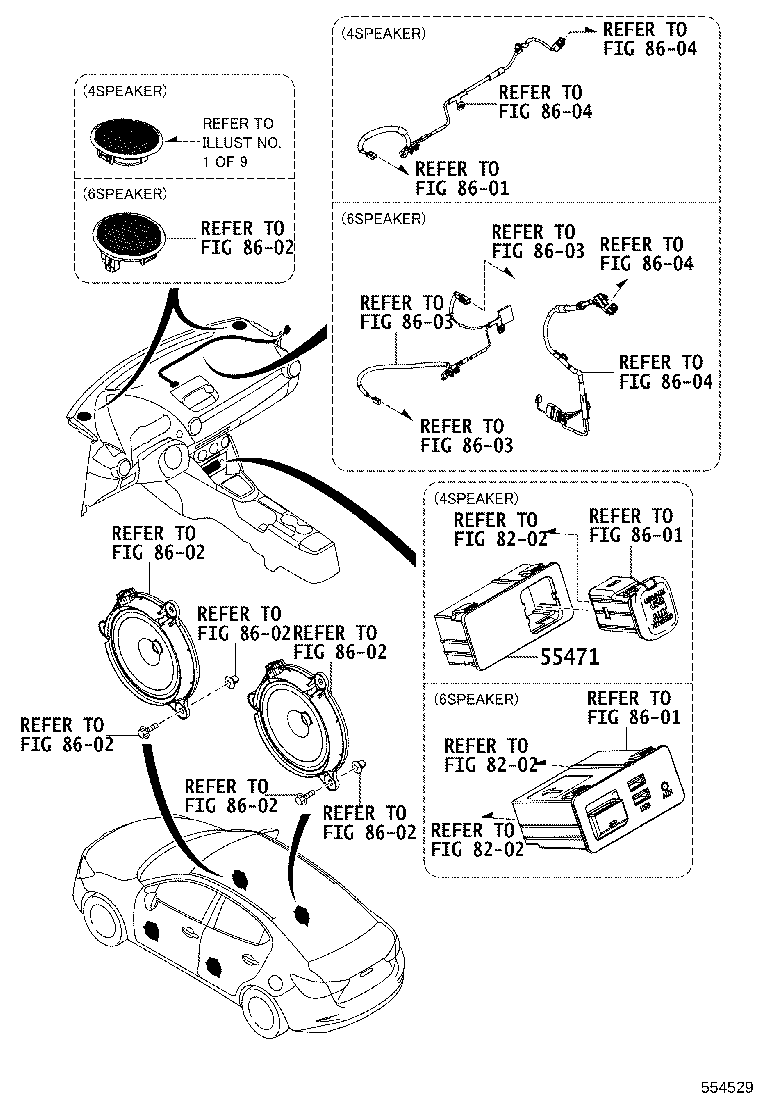

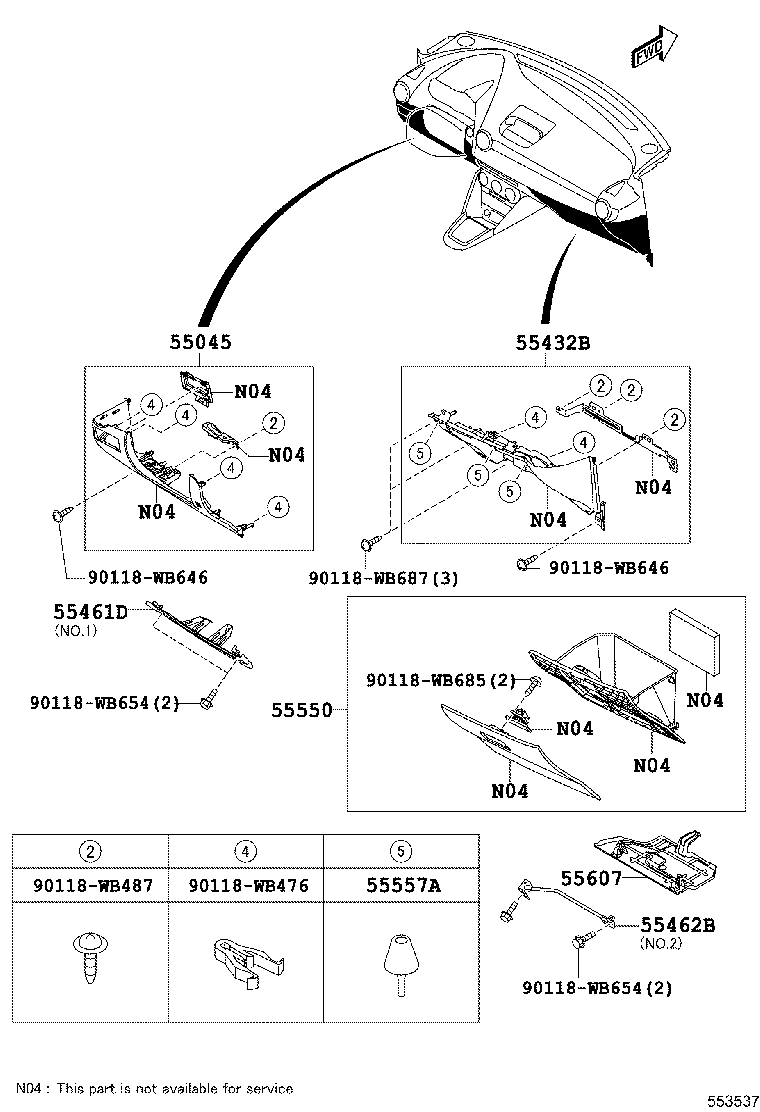

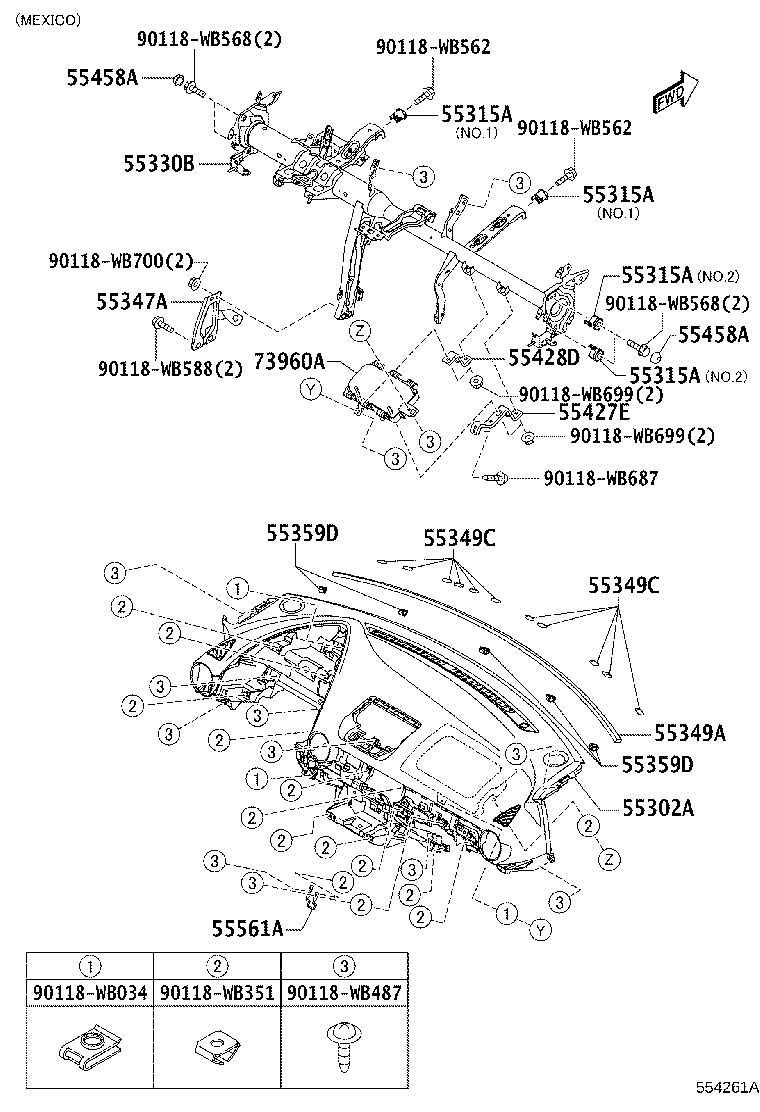

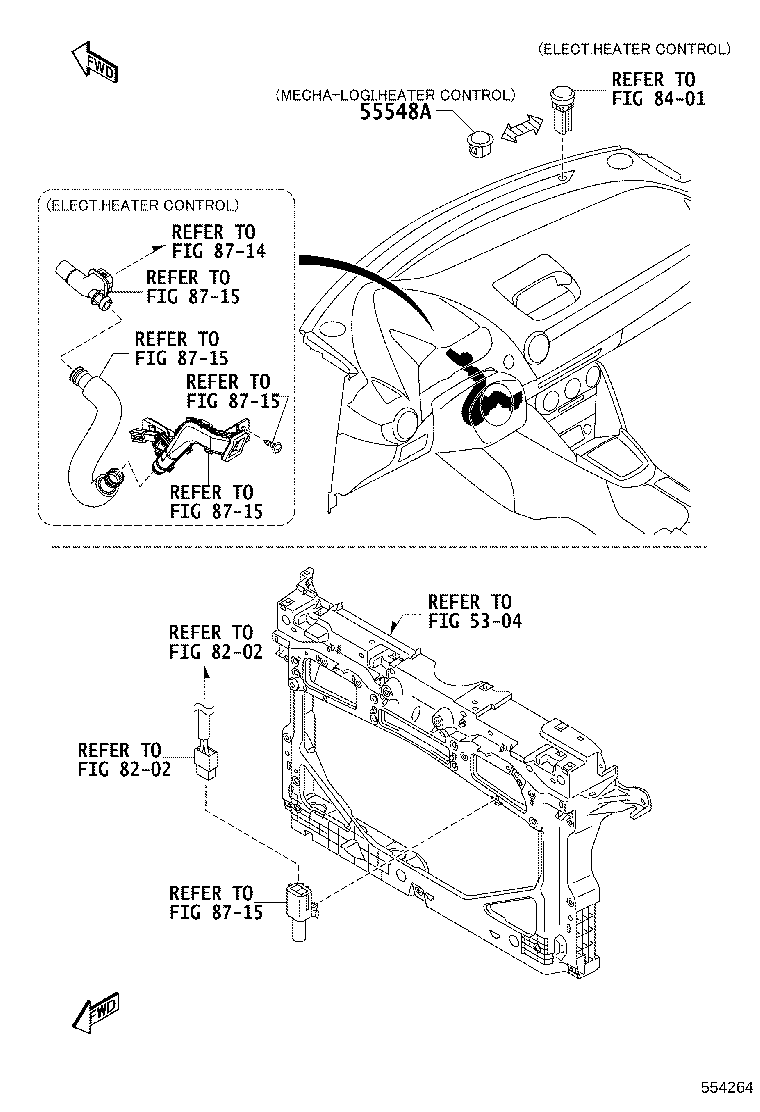

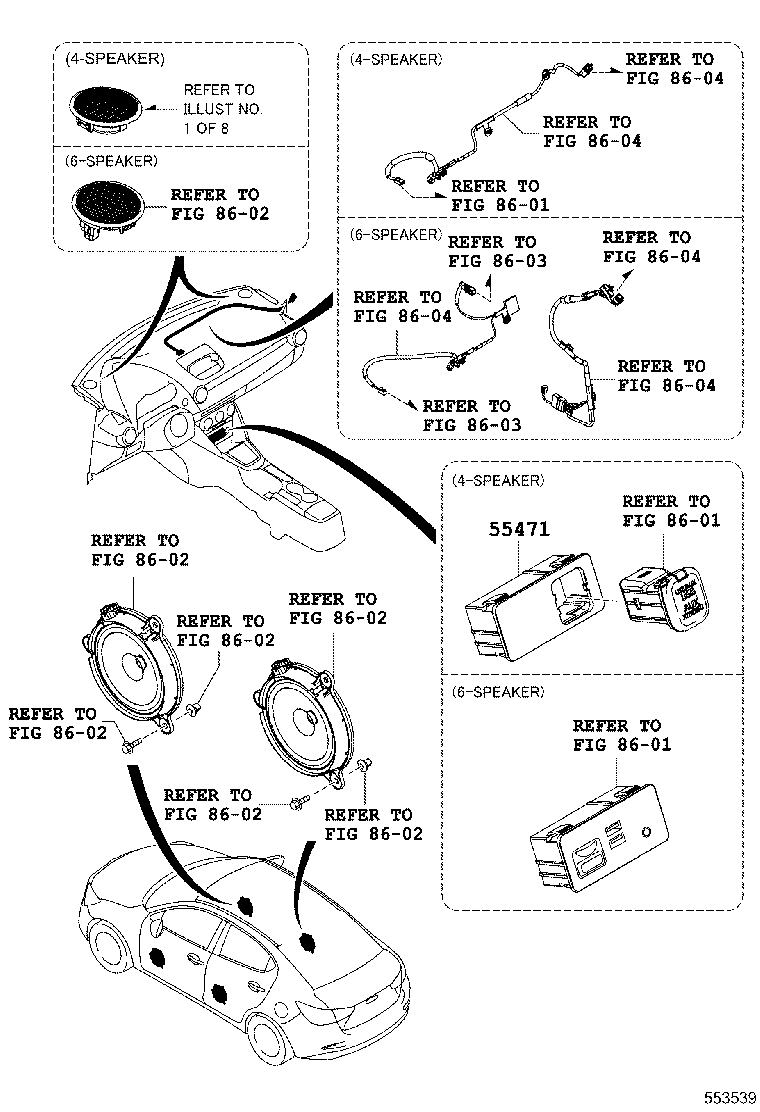

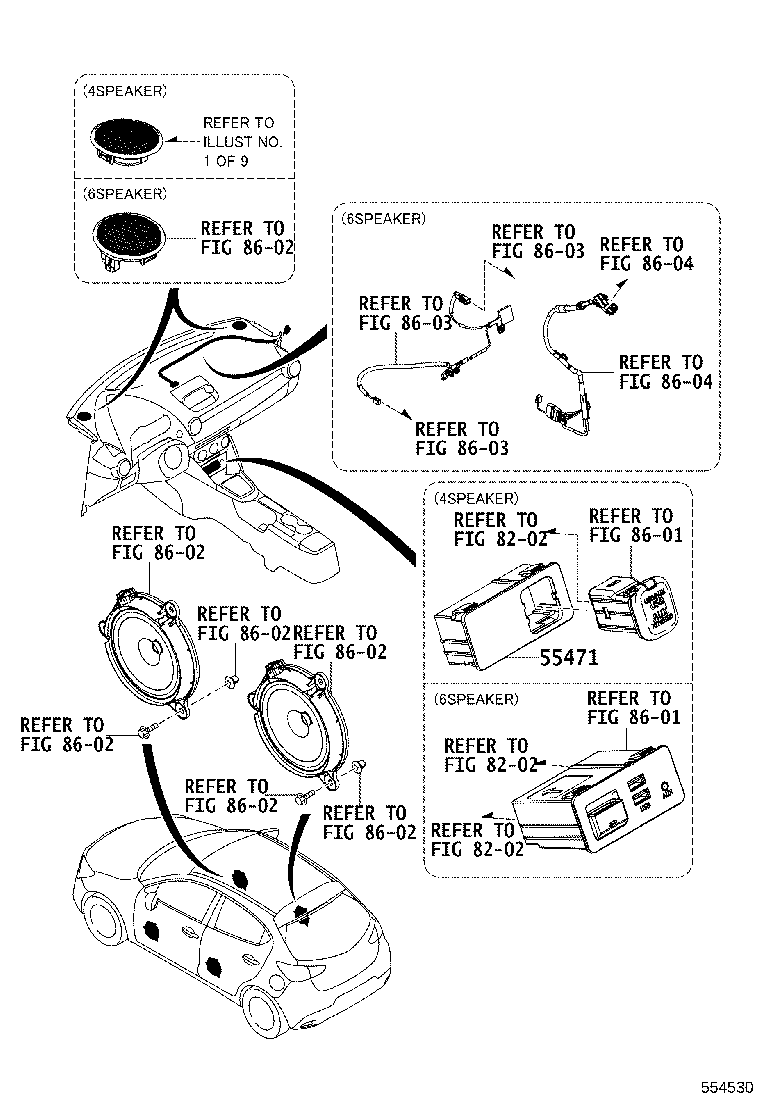

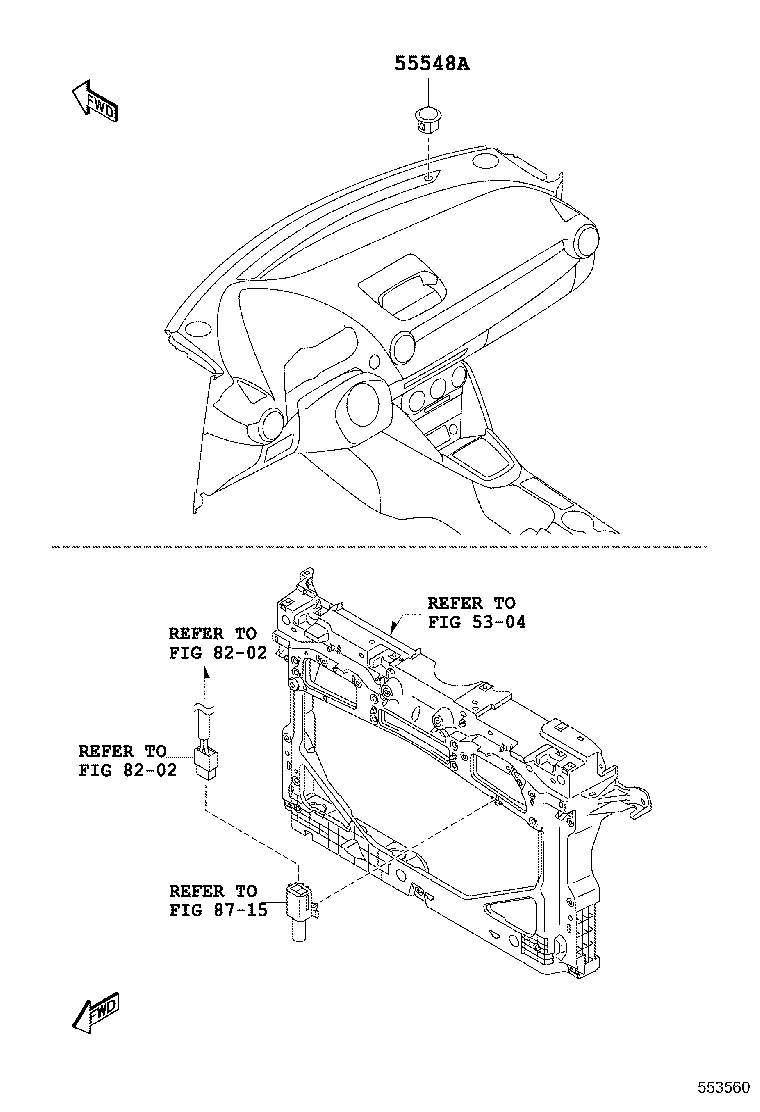

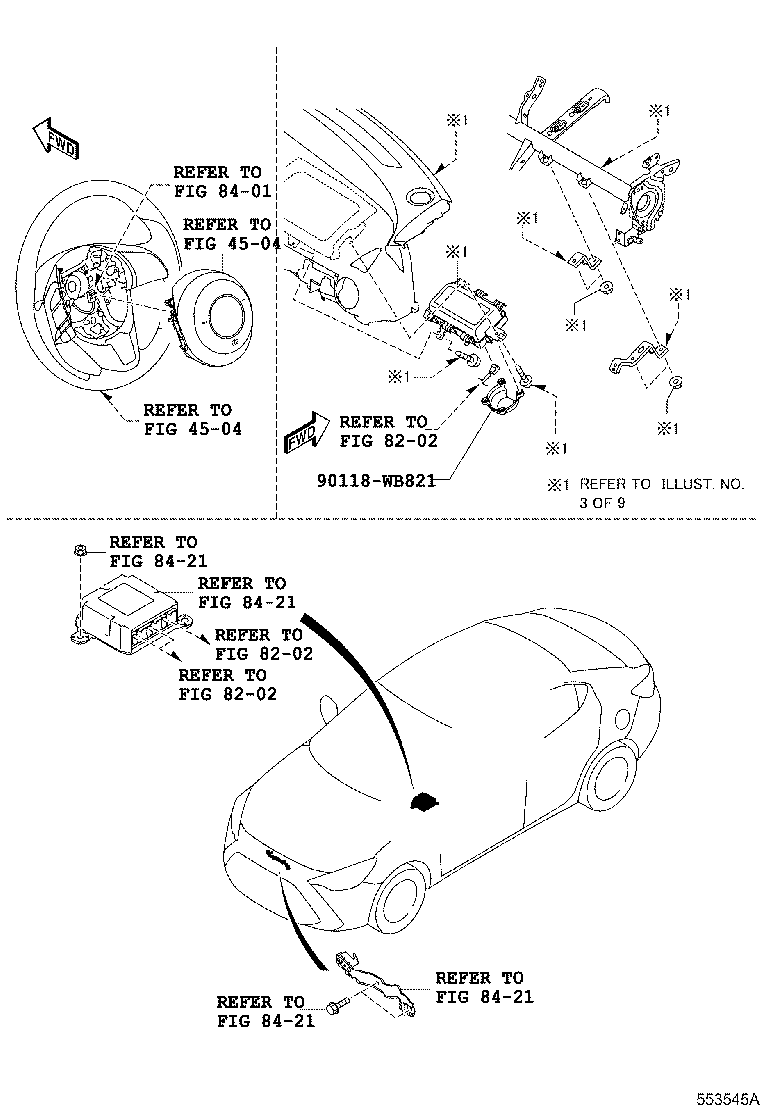

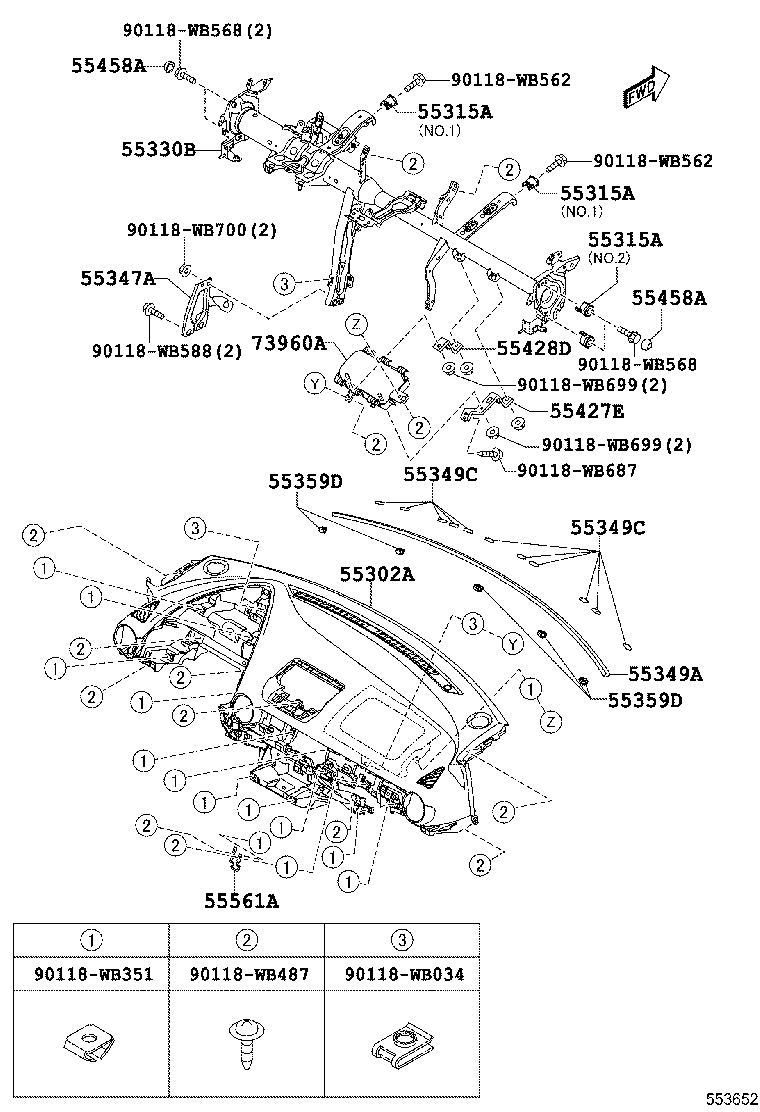

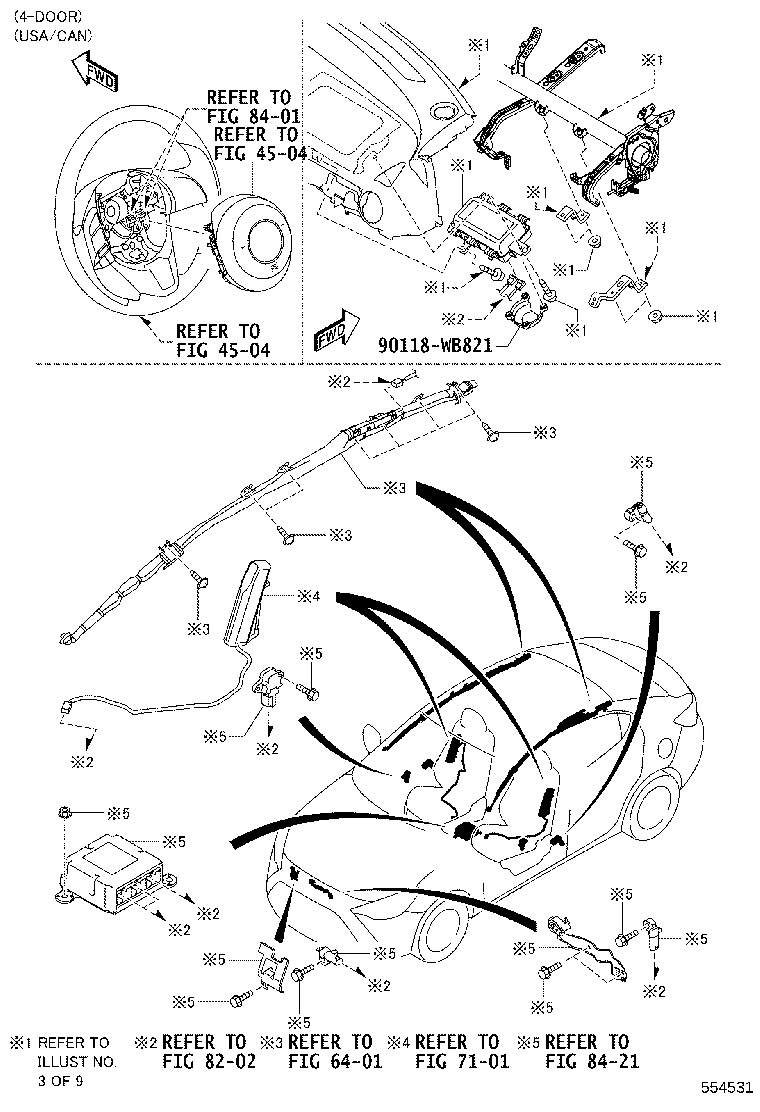

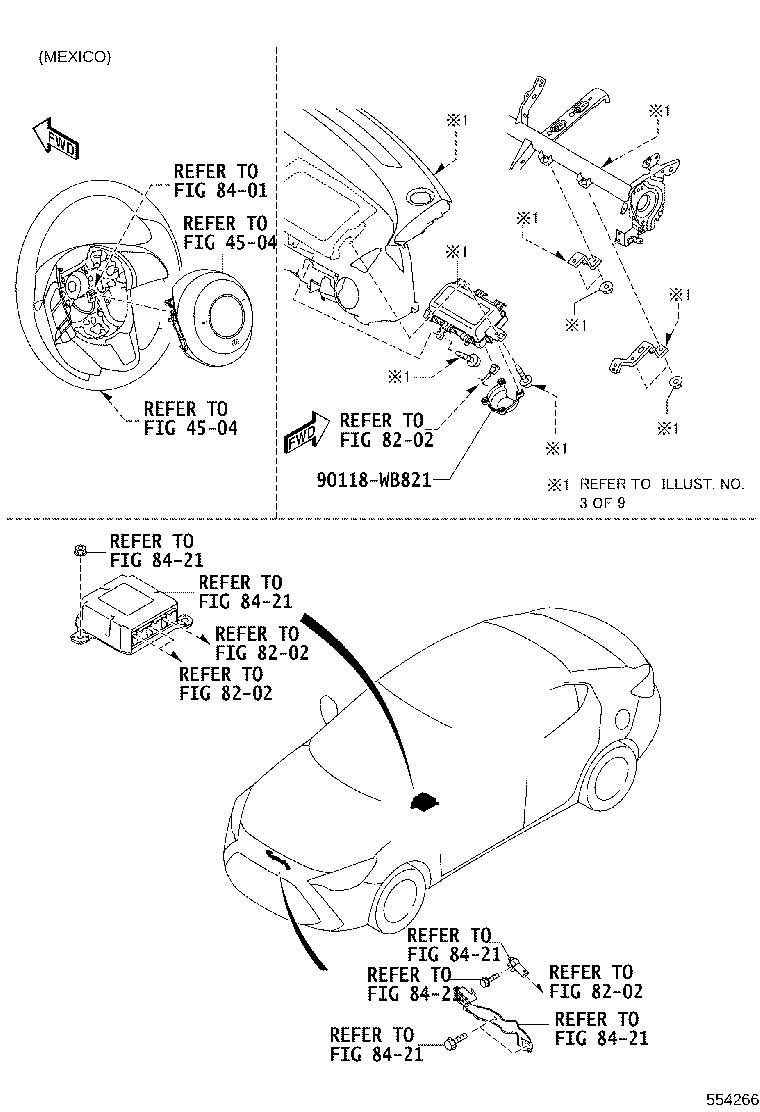

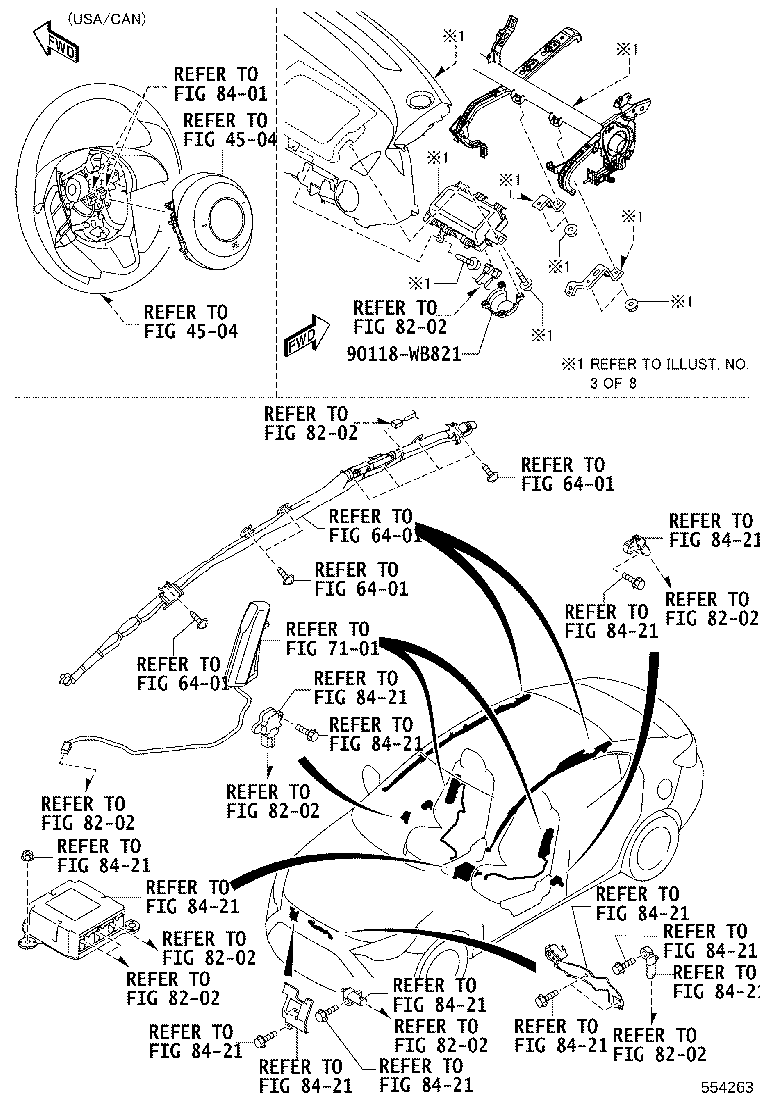

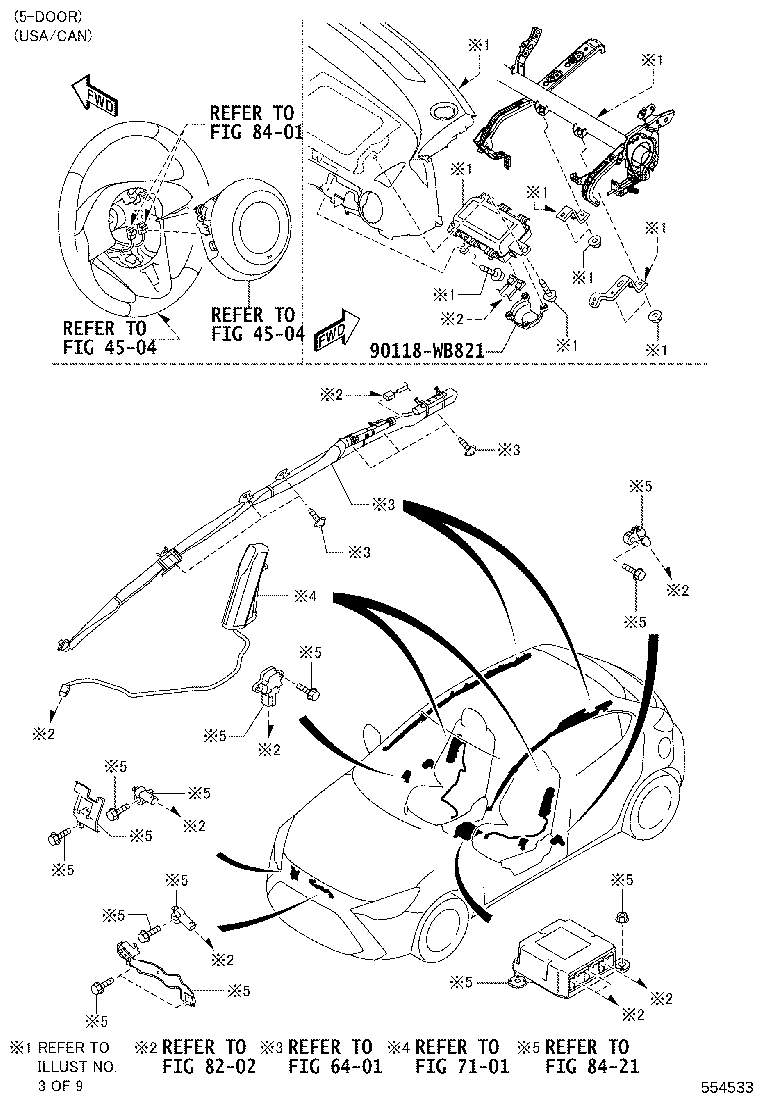

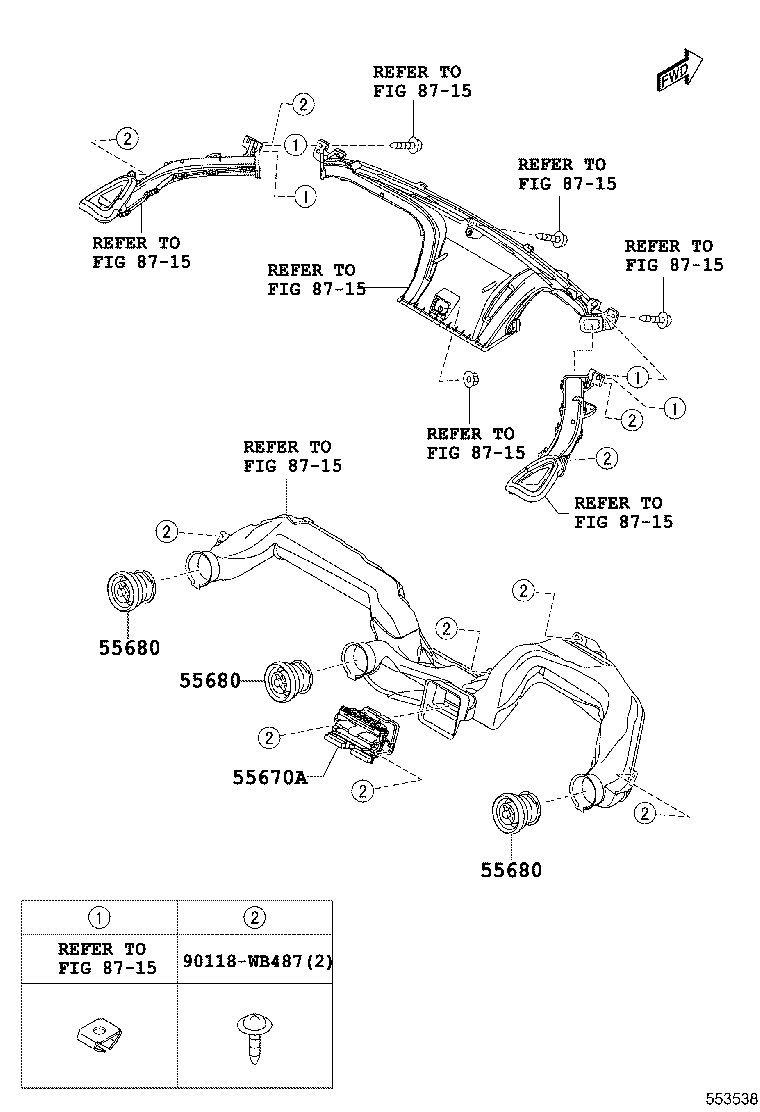

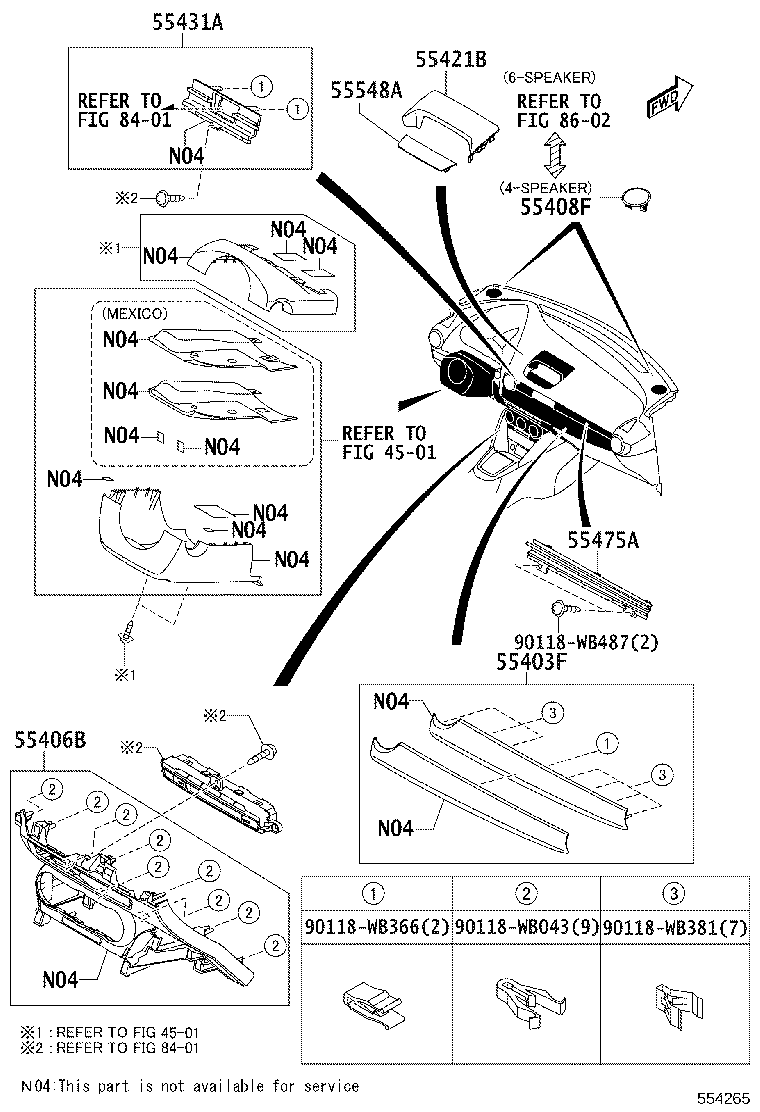

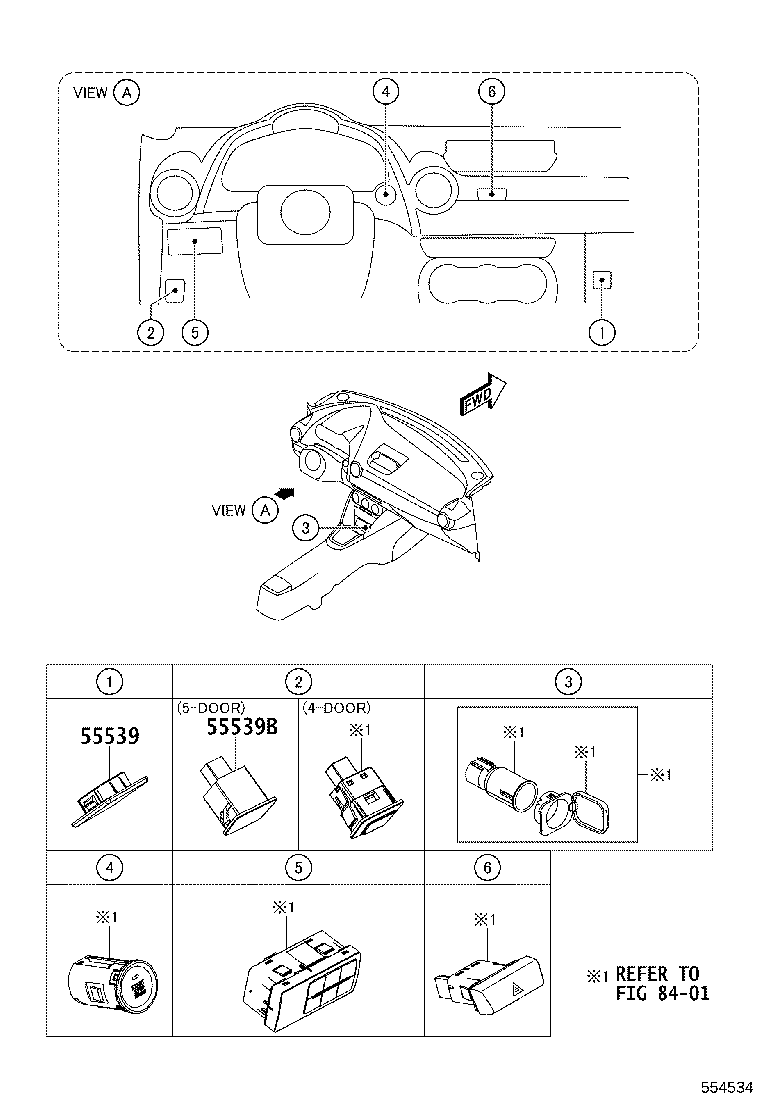

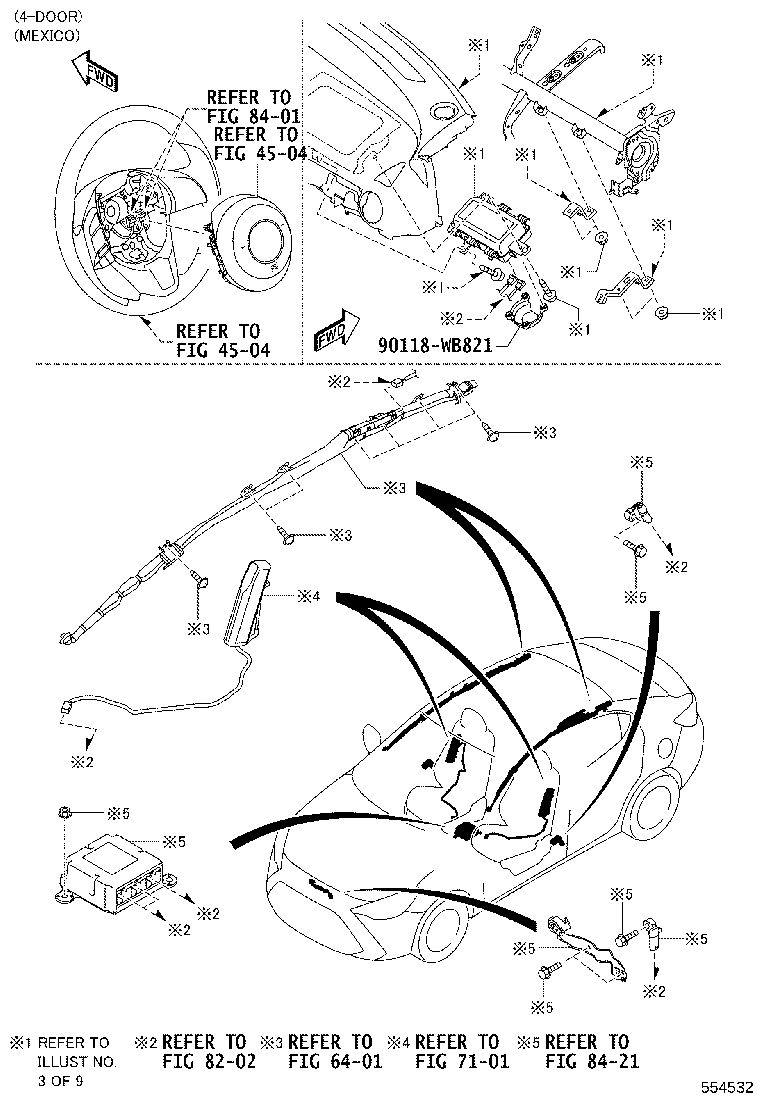

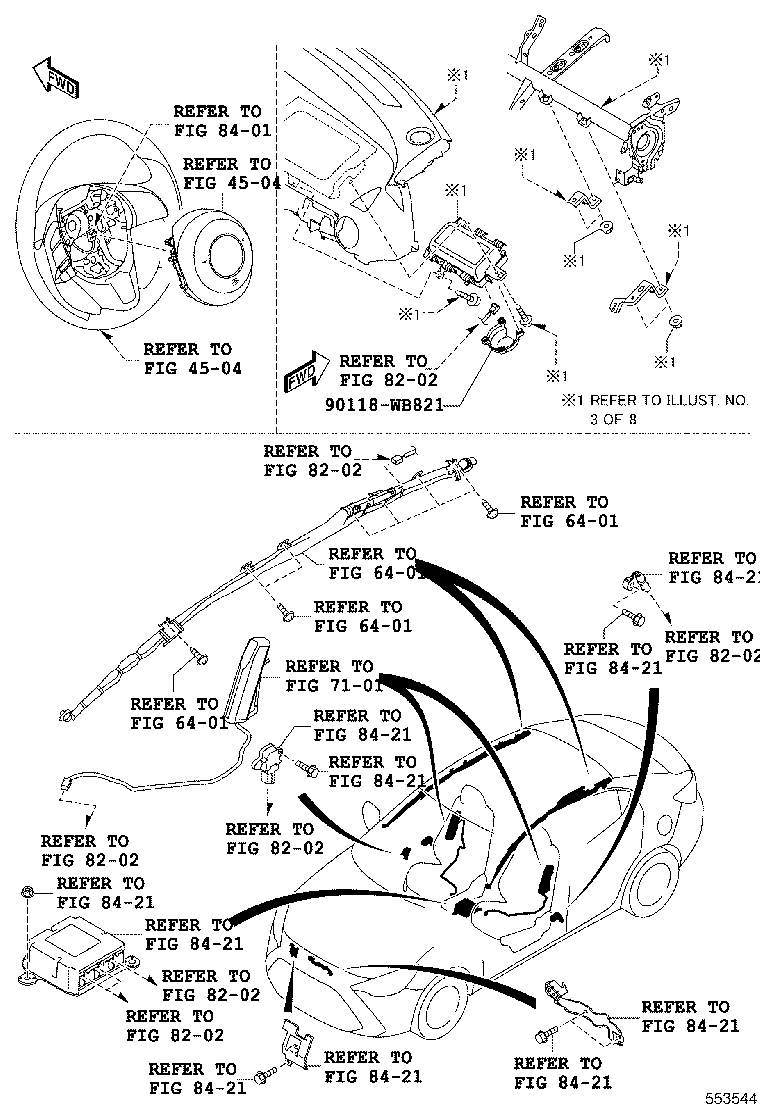

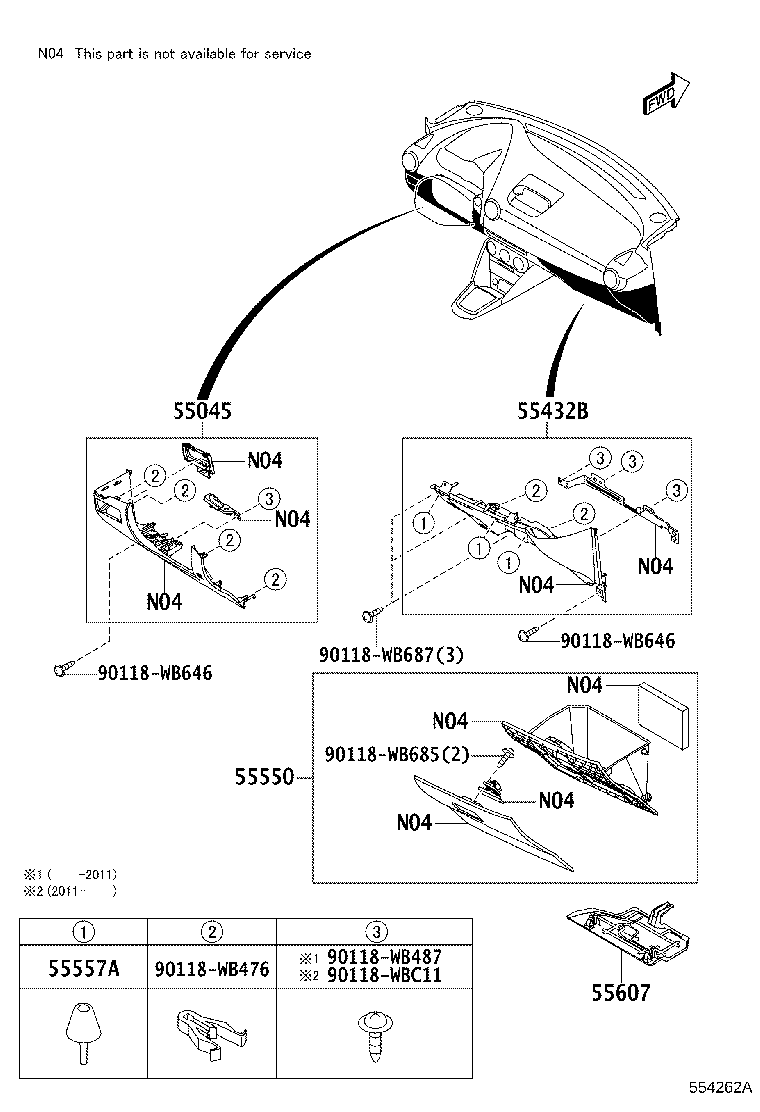

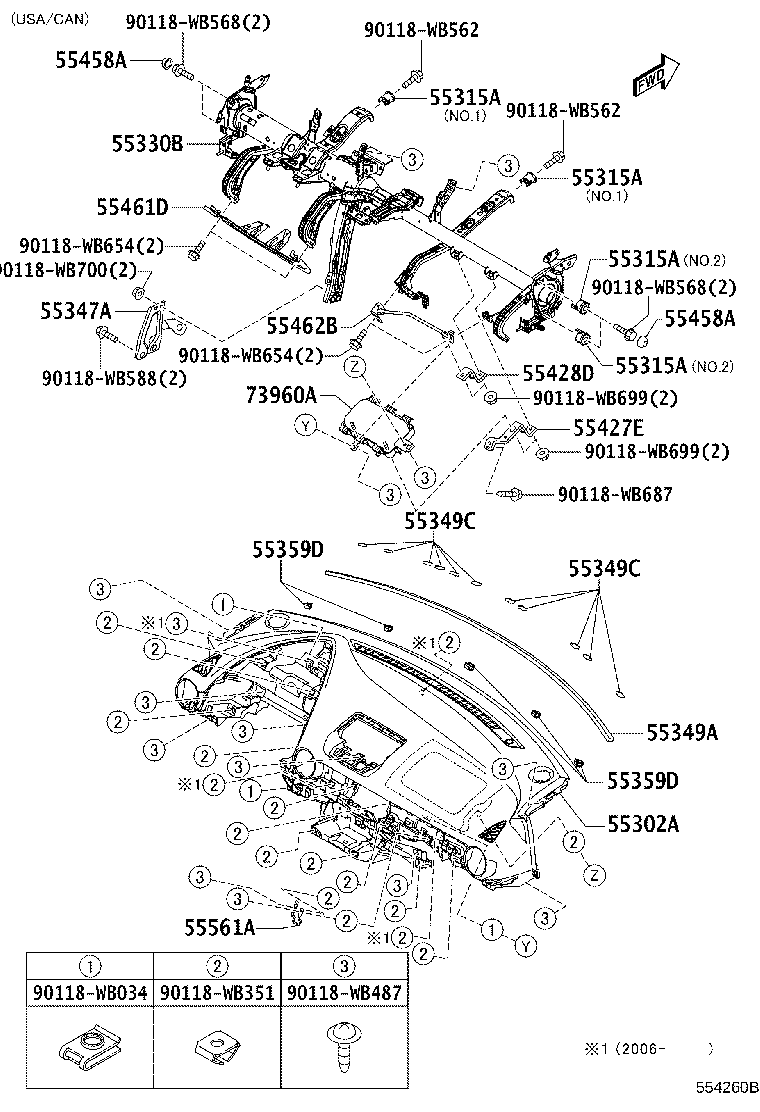

Figure 553534 553534 2015-06 → 2018-08 Figure 554265 554265 2018-08 → 2019-08 Figure 554527A 554527A 2019-08 → — Figure 553535 553535 2015-06 → 2019-08 Figure 554528 554528 2019-08 → — Figure 553652 553652 2015-06 → 2018-08 Figure 554260B 554260B 2018-08 → — Figure 554261A 554261A 2018-08 → — Figure 553537 553537 2015-06 → 2018-08 Figure 554262A 554262A 2018-08 → — Figure 553538 553538 2015-06 → — Figure 553539 553539 2015-06 → 2019-08 Figure 554529 554529 2019-08 → — Figure 554530 554530 2019-08 → — Figure 553544 553544 2015-06 → 2018-08 Figure 553545A 553545A 2015-06 → 2018-08 Figure 554263 554263 2018-08 → 2019-08 Figure 554266 554266 2018-08 → 2019-08 Figure 554531 554531 2019-08 → — Figure 554532 554532 2019-08 → — Figure 554533 554533 2019-08 → — Figure 553560 553560 2015-06 → 2018-08 Figure 554264 554264 2018-08 → — Figure 553657 553657 2015-06 → 2019-08 Figure 554534 554534 2019-08 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55302A Panel Sub-assy, Instrument, Upper
55315A Spacer, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55347A Bracket, Instrument Panel Brace Mounting, NO.1
55349A Cushion, Instrument Panel
55349C Cushion, Instrument Panel
55359D Cushion, Instrument Panel, NO.5
55403F Panel Sub-assy, Instrument Panel Finish
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55411G Panel, Instrument Cluster Finish, NO.1
55418B Spacer,Meter Hood
55421B Panel, Instrument Cluster Finish, Upper
55427E Bracket, Cluster Finish Panel, NO.2
55428D Retainer, Instrument Finish Panel, Lower NO.2
55431A Panel, Instrument Panel Finish
55432B Panel, Instrument Panel Finish, Lower
55458A Cap, Instrument Panel Safety Pad
55461D Insert, Instrument Panel Safety Pad, NO.1
55462B Insert, Instrument Panel Safety Pad
55471 Moulding, Instrument Cluster, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55561A Striker, Glove Compartment Door Lock
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55670A Register Assy, Instrument Panel, Center
55680 Register Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
