Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 9 illustrations

Illustrations

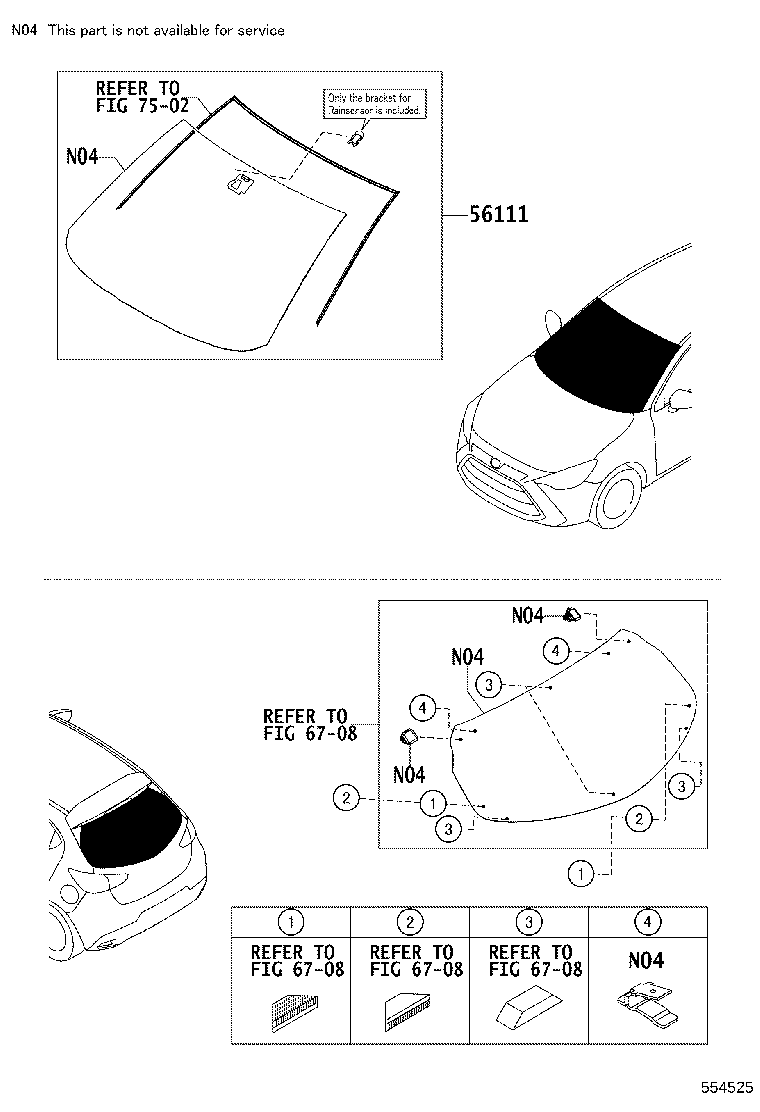

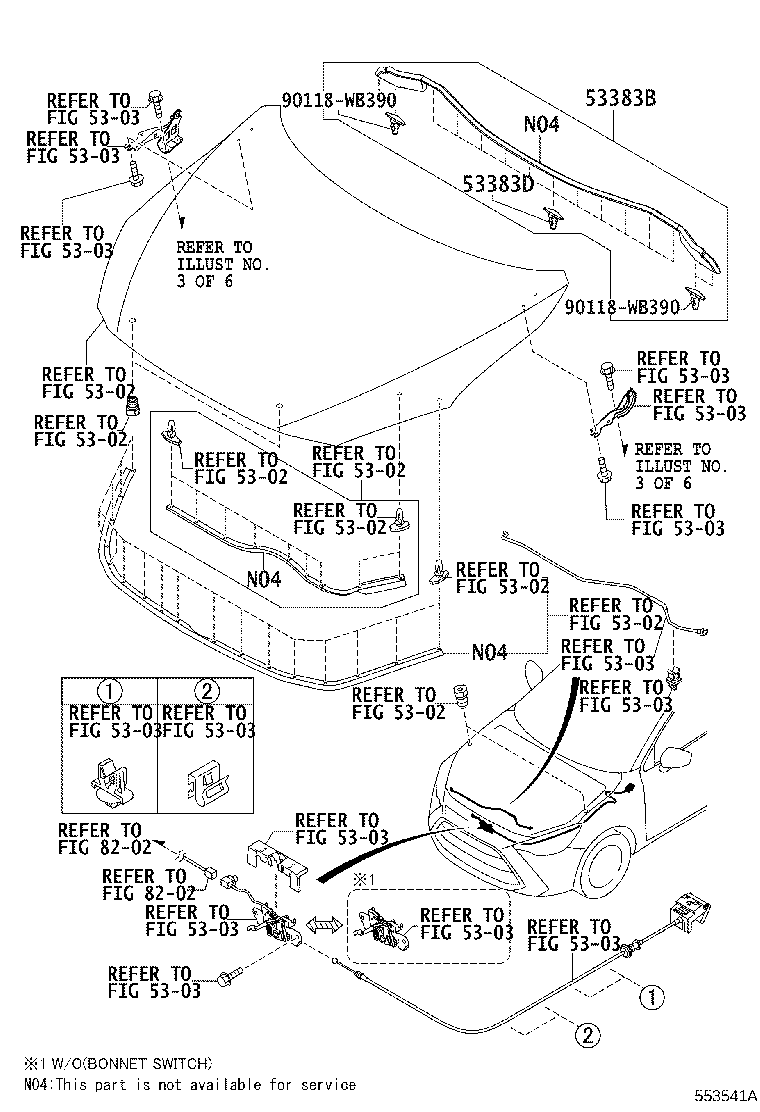

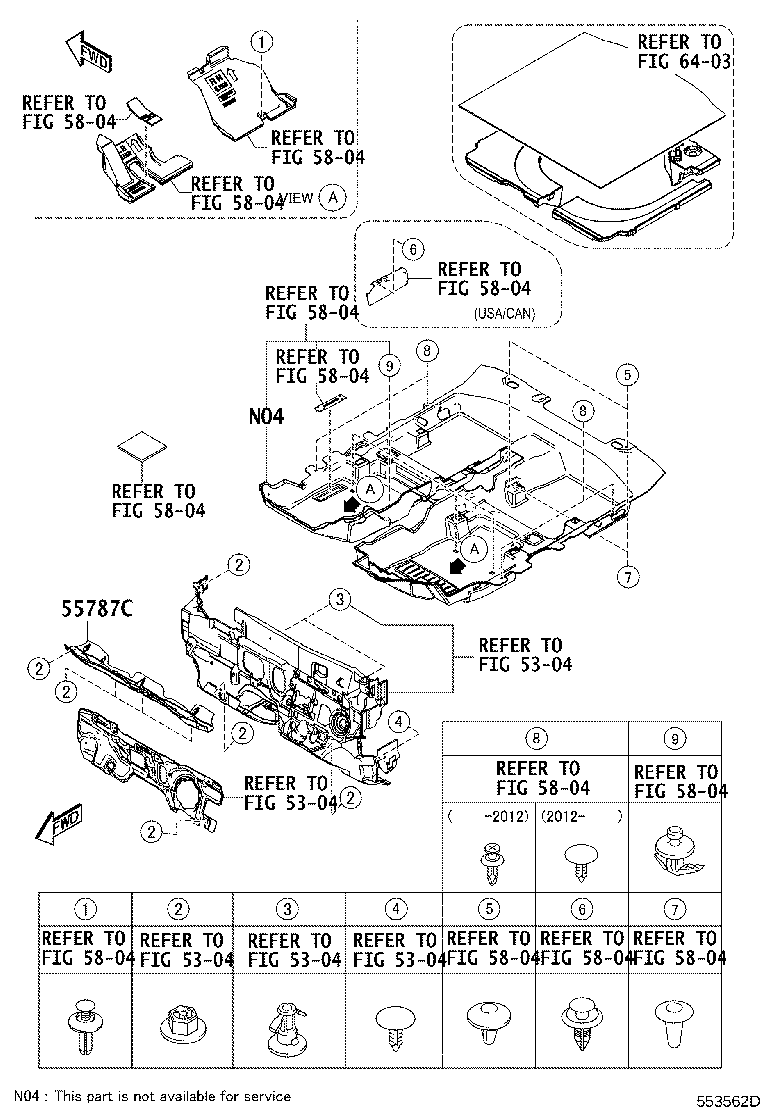

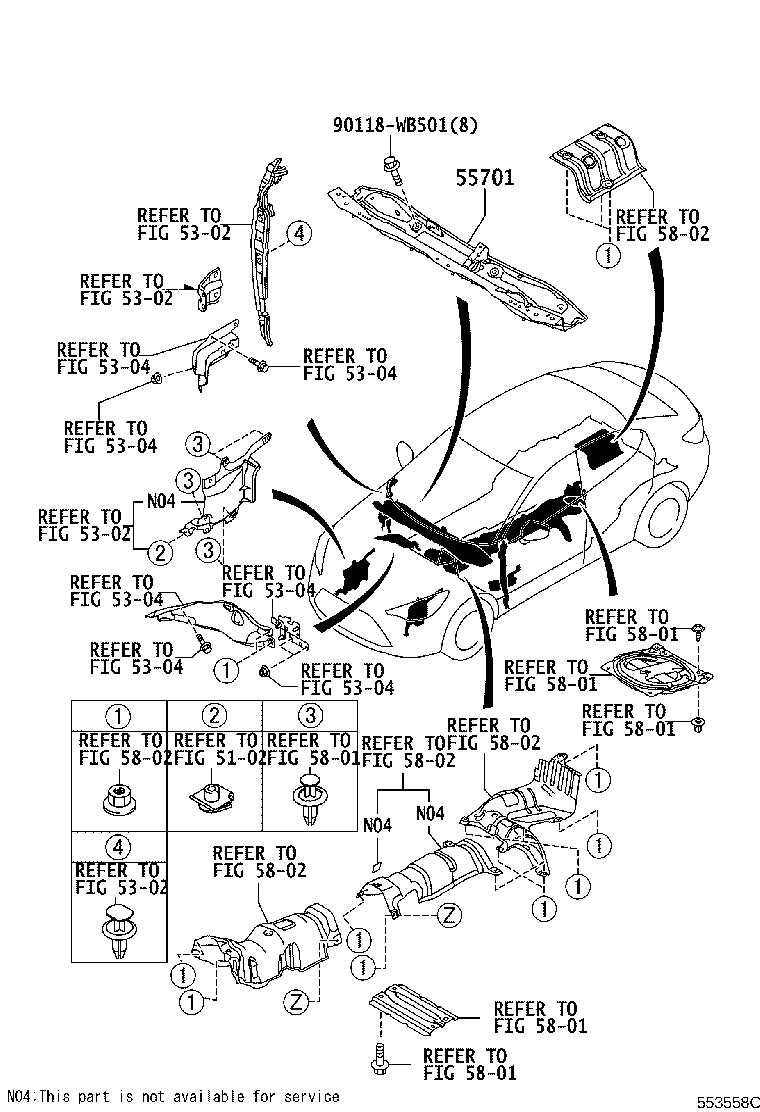

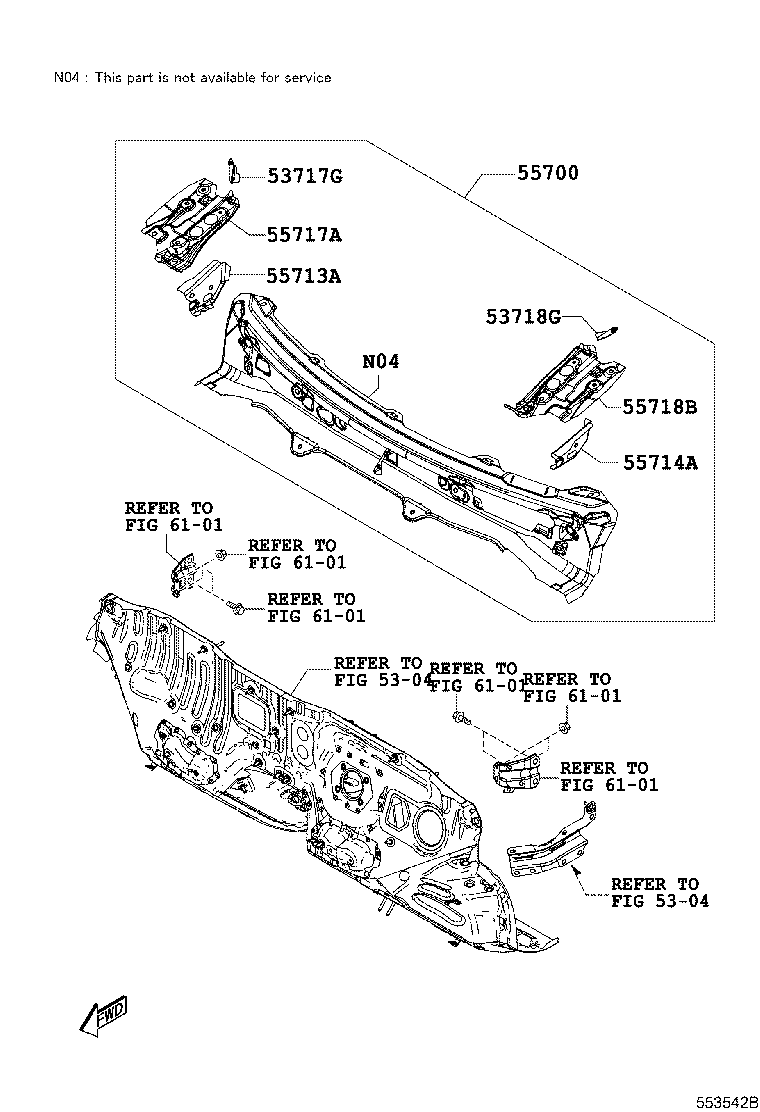

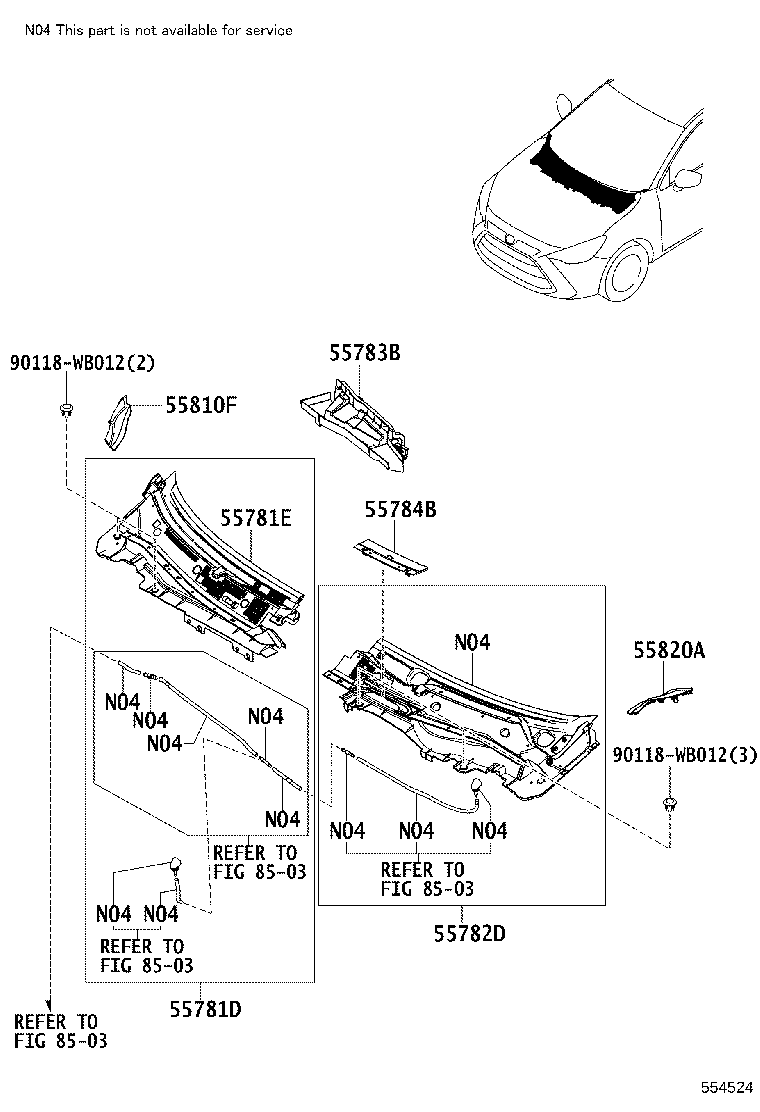

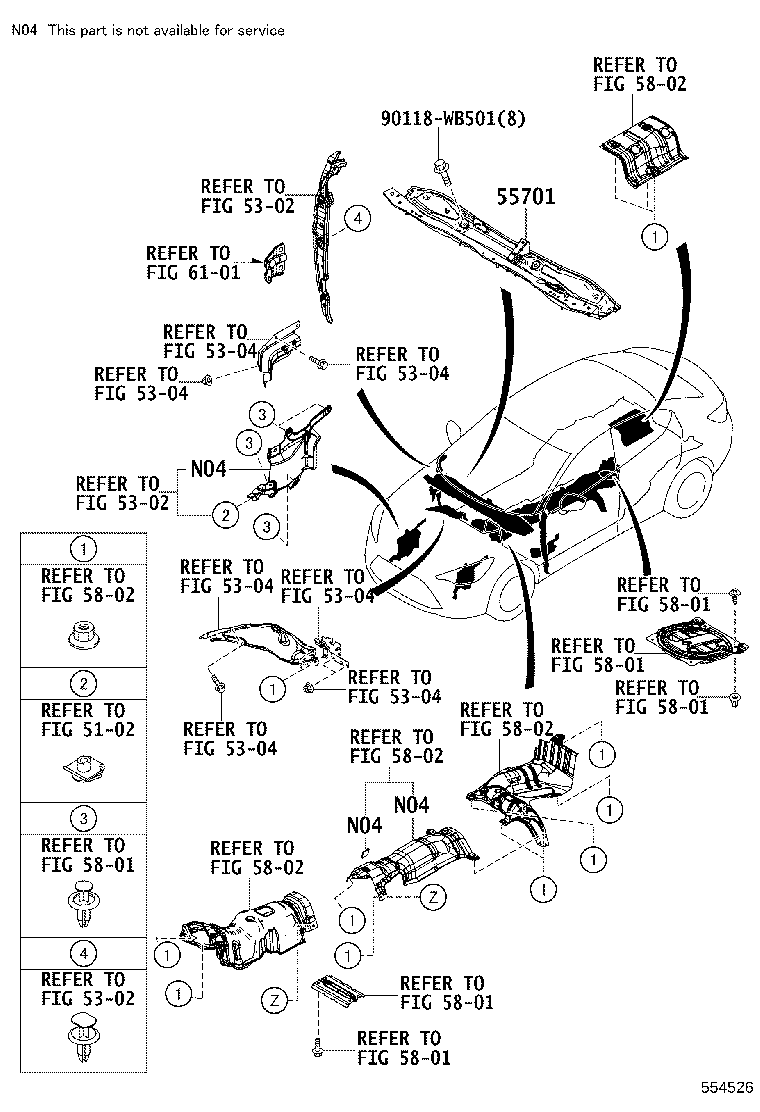

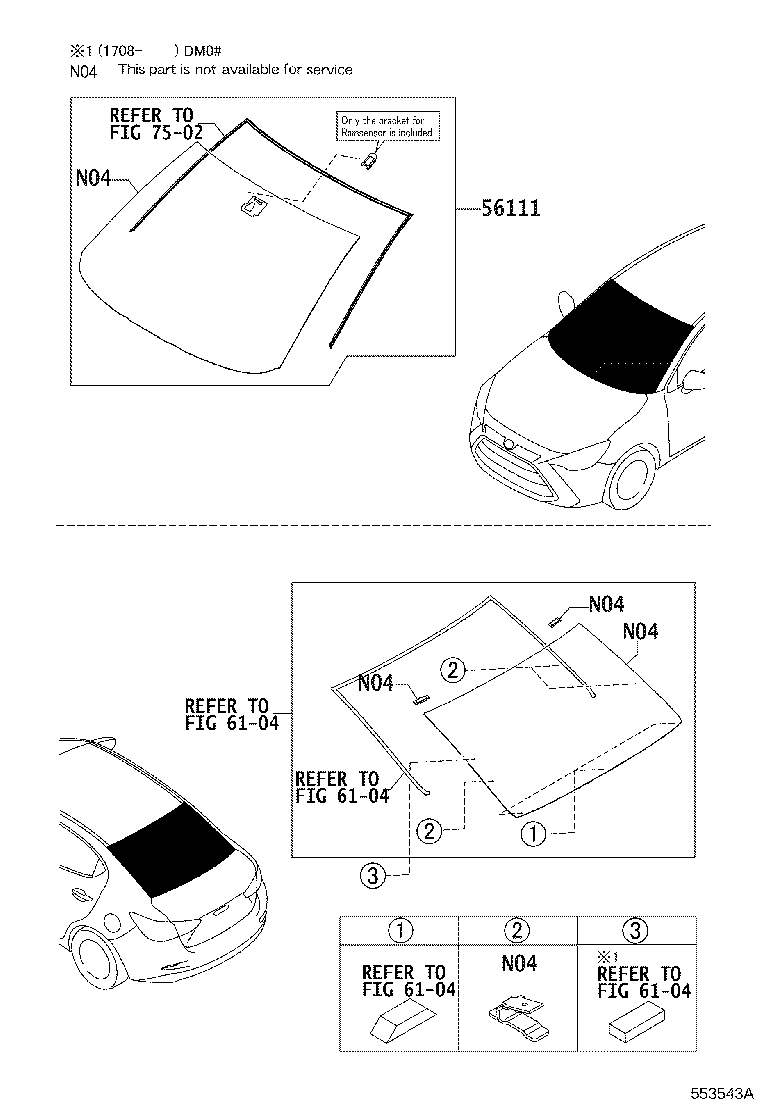

Figure 554271 554271 2015-06 → 2019-08 Figure 554524 554524 2019-08 → — Figure 553541A 553541A 2015-06 → — Figure 553542B 553542B 2015-06 → — Figure 553543A 553543A 2015-06 → — Figure 554525 554525 2019-08 → — Figure 553558C 553558C 2015-06 → 2019-08 Figure 554526 554526 2019-08 → — Figure 553562D 553562D 2015-06 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53383D Clip(FOR HOOD TO COWL TOP SEAL)
53717G Plate, Fender Apron, RH
53718G Plate, Fender Apron, LH
55700 Panel Assy, Front
55701 Panel Sub-assy, Cowl
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55717A Panel, Cowl Top Side, Inner RH
55718B Panel, Cowl Top Side, Inner LH
55781D Louver, Cowl Top Ventilator, RH
55781E Louver Sub-assy, Cowl Top Ventilator
55782D Louver, Cowl Top Ventilator, LH
55783B Louver, Cowl Top Ventilator, Center NO.1
55784B Louver, Cowl Top Ventilator, Center NO.2
55787C Insulator, Cowl Top Panel, NO.1
55810F Ventilator Assy, Front
55820A Ventilator Assy, Cowl Side, LH
56111 Glass, Windshield
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
