Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

46 part groups · 11 illustrations

Illustrations

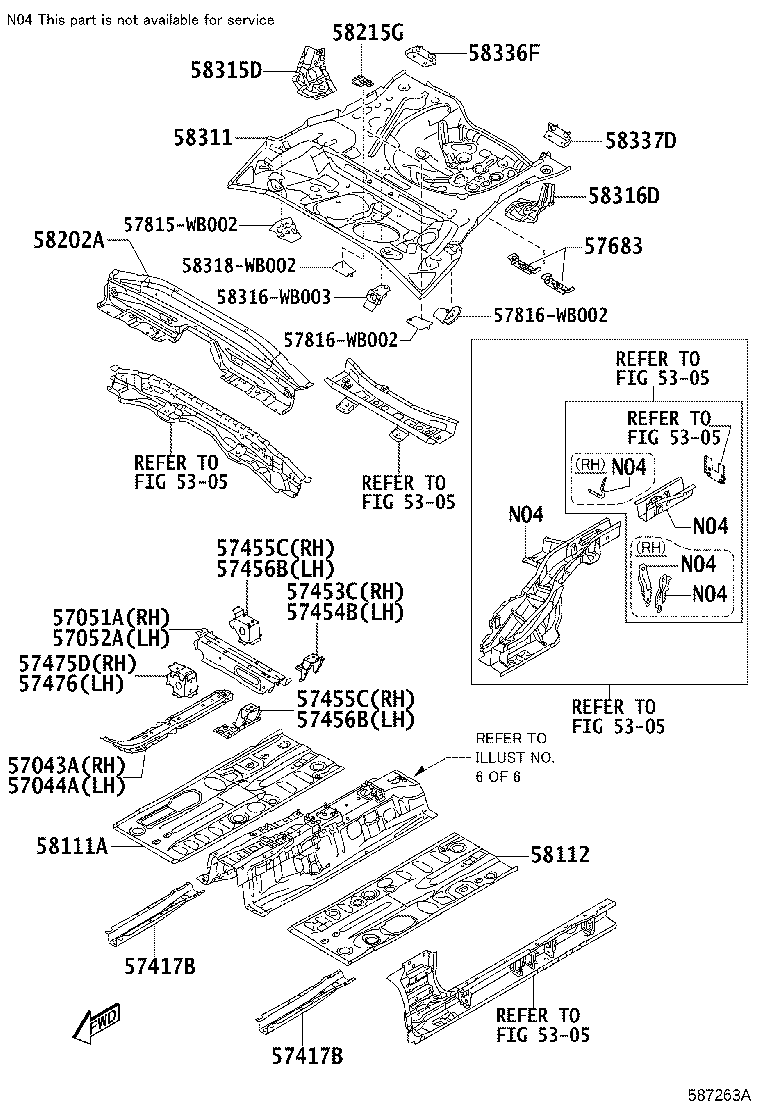

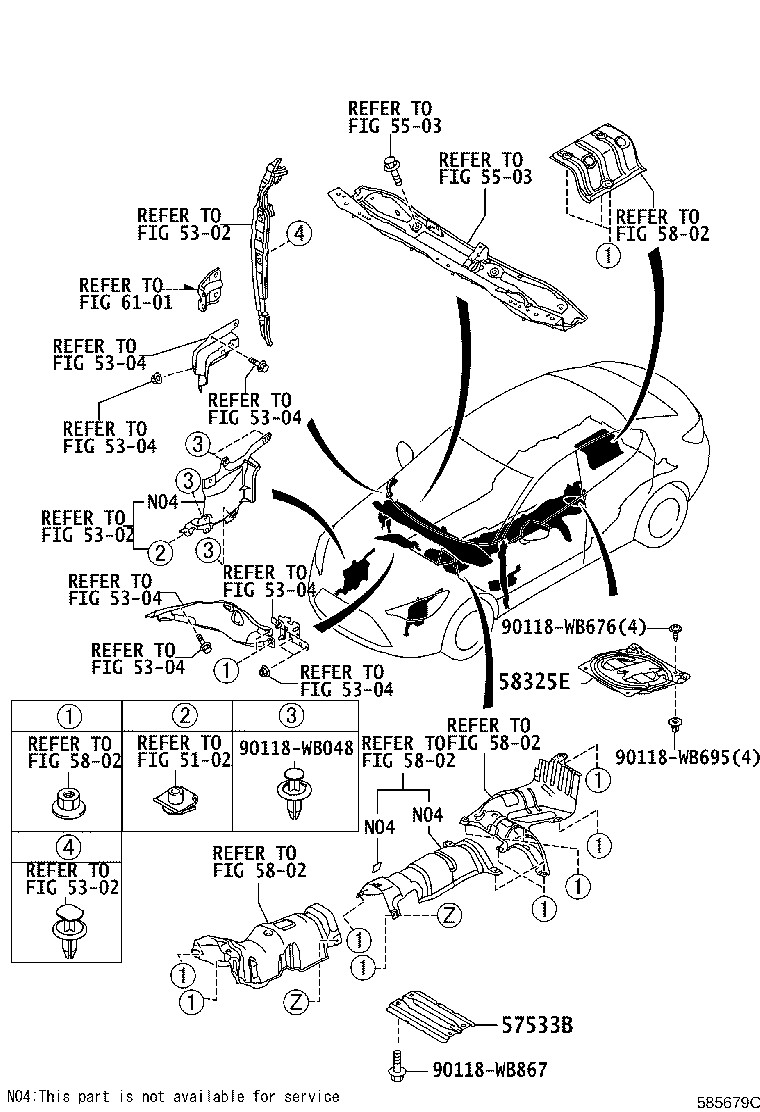

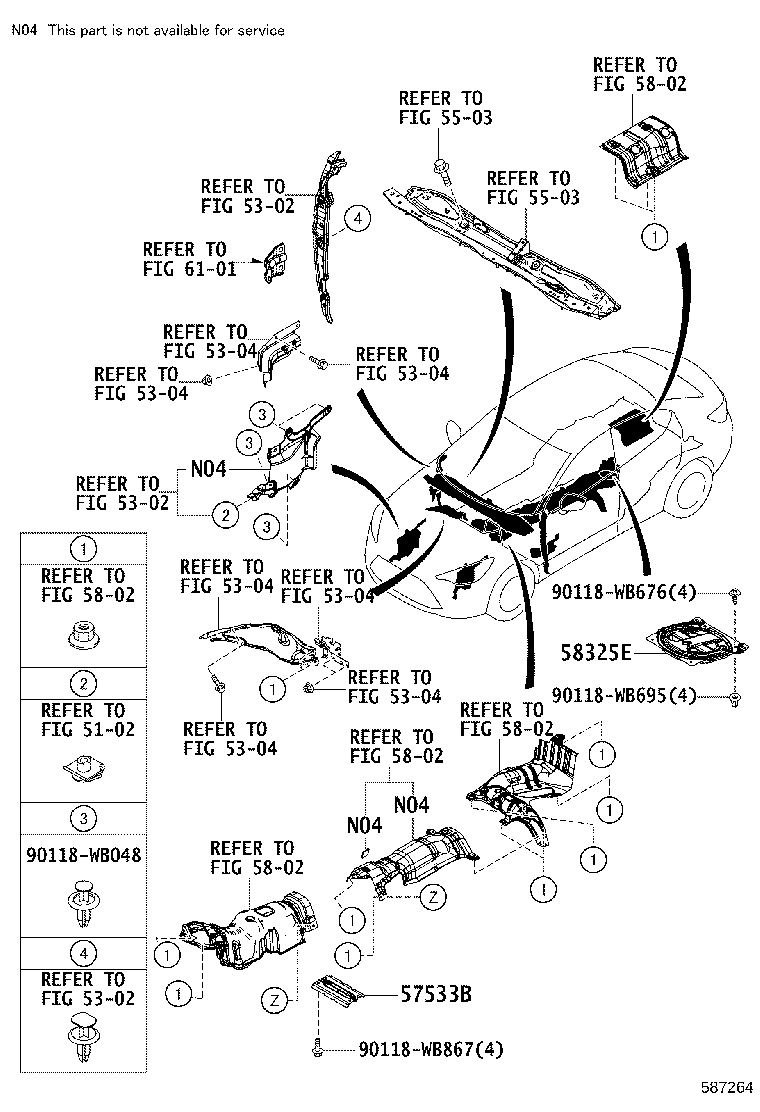

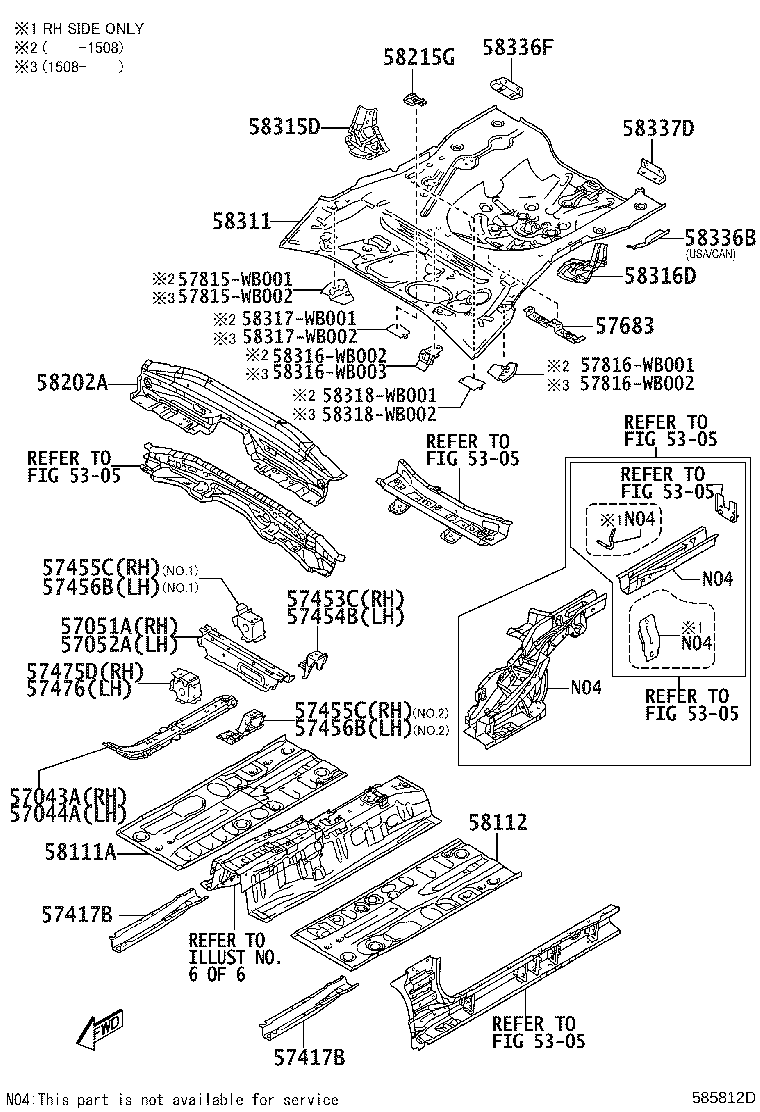

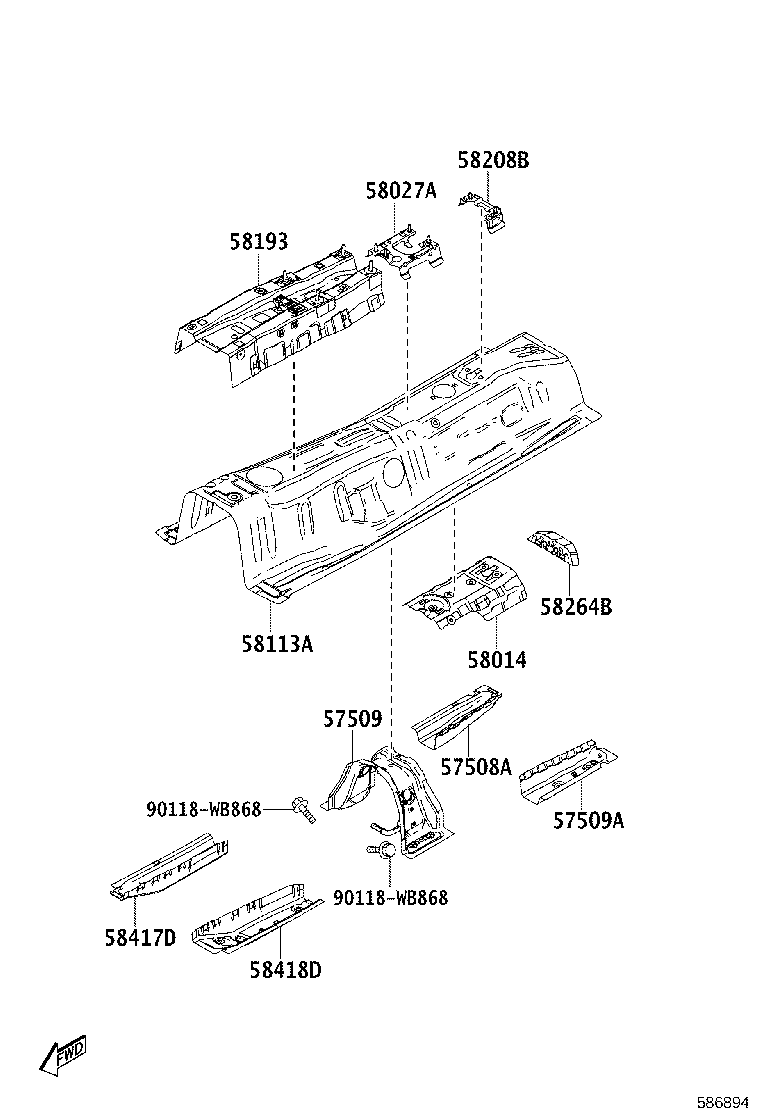

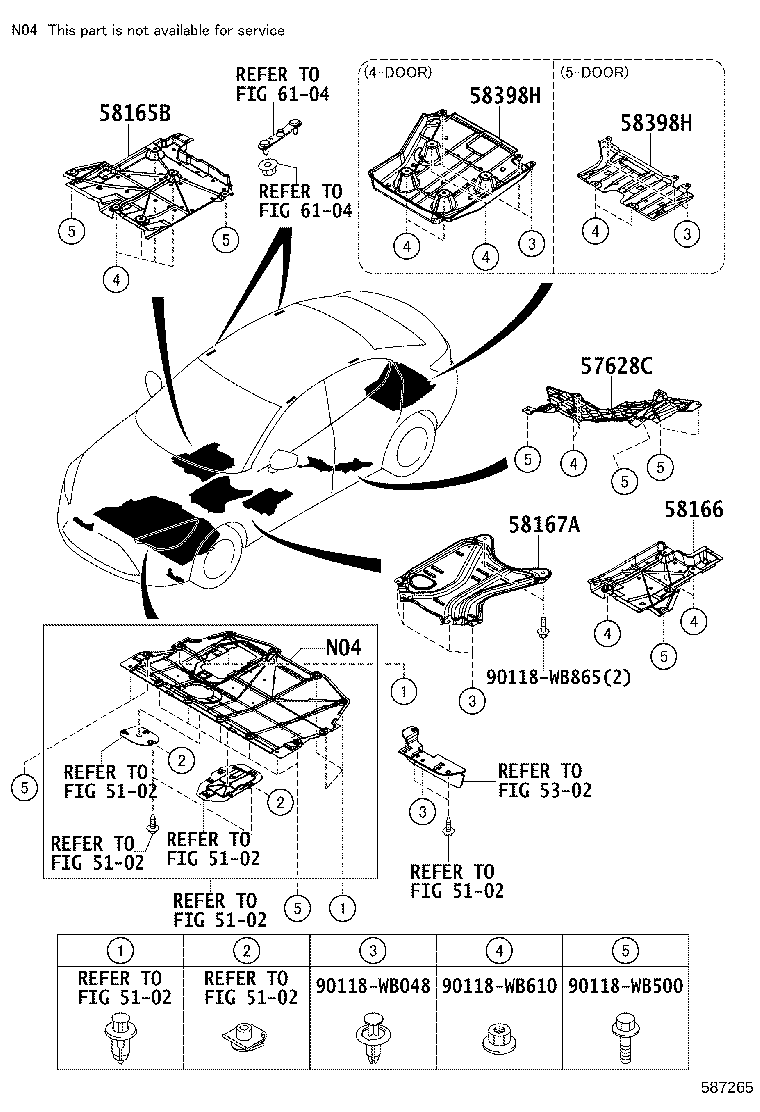

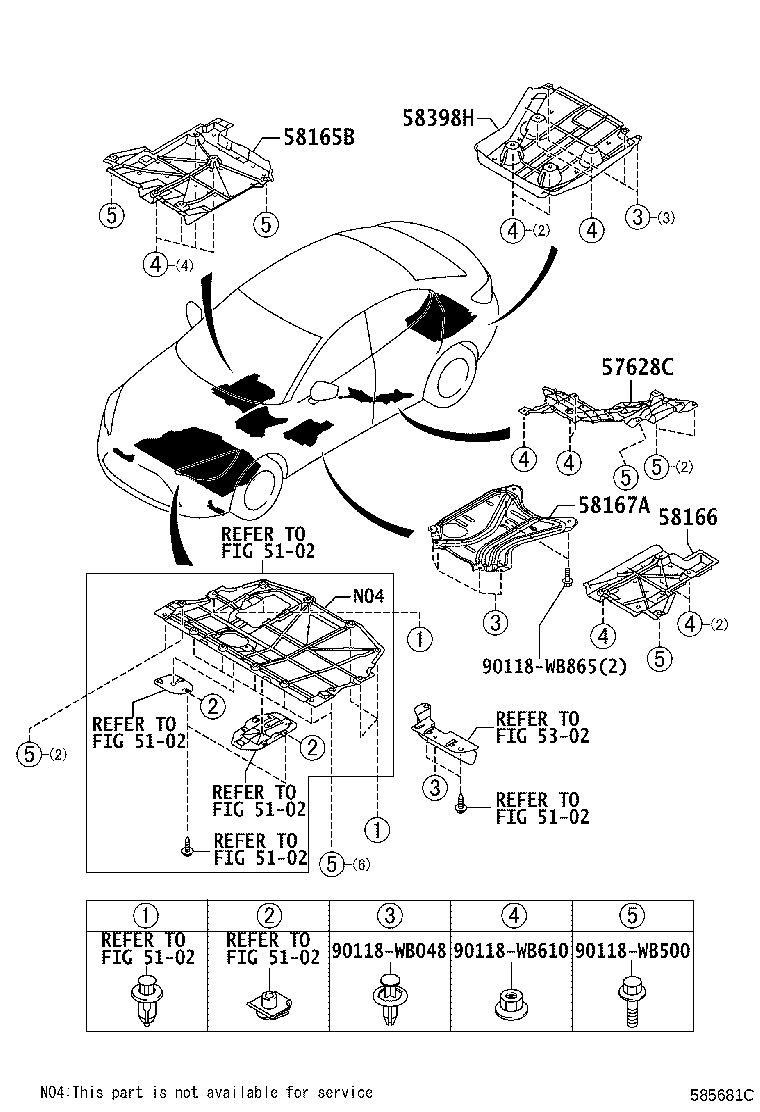

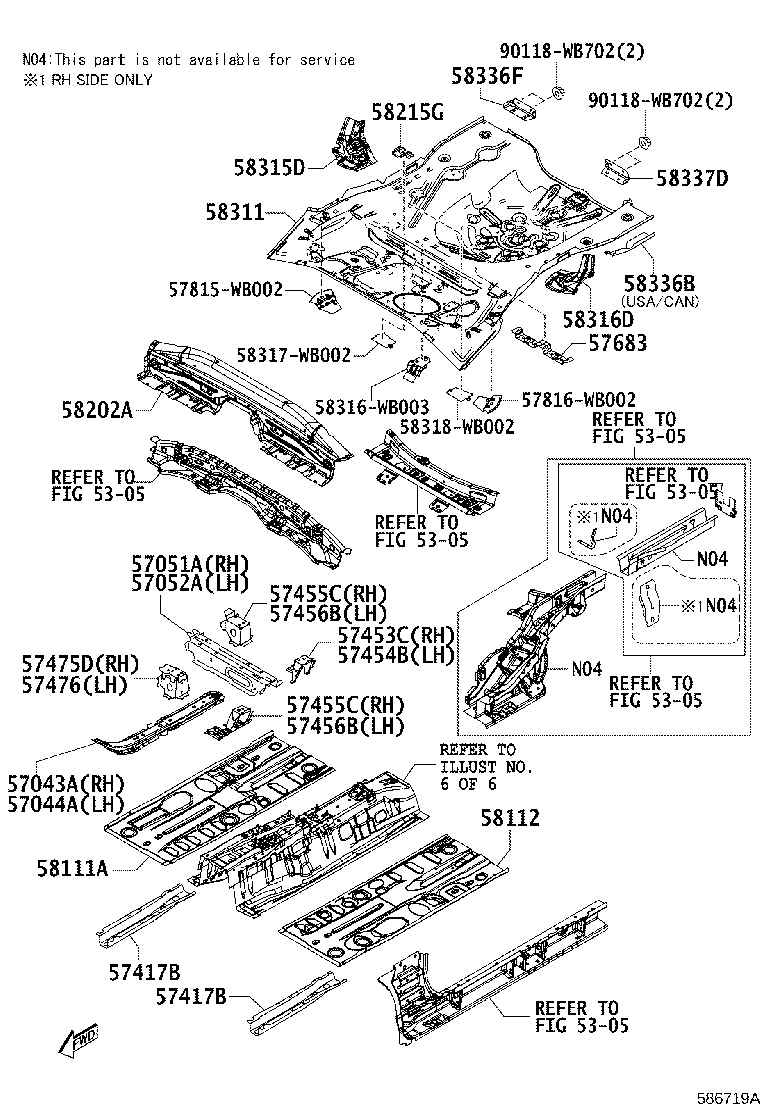

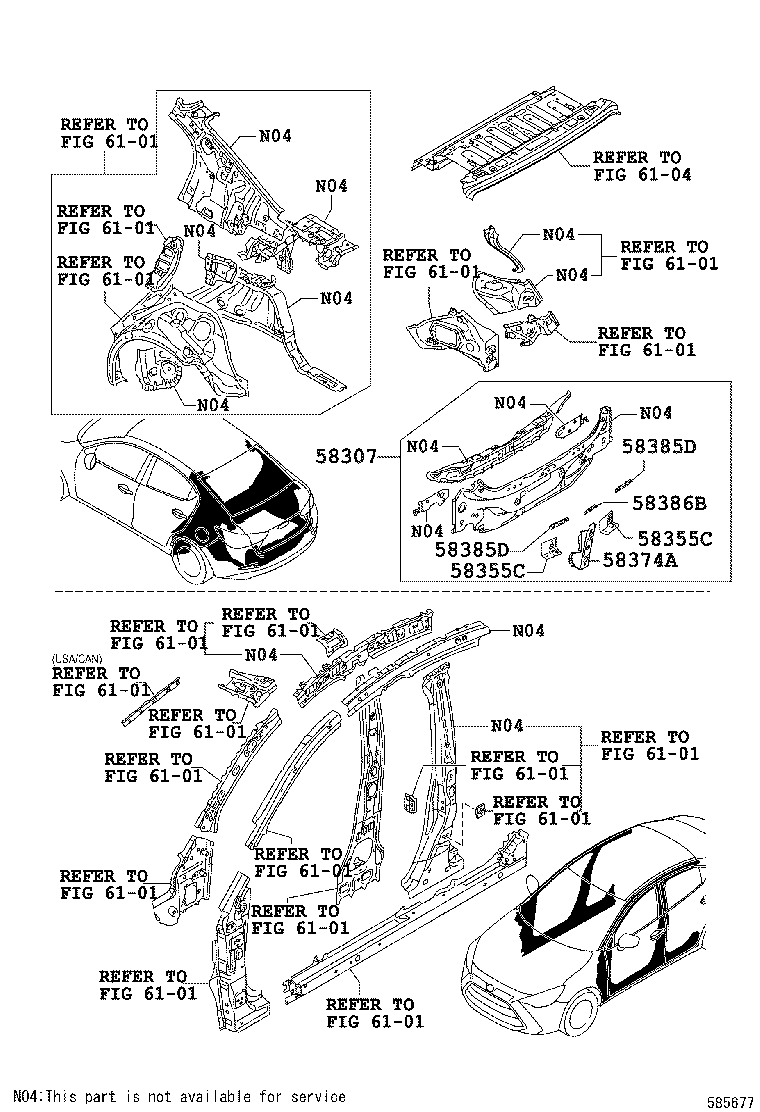

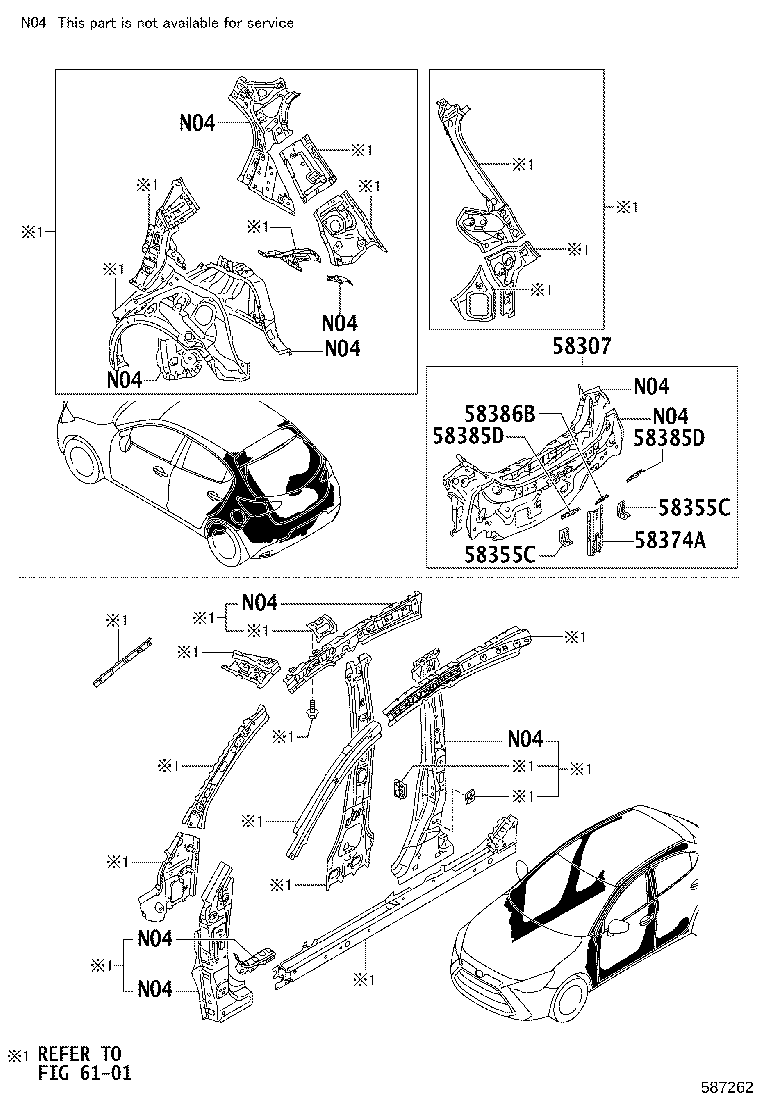

Figure 585680 585680 2015-06 → — Figure 585677 585677 2015-06 → — Figure 587262 587262 2019-08 → — Figure 585812D 585812D 2015-06 → 2018-08 Figure 586719A 586719A 2018-08 → — Figure 587263A 587263A 2019-08 → — Figure 585679C 585679C 2015-06 → 2019-08 Figure 587264 587264 2019-08 → — Figure 585681C 585681C 2015-06 → 2019-08 Figure 587265 587265 2019-08 → — Figure 586894 586894 2015-06 → —

Part groups

PNCDescription
57043A Reinforcement Sub-assy, Front Side Member, Rear RH
57044A Reinforcement Sub-assy, Front Side Member, Rear LH
57051A Member Sub-assy, Front Floor Cross, RH
57052A Member Sub-assy, Front Floor Cross, LH
57417B Reinforcement, Front Floor Under
57453C Member, Front Floor Cross Side, RH
57454B Member, Front Floor Cross Side, LH
57455C Bracket, Front Seat Mounting, Outside RH
57456B Bracket, Front Seat Mounting, Outside LH
57475D Plate, Front Floor Crossmember, RH
57476 Plate, Front Floor Crossmember, LH
57508A Reinforcement Sub-assy, Front Floor, RH
57509 Reinforcement Sub-assy, Front Floor, Center
57509A Reinforcement Sub-assy, Front Floor, LH
57533B Brace, Front Floor, Center
57628C Cover, Rear Floor Side Member, LH
57683 Bracket, Fuel Tank, Front
58014 Panel Sub-assy, Front Floor, Rear Lower
58027A Reinforce Sub-assy, Seat Belt Anchor
58111A Pan, Front Floor, RH
58112 Retainer, Seat Rail, Rear
58113A Panel, Front Floor, Center
58165B Cover, Front Floor, RH
58166 Cover, Front Floor, LH
58167A Cover, Front Floor, Center
58193 Bracket, Instrument Panel Brace Mounting
58202A Pan Sub-assy, Center Floor, Front
58208B Bracket, Center Floor Heat Insulator
58215G Bracket, Rear Seat Mounting, NO.1
58264B Bracket, Parking Brake Cable Guide
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58315D Extension, Rear Floor Pan, RH
58316D Extension, Rear Floor Pan, LH
58325E Cover, Rear Floor Service Hole
58336B Reinforcement, Rear Floor Pan
58336F Reinforcement, Rear Floor Pan, RH
58337D Reinforcement, Rear Floor Pan, LH
58355C Bracket, Rear Bumper Arm
58374A Reinforcement, Back Door Lock Striker
58385D Bracket, Rear Bumper Cover
58386B Bracket, Rear Bumper Cover, NO.2
58398H Cover, Floor Under, NO.1
58417D Bracket, Deck Board, NO.1 LH
58418D Bracket, Deck Board, NO.2
74401A Bracket Sub-assy, Battery, Front
