Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 3 illustrations

Illustrations

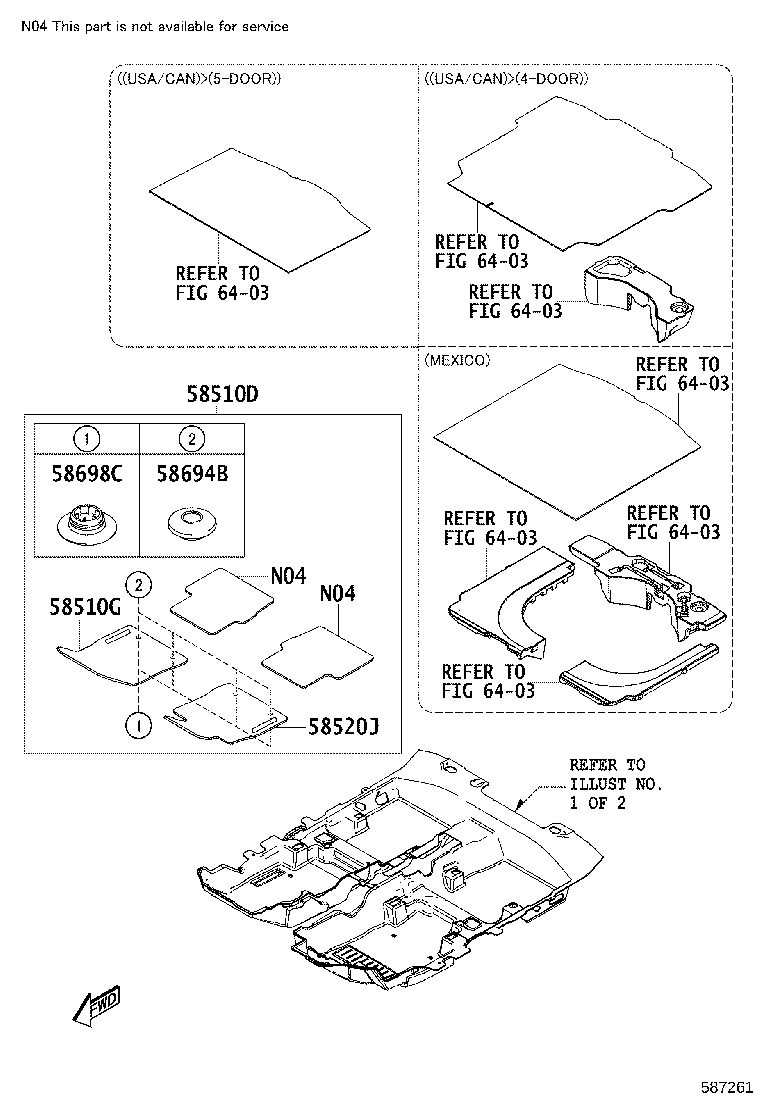

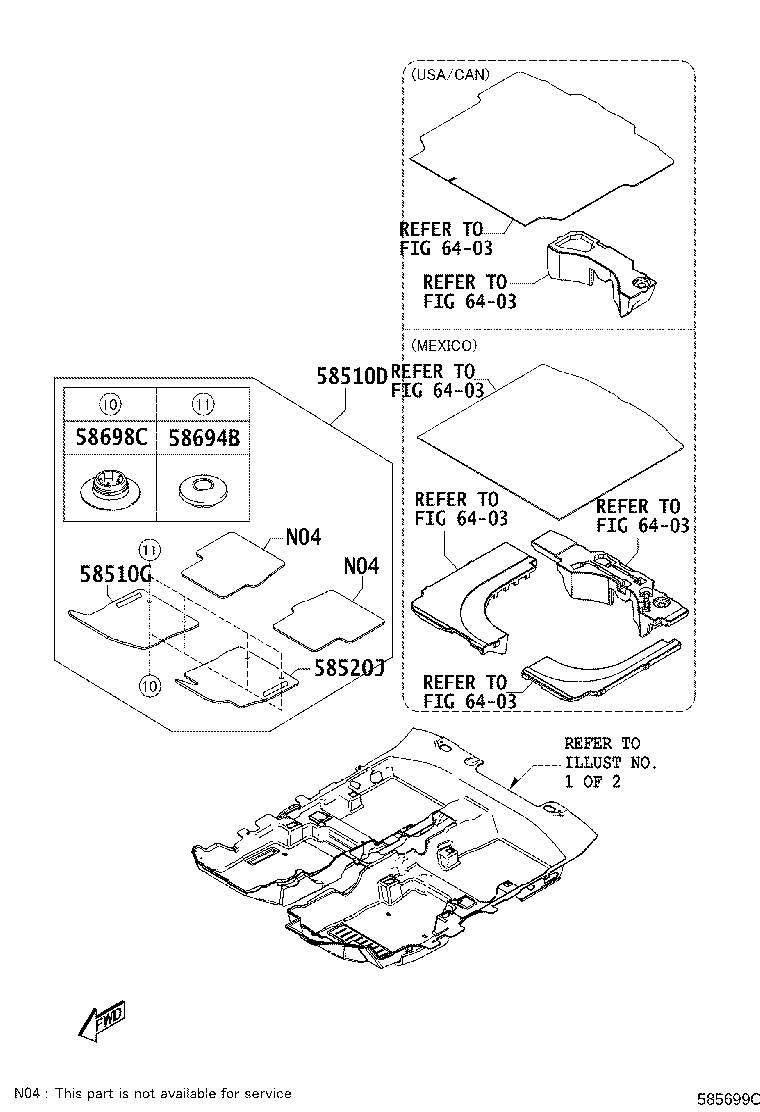

Figure 585698C 585698C 2015-06 → — Figure 585699C 585699C 2015-06 → 2019-08 Figure 587261 587261 2019-08 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55214D Clip(FOR DASH PANEL INSULATOR PAD)
55216C Pad, Dash Panel Insulator, NO.4
58510C Carpet Assy, Front Floor, Front
58510D Carpet Assy, Floor, Front
58510G Carpet Assy, Floor, Front RH
58511E Clip(FOR FRONT FLOOR MAT)
58520J Carpet Assy, Floor, Front LH
58521B Hook, Floor Carpet
58522D Hook, Floor Carpet, NO.2
58563Q Silencer, Front Floor, NO.3
58565B Clip
58569D Cover, Front Floor Caution Plate
58582F Clip, NO.2(FOR REAR FLOOR CARPET)
58595 Moulding, Floor Carpet, NO.3
58694A Plate, Mat Set, Upper
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
