Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 6 illustrations

Illustrations

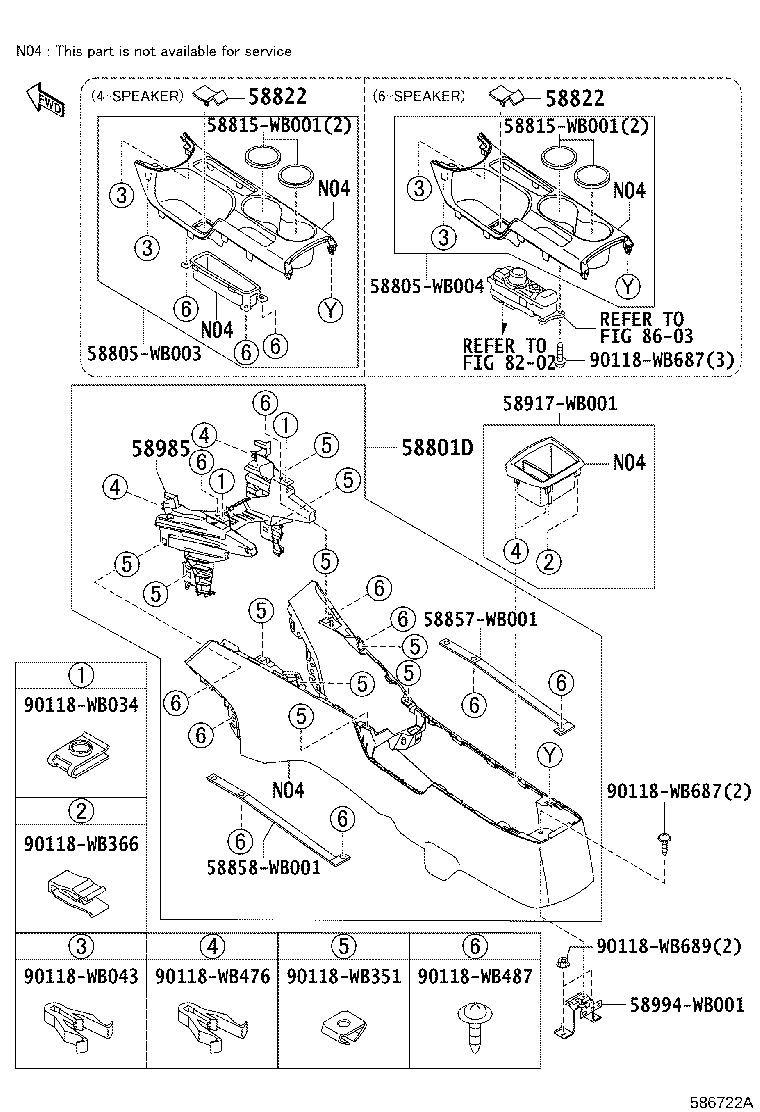

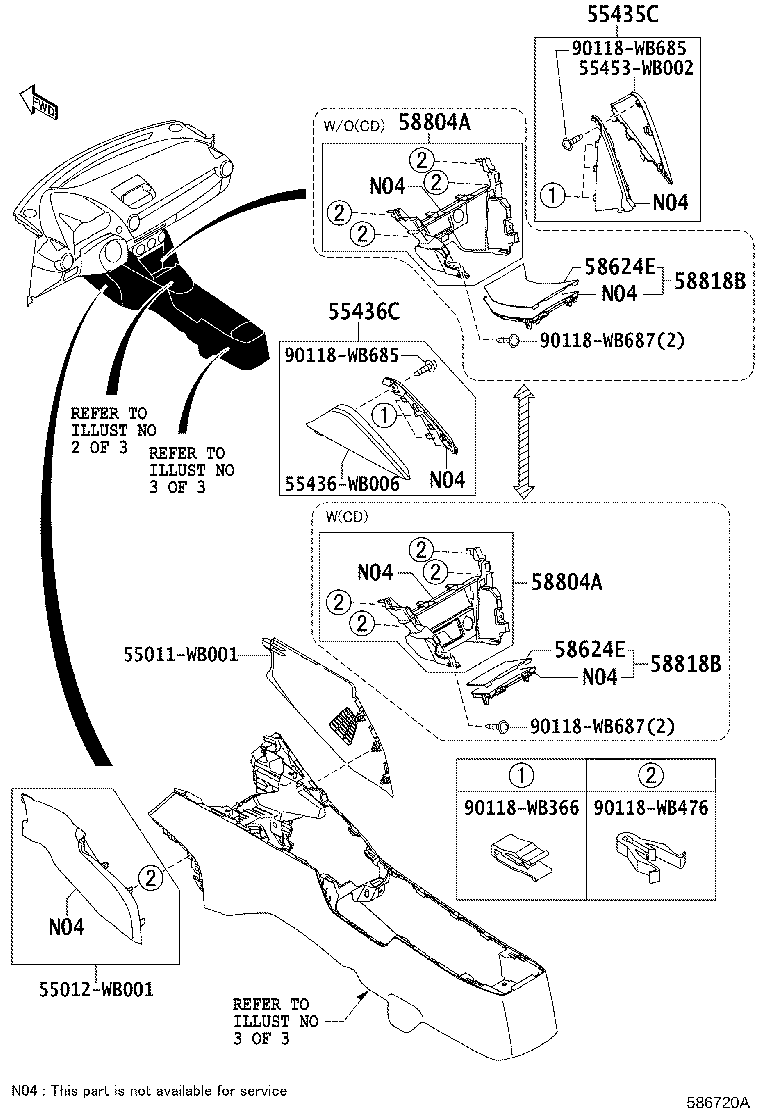

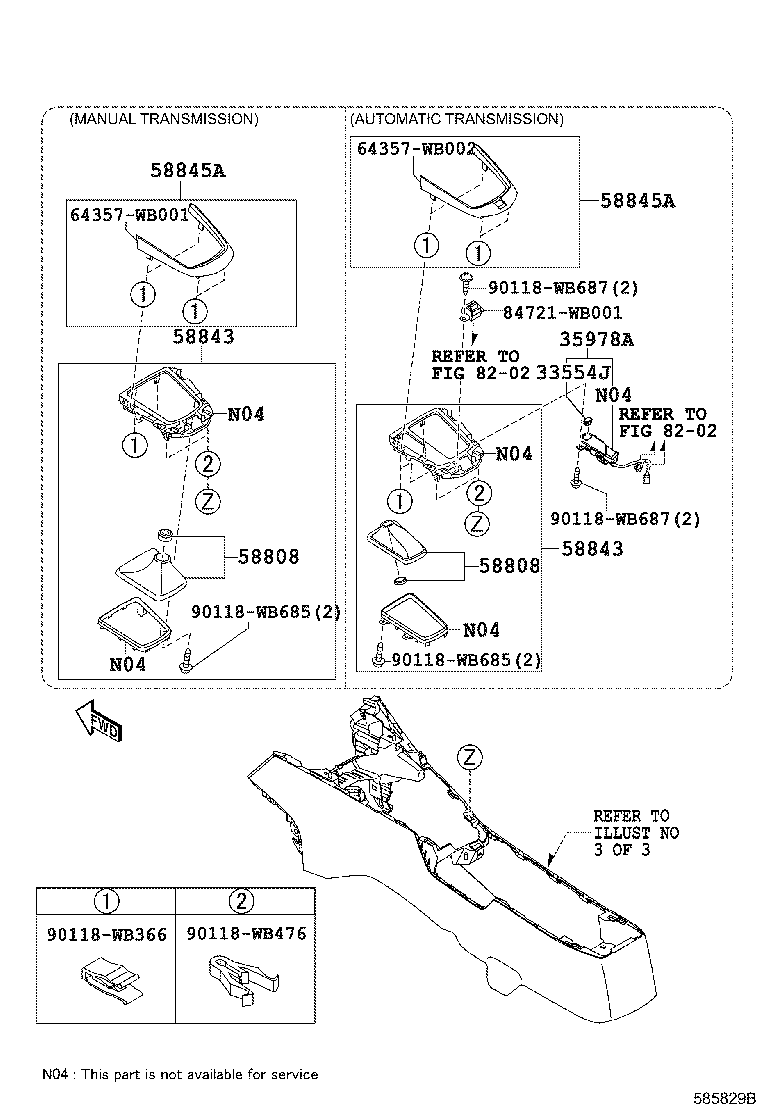

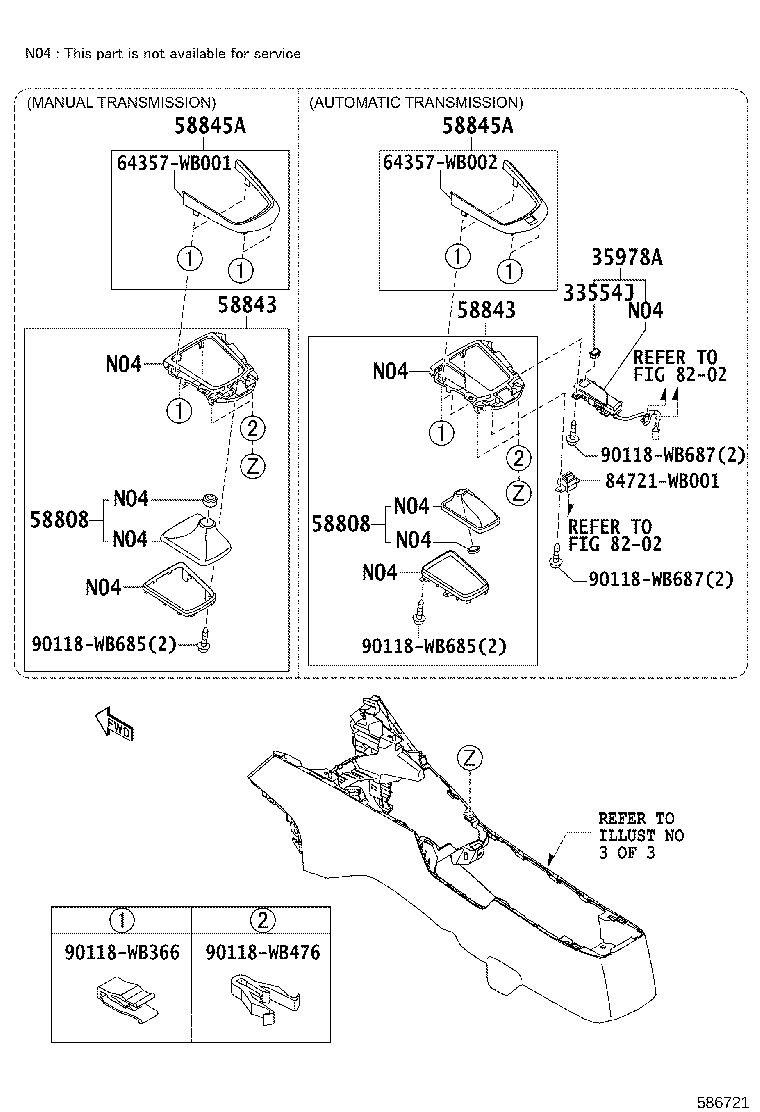

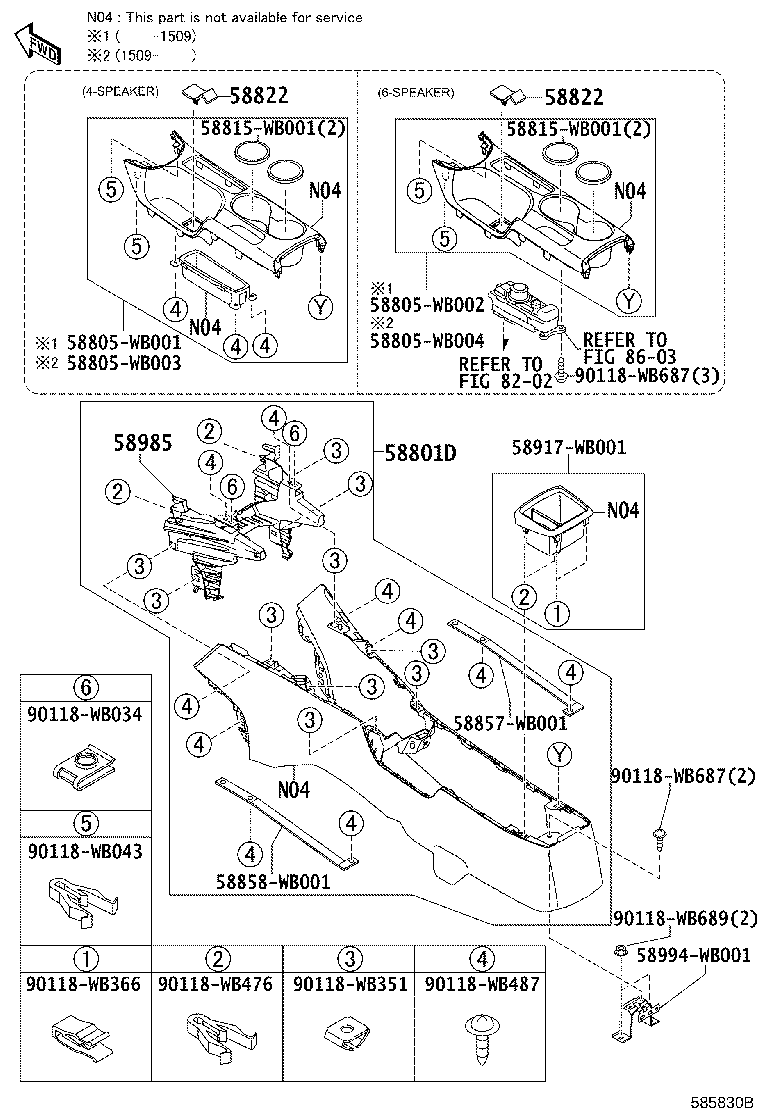

Figure 585706A 585706A 2015-06 → 2018-08 Figure 586720A 586720A 2018-08 → — Figure 585829B 585829B 2015-06 → 2018-08 Figure 586721 586721 2018-08 → — Figure 585830B 585830B 2015-06 → 2018-08 Figure 586722A 586722A 2018-08 → —

Part groups

PNCDescription
33554J Cover, Shift Lock Release Button
35978A Indicator, Shift Position
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
58624E Plate, Mat Set, NO.4 A
58801D Box Assy, Console
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58818B Cover, Console Box, Upper
58822 Panel, Console, Side
58843 Bezel, Shifting Hole
58845A Frame, Console, NO.1
58985 Retainer, Console Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
