Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

11 part groups · 7 illustrations

Illustrations

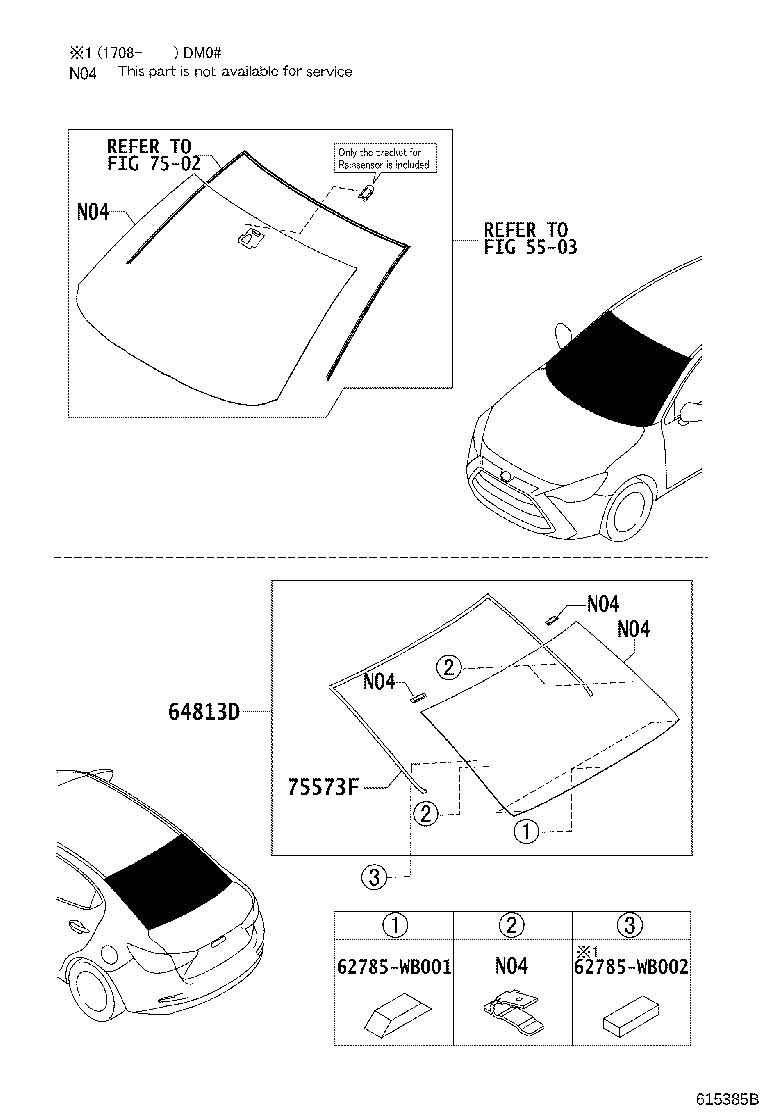

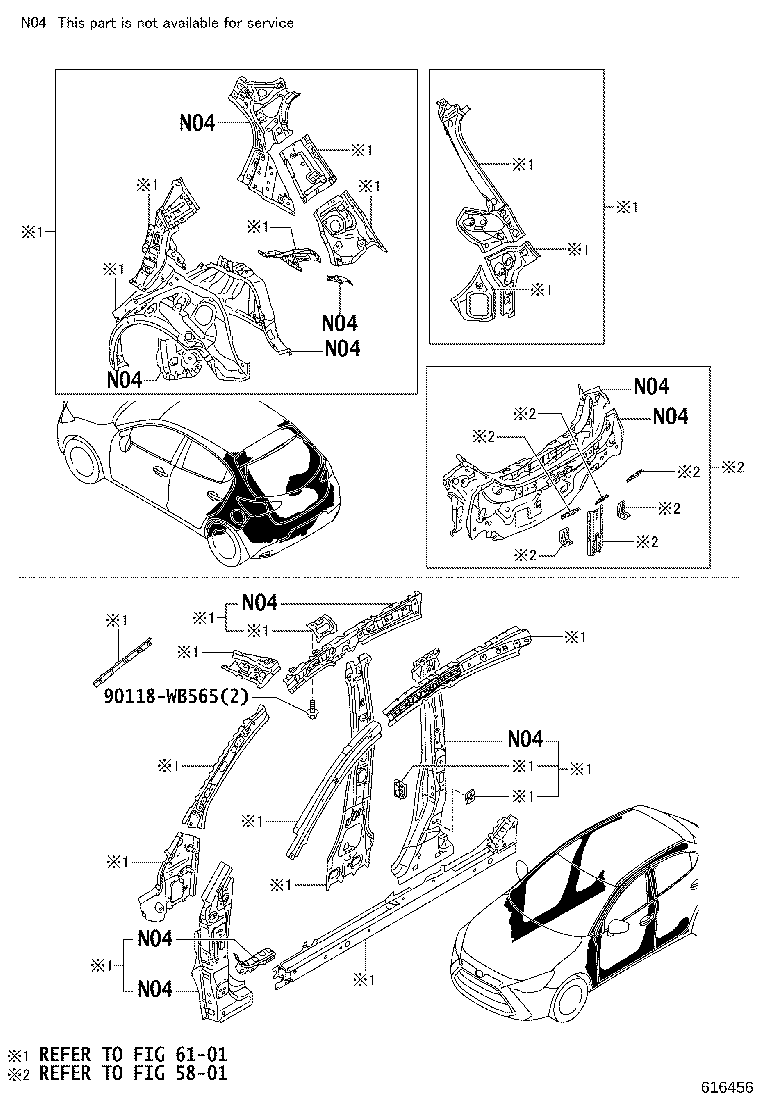

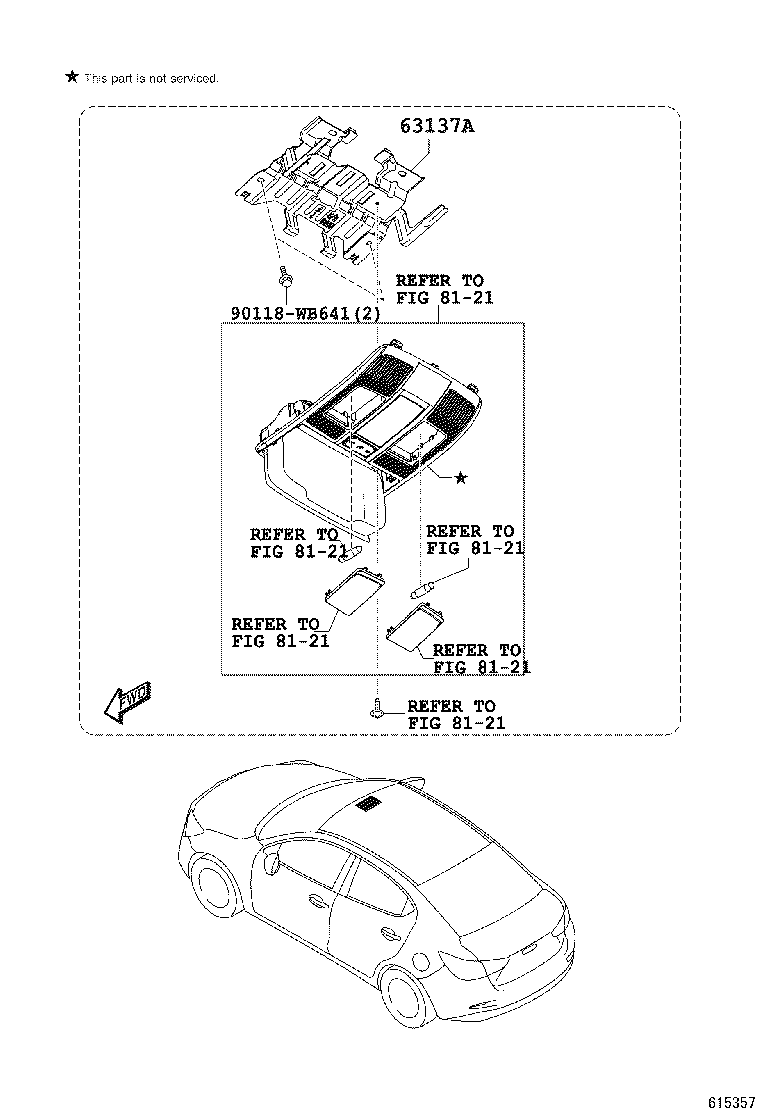

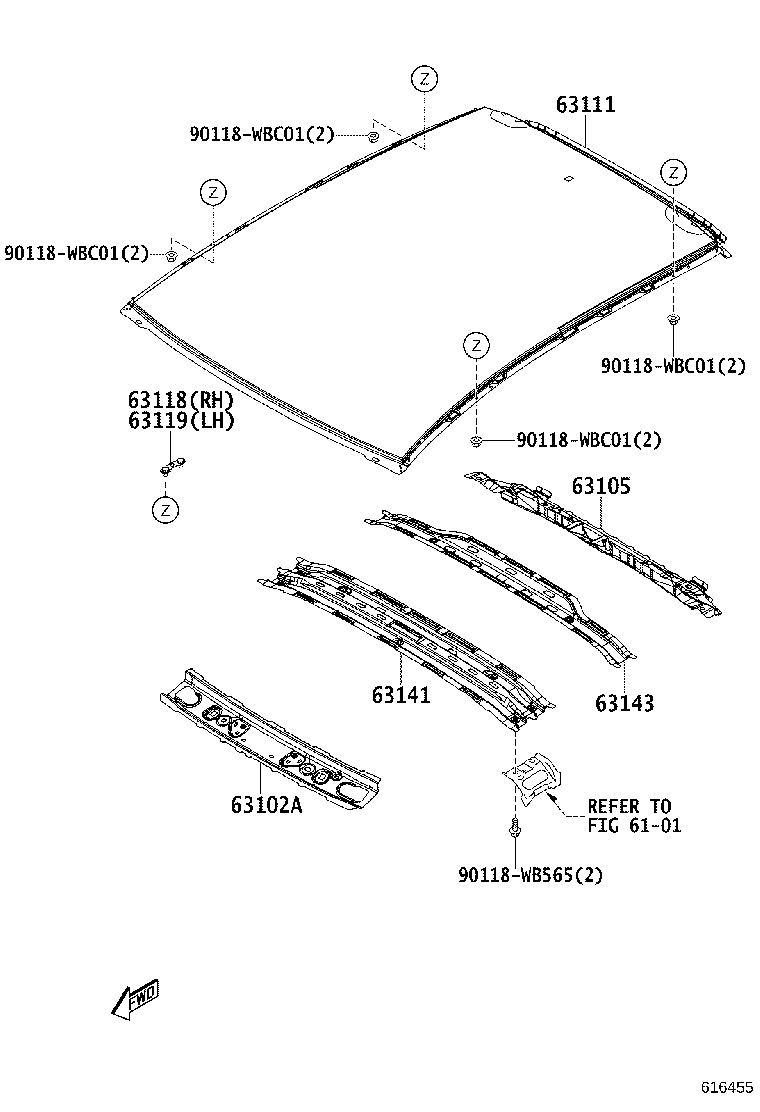

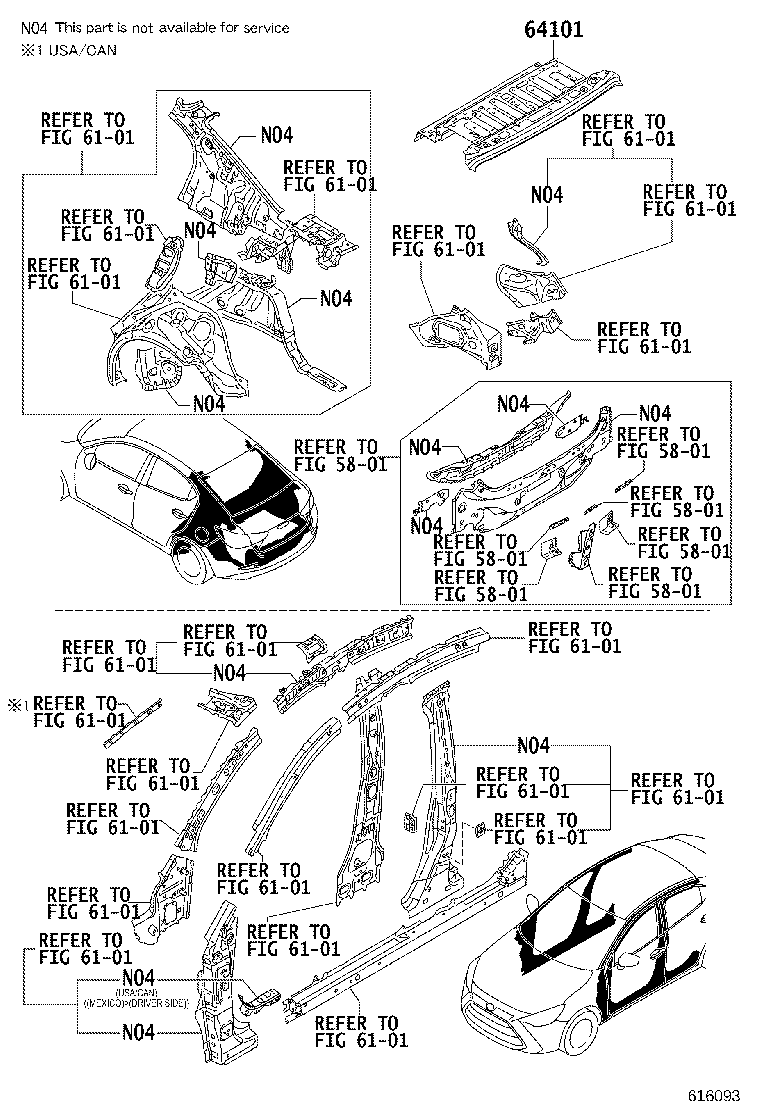

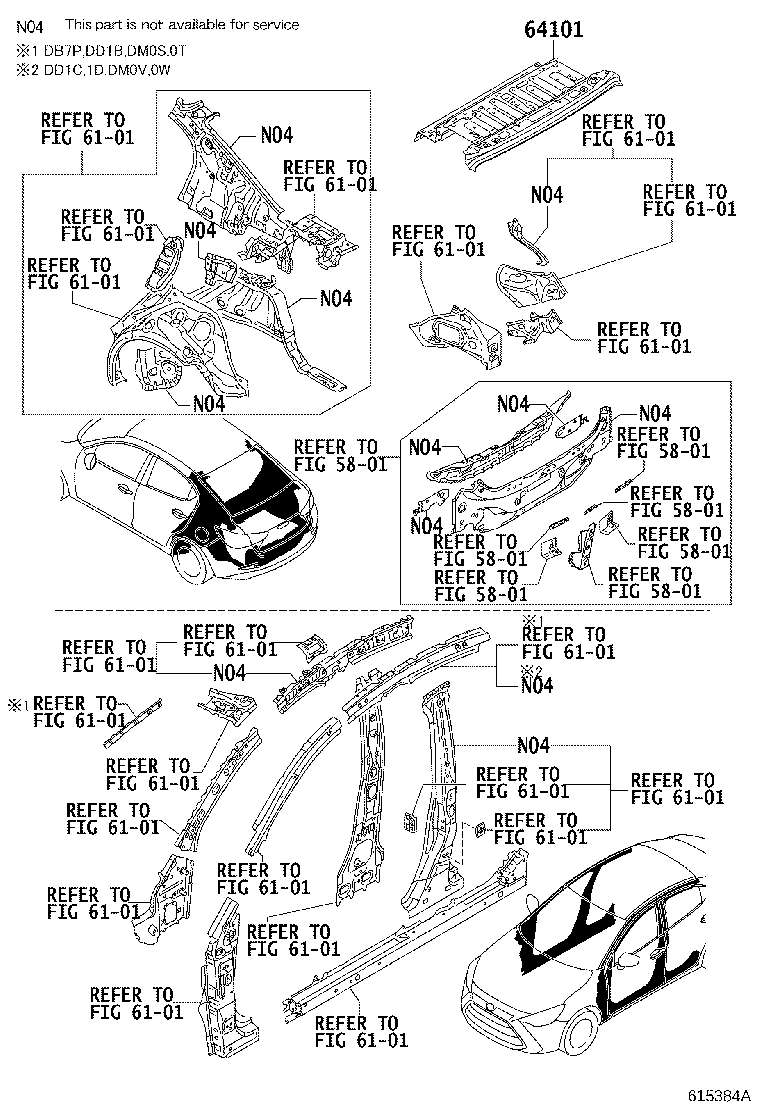

Figure 615356 615356 2015-06 → — Figure 616455 616455 2019-08 → — Figure 615357 615357 2015-06 → — Figure 615384A 615384A 2015-06 → 2018-08 Figure 616093 616093 2018-08 → — Figure 616456 616456 2019-08 → — Figure 615385B 615385B 2015-06 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105 Reinforcement Sub-assy, Roof Panel, Rear
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63137A Bracket, Dome Lamp, NO.1
63141 Strength, Roof Panel Side
63143 Rail, Back Corner Upper, RH
64101 Panel Sub-assy, Upper Back
64813D Dam, Back Window Glass Adhesive
75573F Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
