Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

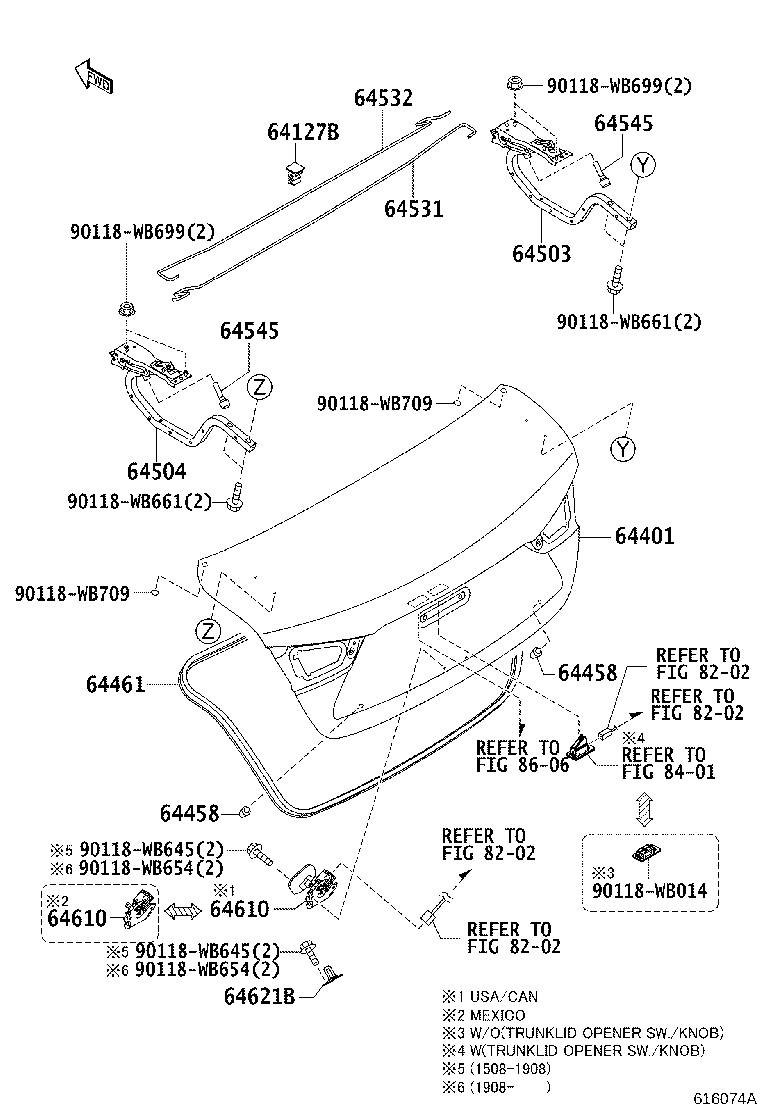

Luggage Compartment Door & Lock
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 64127B | Support, Luggage Compartment Door Torsion Bar |
| 64401 | Panel Sub-assy, Luggage Compartment Door |
| 64458 | Cover, Luggage Door Stopper Cushion, LH |
| 64461 | Weatherstrip, Luggage Compartment Door |
| 64503 | Arm Sub-assy, Luggage Compartment Door Hinge, RH |
| 64504 | Arm Sub-assy, Luggage Compartment Door Hinge, LH |
| 64531 | Bar, Luggage Door Hinge Torsion, RH |
| 64532 | Bar, Luggage Door Hinge Torsion, LH |
| 64545 | Cushion, Luggage Door Hinge |
| 64610 | Lock Assy, Luggage Compartment Door |
| 64621B | Striker, Luggage Compartment Door Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
