Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

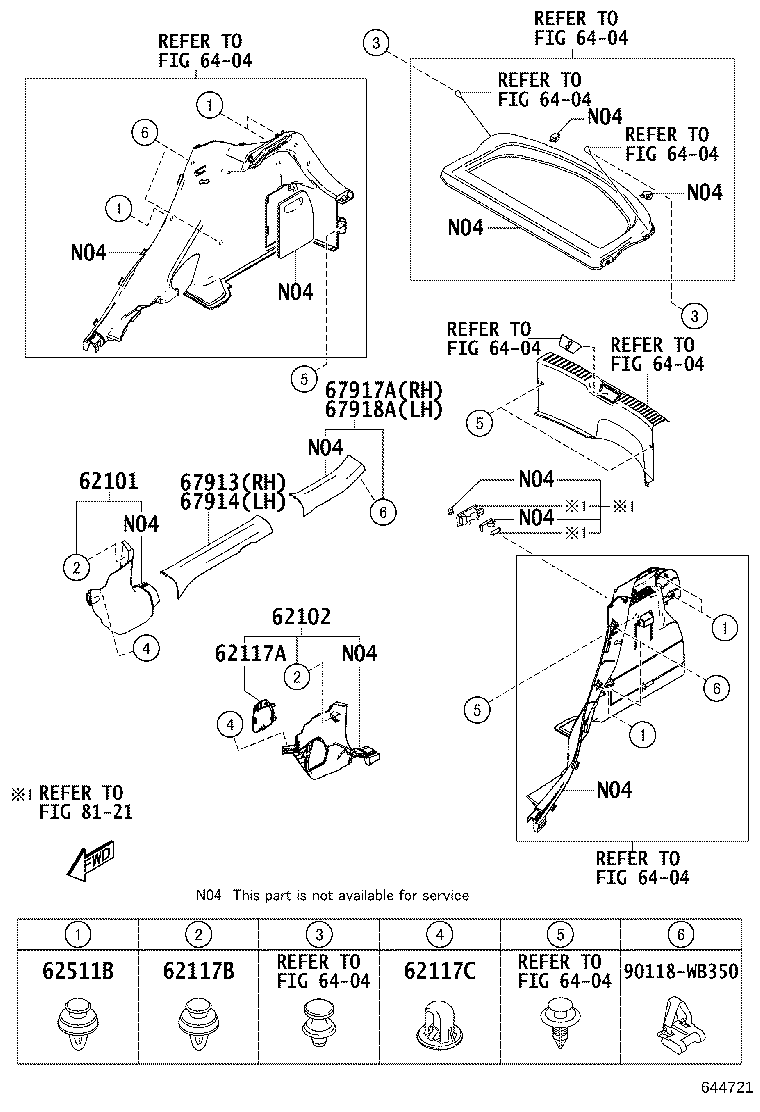

Inside Trim Board & Door Opening Trim Moulding
30 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 62101 | Board Sub-assy, Cowl Side Trim, Upper RH |
| 62102 | Board Sub-assy, Cowl Side Trim, Upper LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |

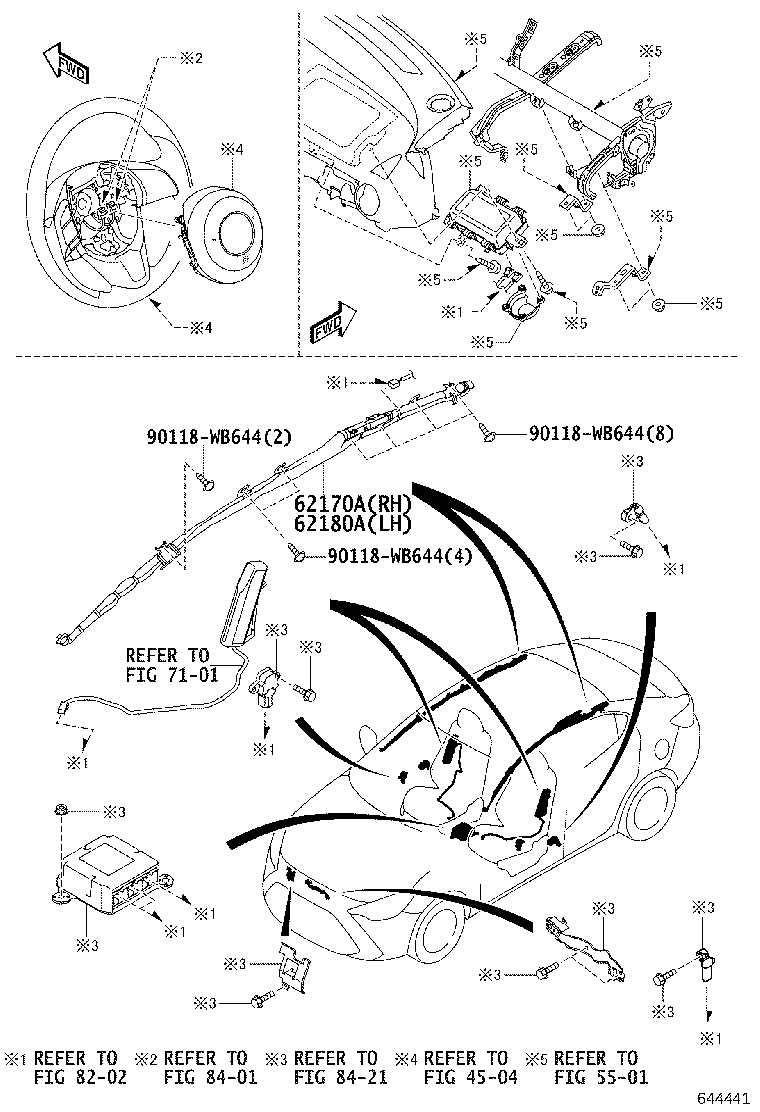

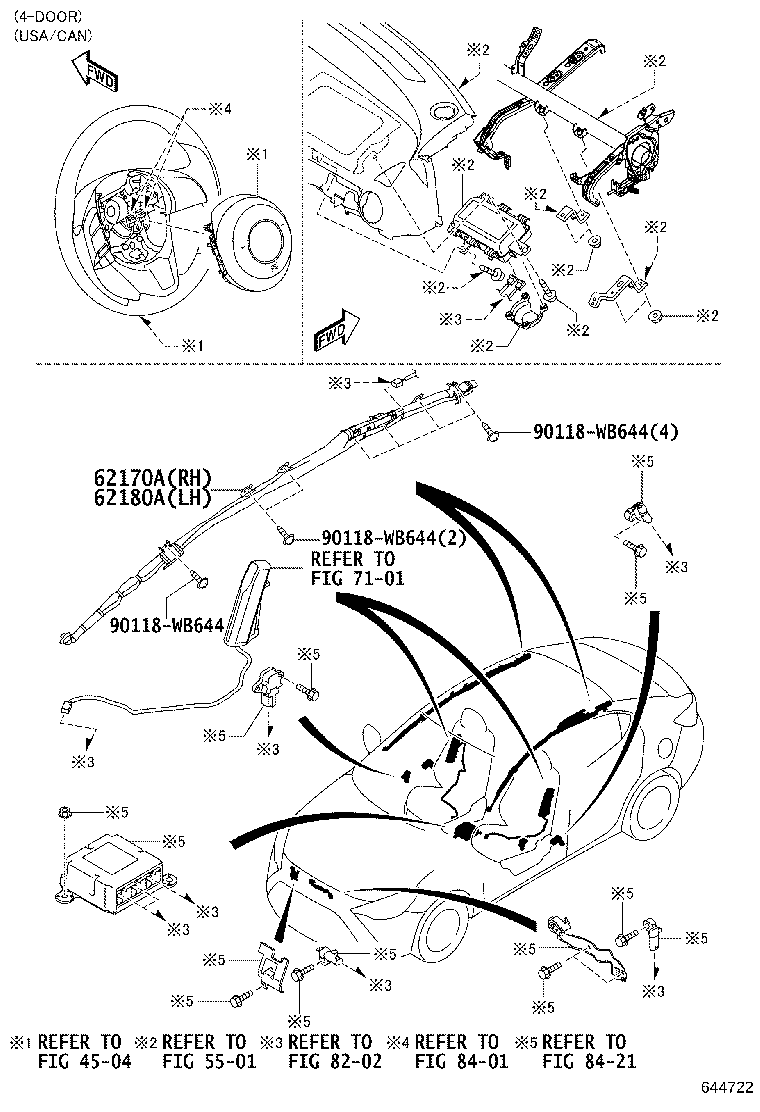

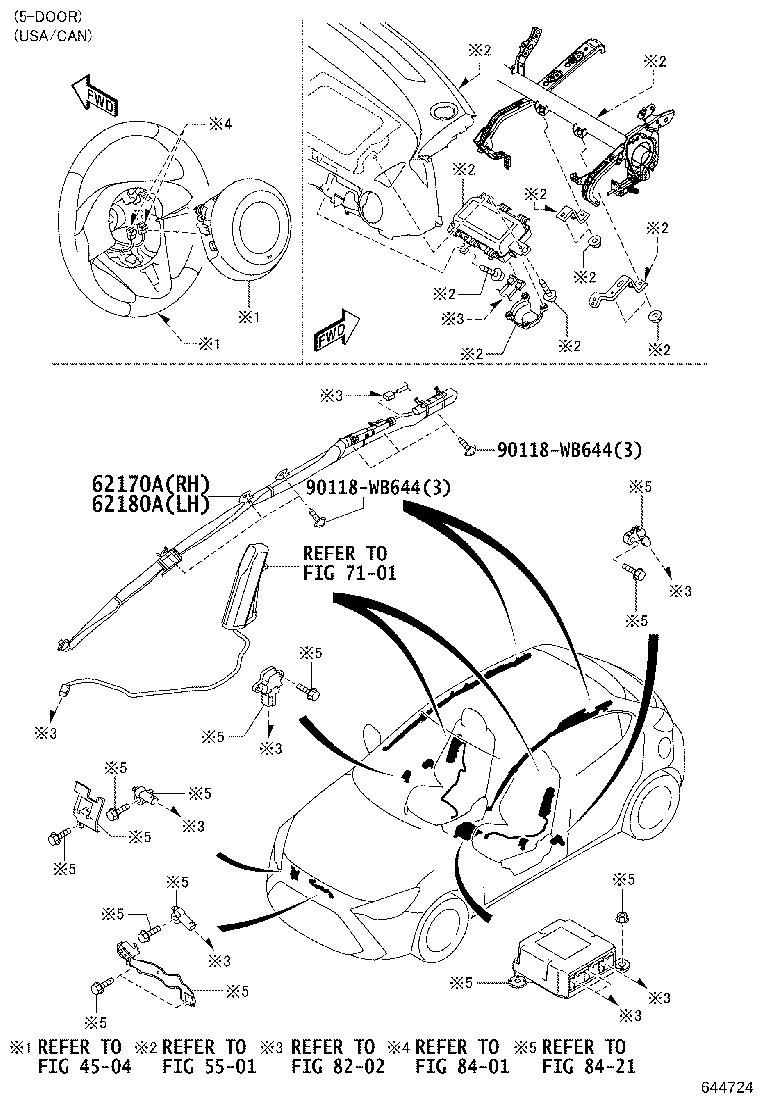

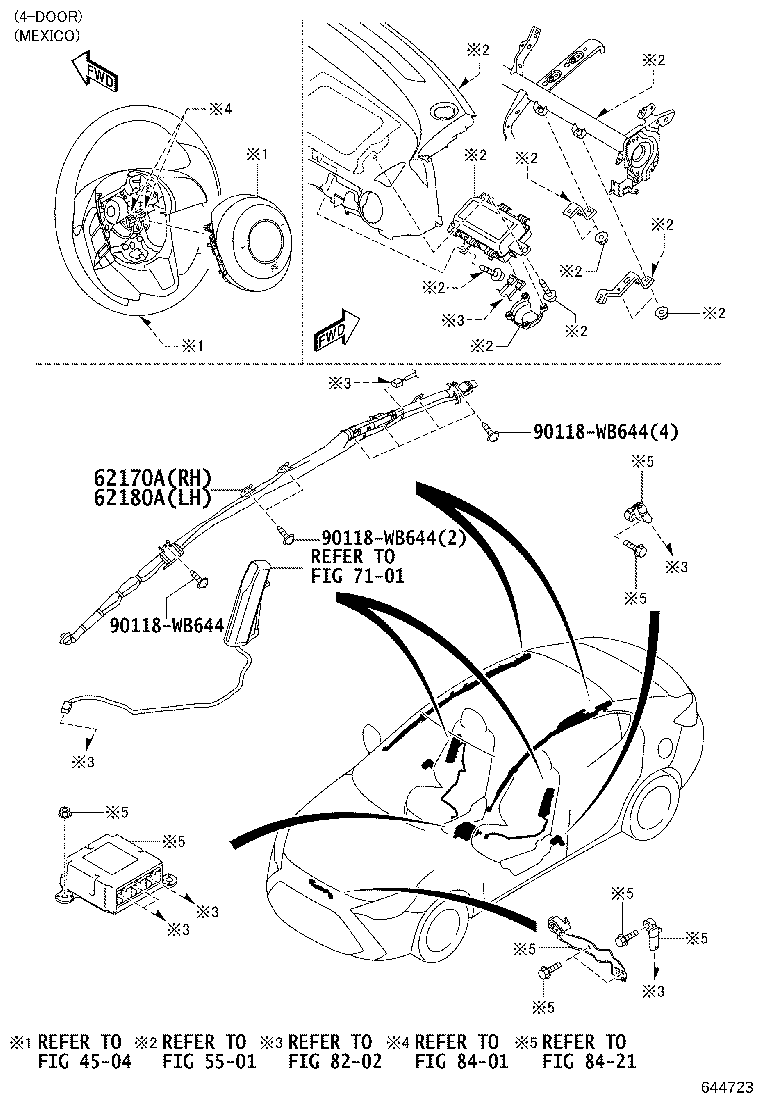

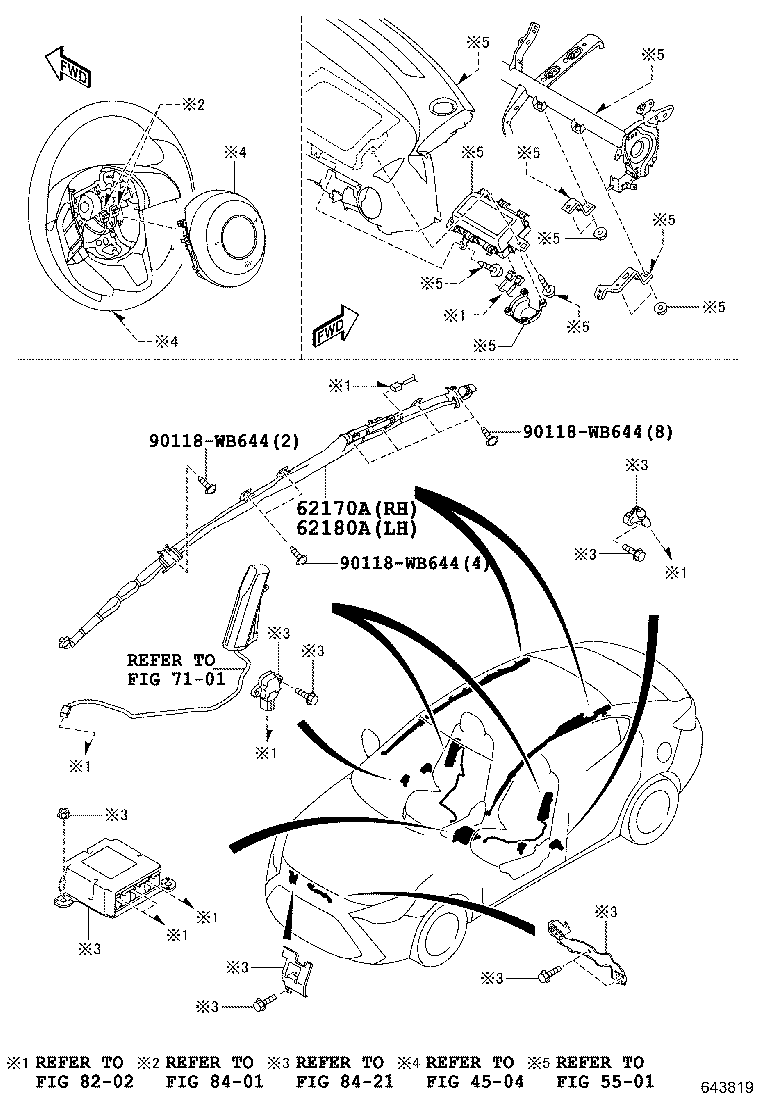

| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |

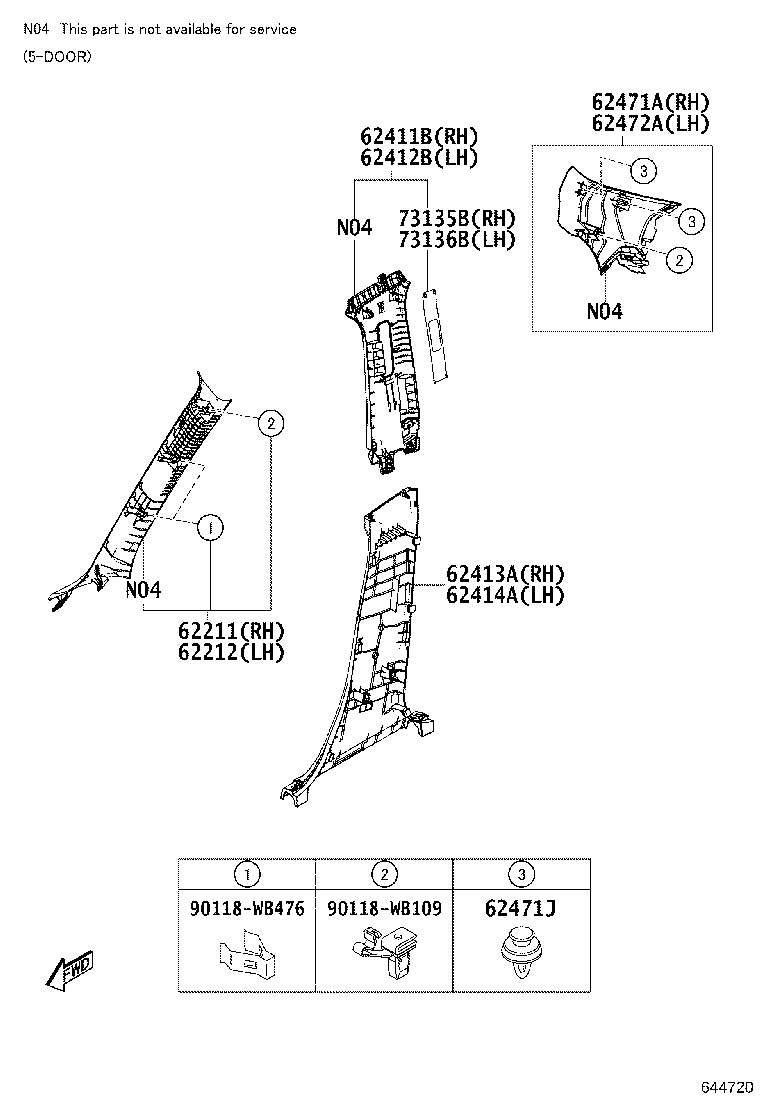

| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |

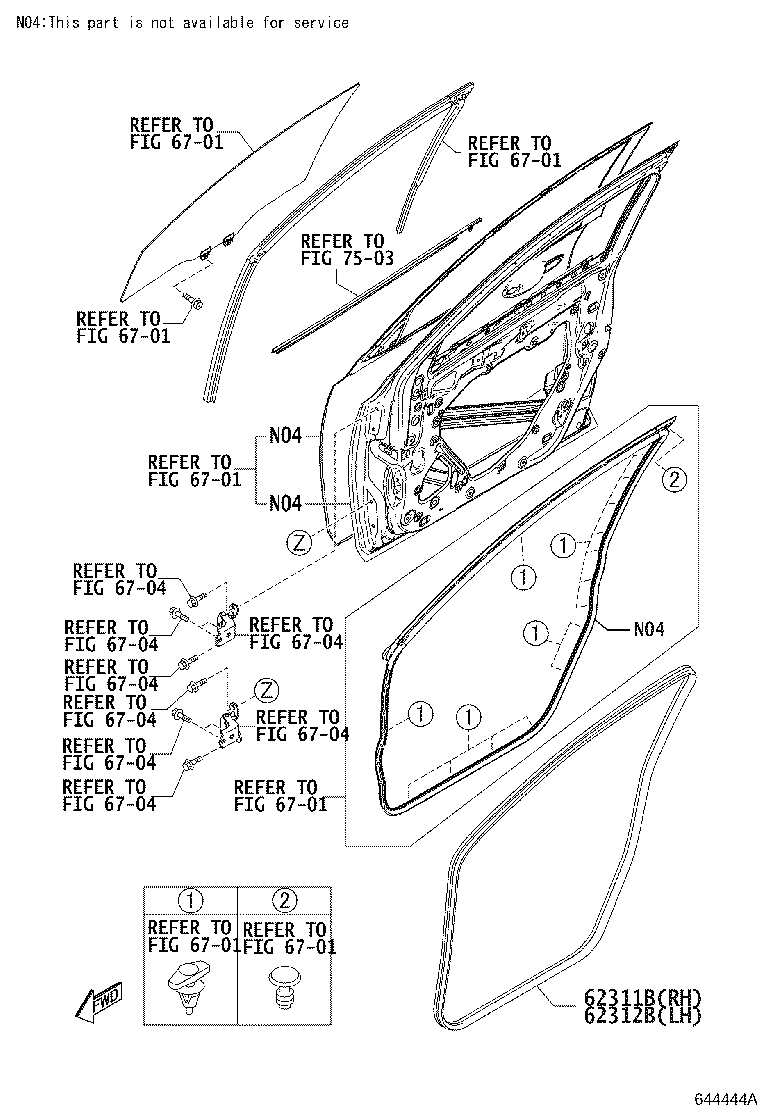

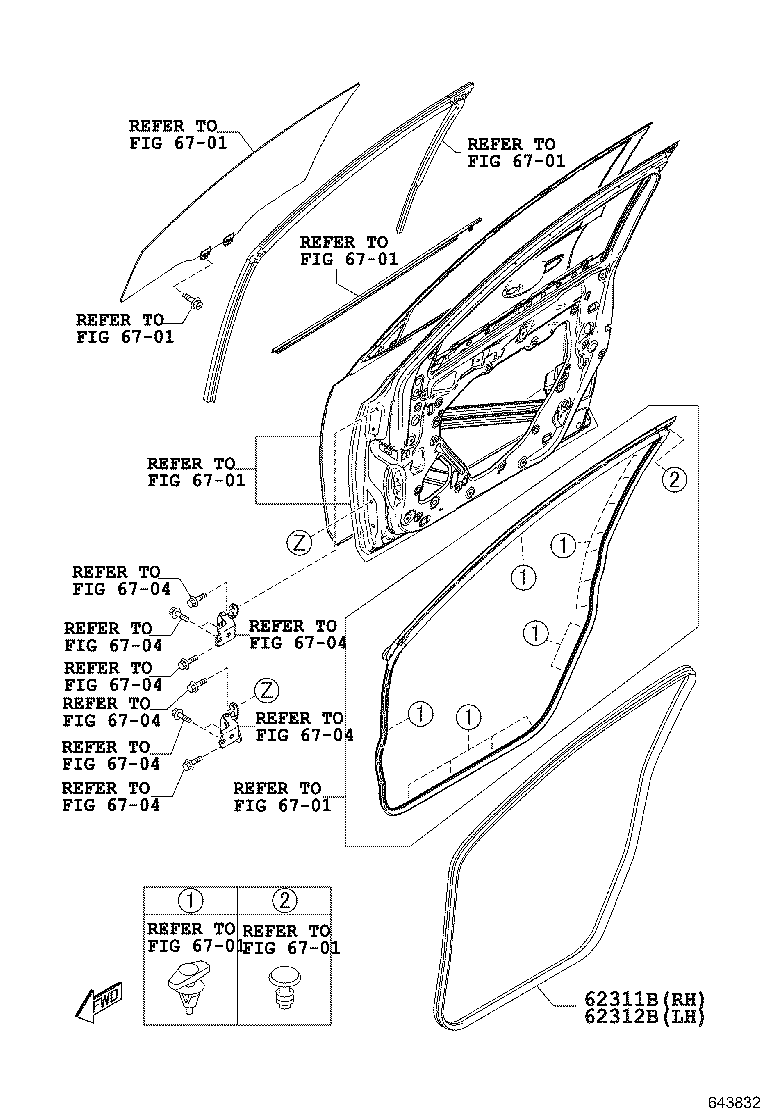

| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |

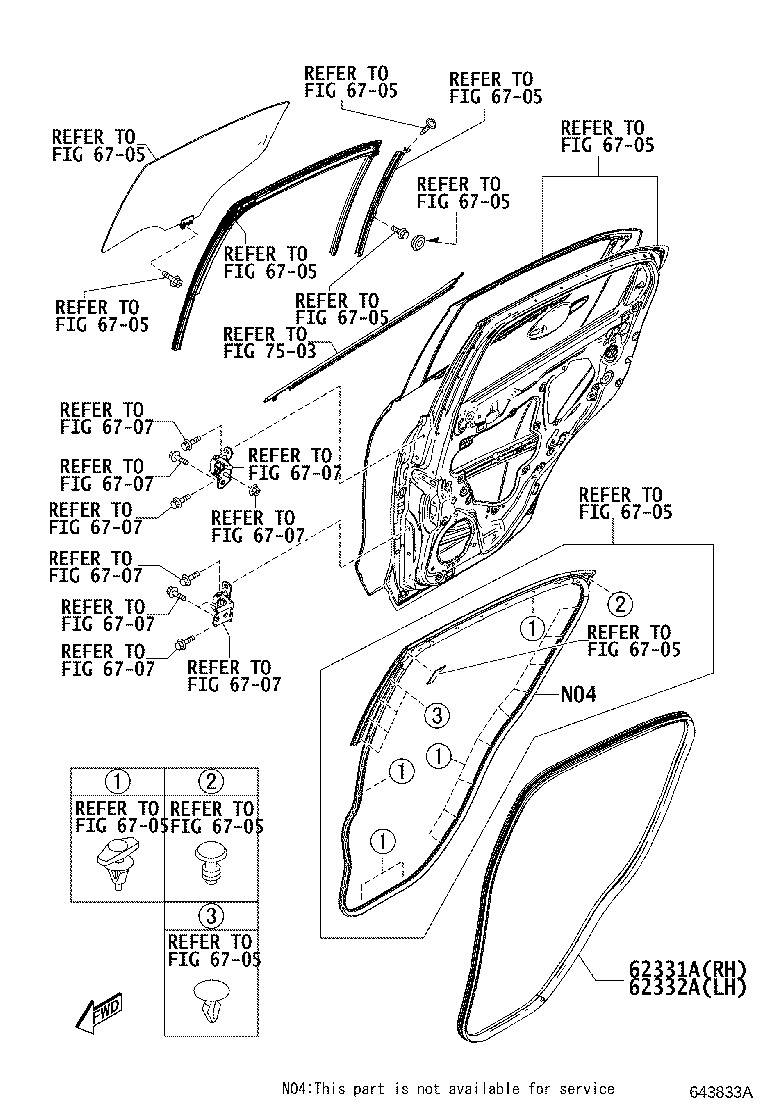

| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |

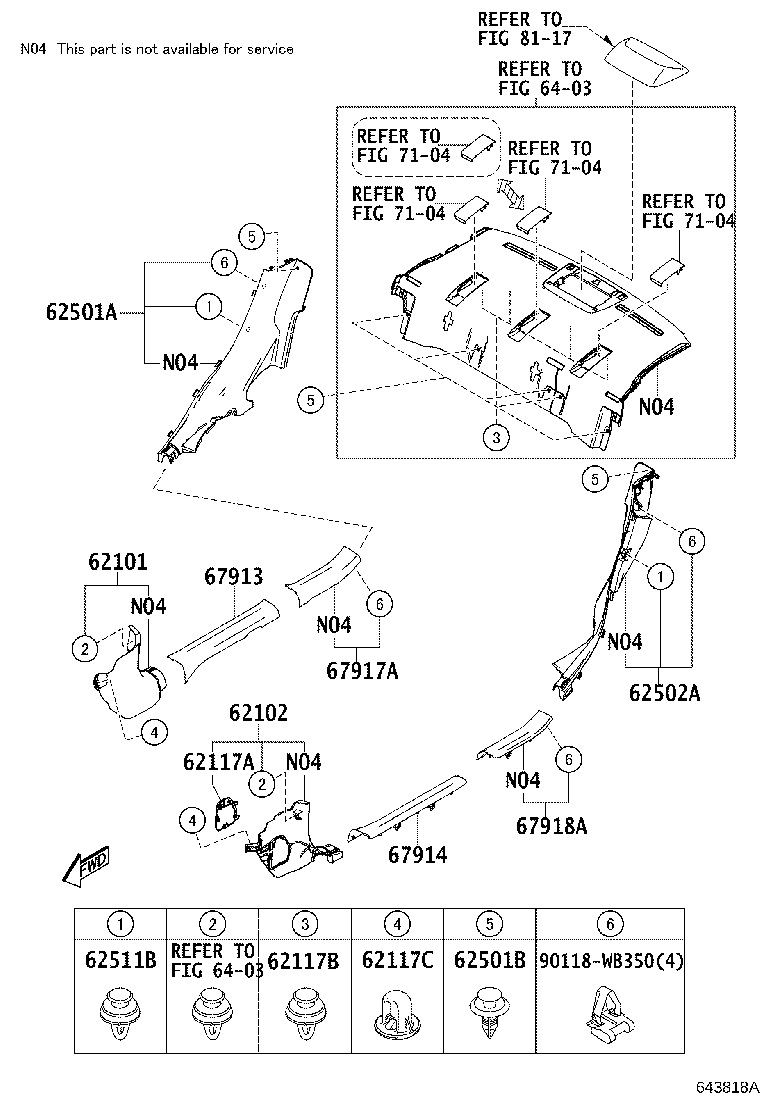

| 62501A | Panel Assy, Quarter Trim, RH |
| 62501B | Clip(FOR QUARTER INSIDE TRIM UPPER PANEL) |
| 62502A | Panel Assy, Quarter Trim, LH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 73135B | Cover, Shoulder Belt Anchor, RH |
| 73136B | Cover, Shoulder Belt Anchor, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
