Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 8 illustrations

Illustrations

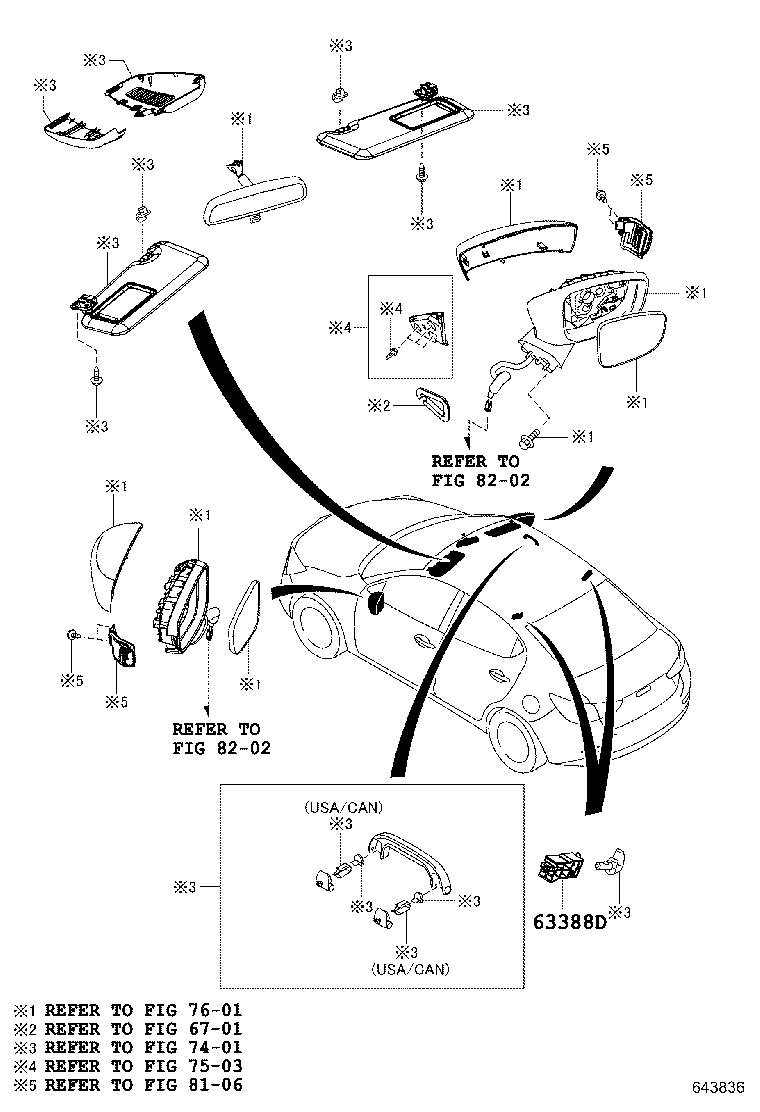

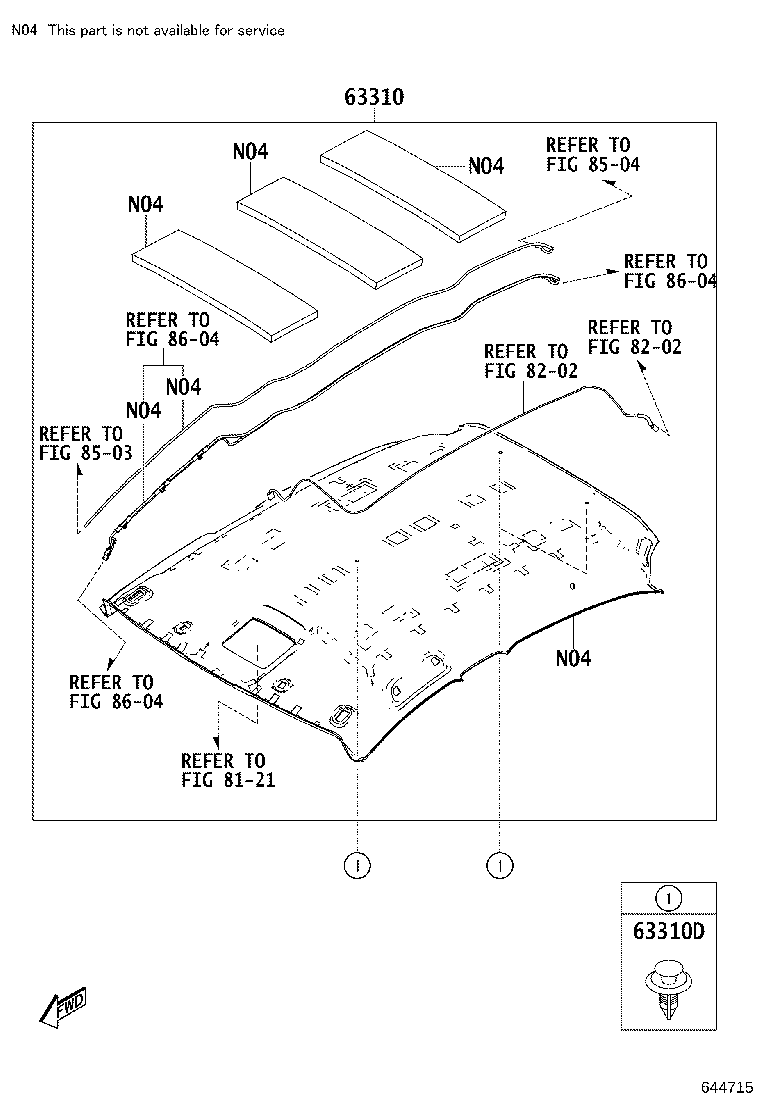

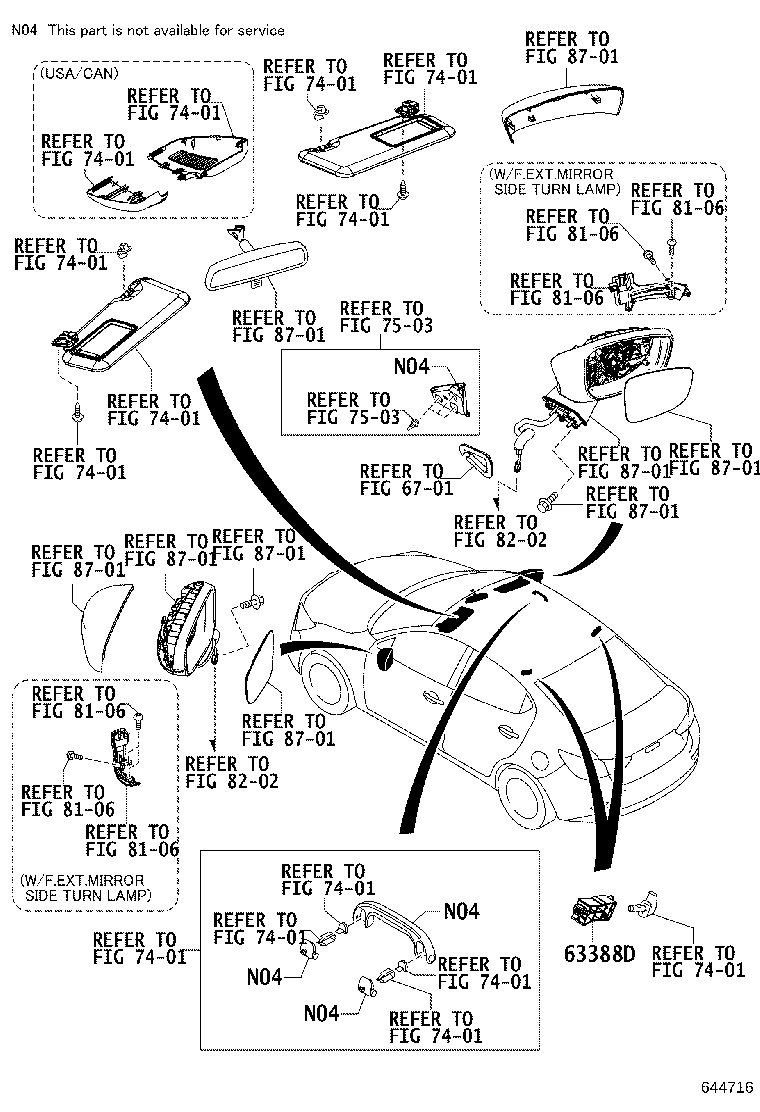

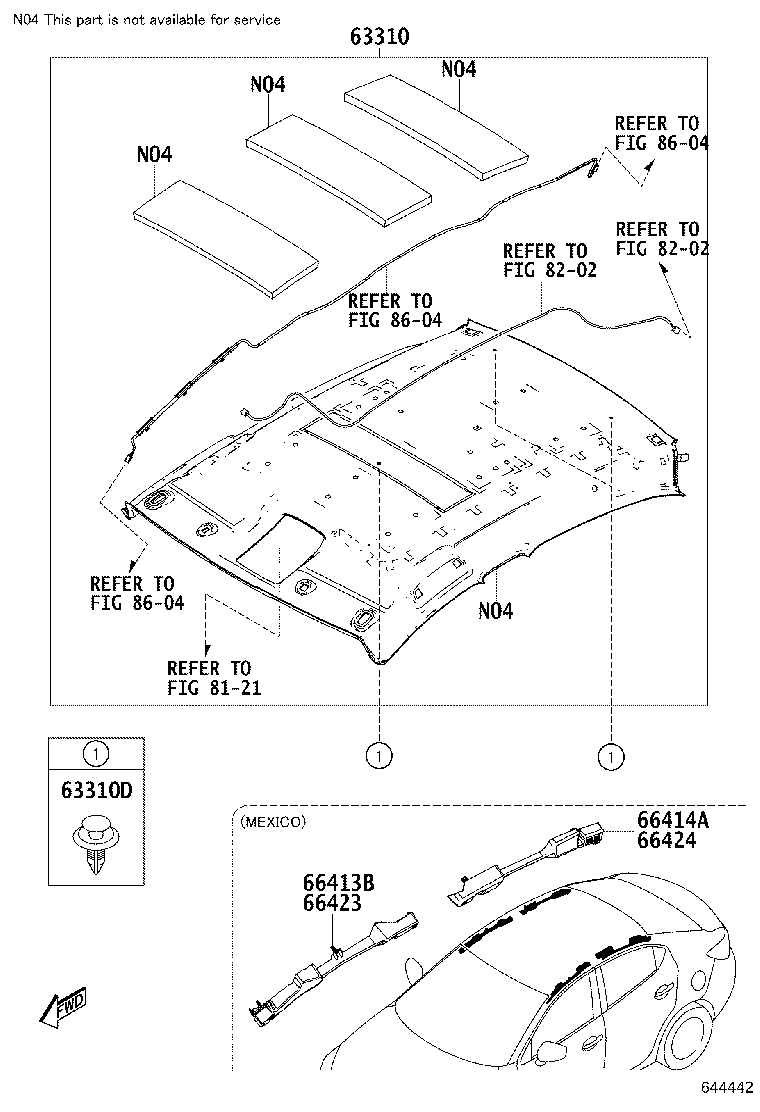

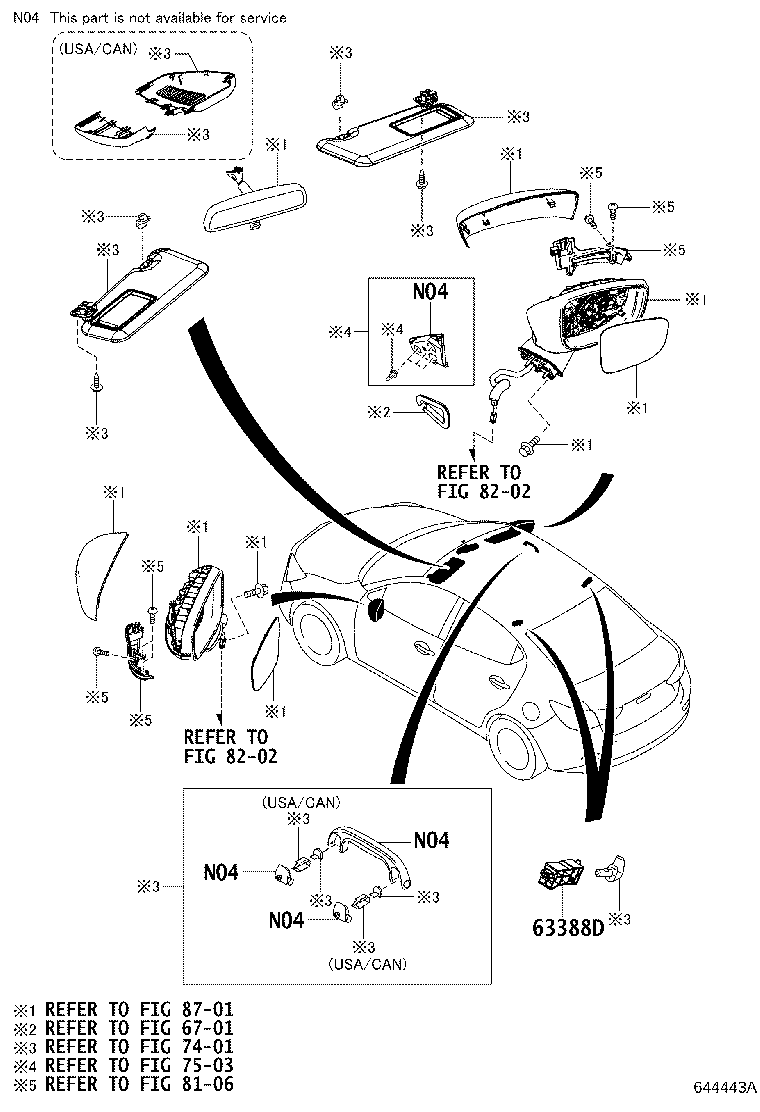

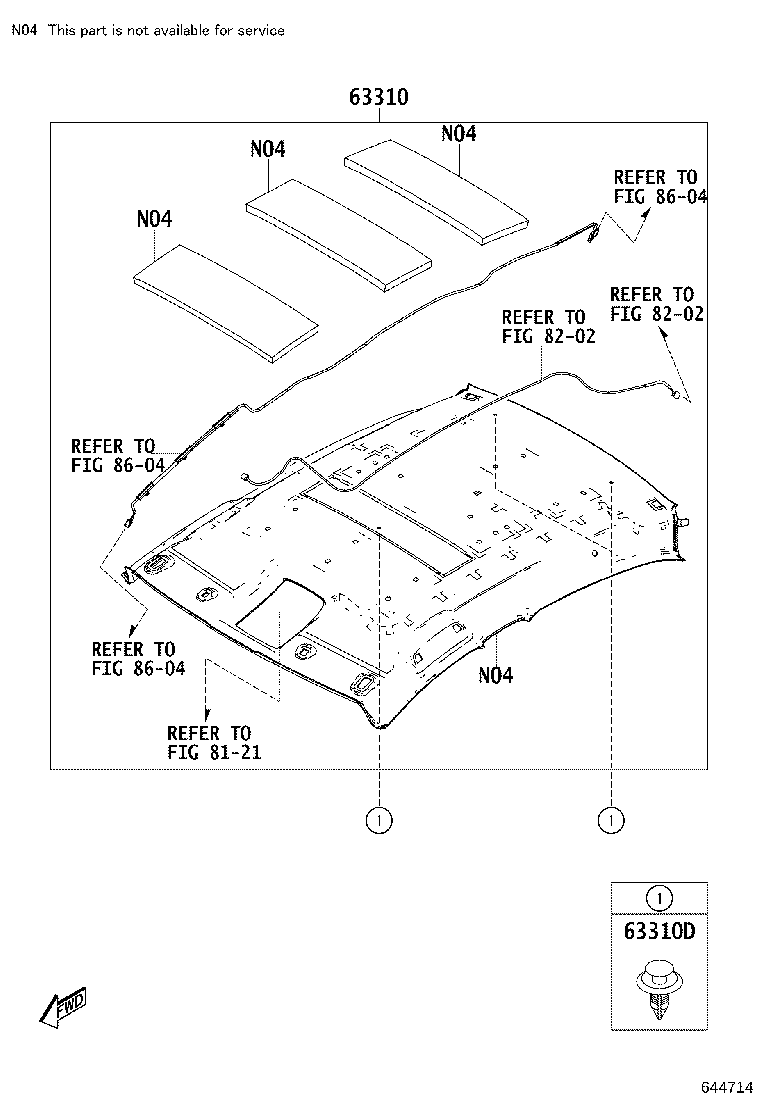

Figure 643820 643820 2015-06 → 2018-08 Figure 643821 643821 2015-06 → 2018-08 Figure 644442 644442 2018-08 → 2019-08 Figure 644714 644714 2019-08 → — Figure 644715 644715 2019-08 → — Figure 643836 643836 2015-06 → 2018-08 Figure 644443A 644443A 2018-08 → 2019-08 Figure 644716 644716 2019-08 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63388D Bracket, Roof Headlining Retainer, NO.2
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
