Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

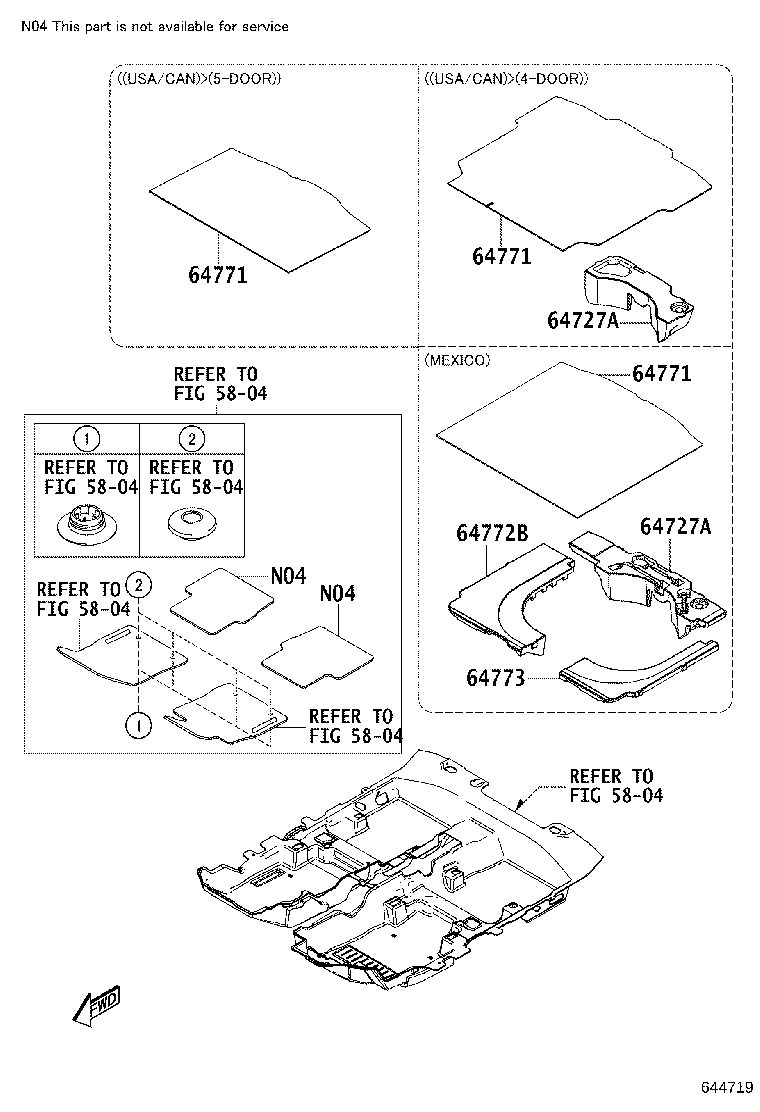

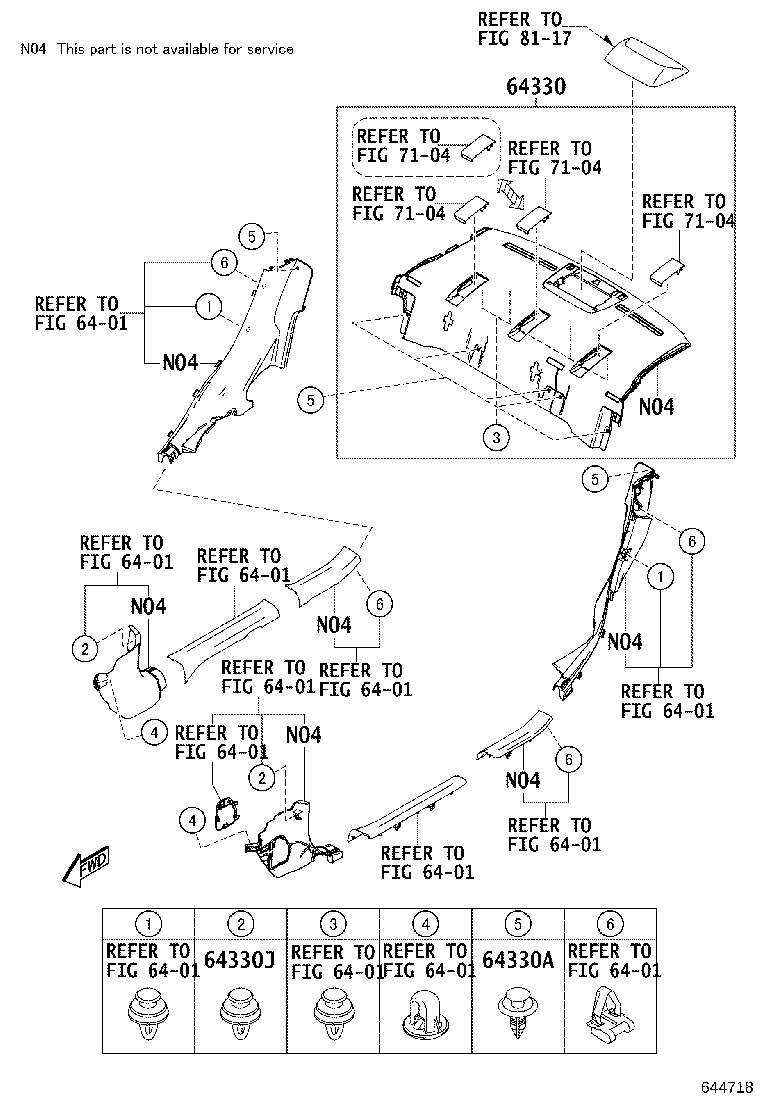

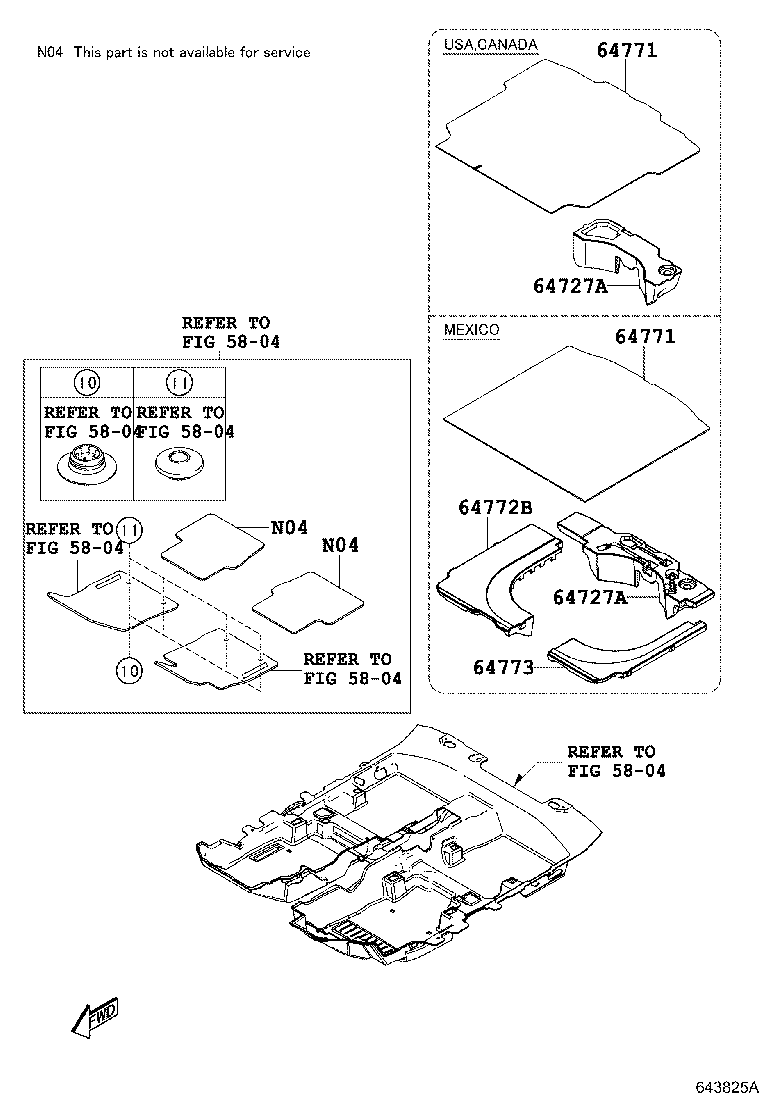

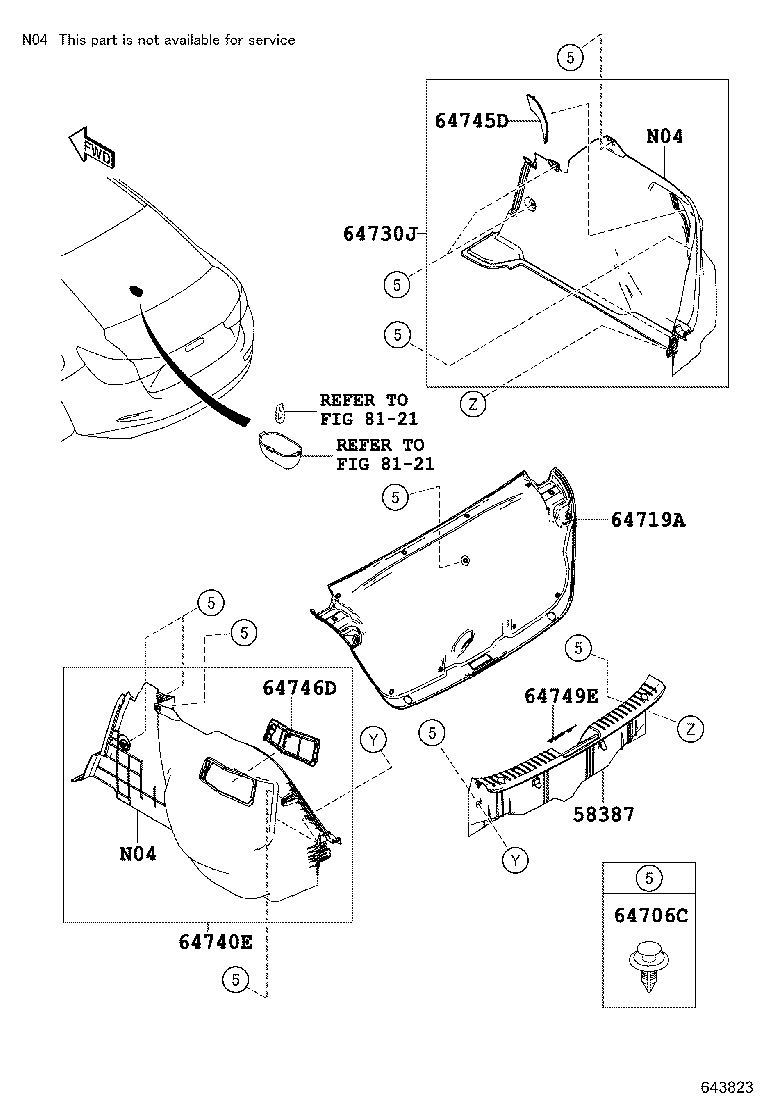

Package Tray Panel & Luggage Compartment Mat
15 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64706C | Clip |
| 64719A | Cover, Luggage Compartment Door |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64730J | Panel Assy, Deck Trim Side, RH |
| 64740E | Panel Assy, Deck Trim Side, LH |
| 64745D | Cover, Rear Combination Lamp Service, RH |
| 64746D | Cover, Rear Combination Lamp Service, LH |
| 64749E | Cover, Luggage Compartment Door Striker |
| 64771 | Cover, Spare Wheel |
| 64772B | Pad, Spare Wheel Cover |
| 64773 | Cover, Spare Wheel, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
