Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

14 part groups · 2 illustrations

Illustrations

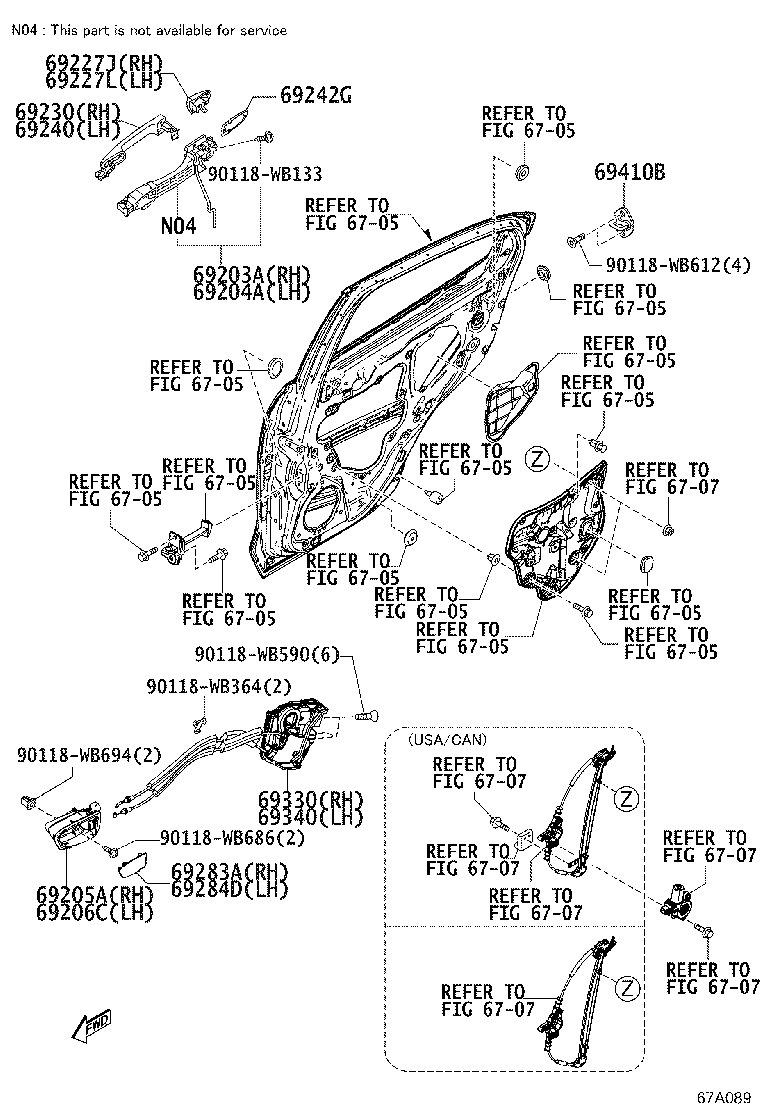

Figure 678792 678792 2015-06 → 2018-08 Figure 67A089 67A089 2018-08 → —

Part groups

PNCDescription
69203A Frame Sub-assy, Rear Door Outside Handle, RH
69204A Frame Sub-assy, Rear Door Outside Handle, LH
69205A Handle Sub-assy, Rear Door Inside, RH
69206C Handle Sub-assy, Rear Door Inside, LH
69227J Cover, Rear Door Outside Handle, RH
69227L Cover, Rear Door Outside Handle, LH
69230 Handle Assy, Rear Door Outside, RH
69240 Handle Assy, Rear Door Outside, LH
69242G Pad, Rear Door Outside Handle, Rear
69283A Plug, Rear Door Inside Handle Bezel, RH
69284D Plug, Rear Door Inside Handle Bezel, LH
69330 Lock Assy, Rear Door, RH
69340 Lock Assy, Rear Door, LH
69410B Plate Assy, Rear Door Lock Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
