Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

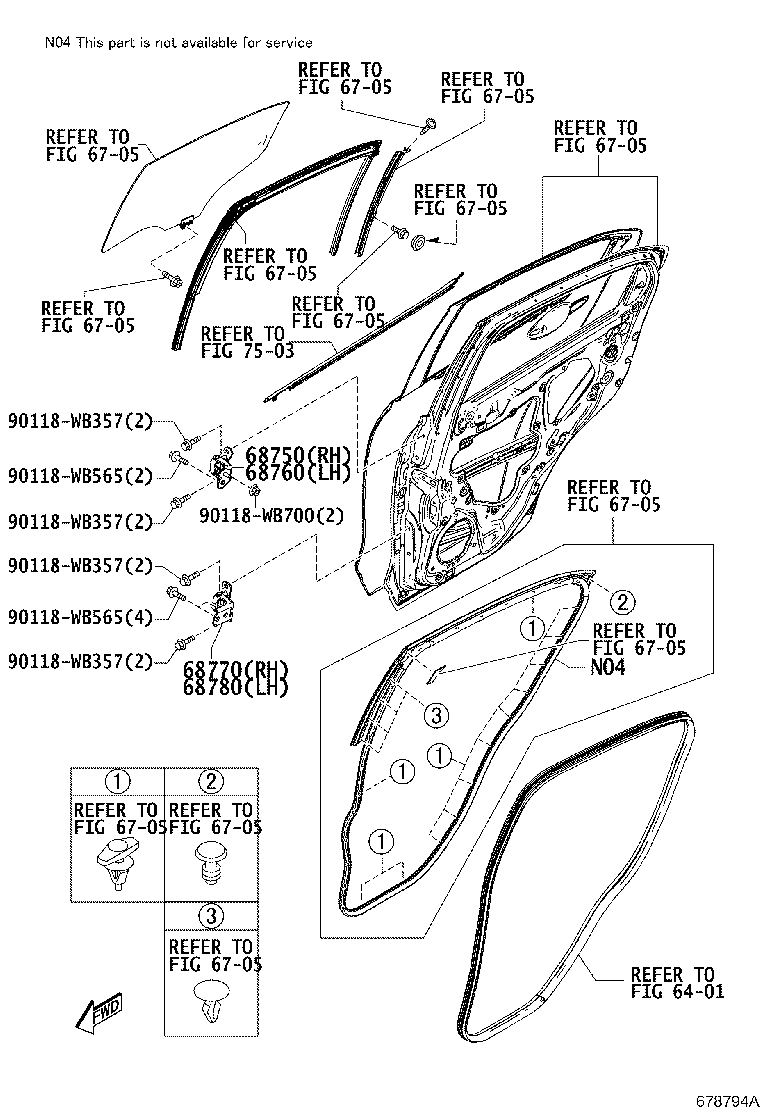

Rear Door Window Regulator & Hinge
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 68750 | Hinge Assy, Rear Door, Upper RH |
| 68760 | Hinge Assy, Rear Door, Upper LH |
| 68770 | Hinge Assy, Rear Door, Lower RH |
| 68780 | Hinge Assy, Rear Door, Lower LH |
| 69803 | Regulator Sub-assy, Rear Door Window, RH |
| 69804 | Regulator Sub-assy, Rear Door Window, LH |
| 69899A | Pad, Window Regulator Motor, RH |
| 69899B | Pad, Window Regulator Motor, LH |
| 85710F | Motor Assy, Power Window Regulator, RH |
| 85720E | Motor Assy, Power Window Regulator, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
