Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

44 part groups · 16 illustrations

Illustrations

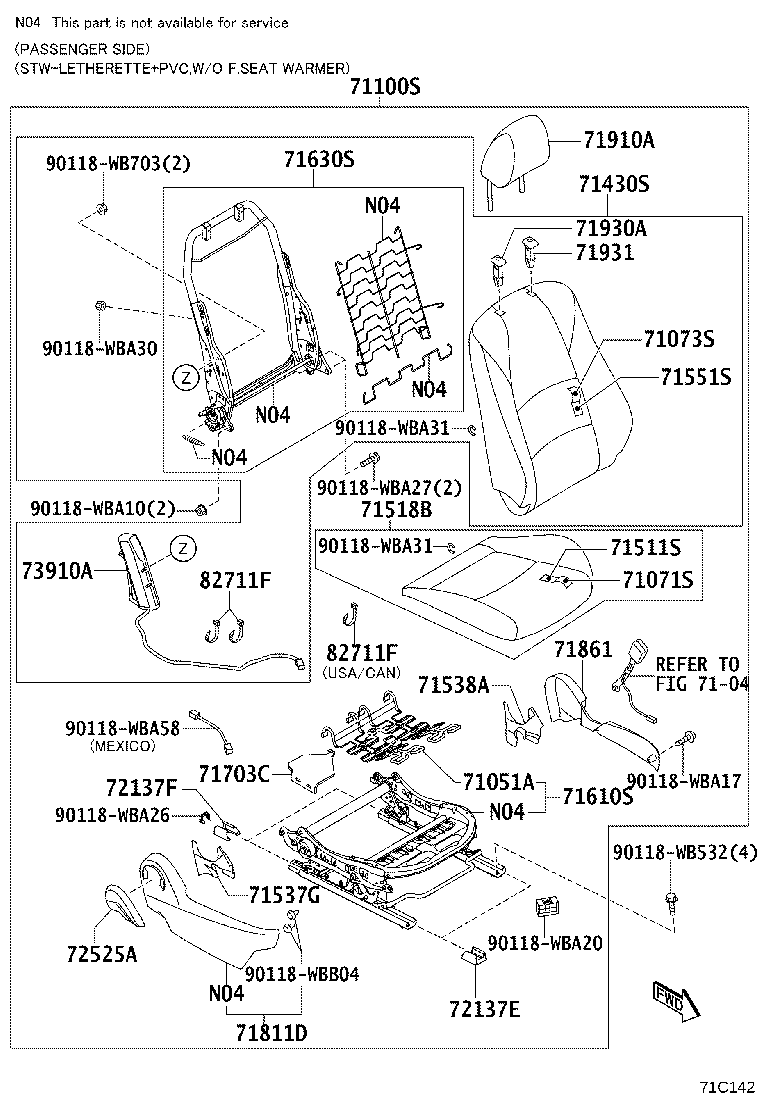

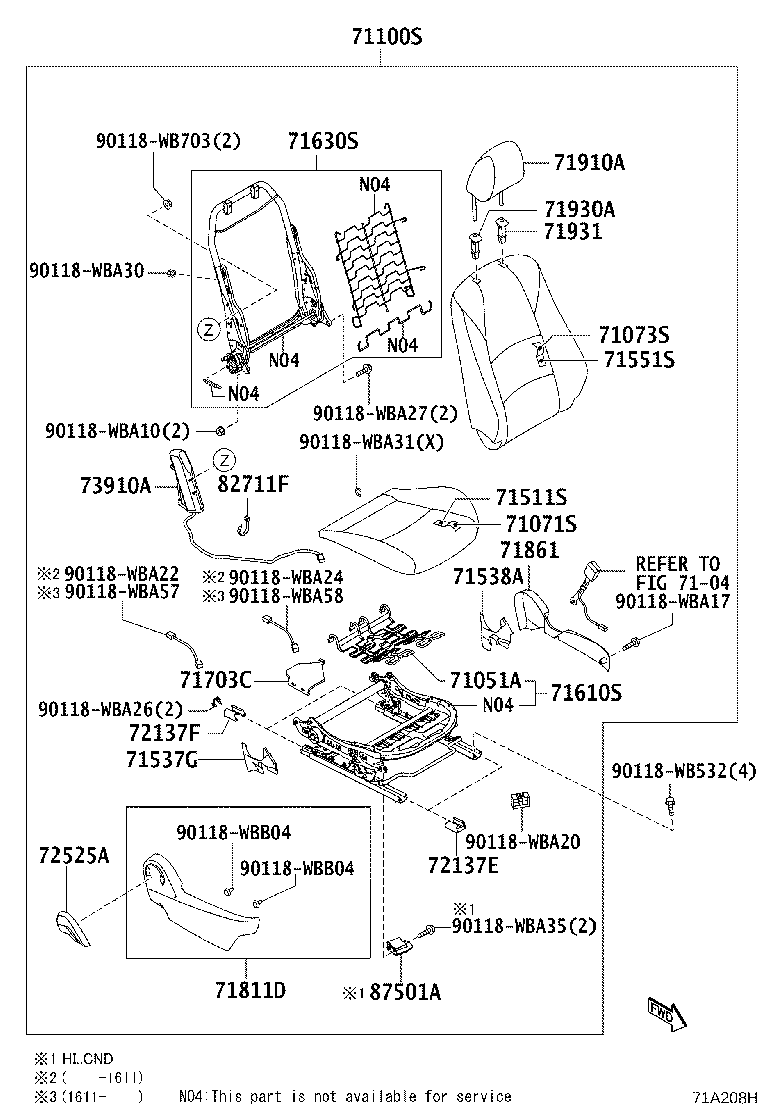

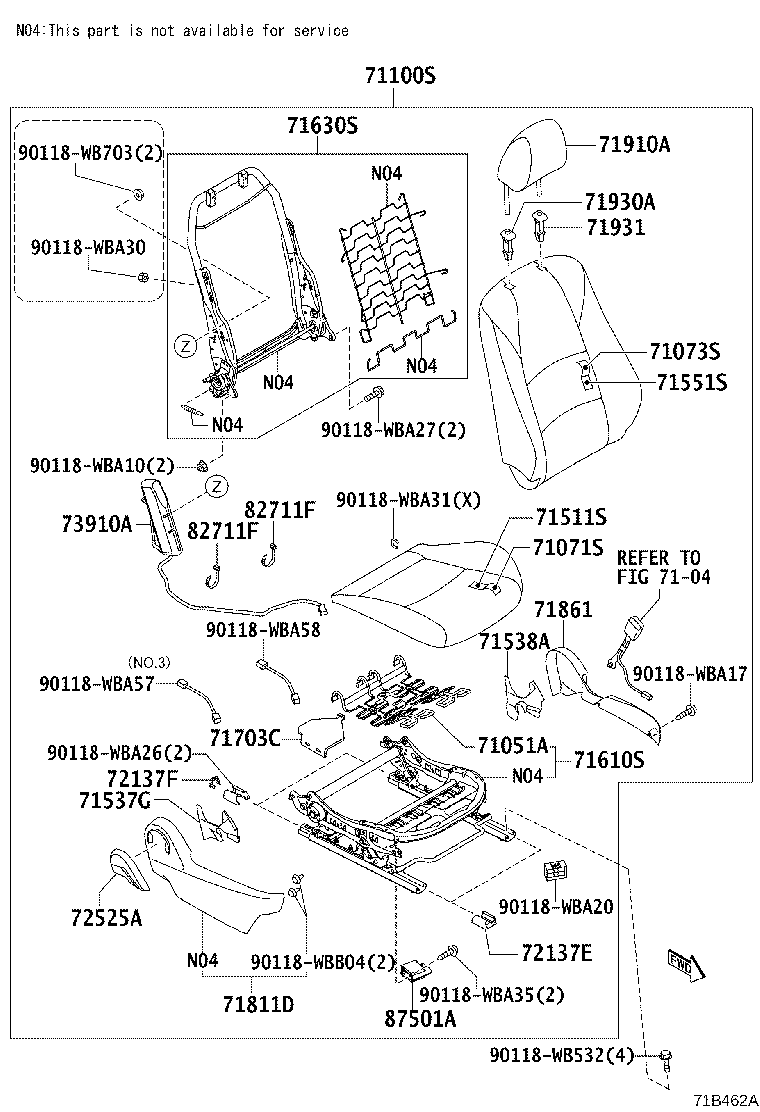

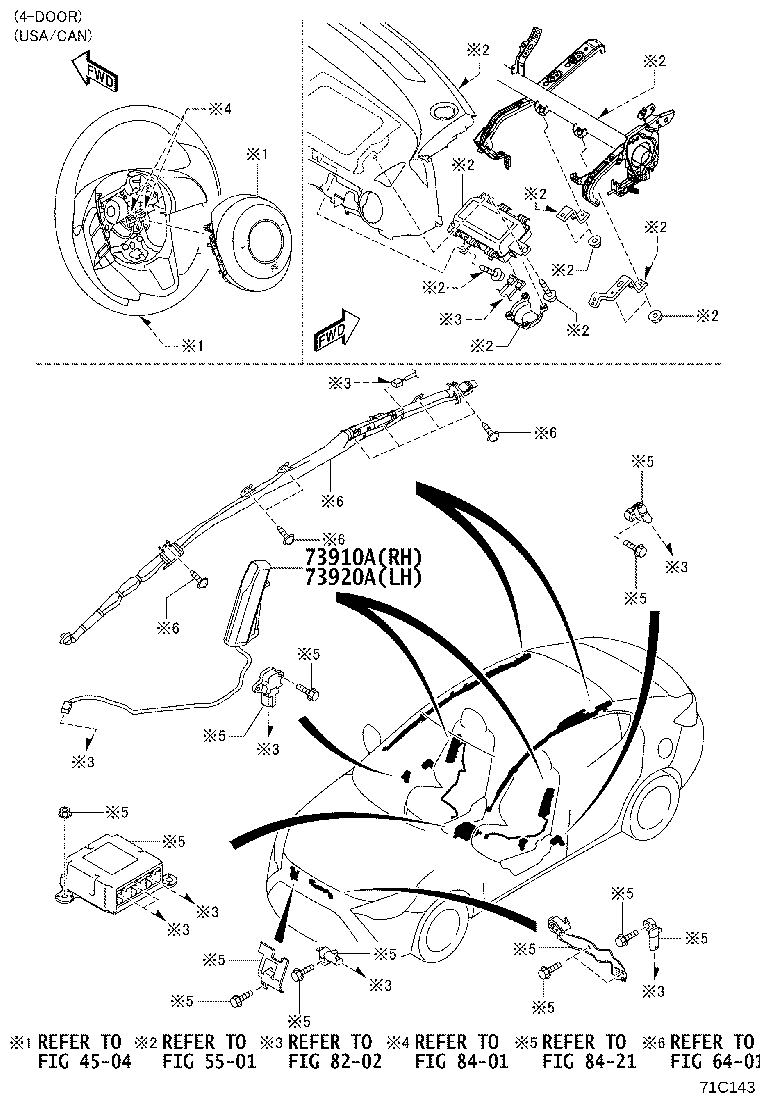

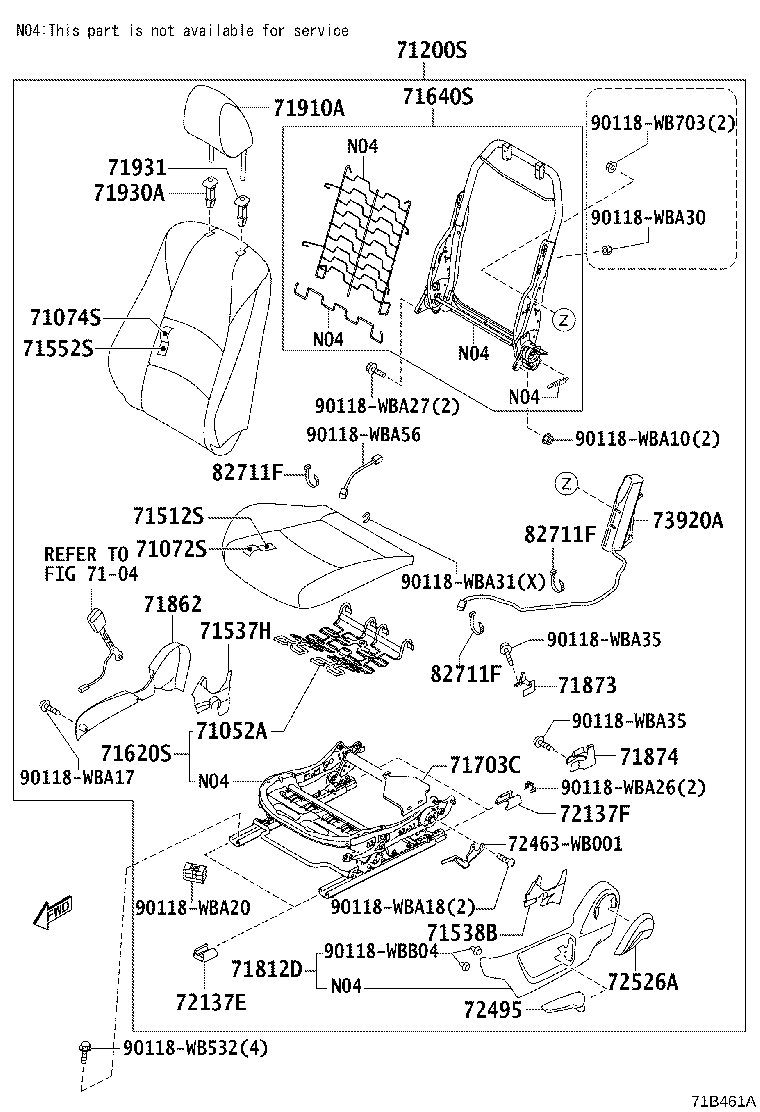

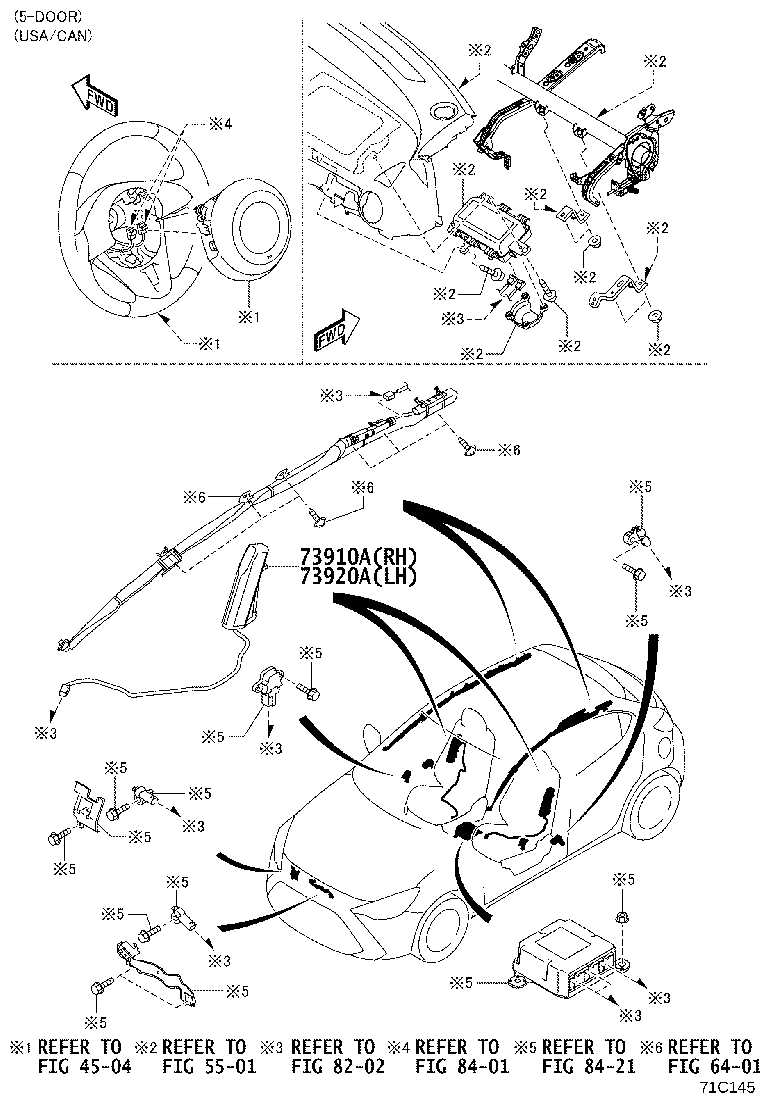

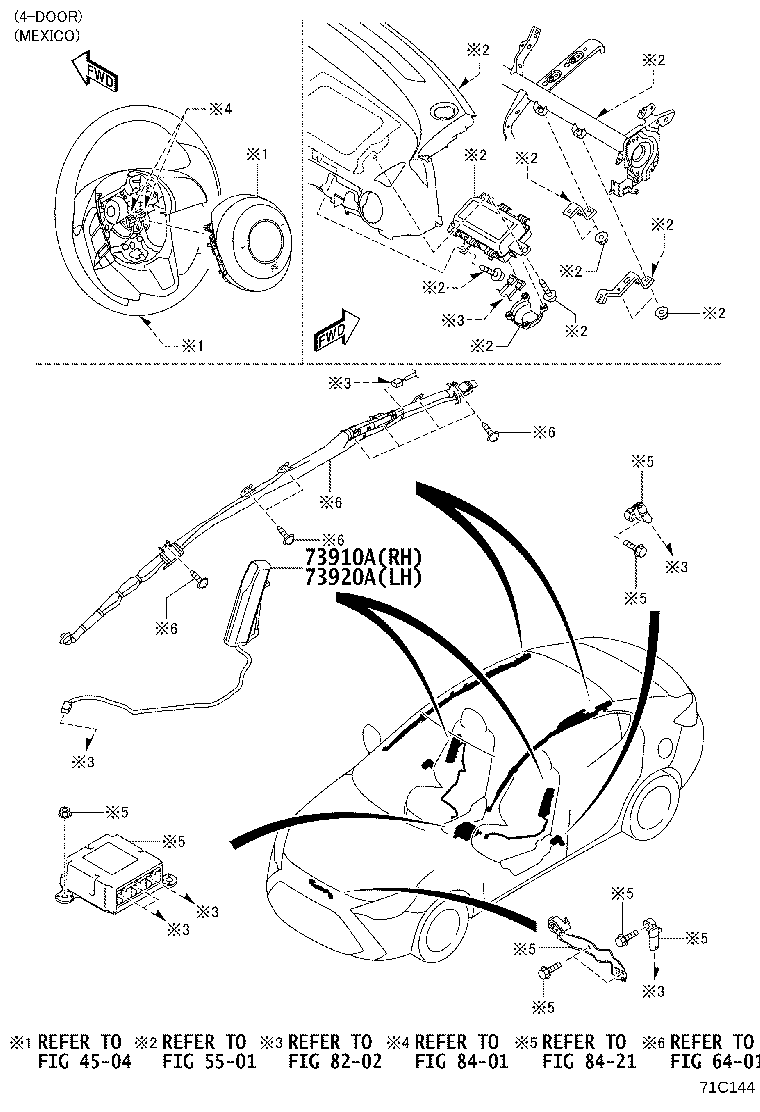

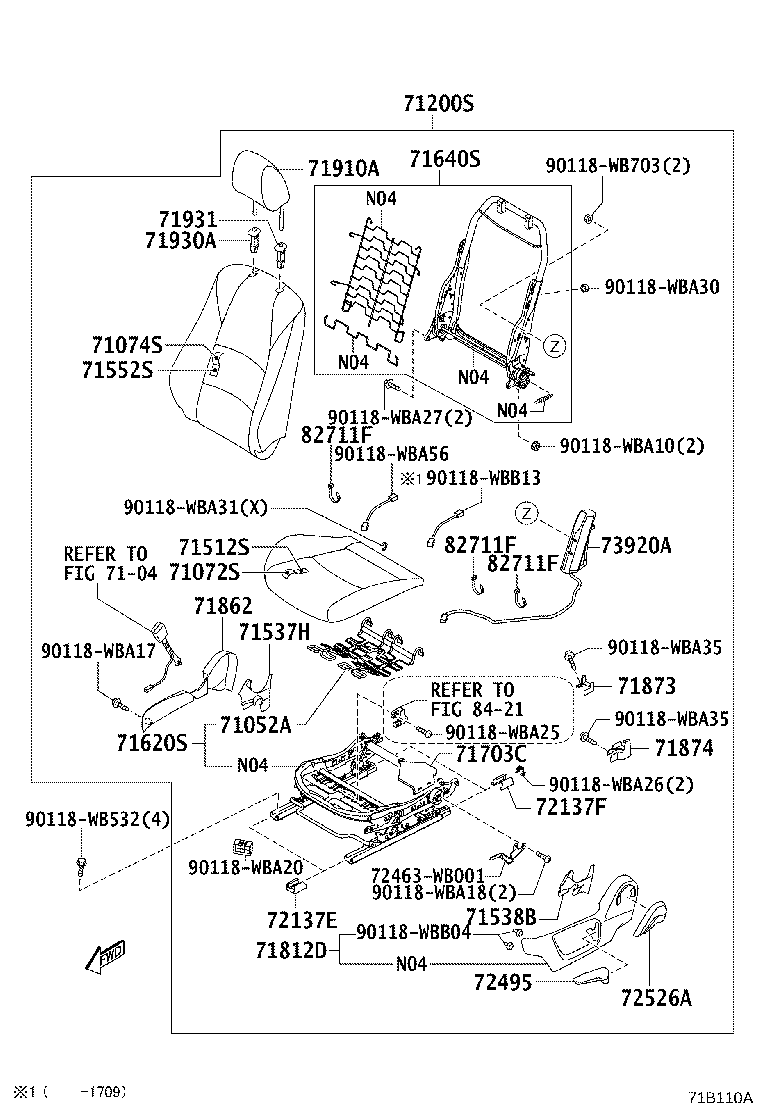

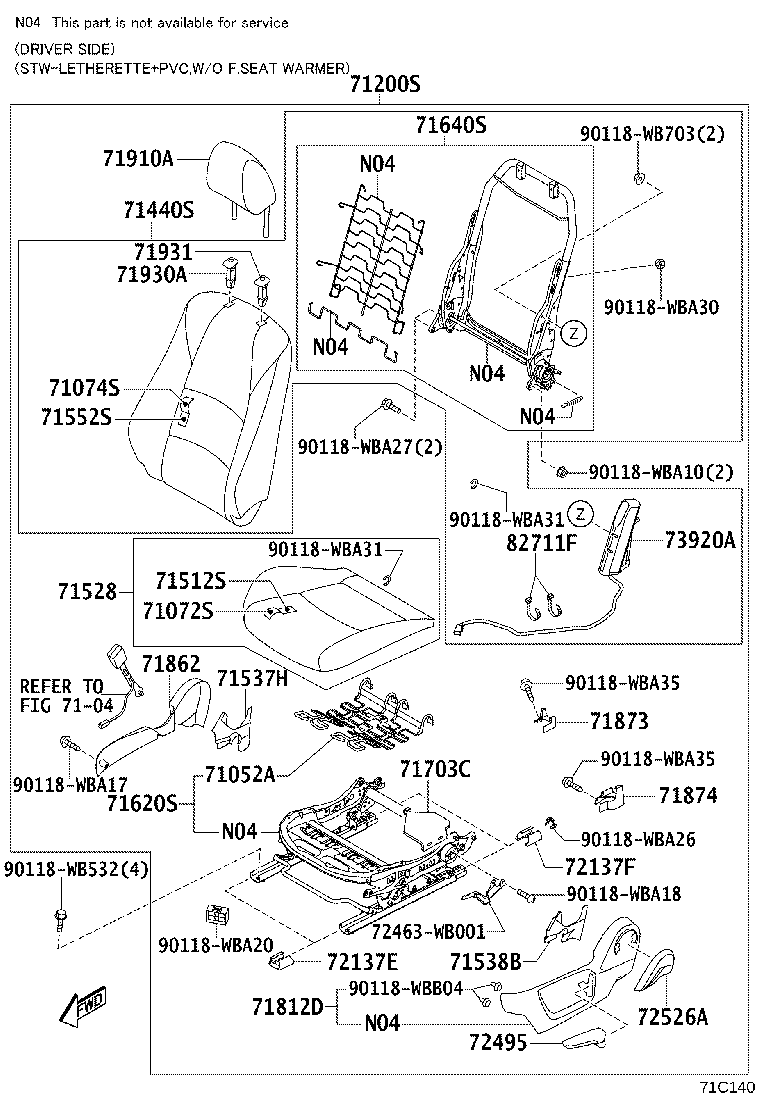

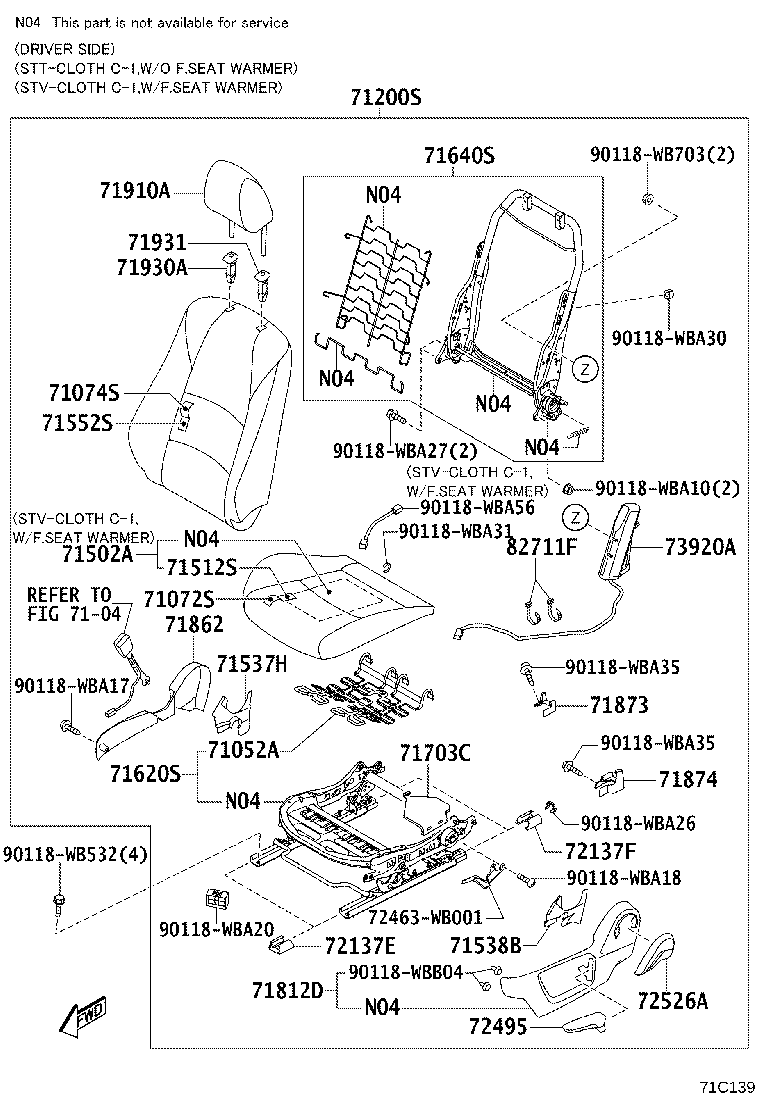

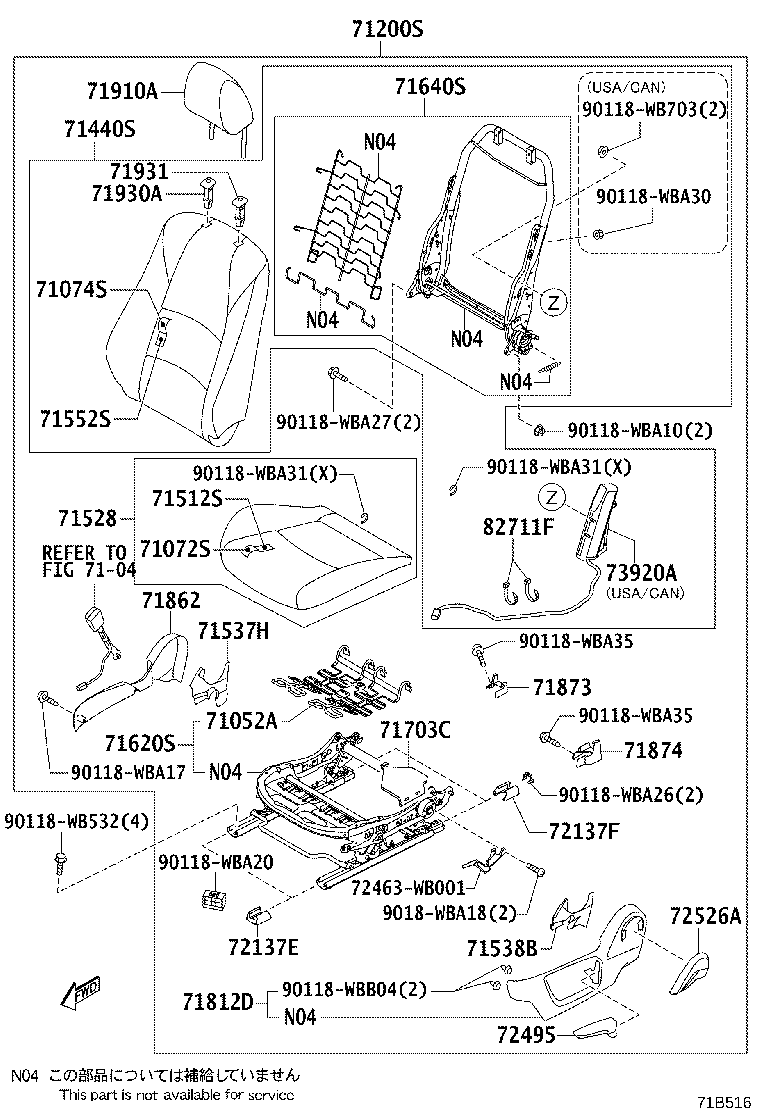

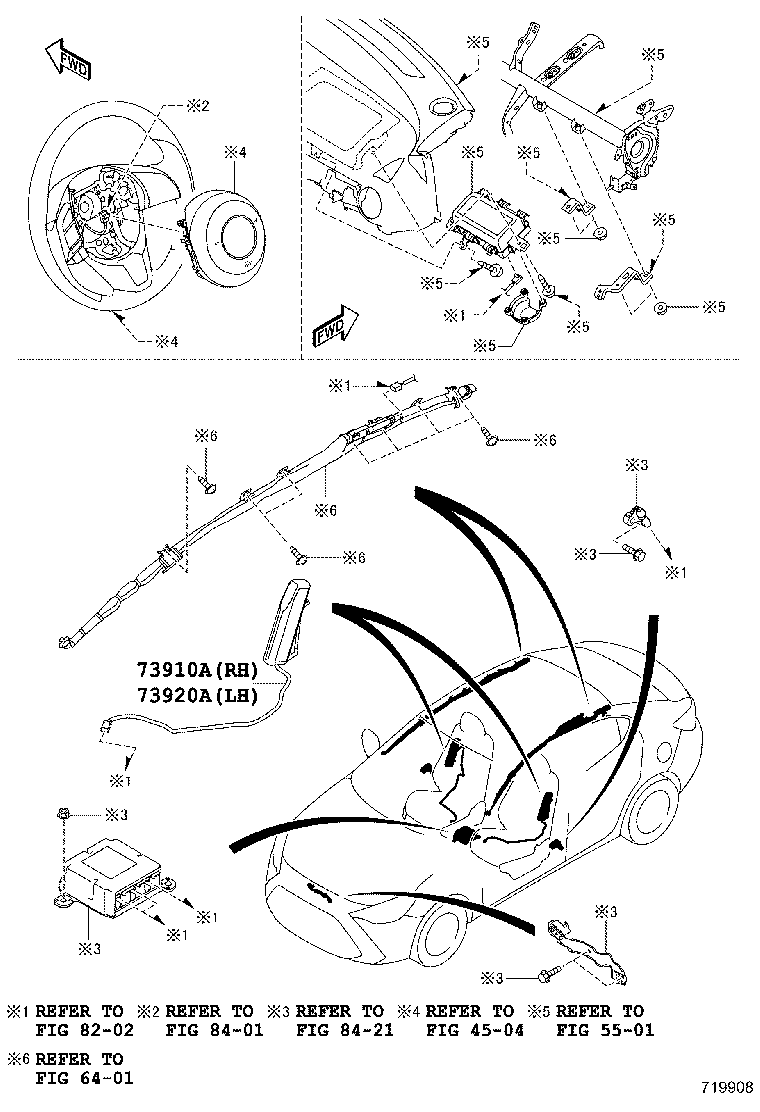

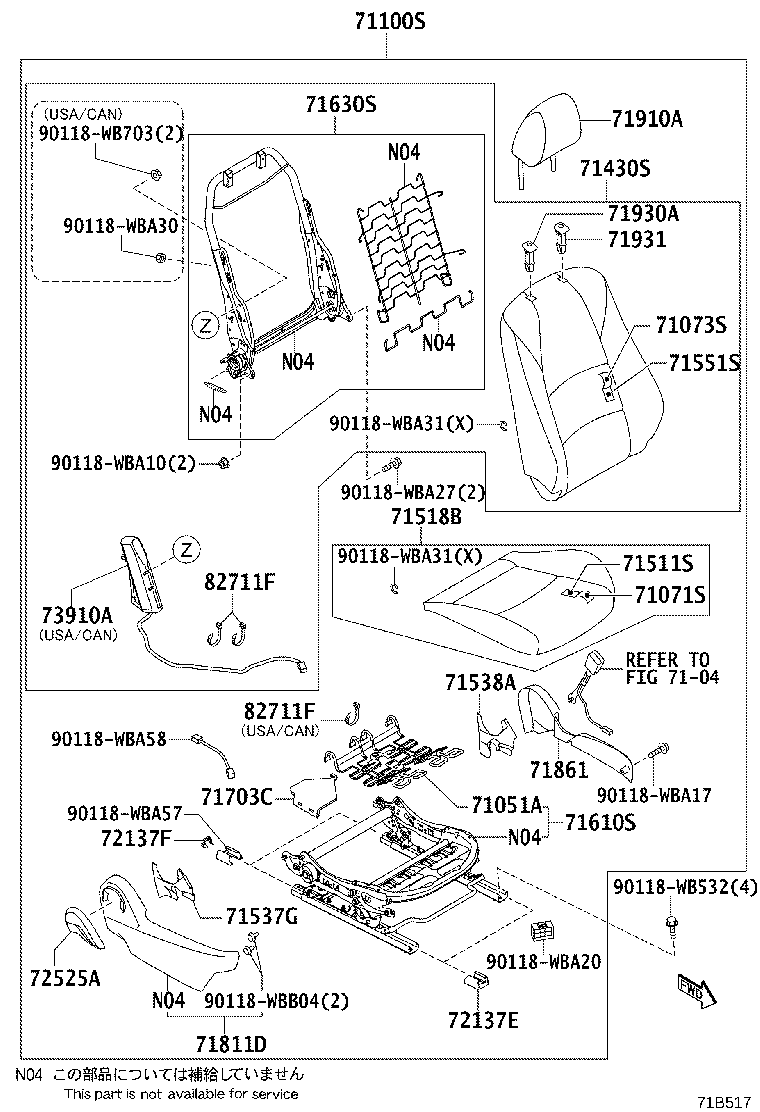

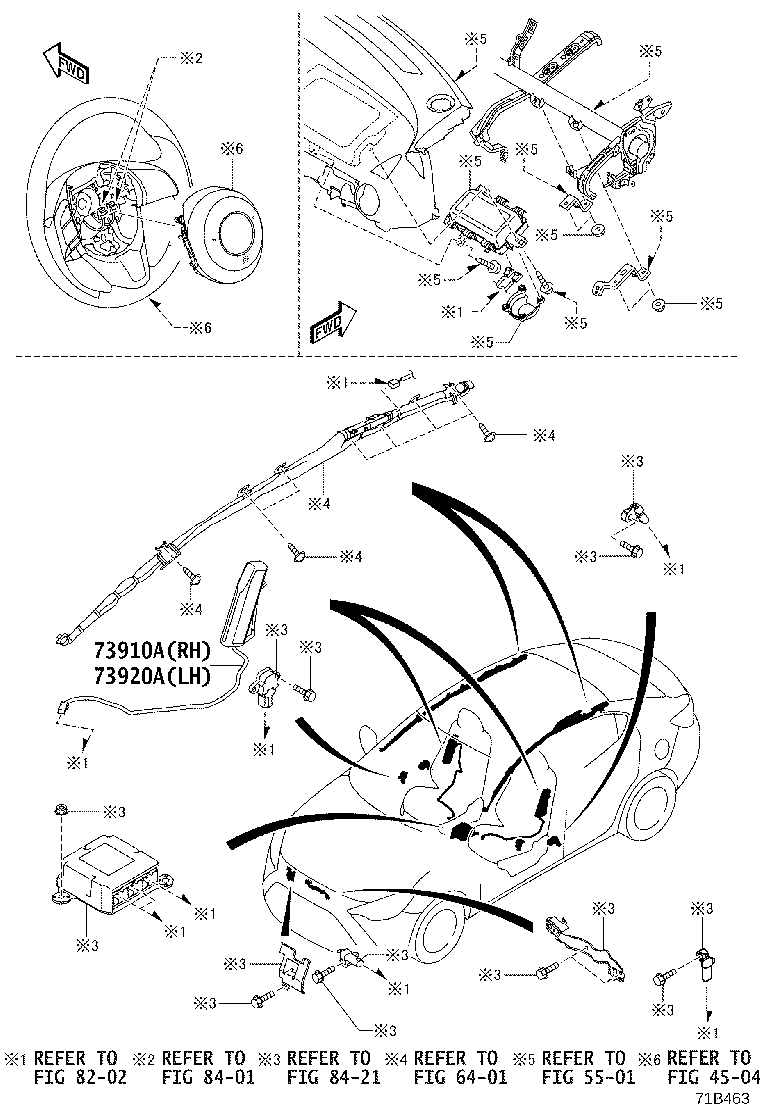

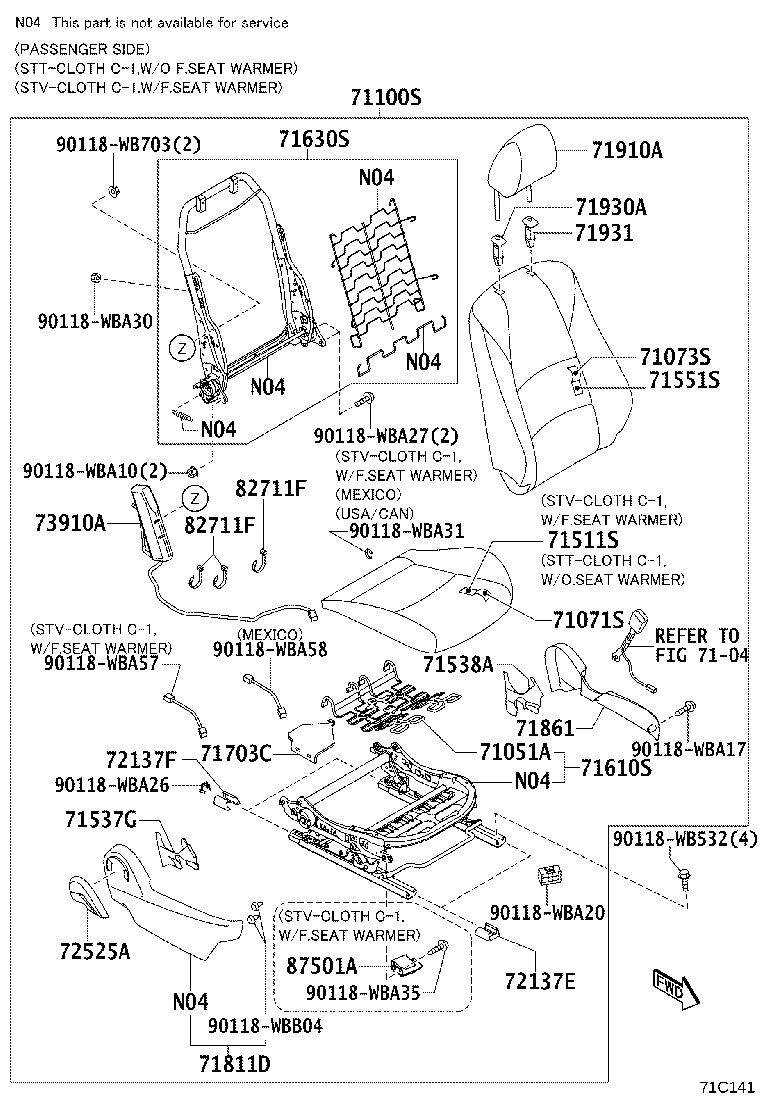

Figure 71A207E 71A207E 2015-06 → 2017-08 Figure 71B110A 71B110A 2017-08 → 2018-08 Figure 71B461A 71B461A 2018-08 → 2019-08 Figure 71C139 71C139 2019-08 → — Figure 71B516 71B516 2018-08 → 2019-08 Figure 71C140 71C140 2019-08 → — Figure 71A208H 71A208H 2015-06 → 2018-08 Figure 71B462A 71B462A 2018-08 → 2019-08 Figure 71C141 71C141 2019-08 → — Figure 71B517 71B517 2018-08 → 2019-08 Figure 71C142 71C142 2019-08 → — Figure 719908 719908 2015-06 → 2018-08 Figure 71B463 71B463 2018-08 → 2019-08 Figure 71C143 71C143 2019-08 → — Figure 71C144 71C144 2019-08 → — Figure 71C145 71C145 2019-08 → —

Part groups

PNCDescription
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71502A Pad Sub-assy, Front Seat Cushion, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71703C Panel Sub-assy, Front Seat Cushion
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71931 Support, Front Seat Headrest
72137E Cover, Seat Track, NO.1
72137F Cover, Seat Track, NO.2
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
82711F Clamp, Wiring Harness
87501A Control Sub-assy, Seat Heater, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
