Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09

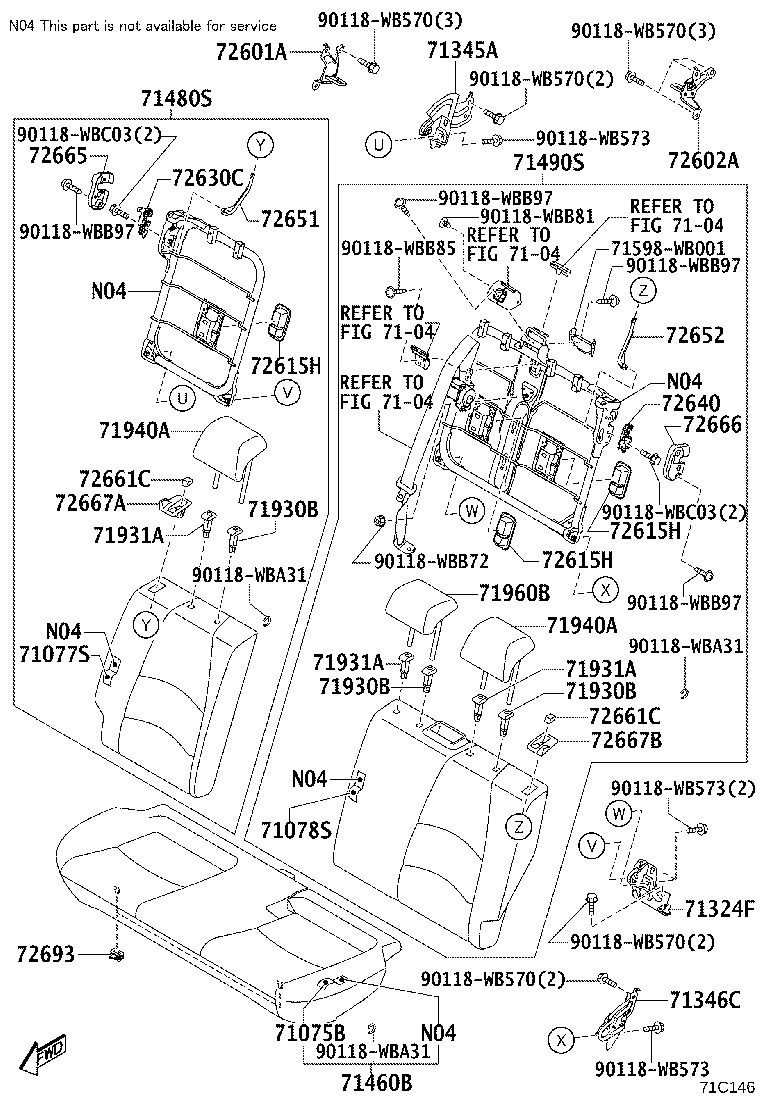

Rear Seat & Seat Track
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71324F | Hinge, Rear Seatback, Inside, LH |
| 71345A | Stay, Rear Seatback, RH |
| 71346C | Hinge, Rear Seatback, LH |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71930B | Support Assy, Rear Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72615H | Cover, Rear Seatback Lock Striker, NO.1 |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640 | Stop Sub-assy, Rear Seatback, Upper LH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72651 | Rod, Rear Seatback Lock |
| 72652 | Rod, Rear Seat Lock, LH |
| 72661C | Button, Rear Seatback Lock Release |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72667A | Bezel, Rear Seatback Lock, Upper RH |
| 72667B | Bezel, Rear Seatback Lock, Upper LH |
| 72693 | Hook, Rear Seat Cushion Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
