Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 11 illustrations

Illustrations

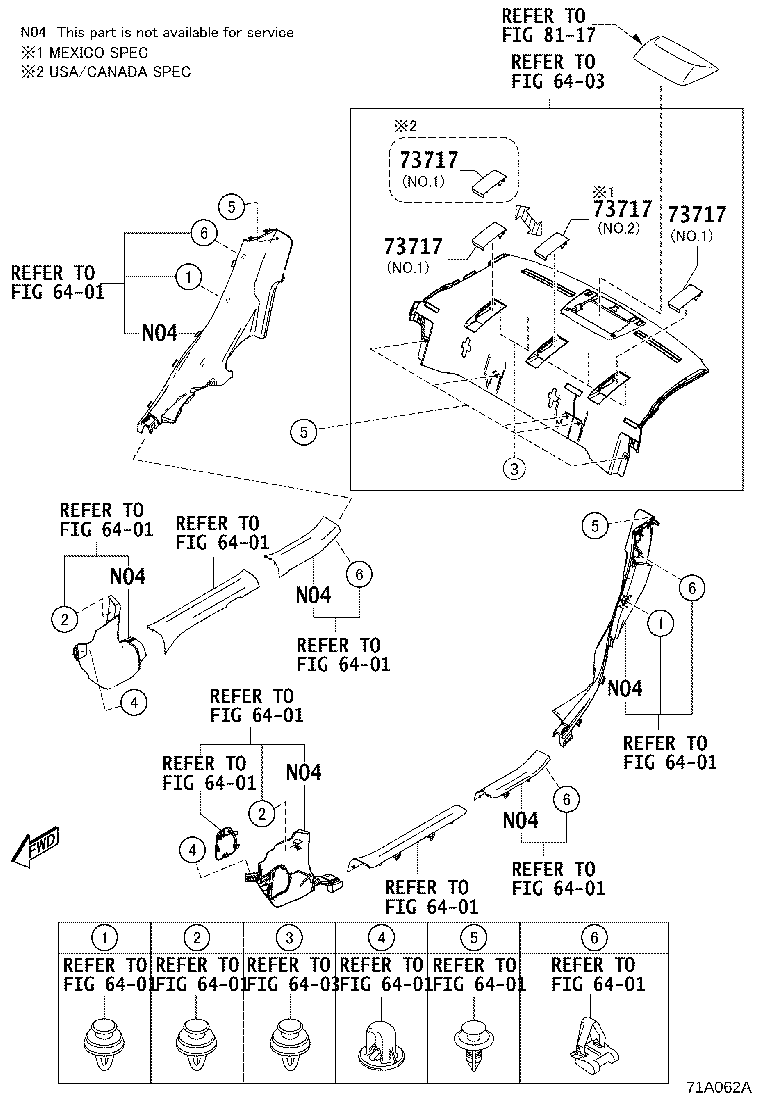

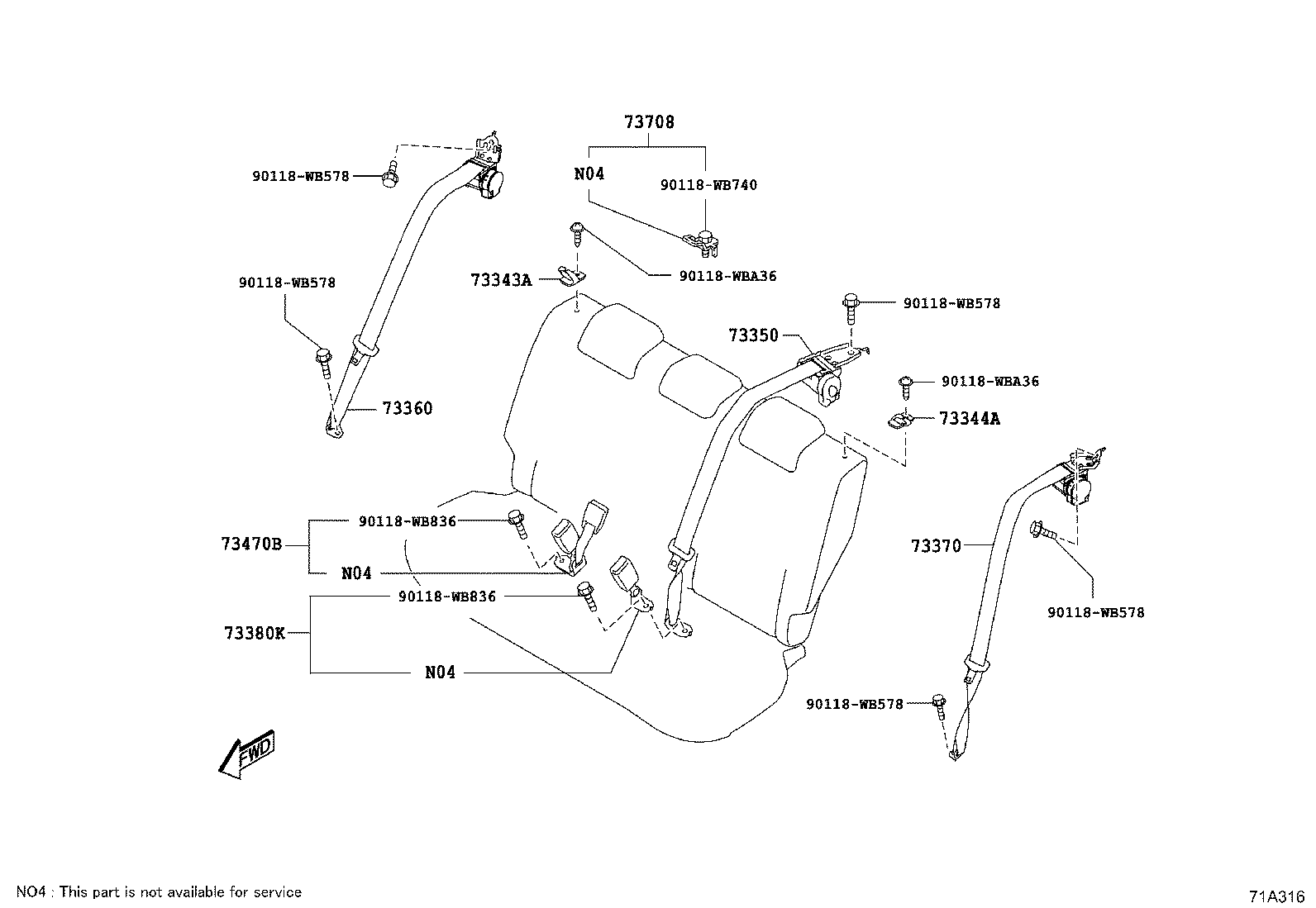

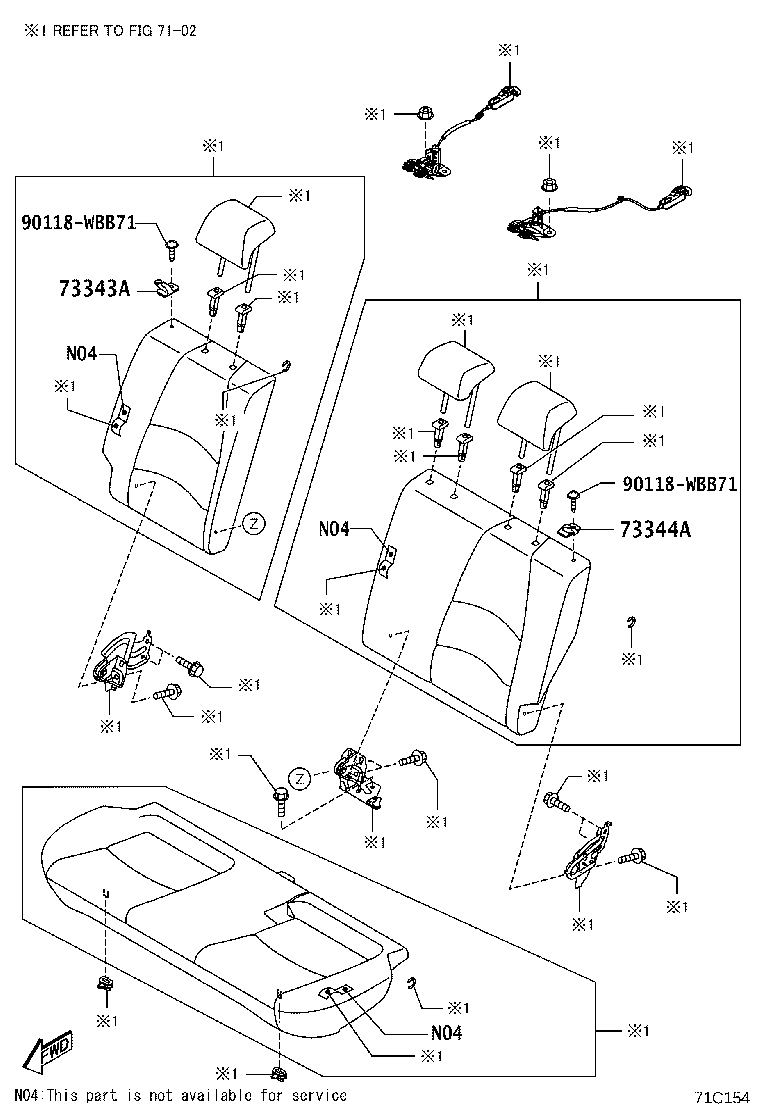

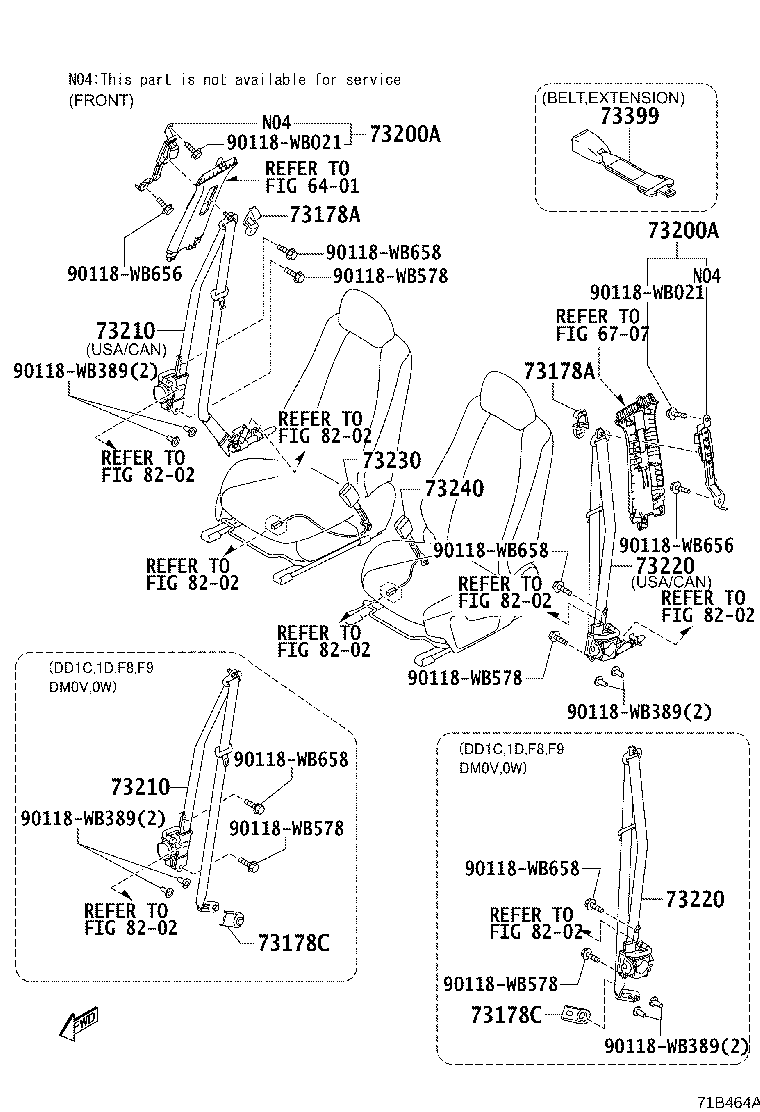

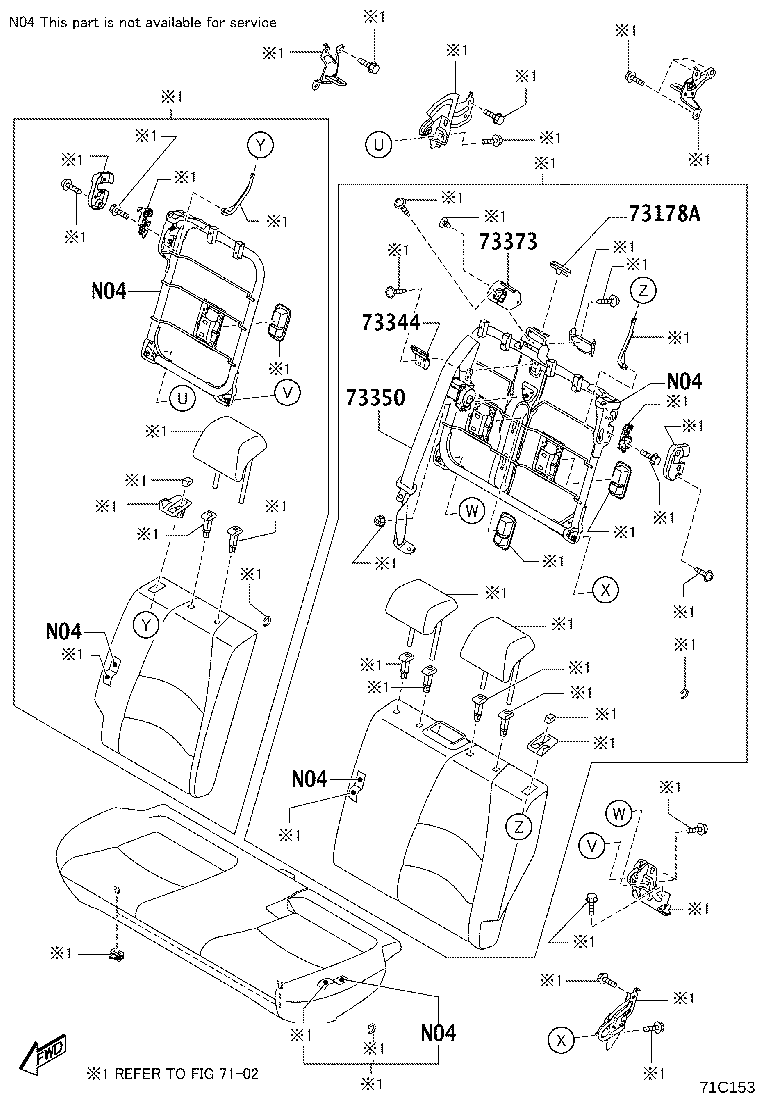

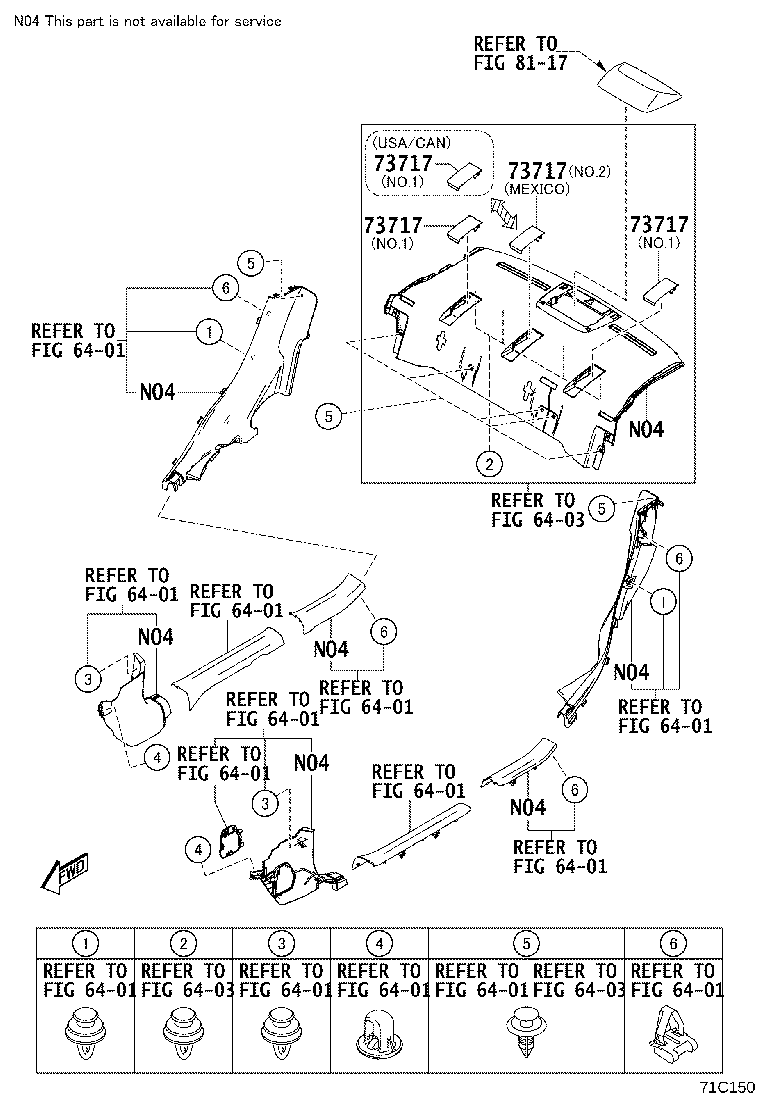

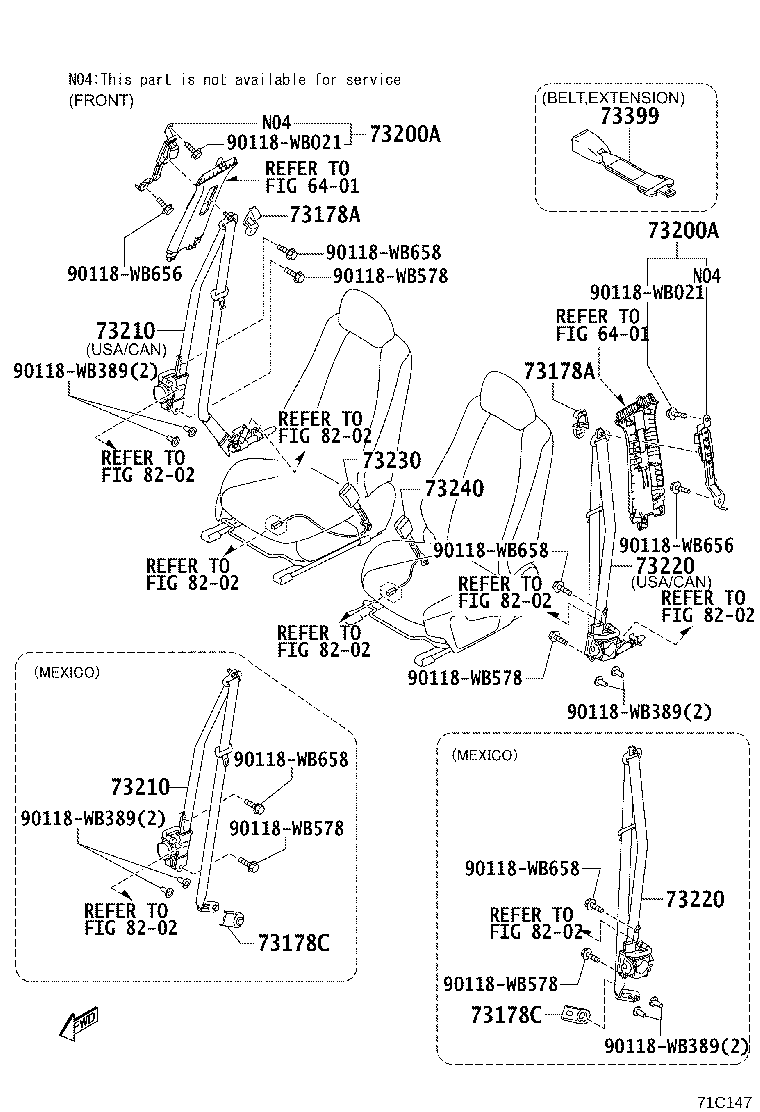

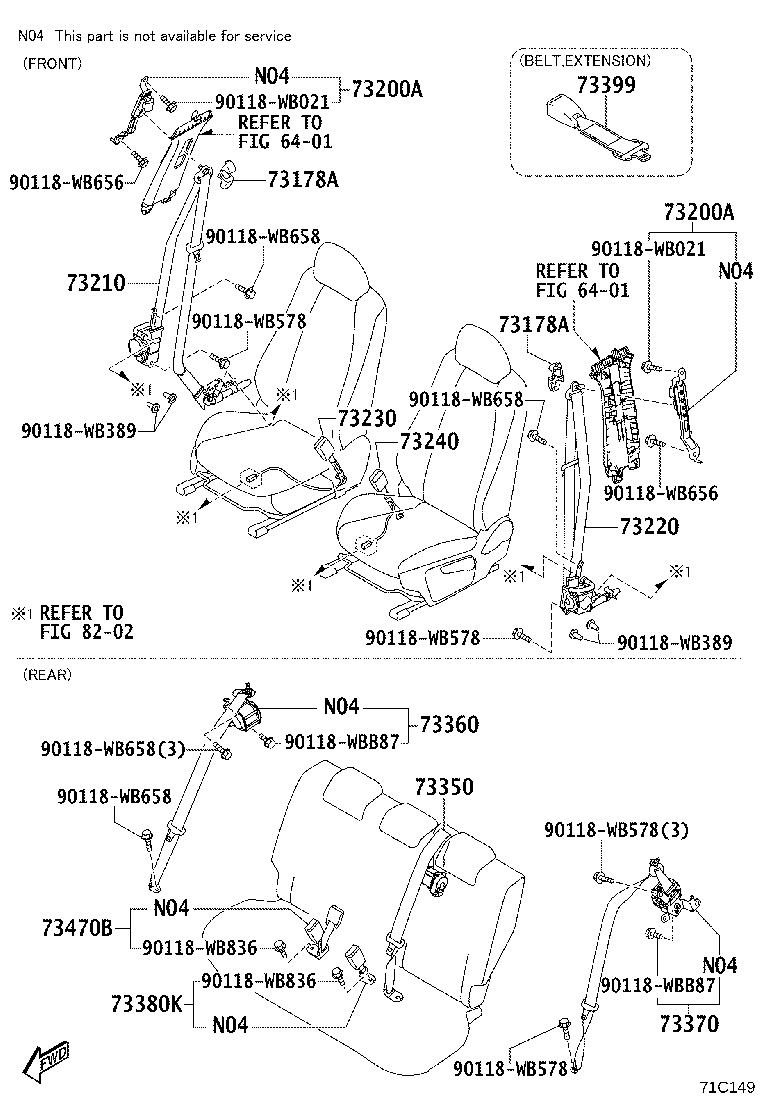

Figure 71A317 71A317 2015-06 → 2018-08 Figure 71B464A 71B464A 2018-08 → 2019-08 Figure 71C147 71C147 2019-08 → — Figure 71A316 71A316 2015-06 → 2018-08 Figure 71B465A 71B465A 2018-08 → 2019-08 Figure 71C148 71C148 2019-08 → — Figure 71A062A 71A062A 2015-06 → 2019-08 Figure 71C150 71C150 2019-08 → — Figure 71C154 71C154 2019-08 → — Figure 71C153 71C153 2019-08 → — Figure 71C149 71C149 2019-08 → —

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73343A Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73344A Guide, Rear Seat Shoulder Belt, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73380K Belt Assy, Rear Seat 3 Point Type, Inner, LH
73399 Extender, Seat Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73708 Bracket Set, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
