Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

10 part groups · 5 illustrations

Illustrations

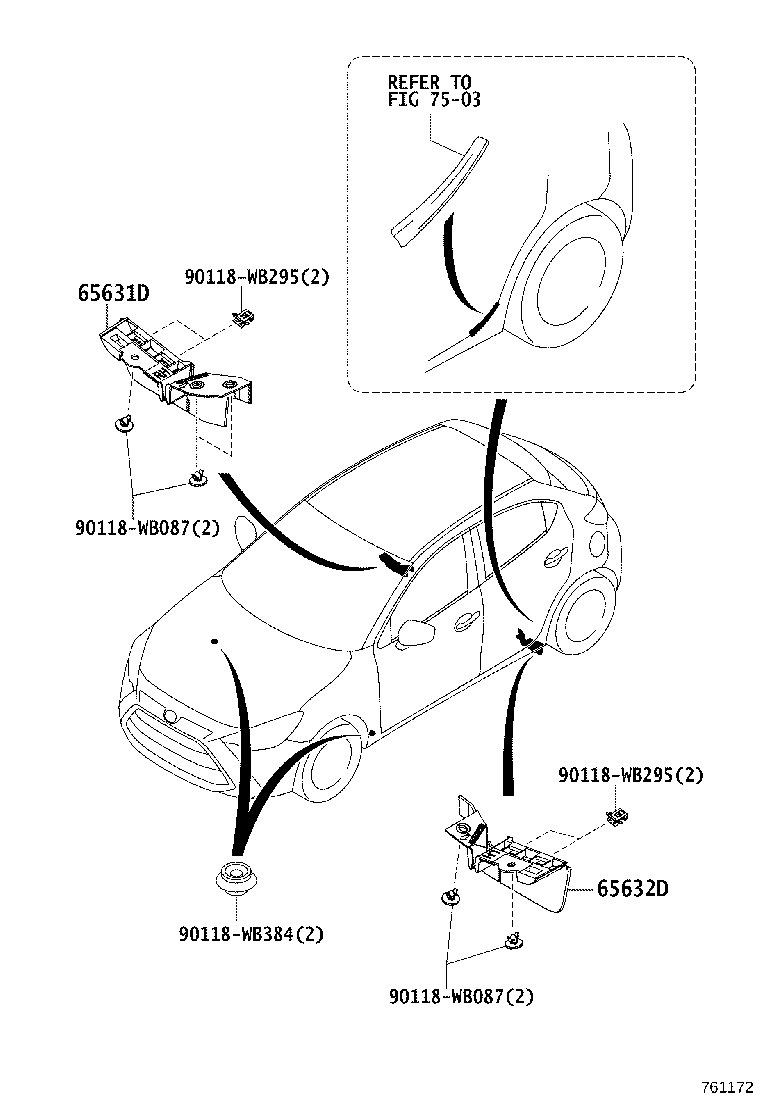

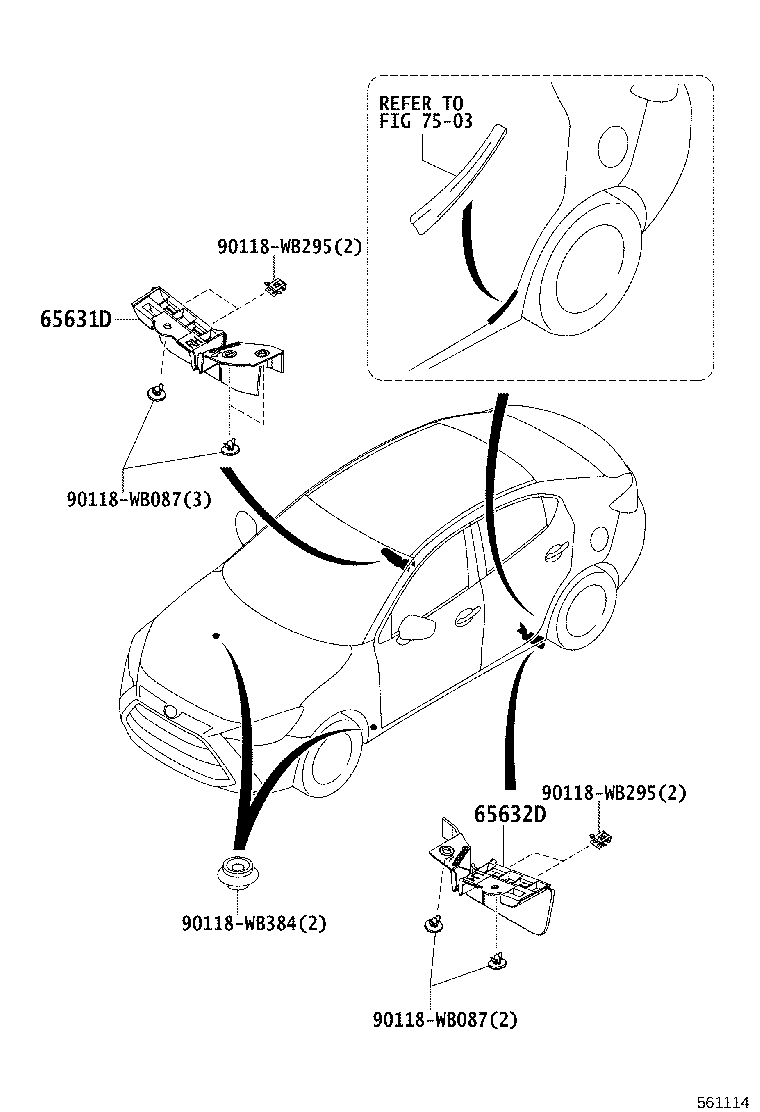

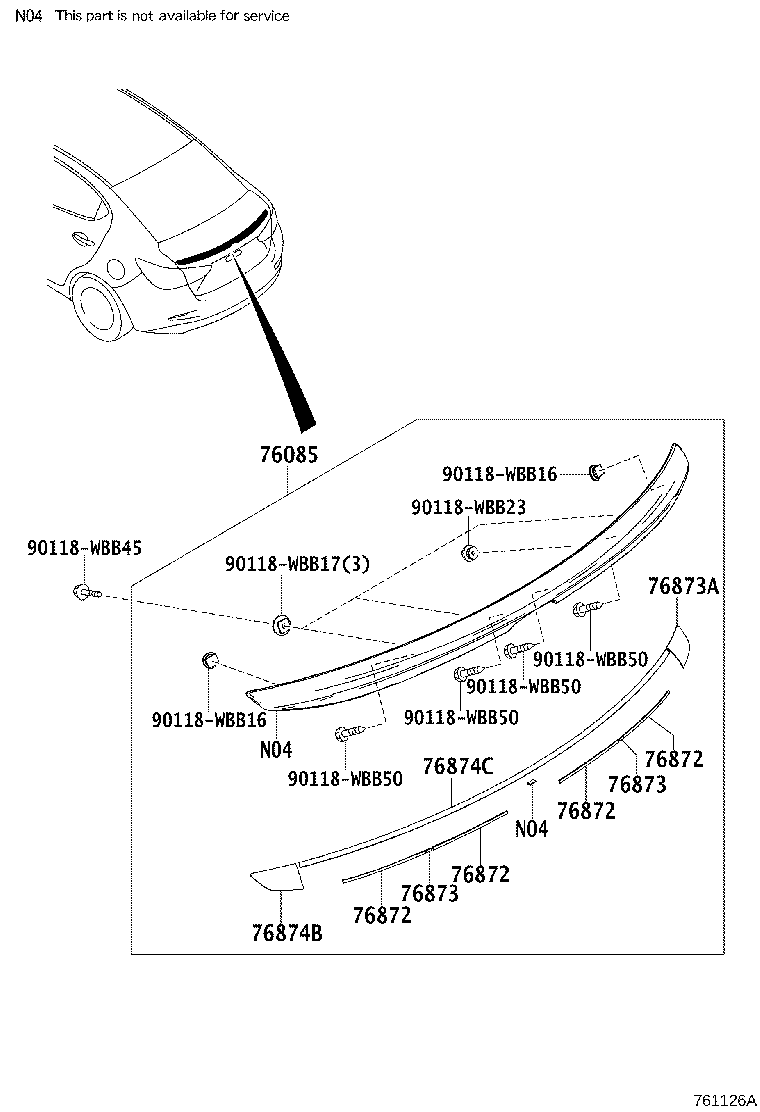

Figure 760983 760983 2015-06 → 2018-08 Figure 761114 761114 2018-08 → — Figure 761172 761172 2019-08 → — Figure 761126A 761126A 2018-08 → — Figure 761173 761173 2019-08 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76085 Spoiler Sub-assy, Rear
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76874C Protector, Rear Spoiler, NO.3
76897A Spoiler,Rear Side RH
76898A Spoiler,Rear Side LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
