Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

62 part groups · 17 illustrations

Illustrations

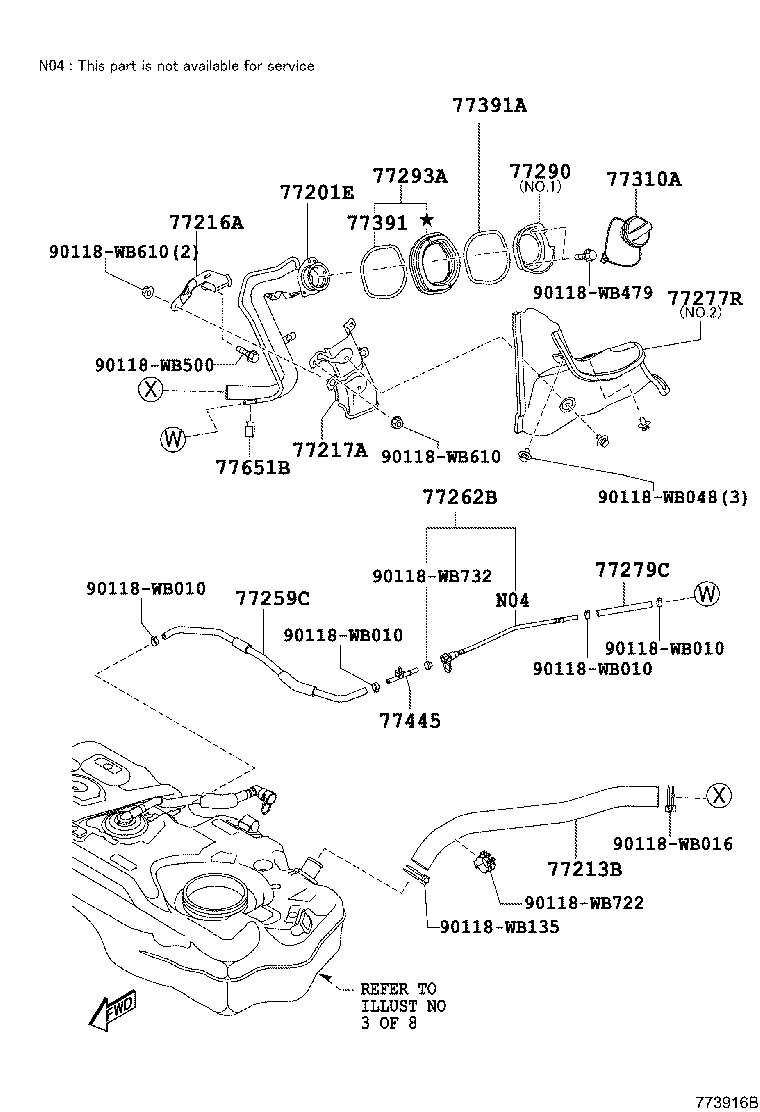

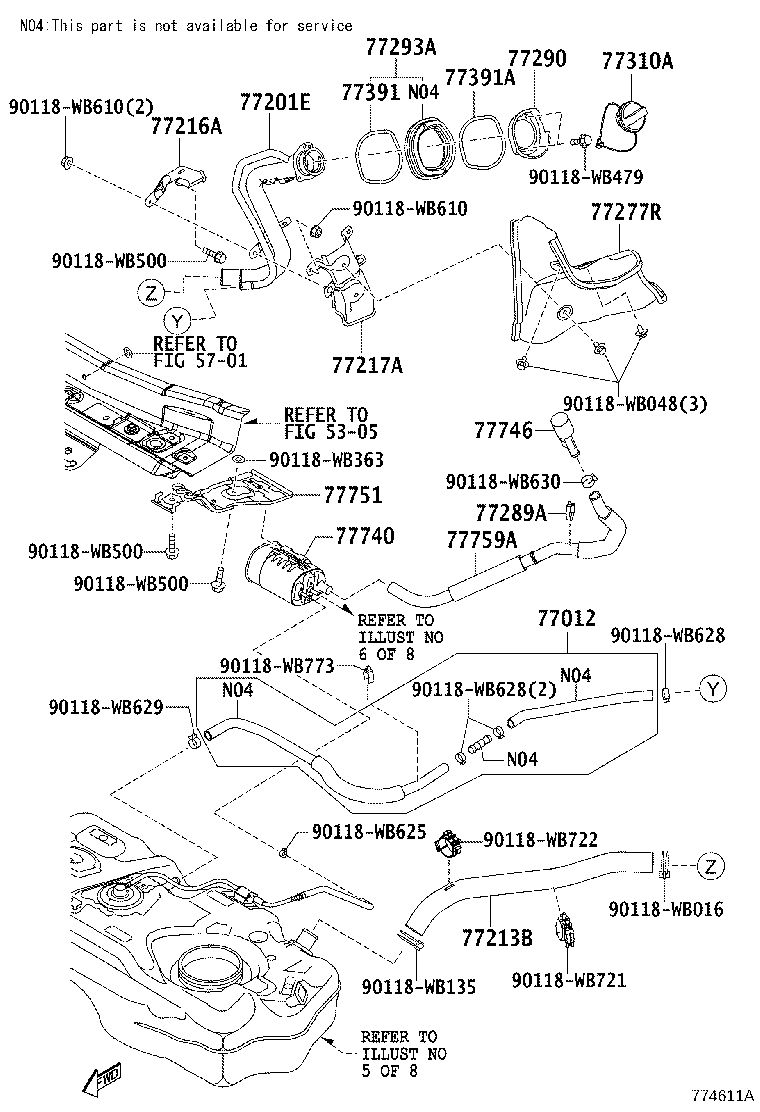

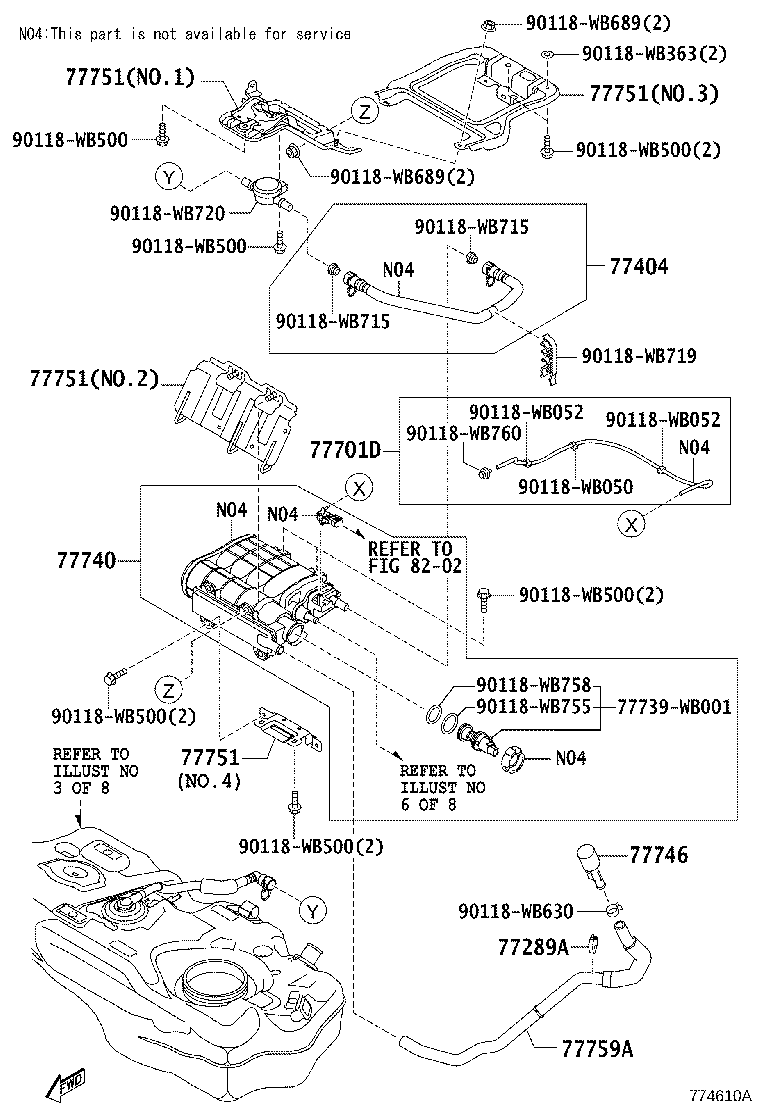

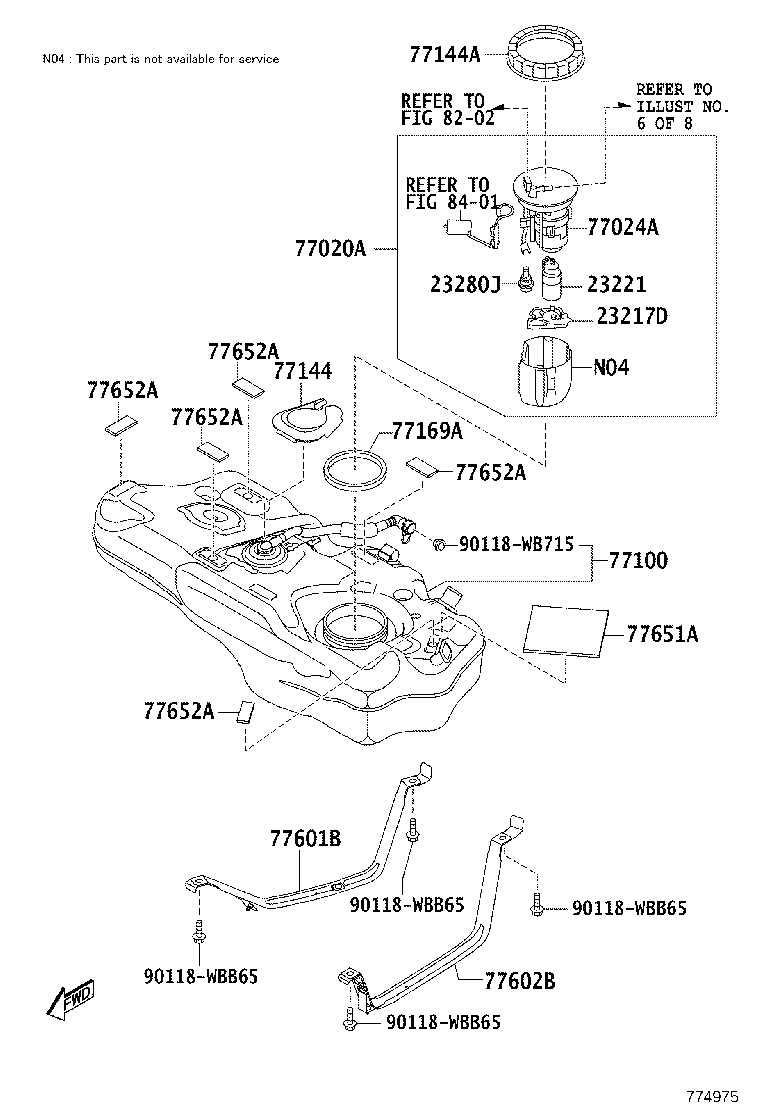

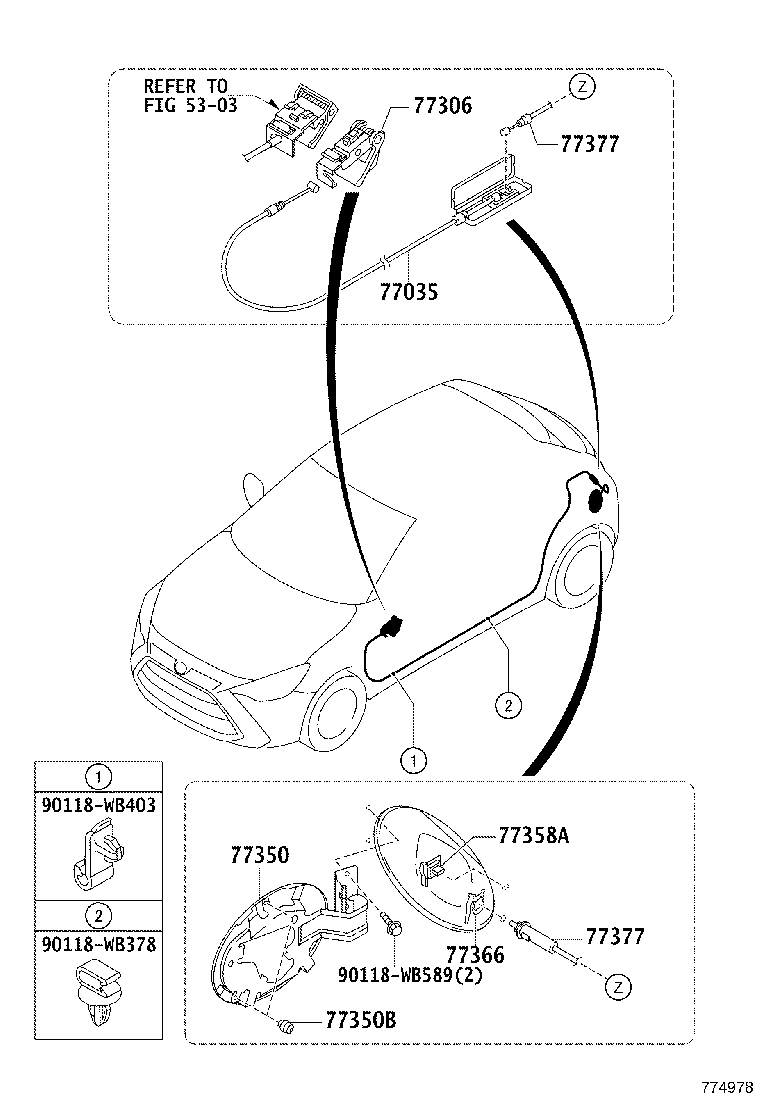

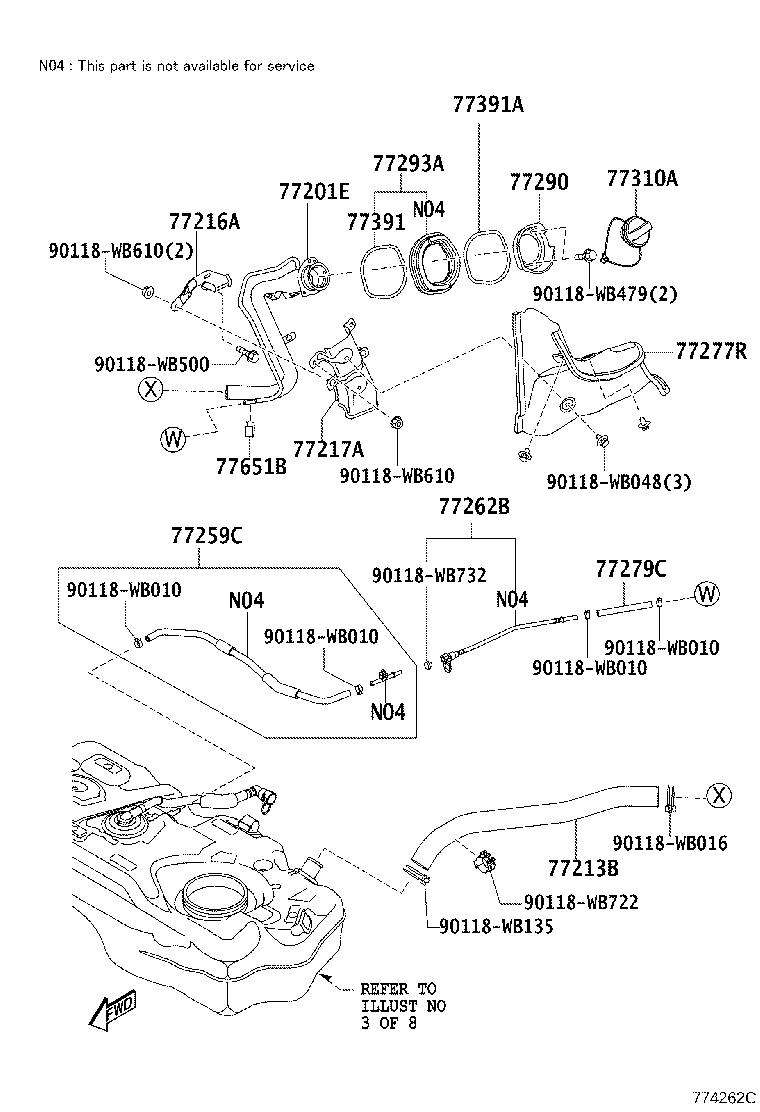

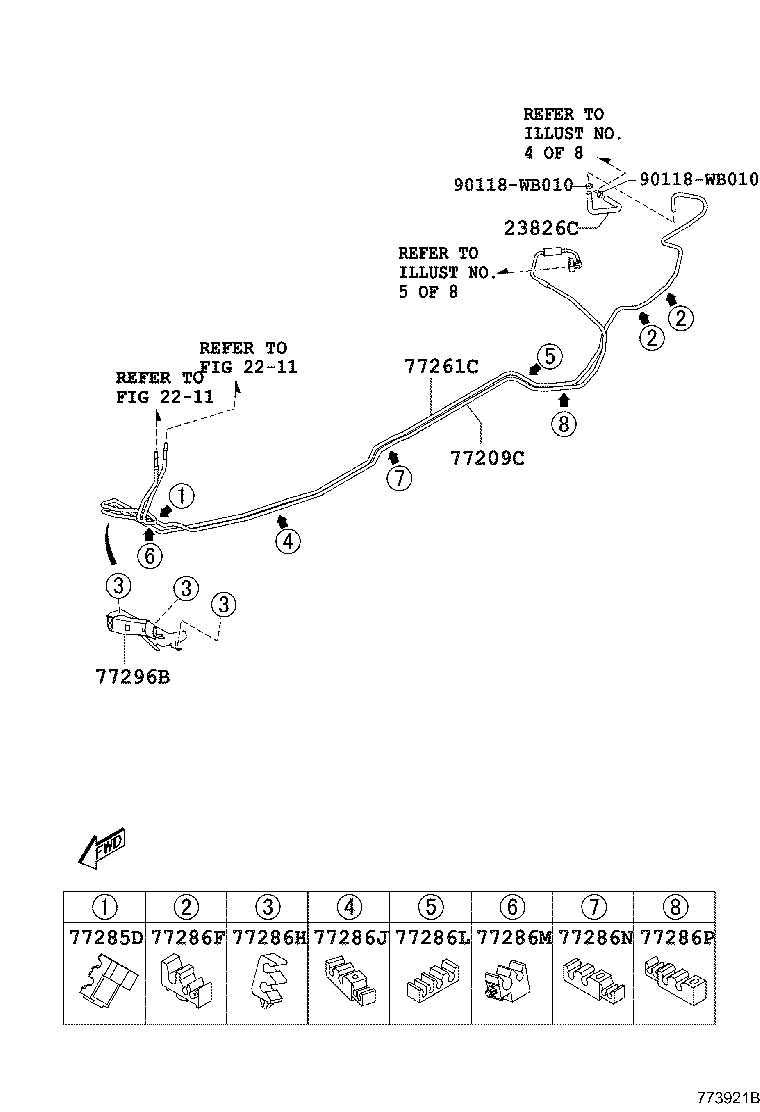

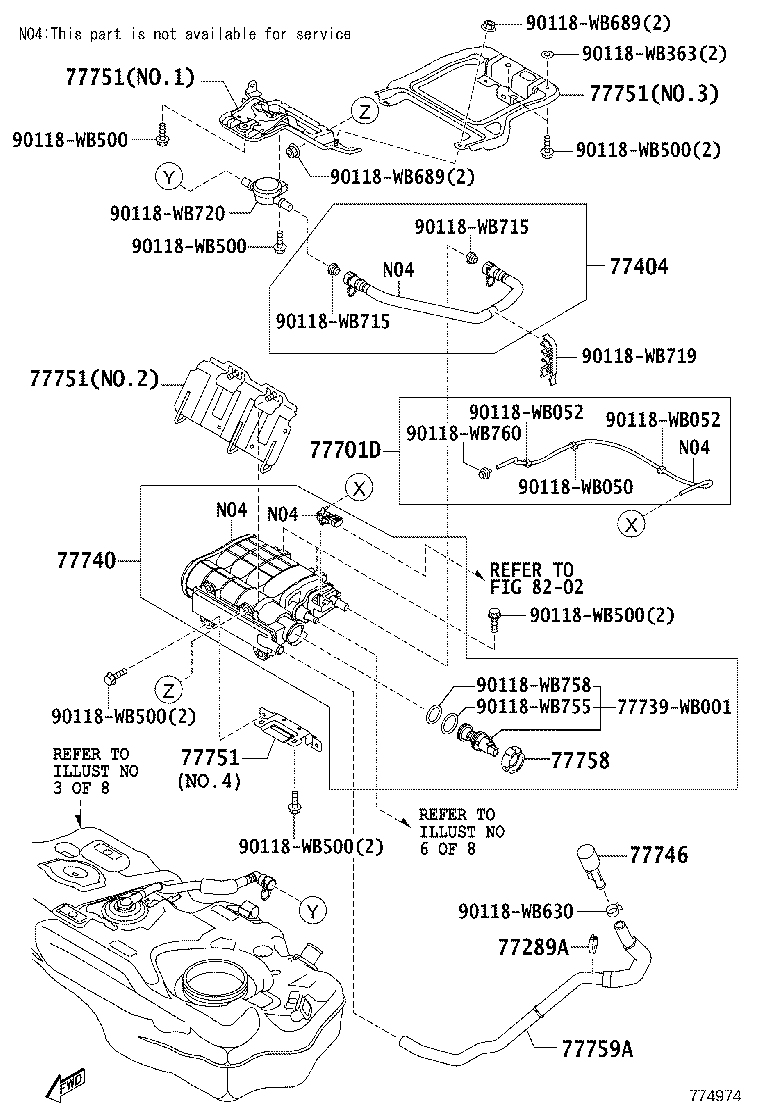

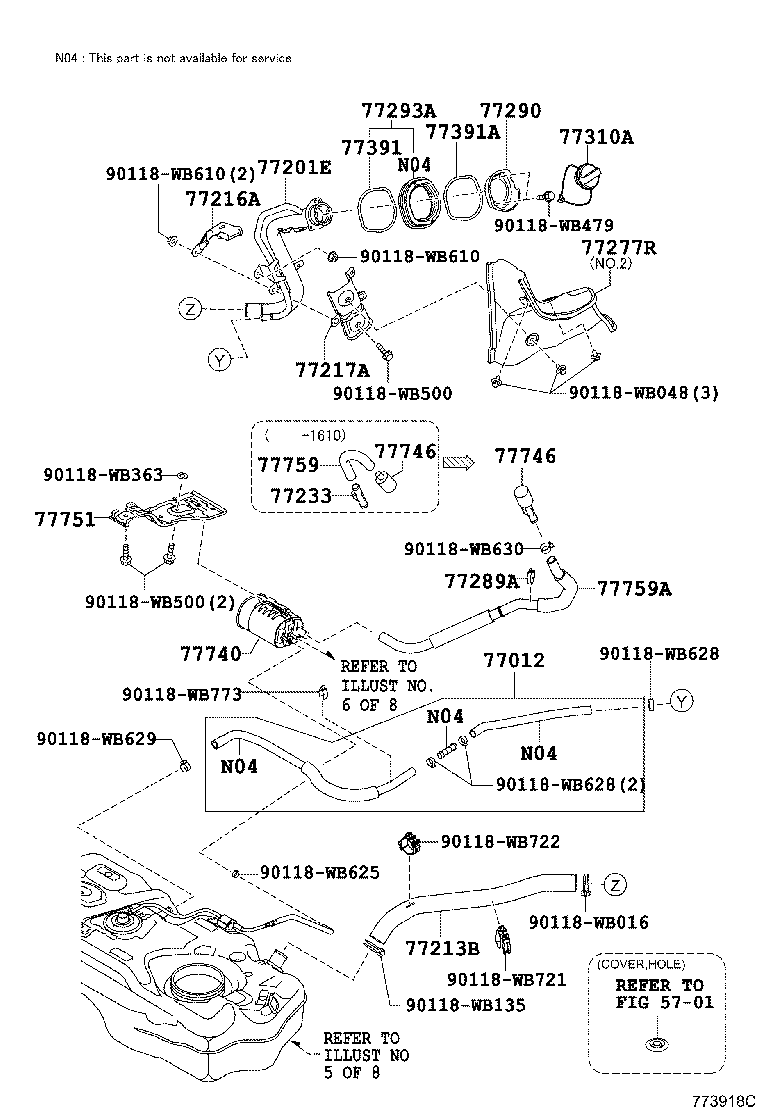

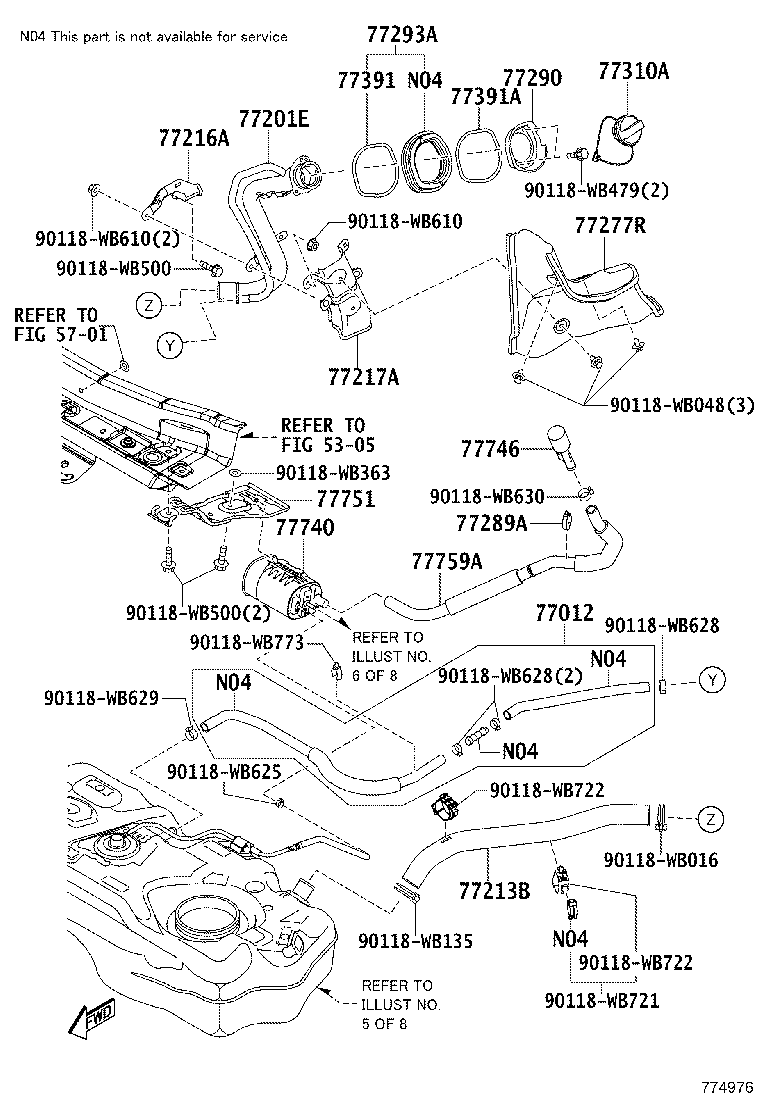

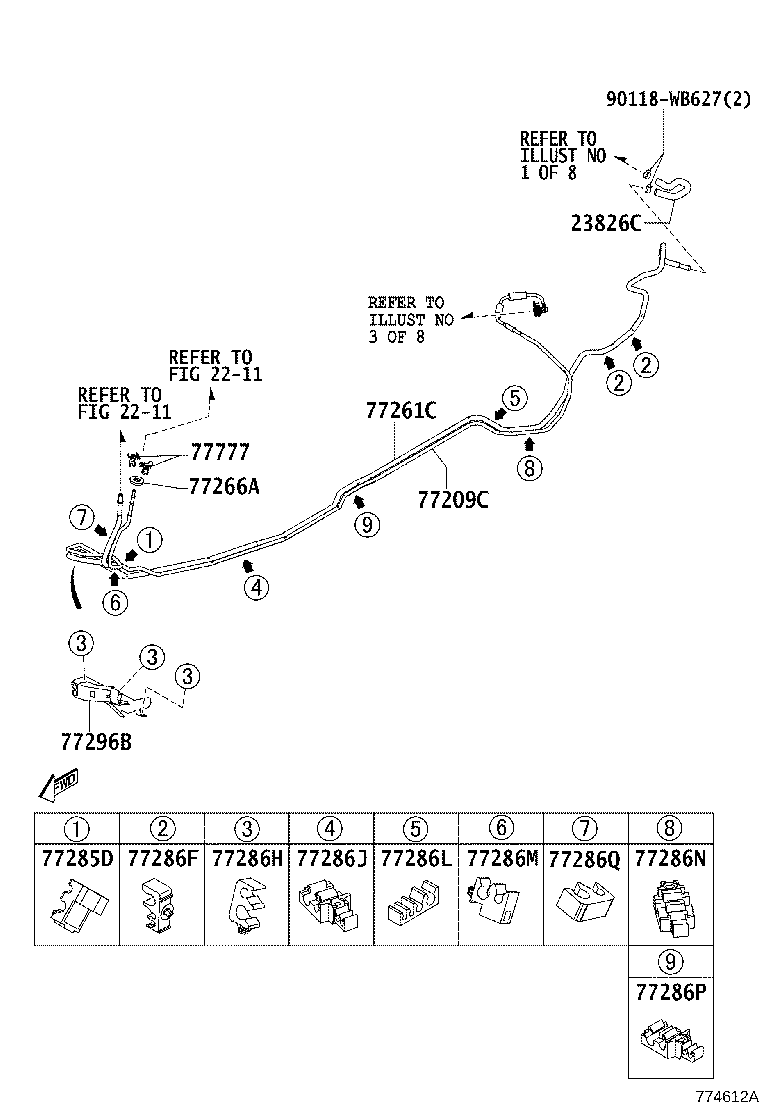

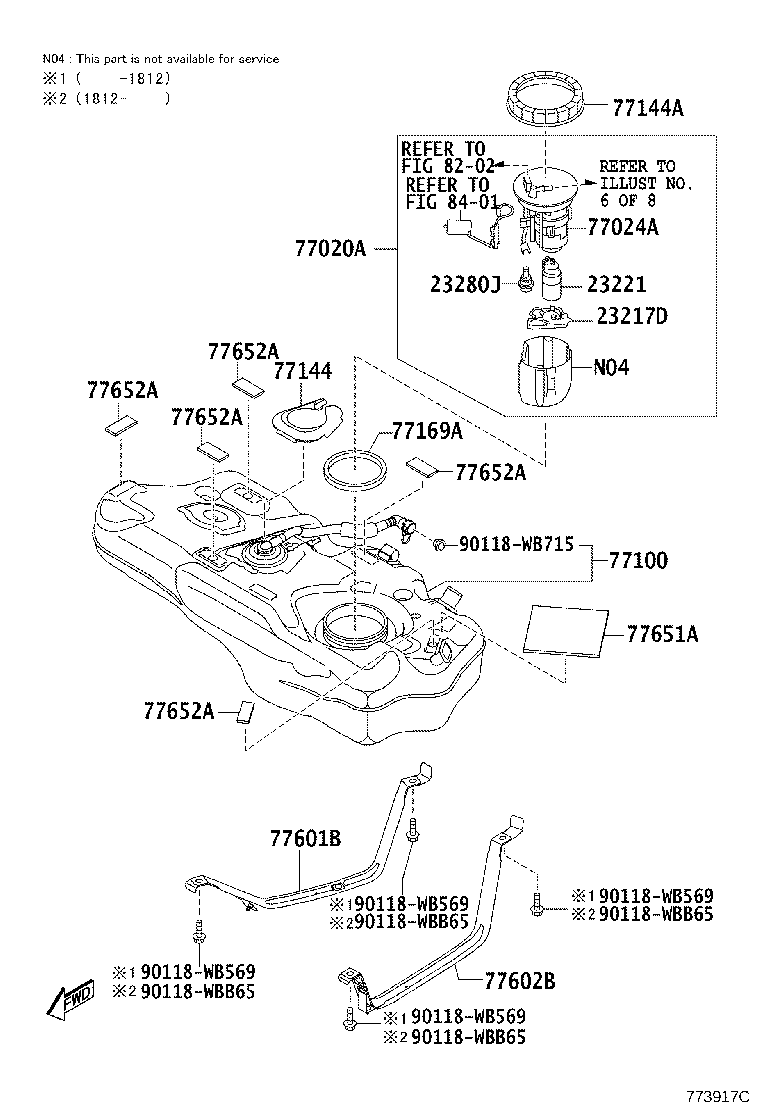

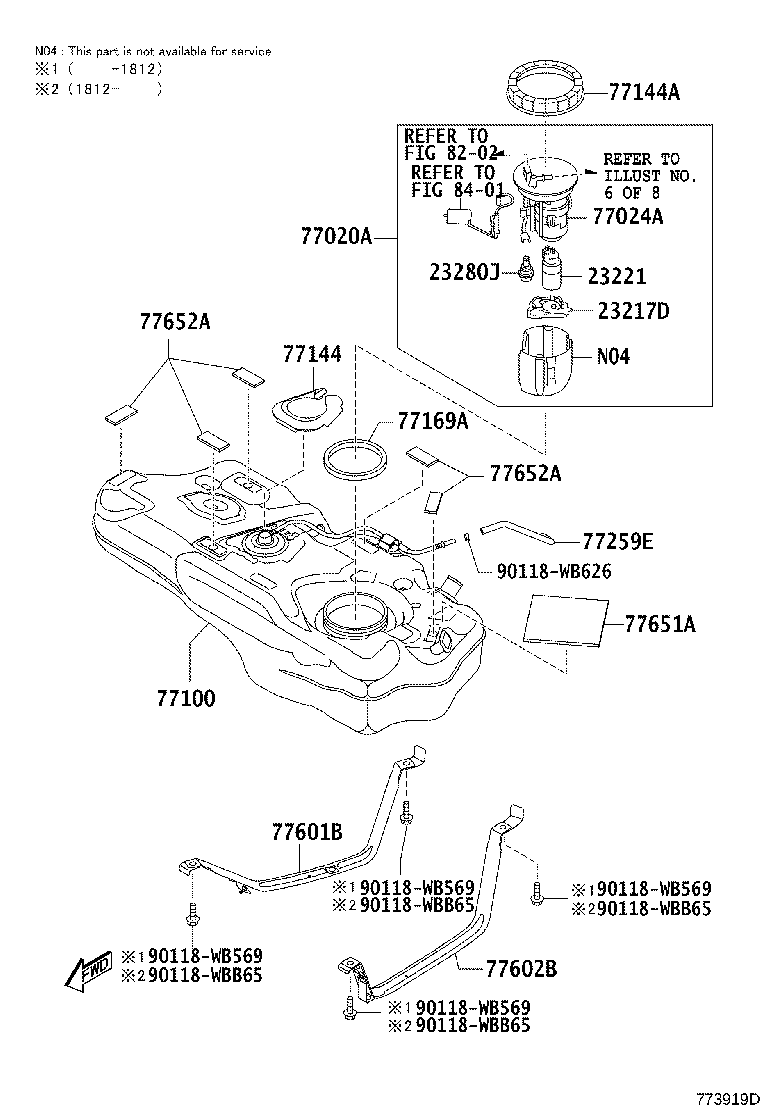

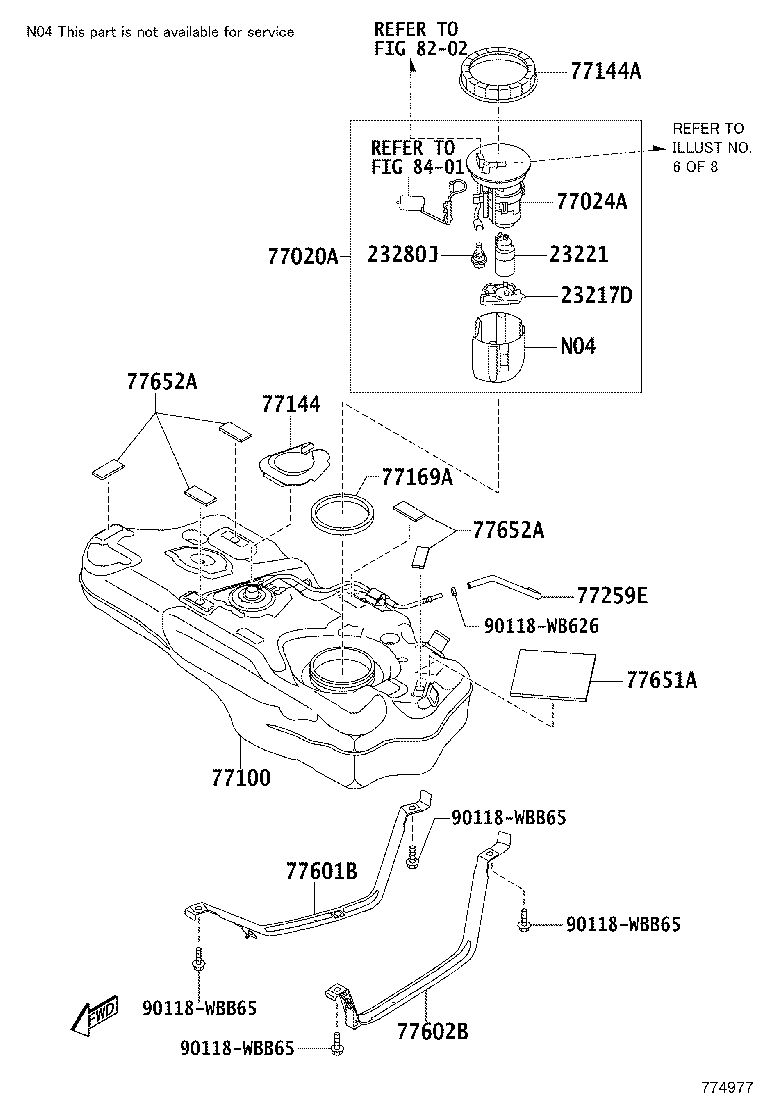

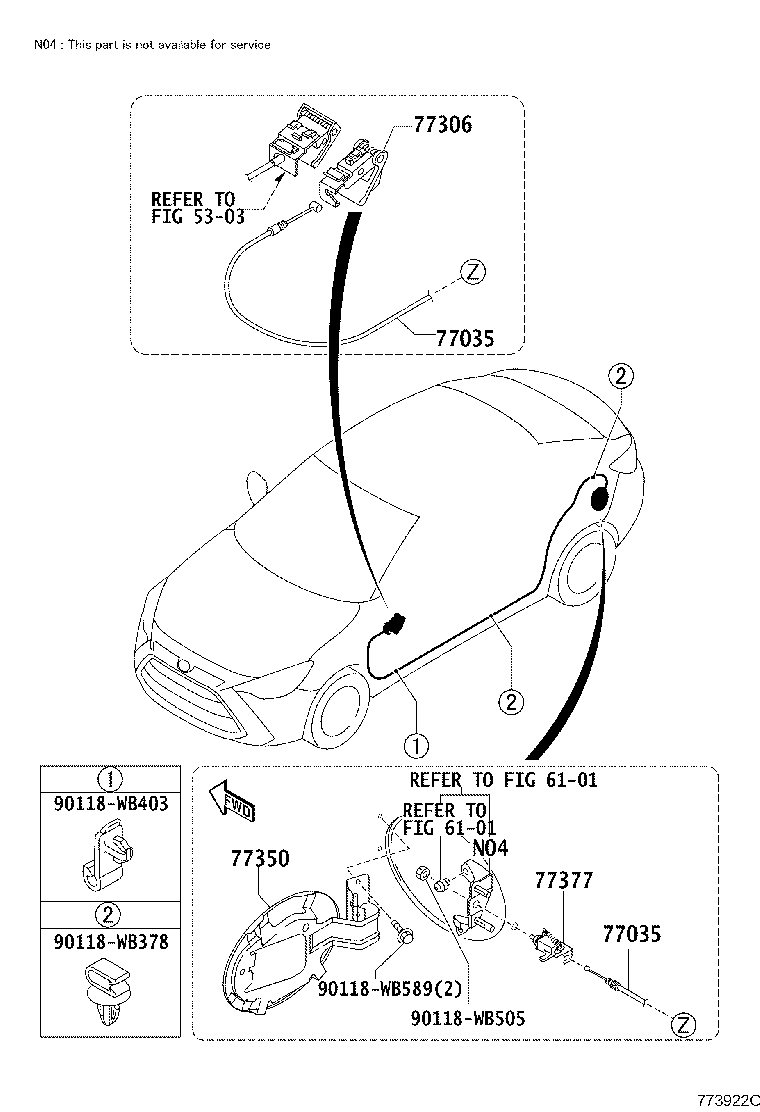

Figure 773915B 773915B 2015-06 → 2018-08 Figure 774610A 774610A 2018-08 → 2019-08 Figure 774974 774974 2019-08 → — Figure 773916B 773916B 2015-06 → 2016-10 Figure 774262C 774262C 2016-10 → — Figure 773917C 773917C 2015-06 → 2019-08 Figure 774975 774975 2019-08 → — Figure 773918C 773918C 2015-08 → 2018-08 Figure 774611A 774611A 2018-08 → 2019-08 Figure 774976 774976 2019-08 → — Figure 773919D 773919D 2015-08 → 2019-08 Figure 774977 774977 2019-08 → — Figure 773920A 773920A 2015-06 → 2018-08 Figure 774612A 774612A 2018-08 → — Figure 773921B 773921B 2015-08 → — Figure 773922C 773922C 2015-06 → — Figure 774978 774978 2019-08 → —

Part groups

PNCDescription
23217D Filter, Fuel Pump
23221 Pump, Fuel
23280J Regulator Assy, Fuel Pressure
23826C Hose, Fuel Vapor Feed, NO.1
77012 Tube Sub-assy, Fuel Tank Breather
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77144 Retainer, Fuel Pump Gauge
77144A Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77201E Pipe Sub-assy, Fuel Tank Filler
77209C Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77233 Joint, Fuel Hose
77259C Hose, Fuel
77259E Hose, Fuel
77261C Hose, Fuel, NO.3 (FOR FUEL EMISSION TUBE)
77262B Tube, Fuel Tank TO Canister, NO.2
77266A Protector, Fuel Tube, NO.1
77277R Protector, Fuel Tank Filler Pipe
77279C Hose, Fuel
77285D Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77289A Clamp, Fuel Tube W/Grommet, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77293A Shield, Fuel Tank Filler Pipe, NO.3
77296B Support, Fuel Tube Protector, NO.1
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77350 Lid Assy, Fuel Filler Opening
77350B Cushion(FOR FUEL FILLER OPENING LID)
77358A Stopper, Fuel Filler Opening Lid
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77445 Connector, Fuel Tank Vent, NO.2
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77651A Cushion, Fuel Tank, NO.1
77651B Cushion, Fuel Tank
77652A Cushion, Fuel Tank, NO.2
77701D Hose, Fuel(FOR CHARCOAL CANISTER)
77740 Canister Assy, Charcoal
77746 Filter, Charcoal Canister, NO.2
77751 Bracket, Charcoal Canister Base
77758 Cap, Charcoal Canister
77759 Hose, Charcoal Canister
77759A Hose, Charcoal Canister
77777 Bracket, Fuel Tube Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
