Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

7 part groups · 5 illustrations

Illustrations

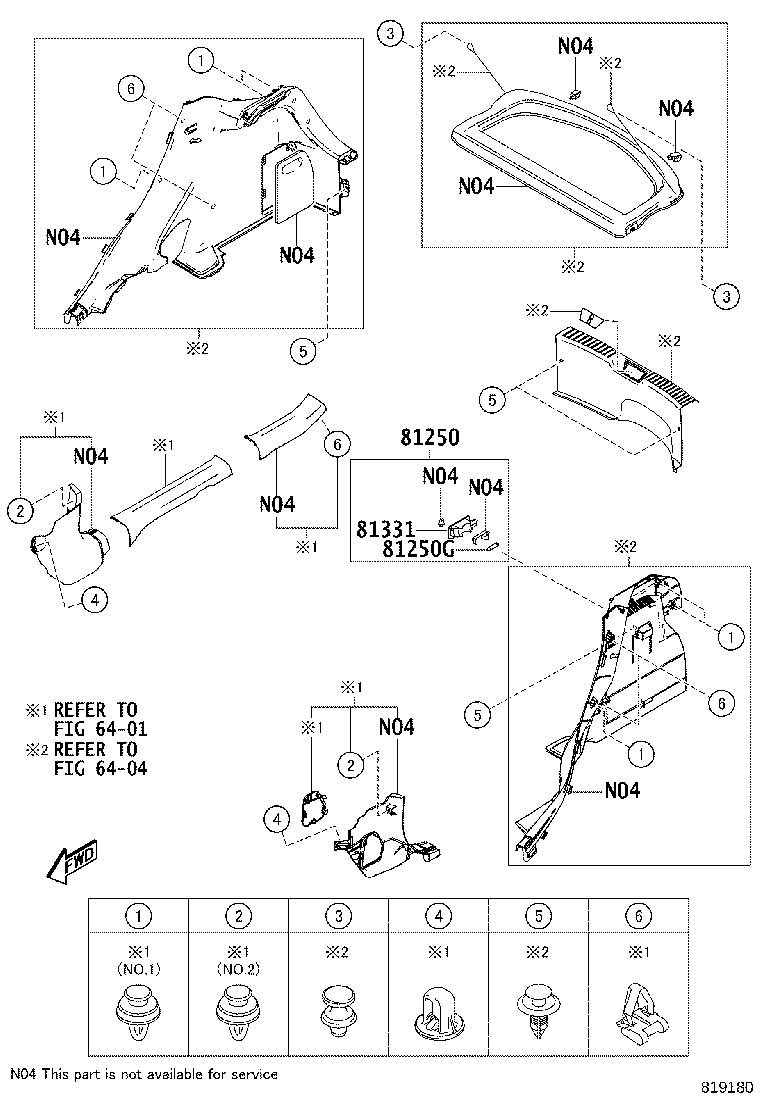

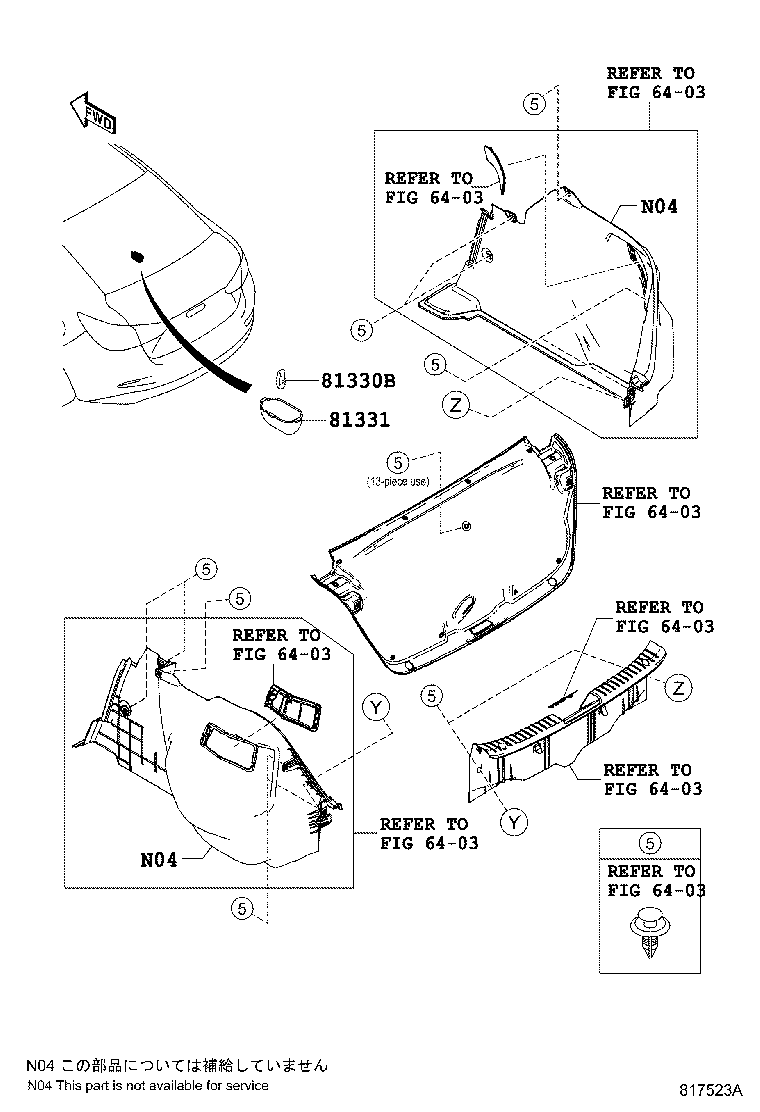

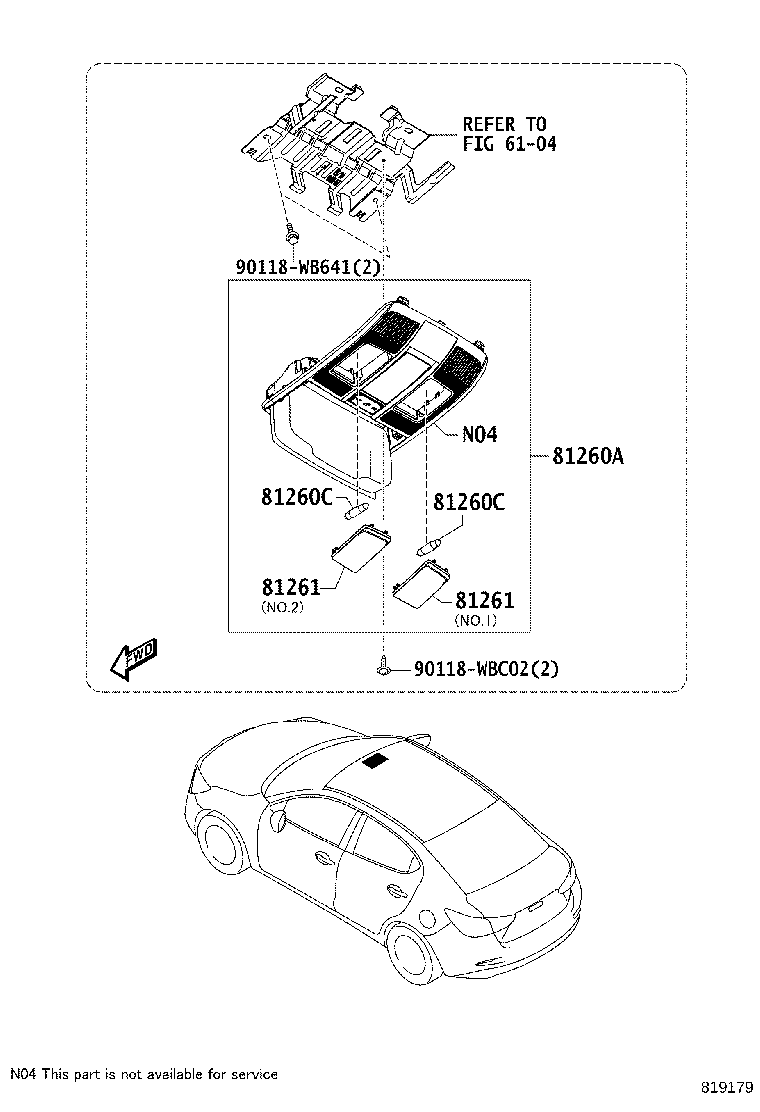

Figure 817520B 817520B 2015-06 → 2019-08 Figure 819179 819179 2019-08 → — Figure 817523A 817523A 2015-06 → 2019-08 Figure 817523A 817523A 2019-08 → — Figure 819180 819180 2019-08 → —

Part groups

PNCDescription
81250 Lamp Assy, Room, NO.2
81250G Bulb, Rear Room Lamp, RH
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81261 Lens And Cover, Map Lamp
81330B Bulb, Luggage Compartment Lamp
81331 Lens, Luggage Compartment Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
