Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

40 part groups · 62 illustrations

Illustrations

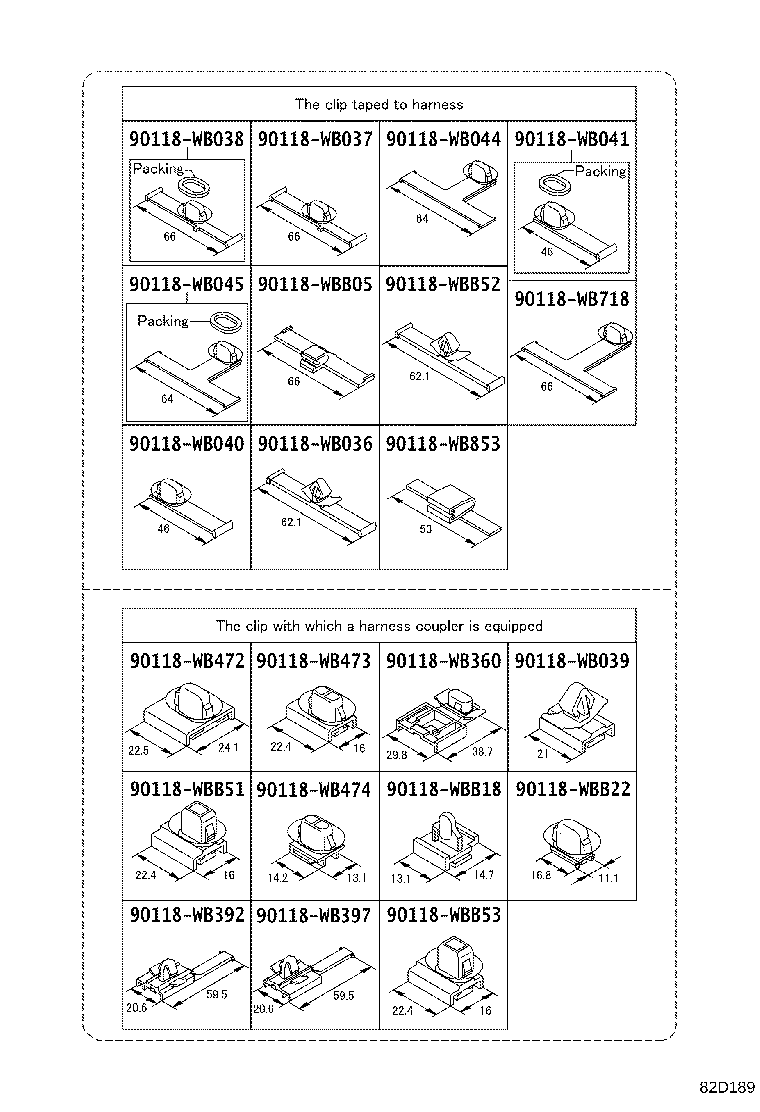

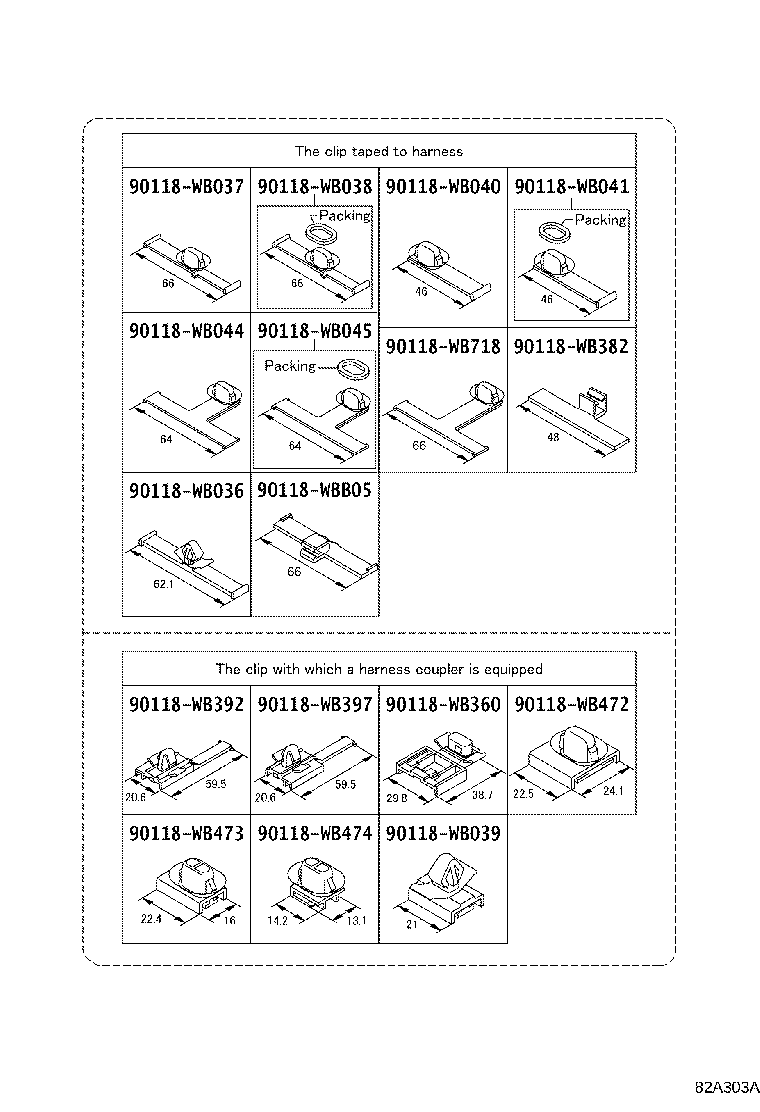

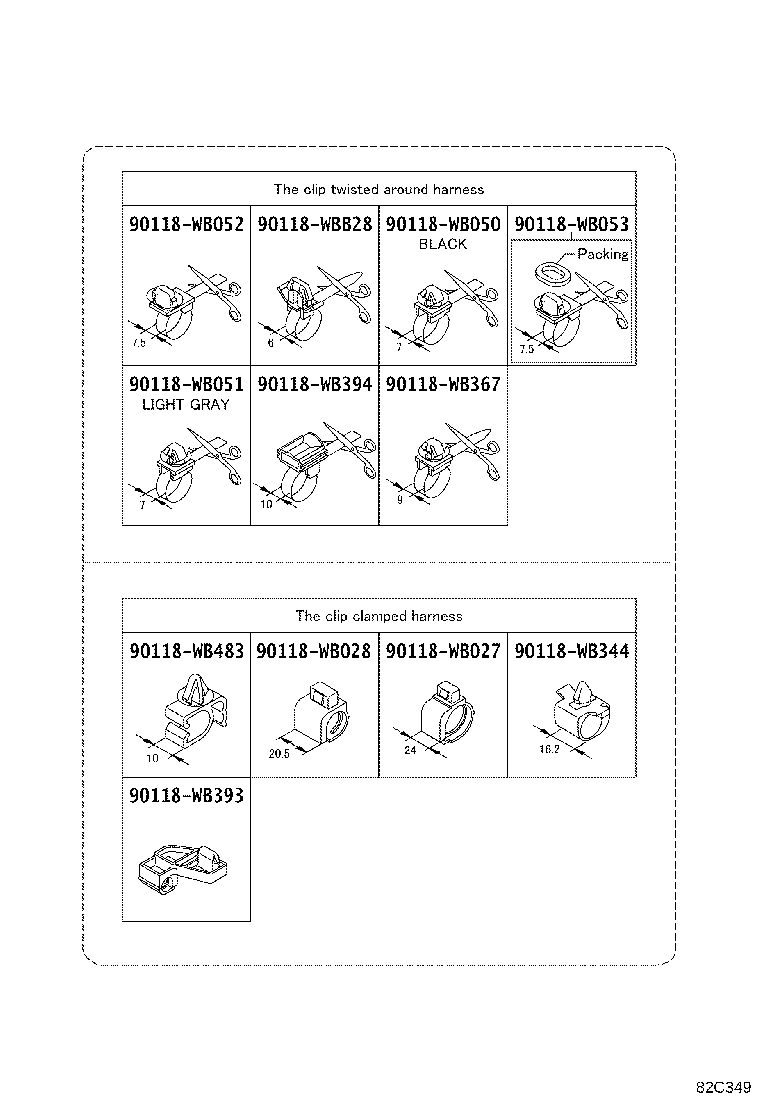

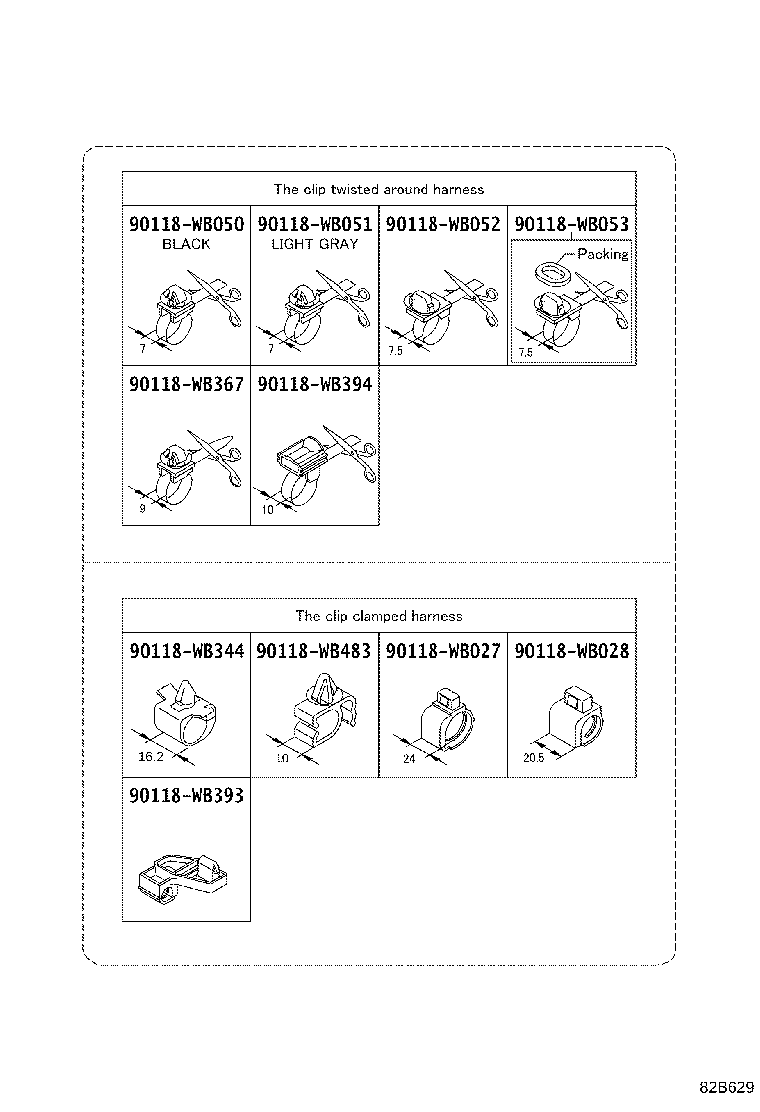

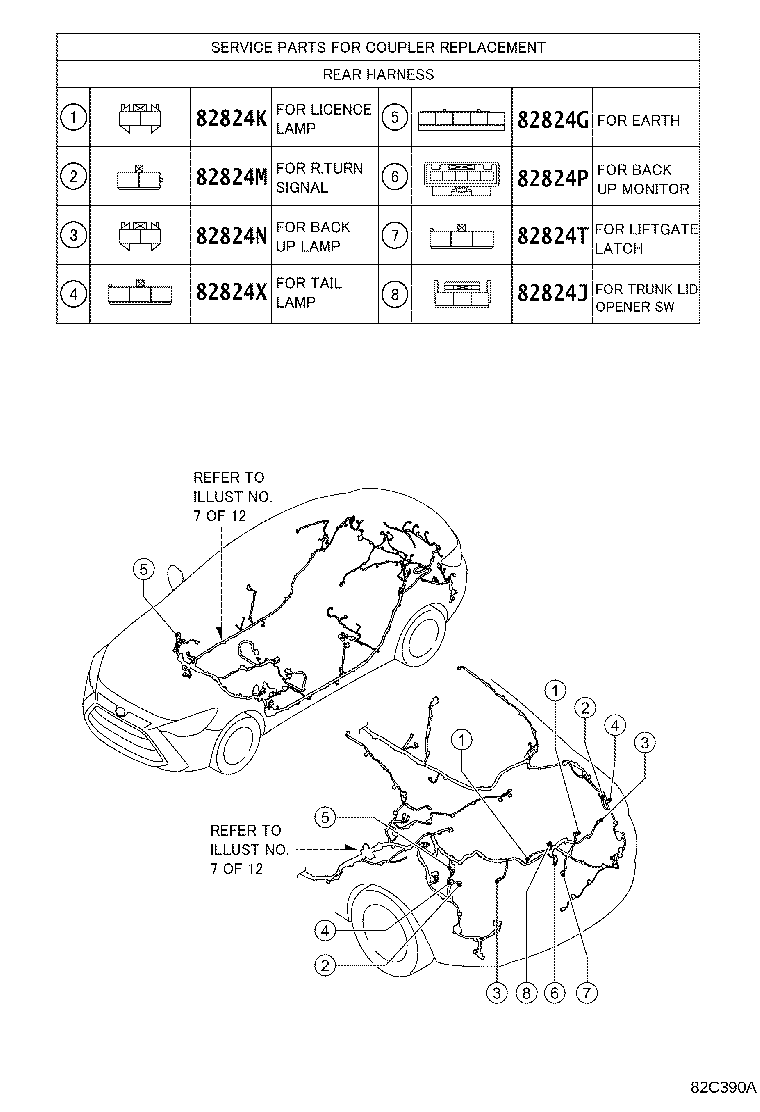

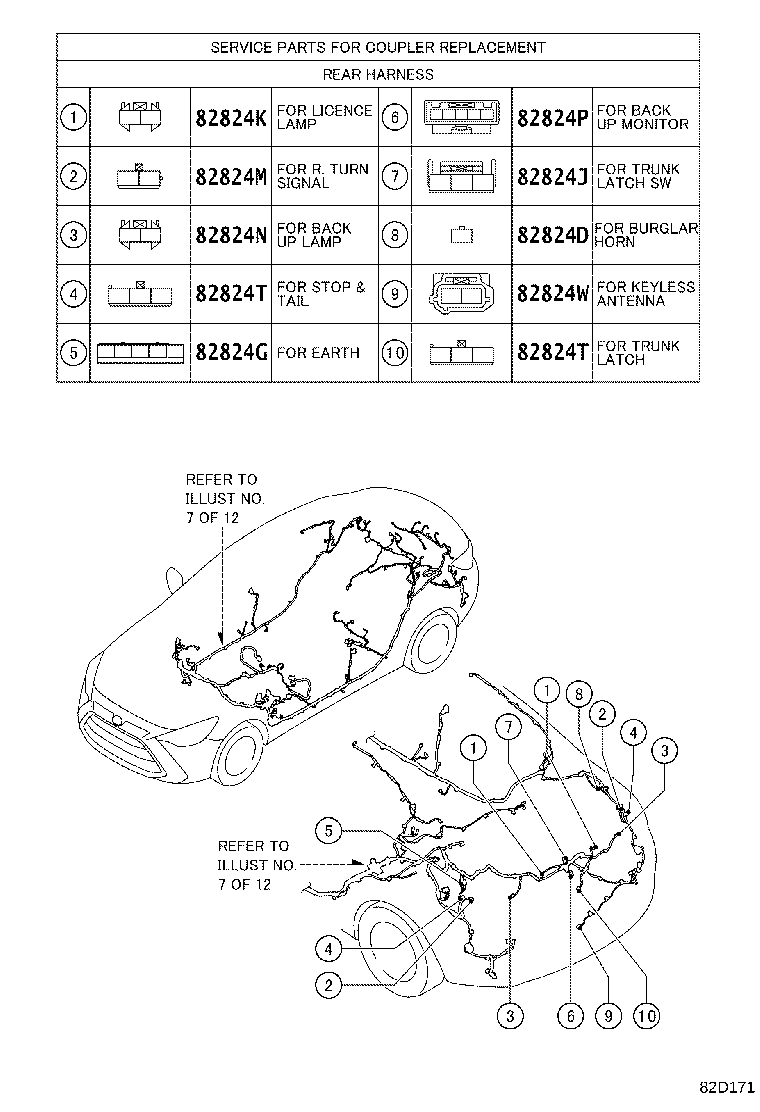

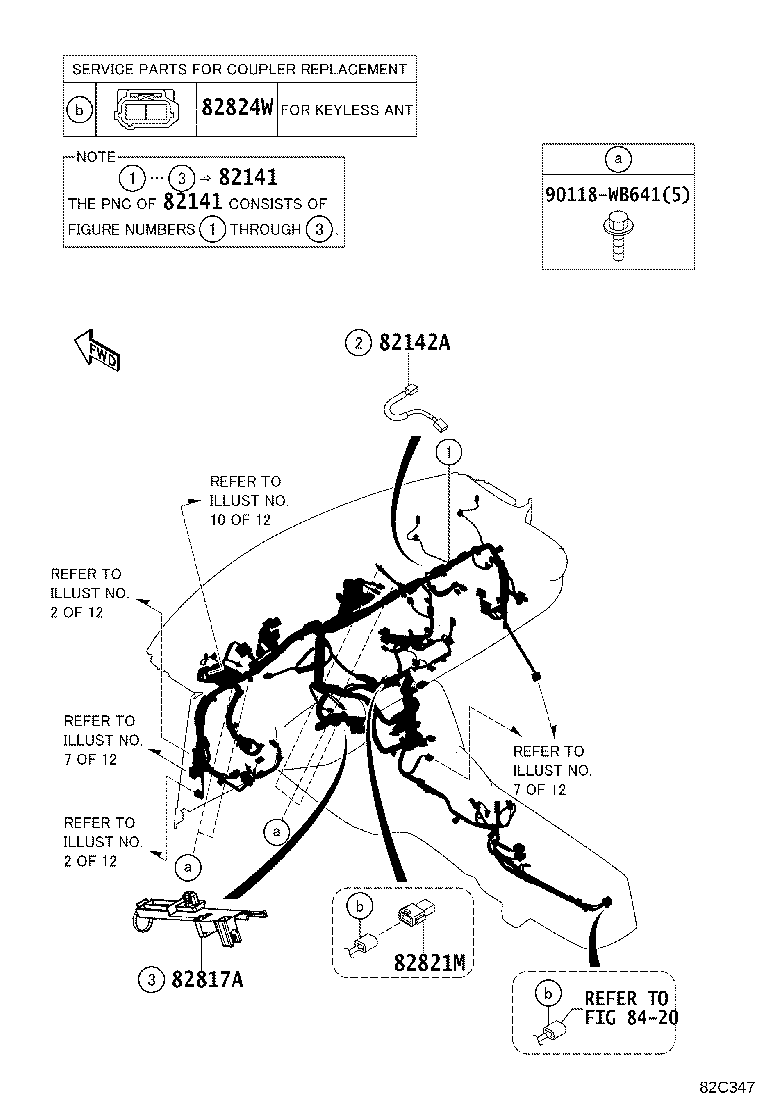

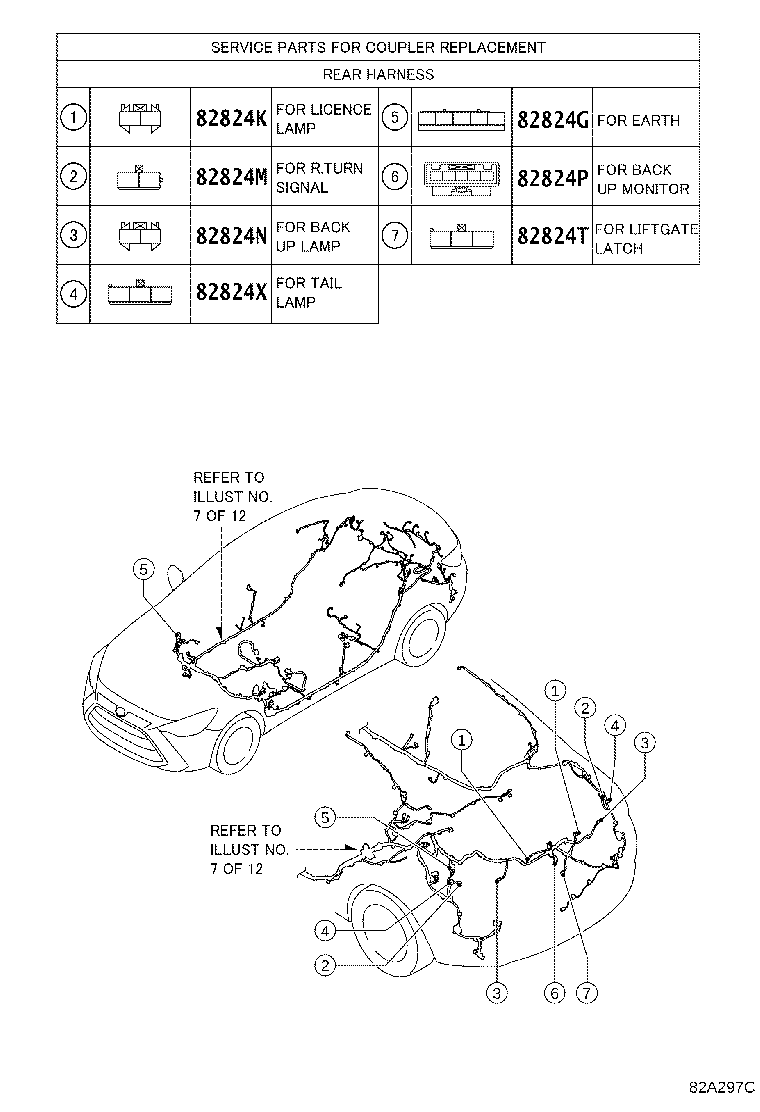

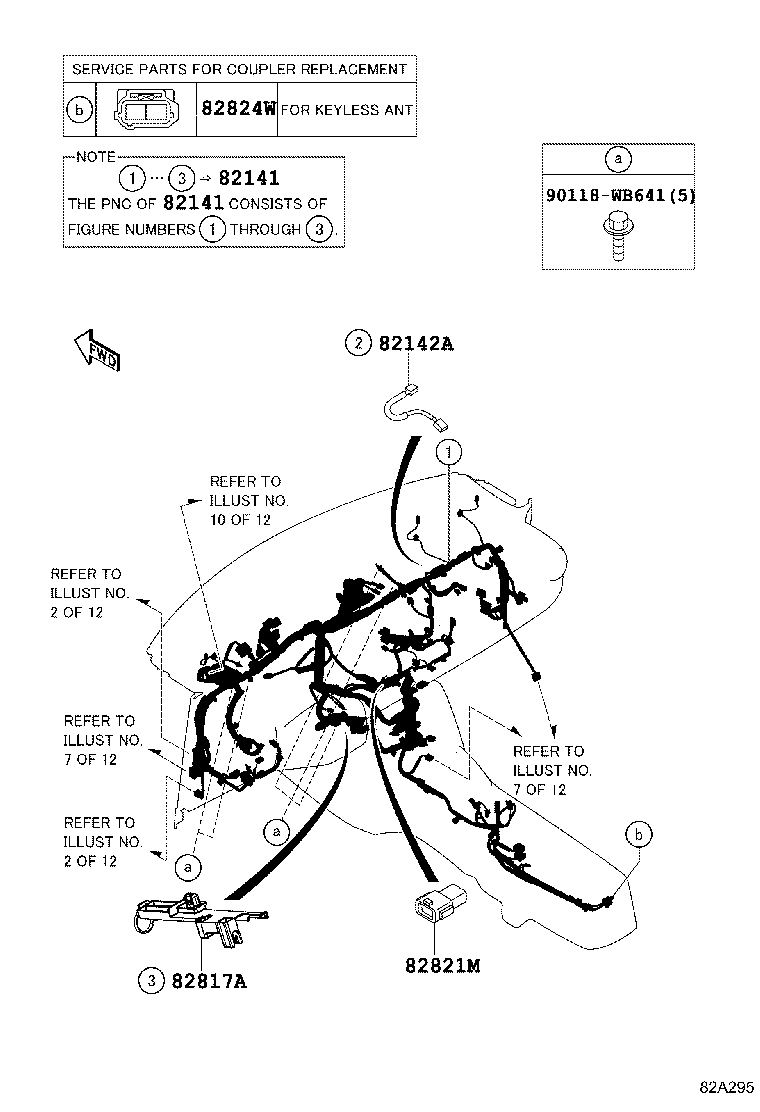

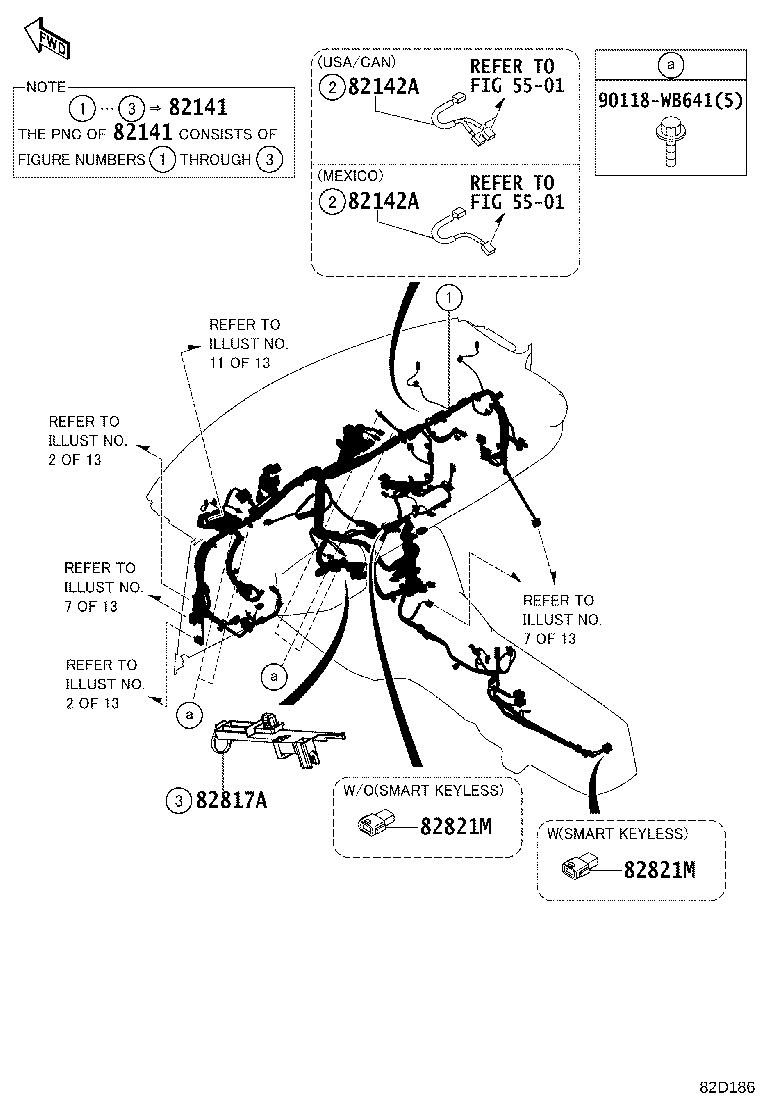

Figure 82A292B 82A292B 2015-06 → 2018-08 Figure 82C385B 82C385B 2018-08 → 2019-08 Figure 82C386B 82C386B 2018-08 → 2019-08 Figure 82D159 82D159 2019-08 → — Figure 82D160 82D160 2019-08 → — Figure 82D161 82D161 2019-08 → — Figure 82A293 82A293 2015-06 → 2018-08 Figure 82C387 82C387 2018-08 → 2019-08 Figure 82C388 82C388 2018-08 → 2019-08 Figure 82D162 82D162 2019-08 → — Figure 82D163 82D163 2019-08 → — Figure 82D164 82D164 2019-08 → — Figure 82A294A 82A294A 2015-06 → 2018-02 Figure 82C133 82C133 2018-02 → 2019-08 Figure 82D165 82D165 2019-08 → — Figure 82D185 82D185 2019-08 → — Figure 82A295 82A295 2015-06 → 2018-08 Figure 82C347 82C347 2018-08 → 2019-08 Figure 82D167 82D167 2019-08 → — Figure 82D186 82D186 2019-08 → — Figure 82A296A 82A296A 2015-06 → 2018-08 Figure 82C523 82C523 2018-08 → 2019-08 Figure 82C523 82C523 2019-08 → — Figure 82D187 82D187 2019-08 → — Figure 82A297C 82A297C 2015-06 → 2018-08 Figure 82C389A 82C389A 2018-08 → 2019-08 Figure 82C390A 82C390A 2018-08 → 2019-08 Figure 82D168 82D168 2019-08 → — Figure 82D171 82D171 2019-08 → — Figure 82D170 82D170 2019-08 → — Figure 82A298 82A298 2015-06 → 2018-08 Figure 82C381 82C381 2018-08 → 2019-08 Figure 82C382 82C382 2018-08 → 2019-08 Figure 82D172 82D172 2019-08 → — Figure 82D173 82D173 2019-08 → — Figure 82D174 82D174 2019-08 → — Figure 82A299 82A299 2015-06 → 2018-08 Figure 82C383 82C383 2018-08 → 2019-08 Figure 82C384A 82C384A 2018-08 → 2019-08 Figure 82D175 82D175 2019-08 → — Figure 82D176 82D176 2019-08 → — Figure 82D178 82D178 2019-08 → — Figure 82D179 82D179 2019-08 → — Figure 82A300 82A300 2015-06 → 2018-08 Figure 82C348 82C348 2018-08 → 2019-08 Figure 82D180 82D180 2019-08 → — Figure 82D181 82D181 2019-08 → — Figure 82A301 82A301 2015-06 → 2018-08 Figure 82C391A 82C391A 2018-08 → 2019-08 Figure 82C392 82C392 2018-08 → 2019-08 Figure 82D182 82D182 2019-08 → — Figure 82D183 82D183 2019-08 → — Figure 82D184 82D184 2019-08 → — Figure 82A302 82A302 2015-06 → 2017-08 Figure 82B629 82B629 2017-08 → 2018-08 Figure 82C349 82C349 2018-08 → 2019-08 Figure 82C349 82C349 2019-08 → — Figure 82D188 82D188 2019-08 → — Figure 82A303A 82A303A 2015-06 → 2018-08 Figure 82C350 82C350 2018-08 → 2019-08 Figure 82C350 82C350 2019-08 → — Figure 82D189 82D189 2019-08 → —

Part groups

PNCDescription

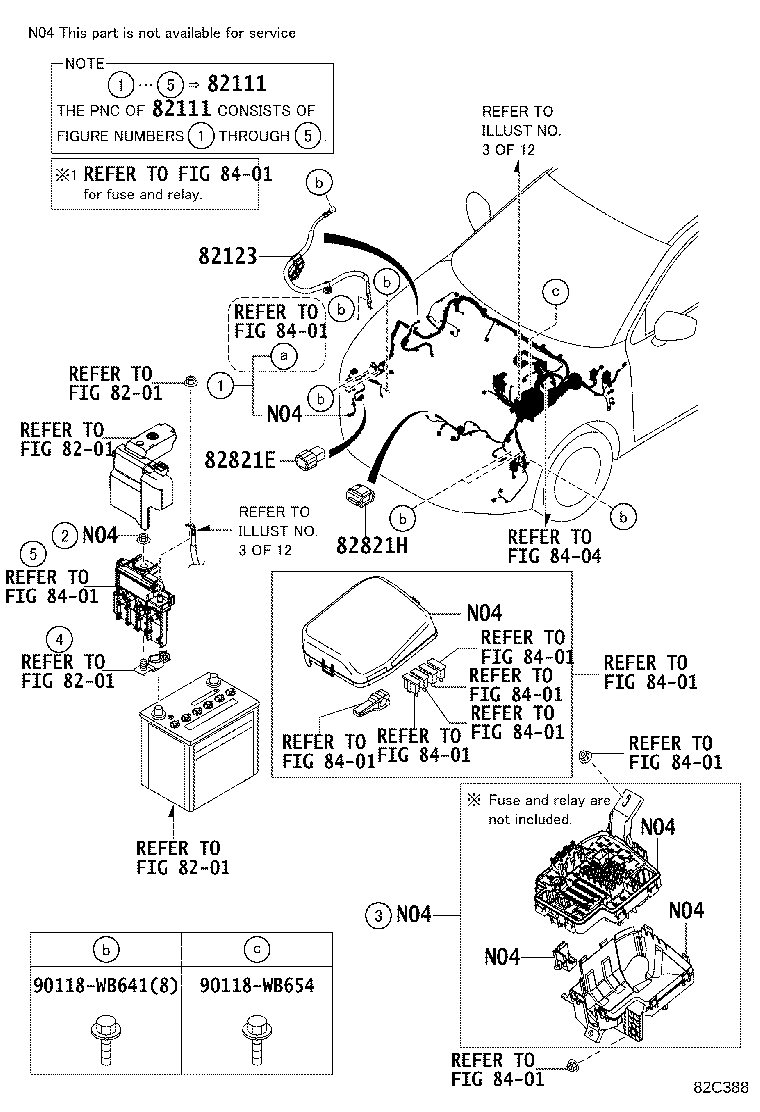

82111 Wire, Engine Room Main

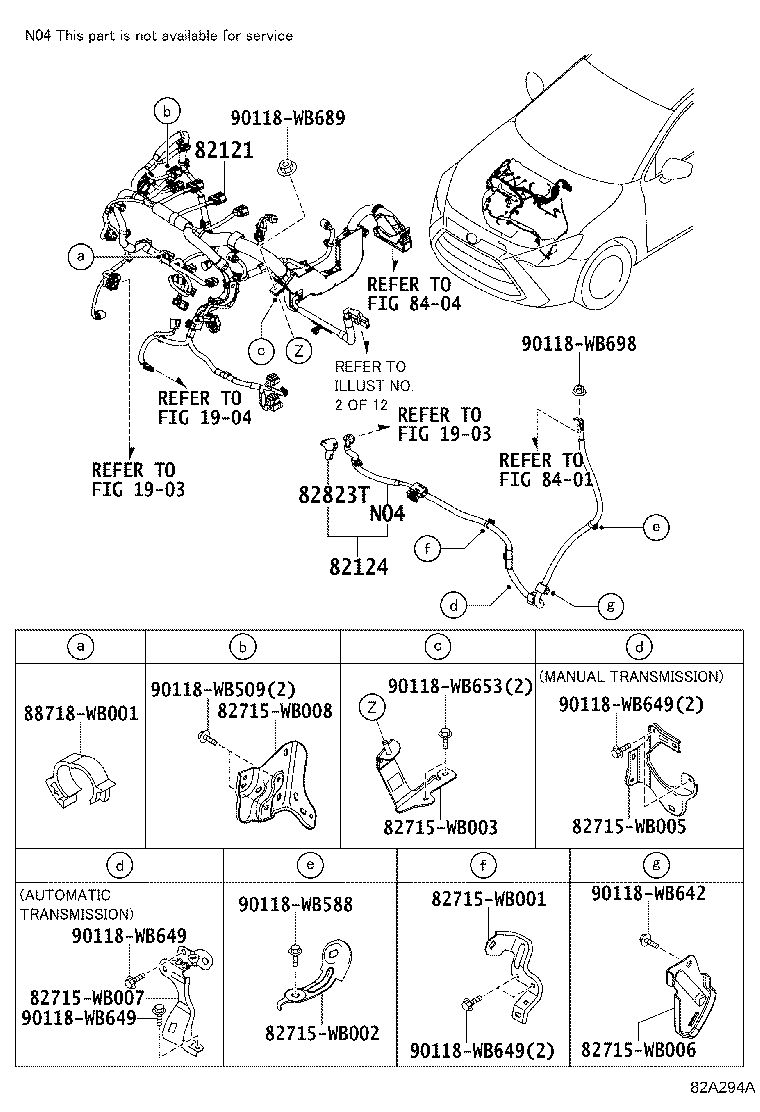

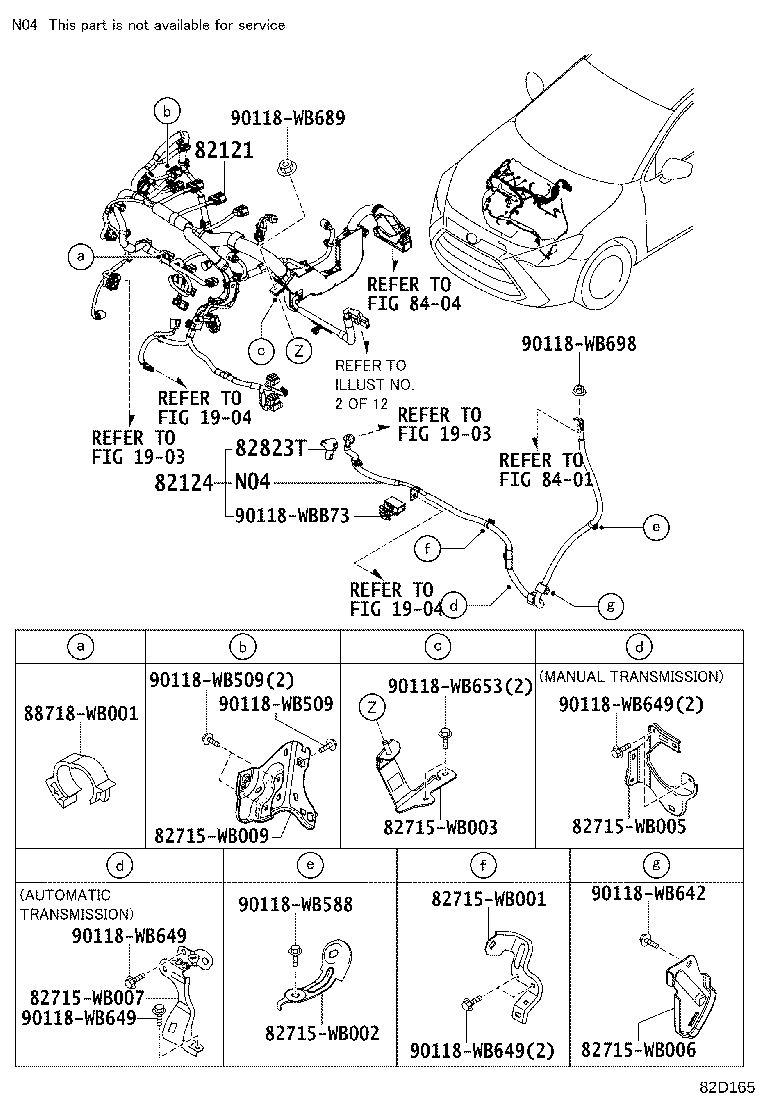

82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

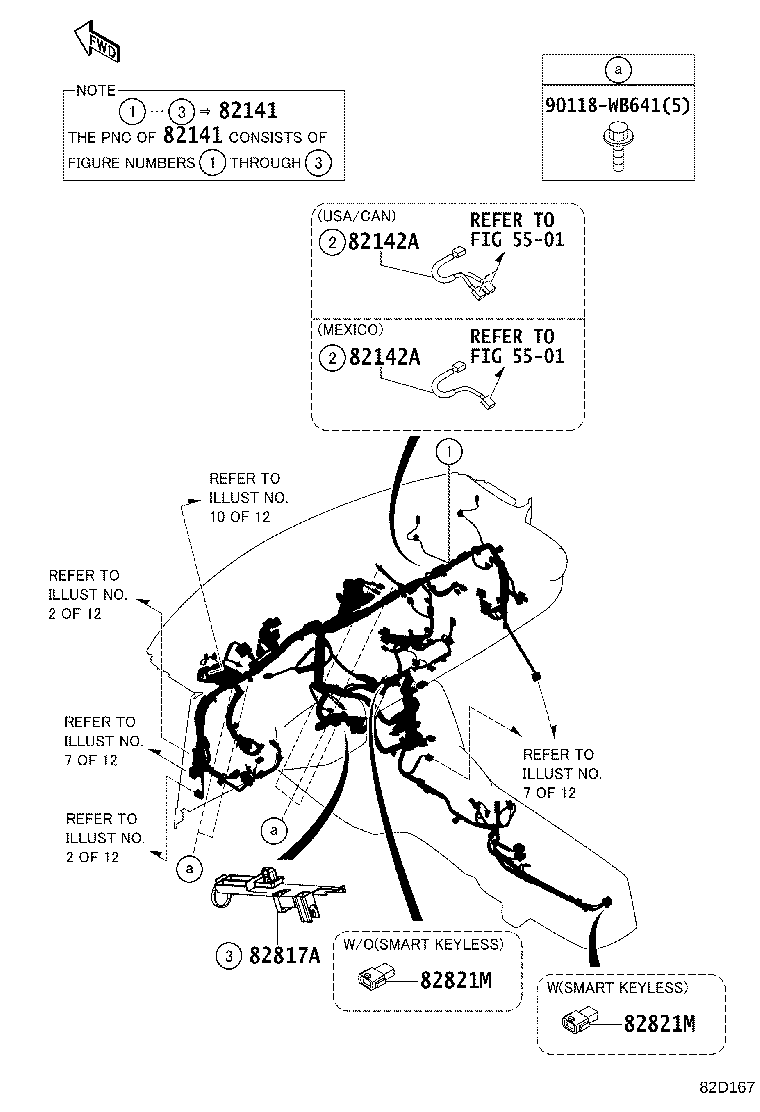

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH

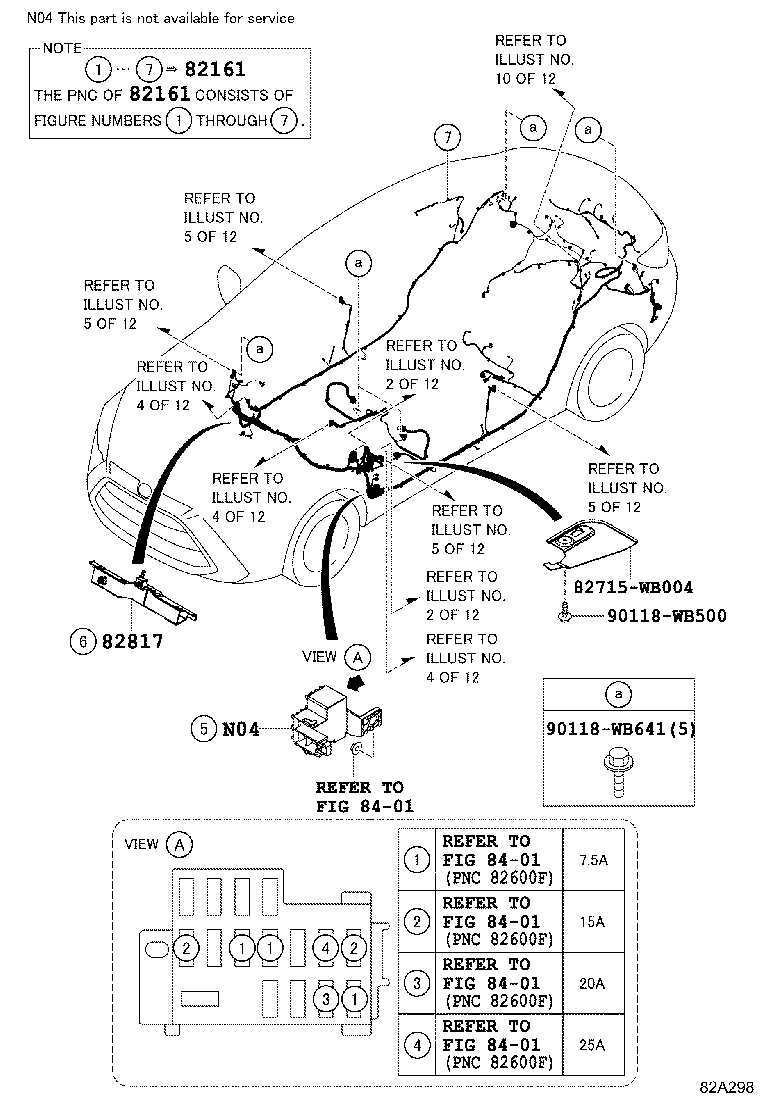

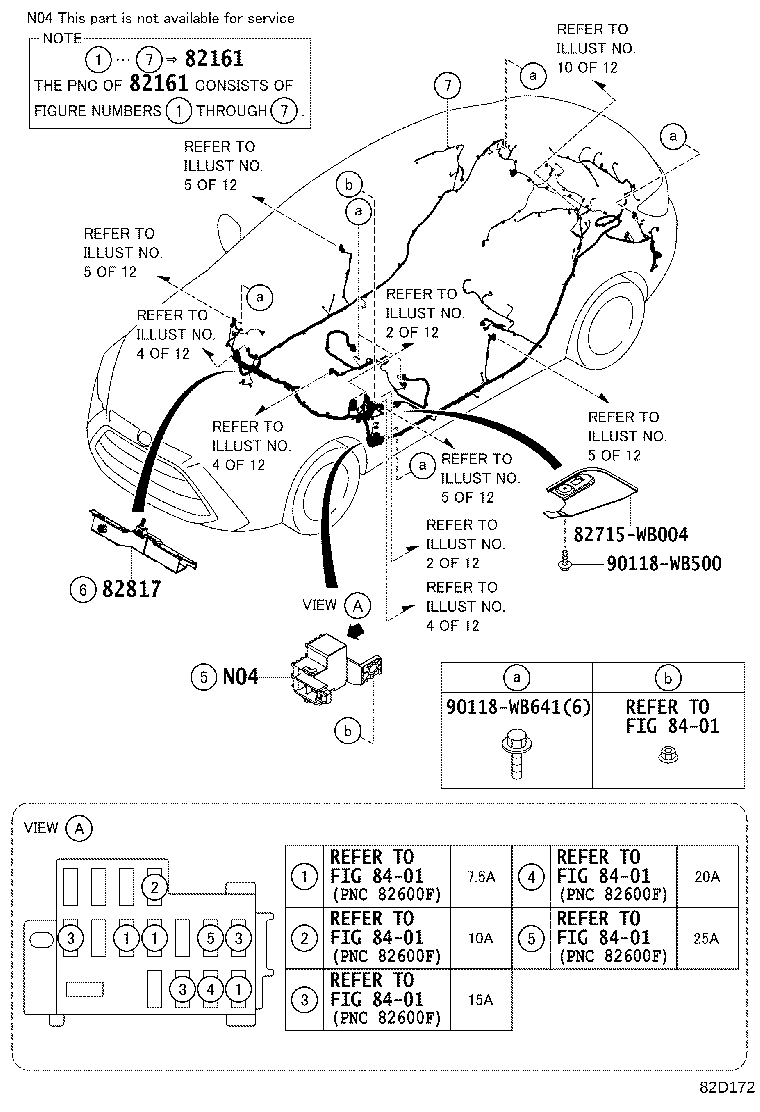

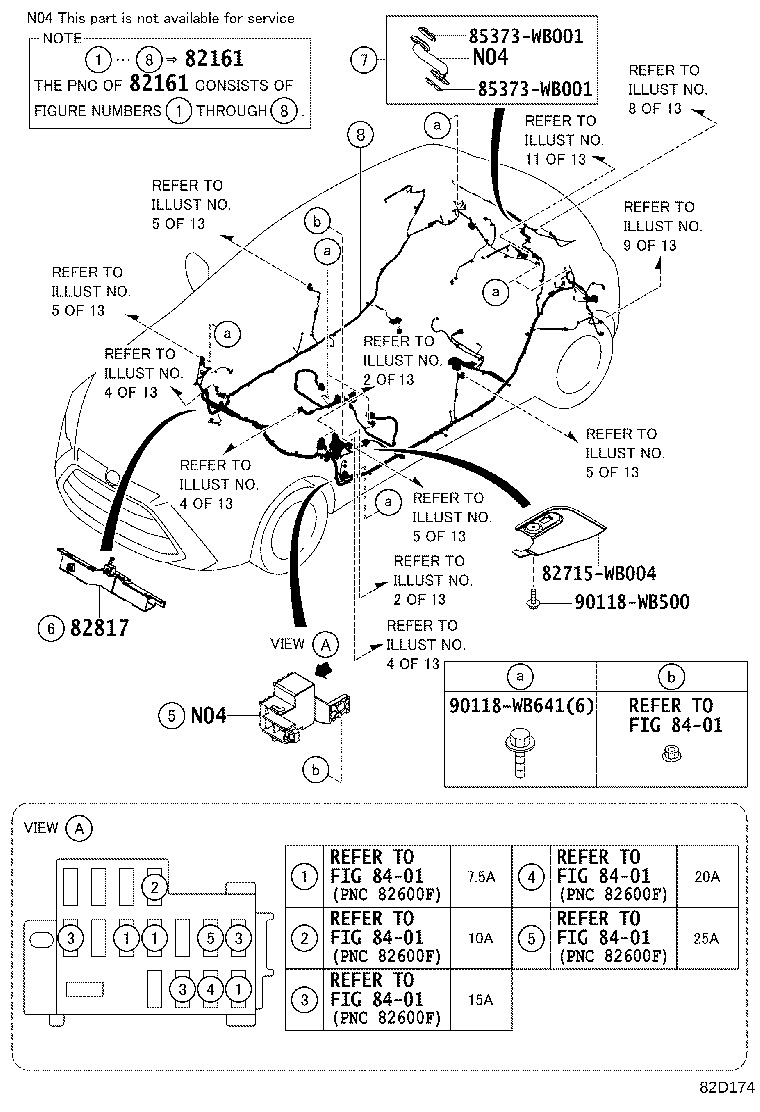

82161 Wire, Floor
82162 Wire, Floor, NO.2

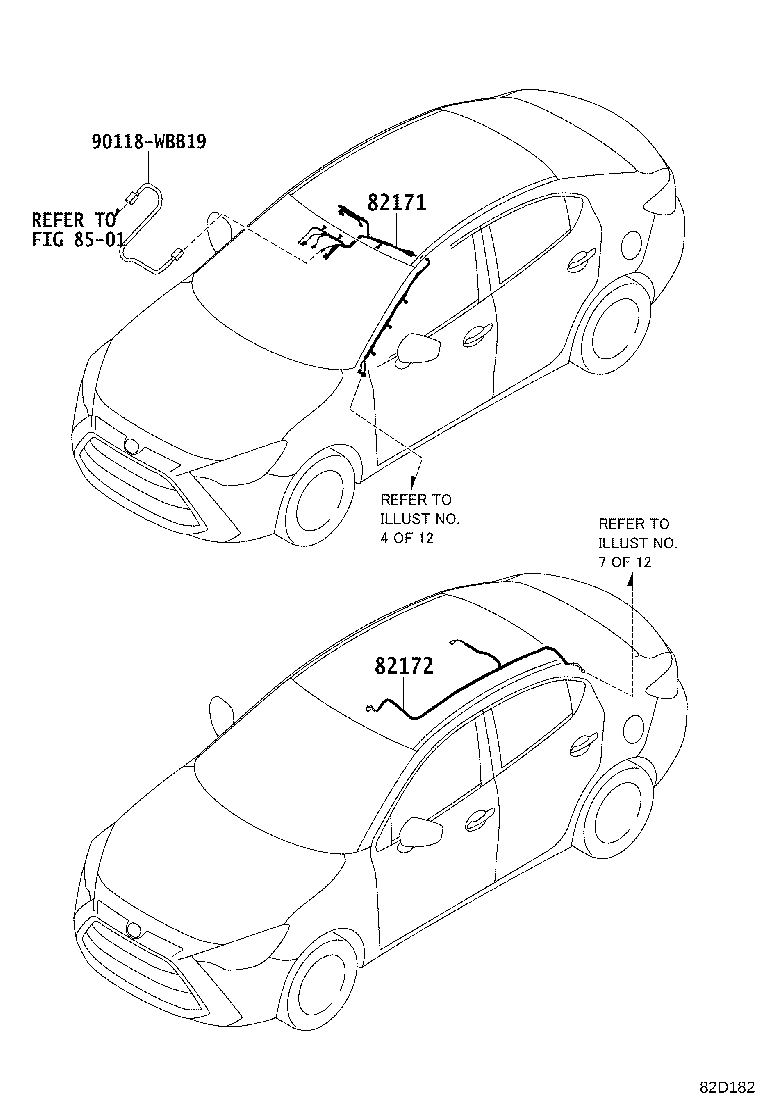

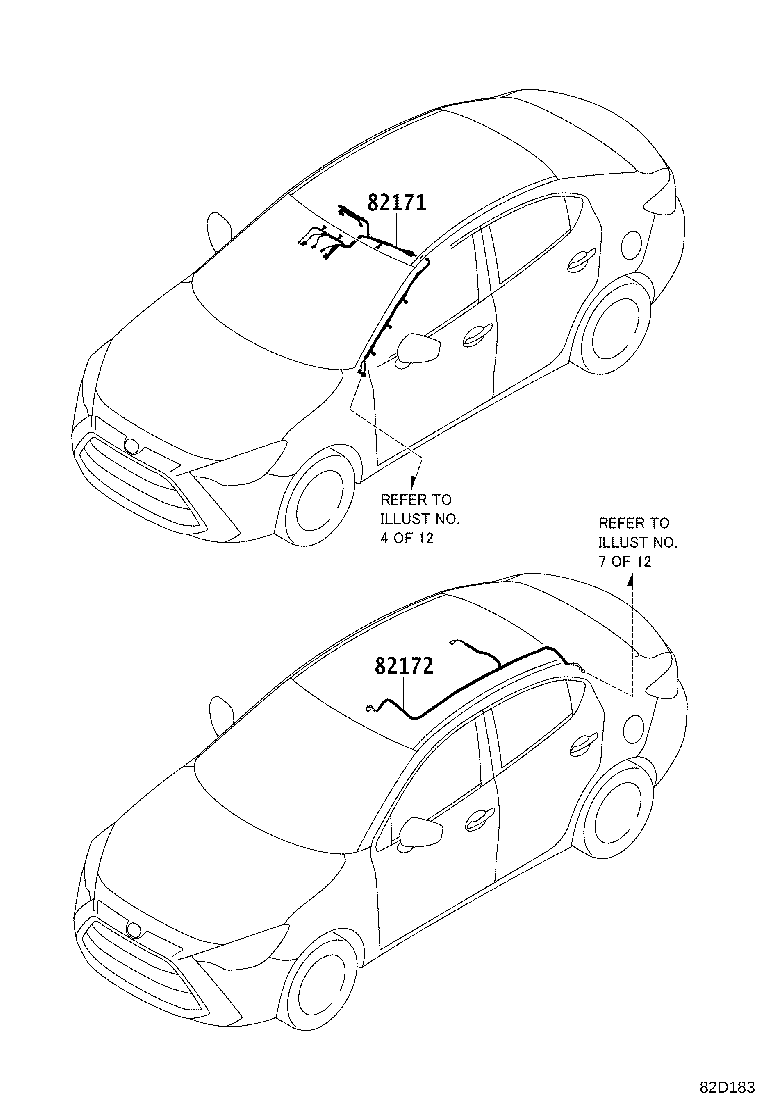

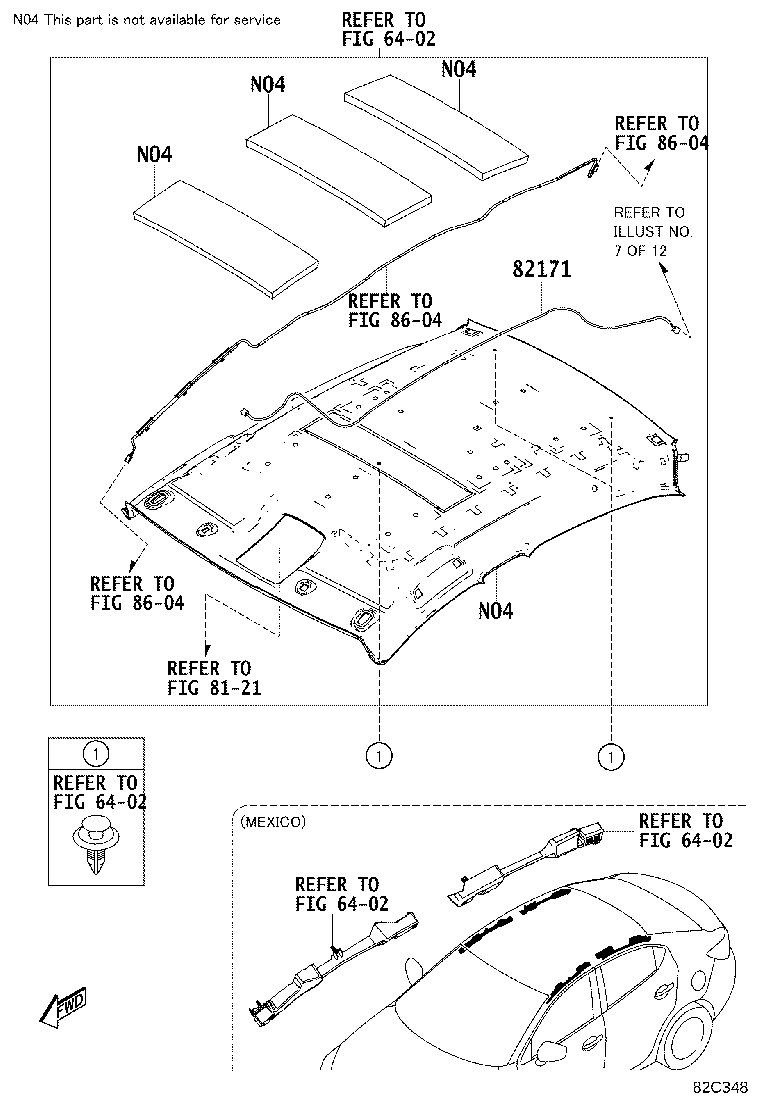

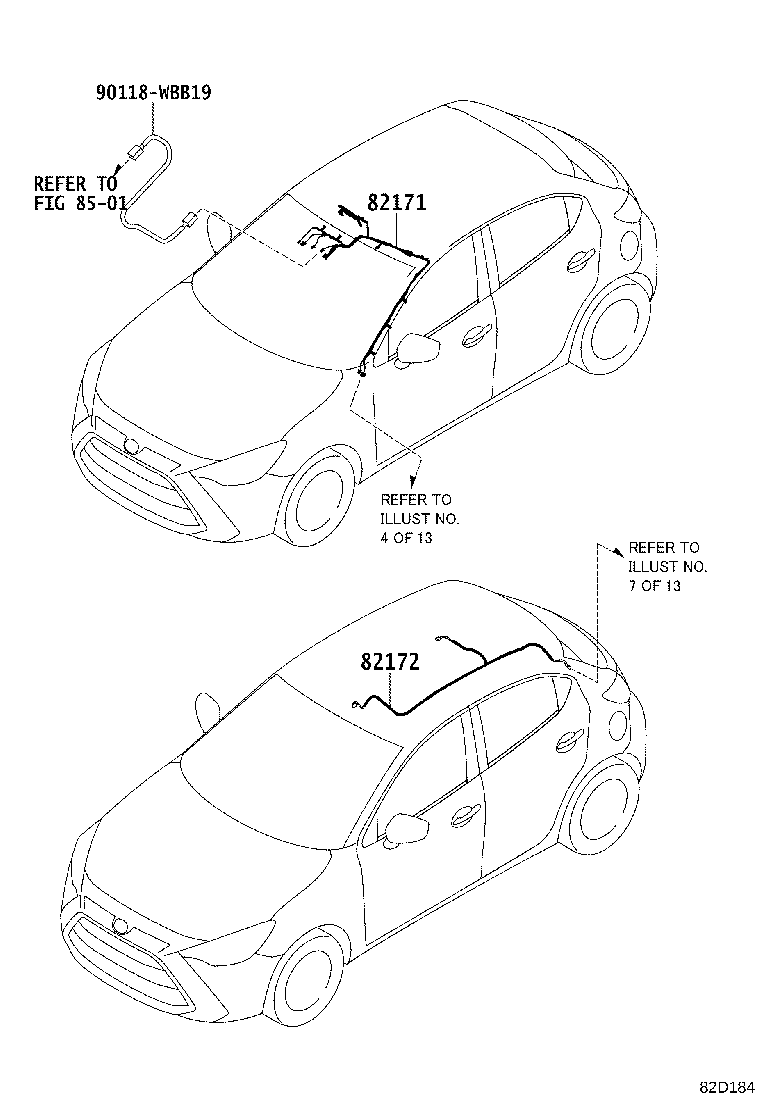

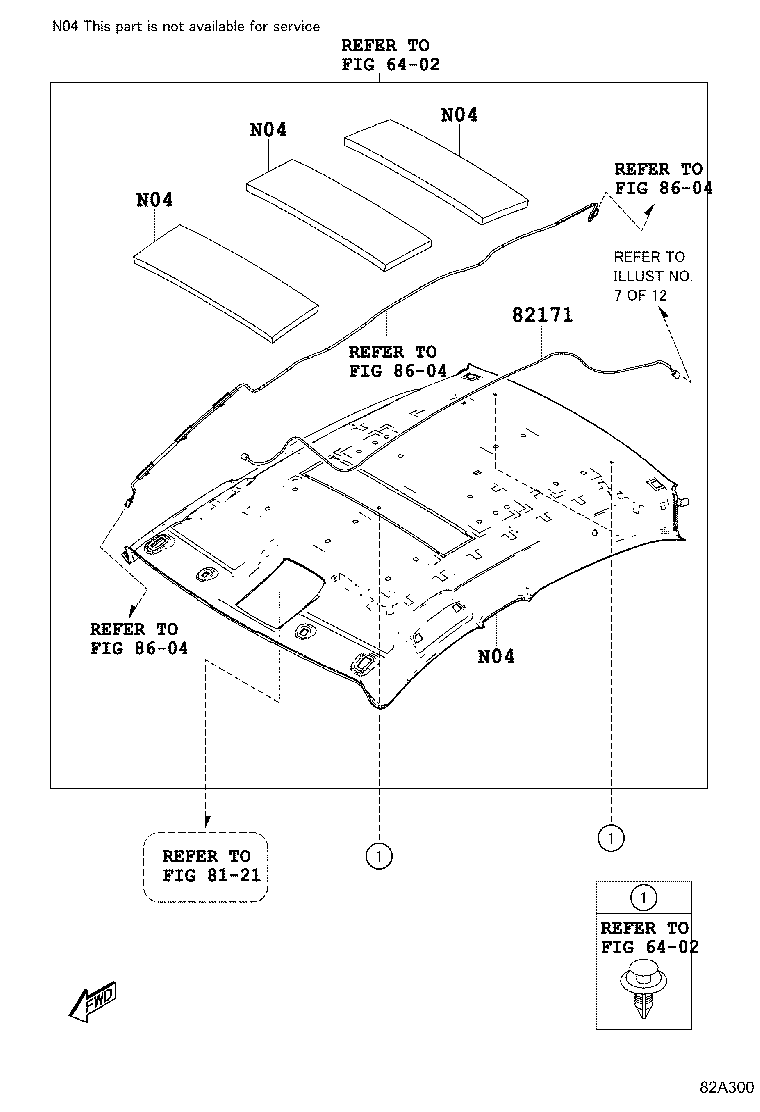

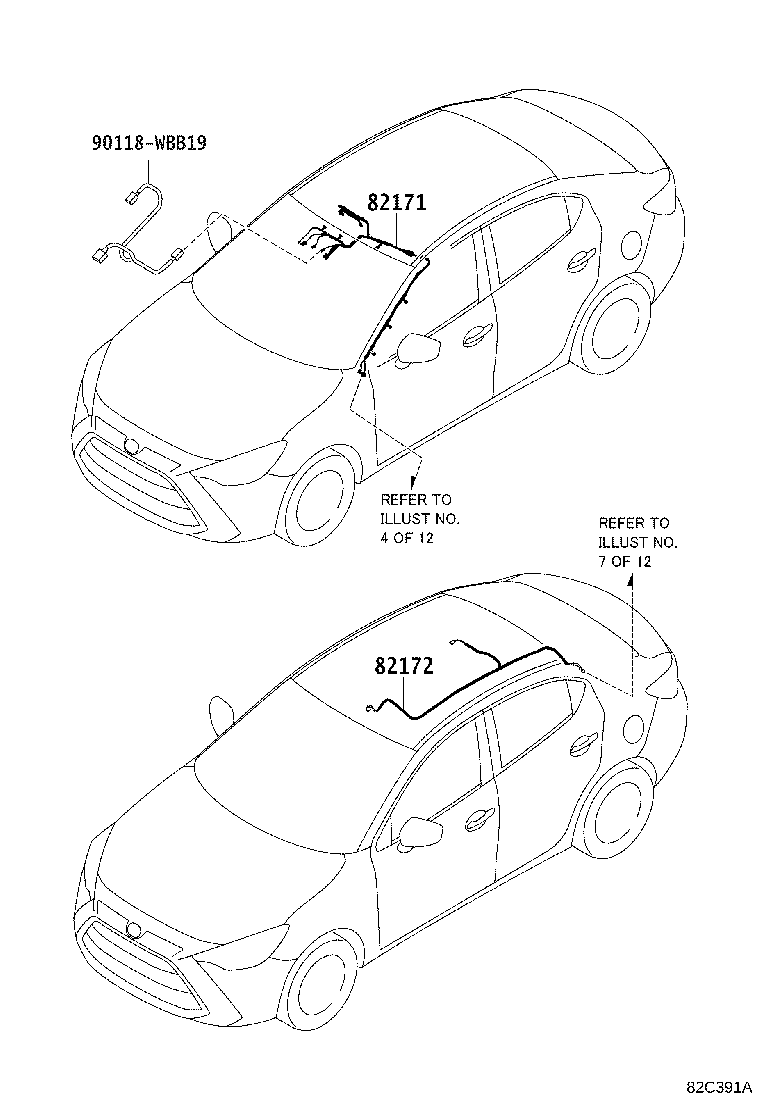

82171 Wire, Roof, NO.1

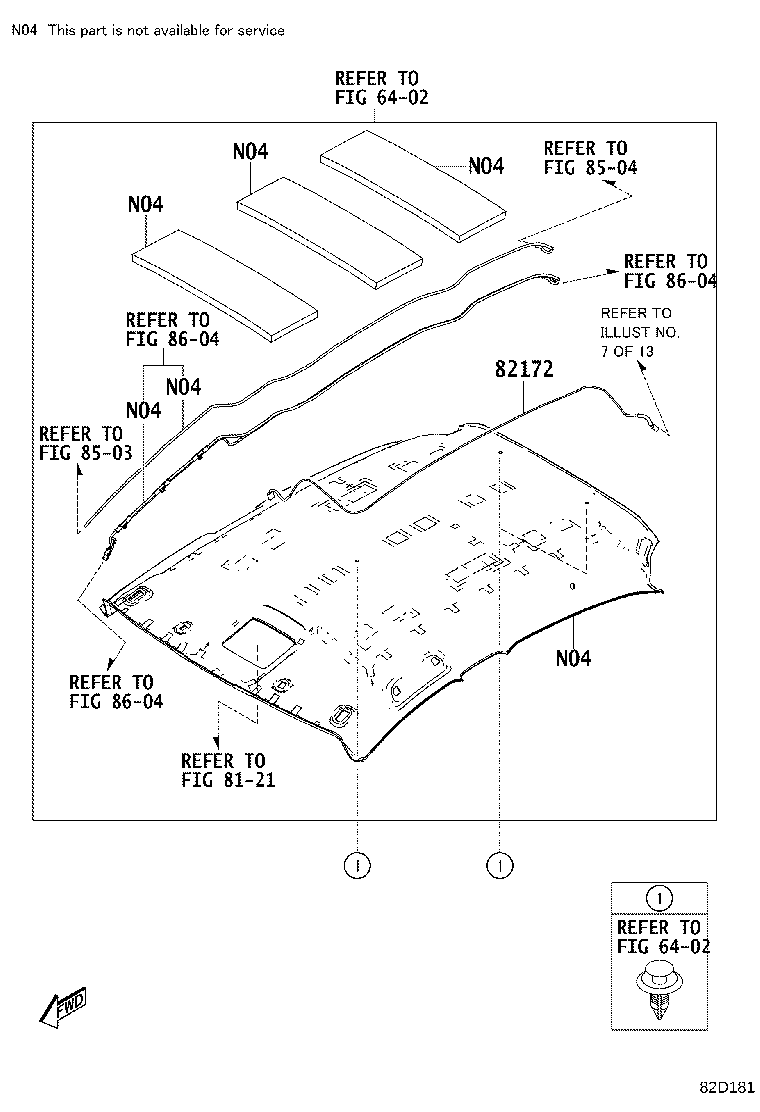

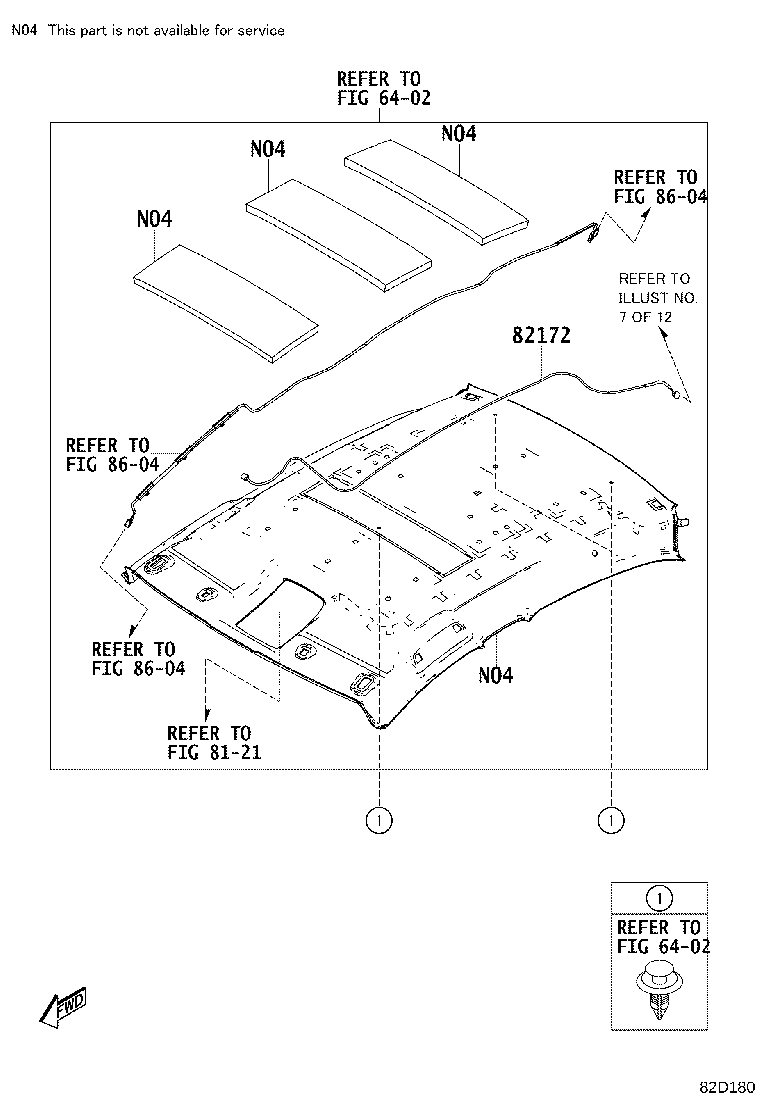

82172 Wire, Roof, NO.2

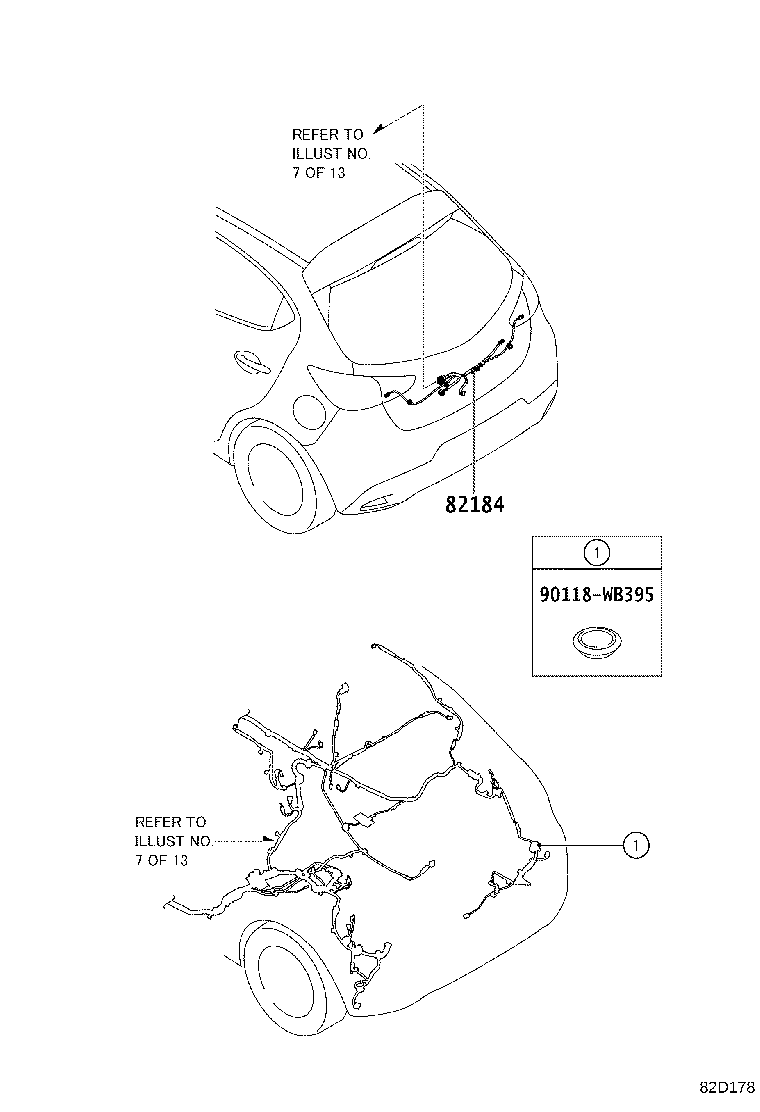

82184 Wire, Back Door, NO.1
82707 Support Sub-assy, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823T Cap, Alternator Terminal

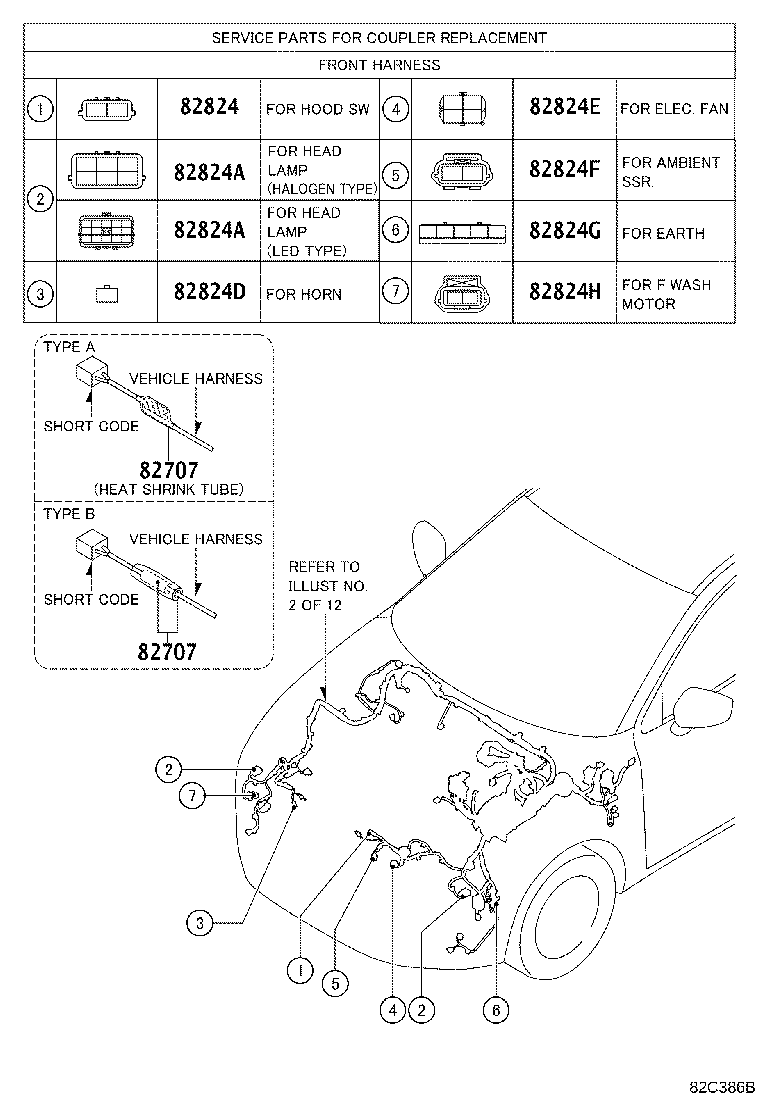

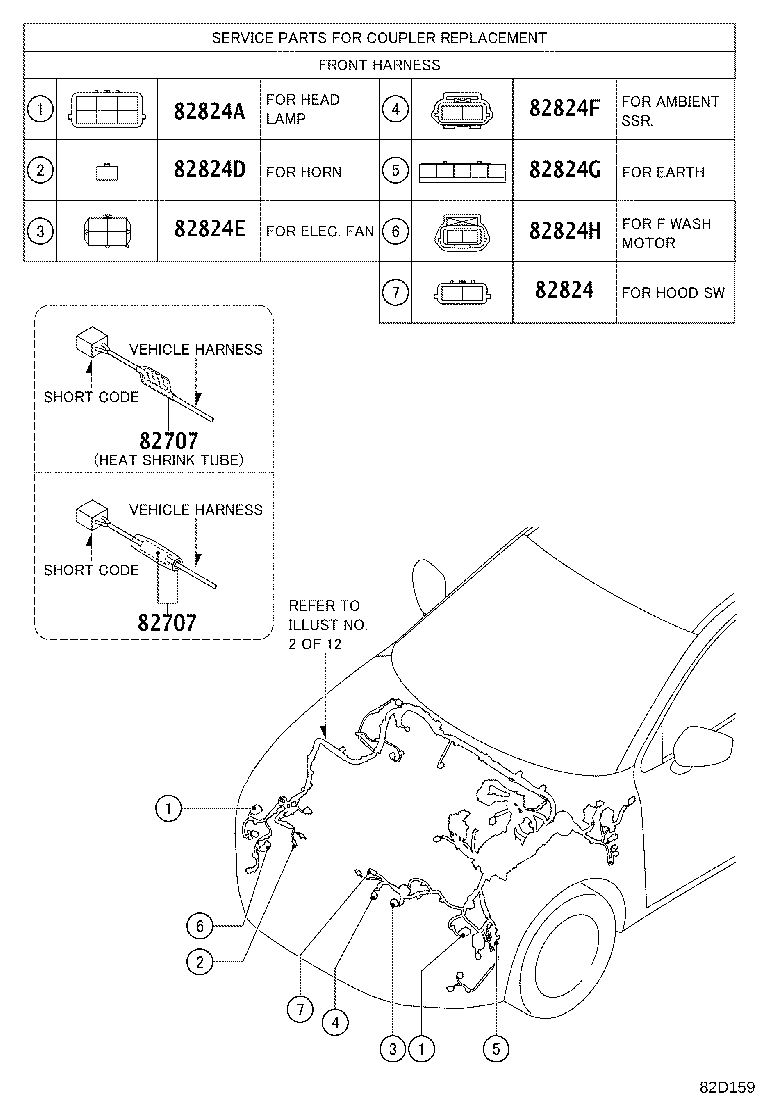

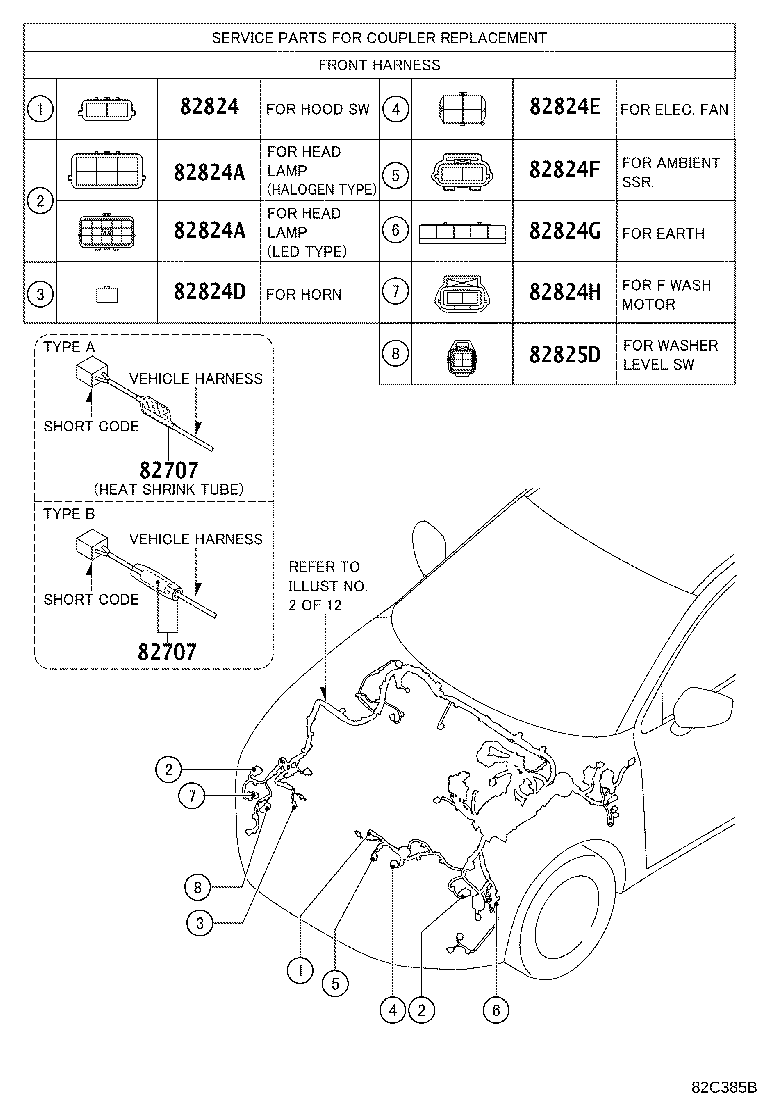

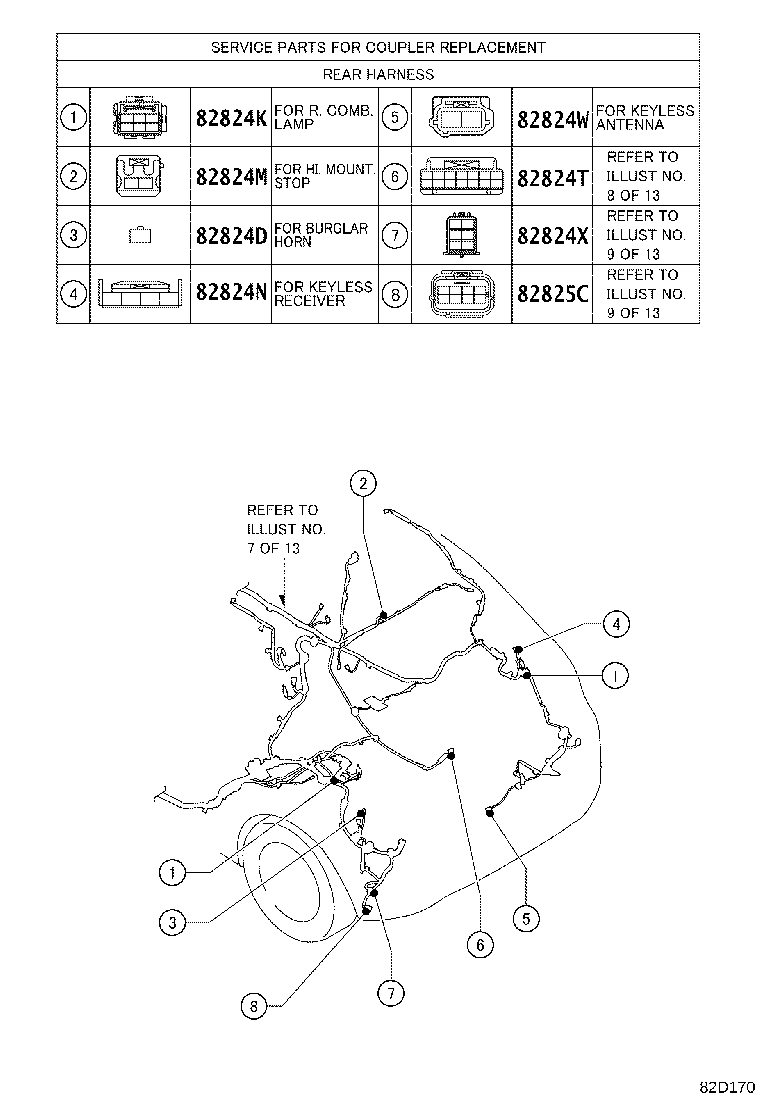

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825C Connector, Wiring Harness
82825D Connector, Wiring Harness
86842F Wire, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
