Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

60 part groups · 47 illustrations

Illustrations

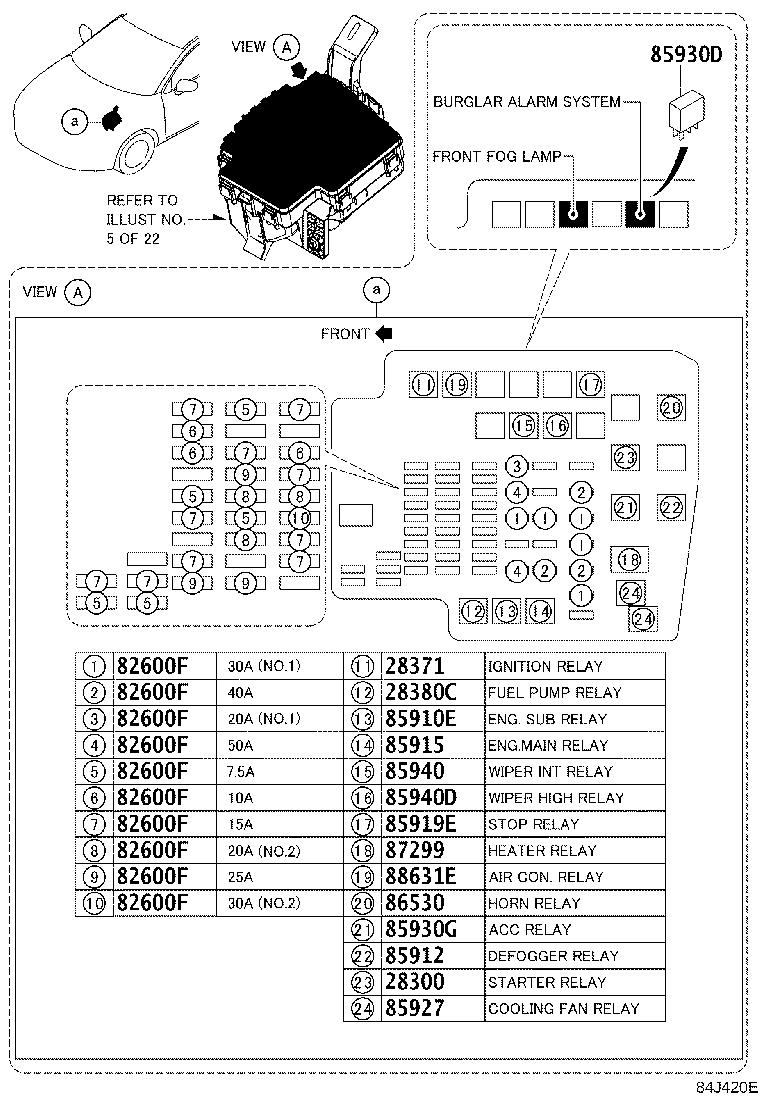

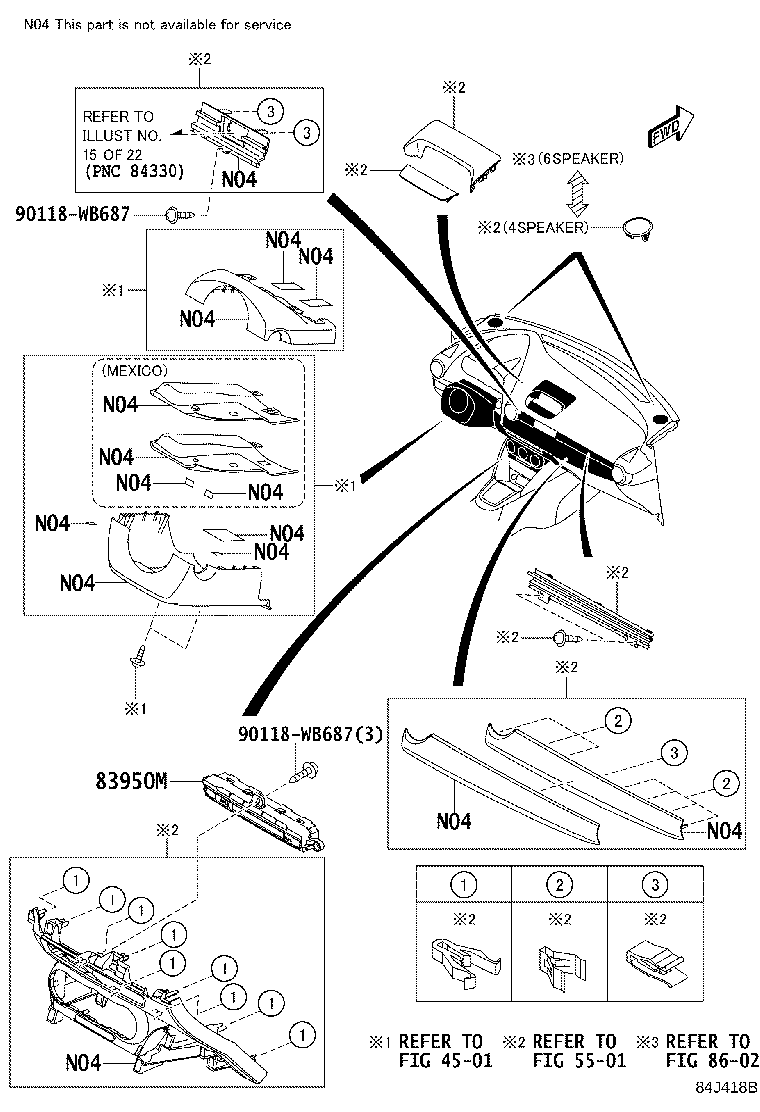

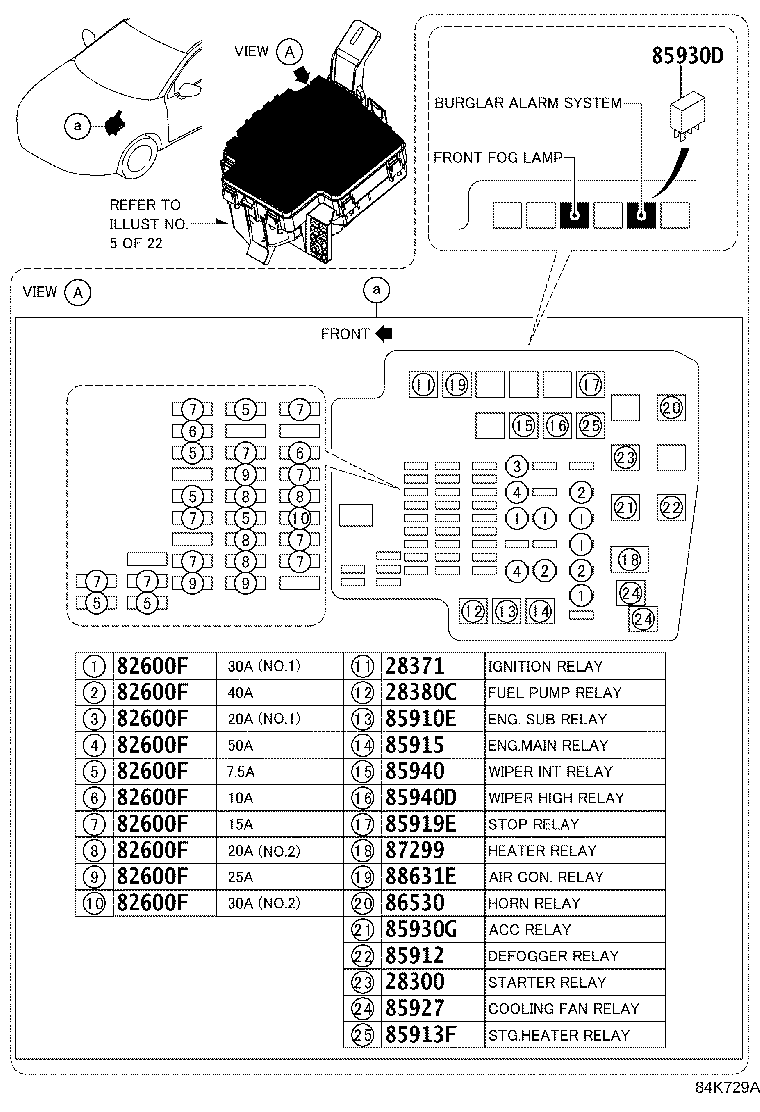

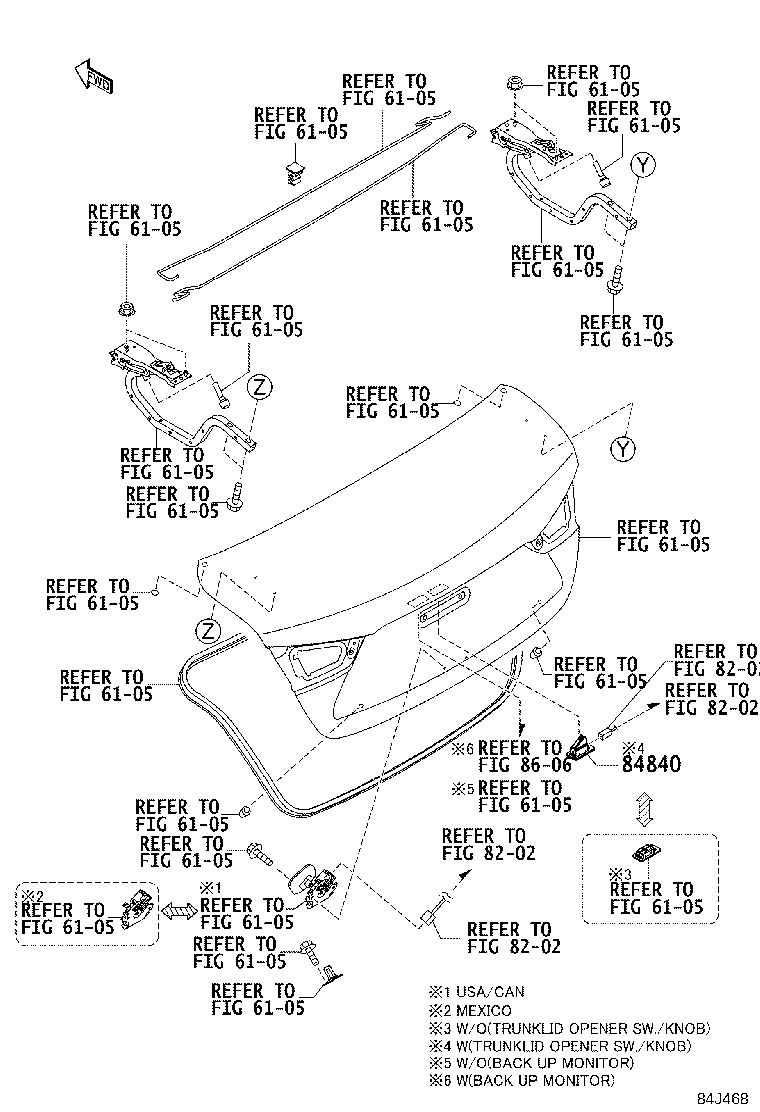

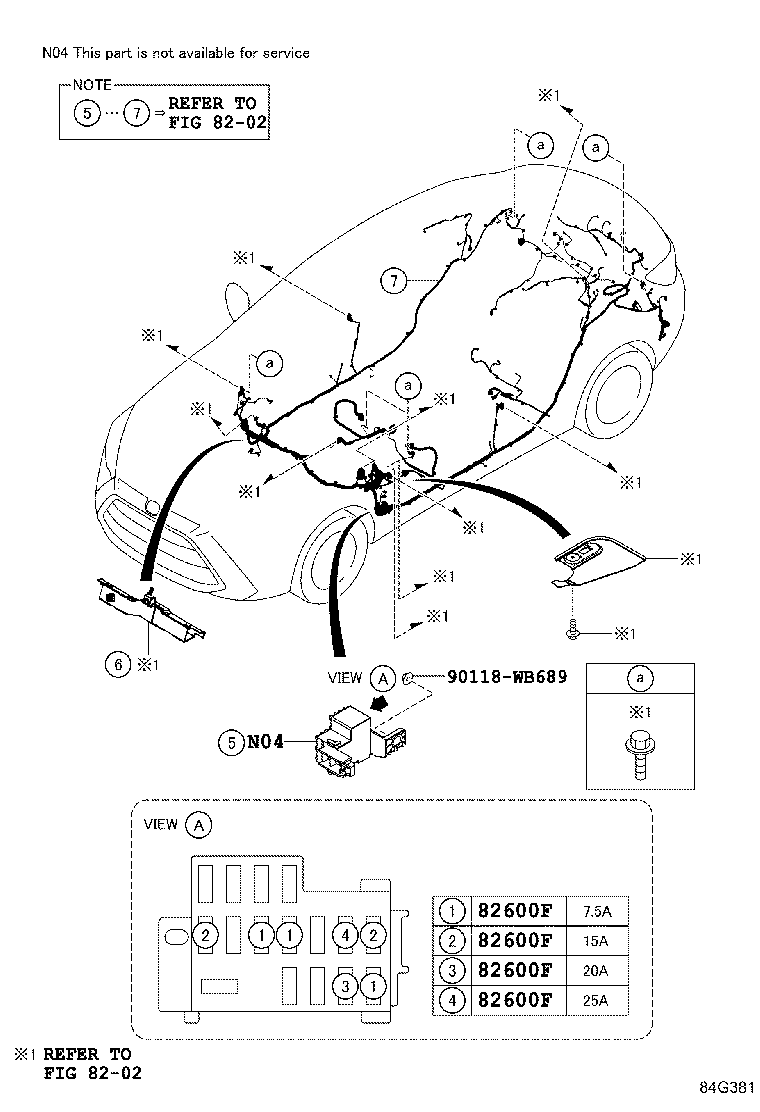

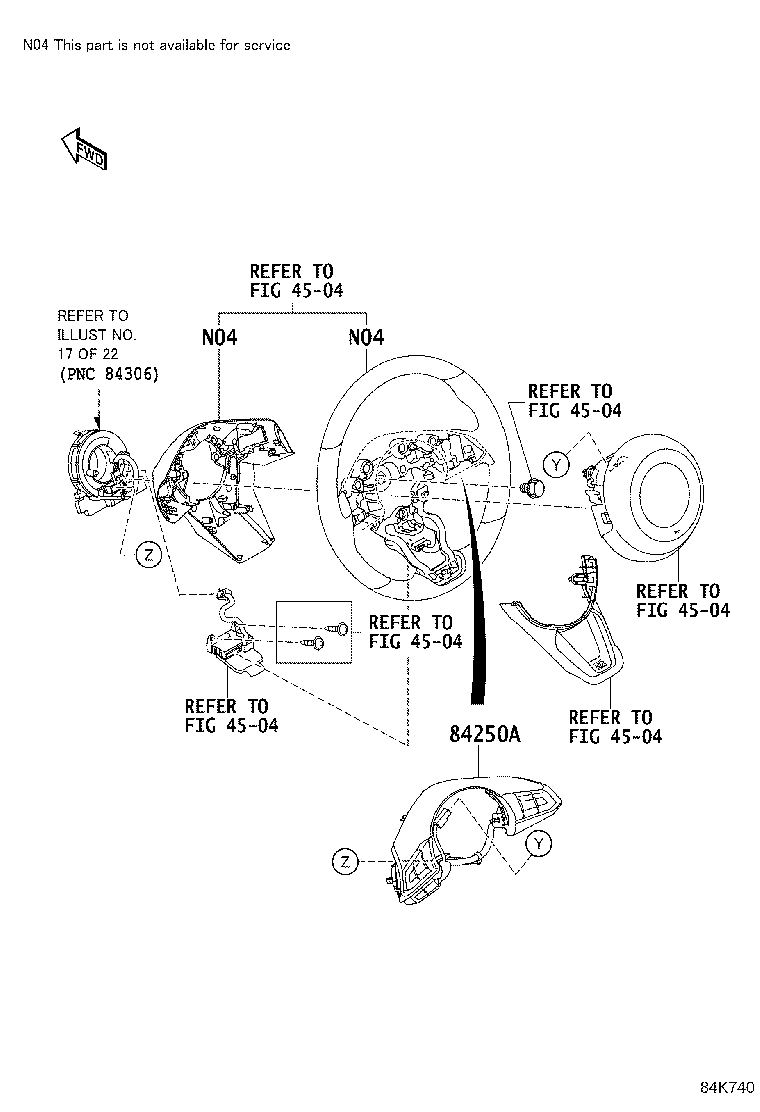

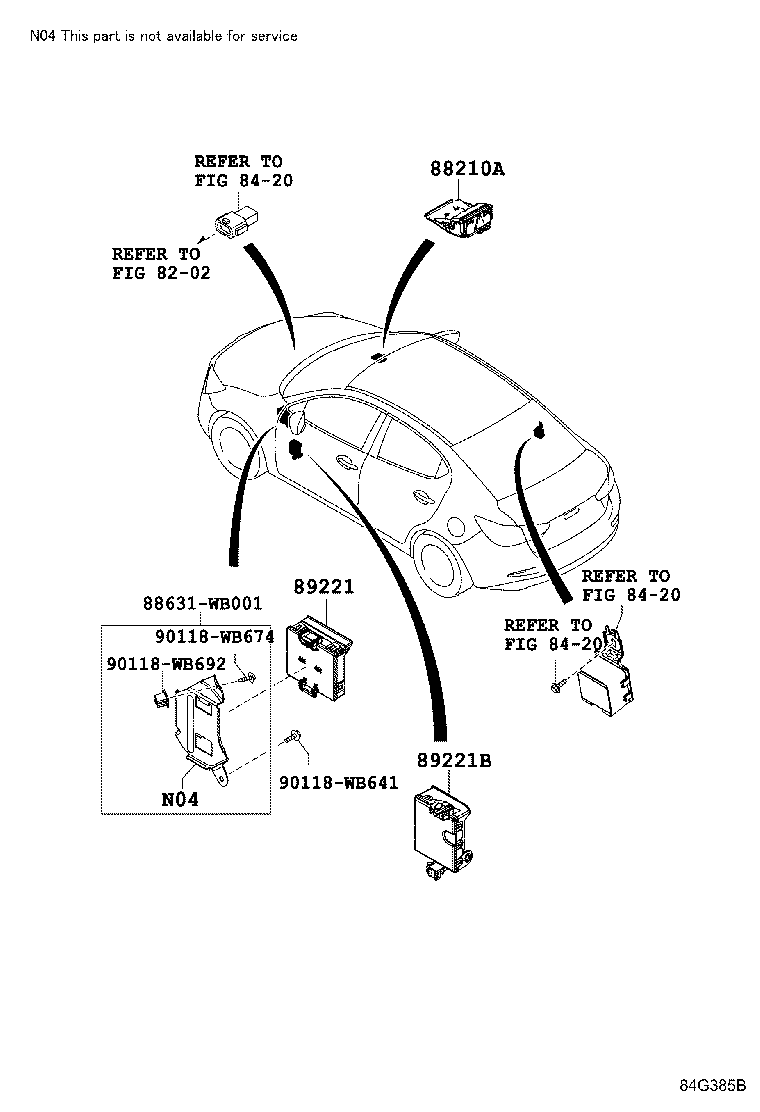

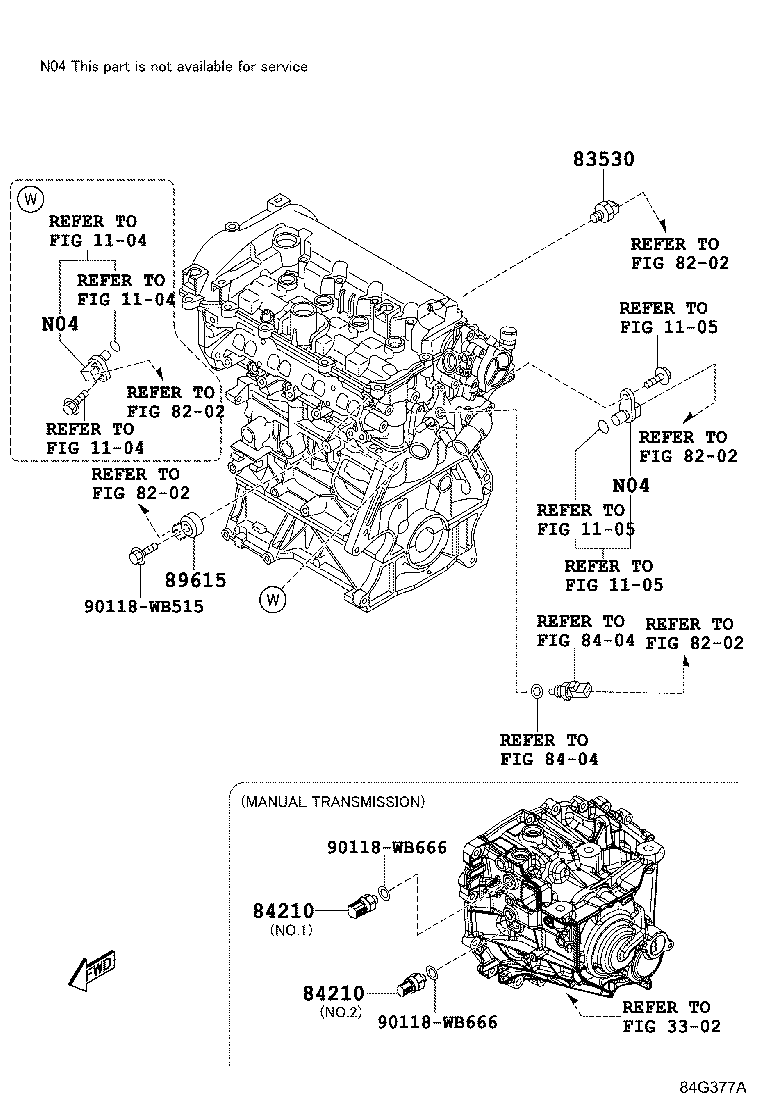

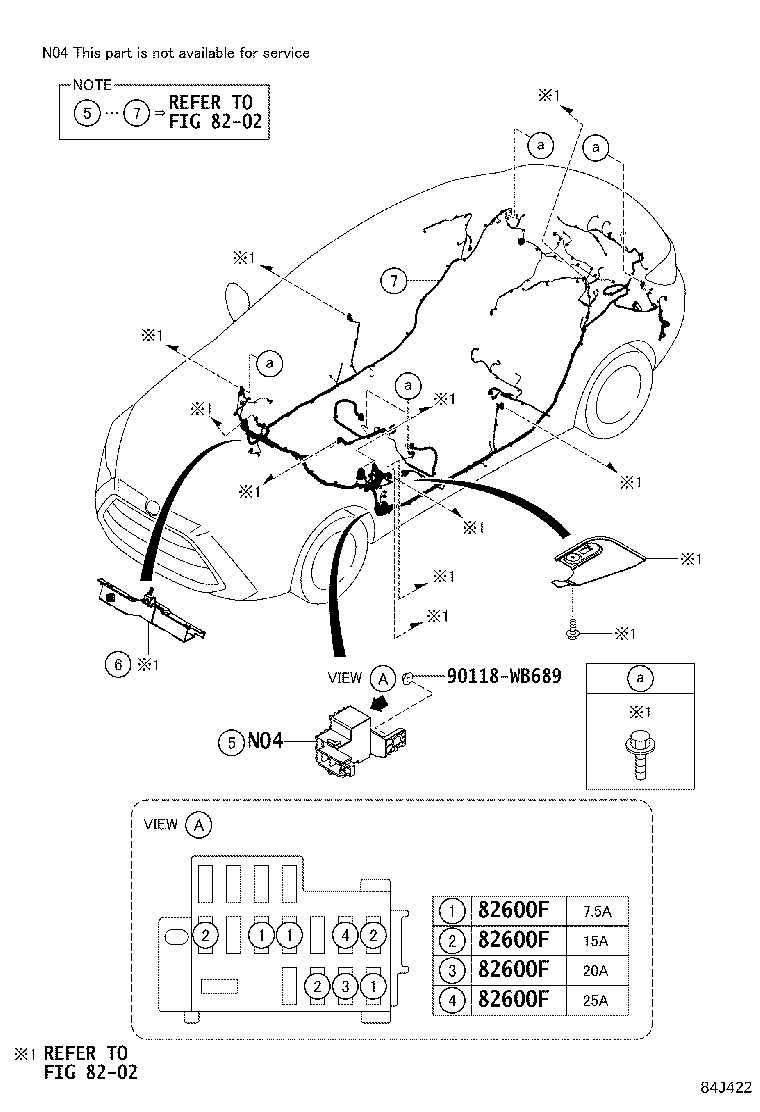

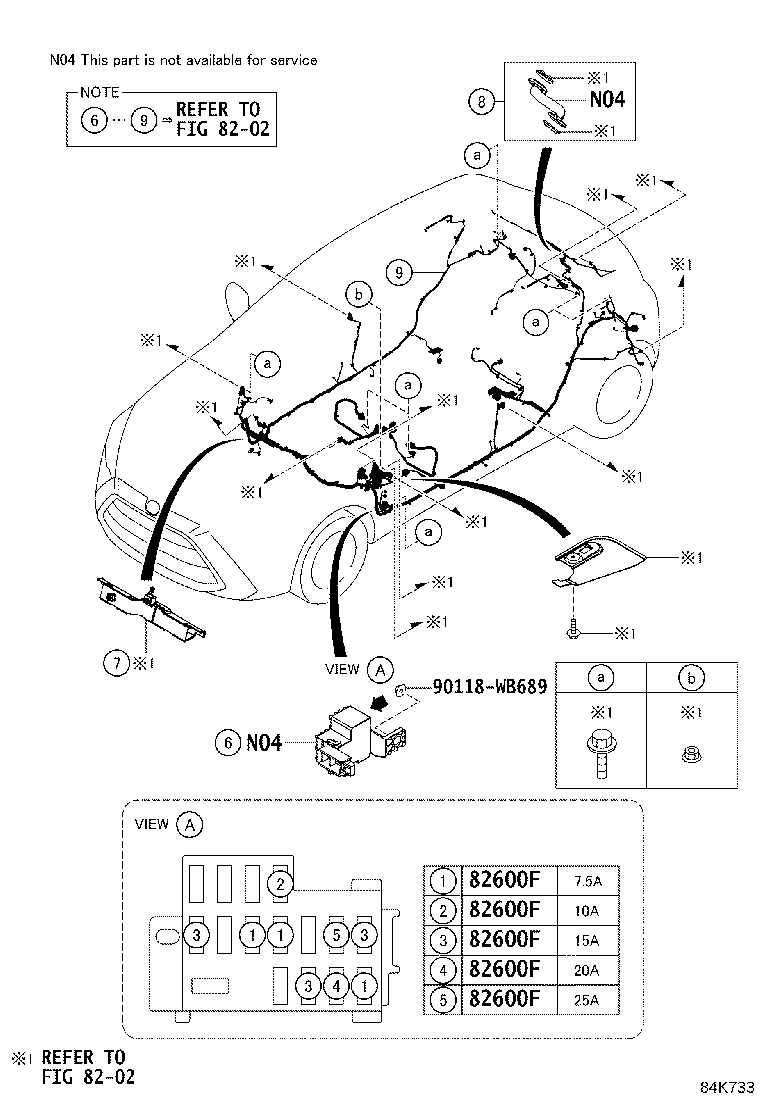

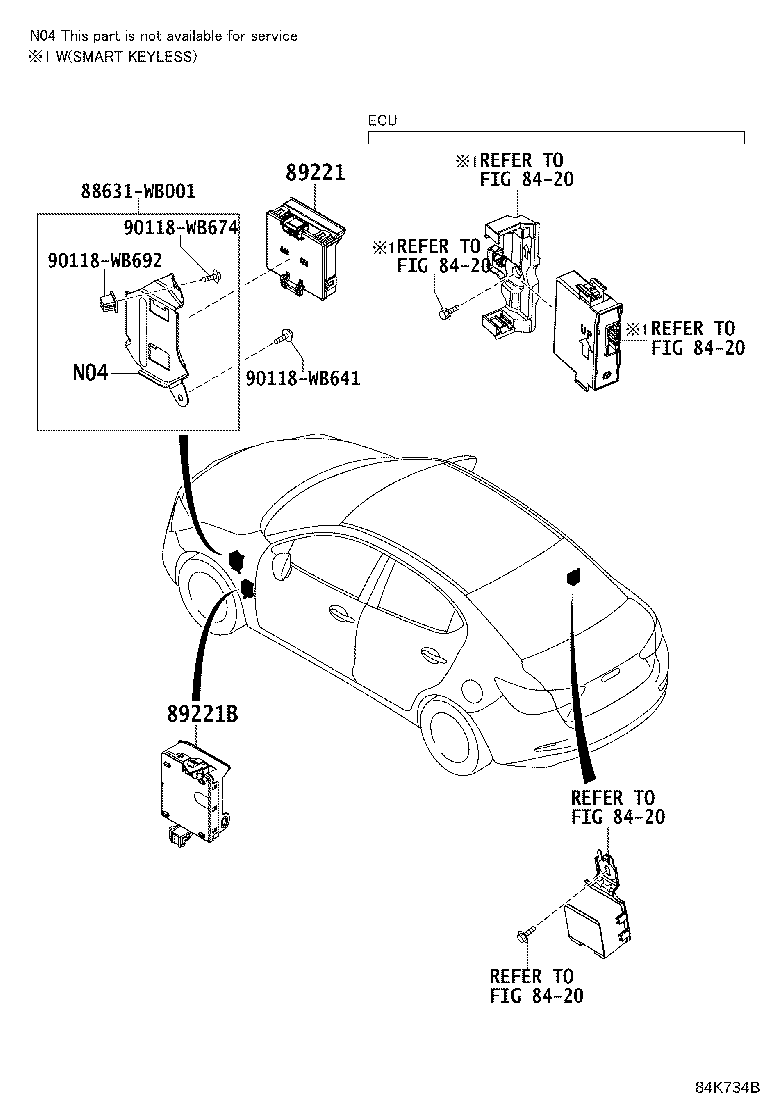

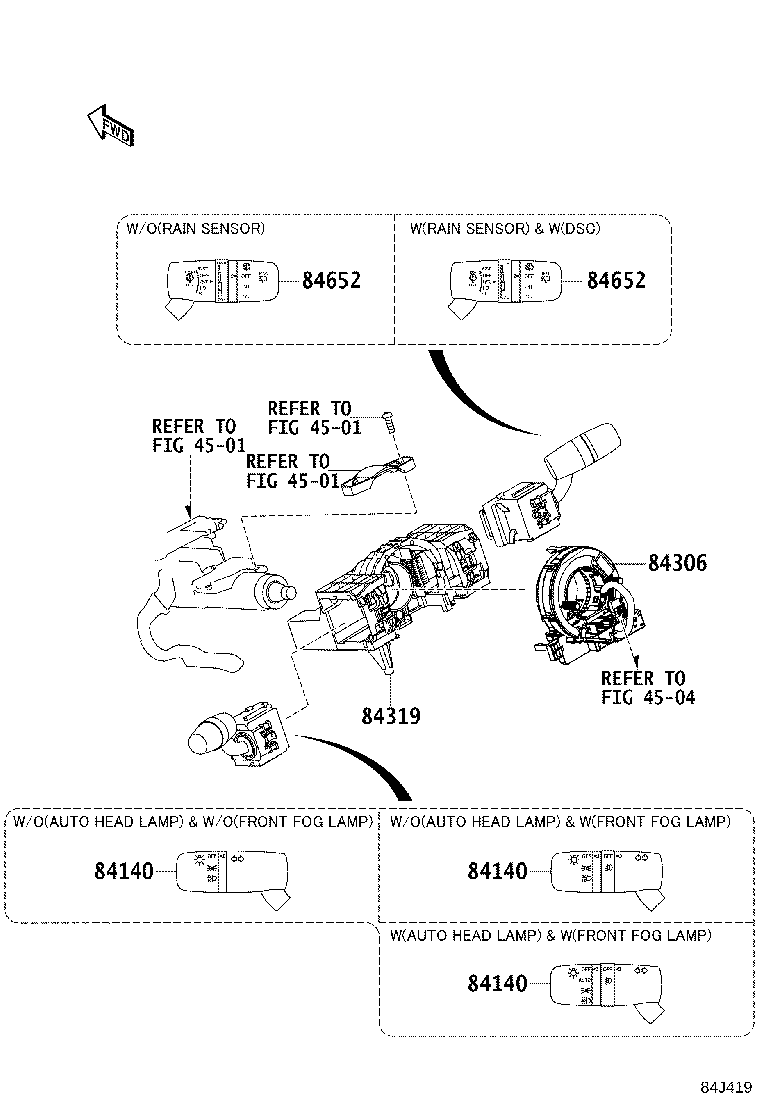

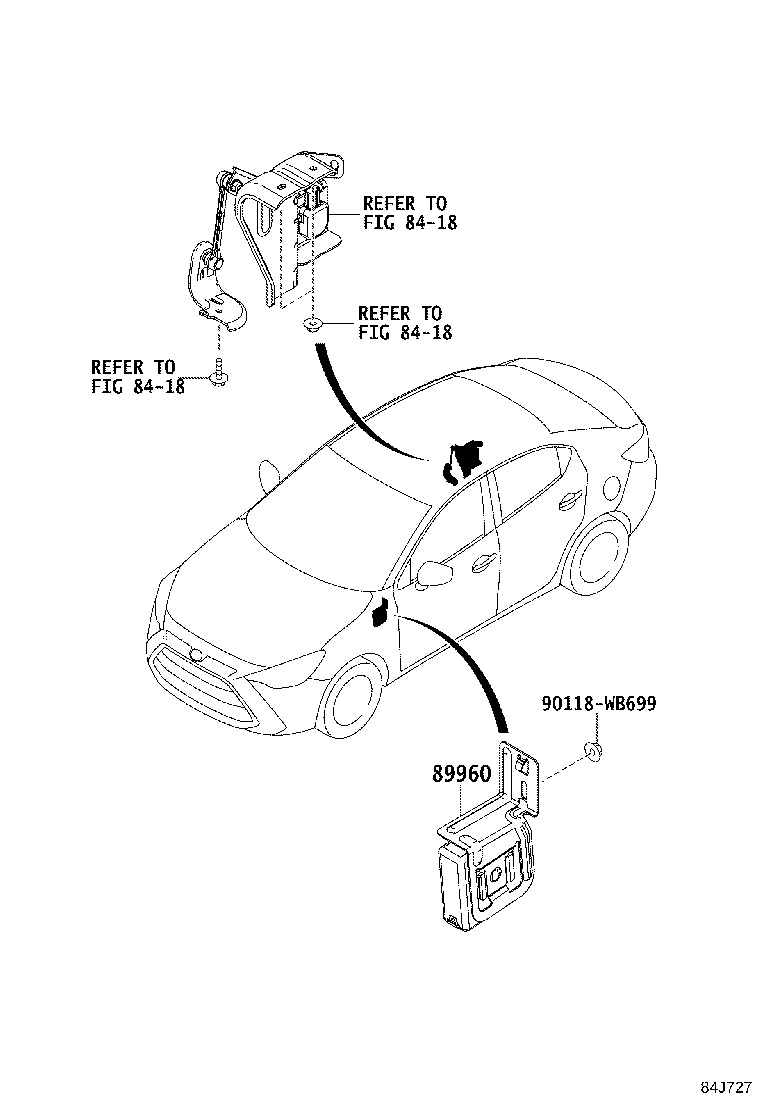

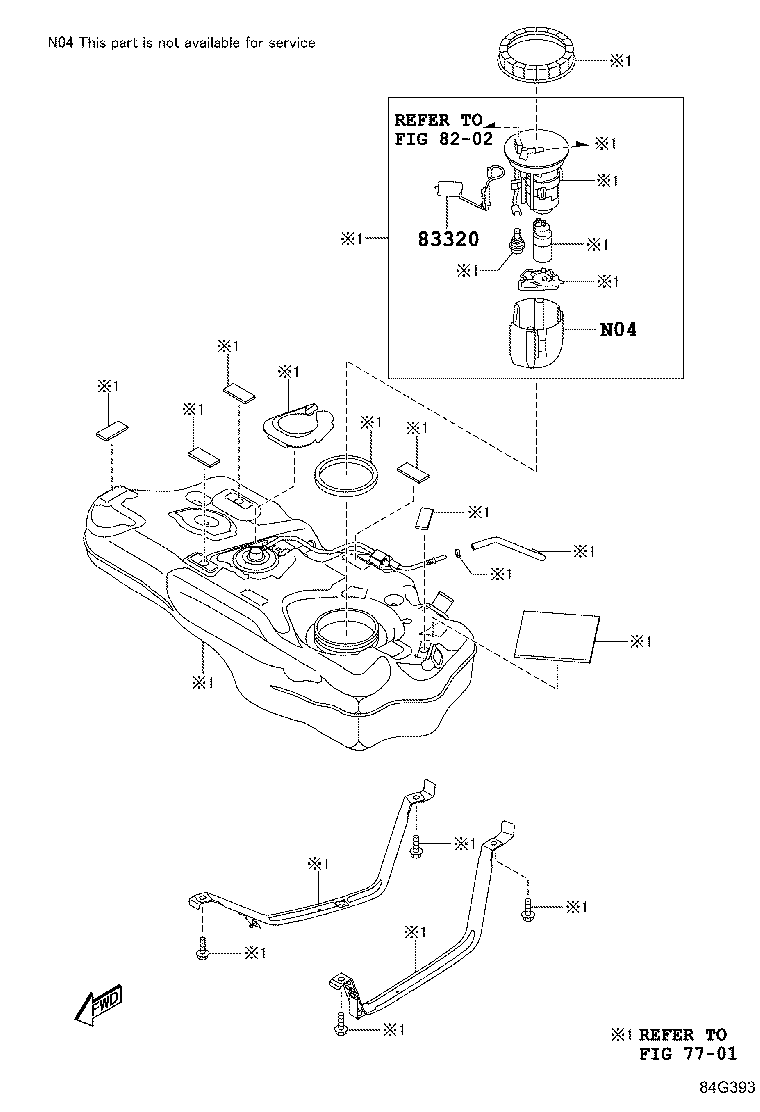

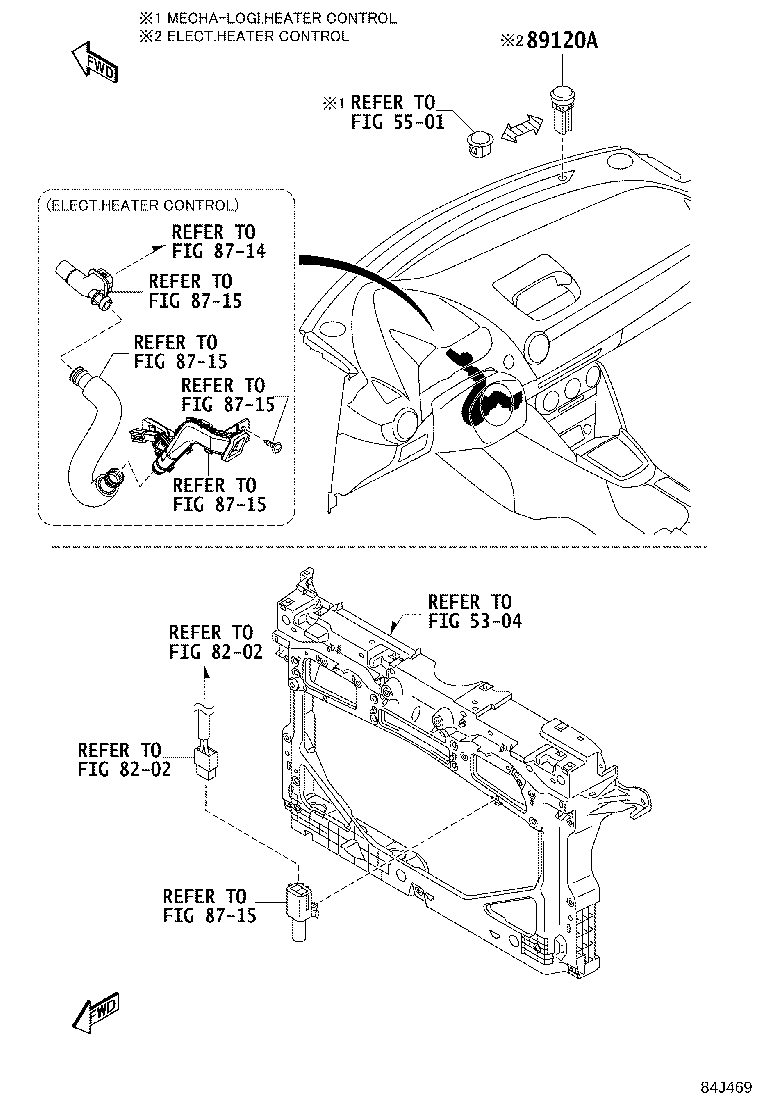

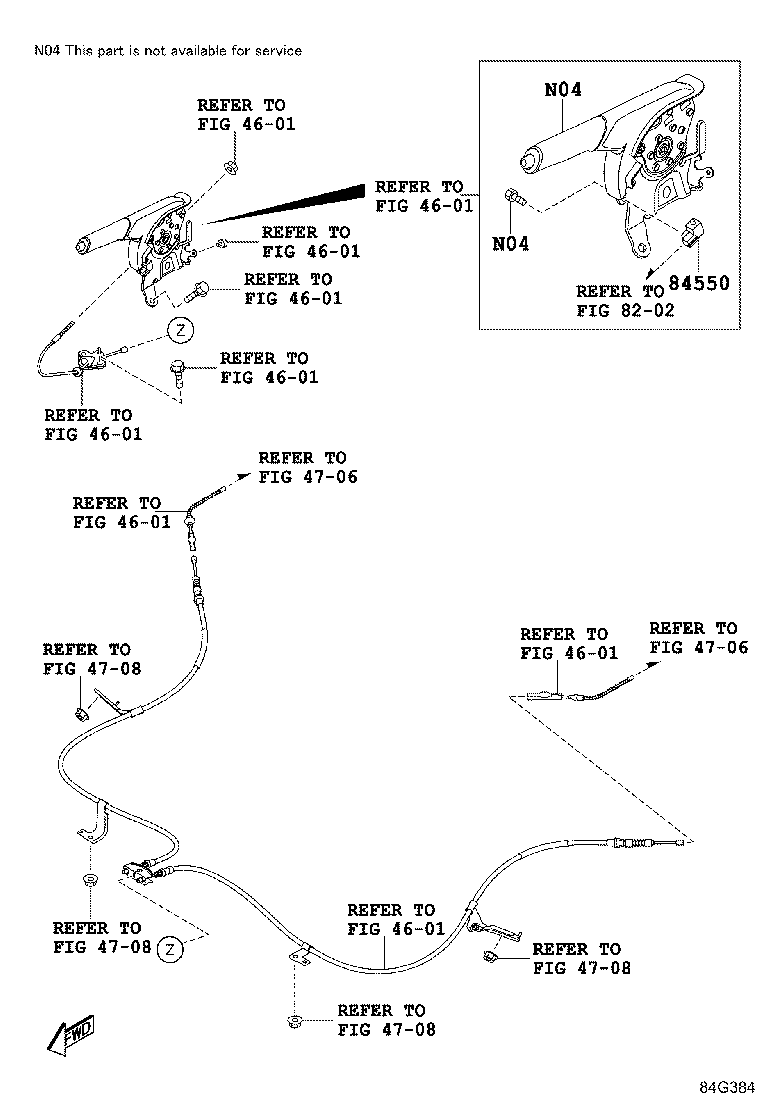

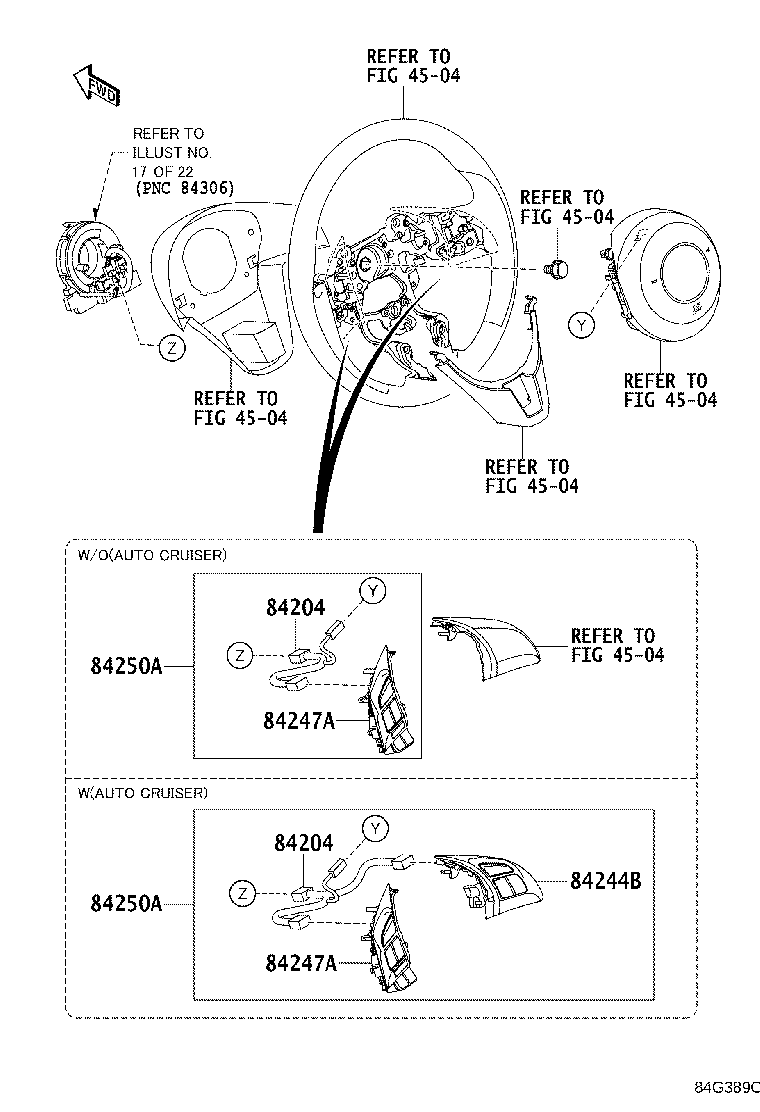

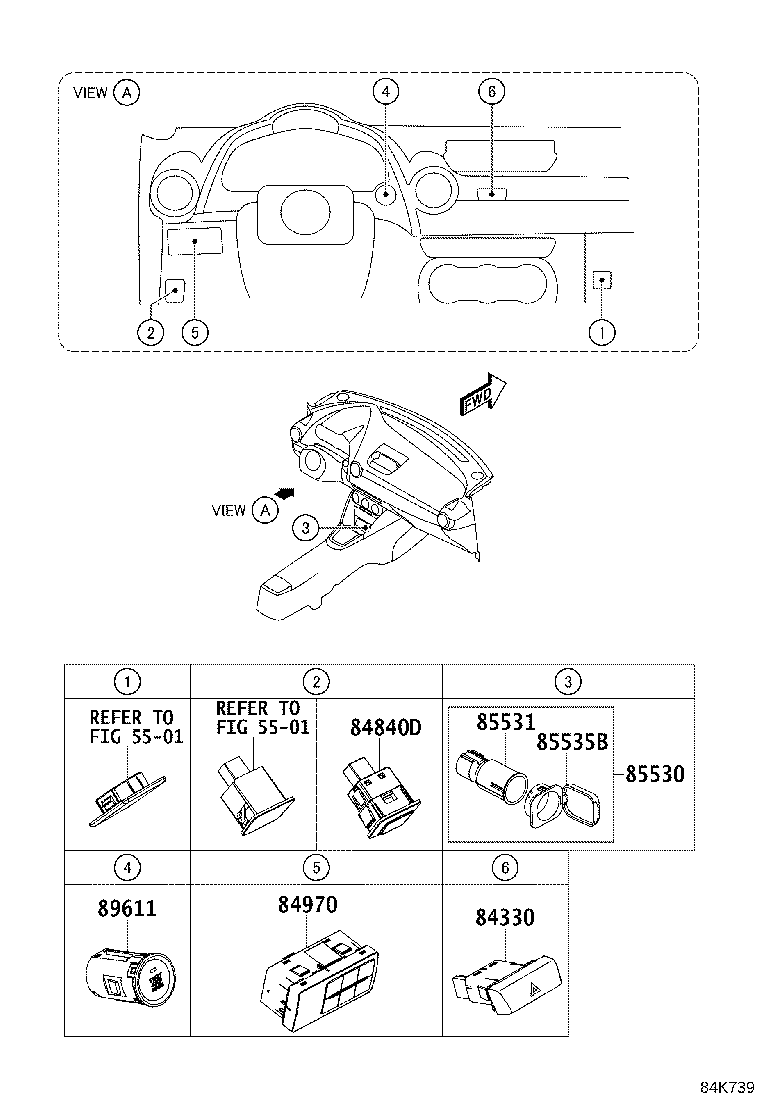

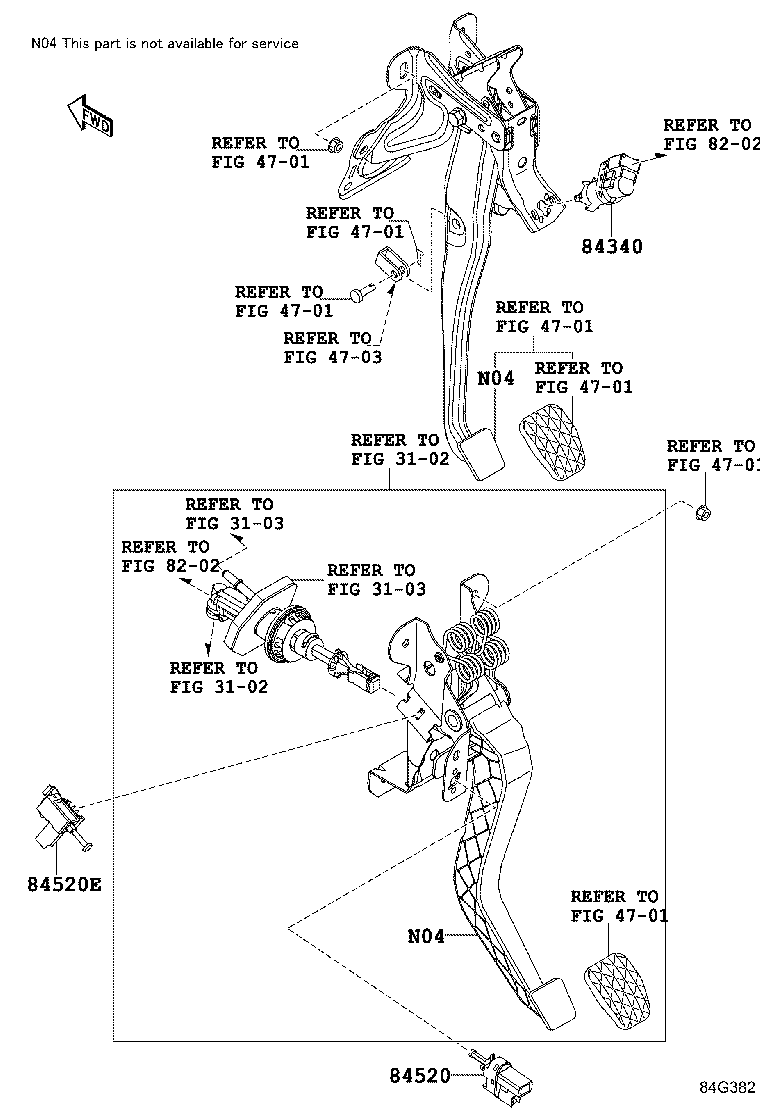

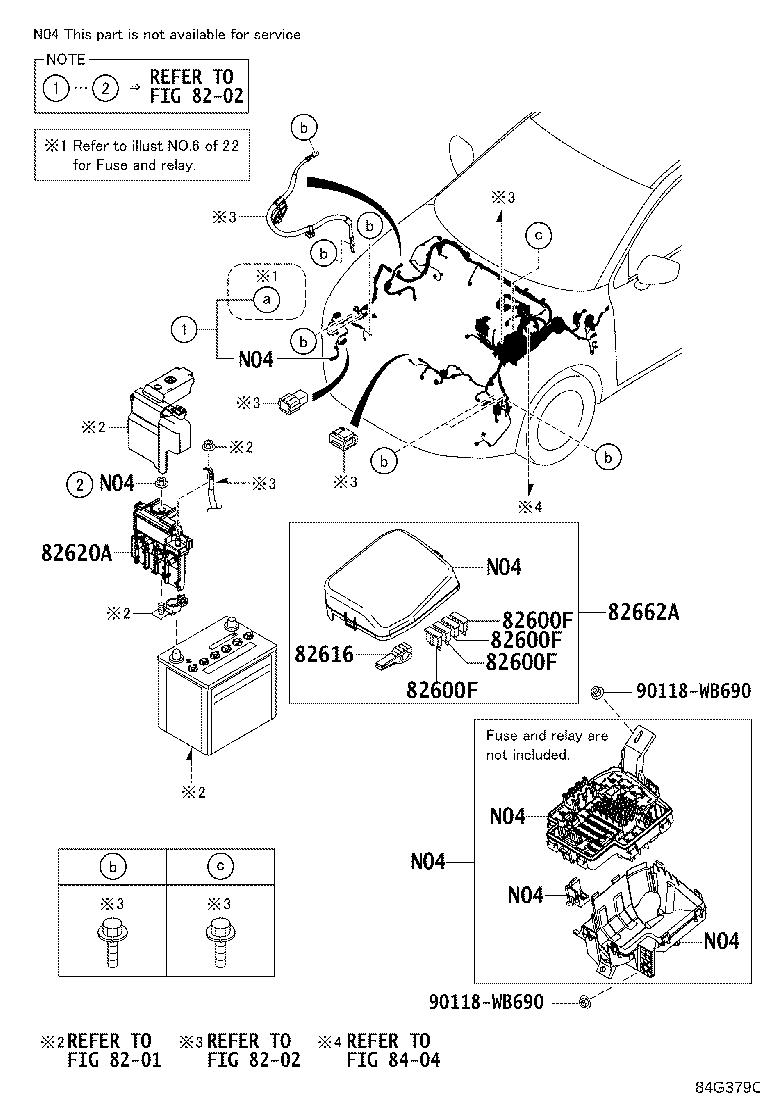

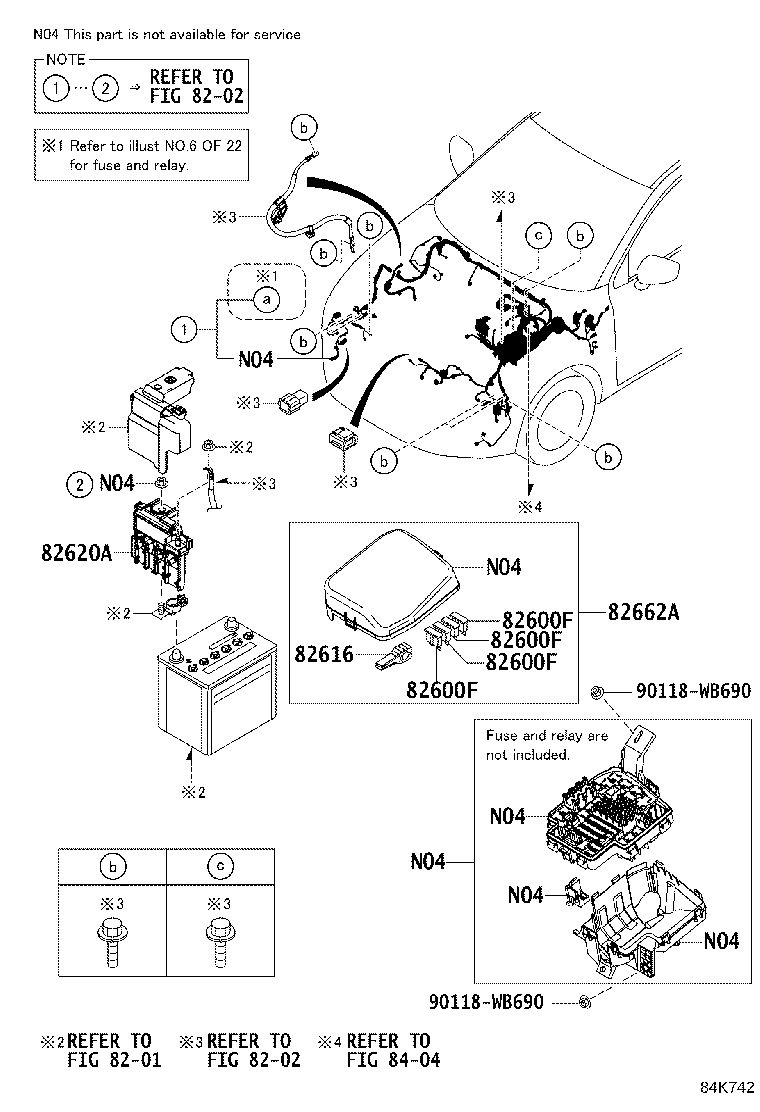

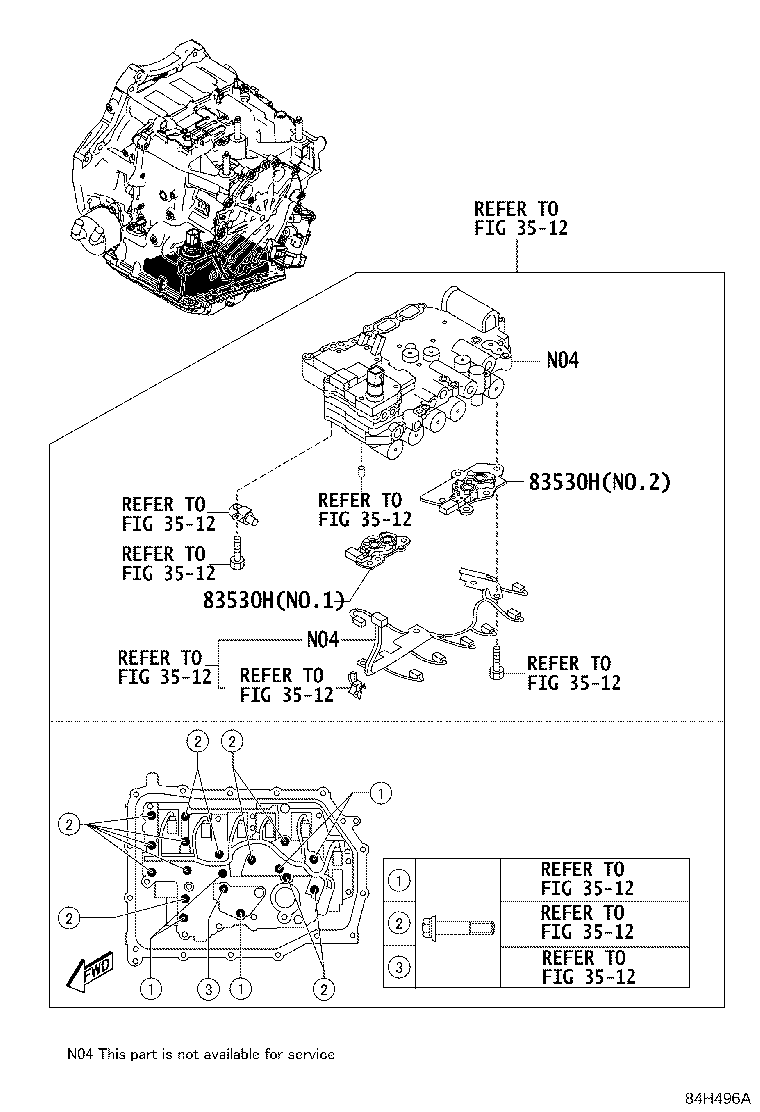

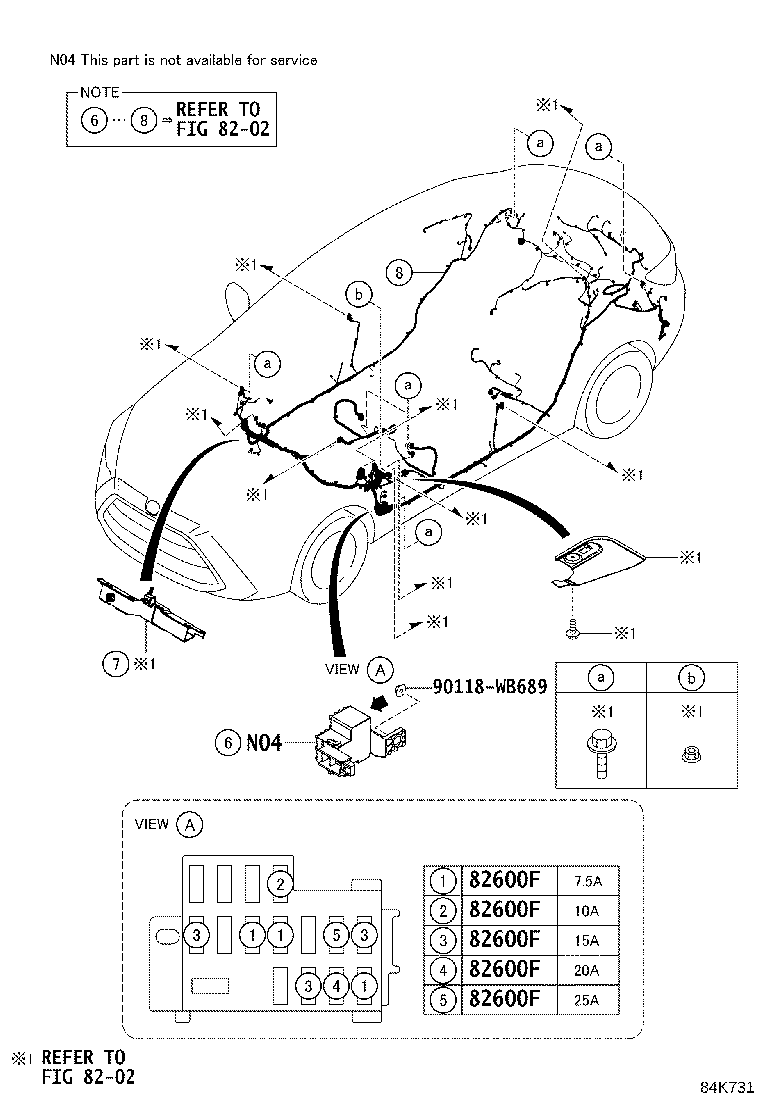

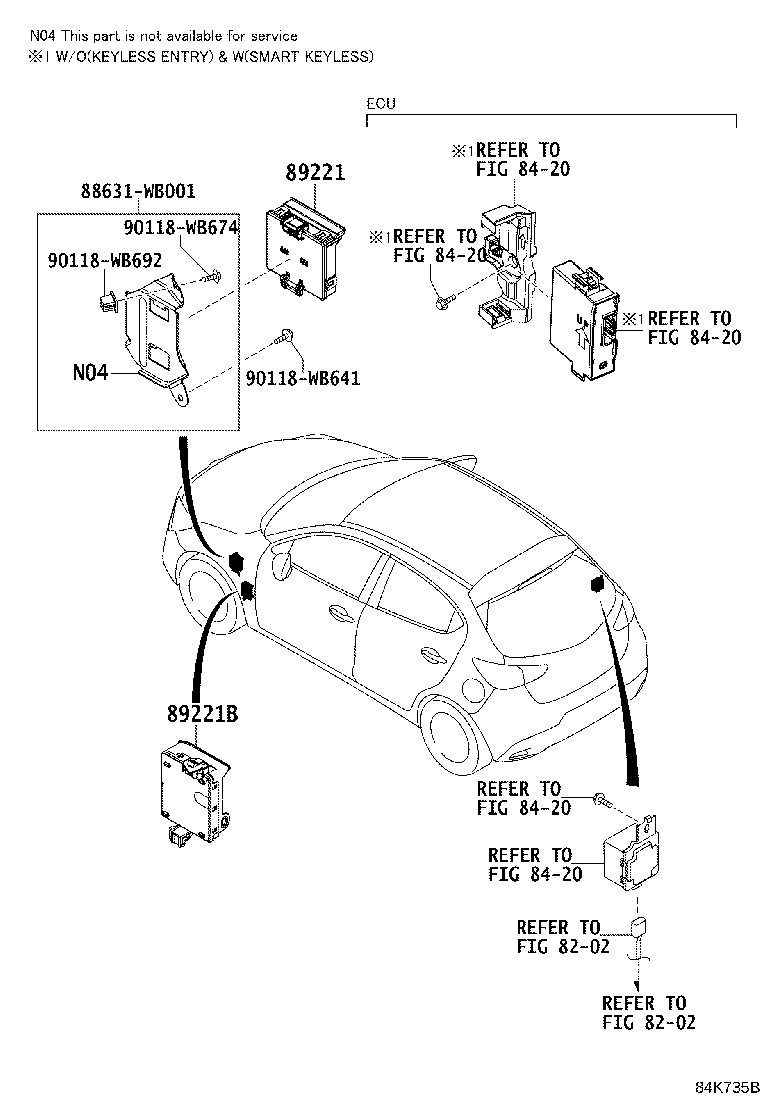

Figure 84G479 84G479 2015-06 → 2018-08 Figure 84G377A 84G377A 2015-06 → 2019-08 Figure 84K755 84K755 2019-08 → — Figure 84G378 84G378 2015-06 → — Figure 84H496A 84H496A 2015-06 → — Figure 84G379C 84G379C 2015-06 → 2019-08 Figure 84K742 84K742 2019-08 → — Figure 84K751 84K751 2019-08 → — Figure 84K727 84K727 2019-08 → — Figure 84G380E 84G380E 2015-06 → 2018-08 Figure 84J420E 84J420E 2018-08 → 2019-08 Figure 84K728A 84K728A 2019-08 → — Figure 84K729A 84K729A 2019-08 → — Figure 84K730A 84K730A 2019-08 → — Figure 84G381 84G381 2015-06 → 2018-08 Figure 84J422 84J422 2018-08 → 2019-08 Figure 84K731 84K731 2019-08 → — Figure 84K732 84K732 2019-08 → — Figure 84K733 84K733 2019-08 → — Figure 84G382 84G382 2015-06 → — Figure 84G383 84G383 2015-06 → — Figure 84G384 84G384 2015-06 → — Figure 84G385C 84G385C 2015-06 → 2018-08 Figure 84J423C 84J423C 2018-08 → 2019-08 Figure 84K734B 84K734B 2019-08 → — Figure 84K735B 84K735B 2019-08 → — Figure 84J465 84J465 2018-08 → 2019-08 Figure 84K736 84K736 2019-08 → — Figure 84K737 84K737 2019-08 → — Figure 84J727 84J727 2018-08 → — Figure 84J469 84J469 2018-08 → — Figure 84G387C 84G387C 2015-06 → 2018-08 Figure 84J418B 84J418B 2018-08 → 2019-08 Figure 84K738 84K738 2019-08 → — Figure 84G388 84G388 2015-06 → 2019-08 Figure 84K739 84K739 2019-08 → — Figure 84G389C 84G389C 2015-06 → 2018-08 Figure 84J417B 84J417B 2018-08 → — Figure 84K740 84K740 2019-08 → — Figure 84G390 84G390 2015-06 → 2018-08 Figure 84J419 84J419 2018-08 → 2019-08 Figure 84K741 84K741 2019-08 → — Figure 84G391 84G391 2015-06 → — Figure 84G392 84G392 2015-06 → — Figure 84G393 84G393 2015-08 → — Figure 84J468 84J468 2018-08 → — Figure 84K724 84K724 2019-08 → —

Part groups

PNCDescription

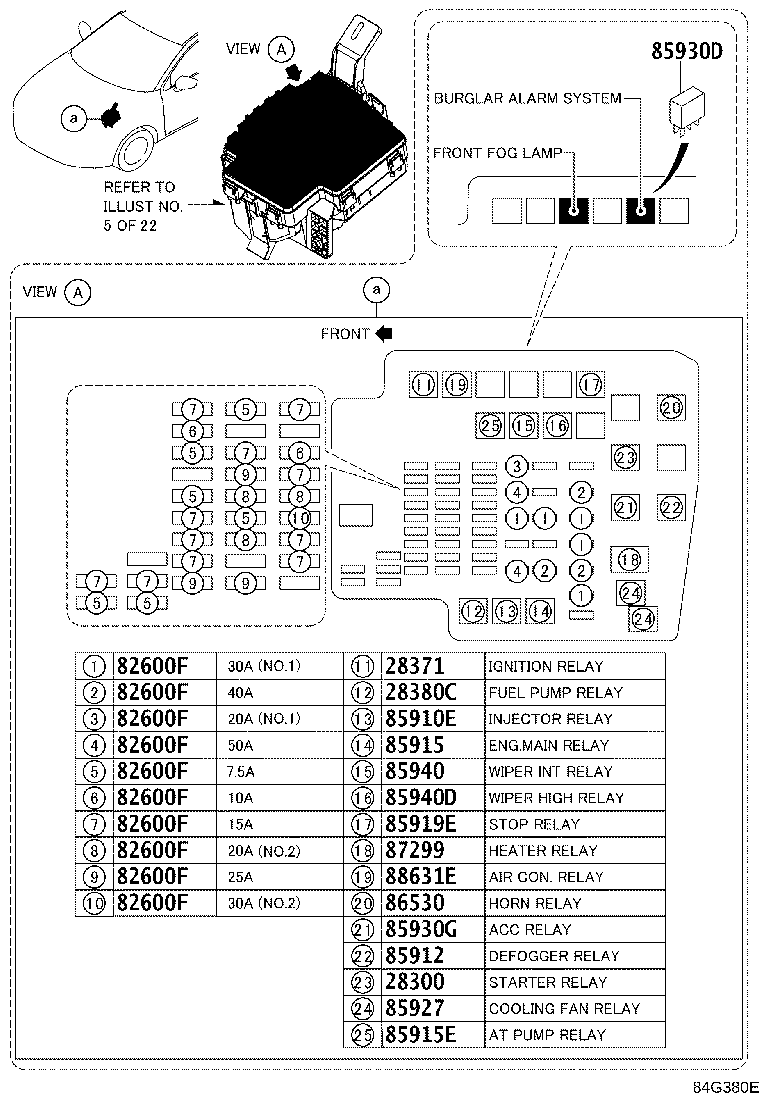

28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28380C Relay Assy, Fuel Pump
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82662A Cover, Relay Block, Upper, NO.1

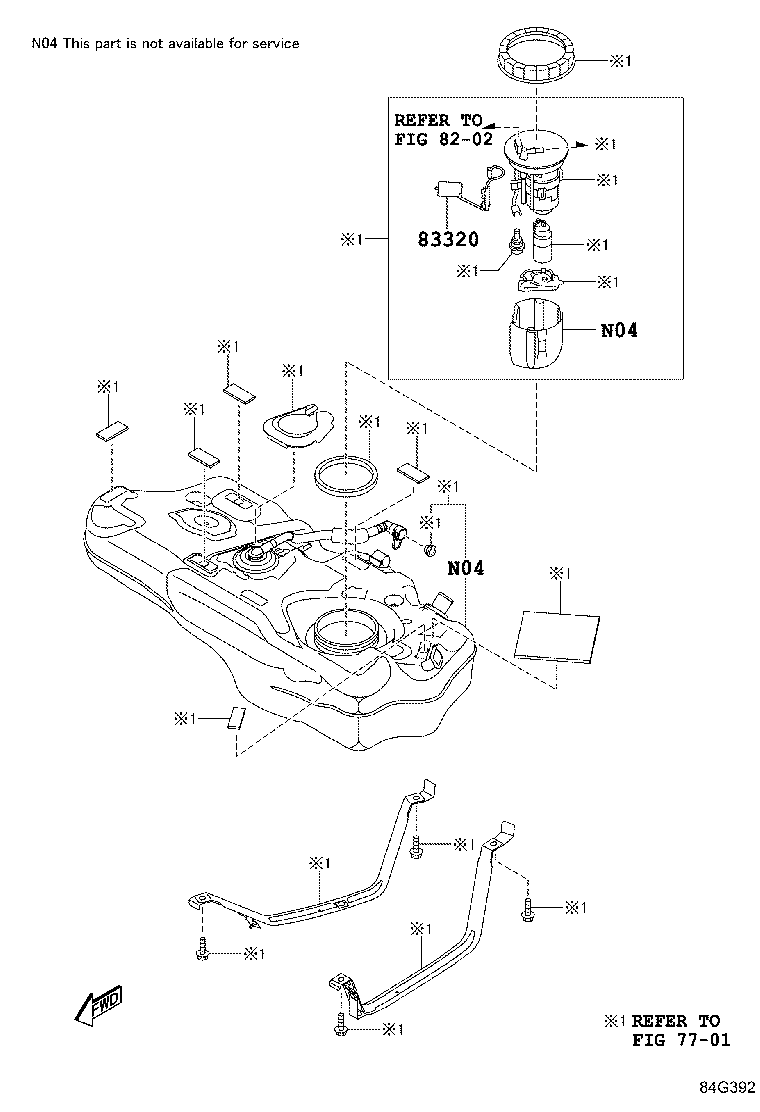

83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83530H Switch Assy, Oil Pressure
83950M Lamp Assy, Telltale
84040 Master Switch Assy,Multiplex Network

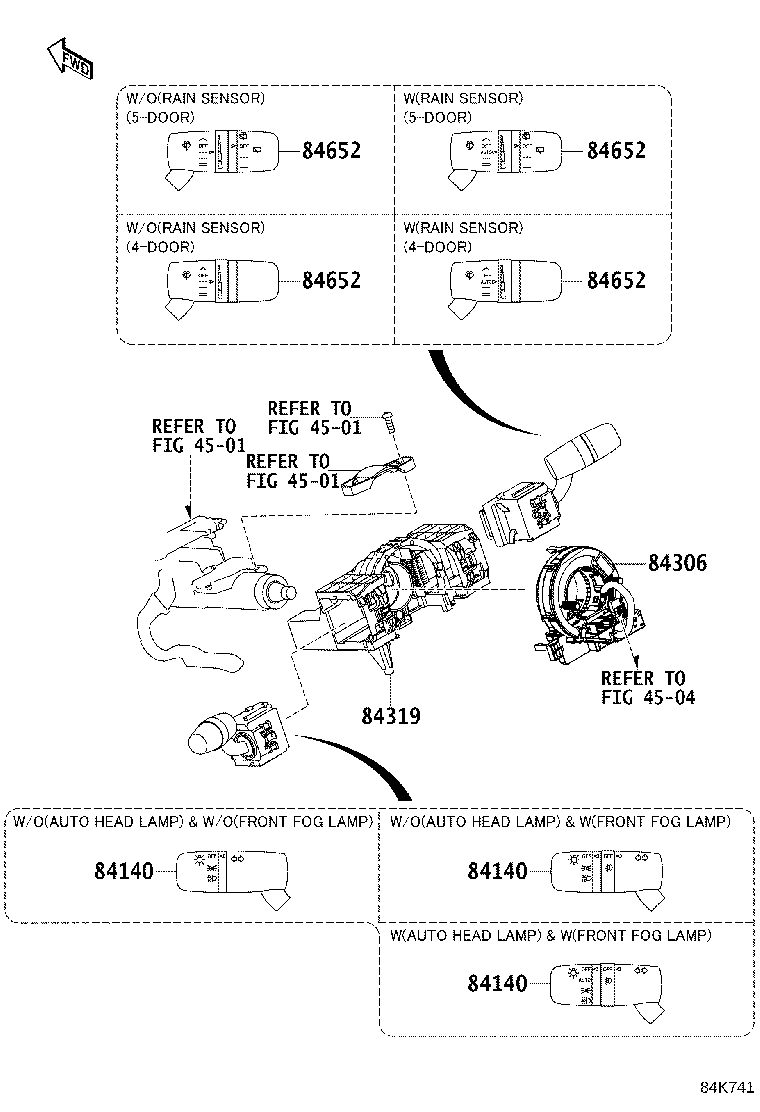

84140 Switch Assy, Headlamp Dimmer
84204 Cable Sub-assy, Steering Pad Switch
84210 Switch Assy, Back-up Lamp
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH

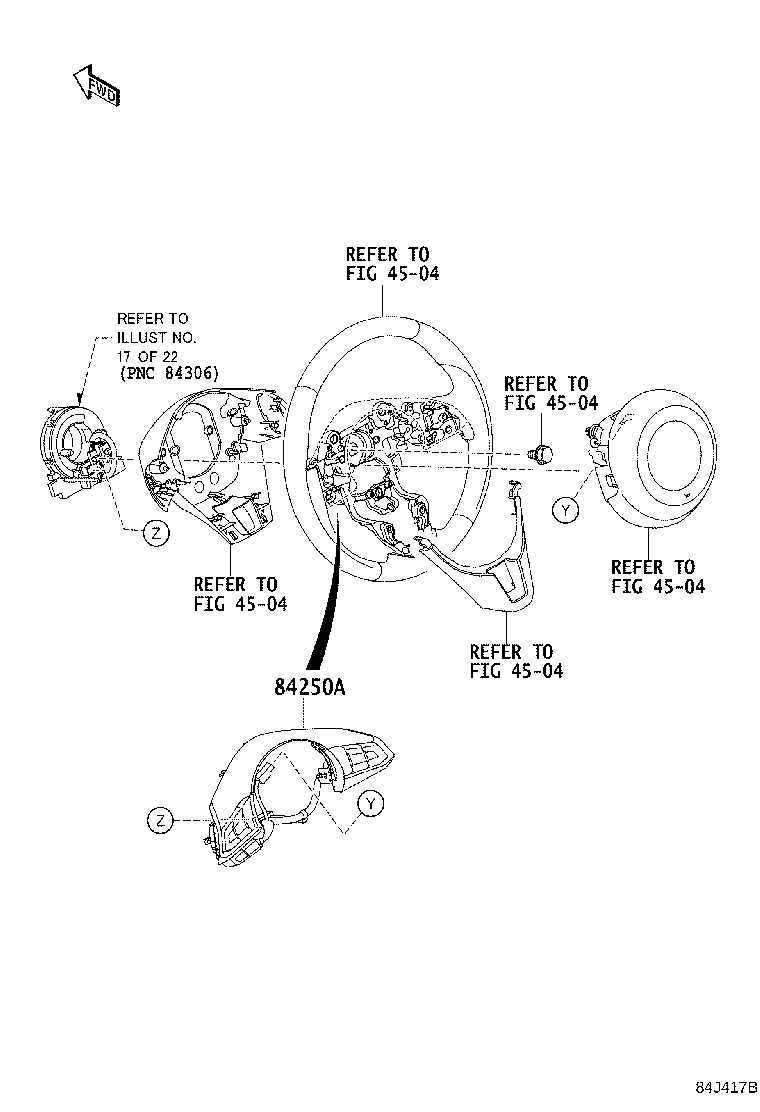

84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch

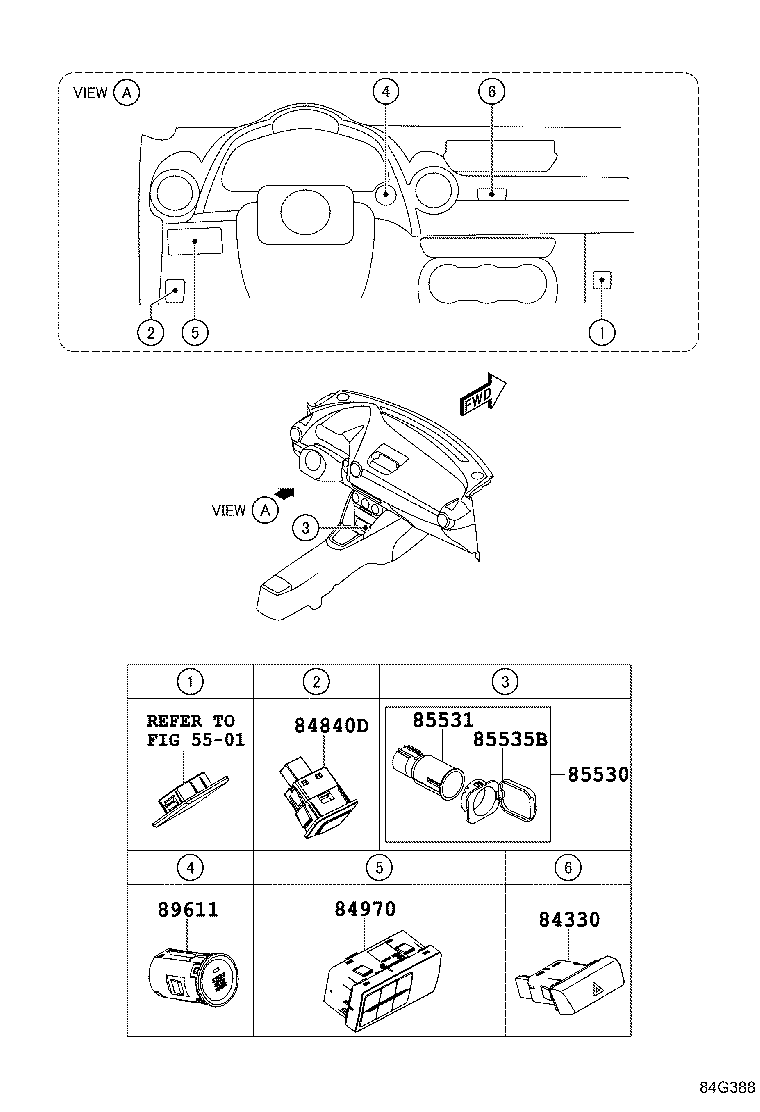

84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84550 Switch Assy, Parking Brake
84652 Knob, Windshield Wiper Switch (FOR WASHER)

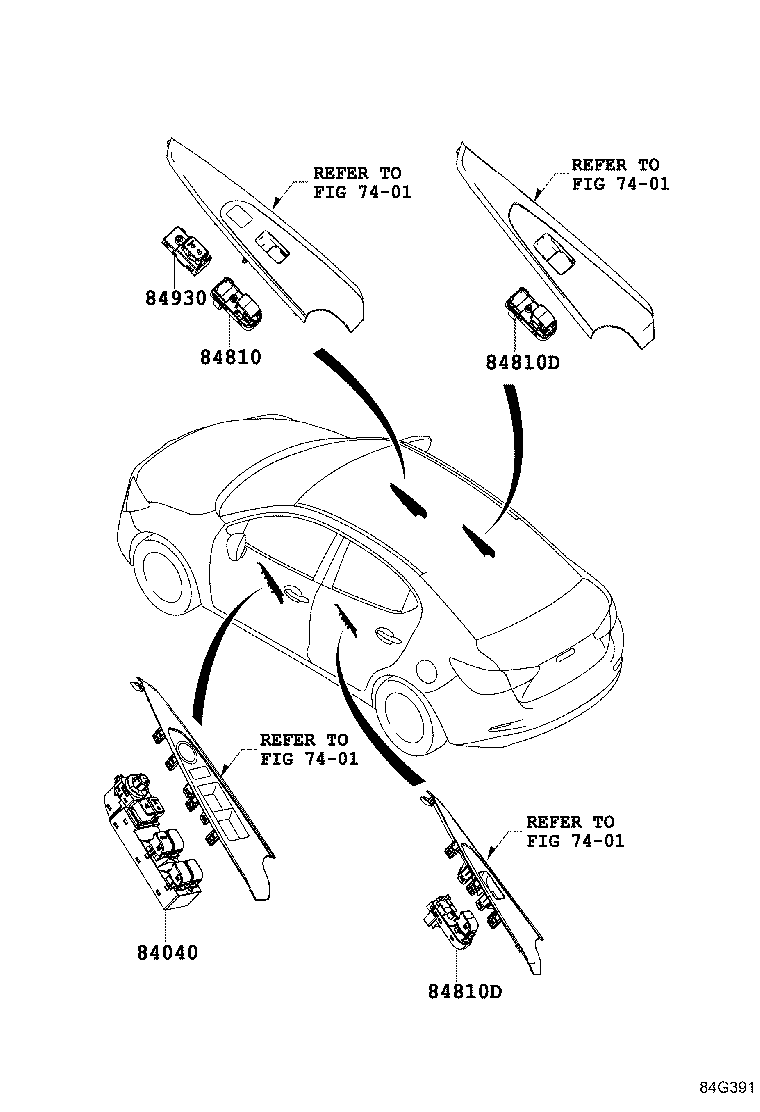

84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear

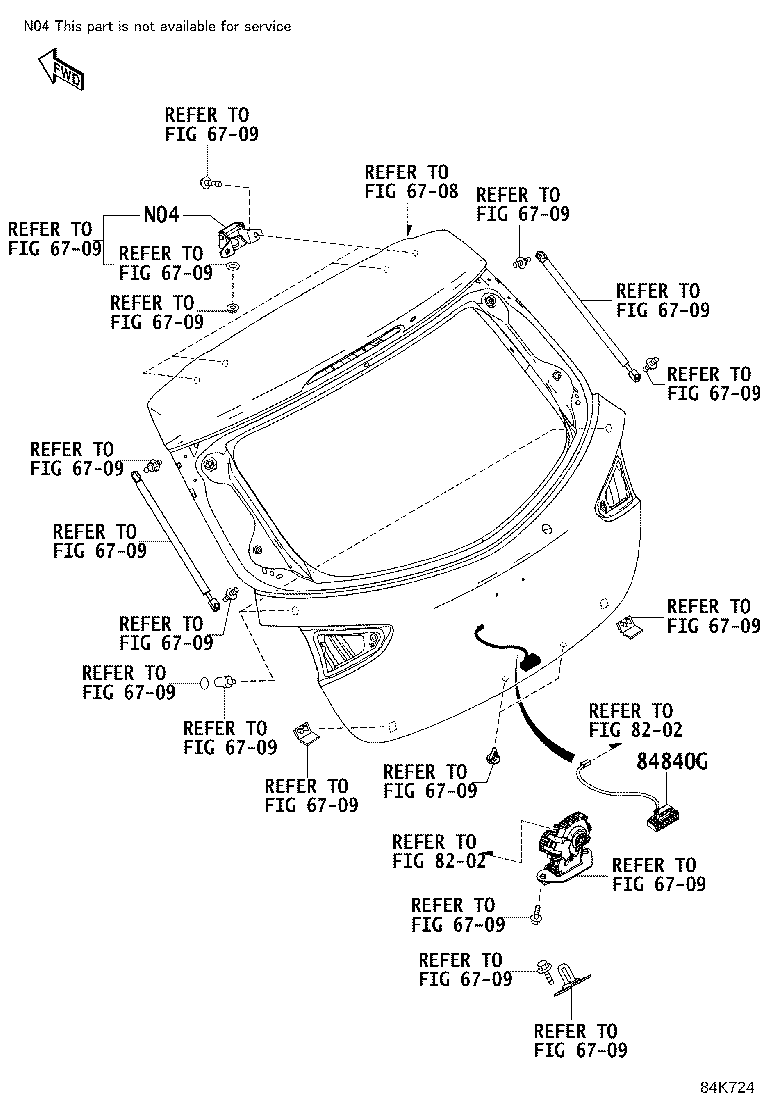

84840 Switch Assy, Luggage Compartment Door Opening
84840D Switch Assy, Luggage Door Opening
84840G Switch Assy, Back Door Opener
84930 Switch Assy, Door Control
84970 Switch Assy, Combination
85530 Socket Assy, Power Outlet, NO.1
85531 Socket, Power Outlet
85535B Cover, Power Outlet Socket, NO.1
85910E Relay, Injector
85912 Relay, Defogger
85913F Relay, Steering Heater
85915 Relay, Main
85915E Relay
85919E Relay, Stop Lamp
85927 Relay, Cooling Fan
85930D Relay
85930G Relay, Acc
85940 Relay Assy, Windshield Wiper
85940D Relay Assy, Windshield Wiper, NO.2
86530 Relay Assy, Horn
87299 Relay, Heater
88210A Sensor Assy, Laser Radar
88631E Relay, Airconditioner
89120A Sensor, Automatic Light Control

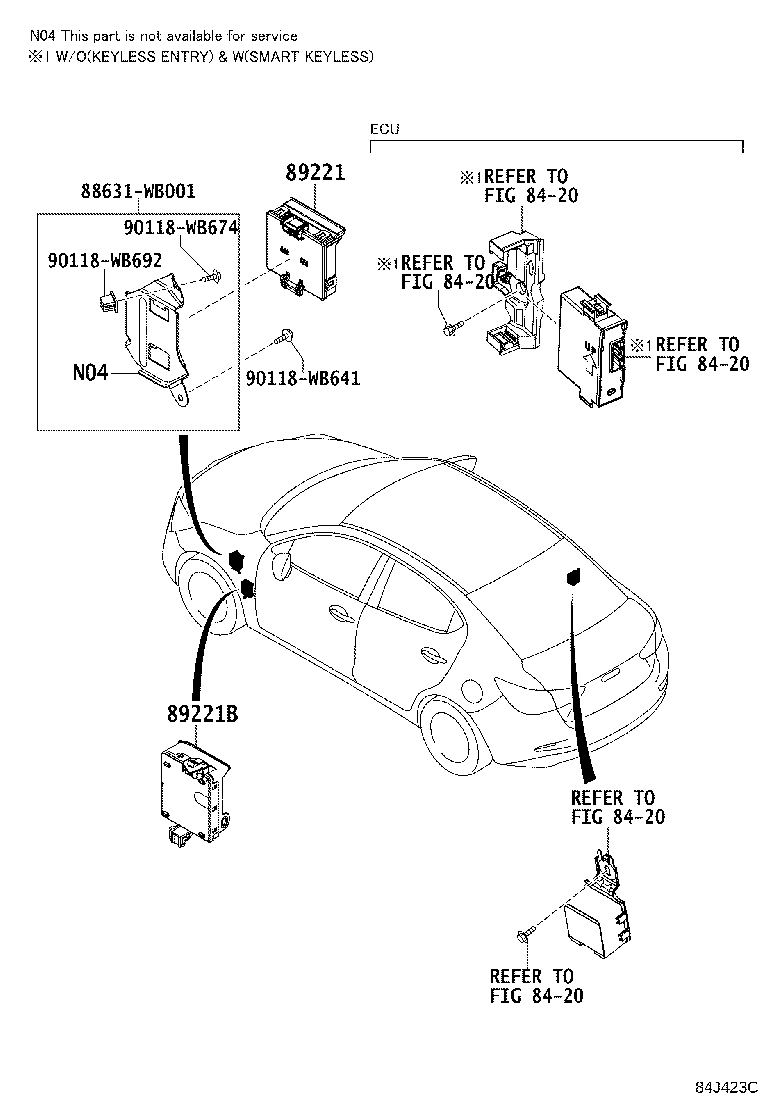

89221 Computer, Multiplex Network Body
89221B Computer, Body
89422A Sensor, Water Temperature
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
