Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 11 illustrations

Illustrations

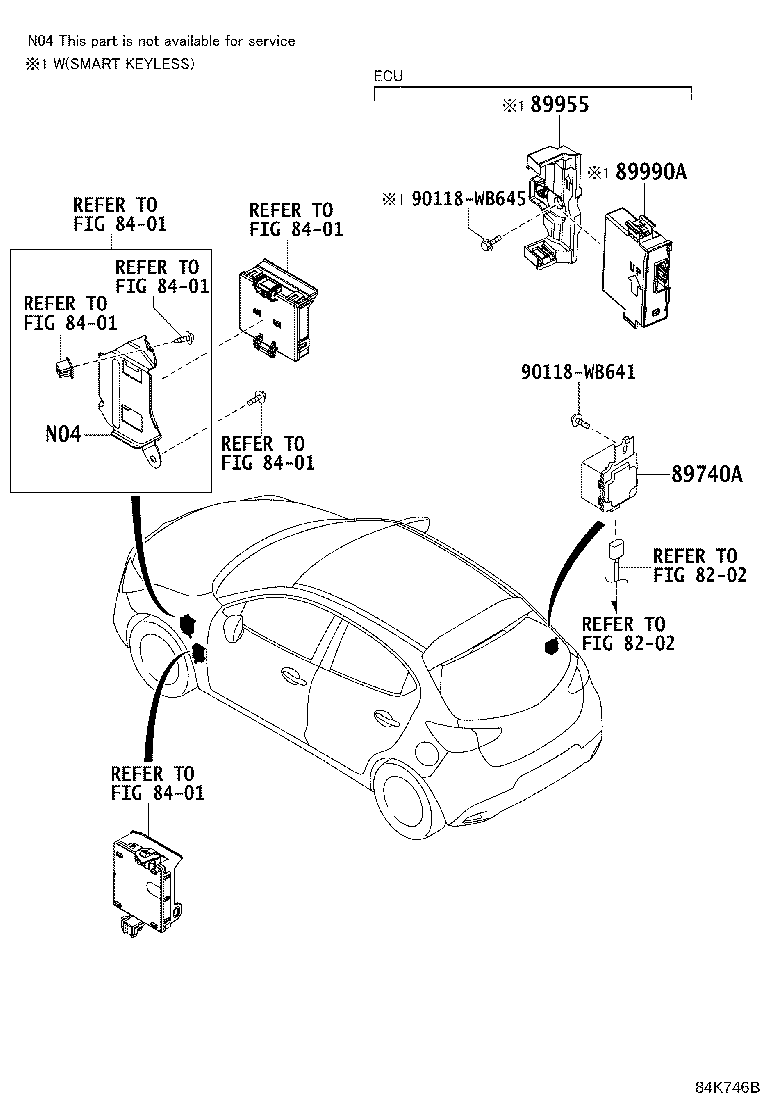

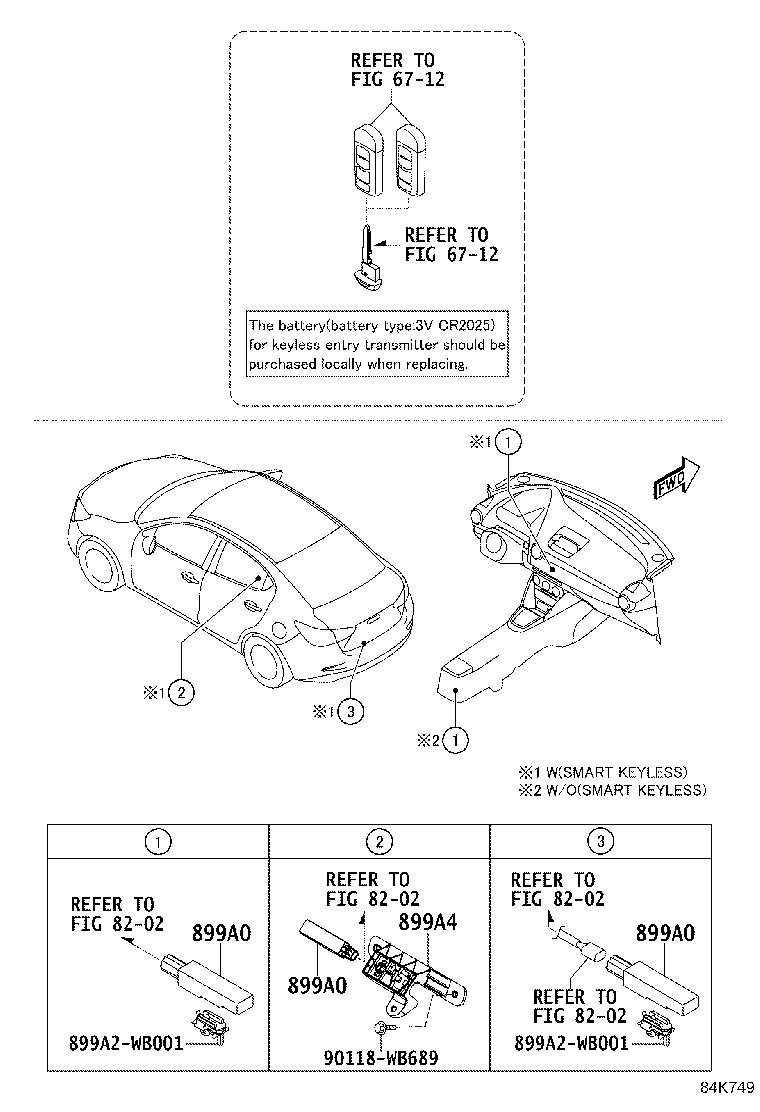

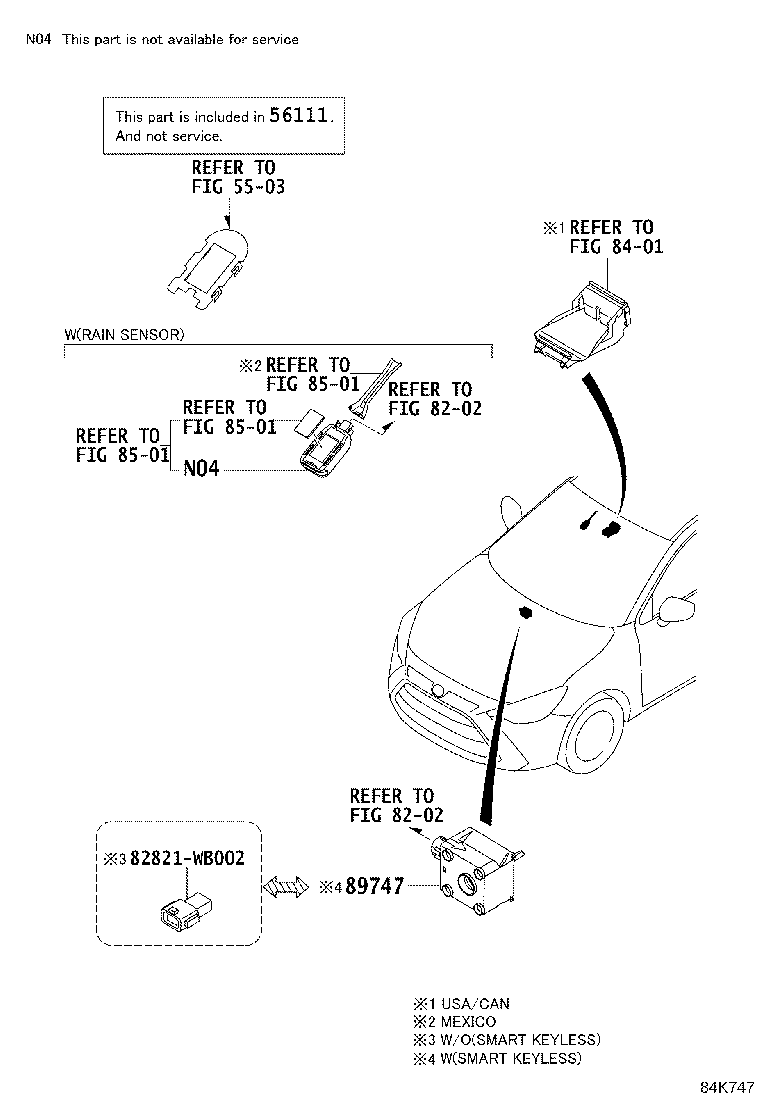

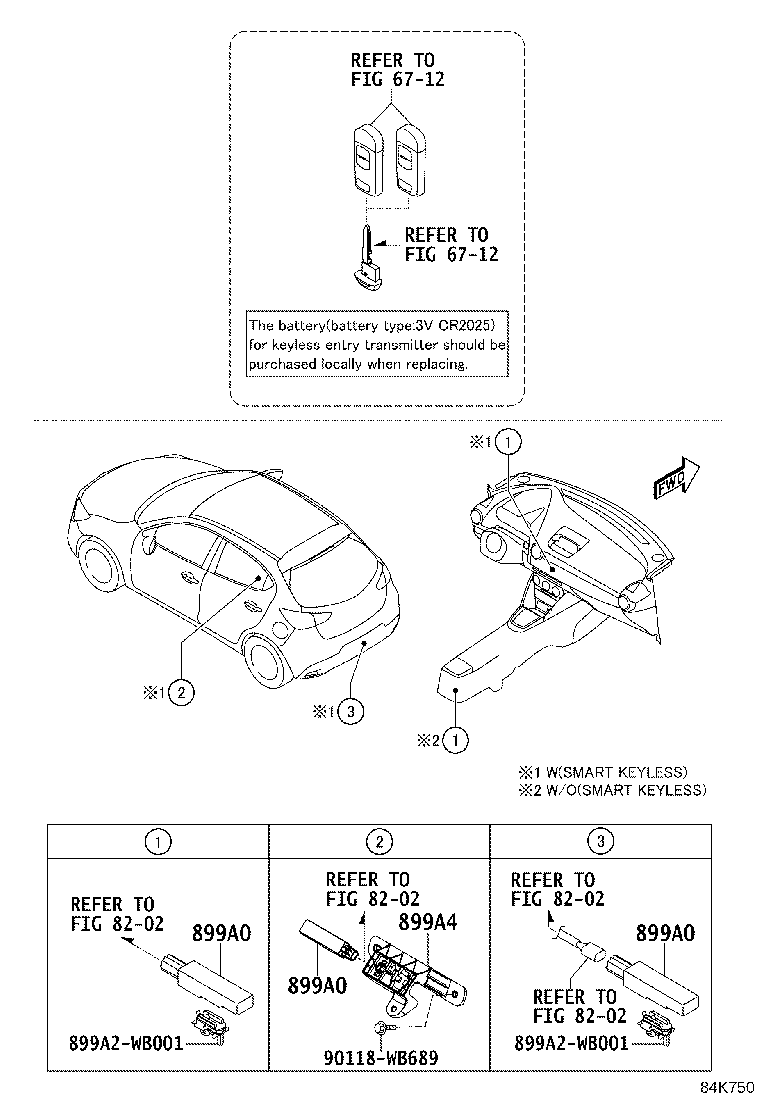

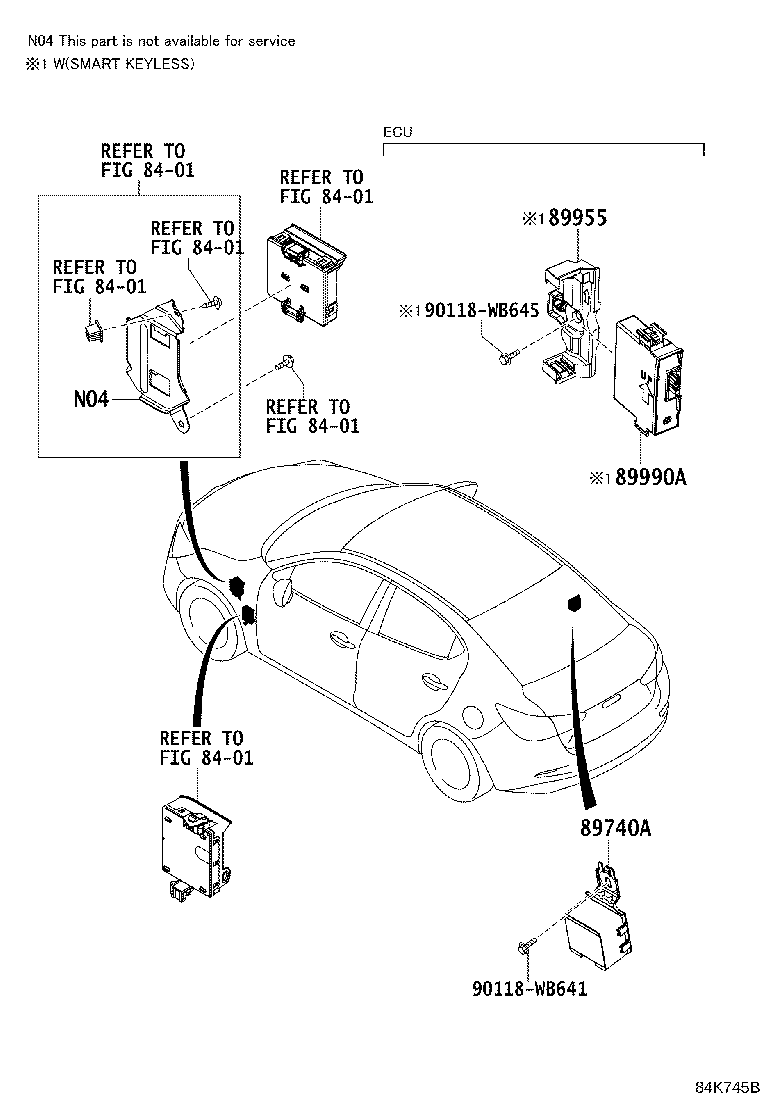

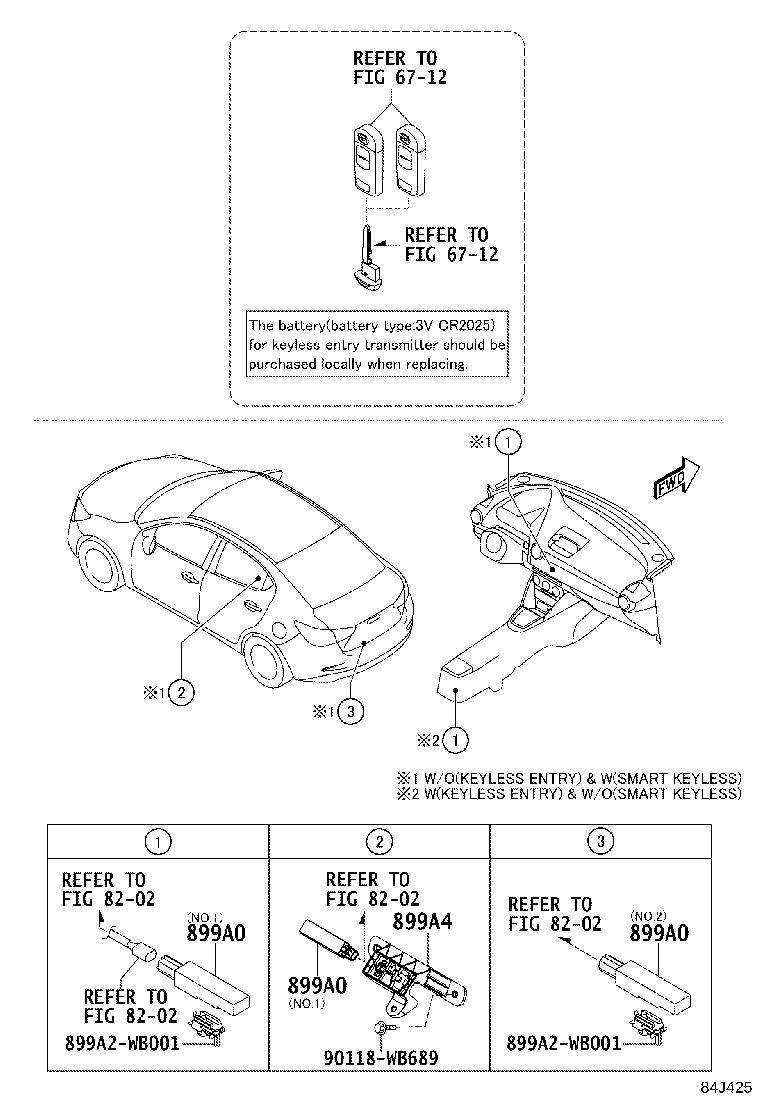

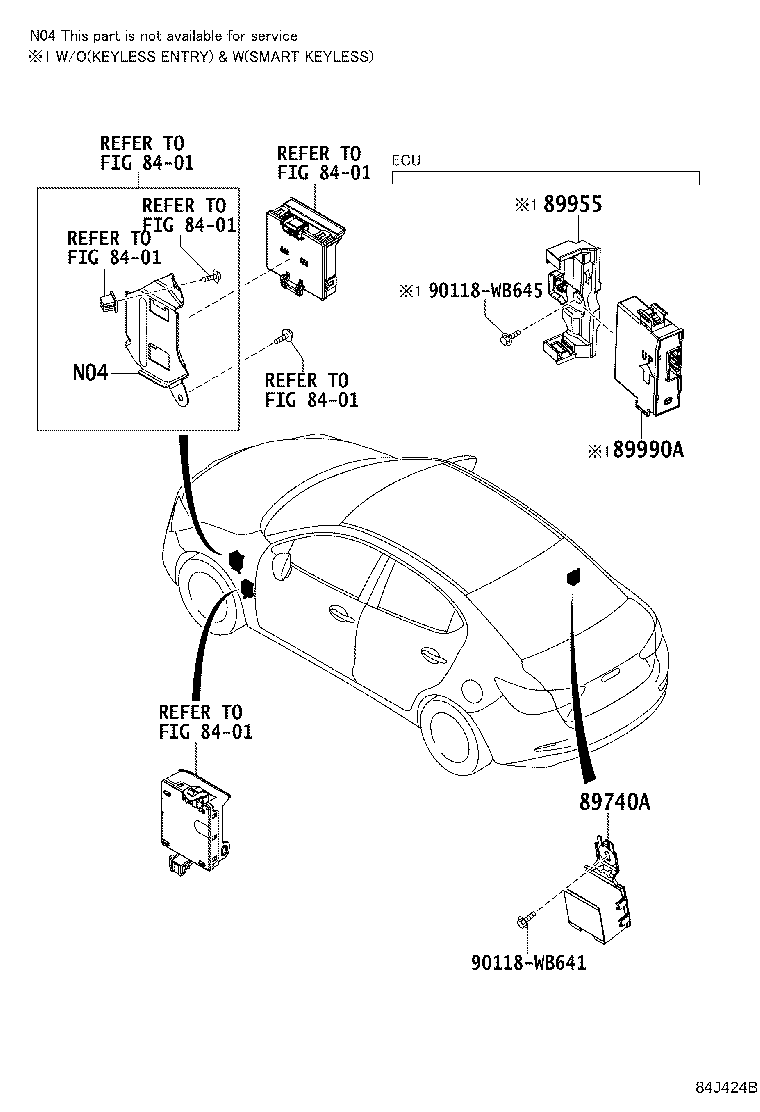

Figure 84G354E 84G354E 2015-06 → 2018-08 Figure 84J424B 84J424B 2018-08 → 2019-08 Figure 84K745B 84K745B 2019-08 → — Figure 84K746B 84K746B 2019-08 → — Figure 84J464 84J464 2018-08 → 2019-08 Figure 84K747 84K747 2019-08 → — Figure 84K748 84K748 2019-08 → — Figure 84G846 84G846 2015-06 → 2018-08 Figure 84J425 84J425 2018-08 → 2019-08 Figure 84K749 84K749 2019-08 → — Figure 84K750 84K750 2019-08 → —

Part groups

PNCDescription
89740A Receiver Assy, Smart Door Control
89747 Buzzer, Wireless Door Lock
89955 Bracket, Smart Key Computer
89990A Computer Assy, Smart Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A4 Case, Indoor Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
