Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

8 part groups · 8 illustrations

Illustrations

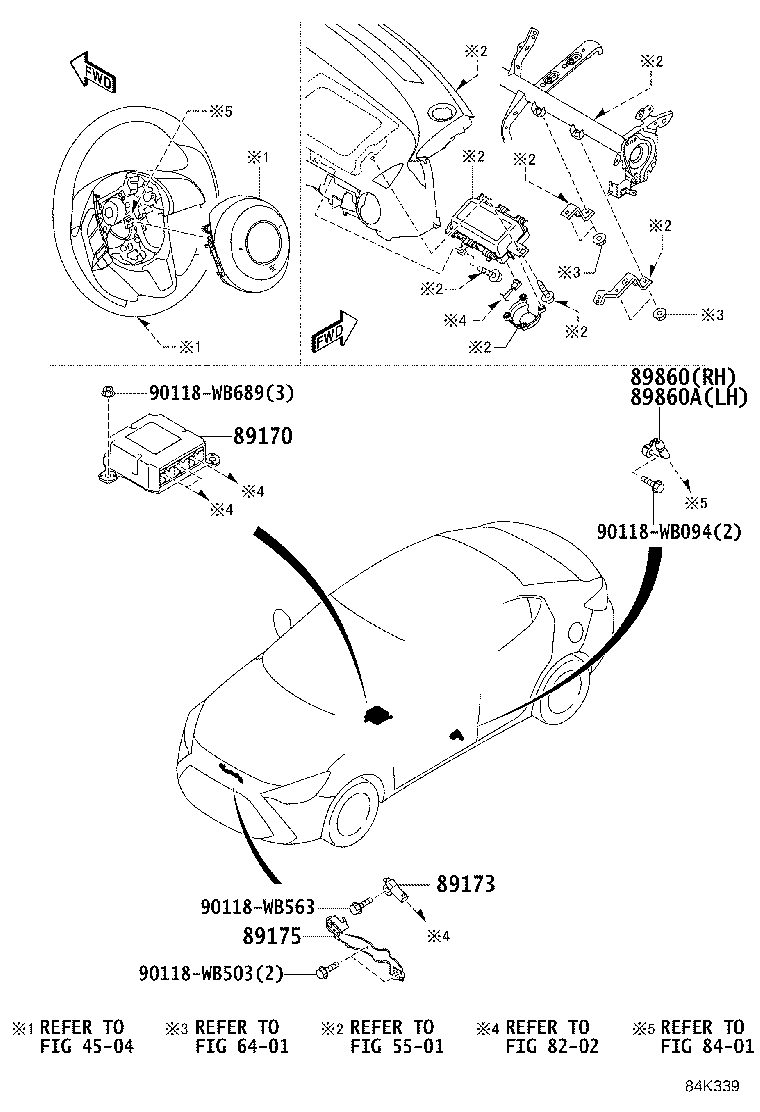

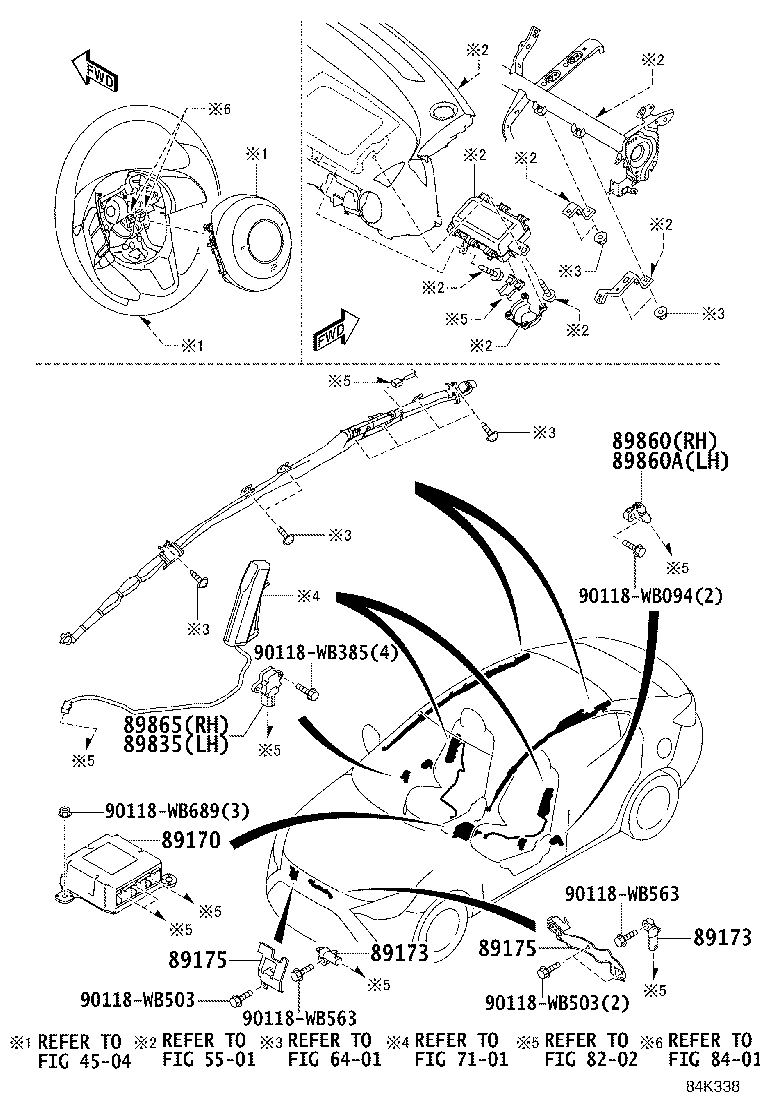

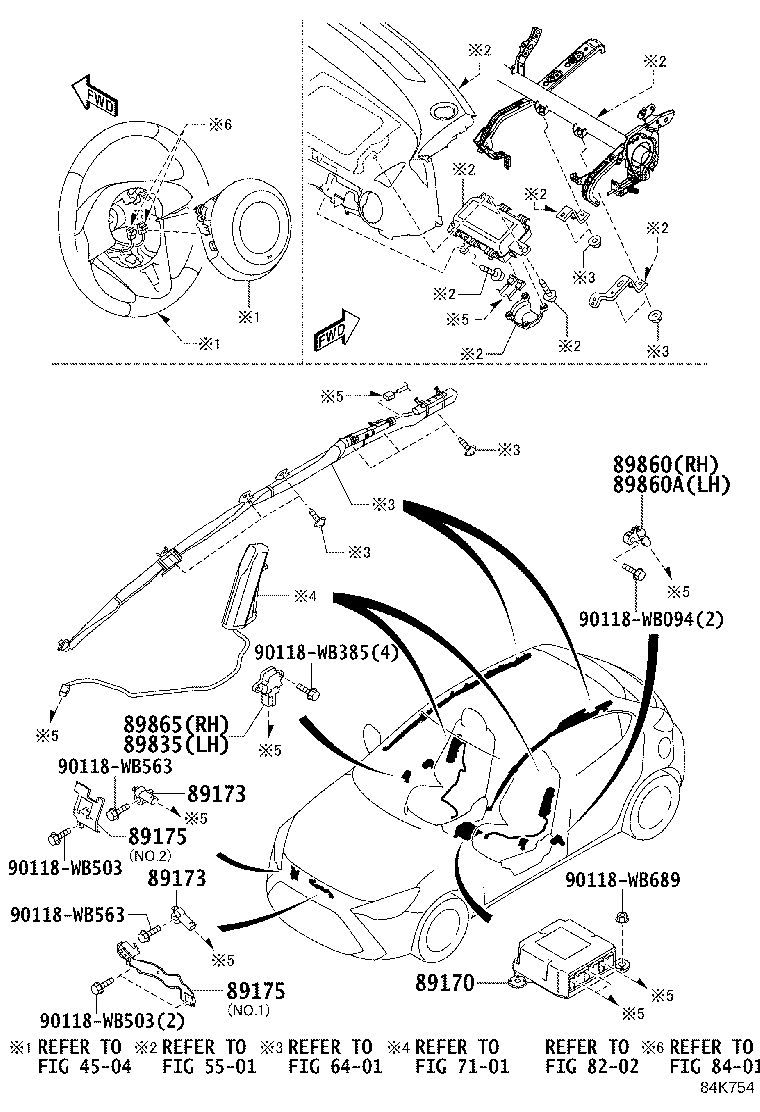

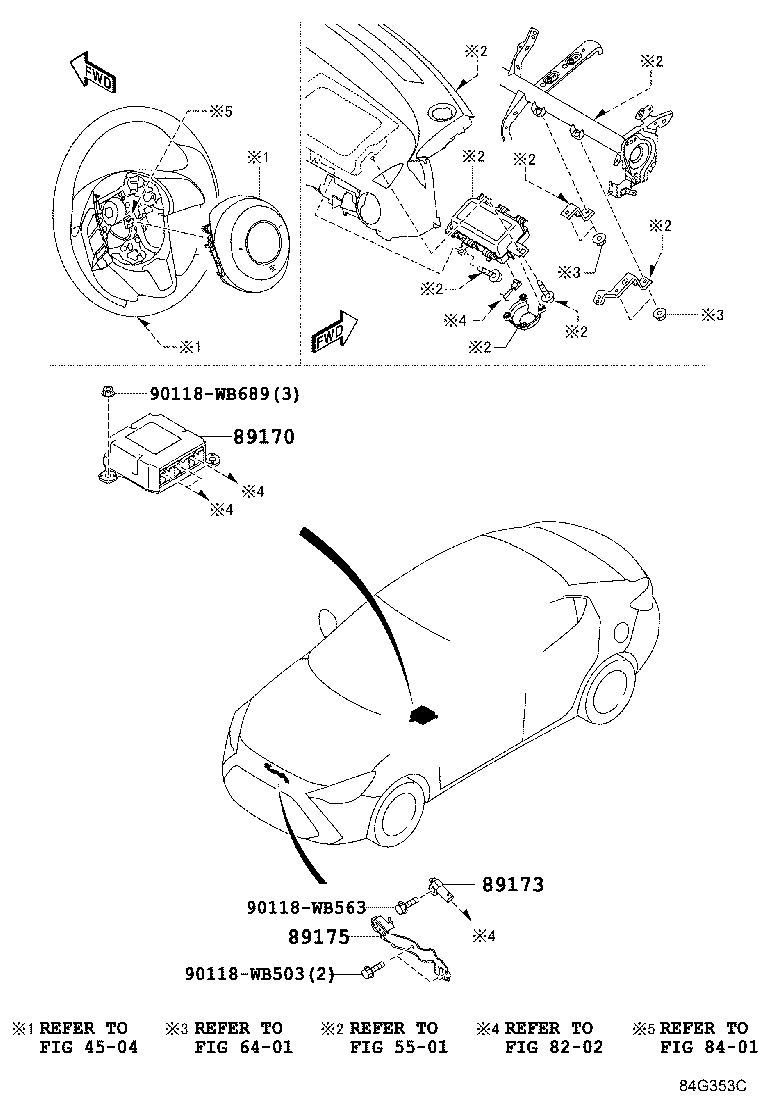

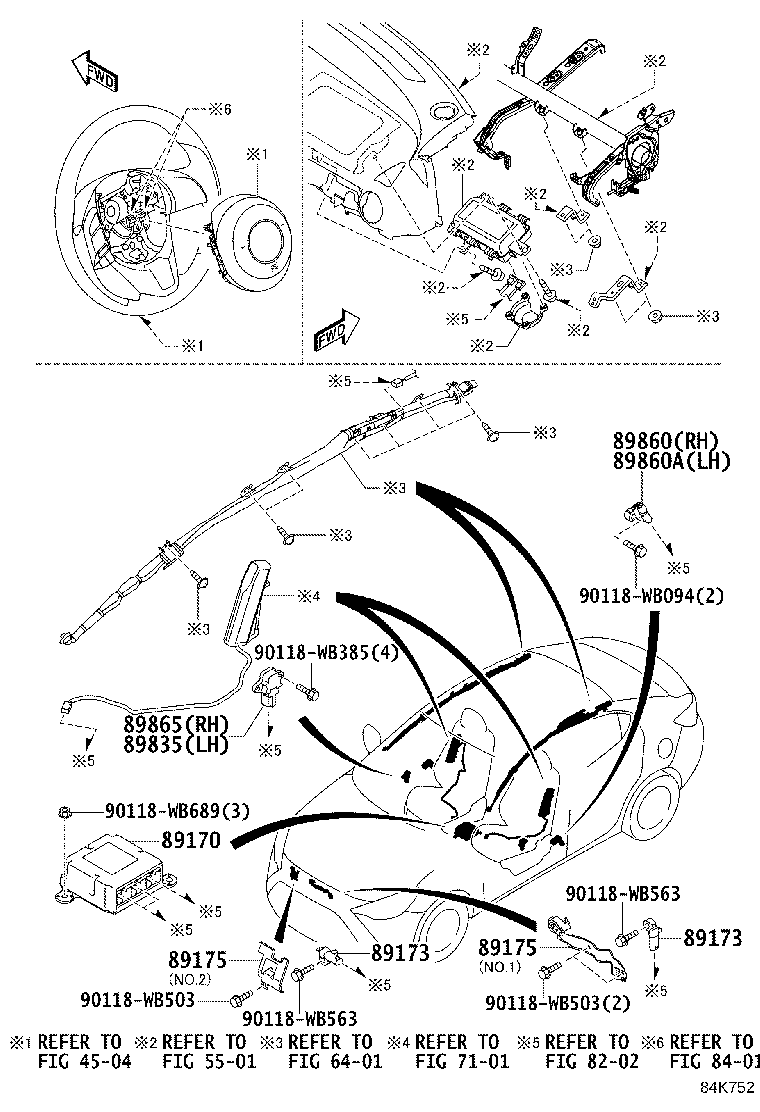

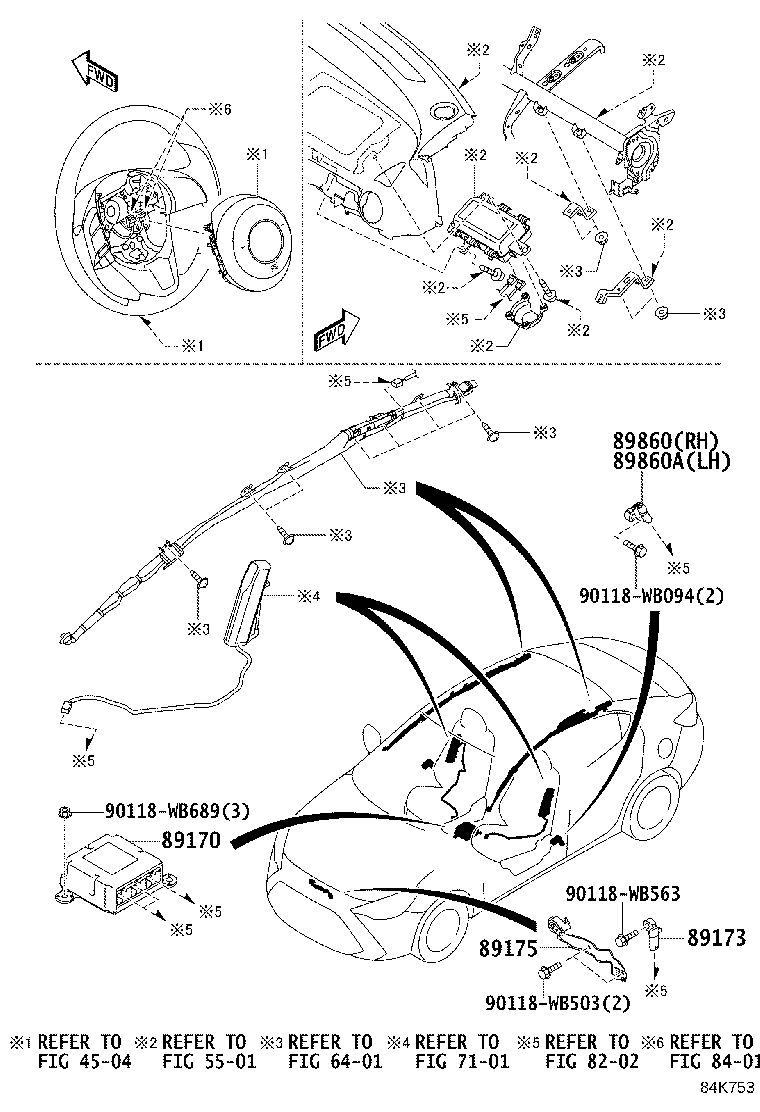

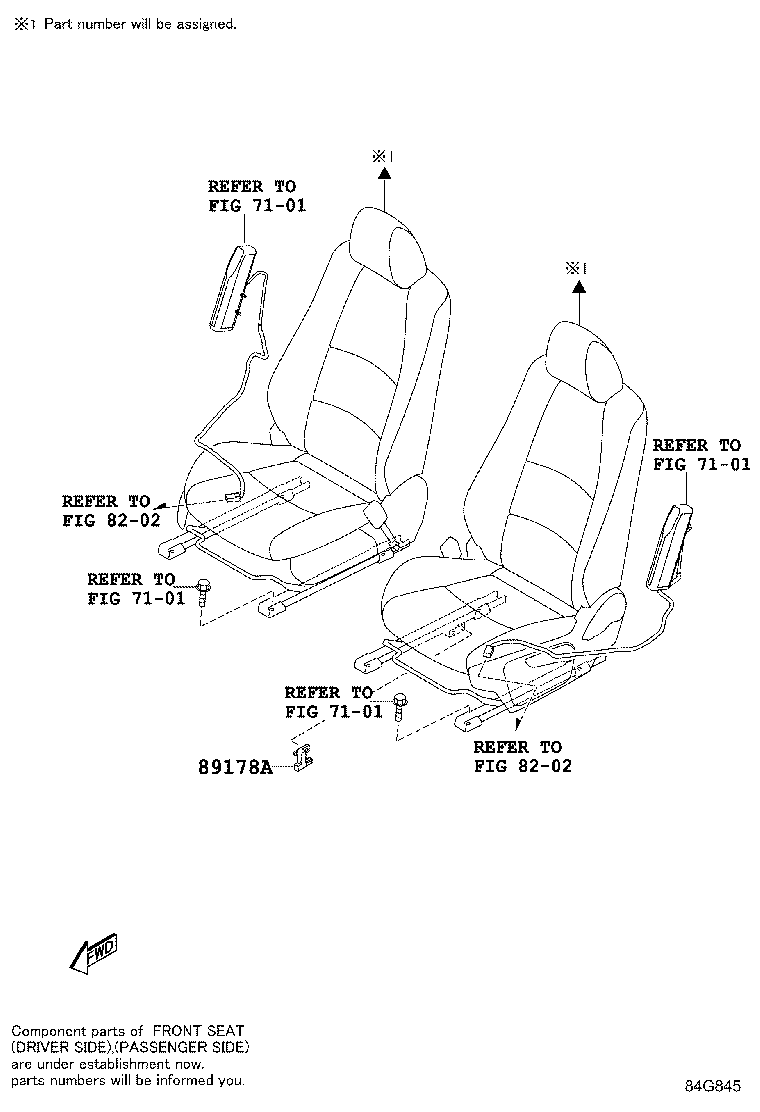

Figure 84G352E 84G352E 2015-06 → 2018-08 Figure 84G845 84G845 2015-06 → 2017-09 Figure 84G353C 84G353C 2015-08 → 2018-08 Figure 84K338 84K338 2018-08 → 2019-08 Figure 84K339 84K339 2018-08 → 2019-08 Figure 84K752 84K752 2019-08 → — Figure 84K753 84K753 2019-08 → — Figure 84K754 84K754 2019-08 → —

Part groups

PNCDescription
89170 Sensor Assy, Airbag
89173 Sensor, Airbag, Front
89175 Bracket, Airbag Sensor
89178A Sensor, Seat Position Airbag
89835 Sensor, Door Side Airbag, LH
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
89865 Sensor, Door Side Airbag, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
