Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

16 part groups · 5 illustrations

Illustrations

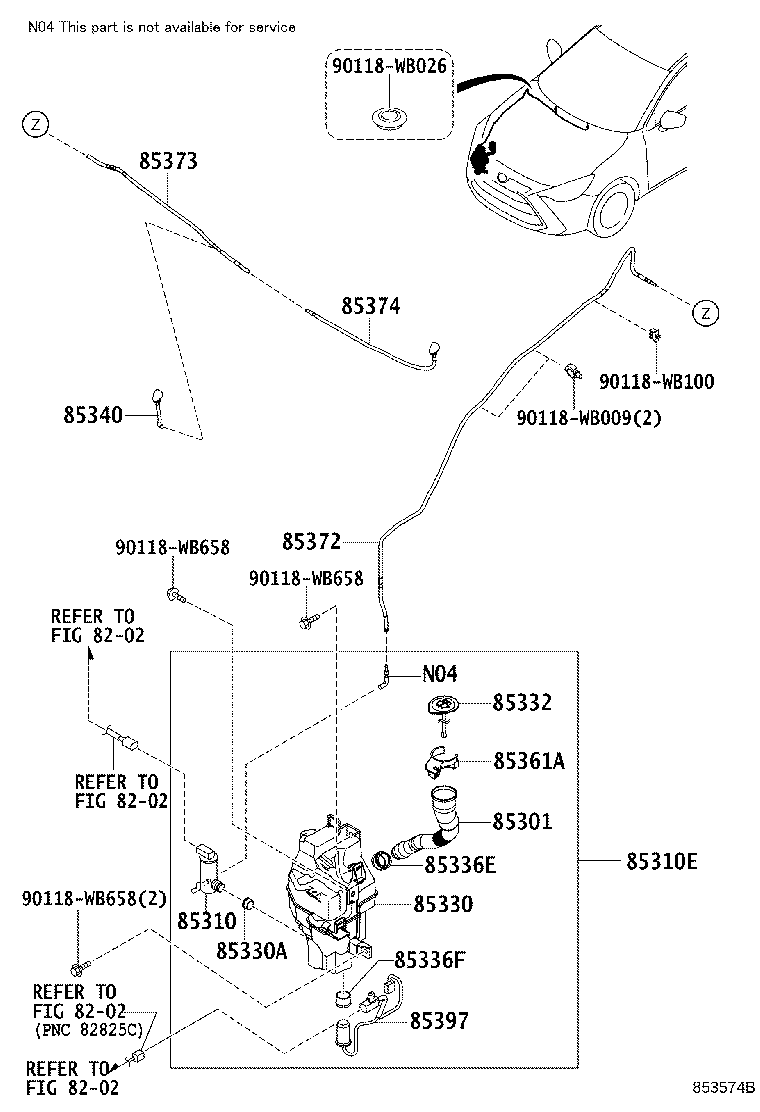

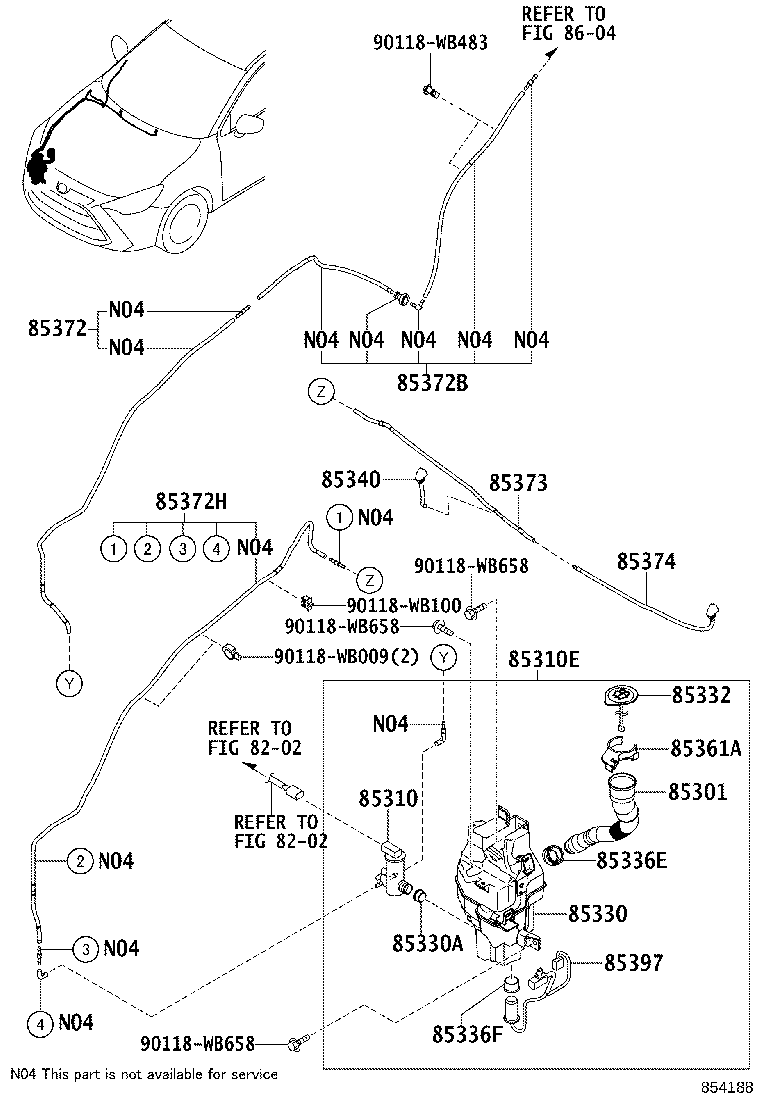

Figure 853434C 853434C 2015-06 → 2019-08 Figure 853434C 853434C 2019-08 → — Figure 853574B 853574B 2015-06 → 2019-08 Figure 853574B 853574B 2019-08 → — Figure 854188 854188 2019-08 → —

Part groups

PNCDescription
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85310E Jar & Pump Assy, Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85336E Packing, Windshield Washer Inlet Hose
85336F Packing, Windshield Washer Jar
85340 Nozzle And Hose Assy, Windshield Washer
85361A Bracket, Windshield Washer, NO.1
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85374 Hose, Windshield Washer (FROM NOZZLE TO NOZZLE)
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
