Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 12 illustrations

Illustrations

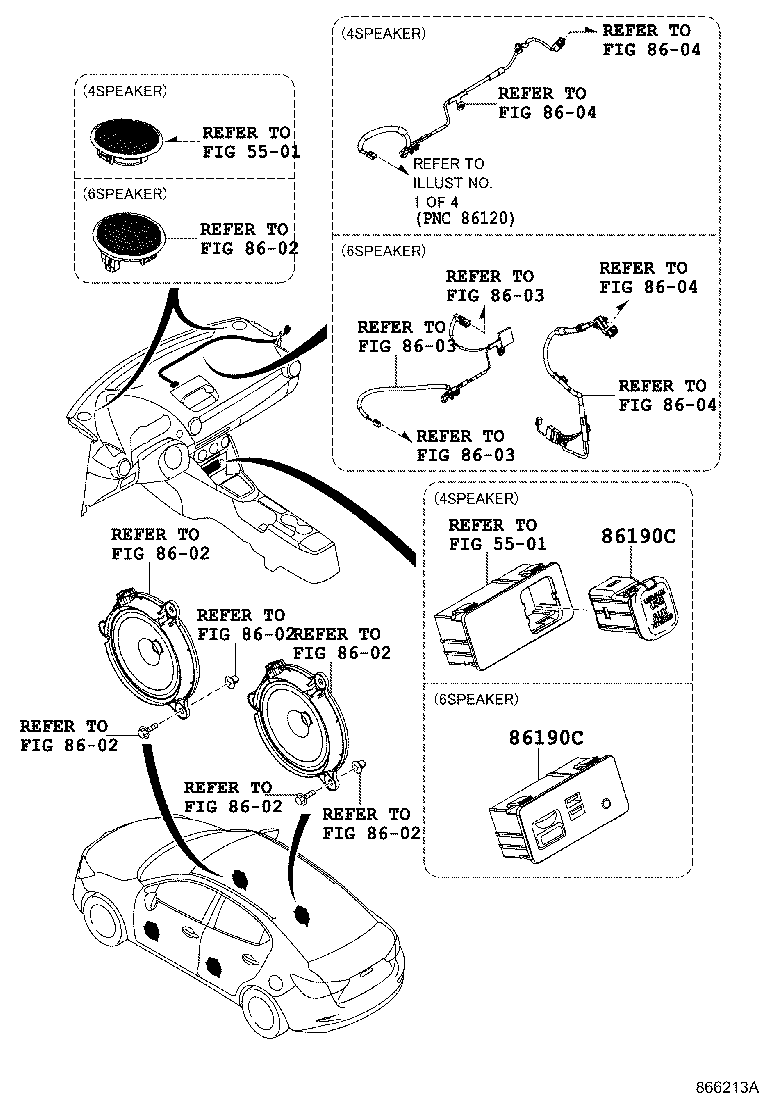

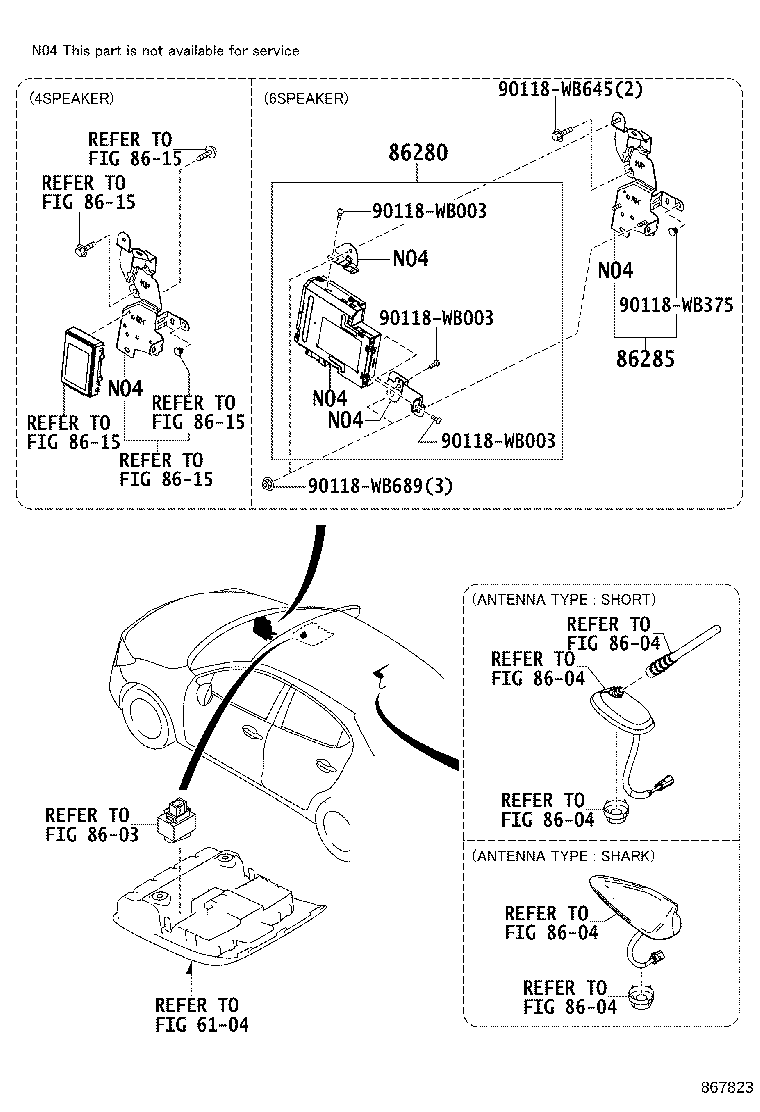

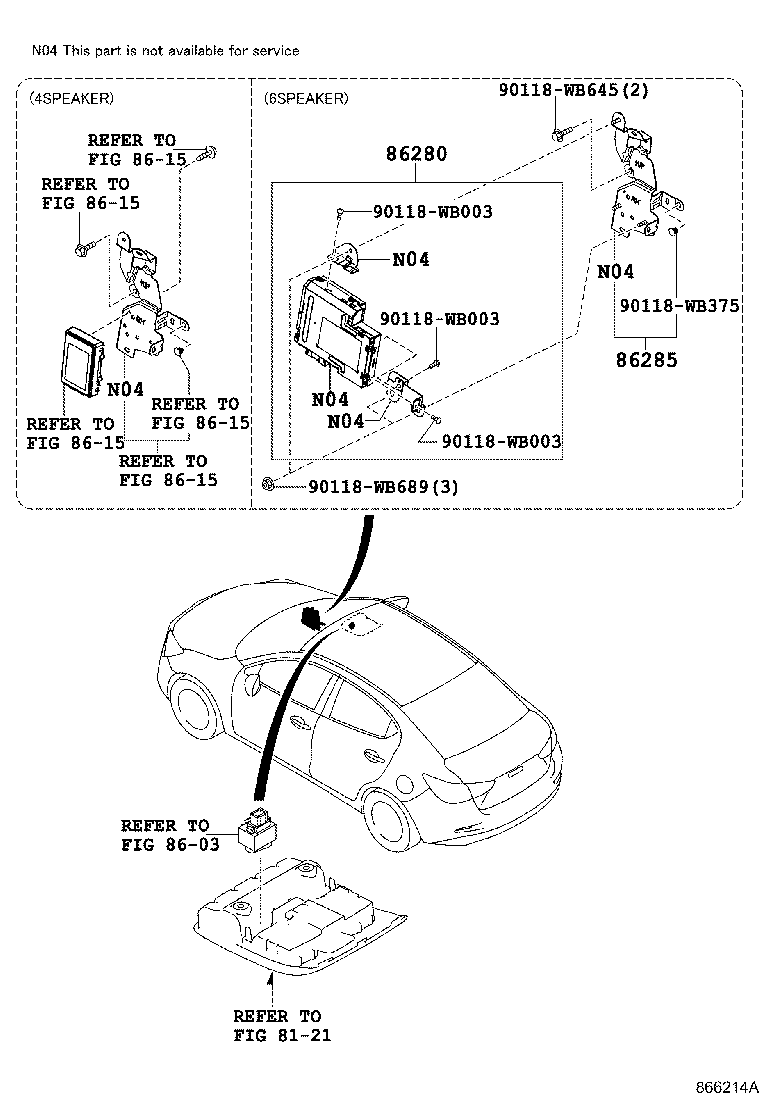

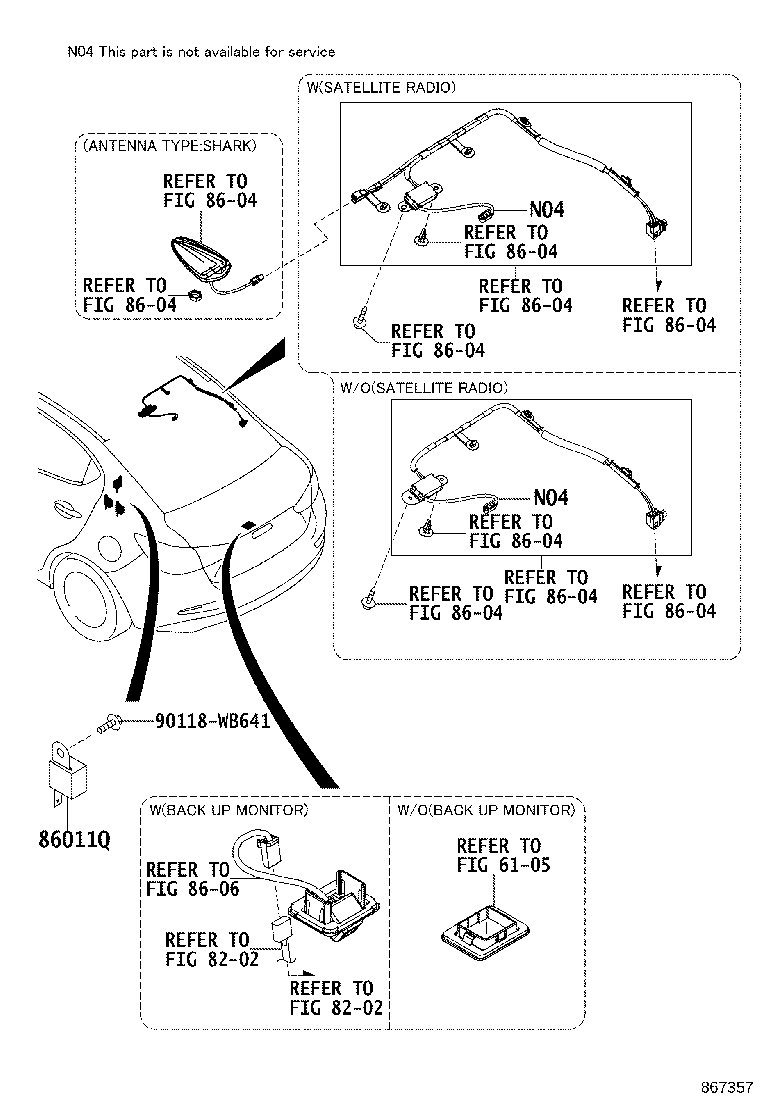

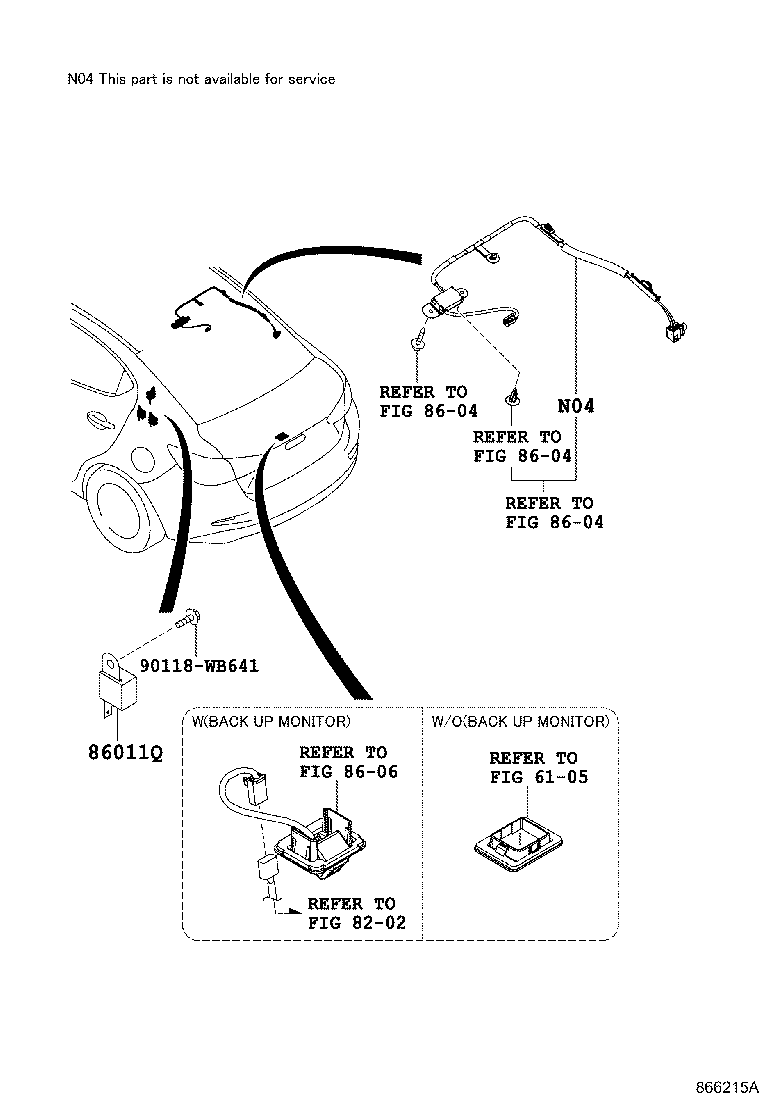

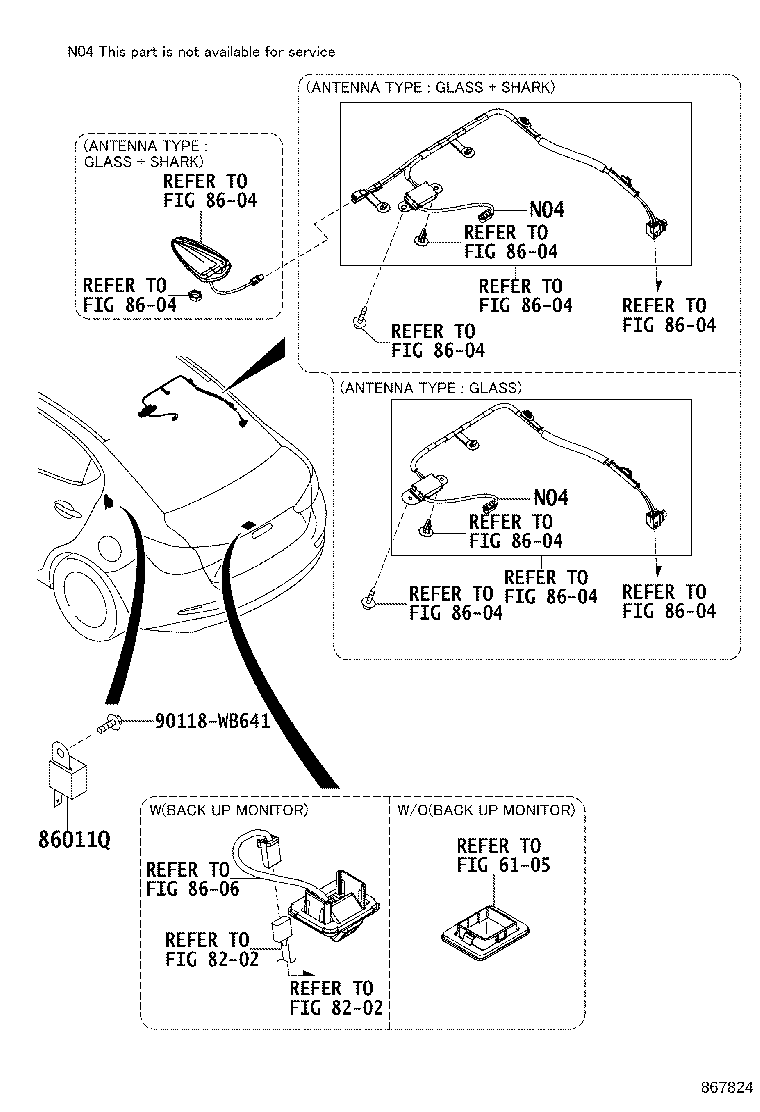

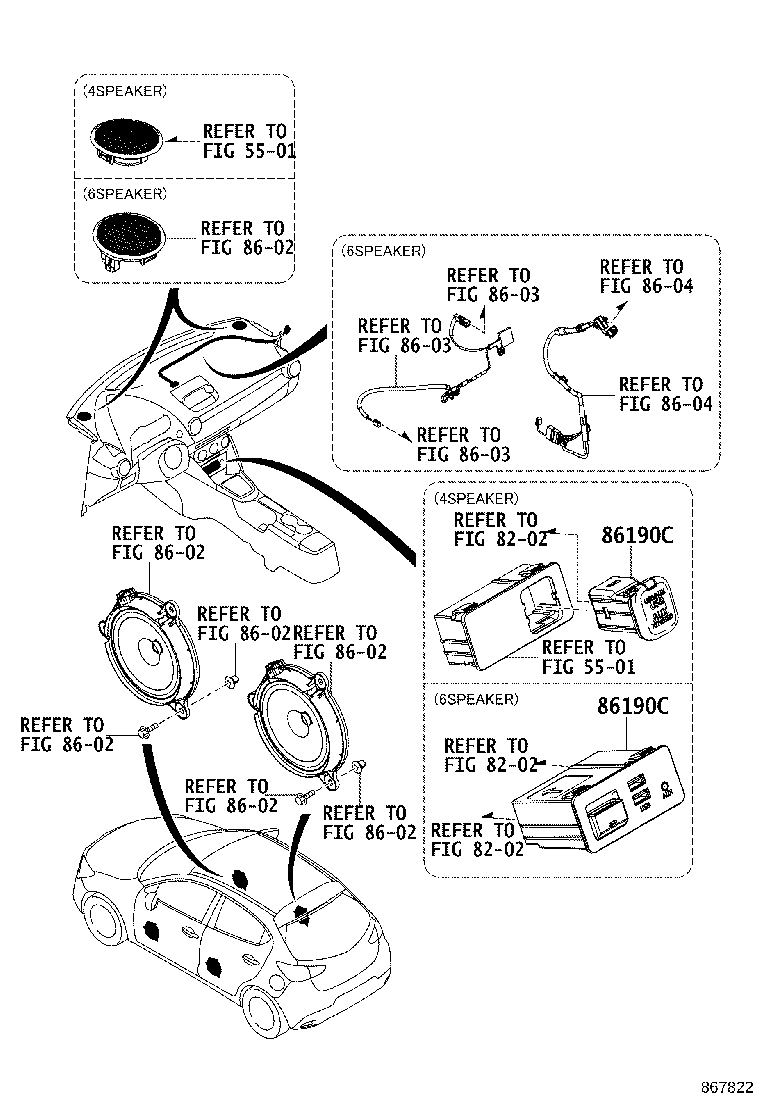

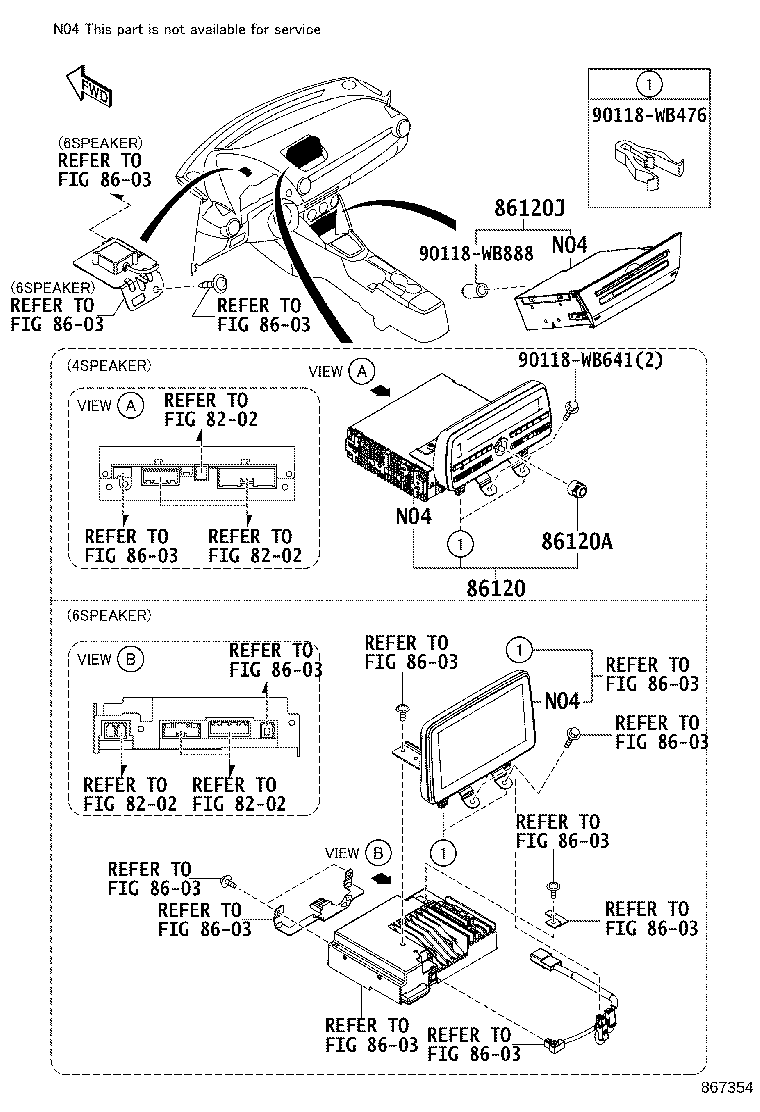

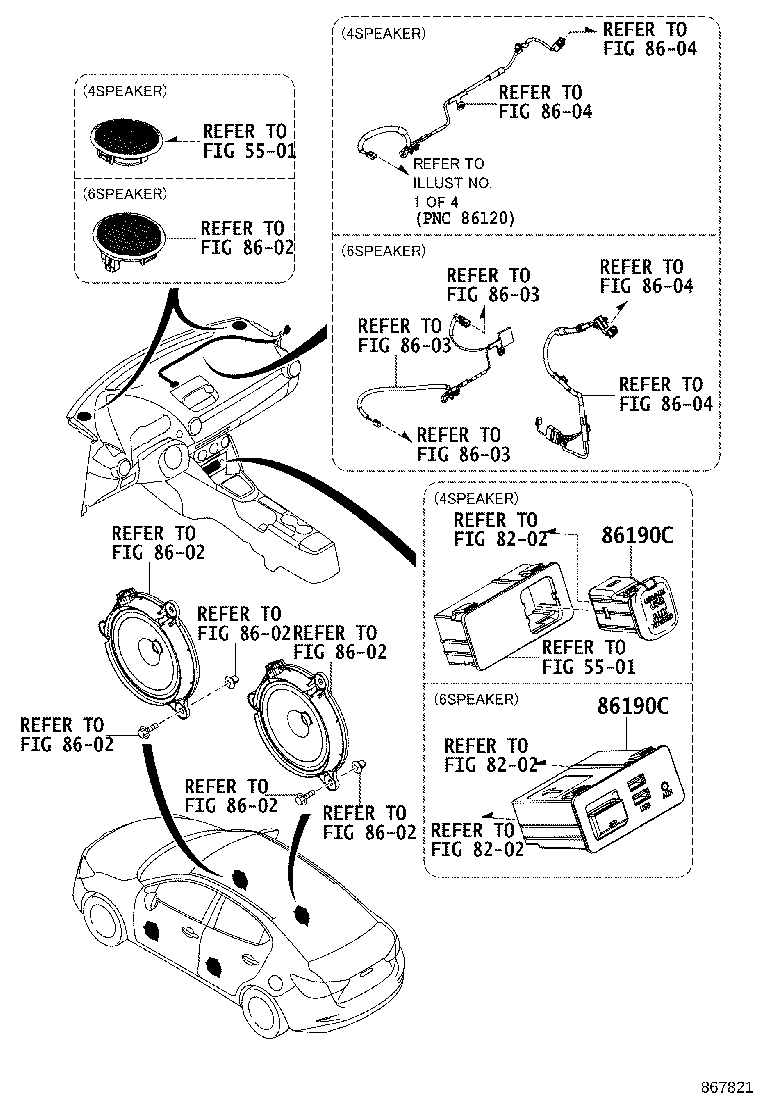

Figure 866212D 866212D 2015-06 → 2018-08 Figure 867354 867354 2018-08 → — Figure 866213A 866213A 2015-06 → 2019-08 Figure 867821 867821 2019-08 → — Figure 867822 867822 2019-08 → — Figure 866214A 866214A 2015-06 → — Figure 866214A 866214A 2019-08 → — Figure 867823 867823 2019-08 → — Figure 866215A 866215A 2015-06 → 2018-08 Figure 867357 867357 2018-08 → 2019-08 Figure 867824 867824 2019-08 → — Figure 867825 867825 2019-08 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120J Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
