Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

9 part groups · 9 illustrations

Illustrations

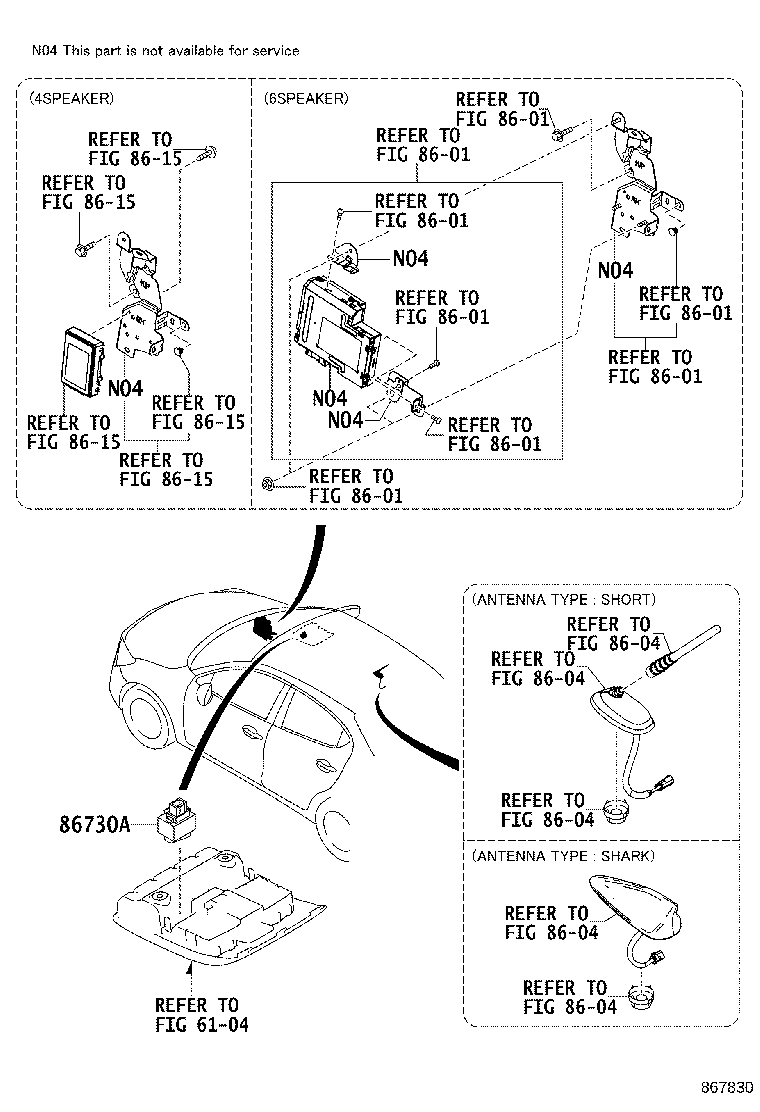

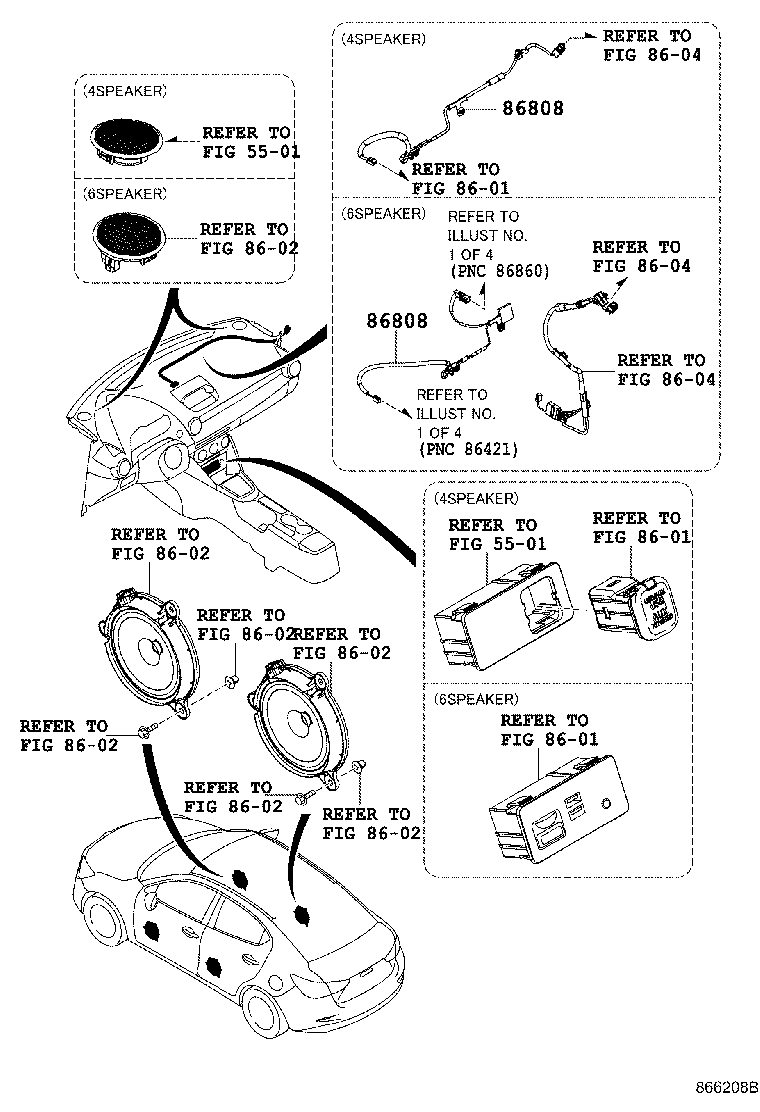

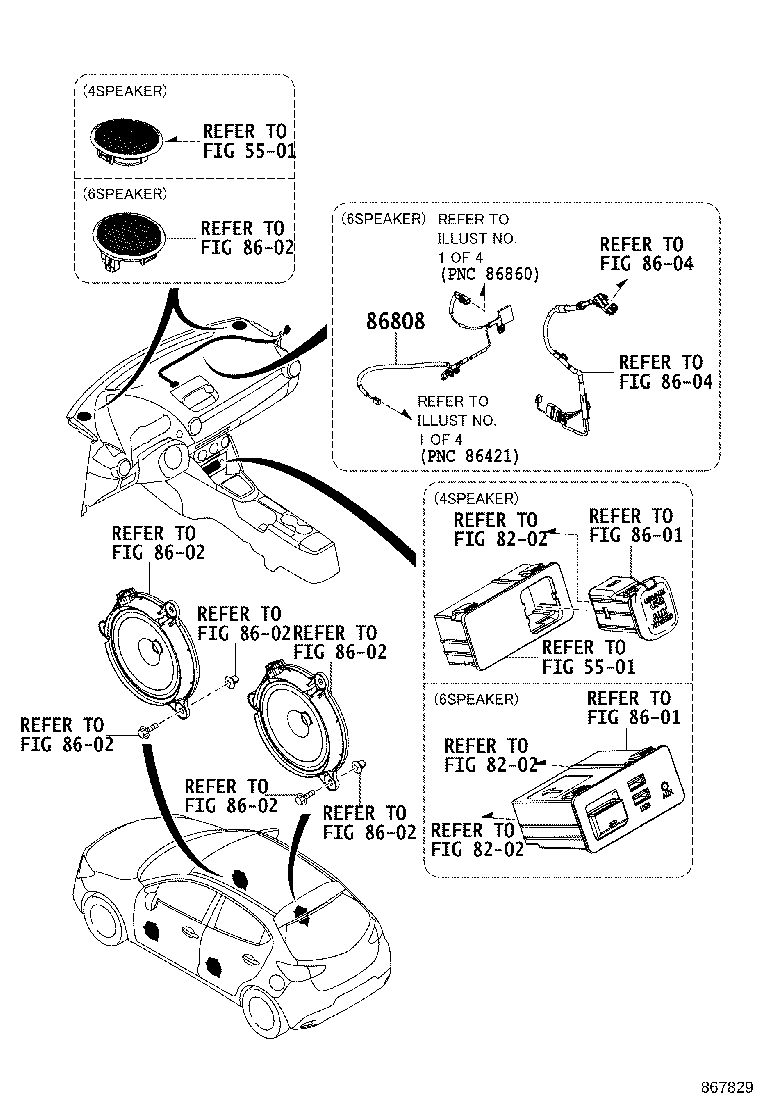

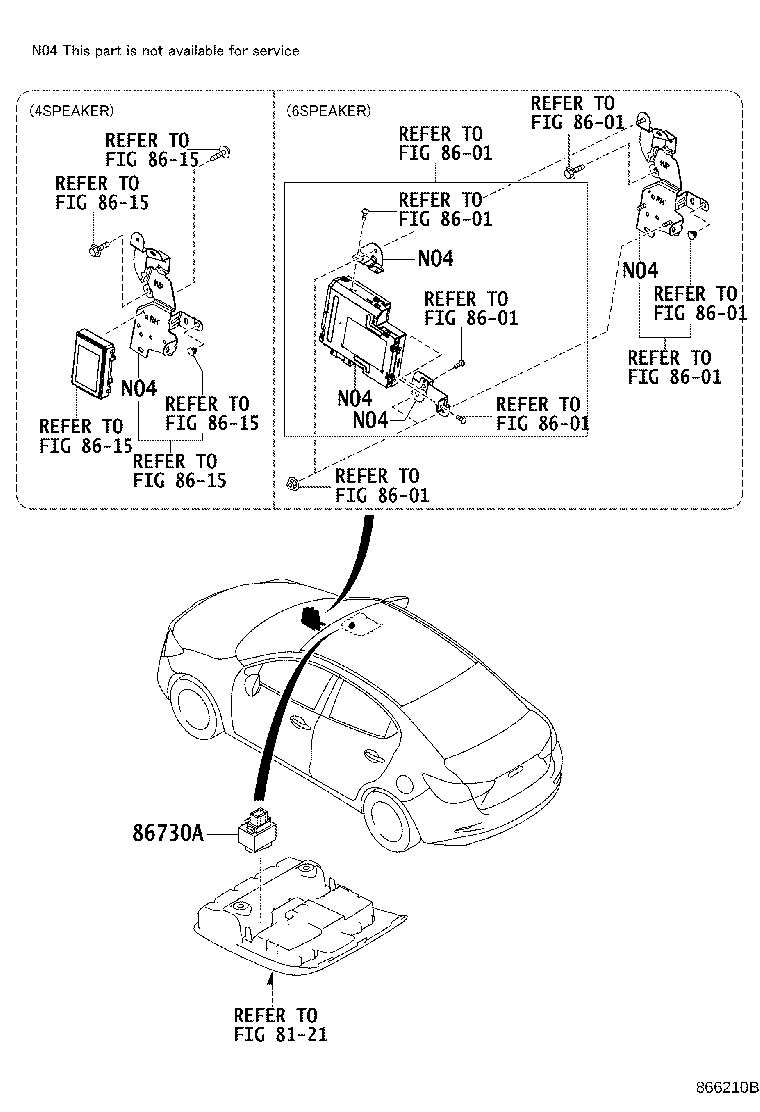

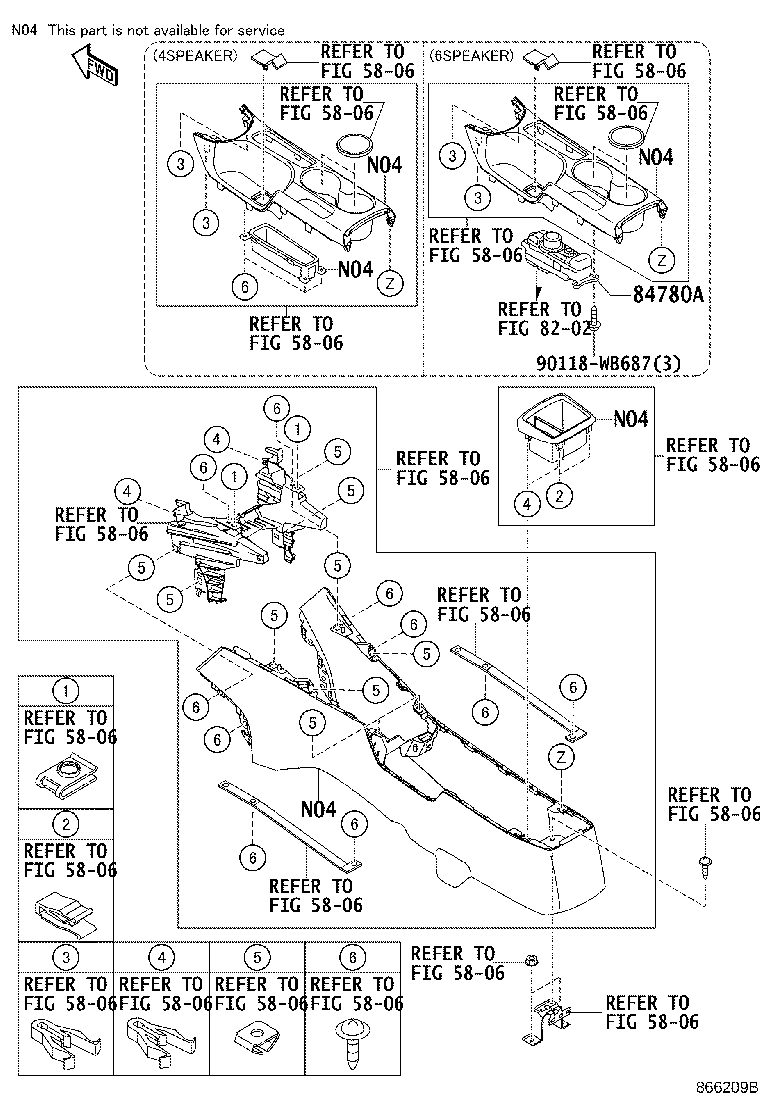

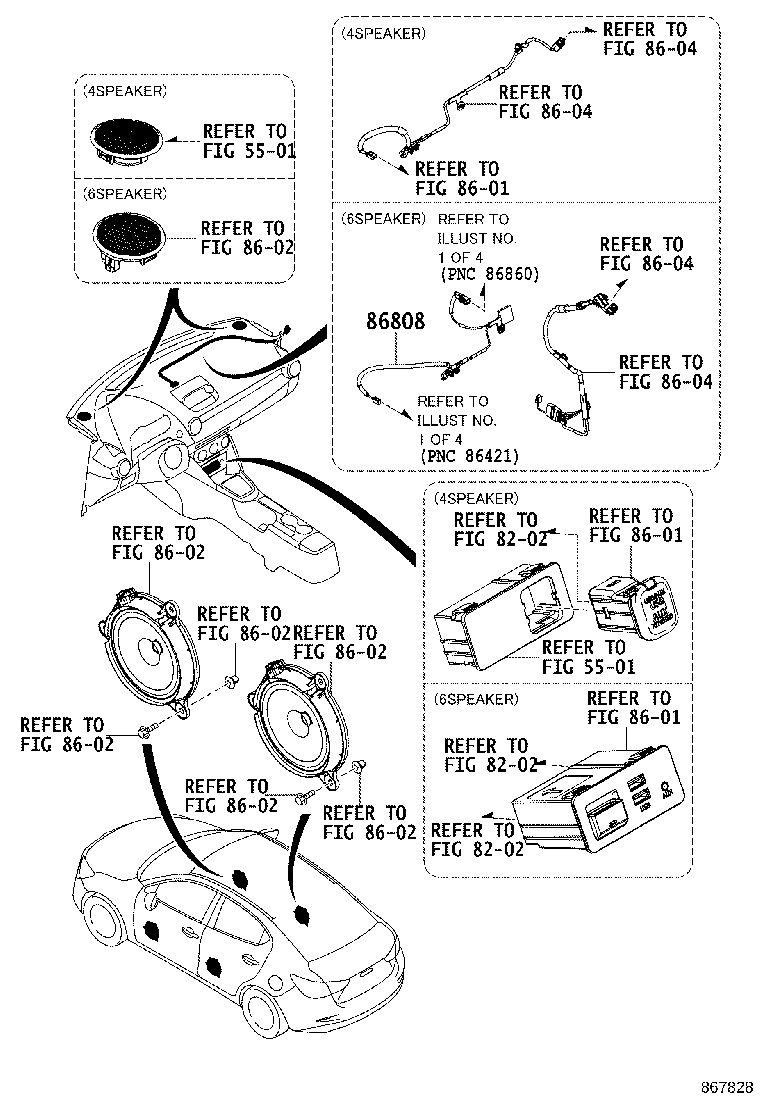

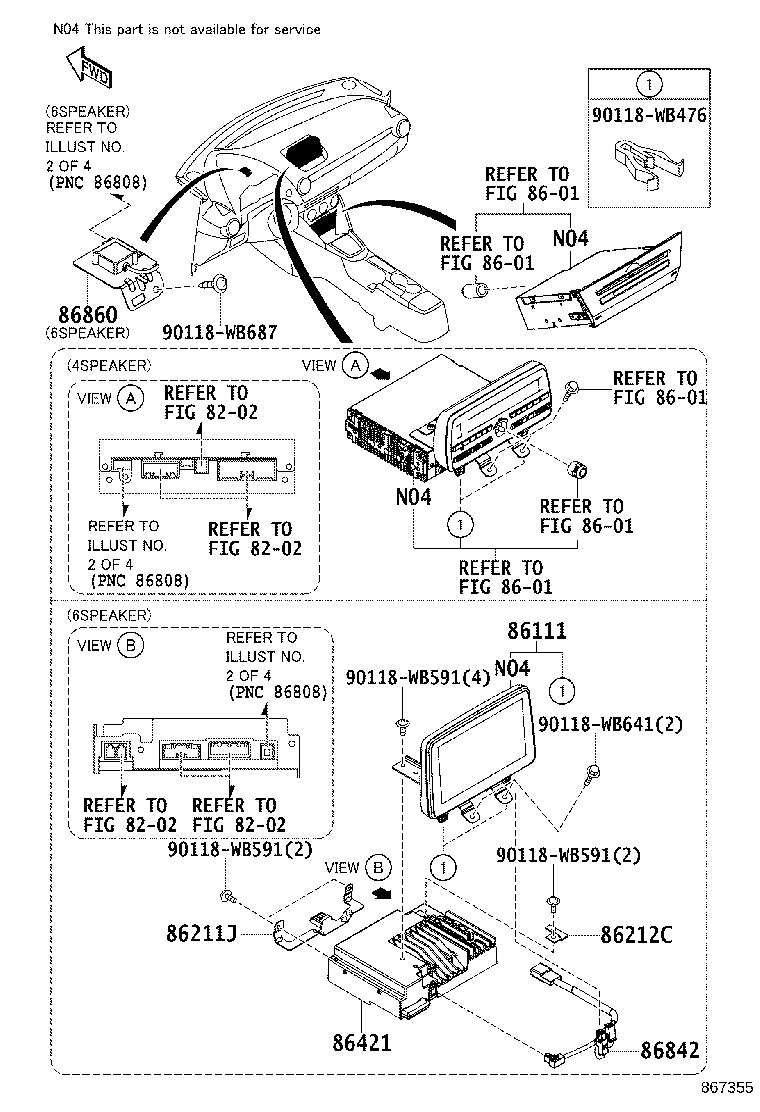

Figure 866207C 866207C 2015-06 → 2018-08 Figure 867355 867355 2018-08 → — Figure 866208B 866208B 2015-06 → 2019-08 Figure 867828 867828 2019-08 → — Figure 867829 867829 2019-08 → — Figure 866209B 866209B 2015-06 → — Figure 866210B 866210B 2015-06 → — Figure 866210B 866210B 2019-08 → — Figure 867830 867830 2019-08 → —

Part groups

PNCDescription
84780A Controller Assy, Remote Operation
86111 Multi-display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86421 Board, Navigation Module
86730A Microphone Assy, Telephone
86808 Cord Sub-assy, Navigation Antenna, NO.1
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
