Toyota Scion IA/Yaris R/IA
2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States
Supported model
Data version 2019-09
Heating & Air Conditioning - Cooler Unit

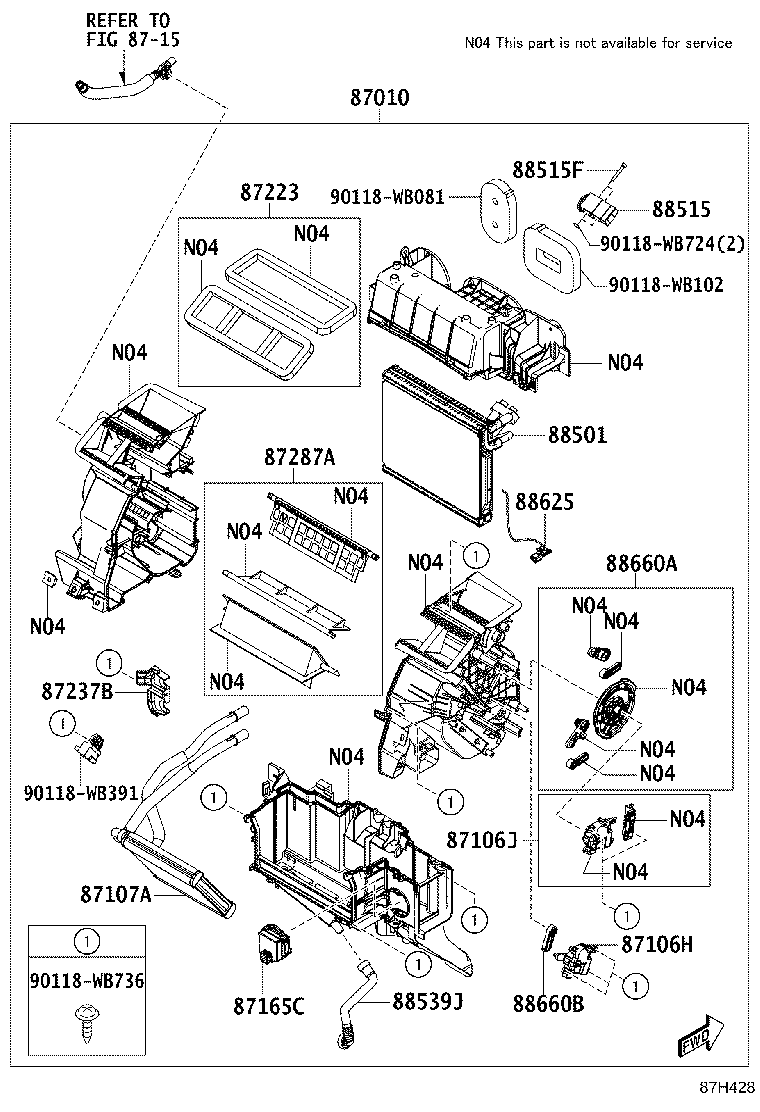

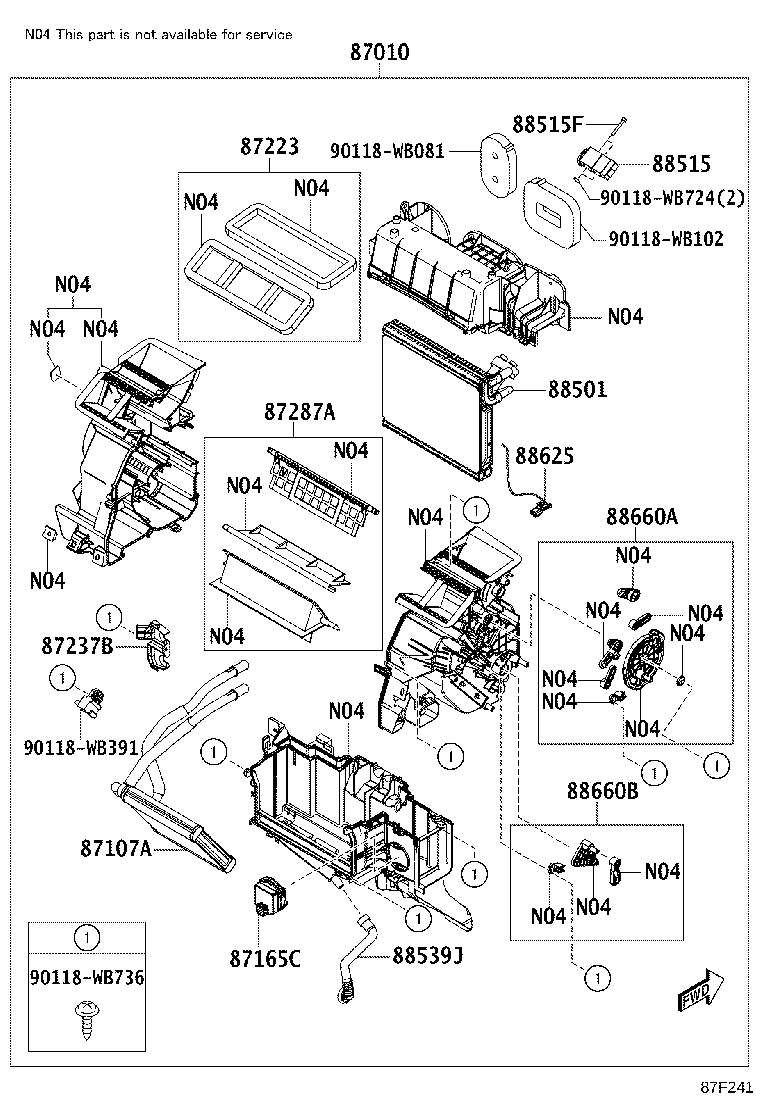

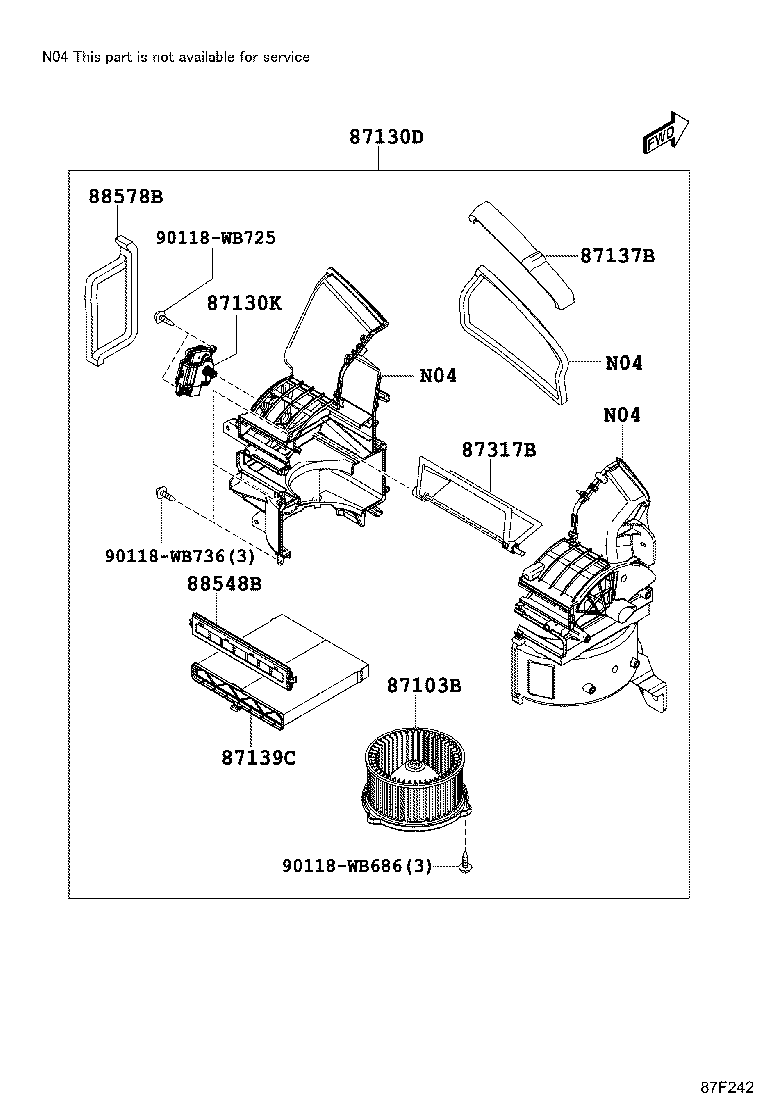

24 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 87010 | Unit Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87130K | Damper Servo Sub-assy, Blower, NO.1 |
| 87137B | Cover, Heater Blower |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87223 | Pad, Air Duct |
| 87237B | Cover, Heater Piping |
| 87287A | Damper, Heater Air |
| 87317B | Damper, Heater Duct |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88660A | Servo Assy, Air Conditioner, NO.1 |
| 88660B | Servo Assy, Air Conditioner, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
