Toyota Scion IA/Yaris R/IA

2015-06 → present · chassis DADW,DAE#,DB7P,DD1#,DDF#,DM0# · catalogue 141480 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 7 illustrations

Illustrations

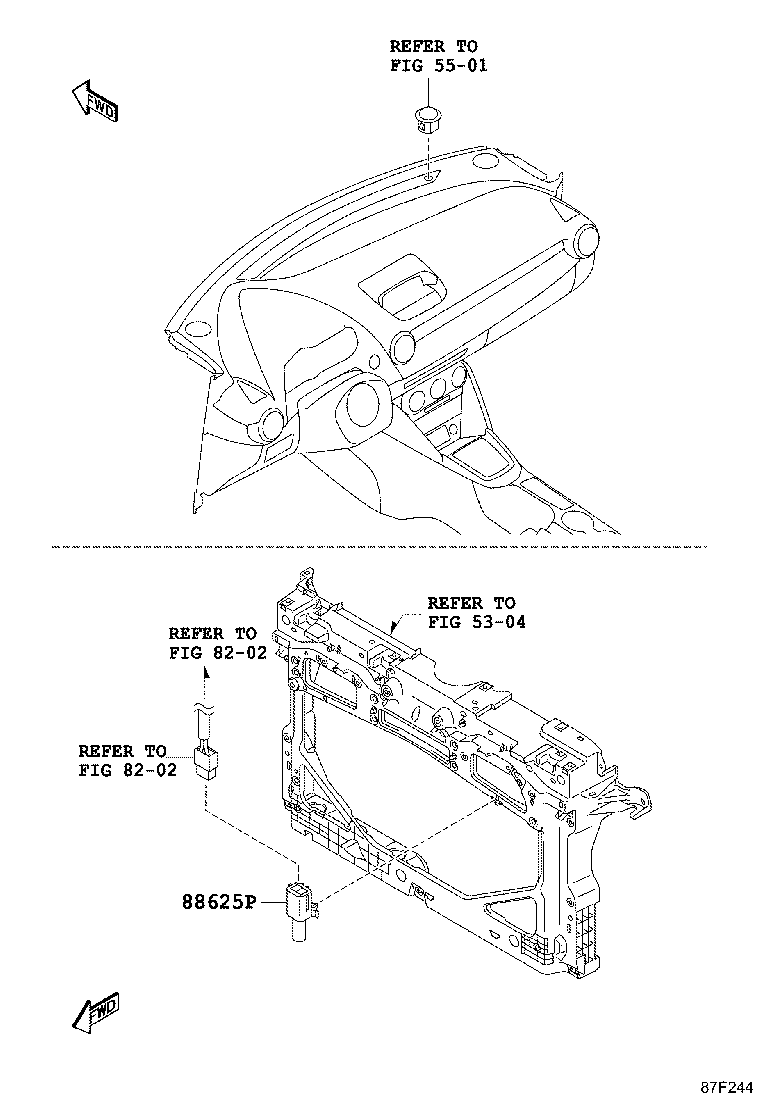

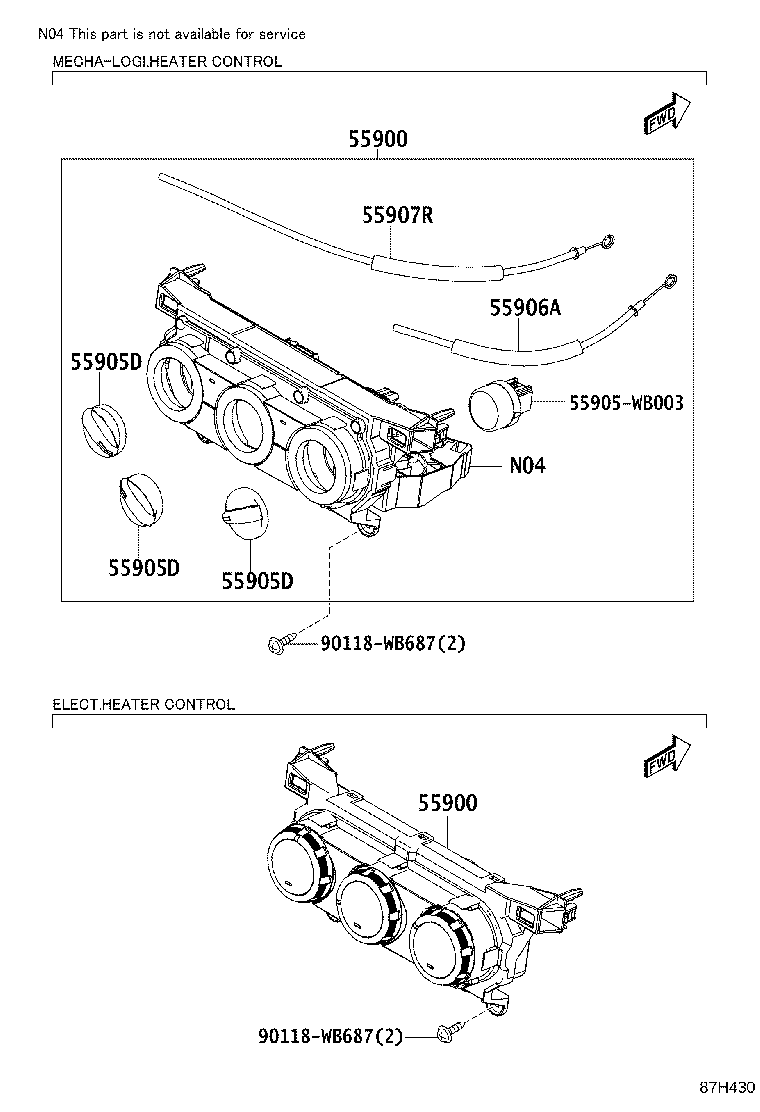

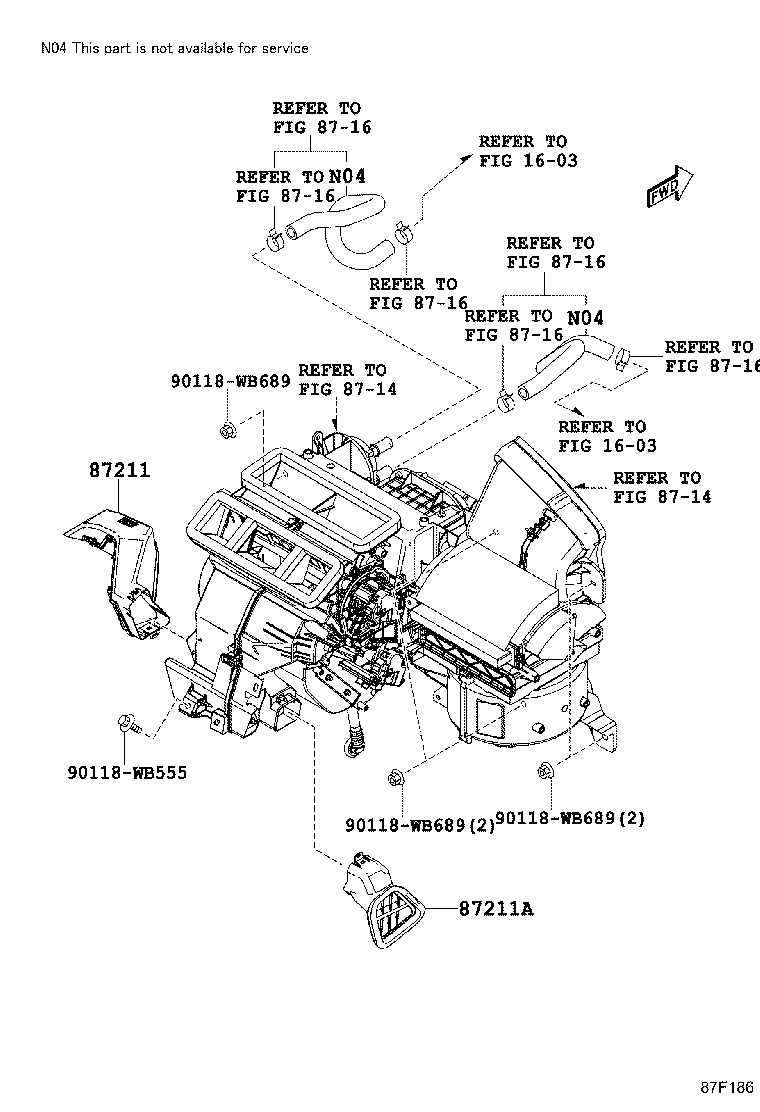

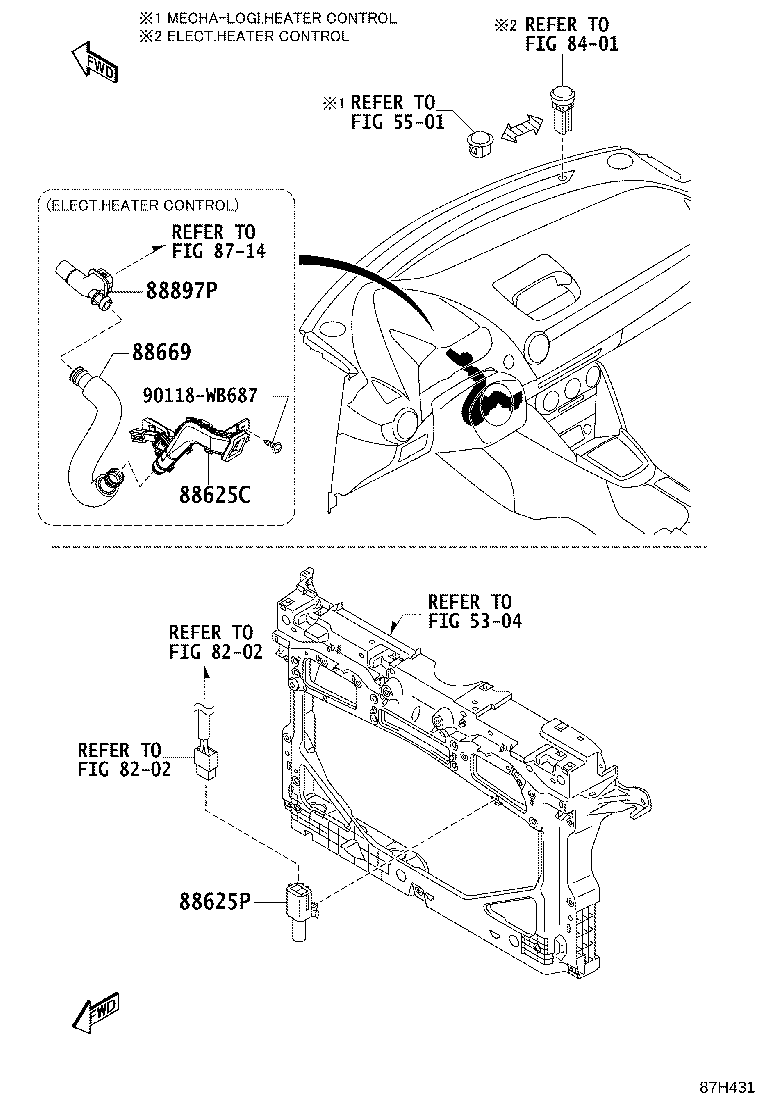

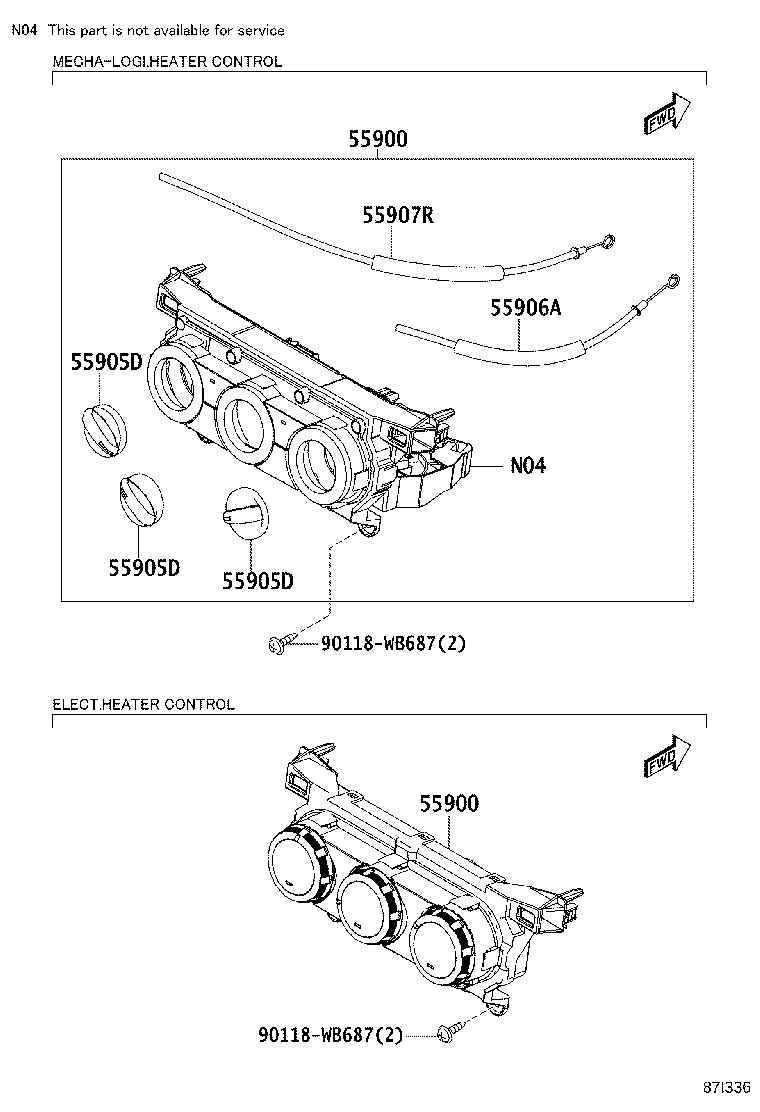

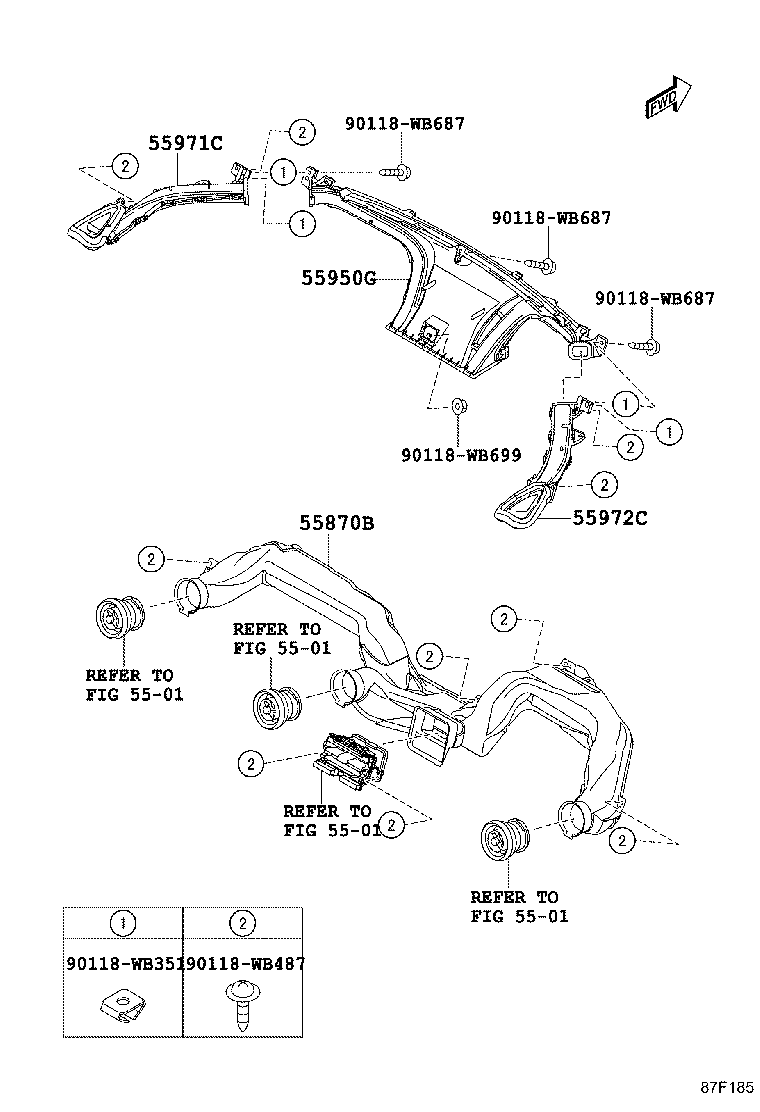

Figure 87F243 87F243 2015-06 → 2018-08 Figure 87H430 87H430 2018-08 → 2019-08 Figure 87I336 87I336 2019-08 → — Figure 87F185 87F185 2015-06 → — Figure 87F186 87F186 2015-06 → — Figure 87F244 87F244 2015-06 → 2018-08 Figure 87H431 87H431 2018-08 → —

Part groups

PNCDescription
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55907R Cable Sub-assy, Temperature Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88625C Thermistor, Cooler
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88669 Hose, Cooler Air
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
