Toyota Paseo
1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · United States
Discontinued model
Data version 2000-02

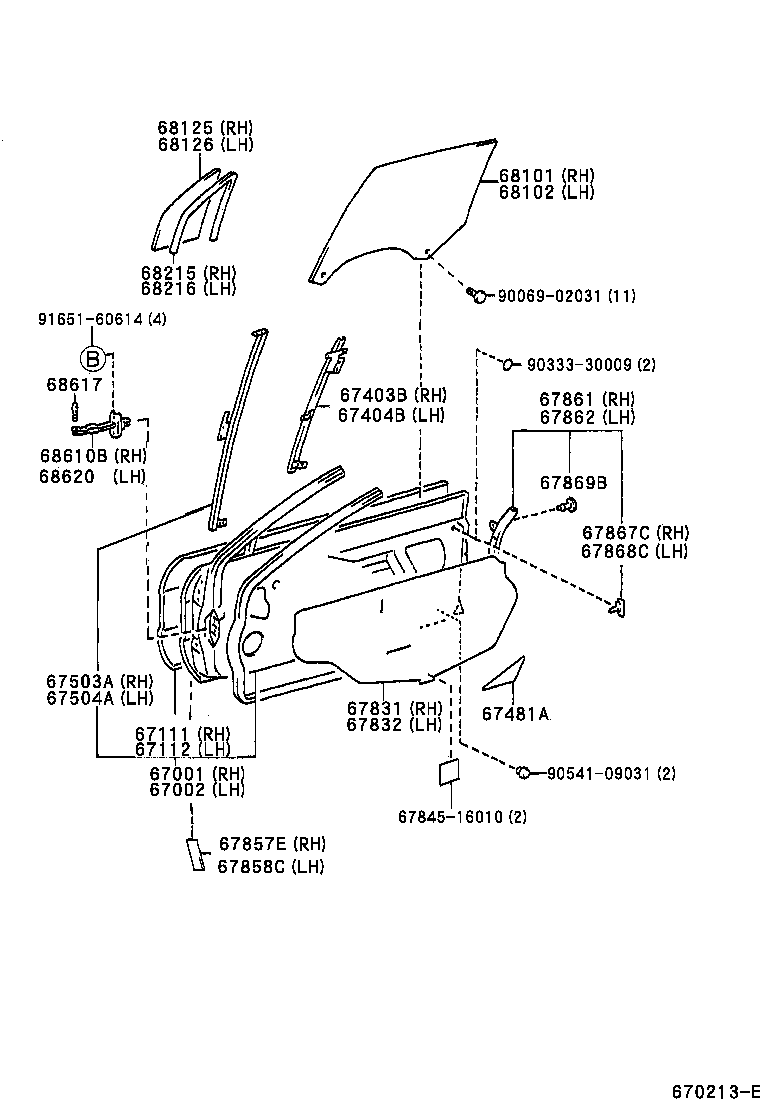

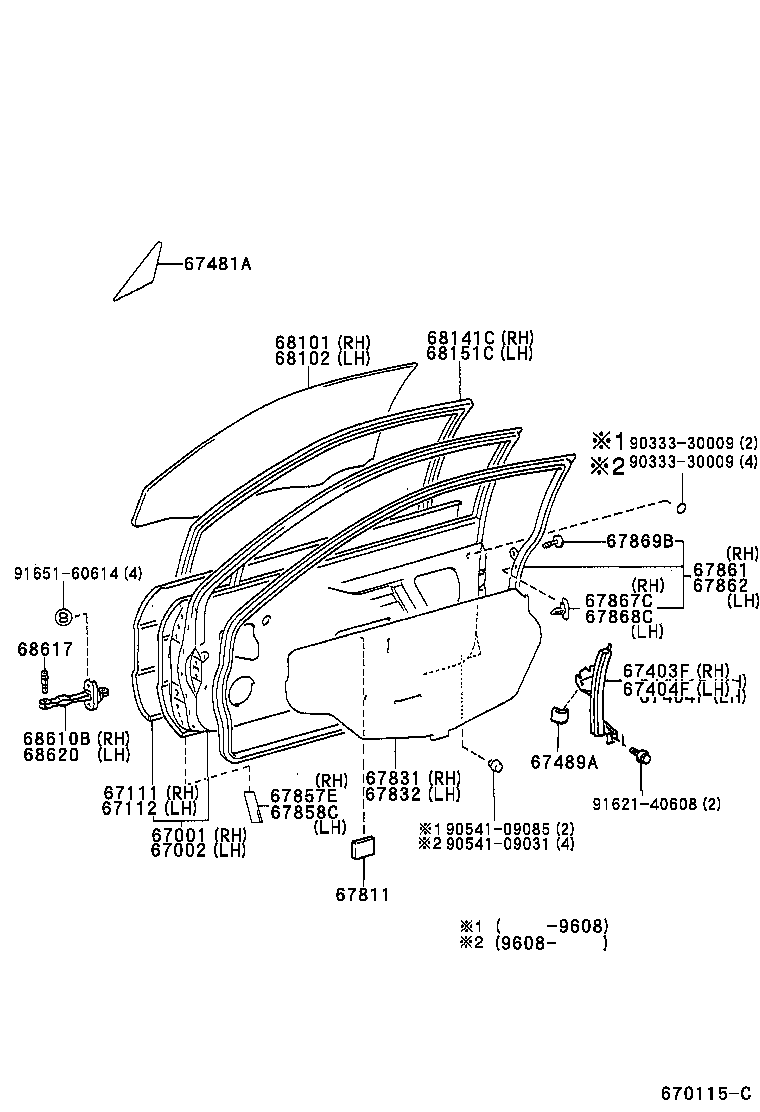

Front Door Panel & Glass
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67403B | Guide Sub-assy, Front Door Window, Rear RH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404B | Guide Sub-assy, Front Door Window, Rear LH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67489A | Seal, Front Door Front Lower Frame Cover |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67503A | Bar Sub-assy, Front Door Division, RH |
| 67504A | Bar Sub-assy, Front Door Division, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601H | Retainer, Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67602A | Retainer, Door Trim, LH |
| 67651H | Grille, Speaker Door, RH |
| 67652C | Grille, Speaker Door, LH |
| 67785E | Holder, Front Door Lock Control Knob, RH |
| 67785F | Holder, Front Door Lock Control Knob, LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67857E | Protector, Rear Door Panel, RH |
| 67858C | Protector, Rear Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68125 | Glass, Front Door Fix Window, RH |
| 68126 | Glass, Front Door Fix Window, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68215 | Weatherstrip, Front Door Fix Window, RH |
| 68216 | Weatherstrip, Front Door Fix Window, LH |
| 68610B | Check Assy, Front Door, RH |
| 68617 | Pin, Front Door Check |
| 68620 | Check Assy, Front Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
