Toyota Paseo

1995-08 → 1999-07 · chassis EL54 · catalogue 144420 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 3 illustrations

Illustrations

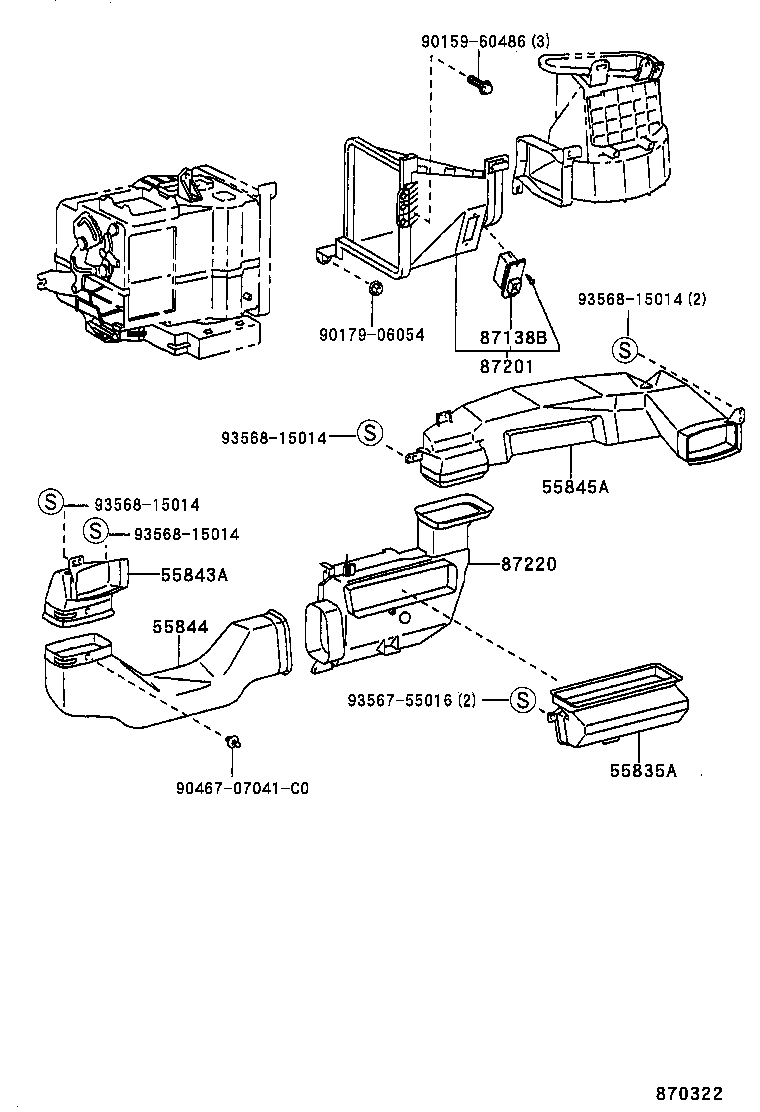

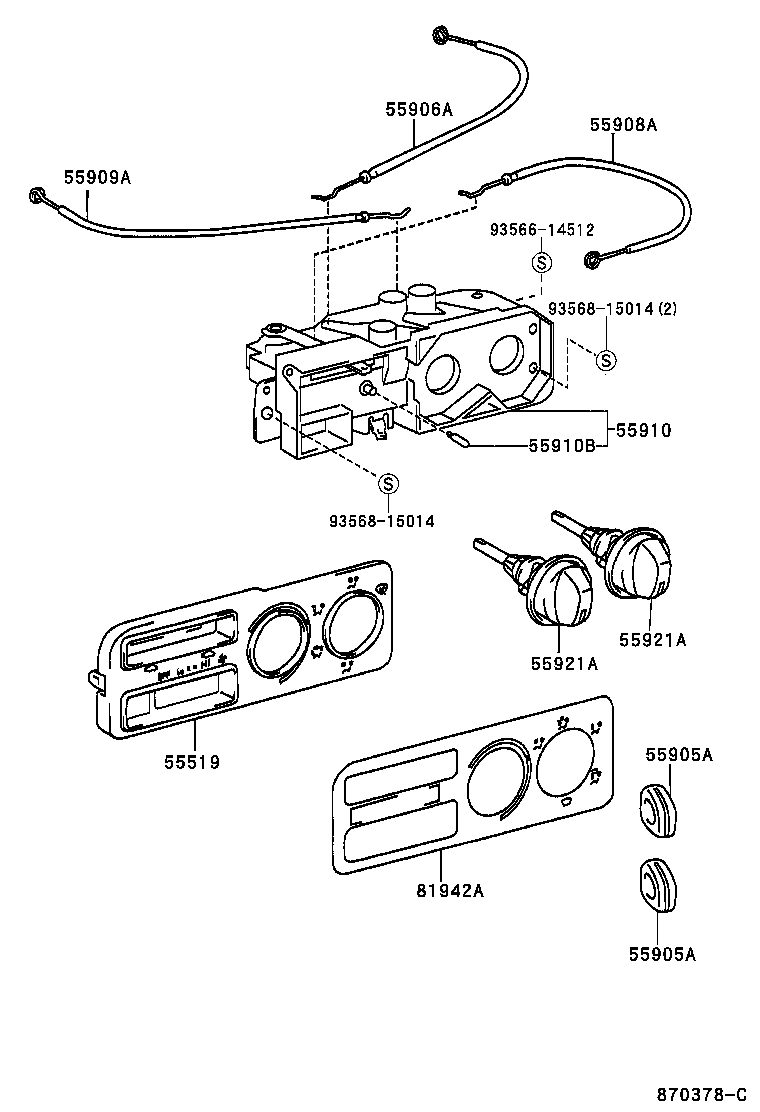

Figure 870317 870317 1995-08 → 1996-08 Figure 870378C 870378C 1996-08 → — Figure 870322 870322 1995-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55921A Retainer, Heater Control
81942A Sheet, Heater Control Name, NO.1
87138B Resistor, Heater Blower
87201 Duct Sub-assy, Air, NO.1
87220 Duct Assy, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
