Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

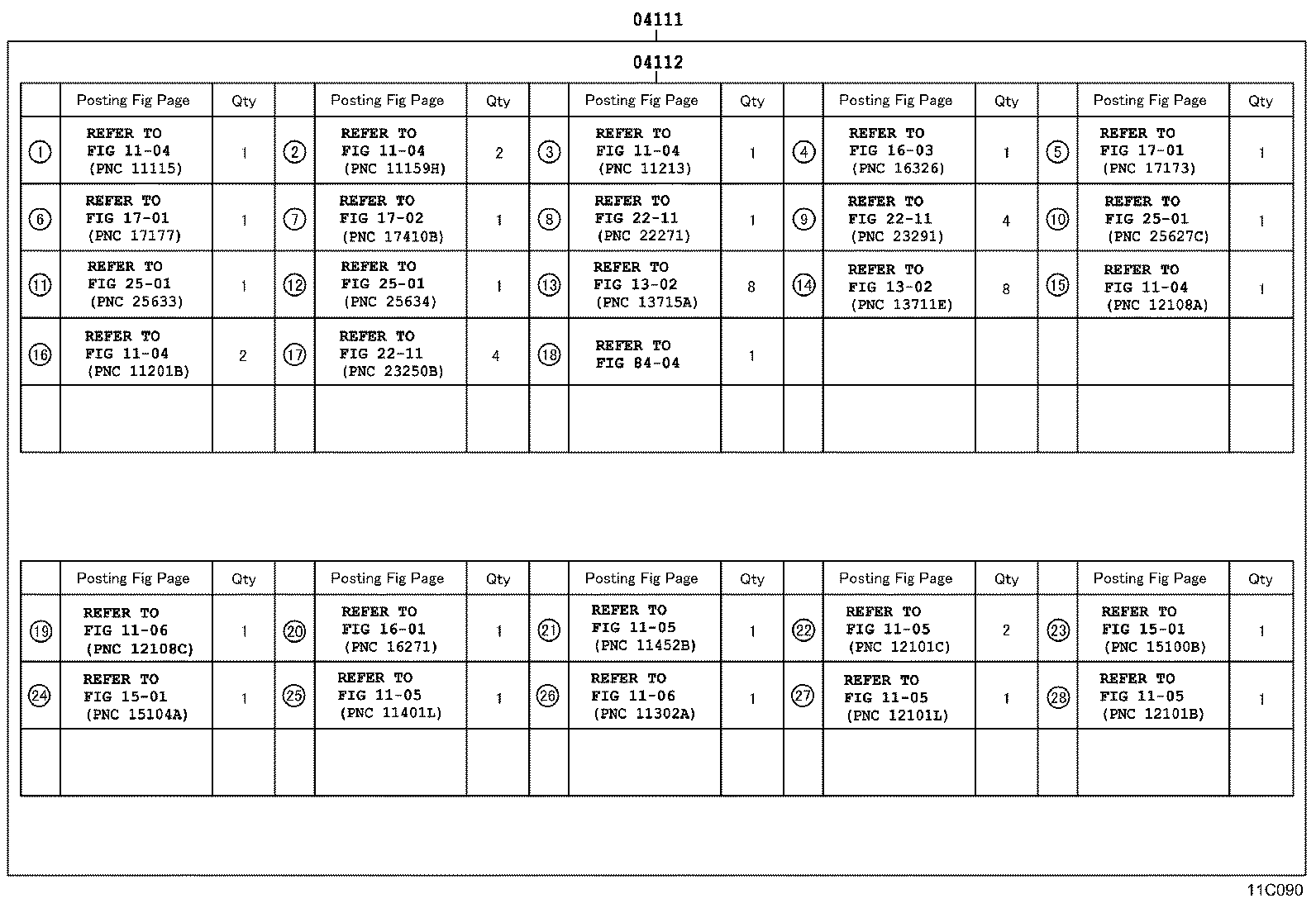

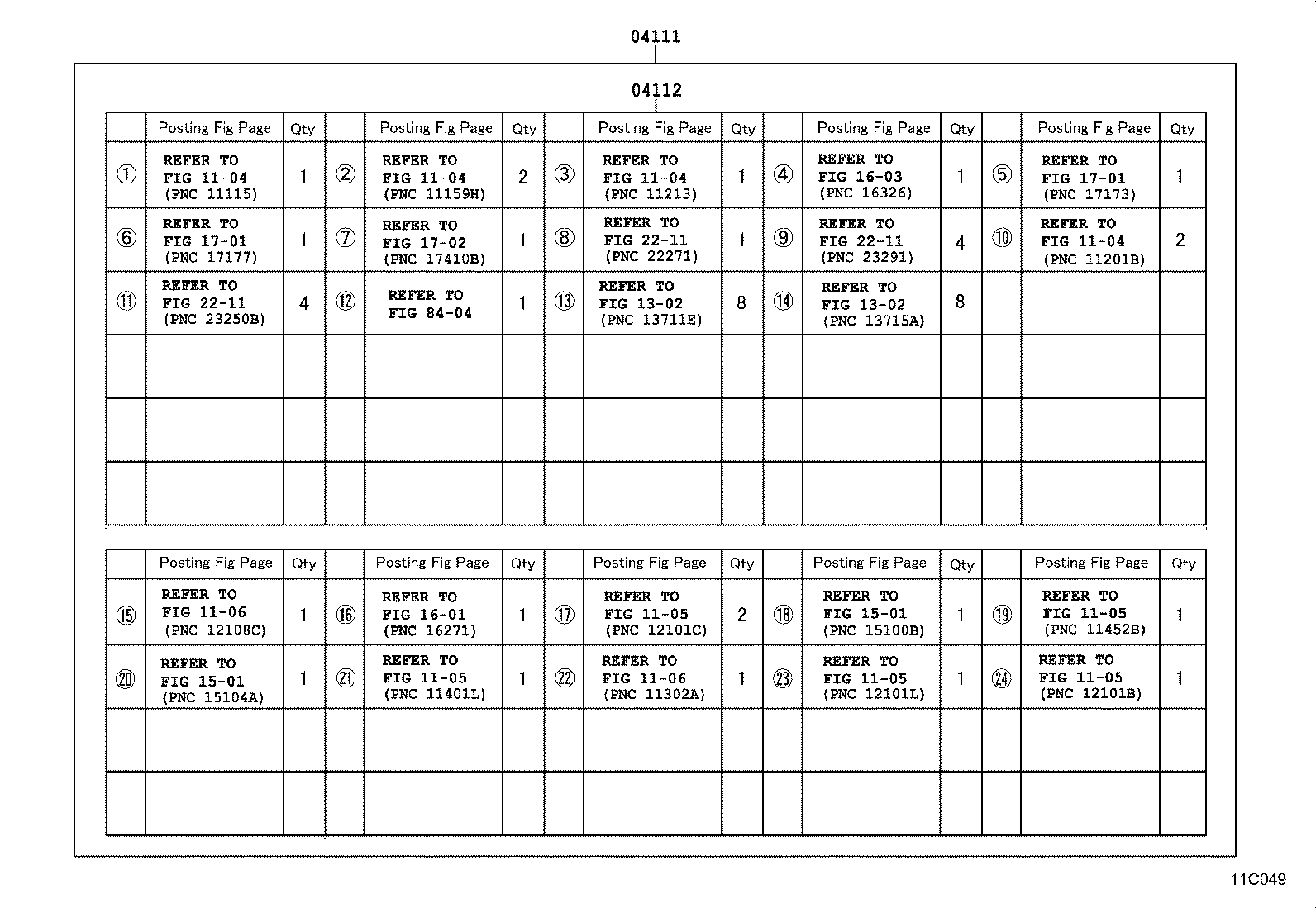

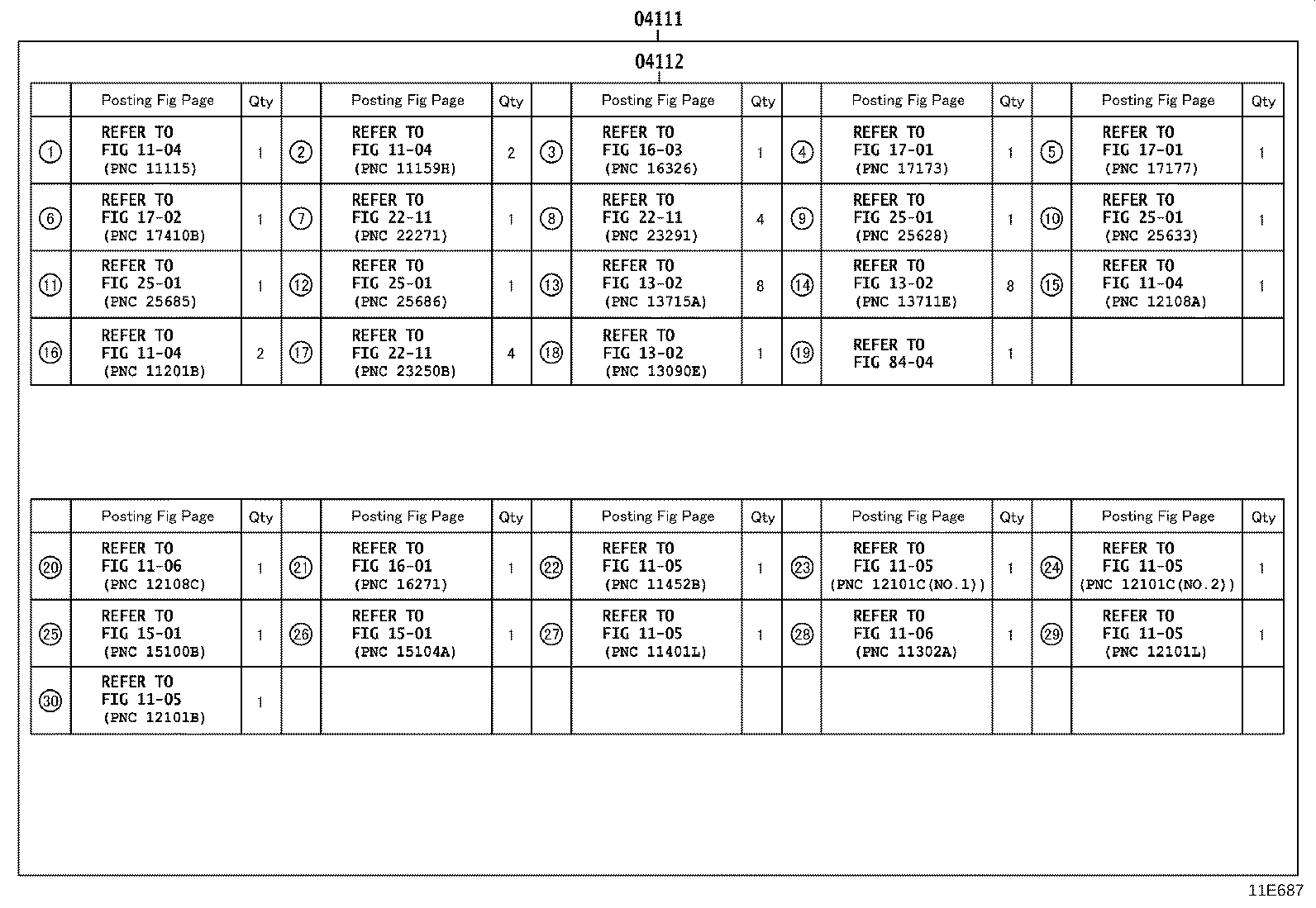

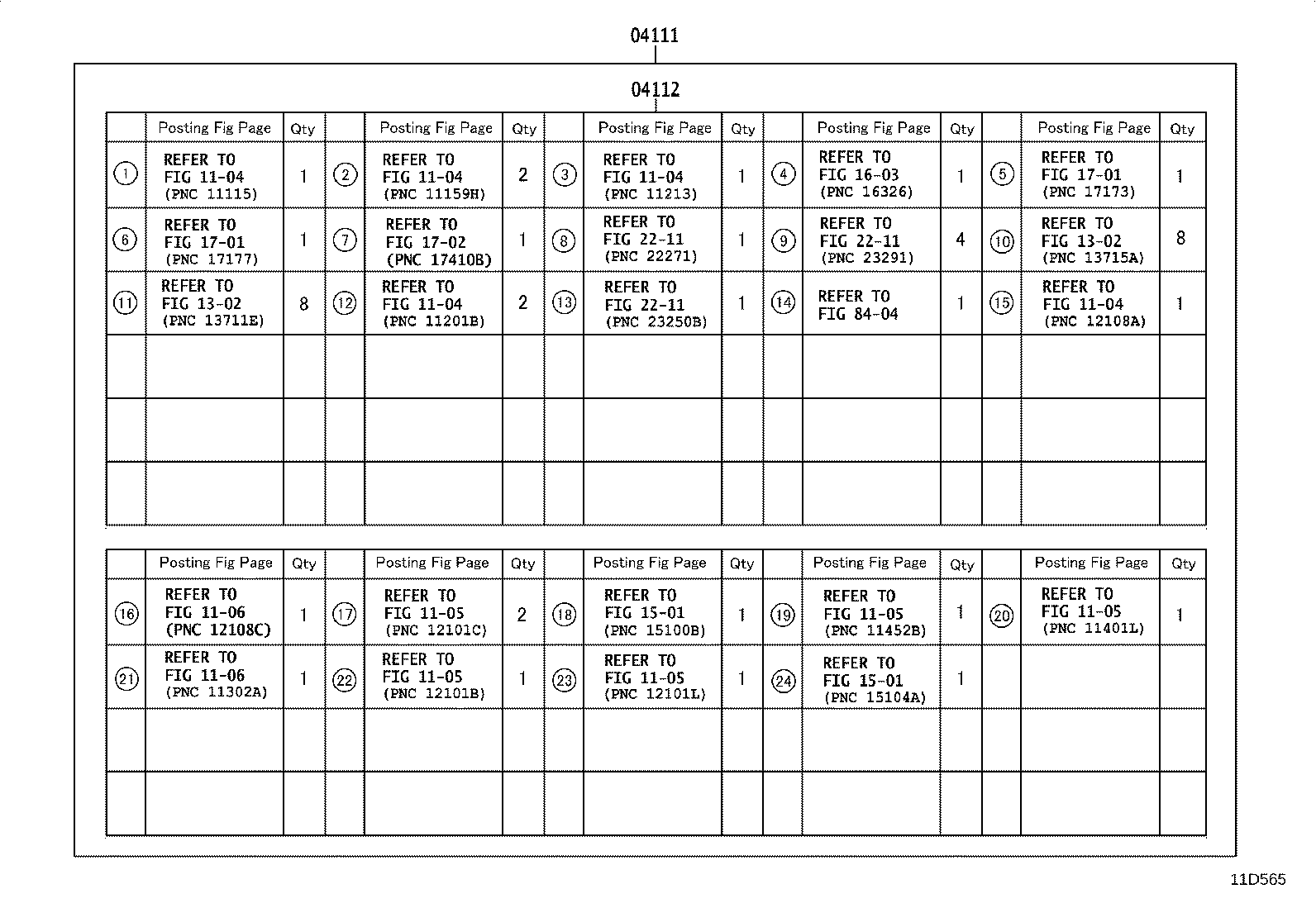

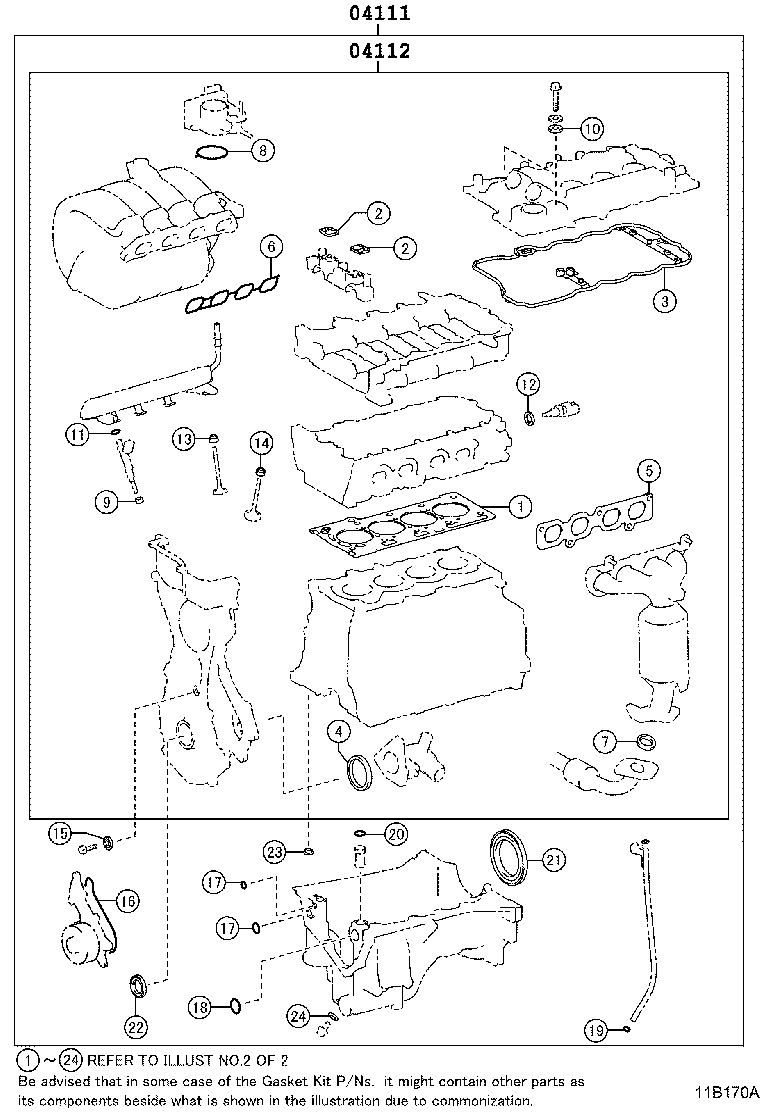

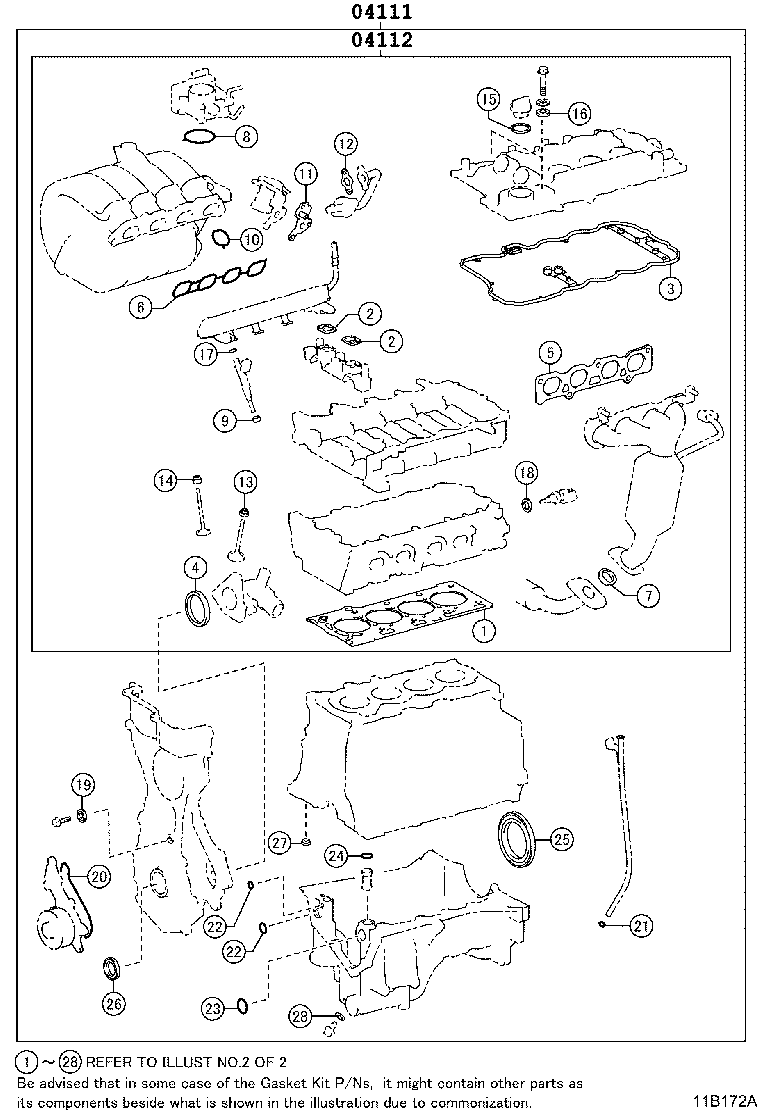

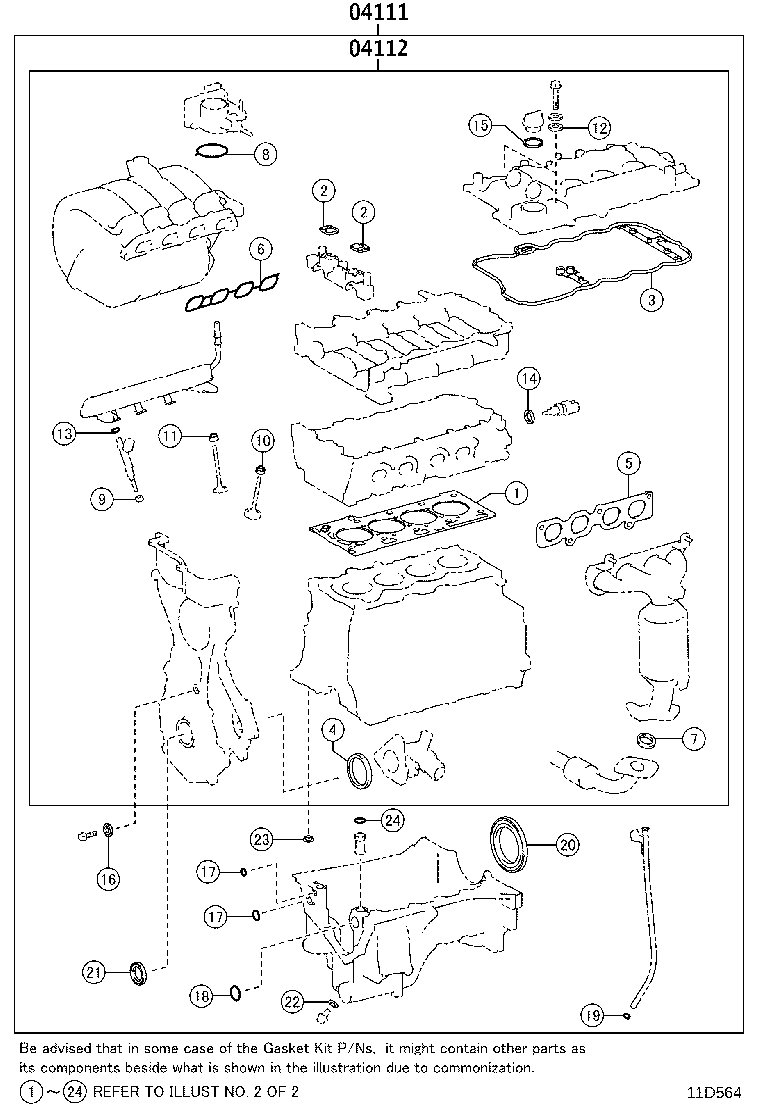

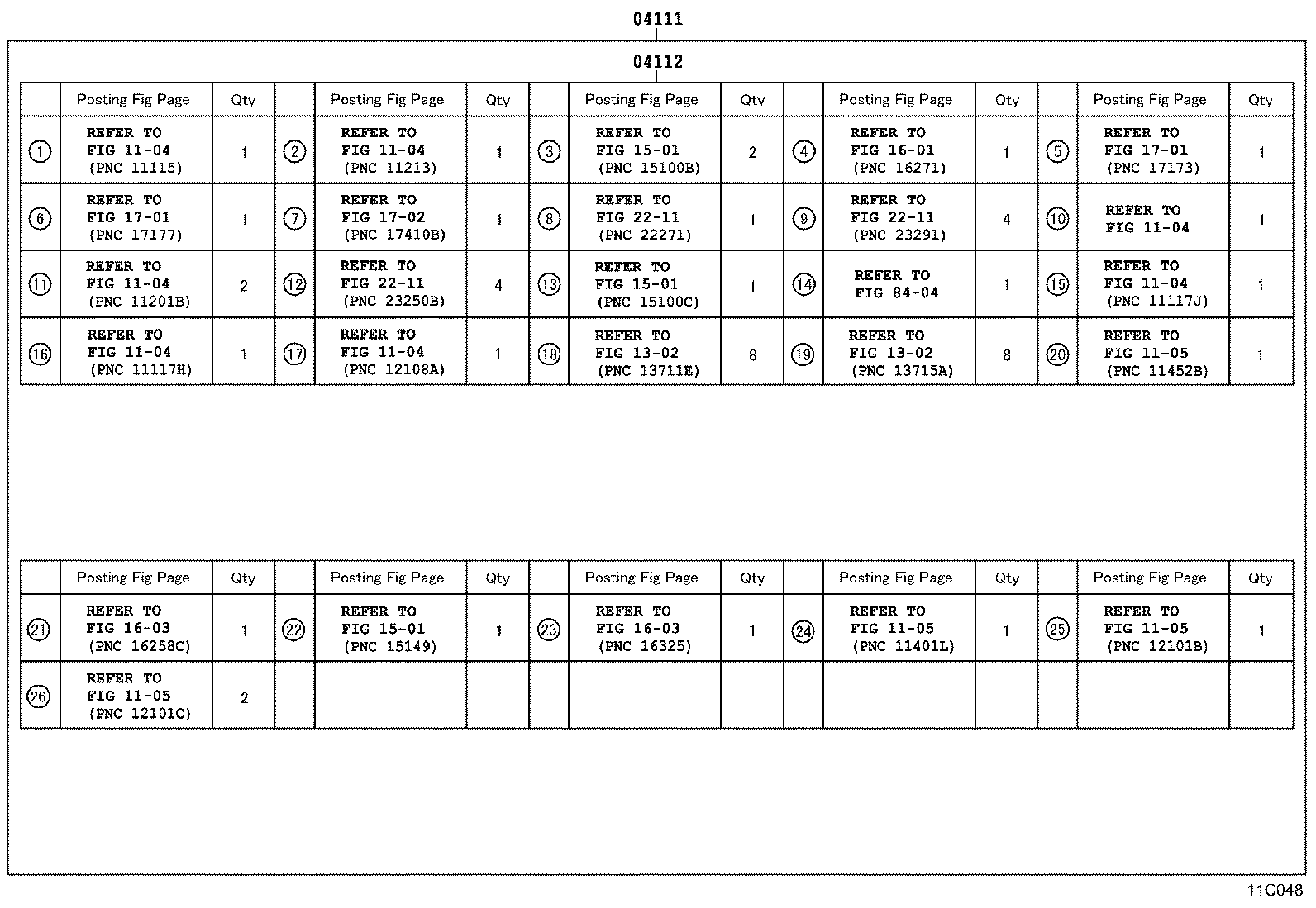

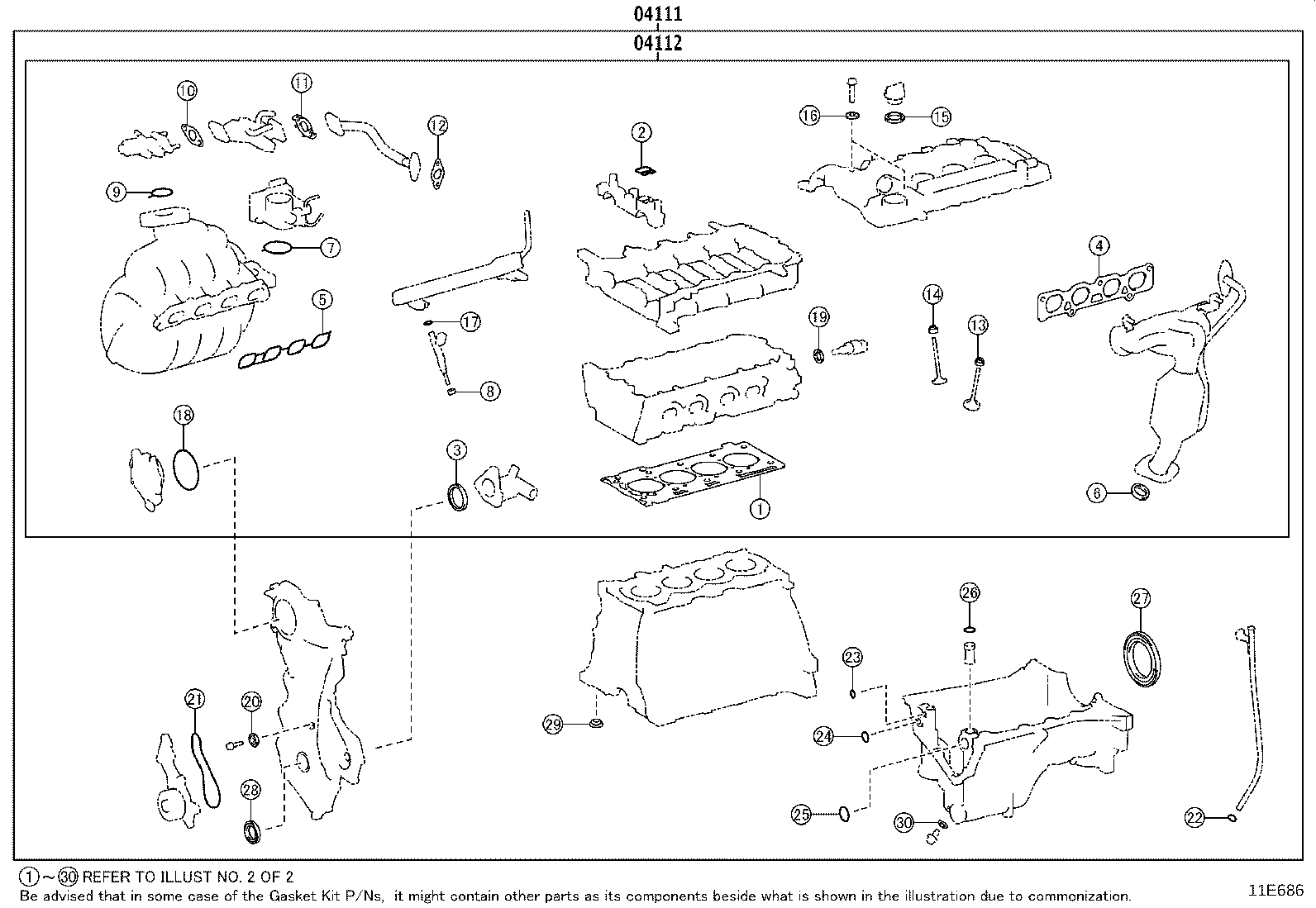

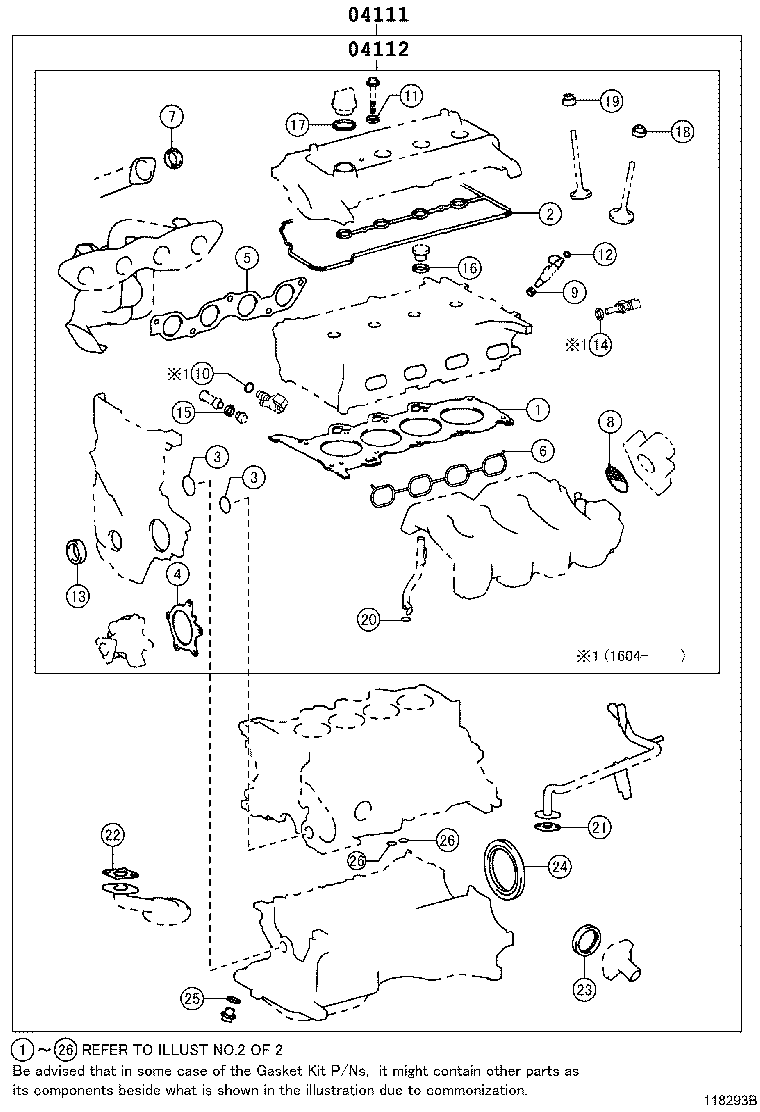

Figure 118293B 118293B 2013-04 → — Figure 11C048 11C048 2013-04 → — Figure 11B170A 11B170A 2016-04 → — Figure 11C049 11C049 2016-04 → — Figure 11B172A 11B172A 2017-08 → — Figure 11C090 11C090 2017-08 → — Figure 11D564 11D564 2018-07 → — Figure 11D565 11D565 2018-07 → — Figure 11E686 11E686 2019-11 → — Figure 11E687 11E687 2019-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
