Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

32 part groups · 8 illustrations

Illustrations

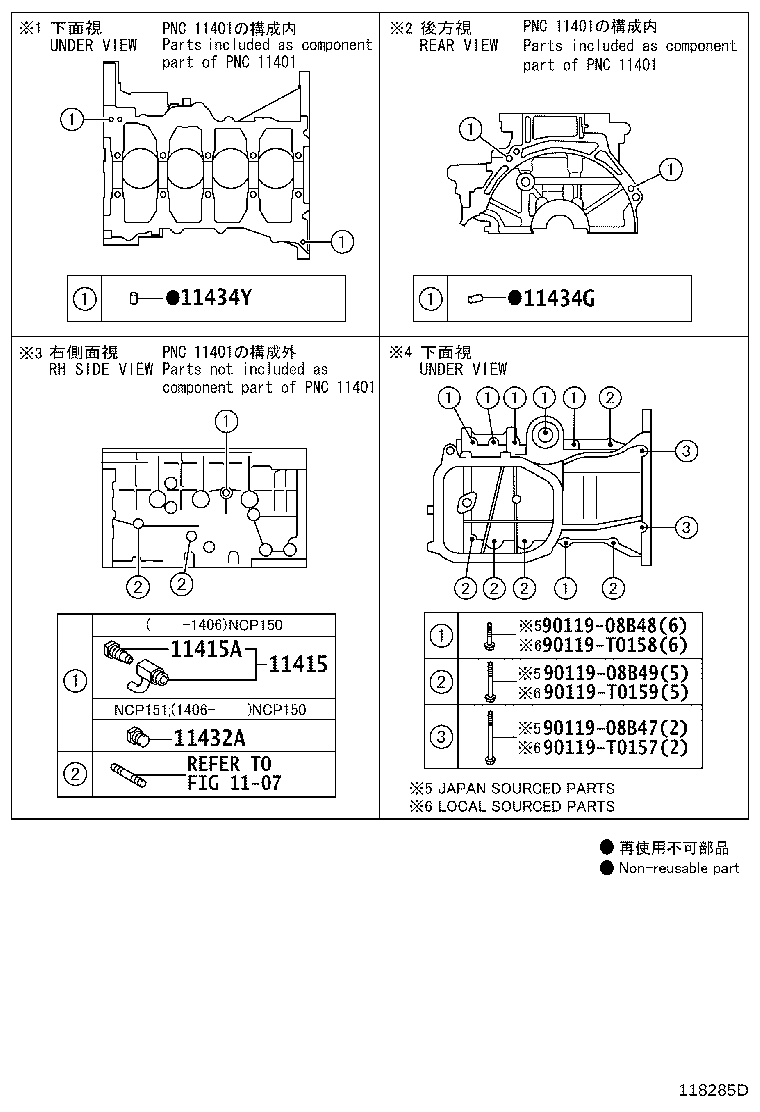

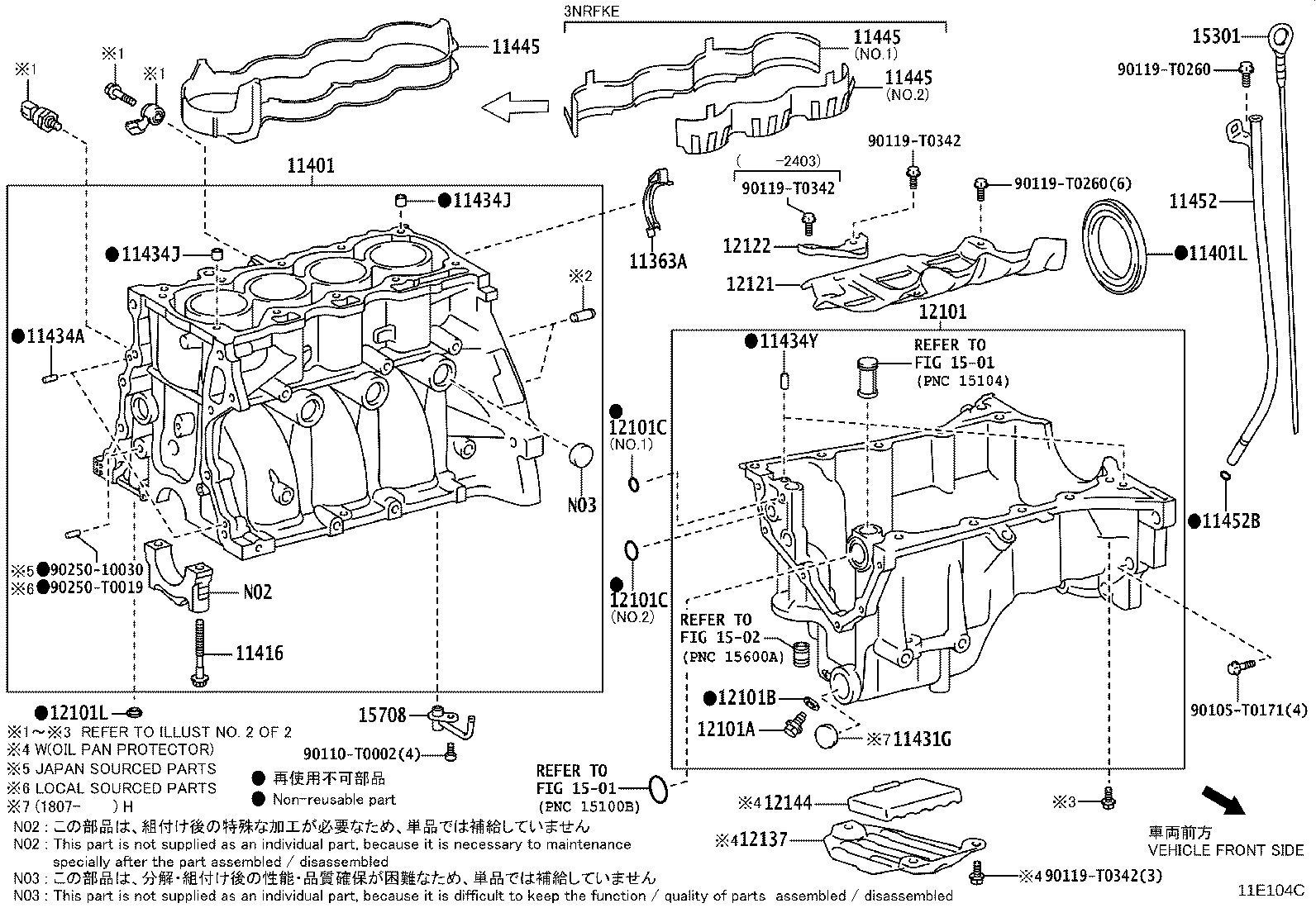

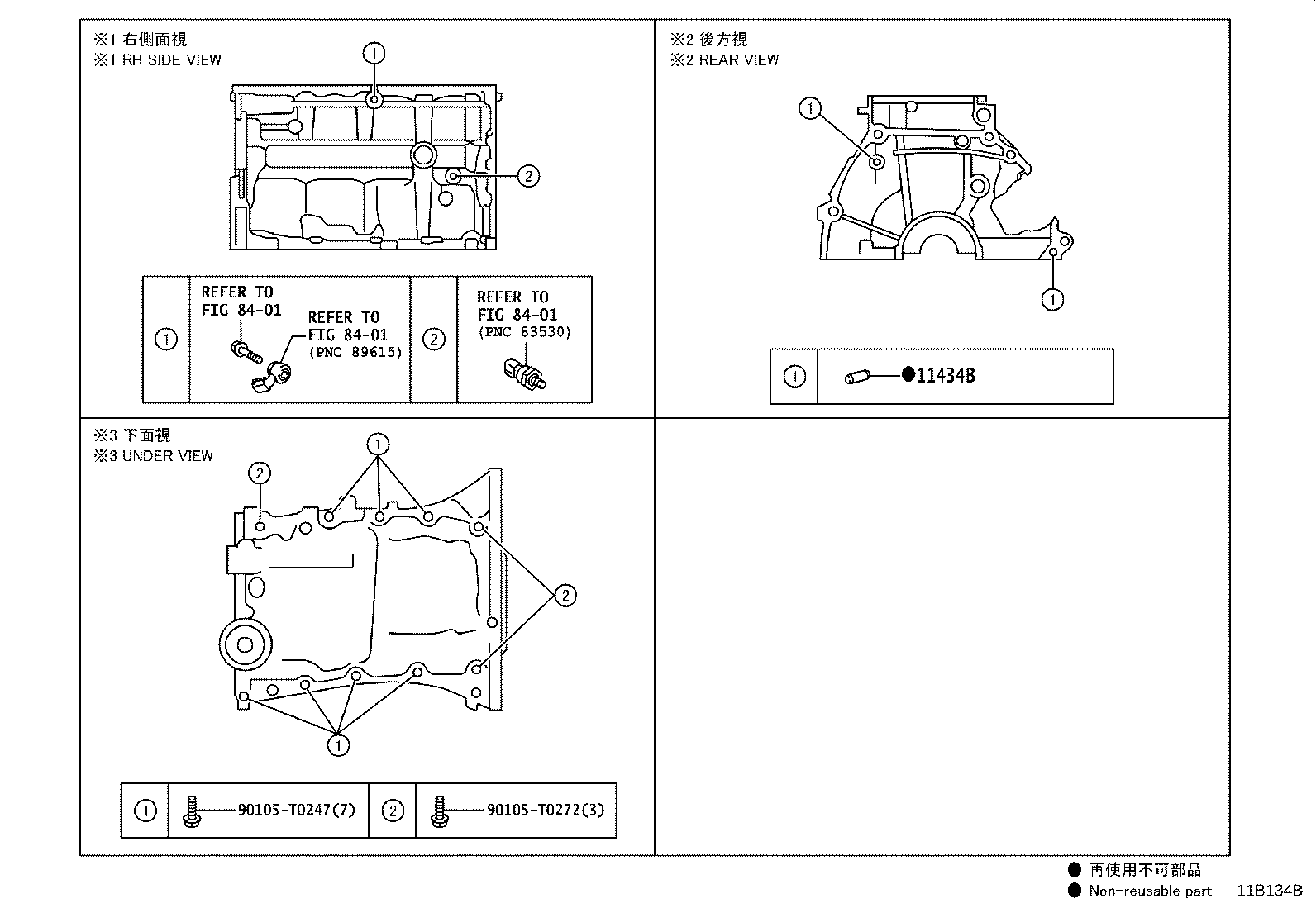

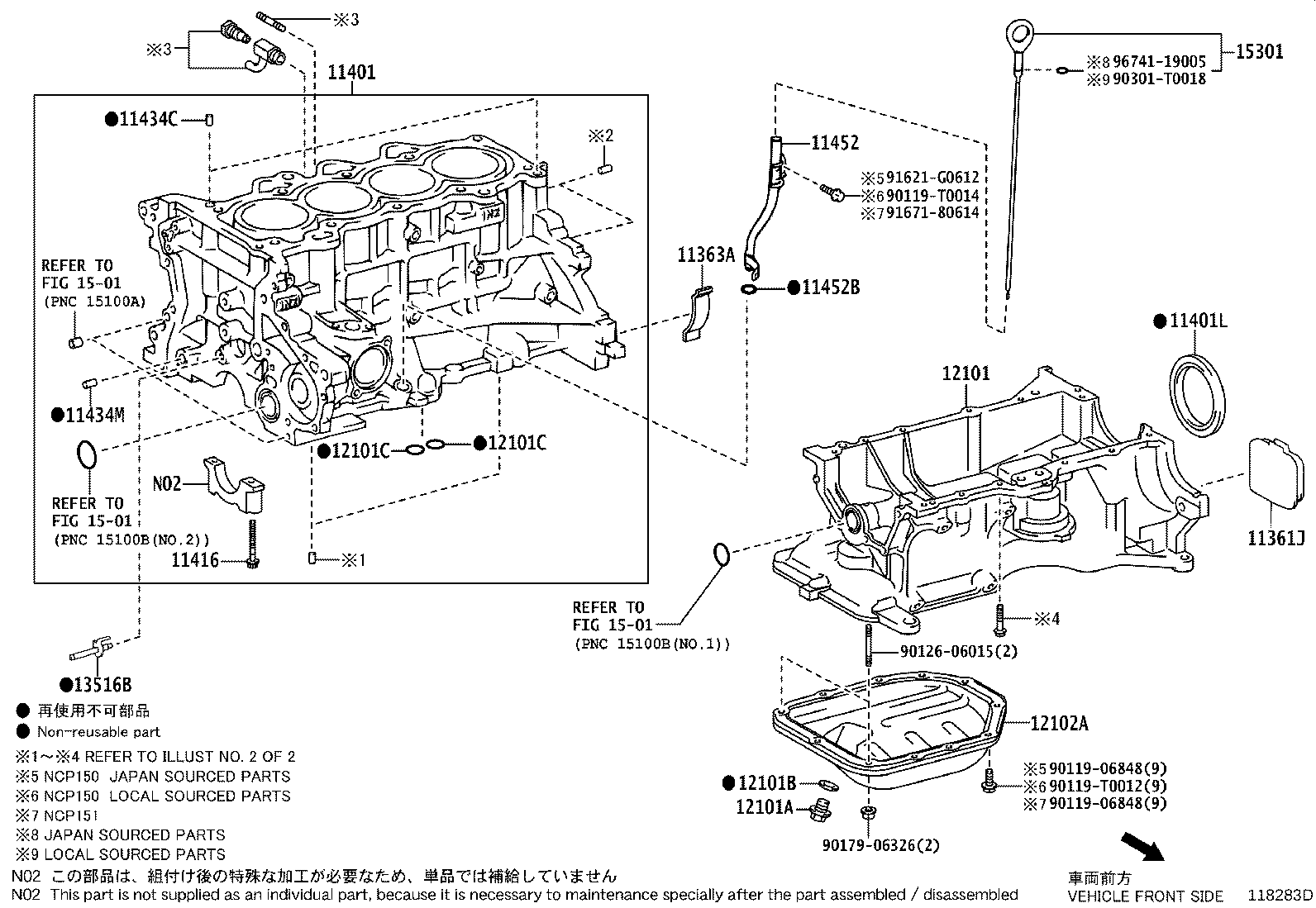

Figure 118283D 118283D 2013-04 → — Figure 11E104C 11E104C 2016-04 → — Figure 11E104C 11E104C 2018-07 → — Figure 11E104C 11E104C 2018-07 → — Figure 118285D 118285D 2013-04 → — Figure 11B134B 11B134B 2016-04 → — Figure 11B134B 11B134B 2018-07 → — Figure 11B134B 11B134B 2018-07 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401L Seal, Engine Rear Oil
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11431G Plug, Tight
11432A Plug, W/Head Taper Screw, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434G Pin, Straight(FOR END PLATE)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434M Pin, Straight(FOR CHAIN TENSIONER)
11434Y Pin, Straight(FOR OIL PAN)
11445 Spacer, Cylinder Block Water Jacket
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12101L Gasket NO.1(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12122 Plate, Oil Pan Baffle, NO.2
12137 Protector, Oil Pan
12144 Silencer, Oil Pan Cover
13516B Jet, Oil
15301 Gage Sub-assy, Oil Level
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
