Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

12 part groups · 3 illustrations

Illustrations

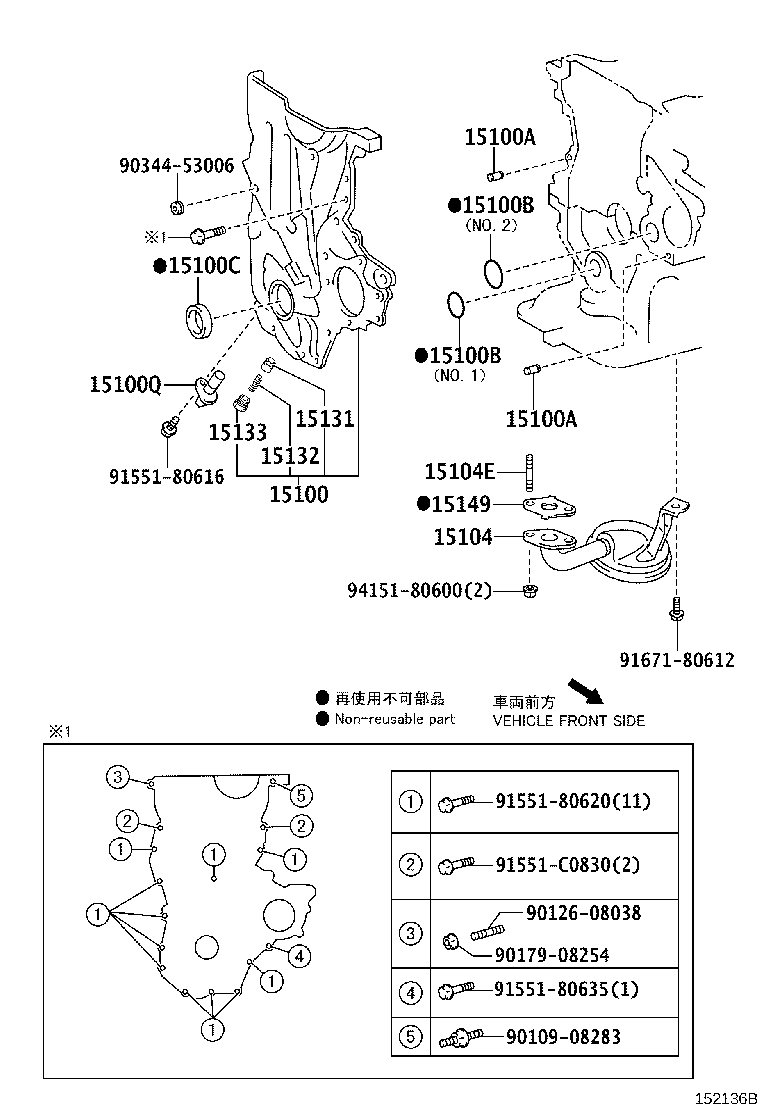

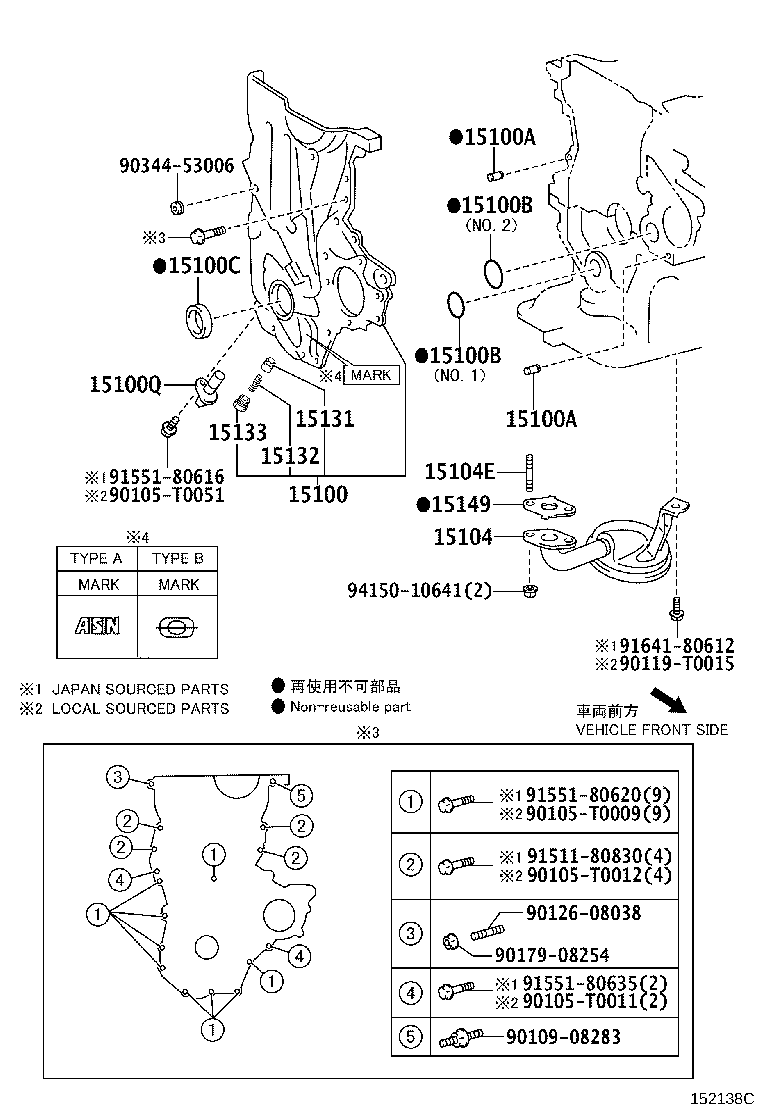

Figure 152138C 152138C 2013-04 → — Figure 152136B 152136B 2013-07 → — Figure 152501A 152501A 2016-04 → —

Part groups

PNCDescription
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100Q Sensor, Crank Position
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
