Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

5 part groups · 15 illustrations

Illustrations

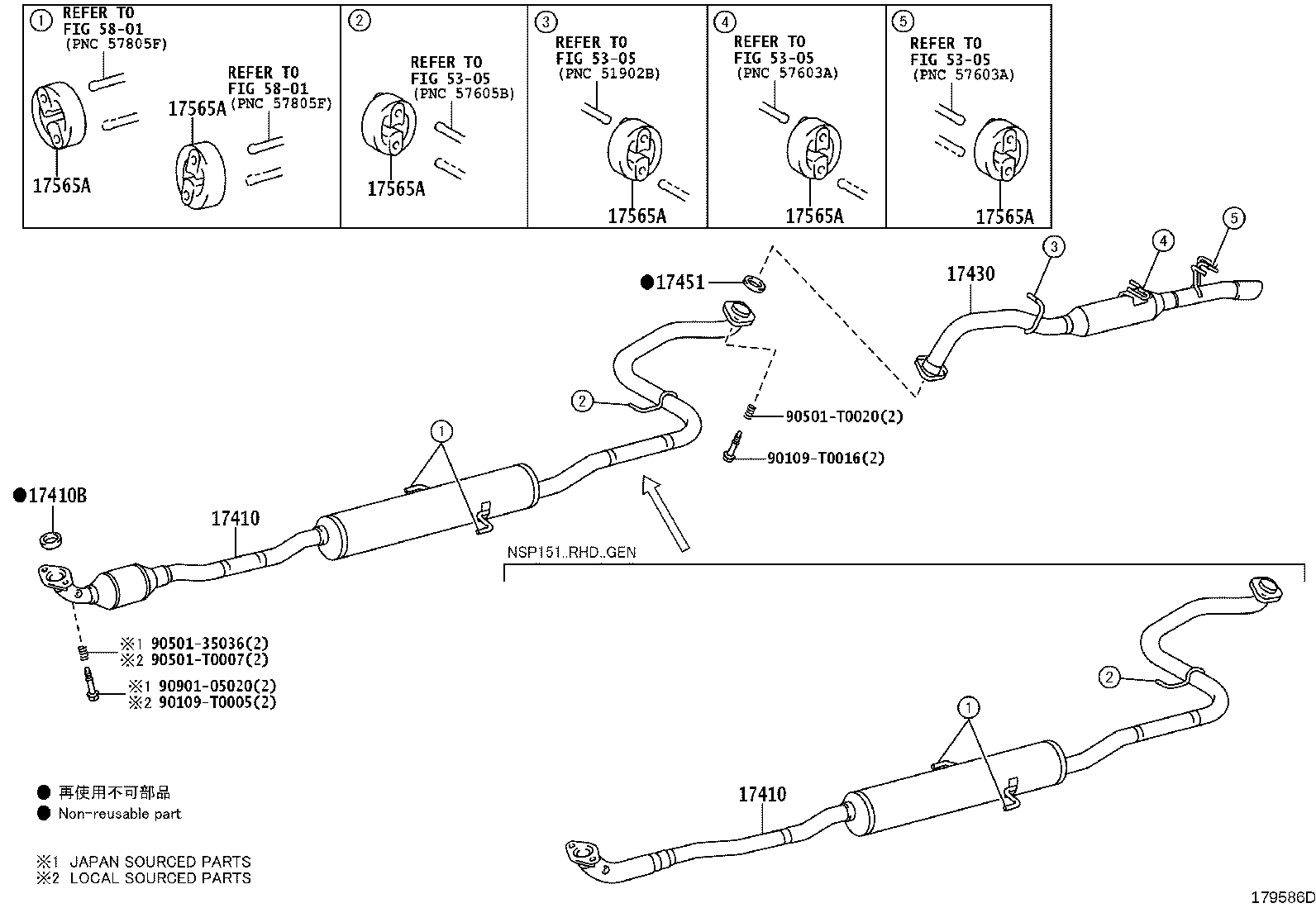

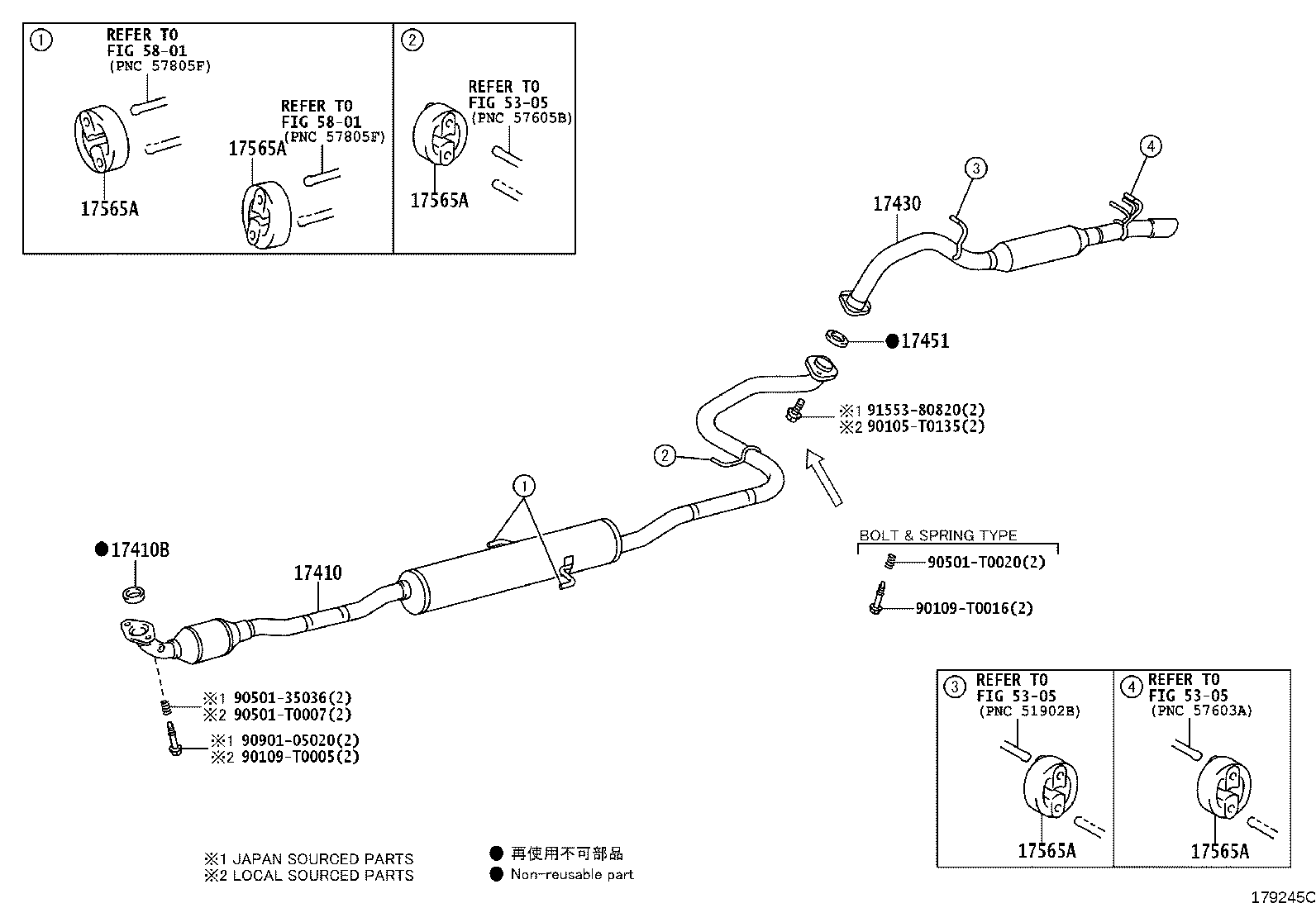

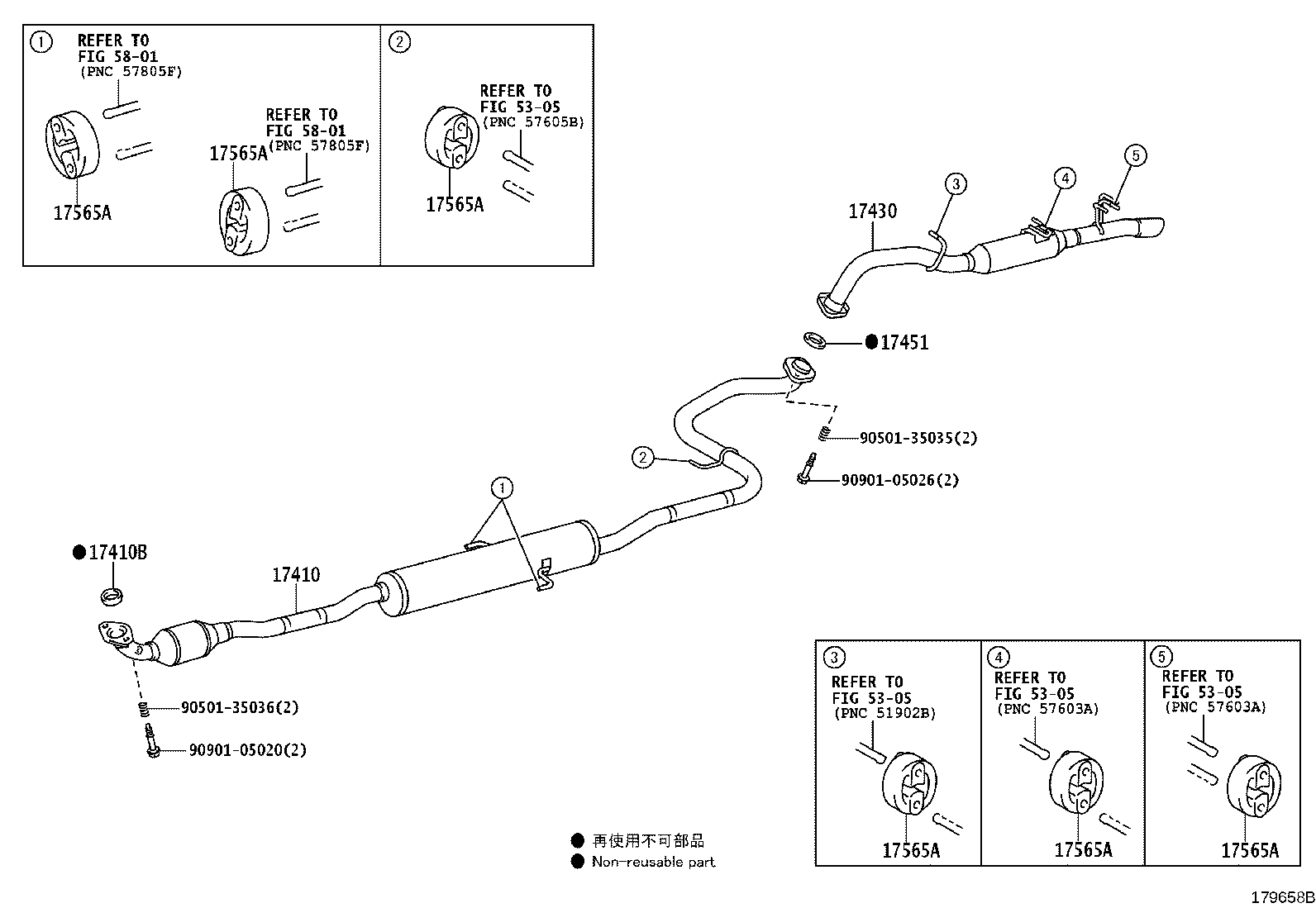

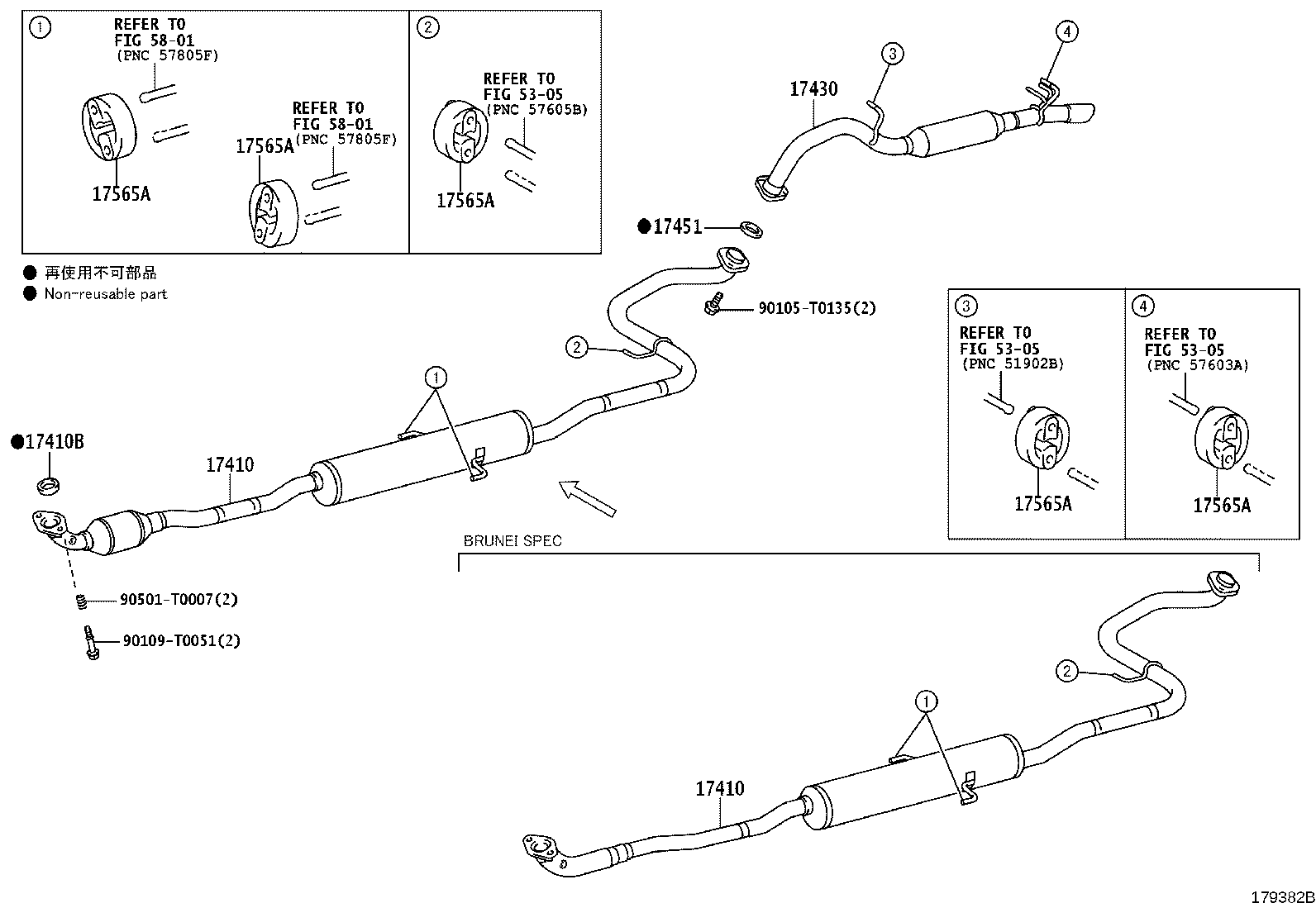

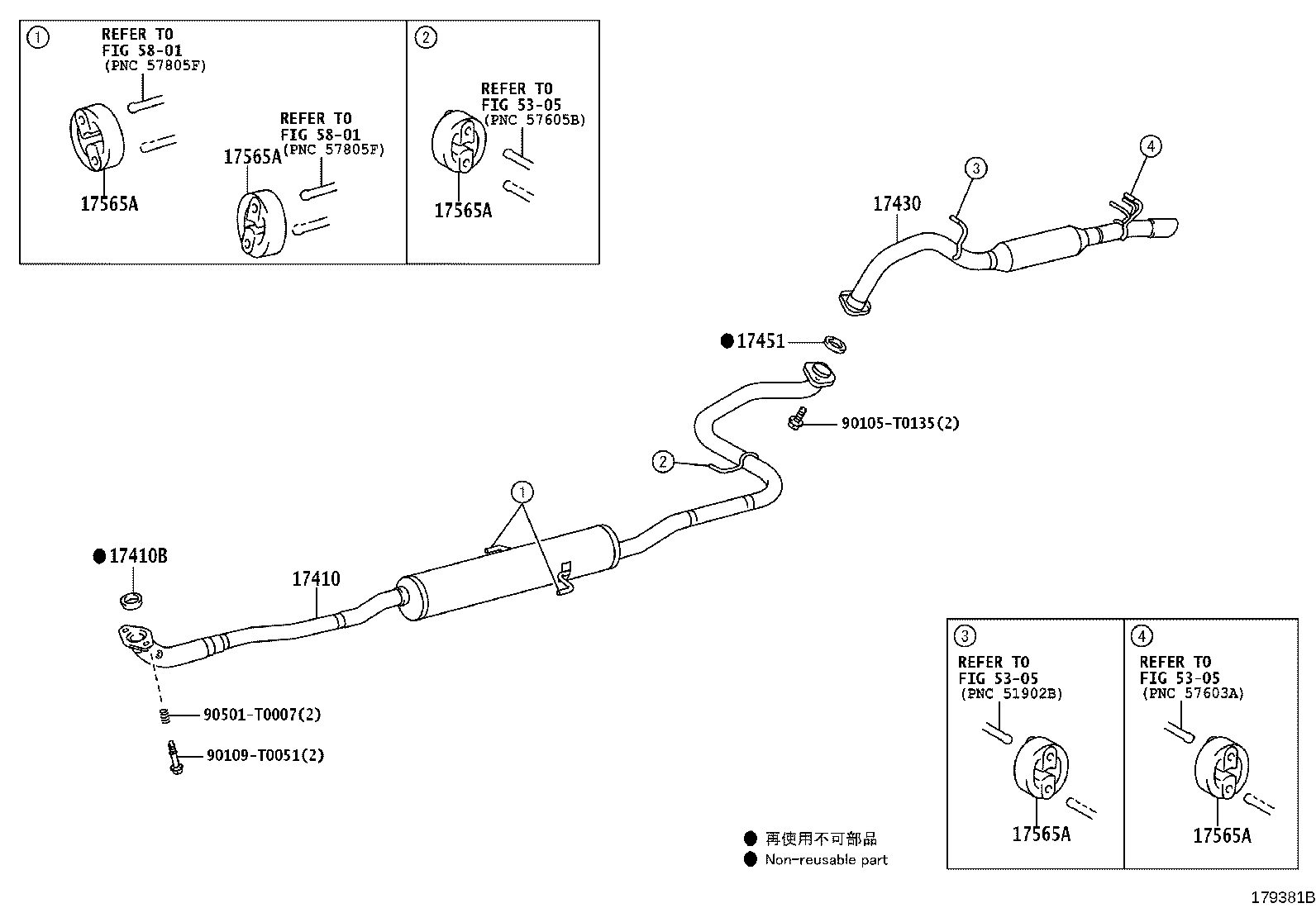

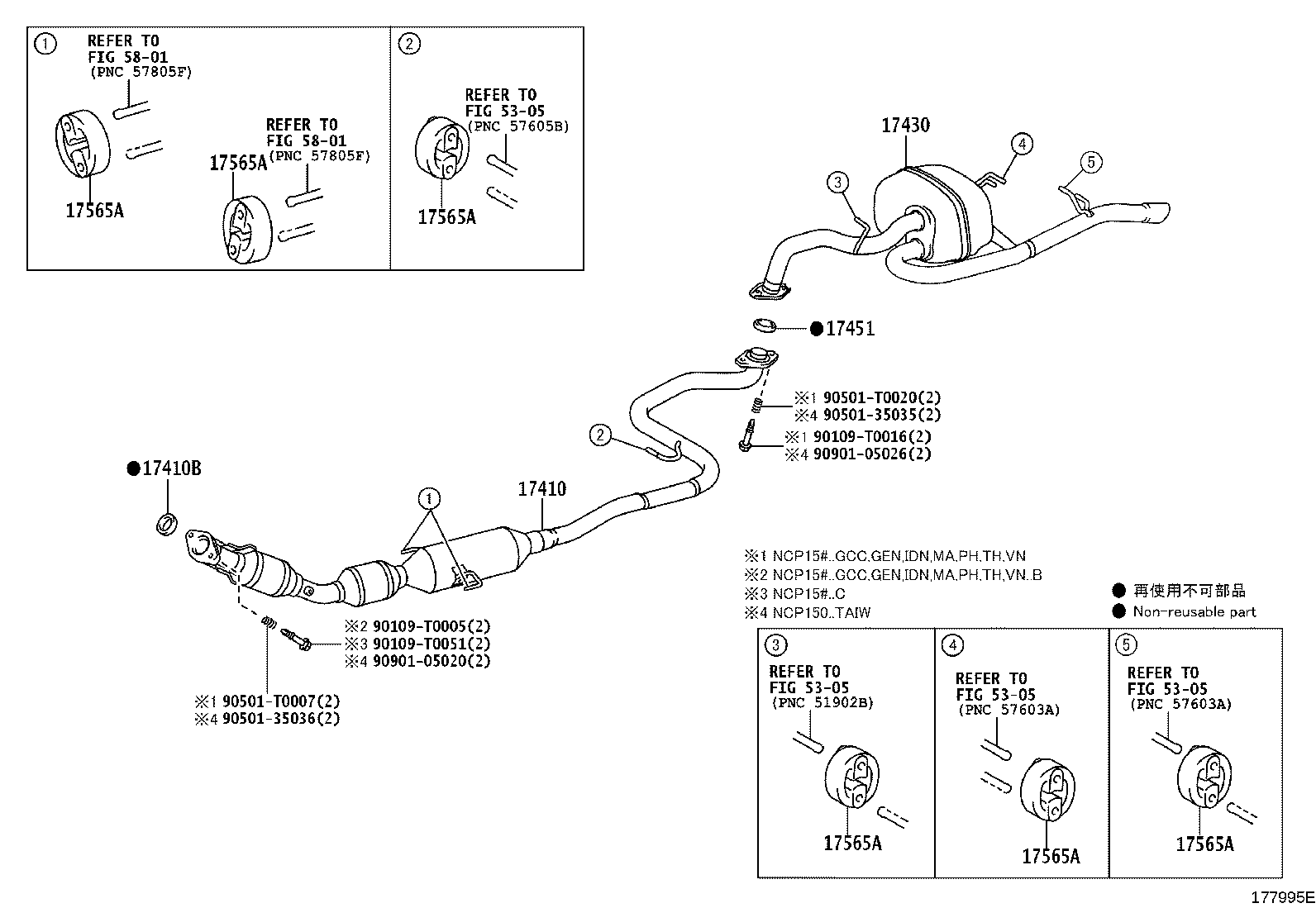

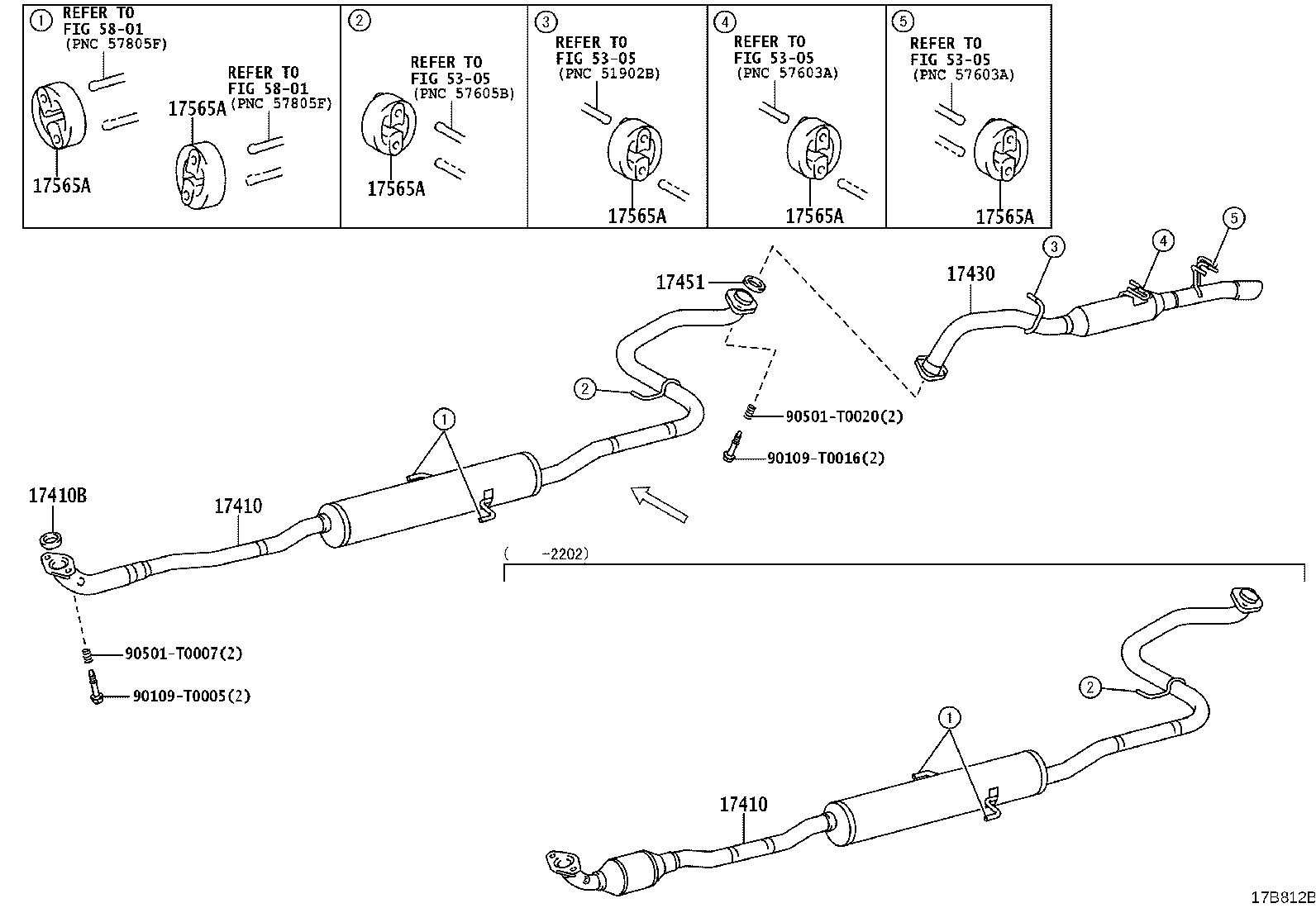

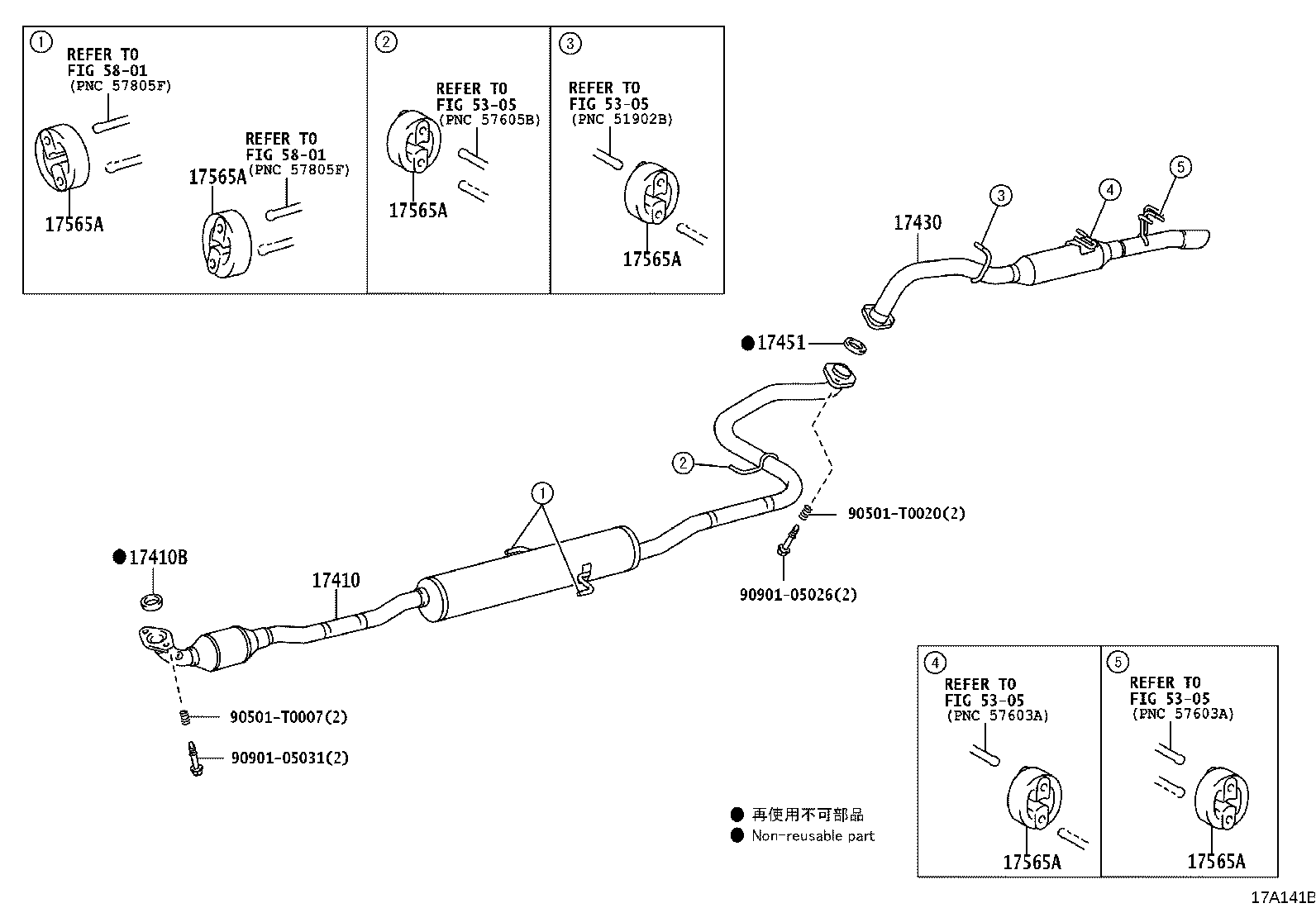

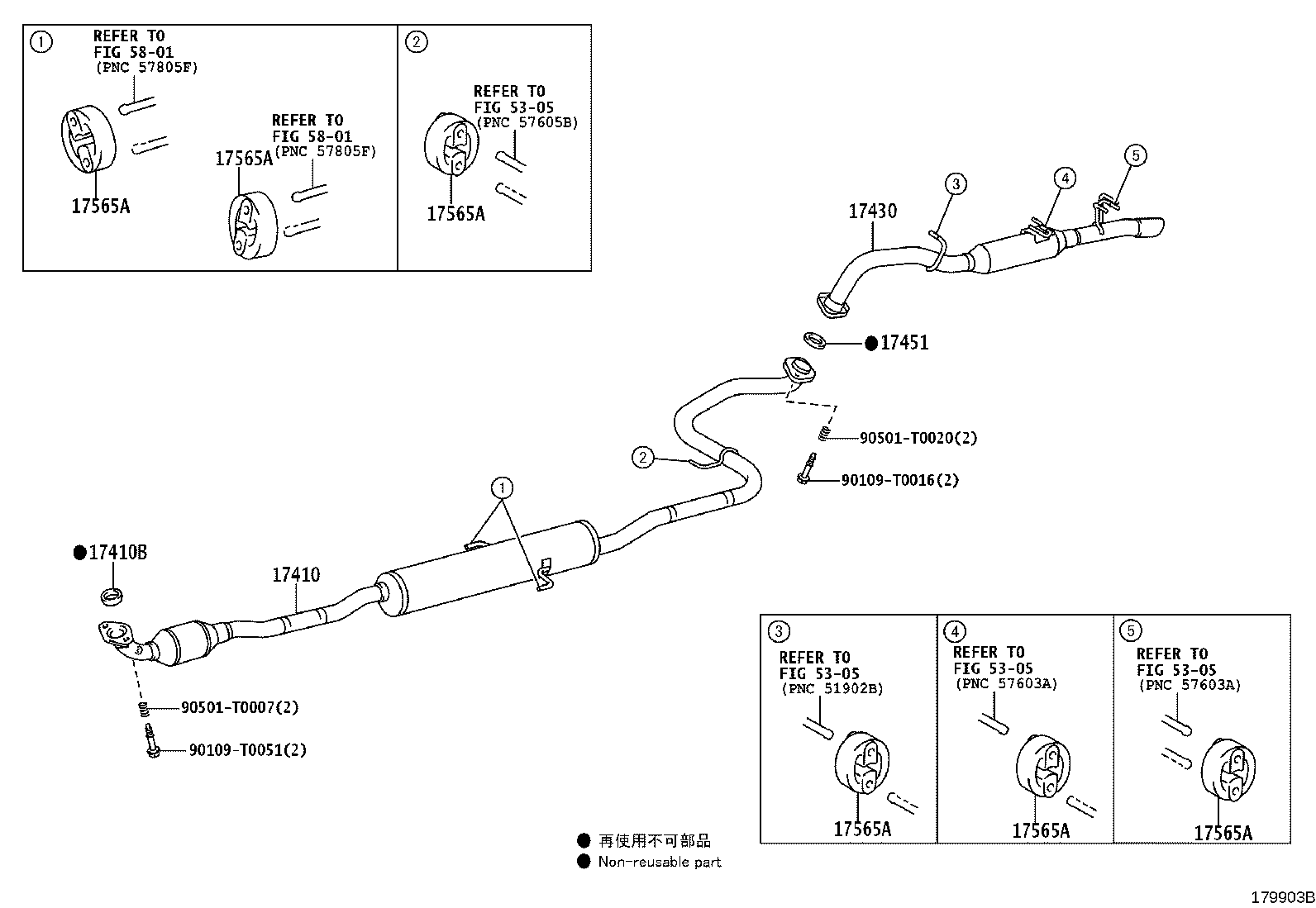

Figure 177995E 177995E 2013-04 → — Figure 179245C 179245C 2016-04 → 2017-02 Figure 179245C 179245C 2016-04 → 2017-04 Figure 179245C 179245C 2016-04 → 2017-07 Figure 179245C 179245C 2016-04 → 2017-07 Figure 179245C 179245C 2017-08 → — Figure 179586D 179586D 2017-02 → — Figure 17B812B 17B812B 2020-03 → — Figure 179381B 179381B 2016-10 → 2018-01 Figure 179381B 179381B 2016-10 → — Figure 179382B 179382B 2016-10 → — Figure 179658B 179658B 2017-04 → — Figure 179658B 179658B 2017-07 → — Figure 179903B 179903B 2018-01 → — Figure 17A141B 17A141B 2018-07 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
