Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 8 illustrations

Illustrations

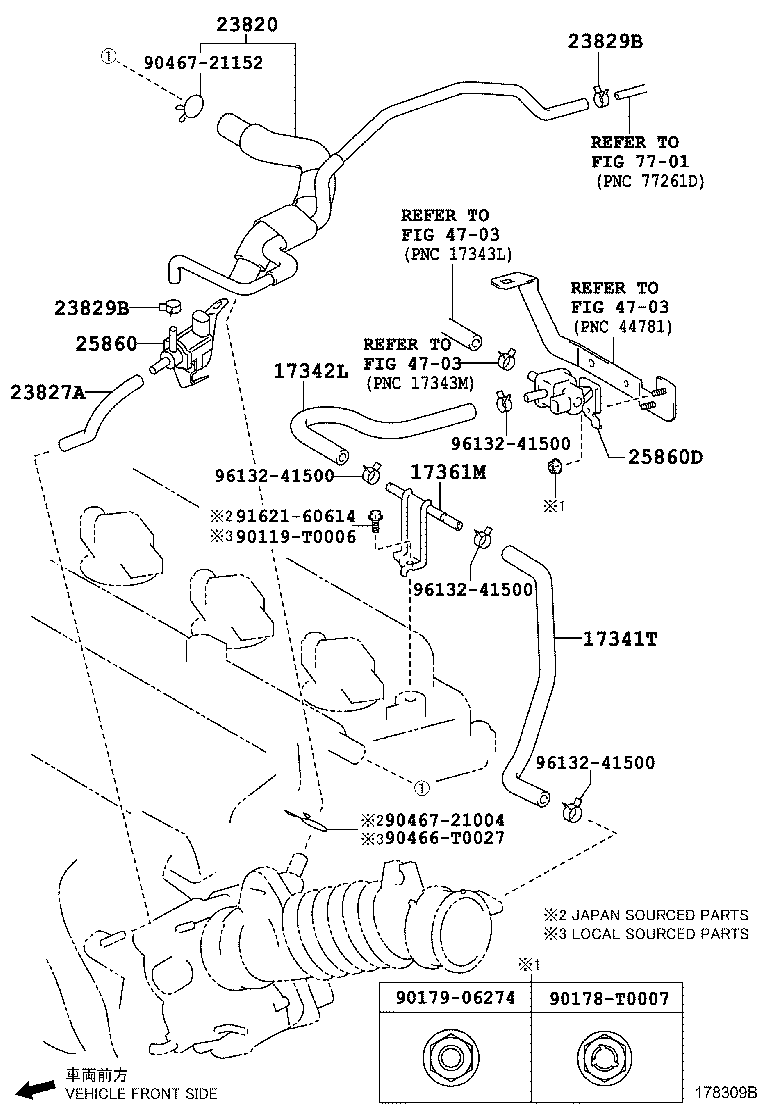

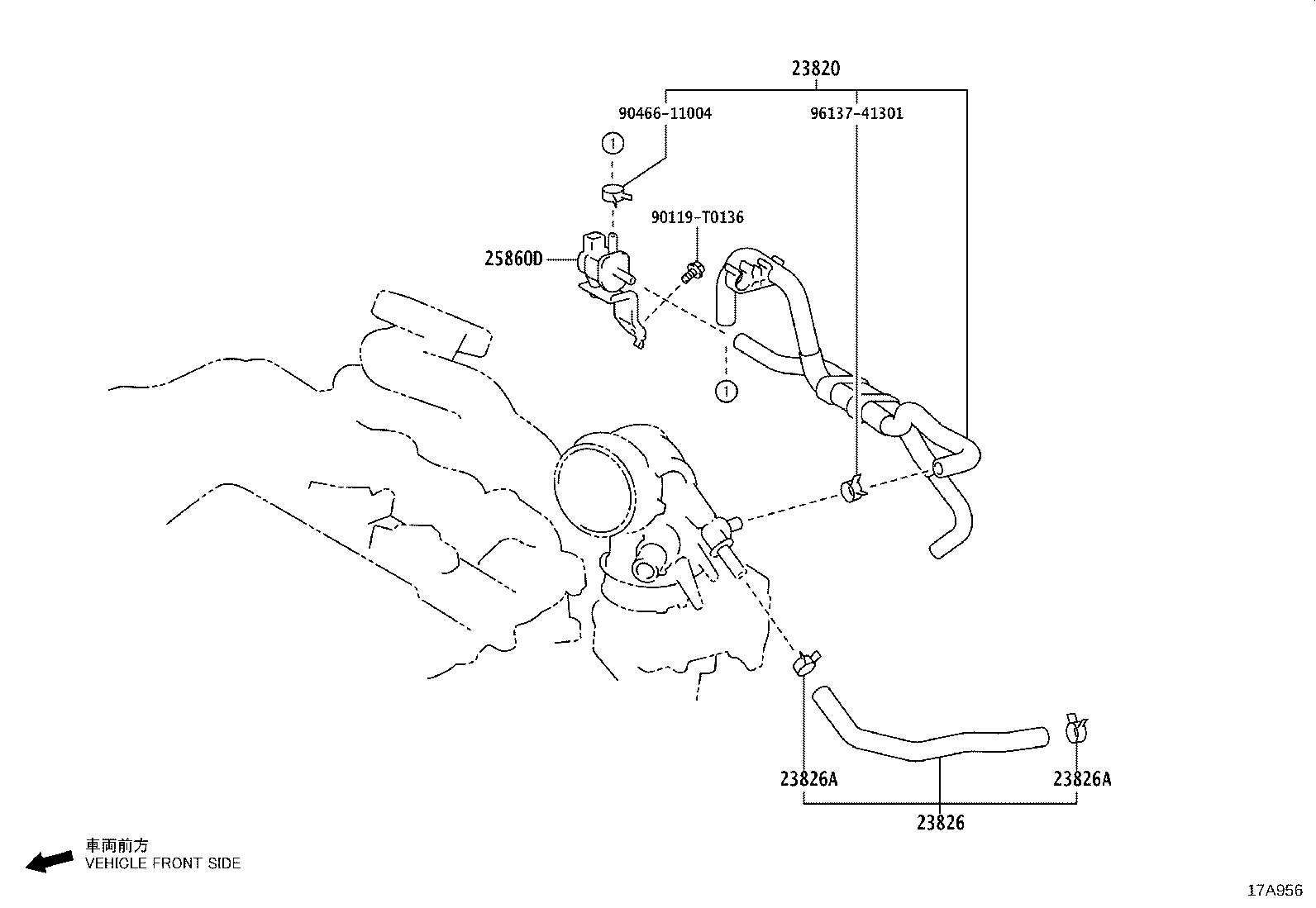

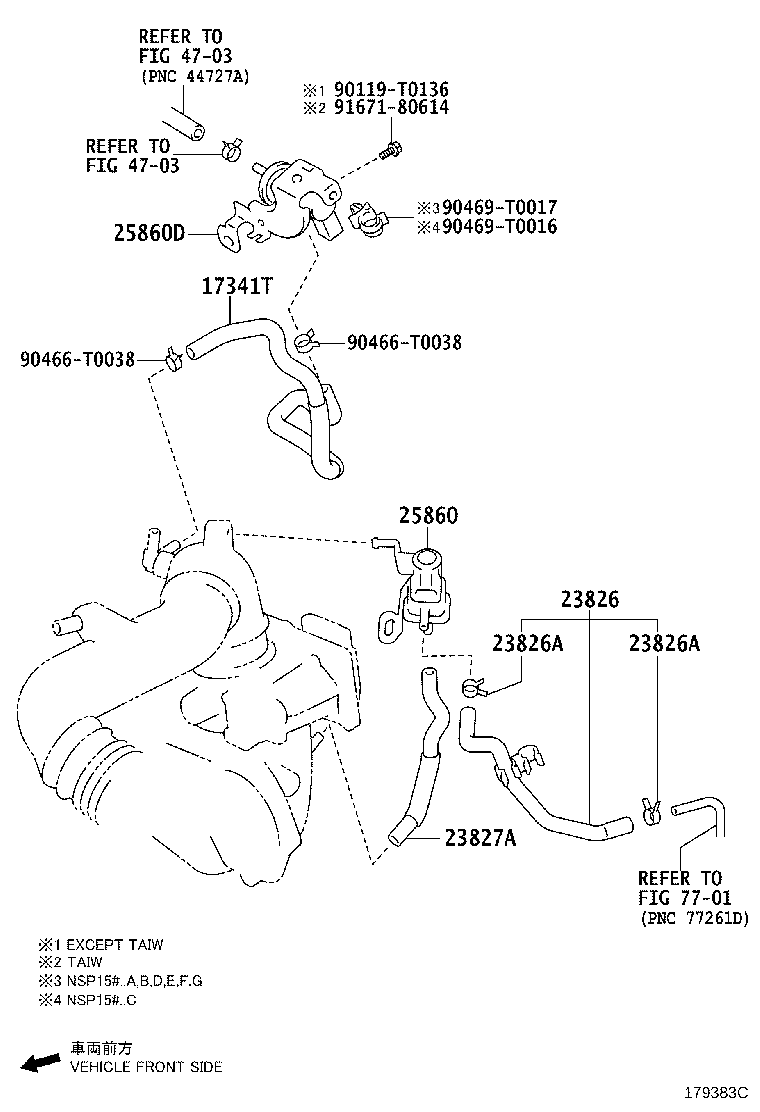

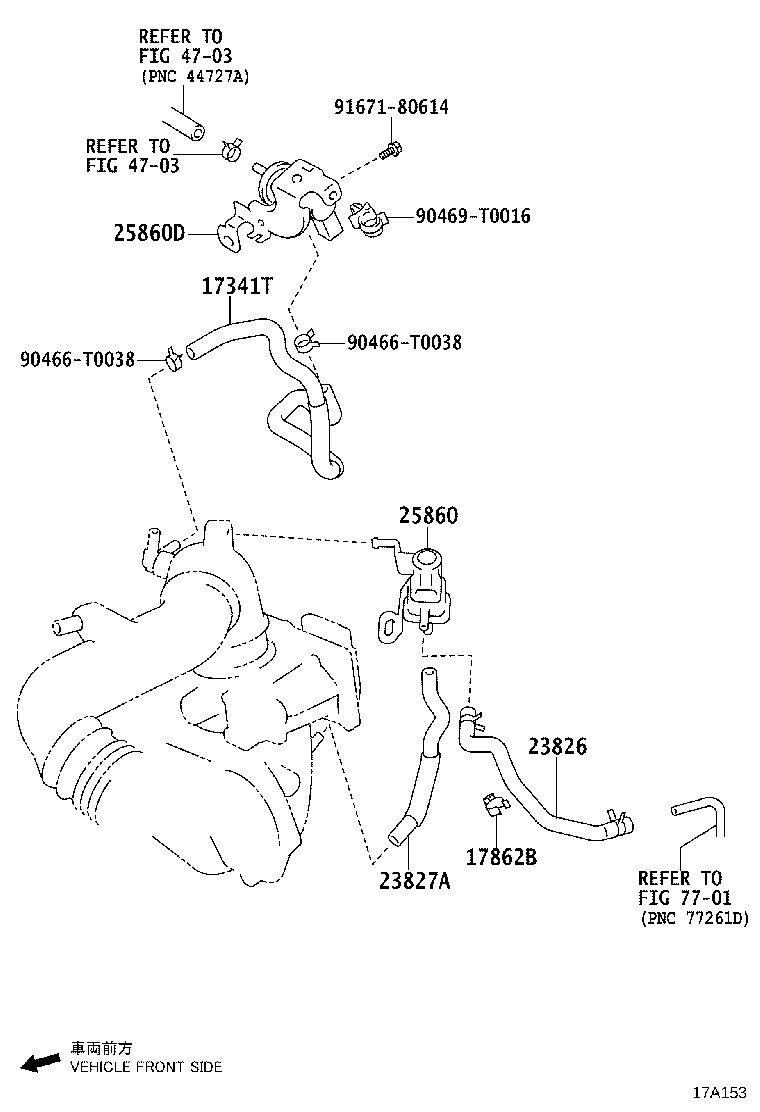

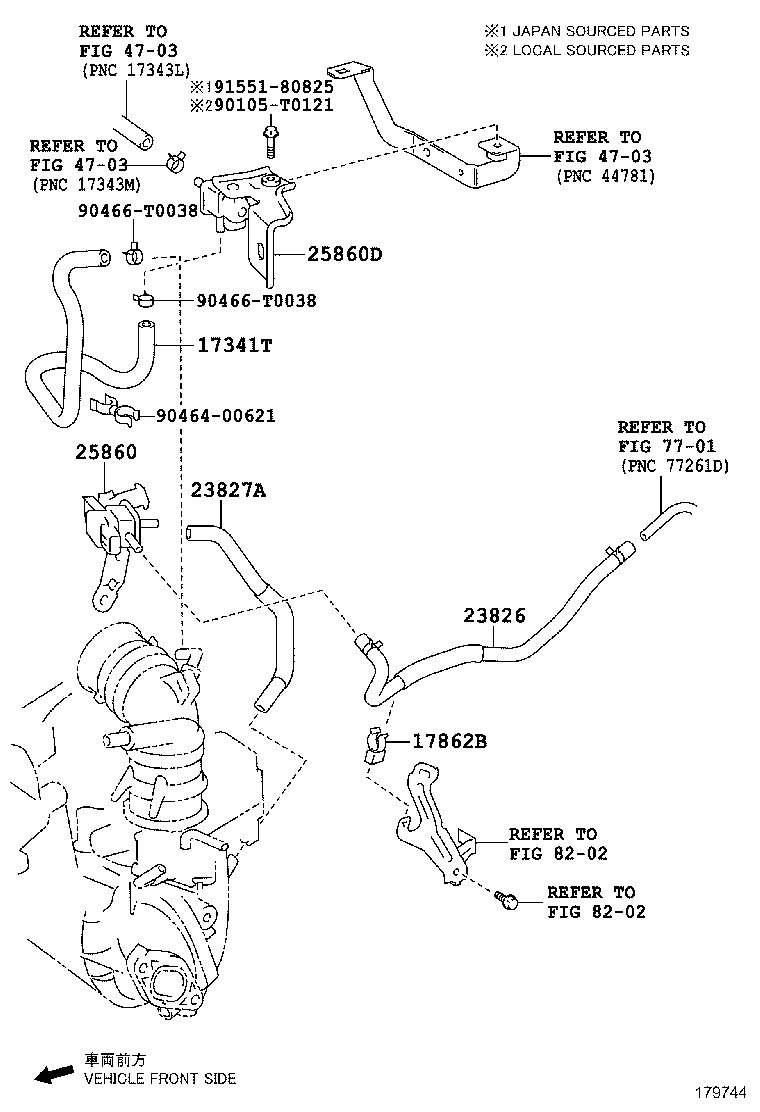

Figure 177988B 177988B 2013-04 → — Figure 178309B 178309B 2013-04 → — Figure 179266 179266 2016-04 → — Figure 179383C 179383C 2016-04 → — Figure 179744 179744 2017-08 → — Figure 17A155 17A155 2018-07 → — Figure 17A153 17A153 2018-07 → — Figure 17A956 17A956 2019-11 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17361M Tube, Air
17862B Clamp, Hose
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
