Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

10 part groups · 10 illustrations

Illustrations

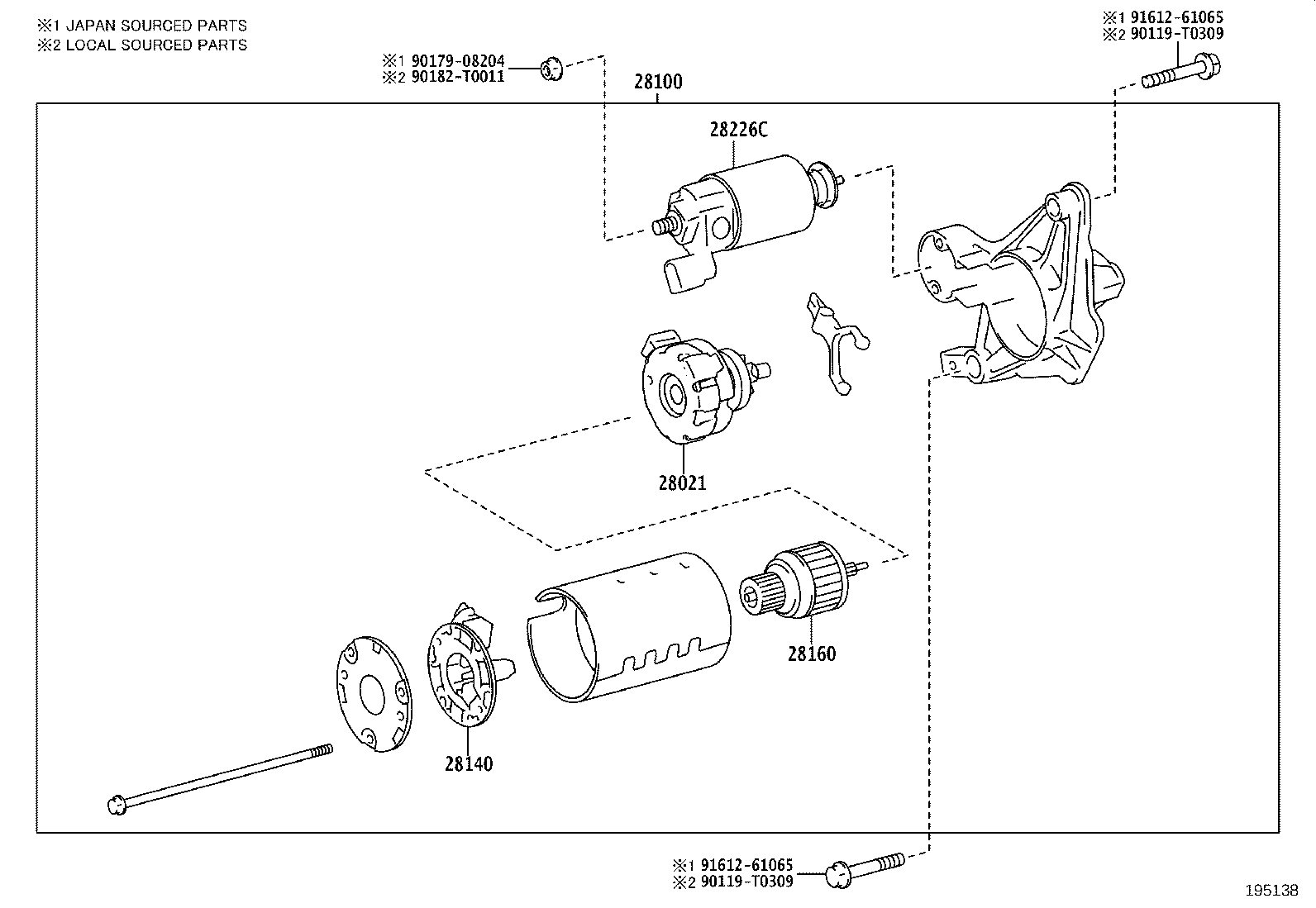

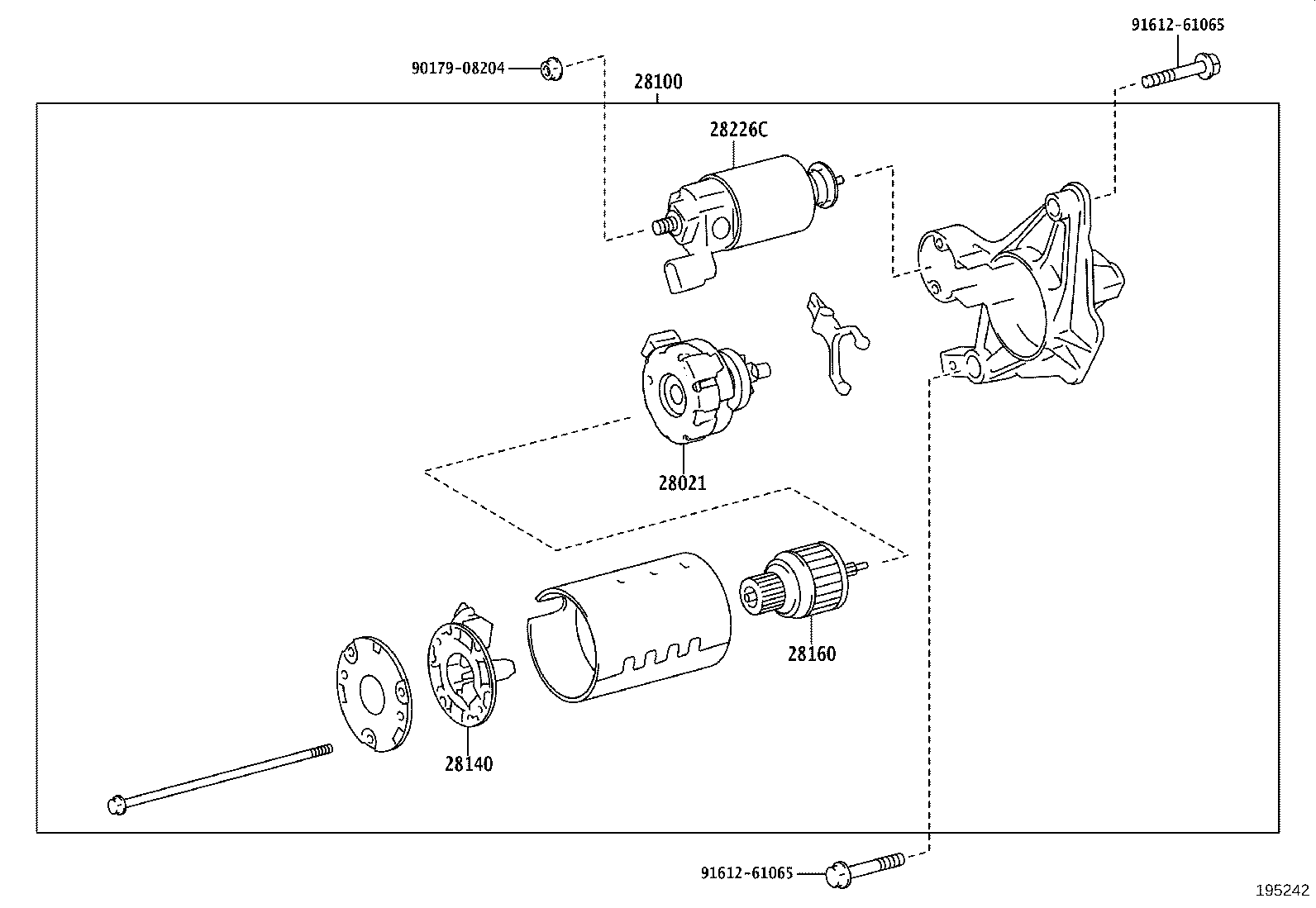

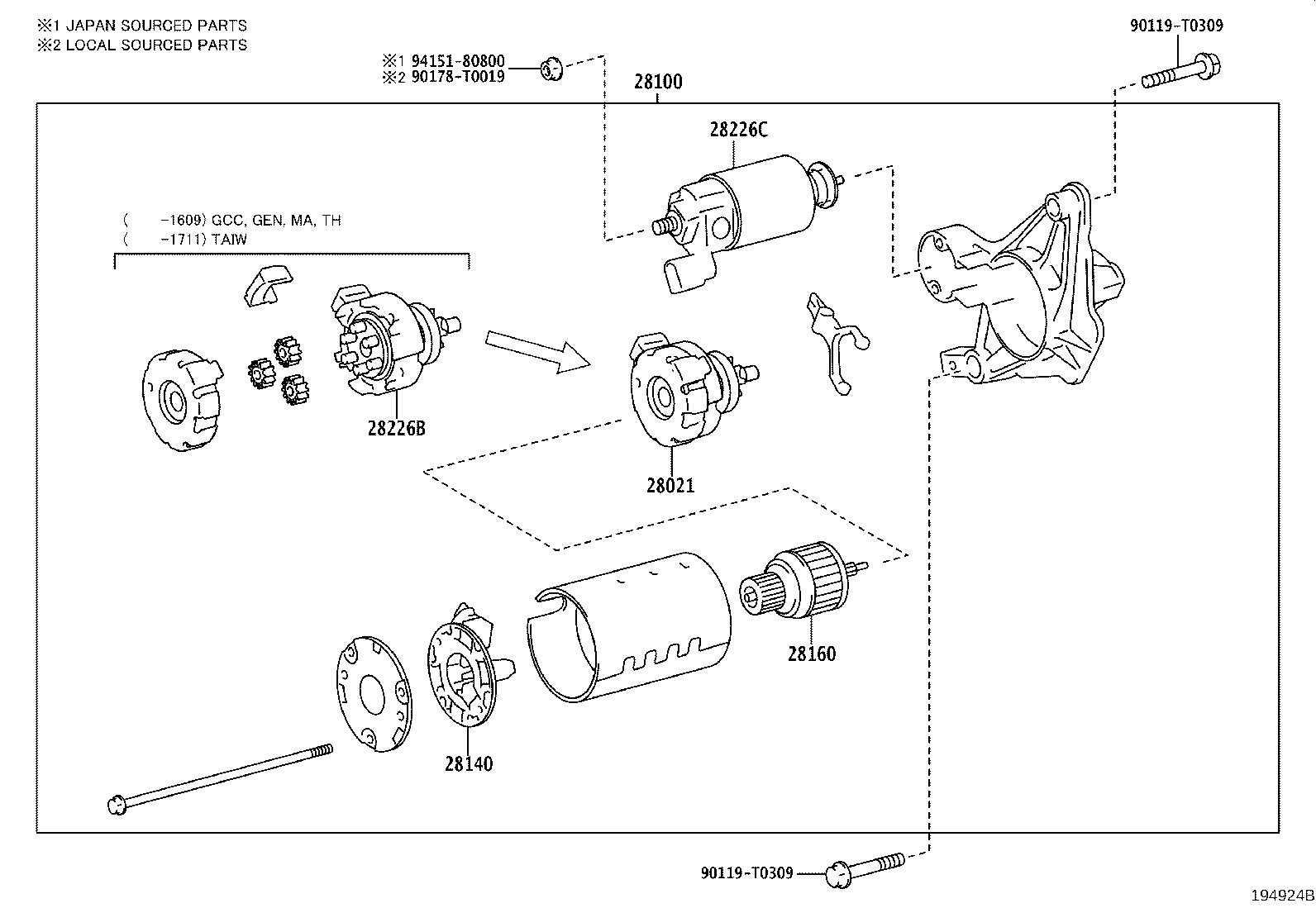

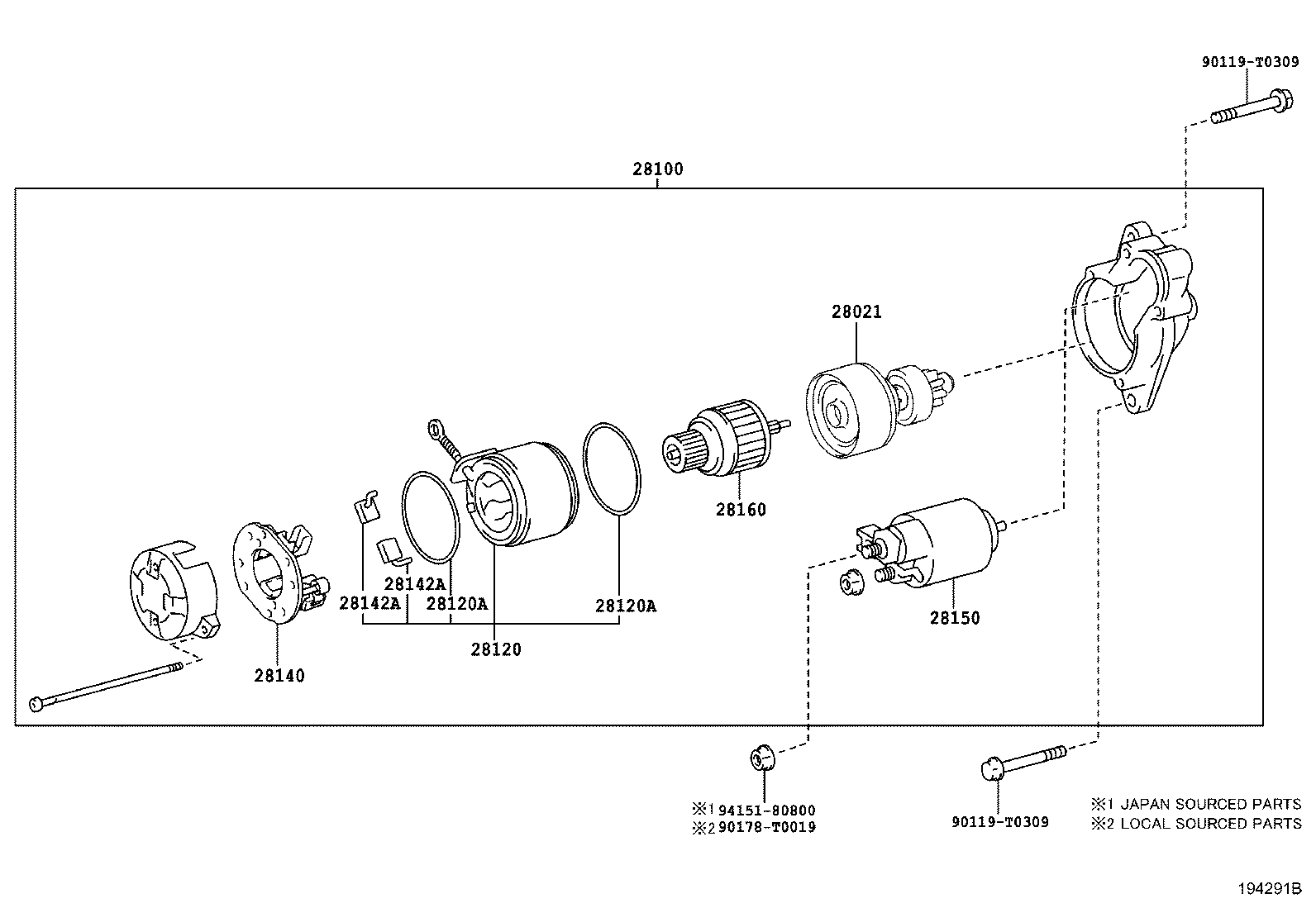

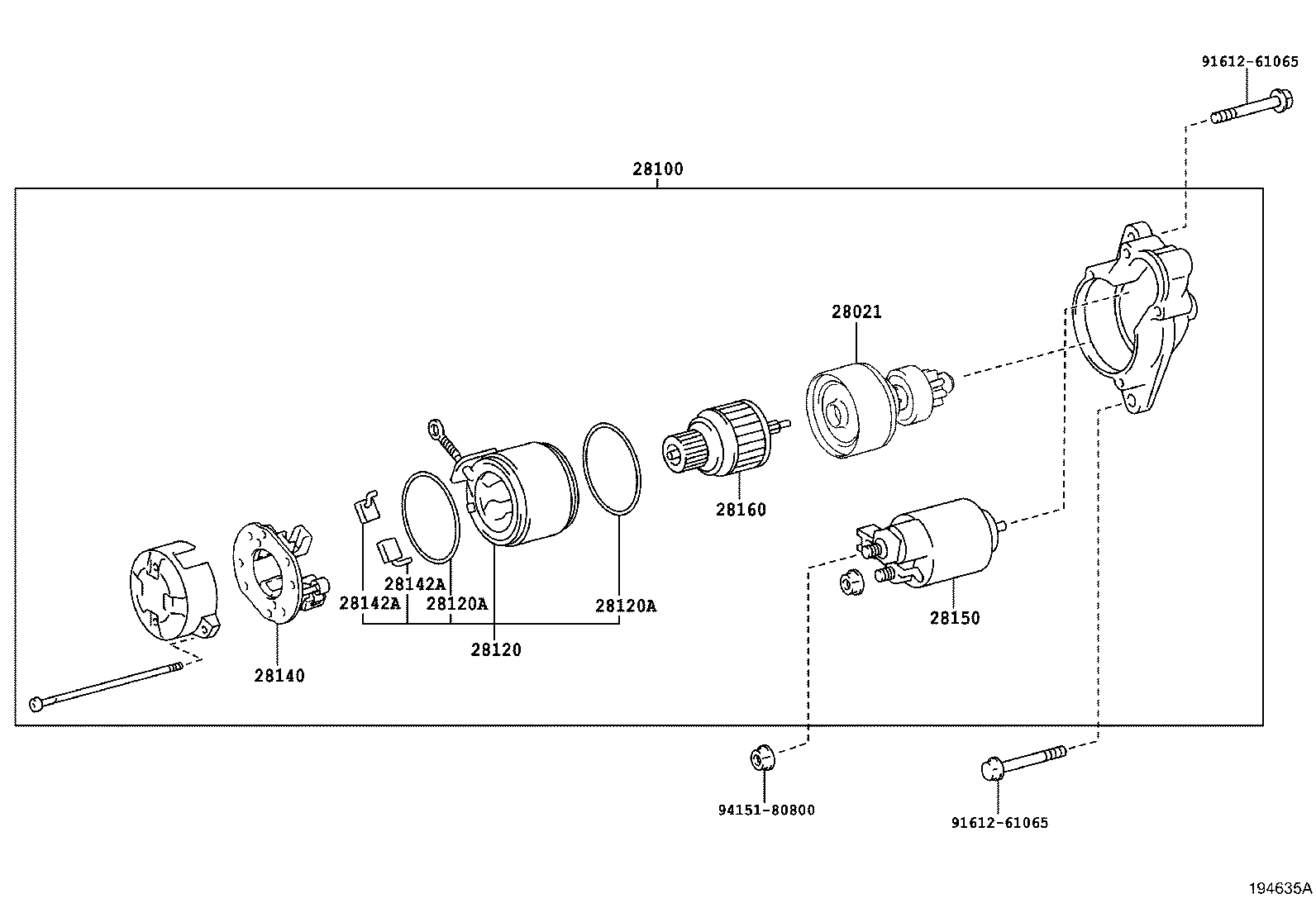

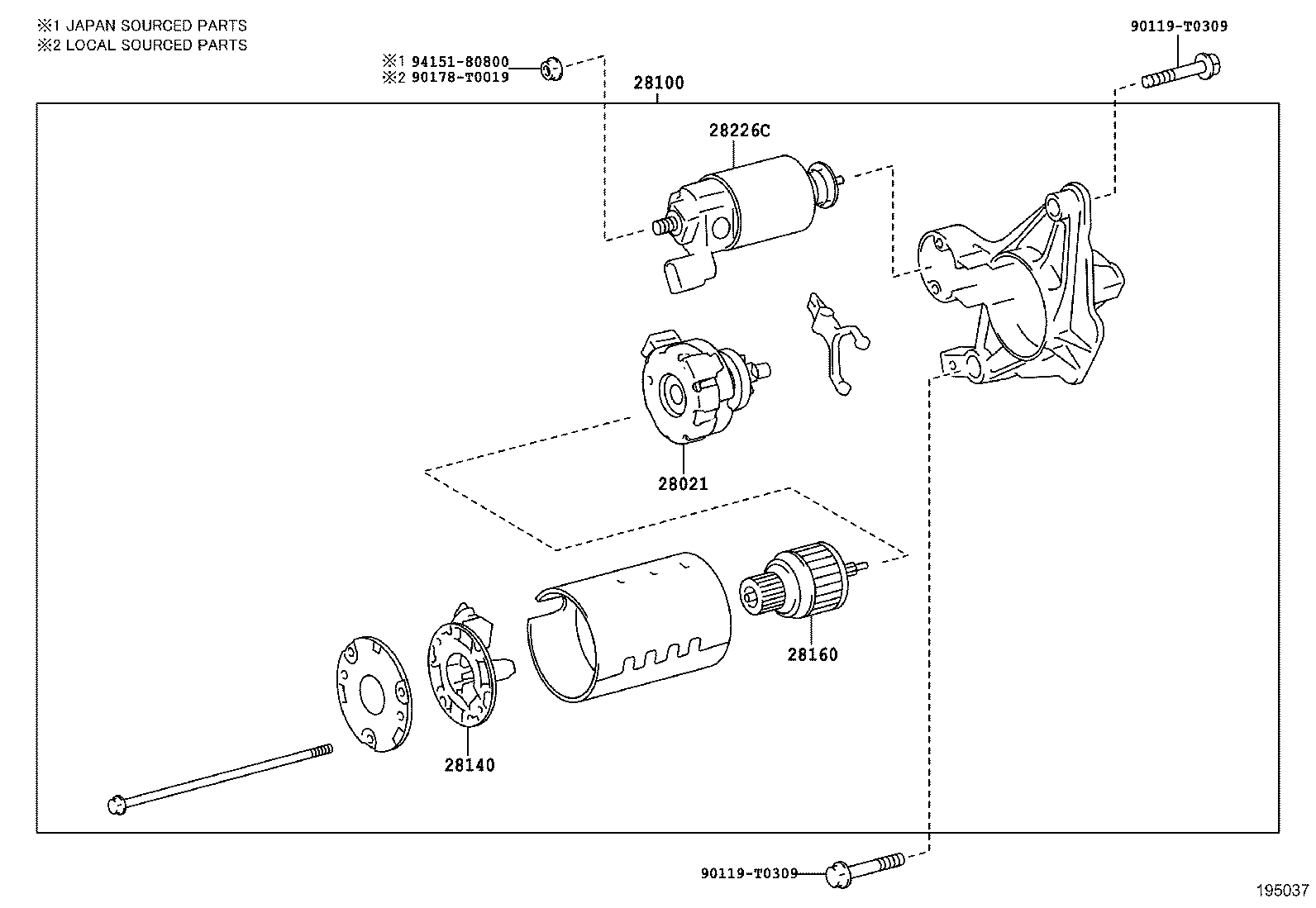

Figure 194291B 194291B 2013-04 → 2016-09 Figure 194635A 194635A 2014-04 → 2016-04 Figure 194924B 194924B 2016-04 → — Figure 194924B 194924B 2016-08 → 2018-12 Figure 195037 195037 2017-08 → — Figure 195037 195037 2019-01 → — Figure 195037 195037 2020-03 → 2020-11 Figure 195138 195138 2018-04 → — Figure 195242 195242 2018-07 → — Figure 195940 195940 2020-11 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28142A Starter Kit
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28226B Starter Kit, Repair Service
28226C Starter Kit, Repair Service, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
