Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

21 part groups · 11 illustrations

Illustrations

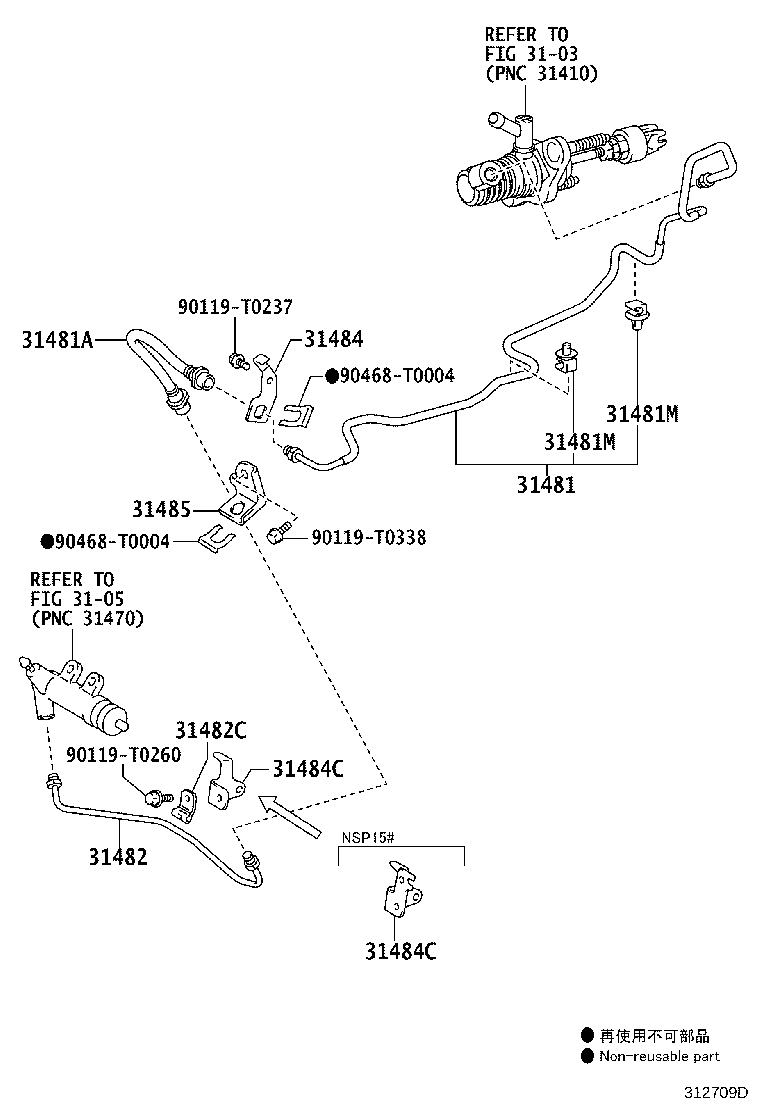

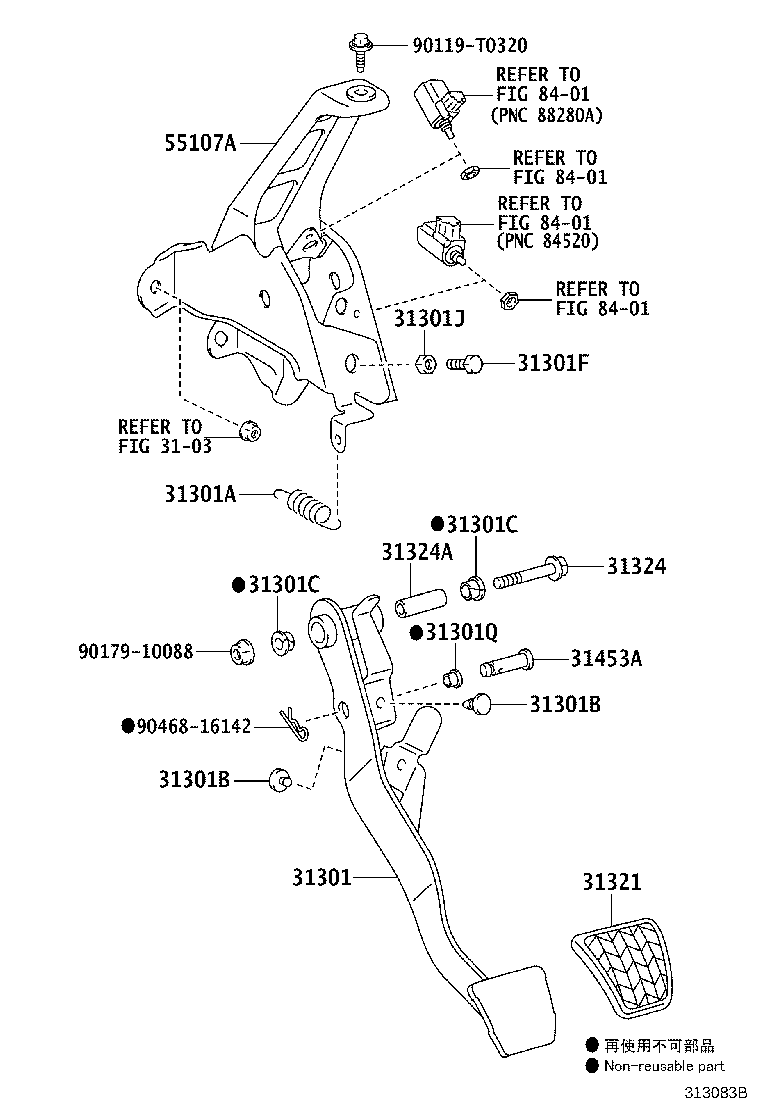

Figure 312708C 312708C 2013-07 → — Figure 313269A 313269A 2018-07 → — Figure 312710B 312710B 2013-04 → — Figure 313245A 313245A 2018-04 → — Figure 313083B 313083B 2016-04 → — Figure 313415C 313415C 2020-03 → — Figure 312709D 312709D 2013-07 → — Figure 313270A 313270A 2018-07 → — Figure 312707D 312707D 2013-04 → — Figure 313246A 313246A 2018-04 → — Figure 313416B 313416B 2020-03 → —

Part groups

PNCDescription

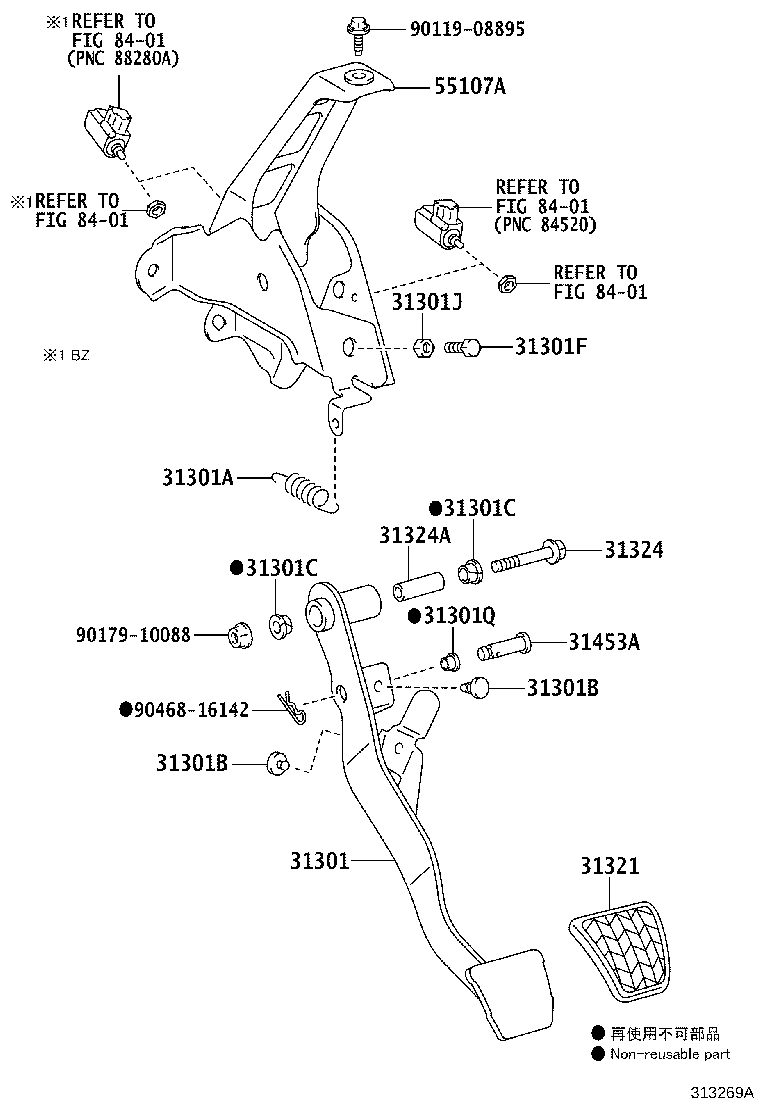

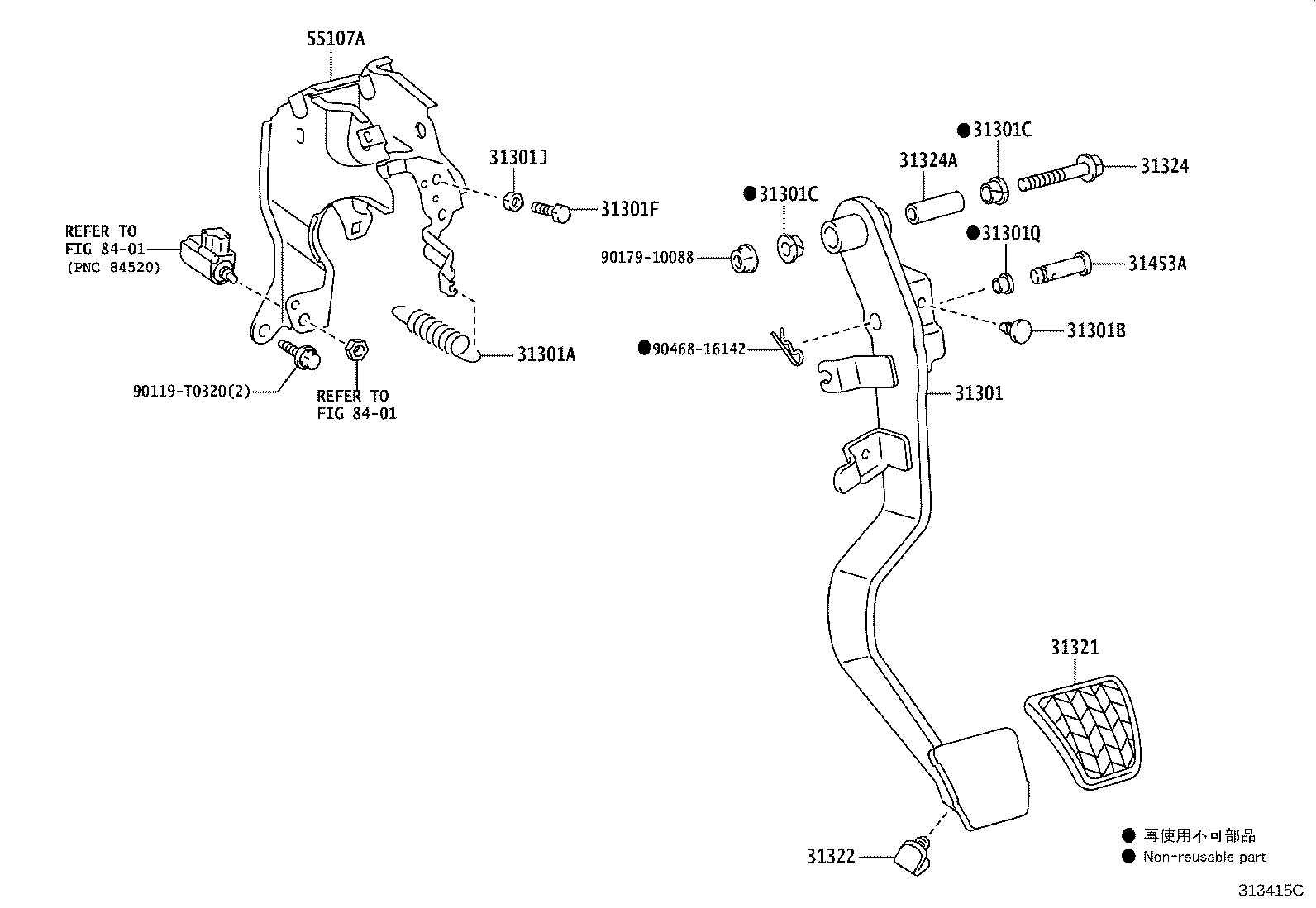

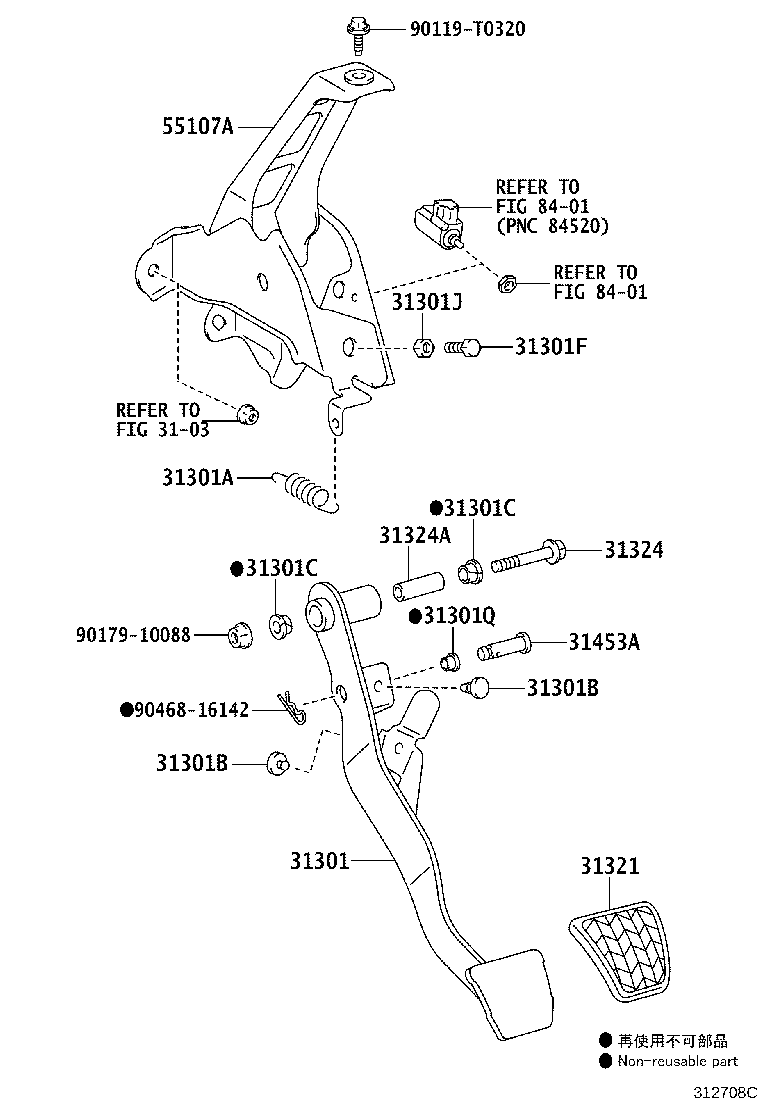

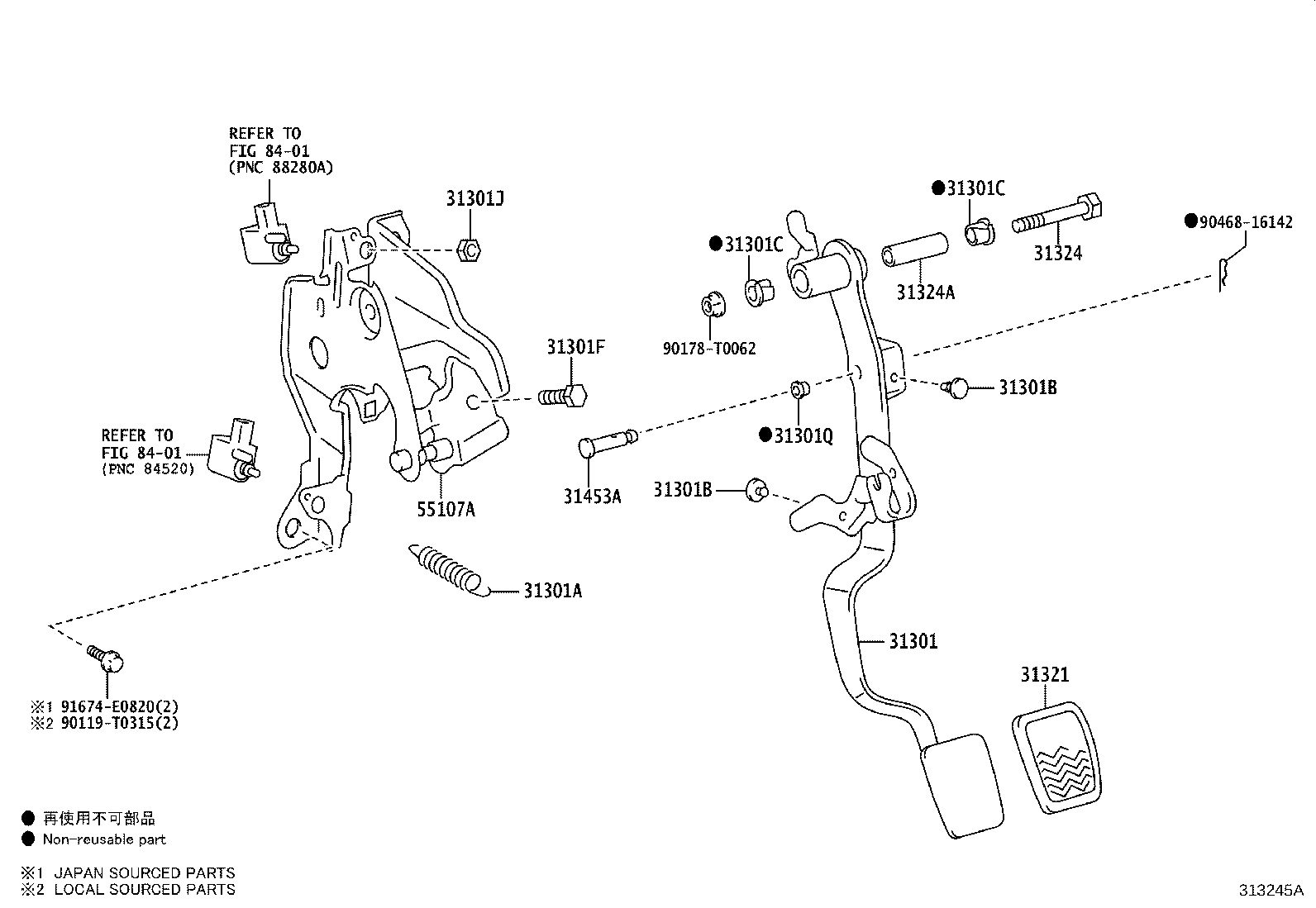

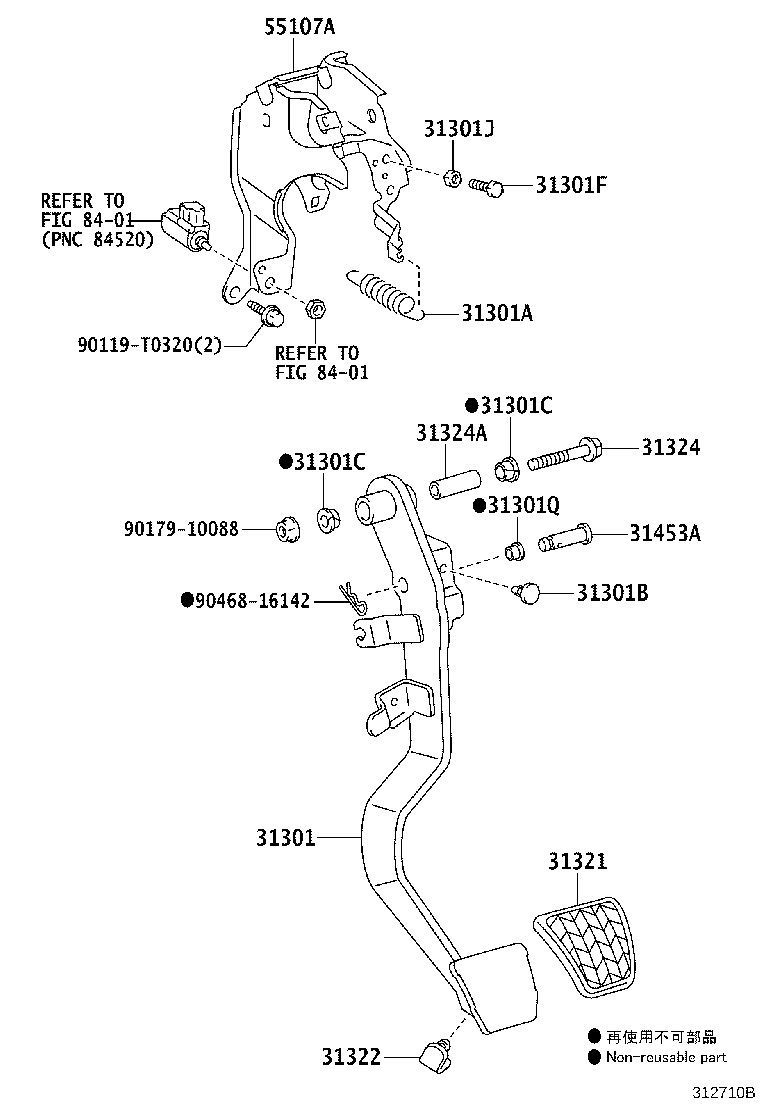

31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31301Q Bush(FOR CLUTCH PEDAL SPRING)
31321 Pad, Clutch Pedal
31322 Stopper, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

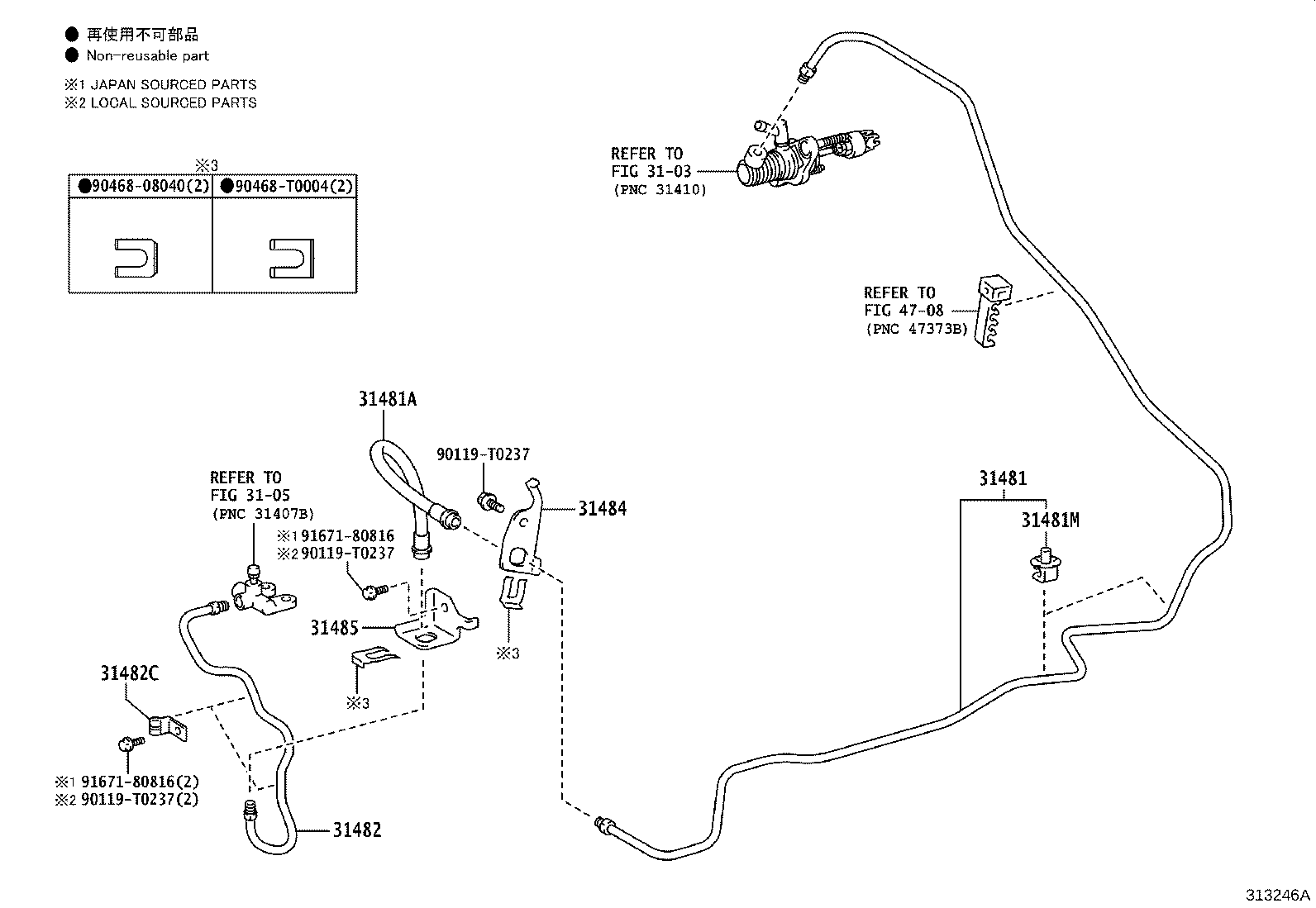

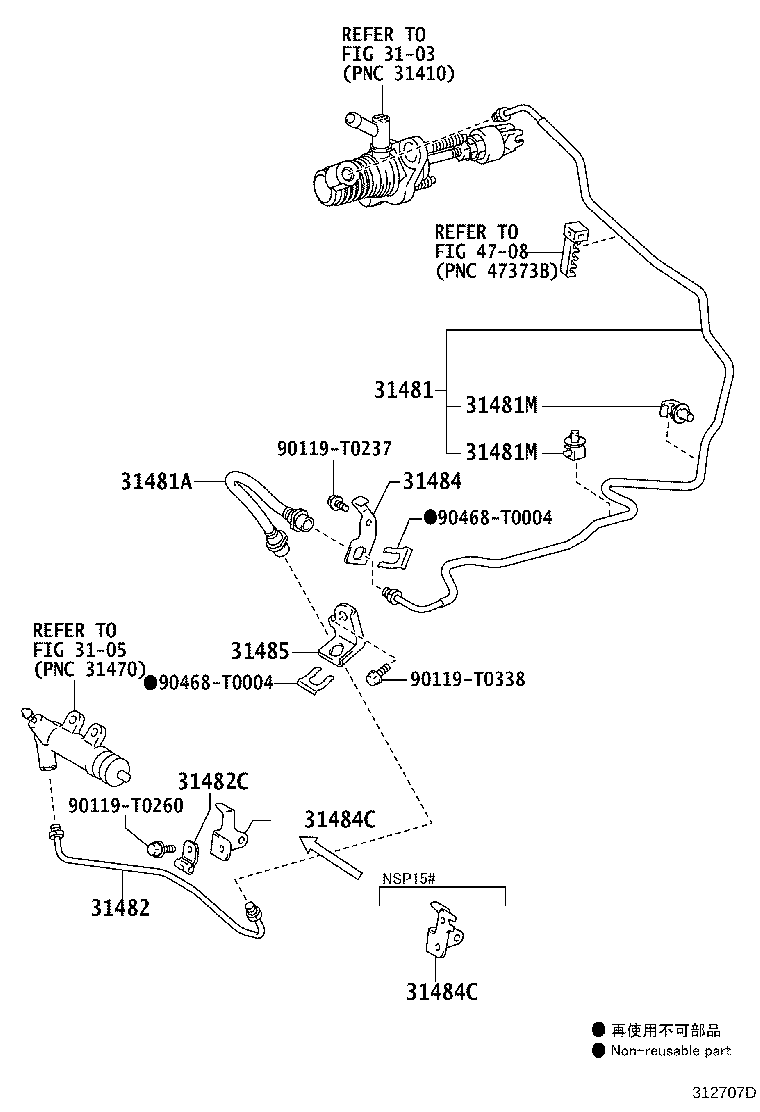

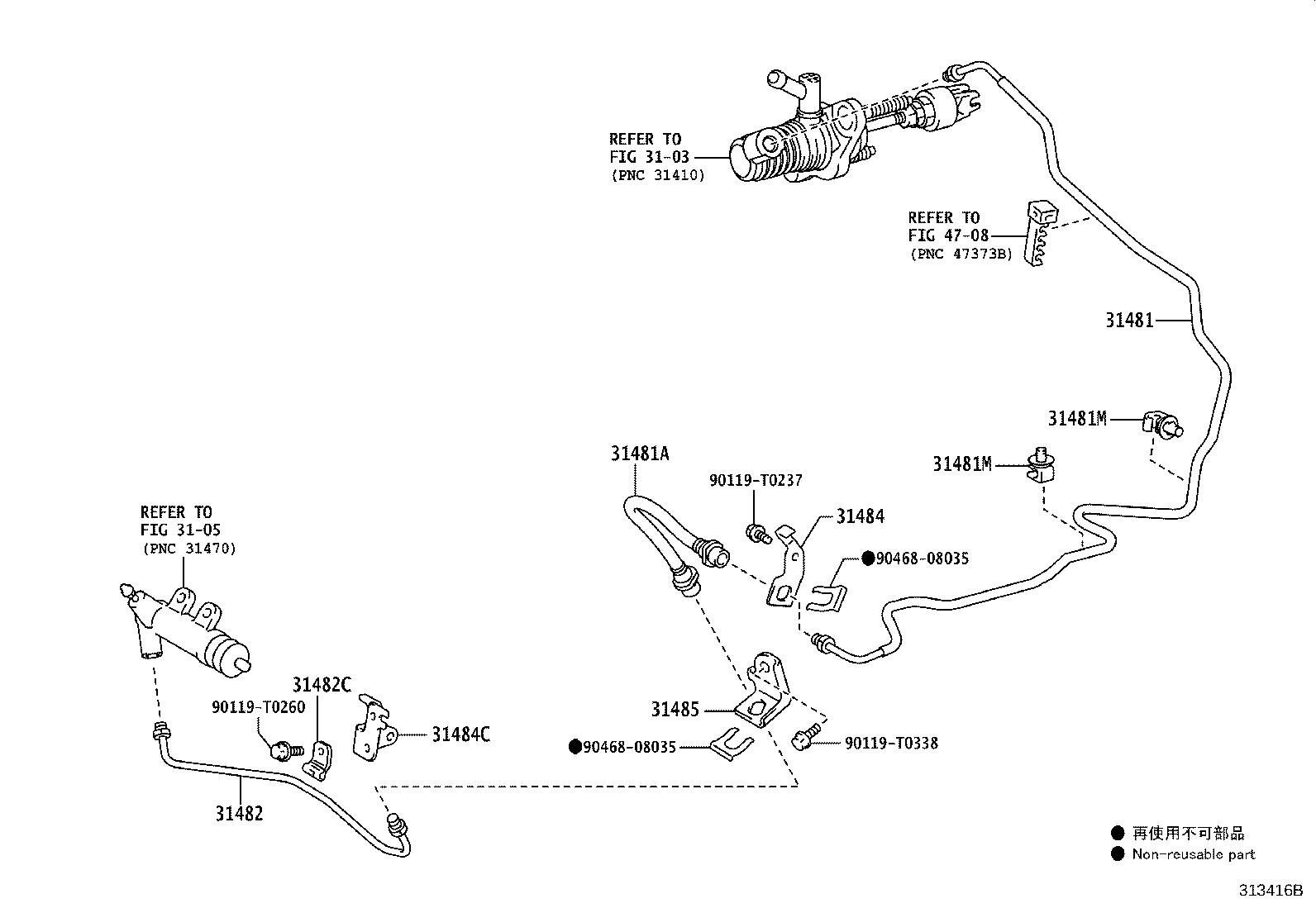

31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482C Clamp(FOR CLUTCH TUBE)
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
