Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

4 part groups · 4 illustrations

Illustrations

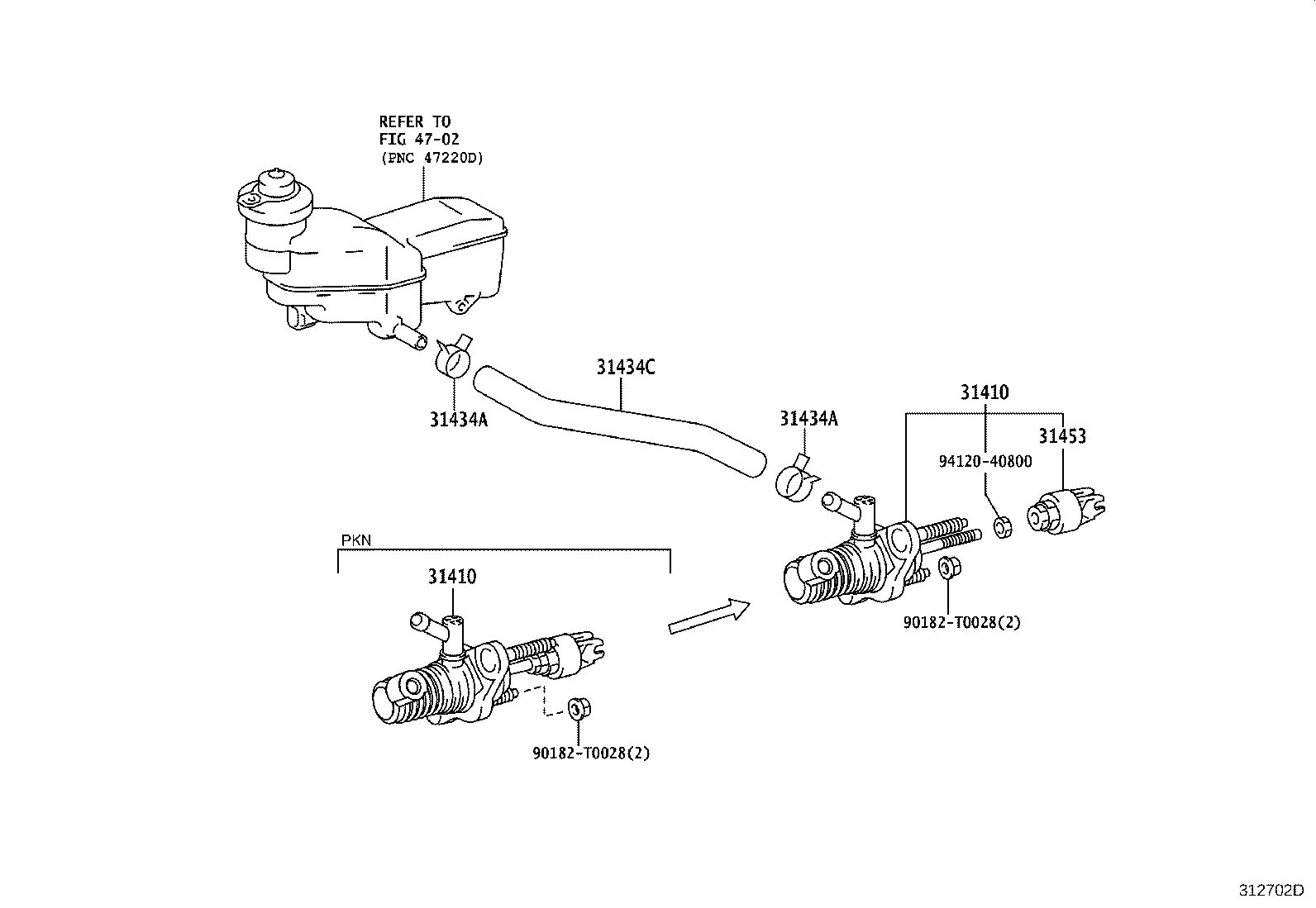

Figure 312703B 312703B 2013-07 → — Figure 313262 313262 2018-07 → — Figure 312702D 312702D 2013-04 → — Figure 313247 313247 2018-04 → —

Part groups

PNCDescription
31410 Cylinder Assy, Clutch Master
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31434C Tube, Clutch Reservoir
31453 Clevis, Clutch Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
