Toyota Yaris/Vios/Limo
2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States
Supported model
Data version 2019-11

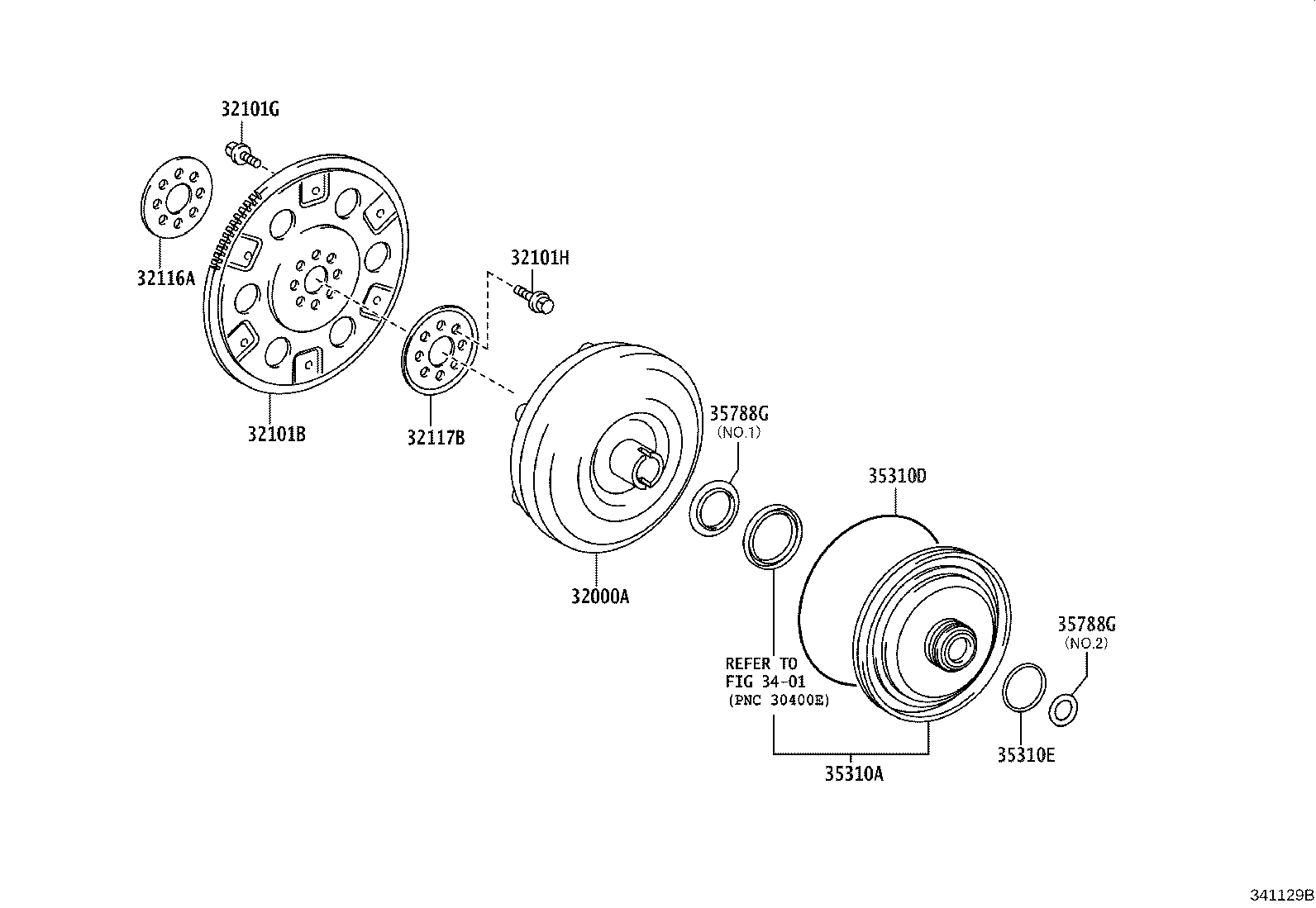

Torque Converter, Front Oil Pump(CVT)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32000A | Converter Assy, Torque |
| 32101B | Gear Sub-assy, Drive Plate & Ring |
| 32101G | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101H | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32116A | Spacer, Drive Plate, Front |
| 32117B | Spacer, Drive Plate, Rear |
| 35310A | Pump Assy, Front Oil |
| 35310D | Ring, O (FOR FRONT OIL PUMP) |
| 35310E | Seal, Type T Oil (FOR FRONT OIL PUMP) |
| 35788G | Race, Thrust Bearing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
