Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

9 part groups · 1 illustrations

Illustrations

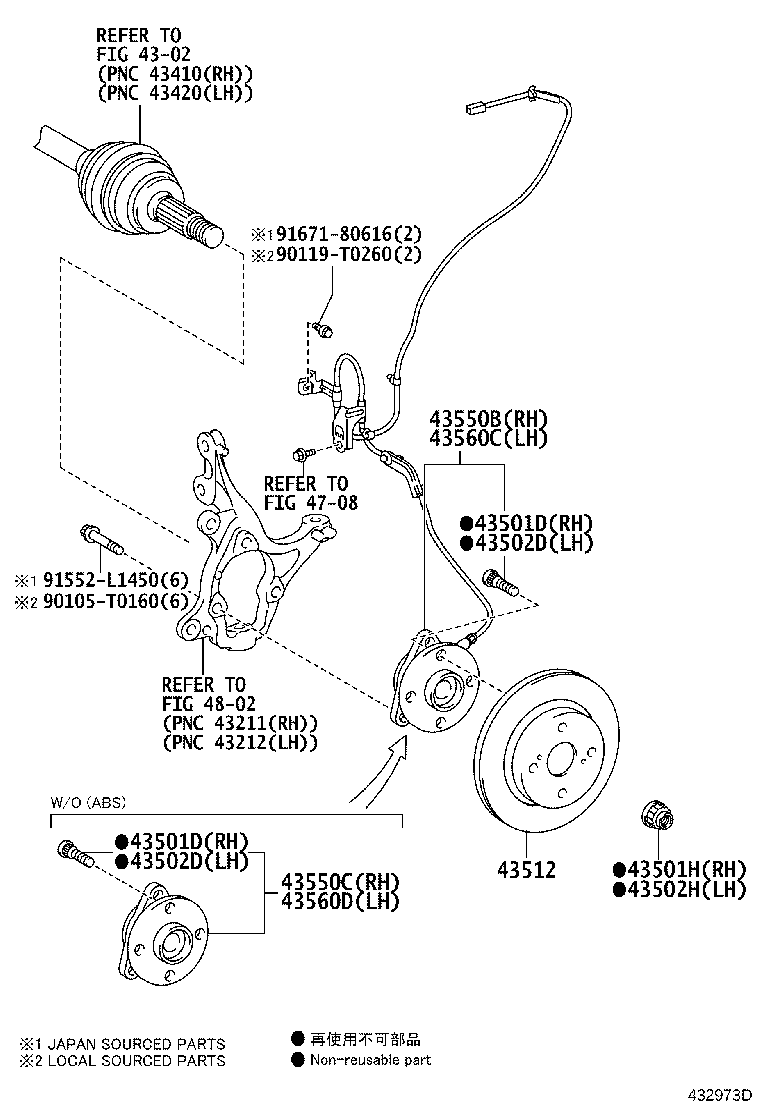

Figure 432973D 432973D 2013-04 → —

Part groups

PNCDescription
43501D Bolt, Hub (FOR FRONT AXLE RH)
43501H Nut (FOR FRONT AXLE SHAFT RH)
43502D Bolt, Hub (FOR FRONT AXLE LH)
43502H Nut (FOR FRONT AXLE SHAFT LH)
43512 Disc, Front
43550B Hub & Bearing Assy, Front Axle W/Abs Sensor, RH
43550C Hub & Bearing Assy, Front Axle, RH
43560C Hub & Bearing Assy, Front Axle W/Abs Sensor, LH
43560D Hub & Bearing Assy, Front Axle, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
