Toyota Yaris/Vios/Limo
2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States
Supported model
Data version 2019-11

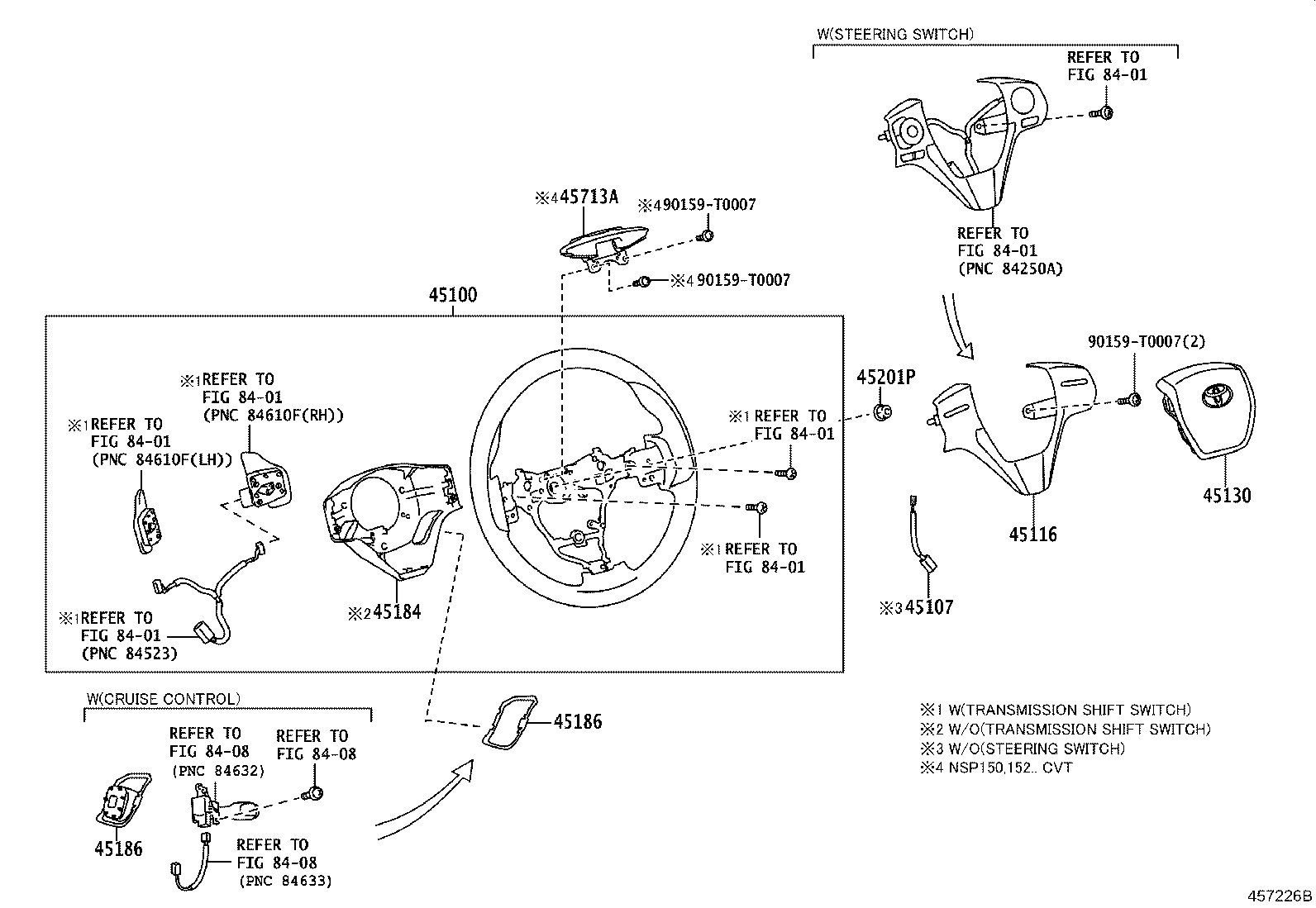

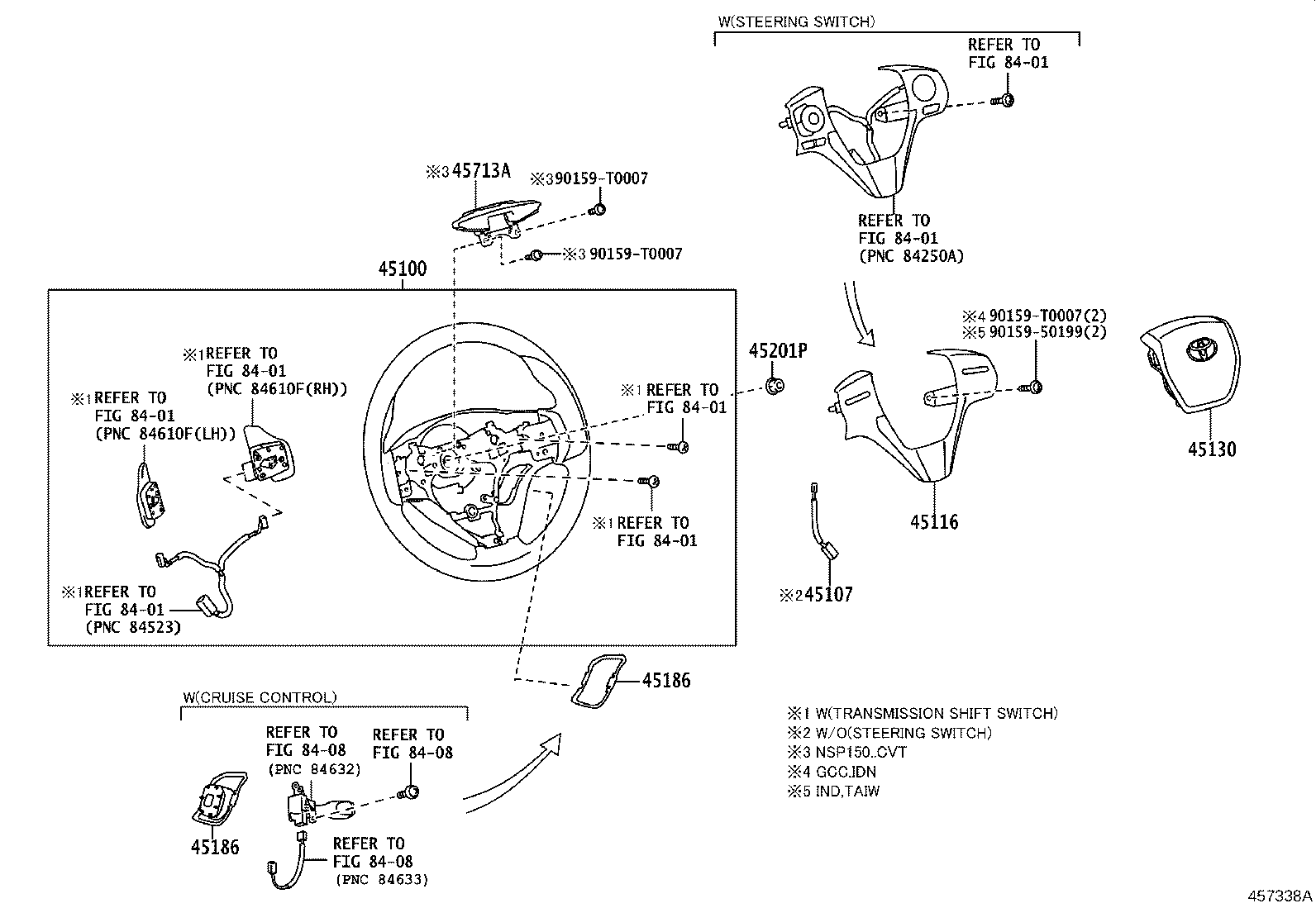

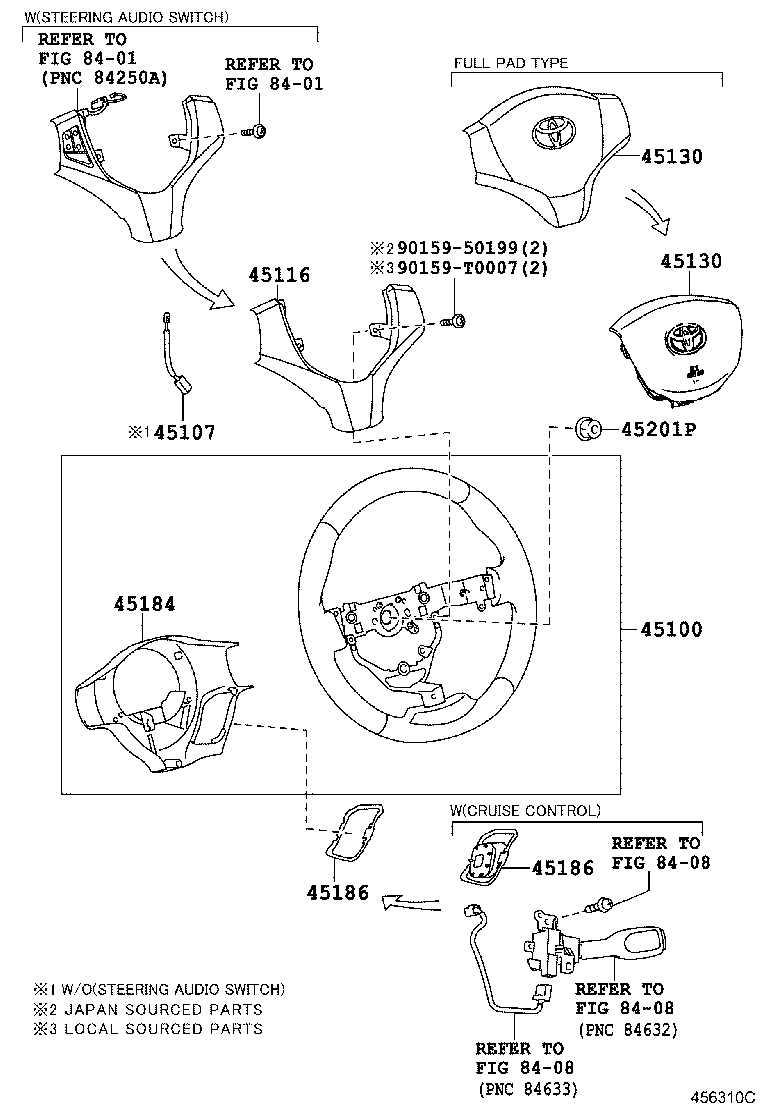

Steering Wheel
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45107 | Wire Sub-assy, Horn Button |
| 45116 | Ornament, Steering Wheel, NO.1 |
| 45130 | Button Assy, Horn |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45201P | Nut, Steering Wheel Set |
| 45713A | Damper, Steering Shake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
