Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

6 part groups · 3 illustrations

Illustrations

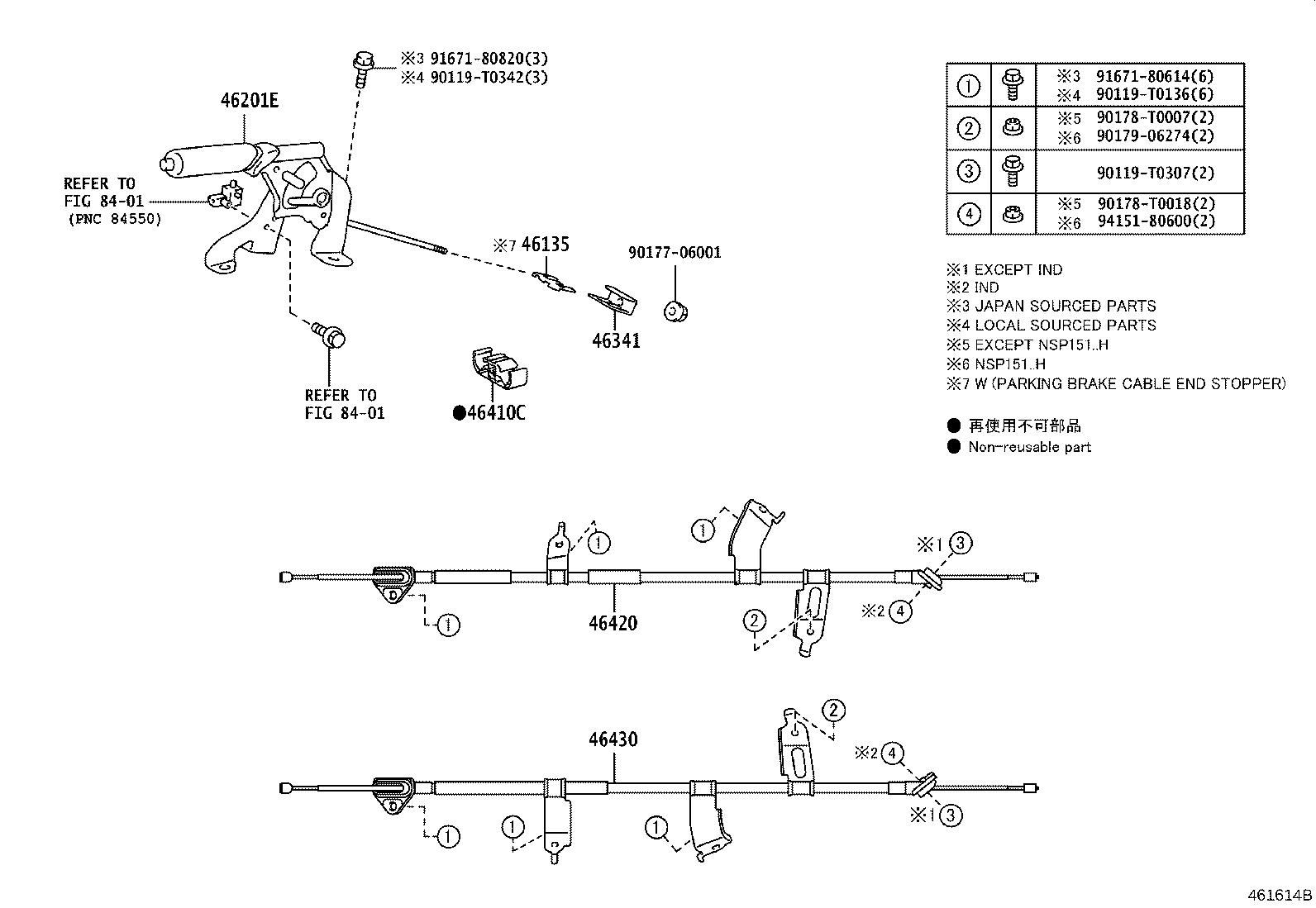

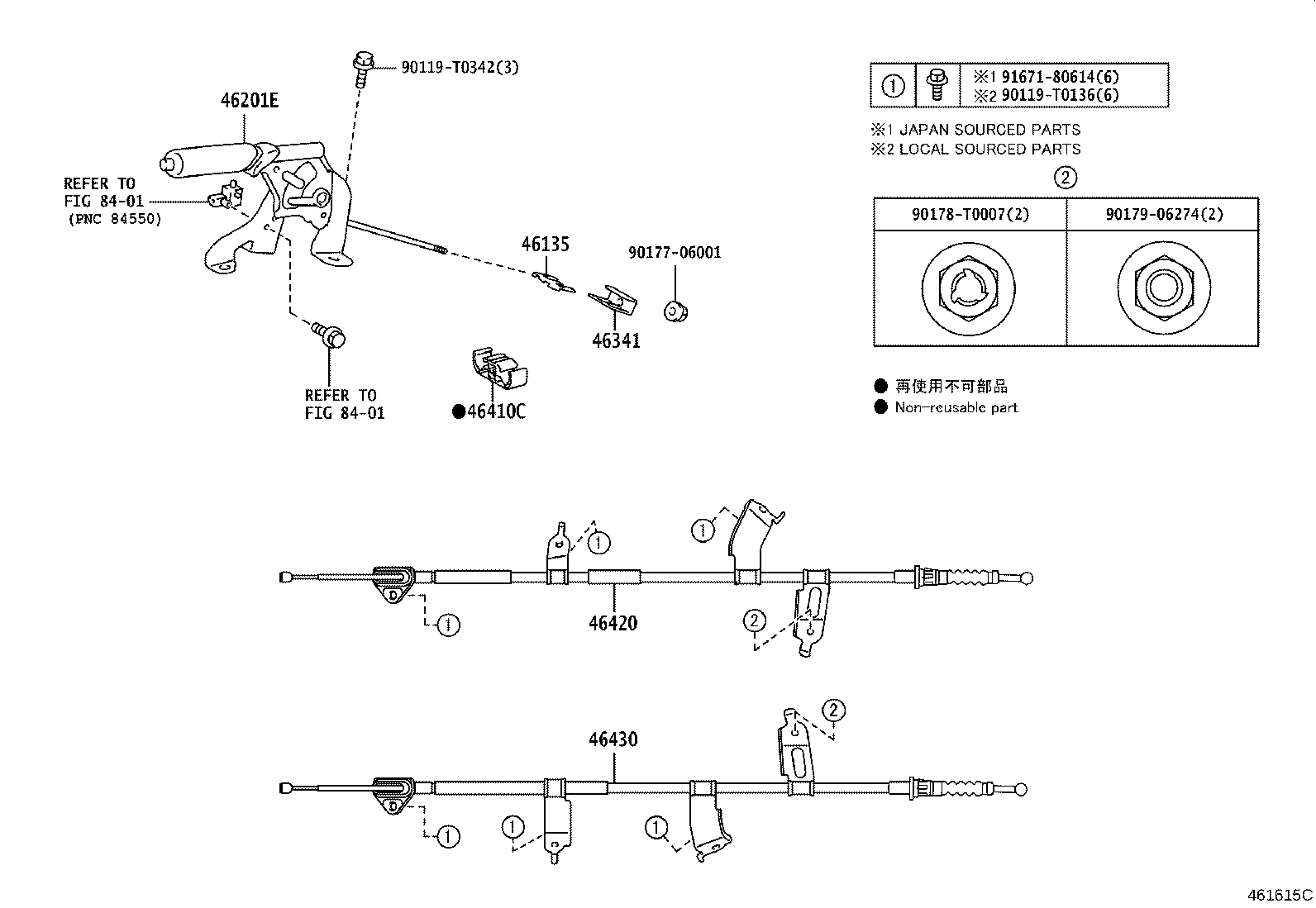

Figure 461615C 461615C 2014-09 → — Figure 461614B 461614B 2013-04 → — Figure 461394C 461394C 2014-04 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46201E Lever Sub-assy, Parking Brake
46341 Equalizer, Parking Brake
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
