Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

19 part groups · 11 illustrations

Illustrations

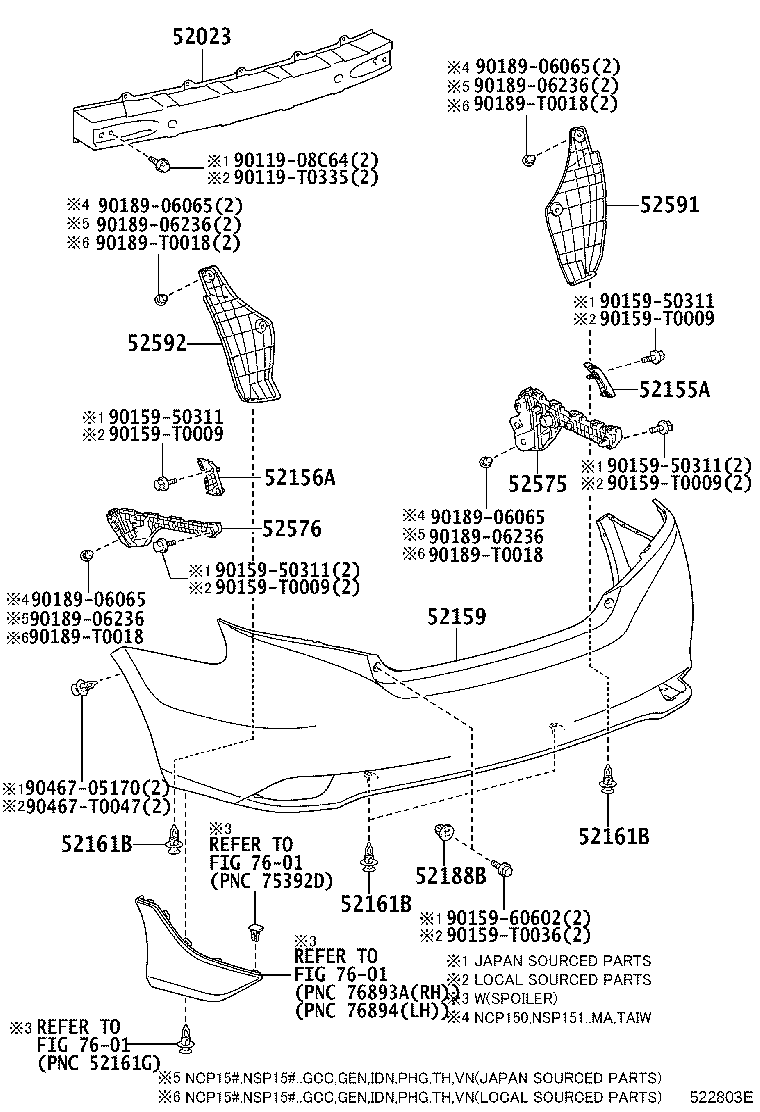

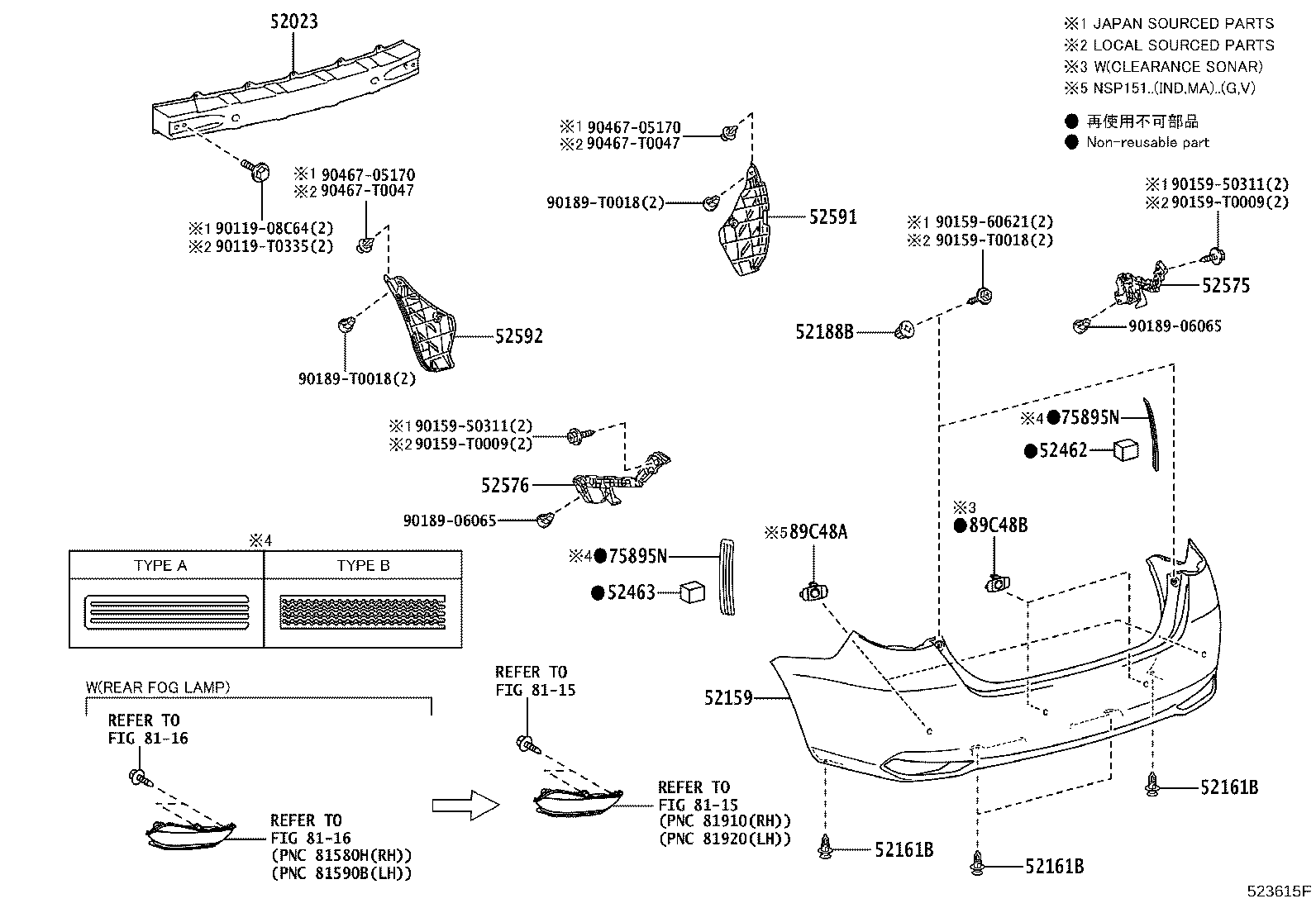

Figure 522803E 522803E 2013-04 → — Figure 522803E 522803E 2016-01 → 2018-01 Figure 522803E 522803E 2016-04 → 2018-12 Figure 522803E 522803E 2018-12 → — Figure 523615F 523615F 2017-08 → — Figure 523615F 523615F 2018-01 → — Figure 523615F 523615F 2018-07 → — Figure 523615F 523615F 2019-01 → — Figure 523615F 523615F 2019-11 → — Figure 523615F 523615F 2019-12 → — Figure 523319B 523319B 2017-01 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52169C Cover, Rear Bumper, Lower
52188B Spacer, Rear Bumper Mounting
52188E Spacer, Rear Bumper Mounting
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
75895N Tape, Moulding, NO.1
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
